Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis

Export reference
From $40,278
MSRP ¥29M CNY
Horsepower: 340
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 12.74ton
seating capacity: 2Personnel
Rated payload: 18.13ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, 18.13t payload and High roof cab. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 8X4 (12 wheels) drive and China V emissions.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1315N4663E1
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.5m
engine: SinotrukMC07.34-50
transmission: SinotrukHW16709C
Rear Axle Ratio: 4.44
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 12.74ton
Rated payload: 18.13ton
GVWR: 31ton
Max. speed: 102km/h
Origin: Jining, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 16°
Remarks: Optional ratio 4.875
Front/rear suspension: 1.55/2.695m
Version: Lightweight Version
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW16709C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: H153 self-adjusting arm front axle
Front axle allowable load: 6500/7000kg
Frame Dimensions: 280x80x(8+5)mm
rear axle description: 440 maintenance-free bearing axle
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 4.444
Leaf spring count: 4/4/5
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

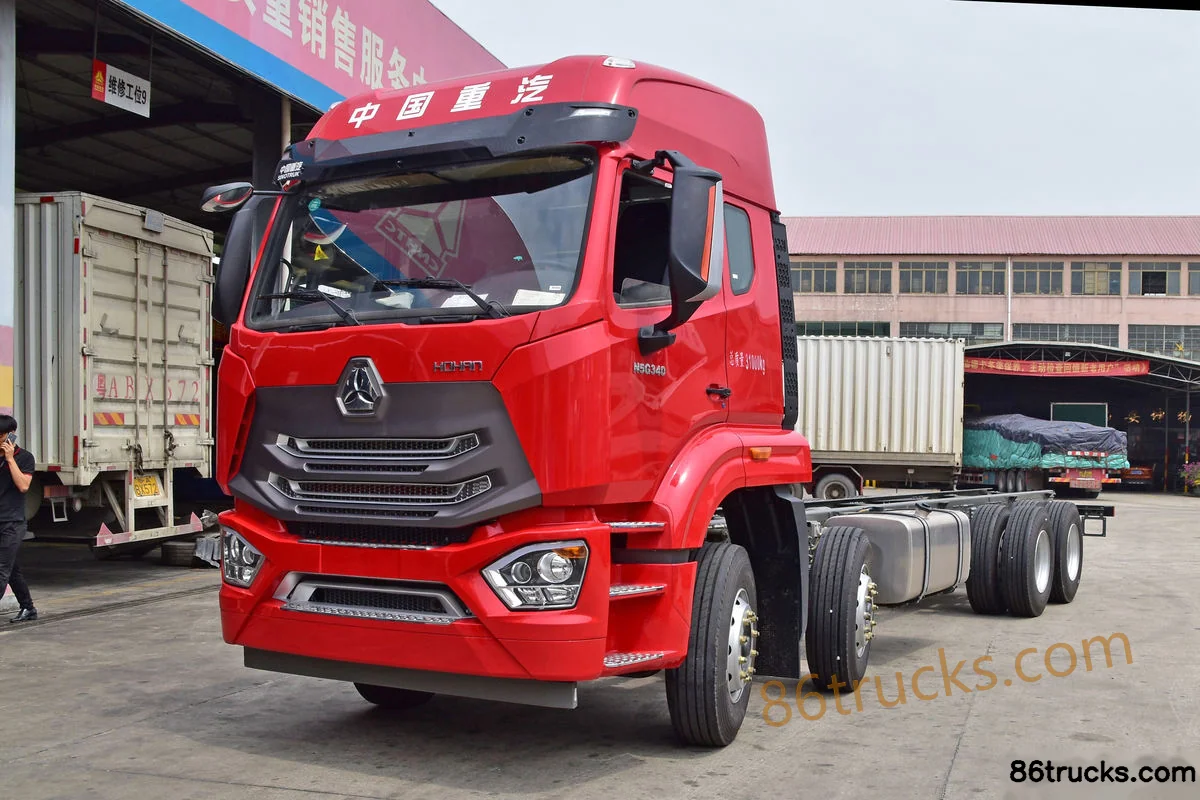

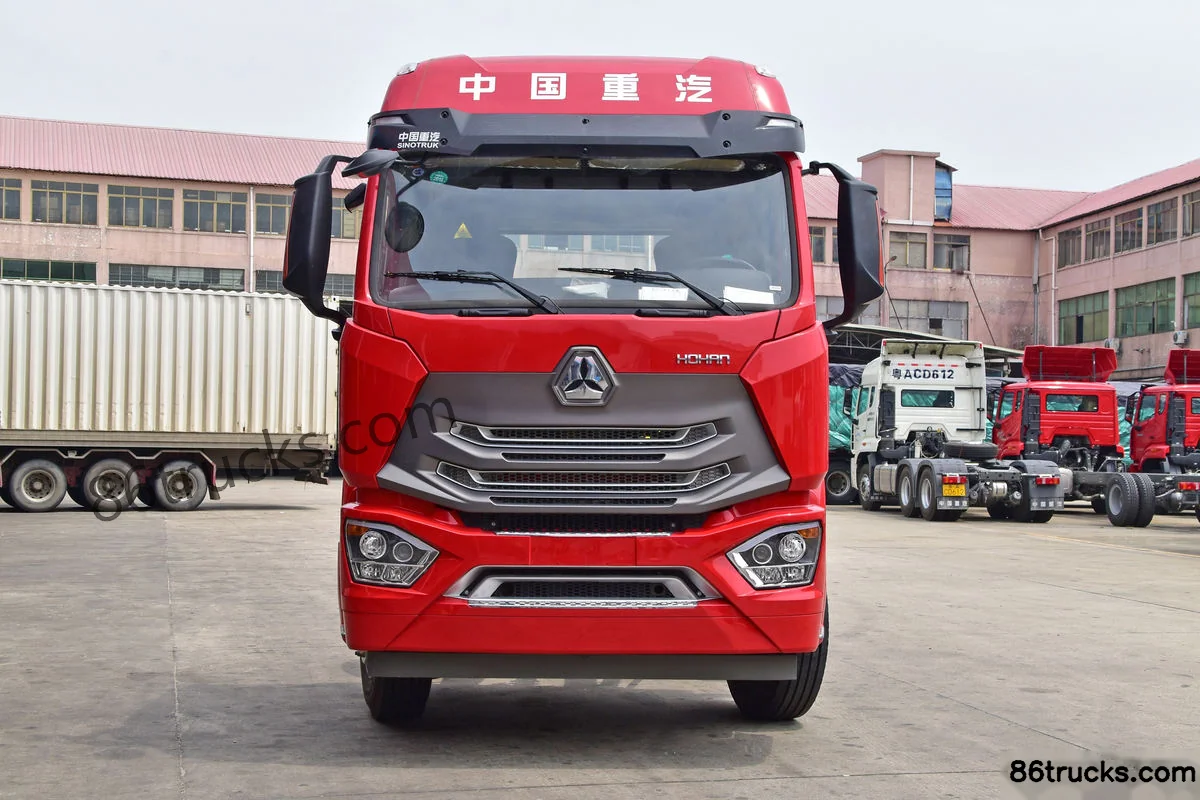

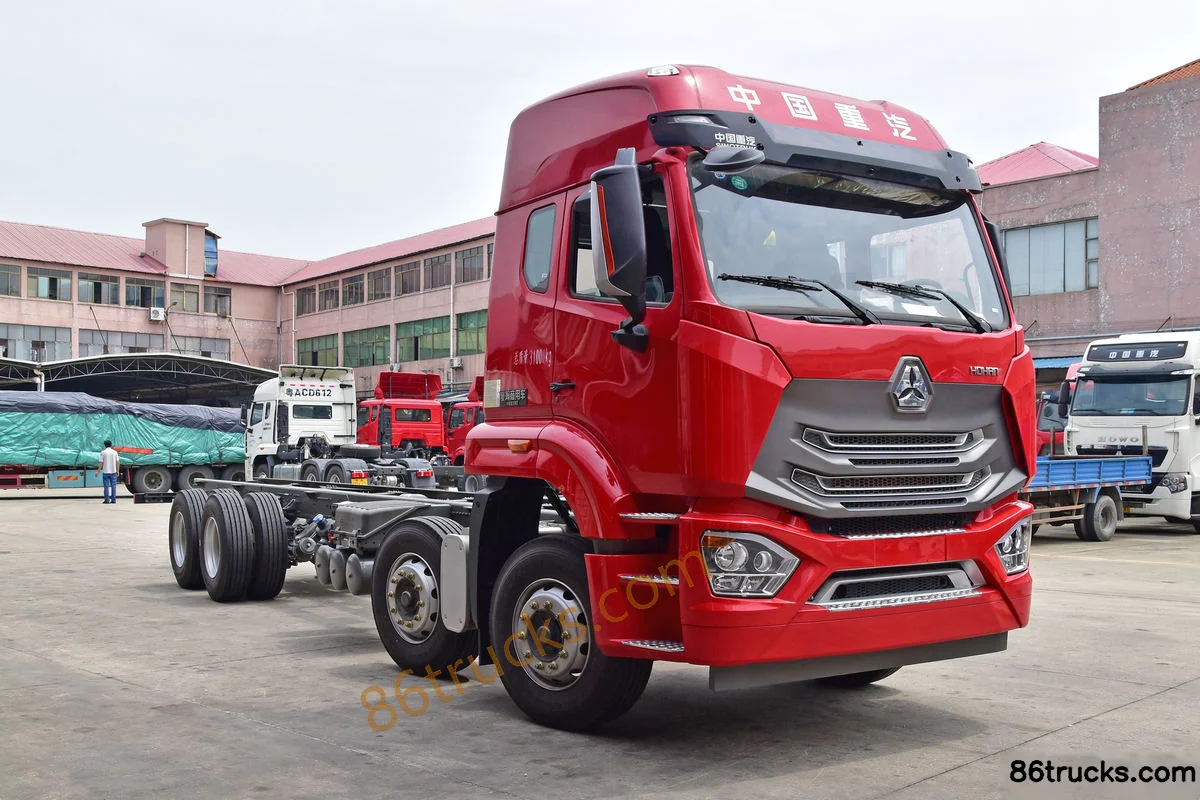

Exterior3

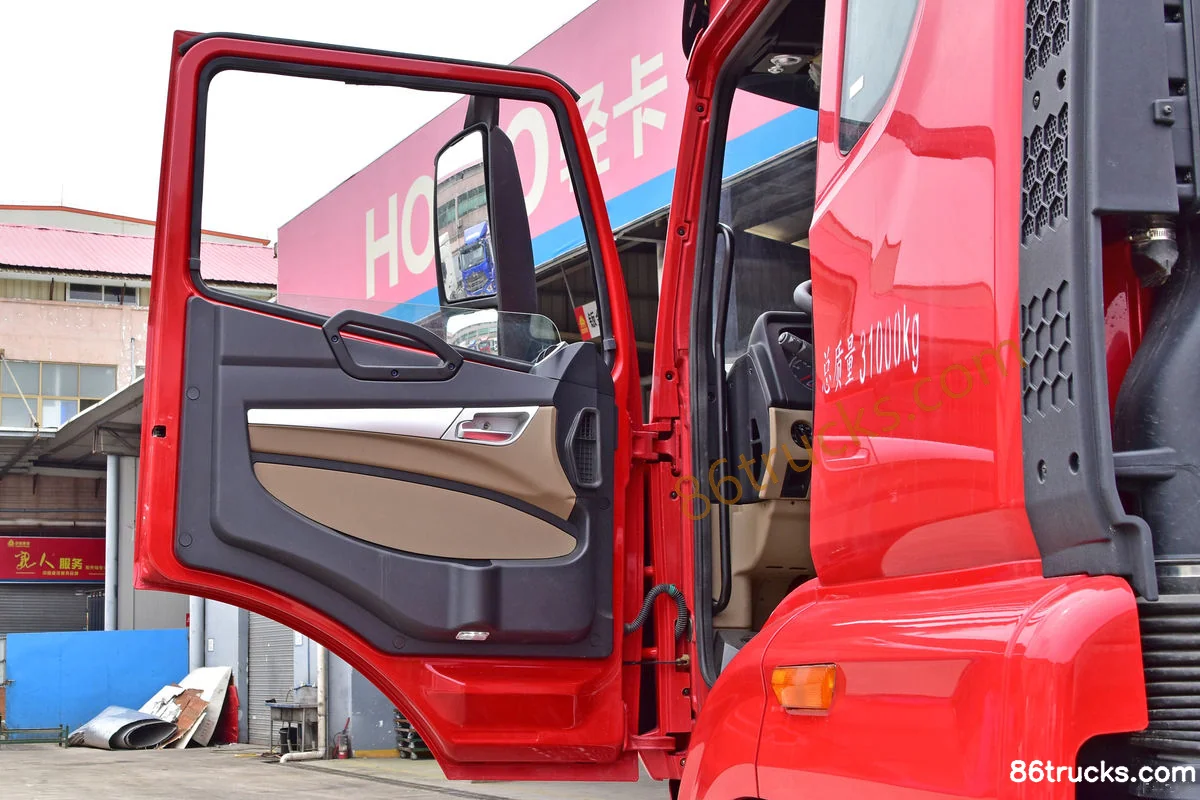

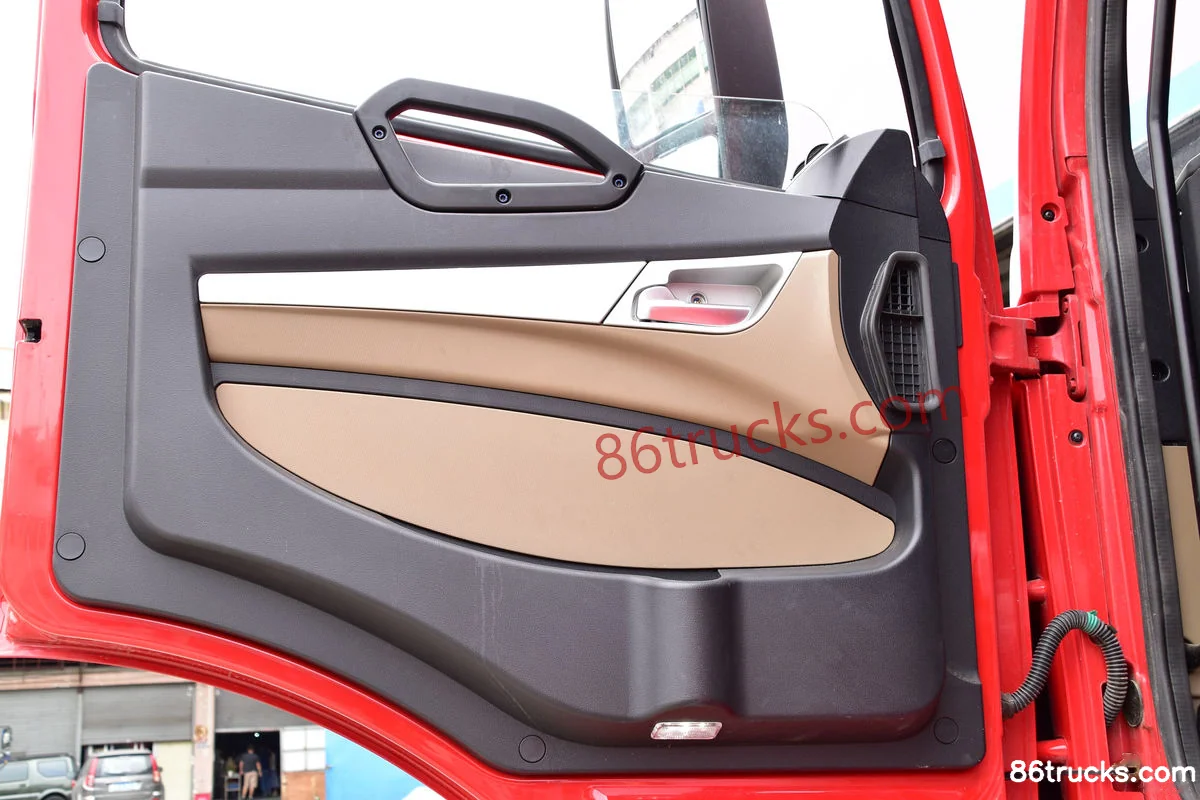

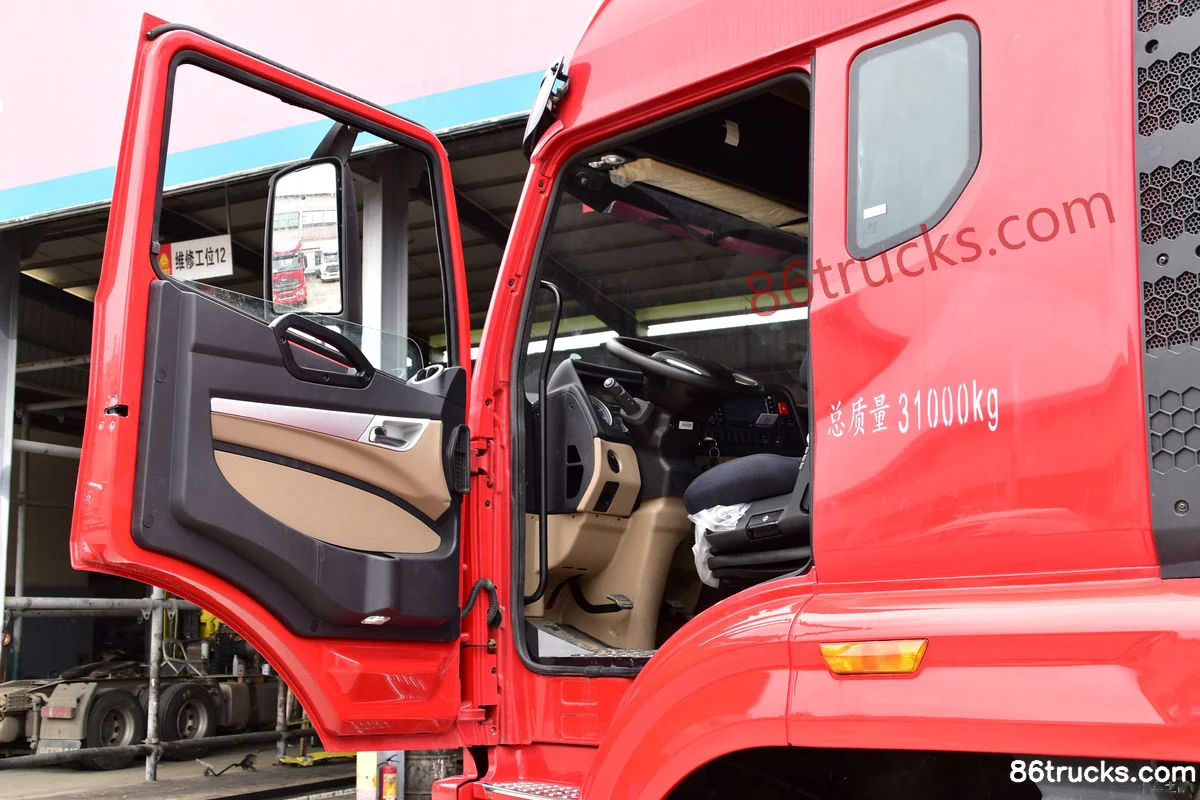

Cab3

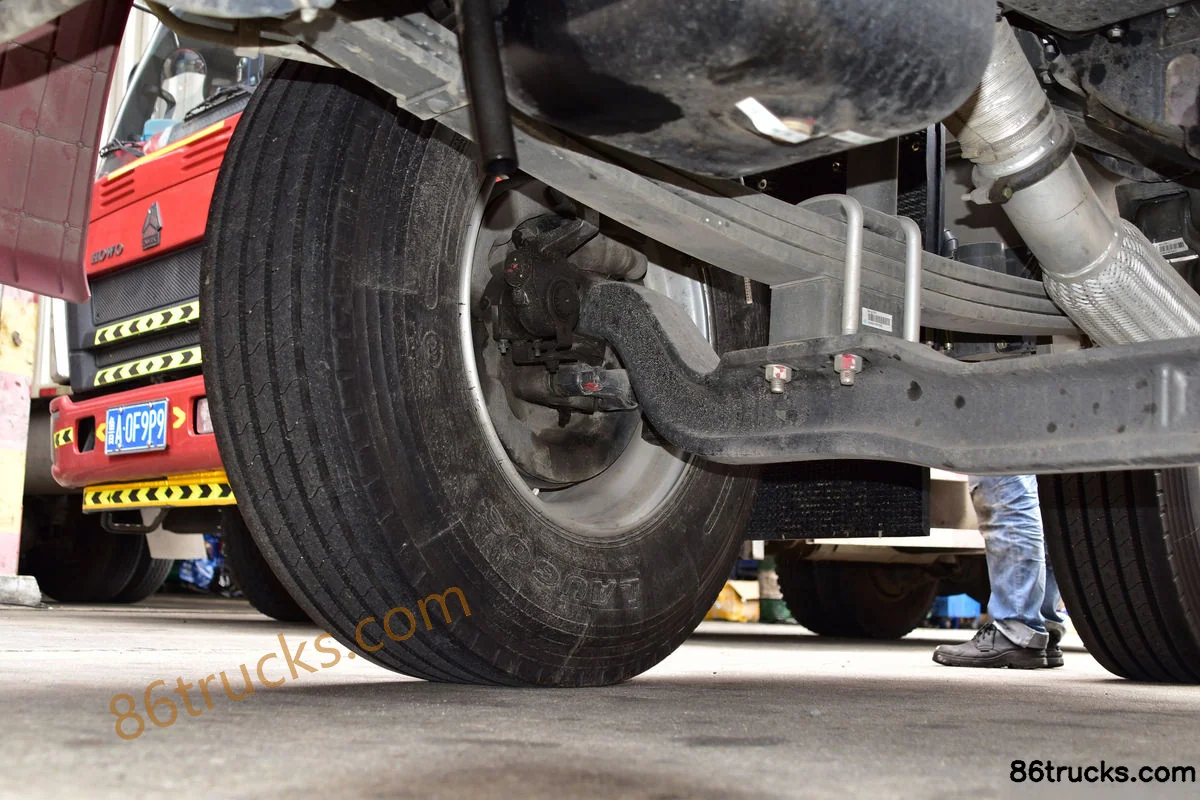

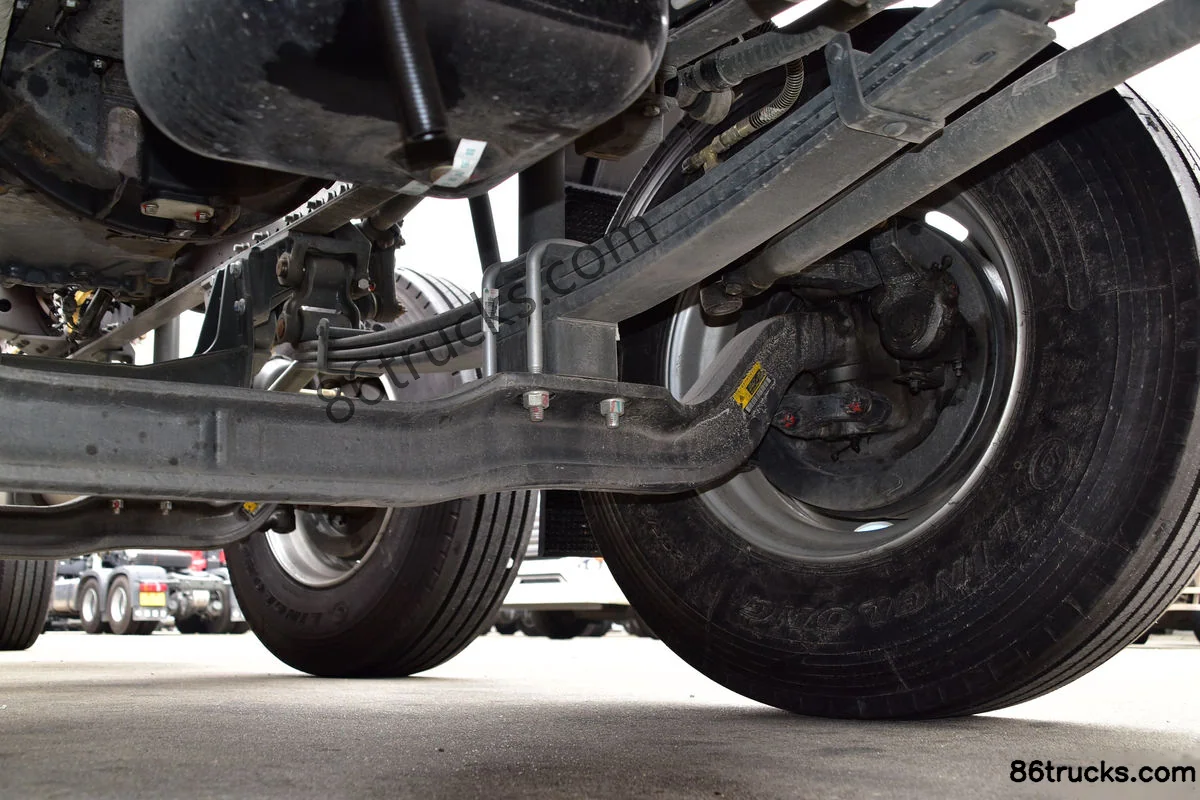

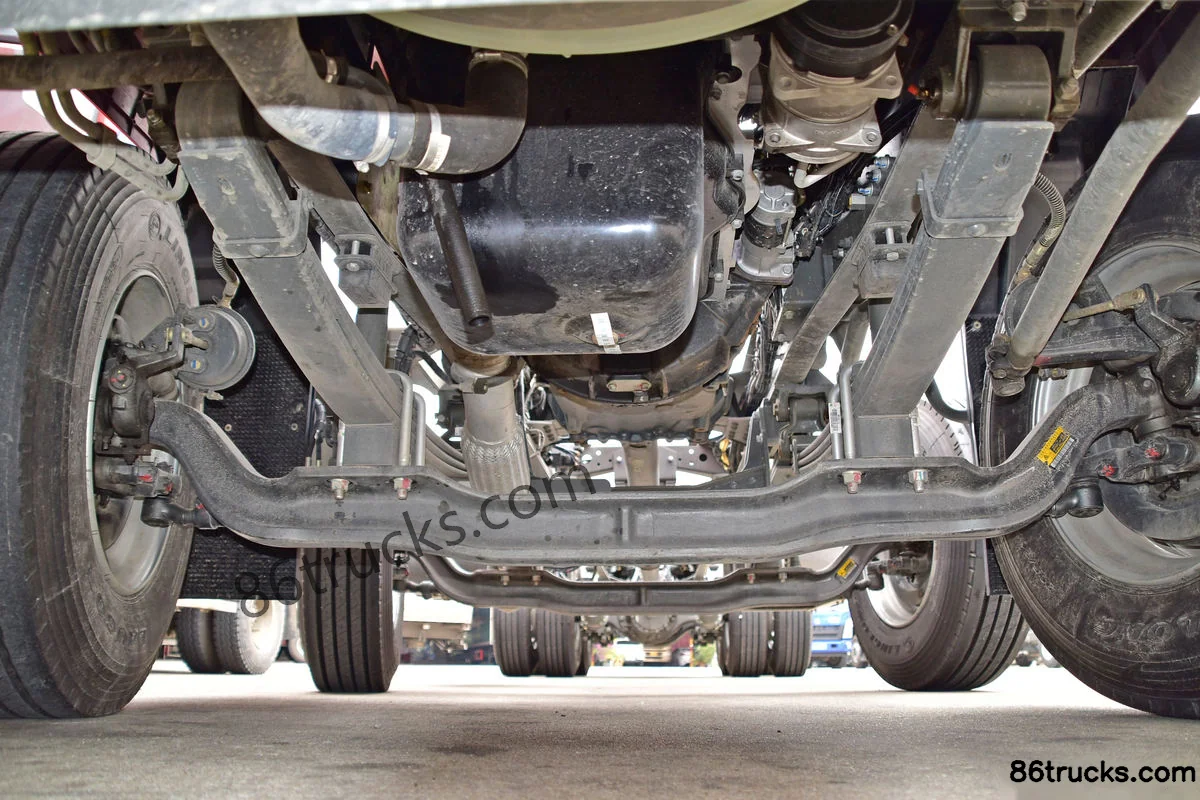

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis, and what does it include?

Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis export reference is about From $40,278; MSRP is ¥29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis?

Key specs of Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis suited for?

Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis belongs to Sinotruk HOWO NX Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan N5G Heavy Truck 340hp 8X4(12 wheels) 9.5m Stake Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
