Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck

Export reference
From $10,097
MSRP ¥7.27M CNY
Horsepower: 115
Emission: China V
Fuel: Diesel
Engine: Quanchai490
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Forland Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck is a Light Truck featuring 4.18m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Quanchai490 engine, 115 hp, 4X2 (6 wheels) drive and China V emissions.

China V 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1046V9JDA-BA
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Quanchai4B2-115C50
transmission: WLYWLY5TS32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2m
Cab height: 2.35m
Front track width: 1525mm
rear track: 1485mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.13/1.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B2-115C50
Engine info: Quanchai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.545L
Emission standard: China V
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: WLYWLY5TS32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab width: 1760mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1795kg
rear axle description: NPR
rear axle allowable load: 2700kg
Axle ratio: 4.875
Leaf spring count: 4/6+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

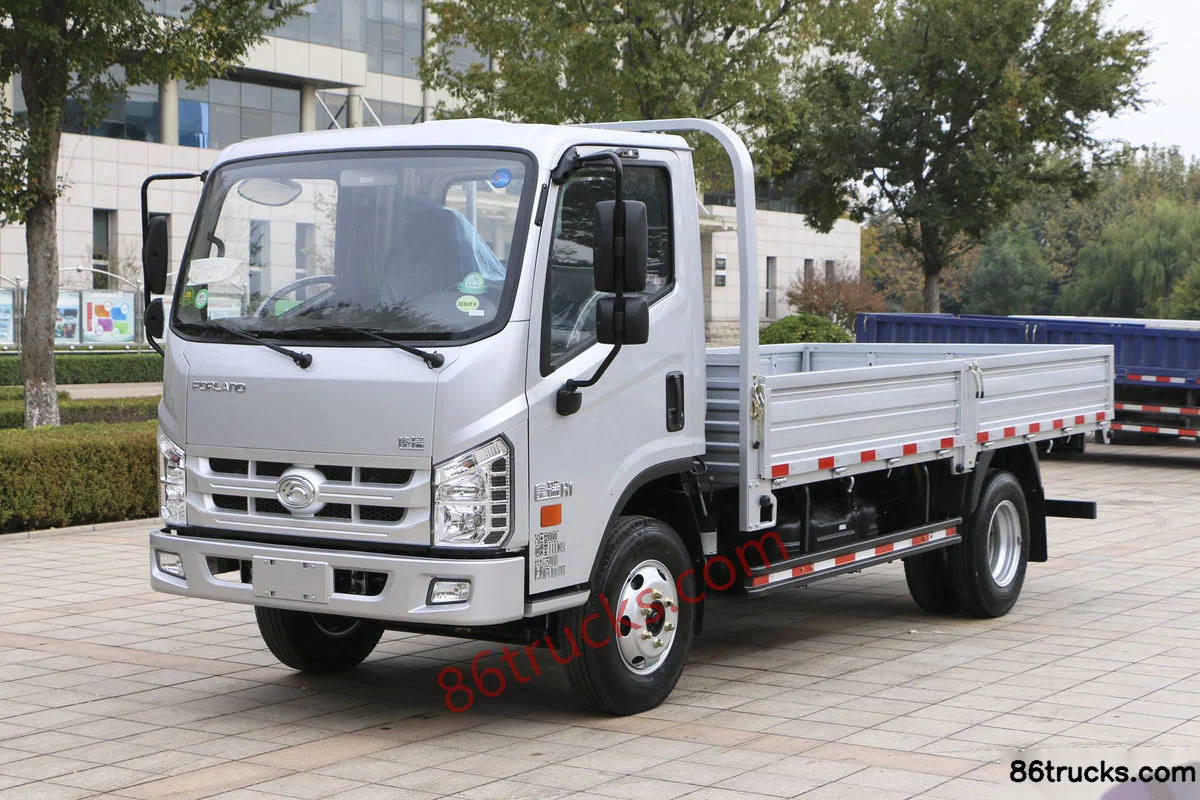

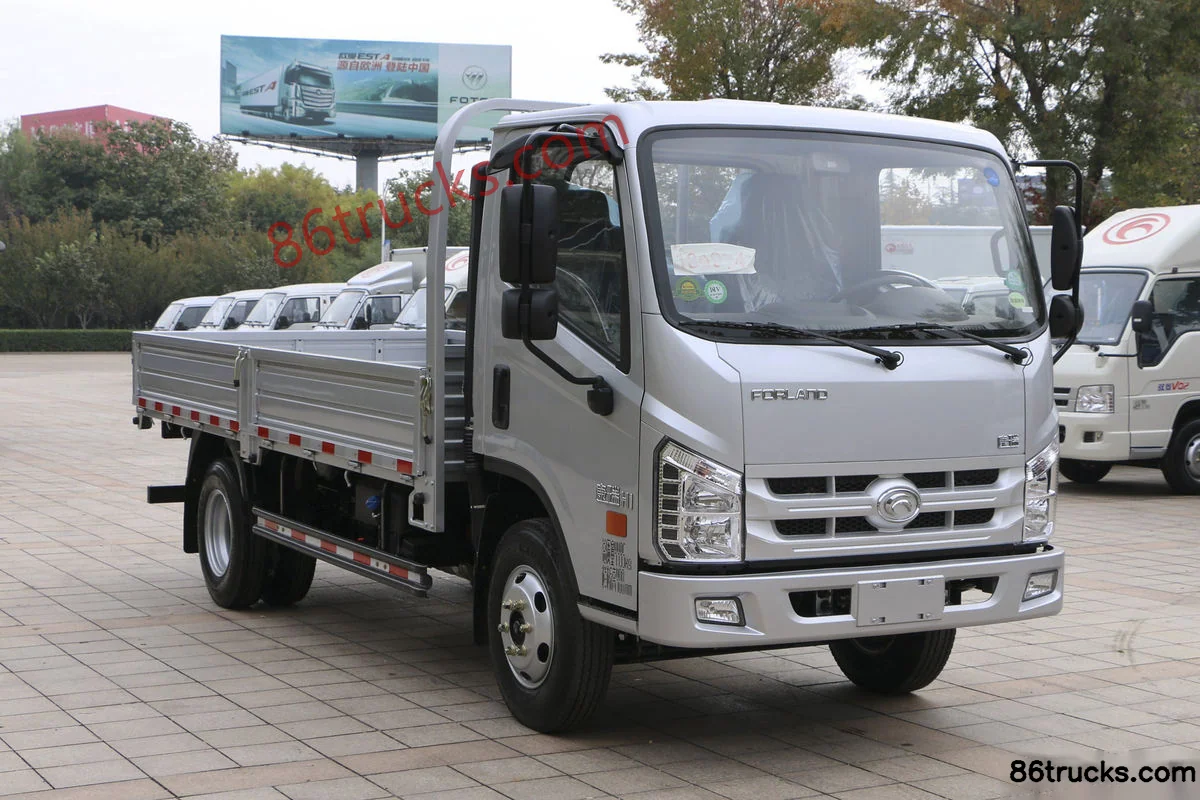

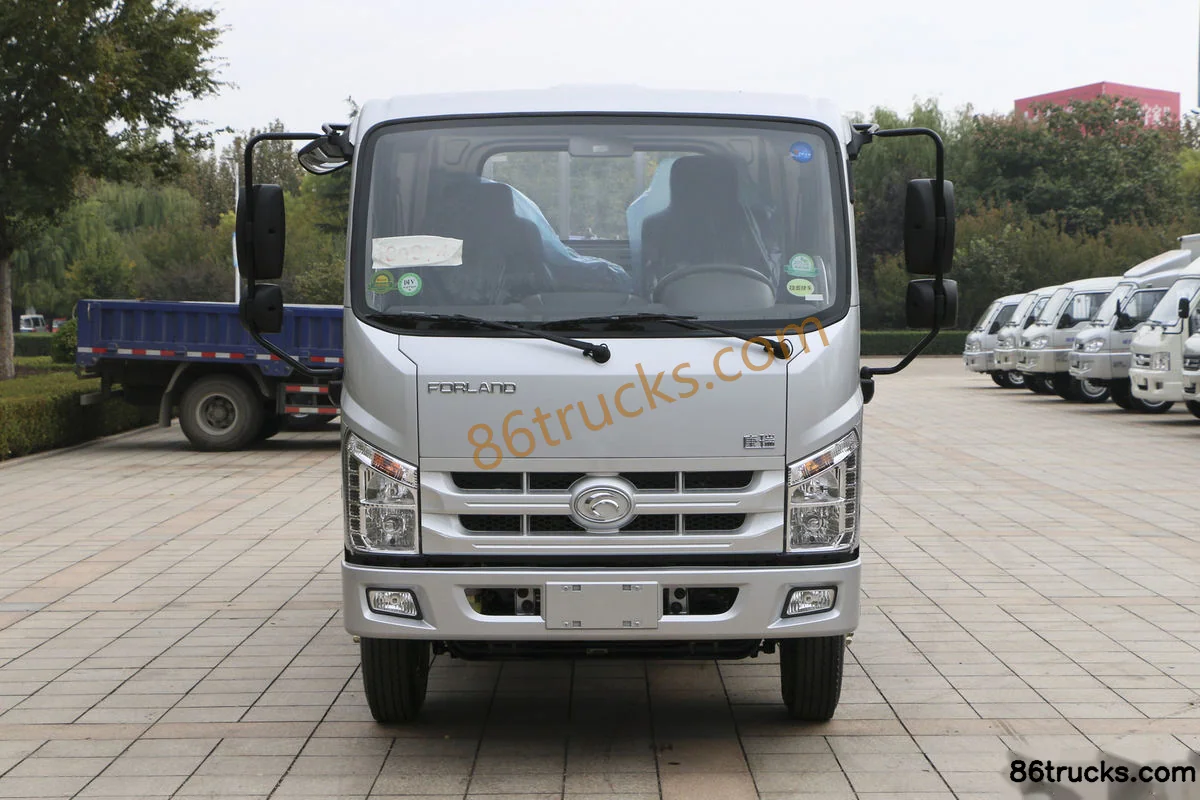

Exterior3

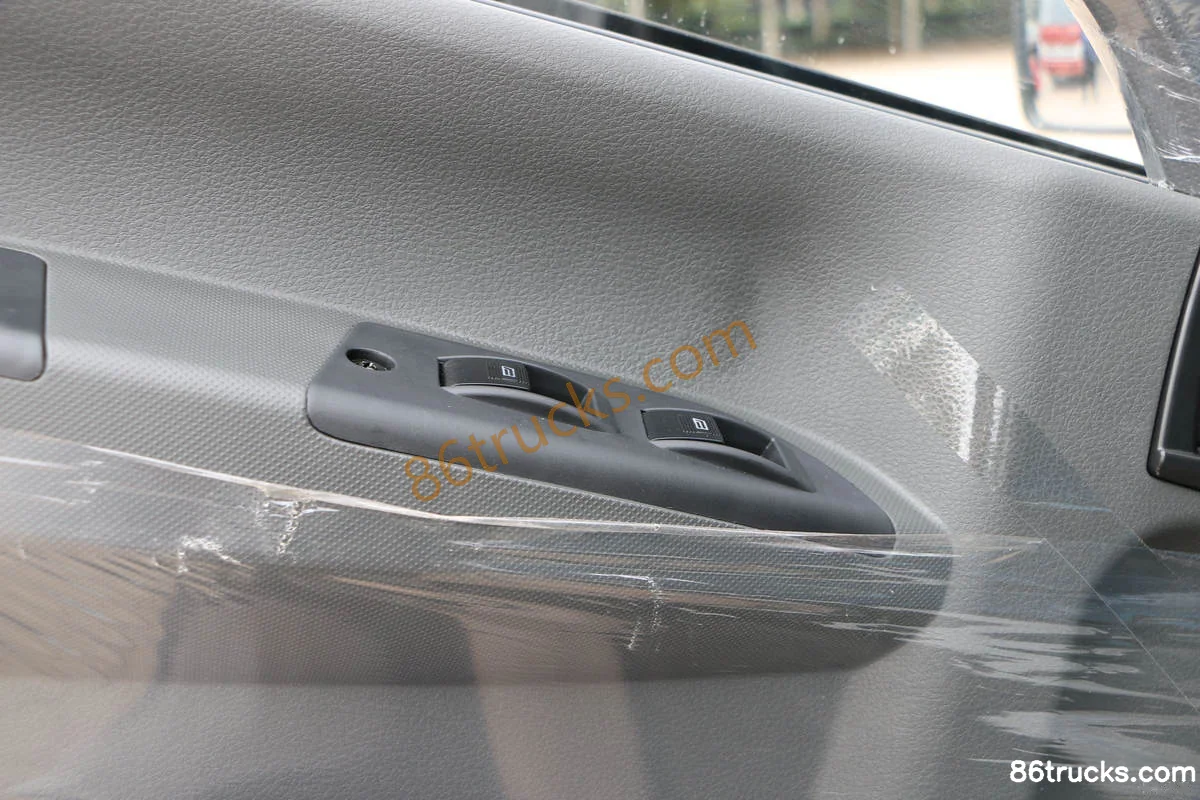

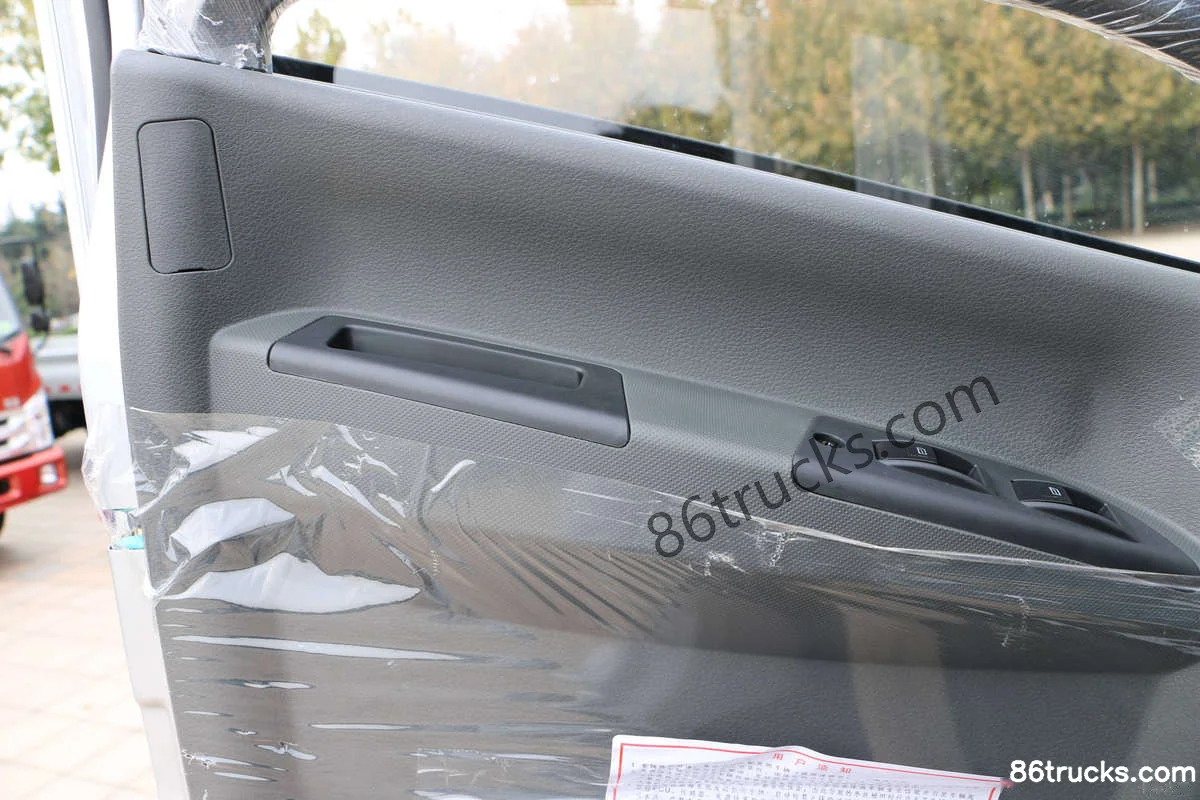

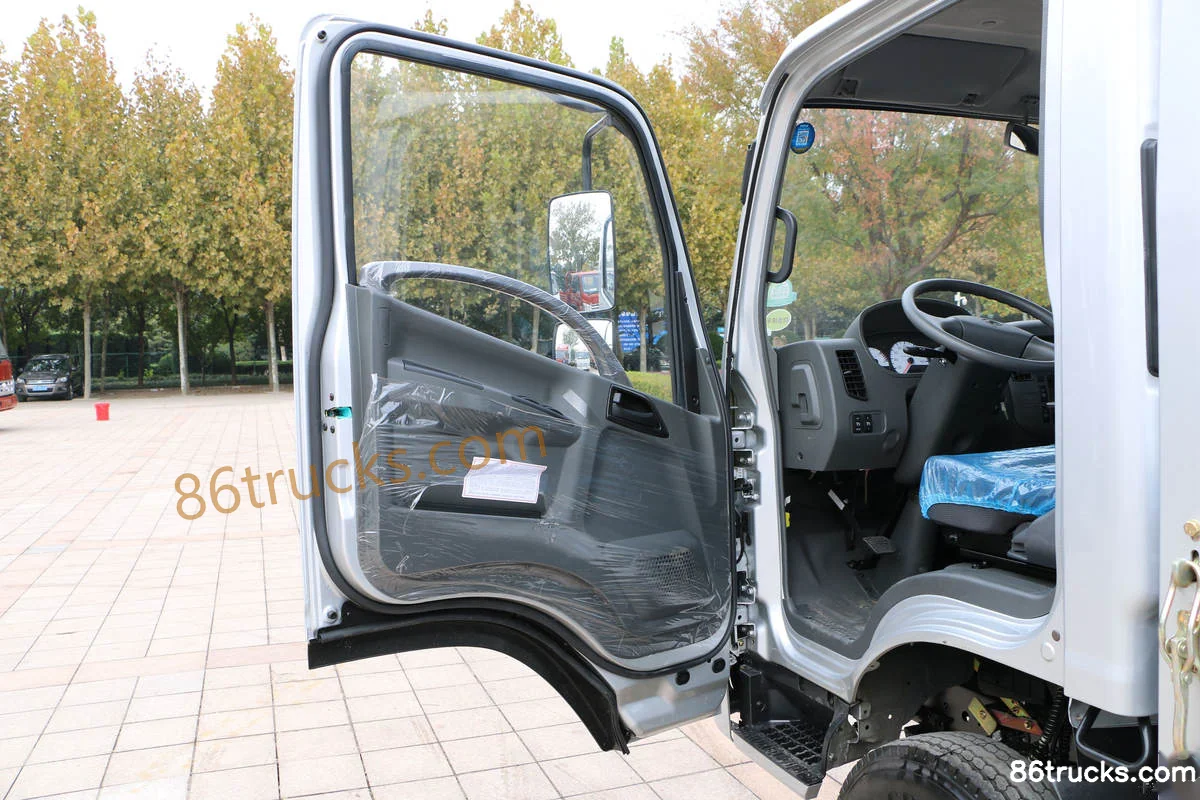

Cab3

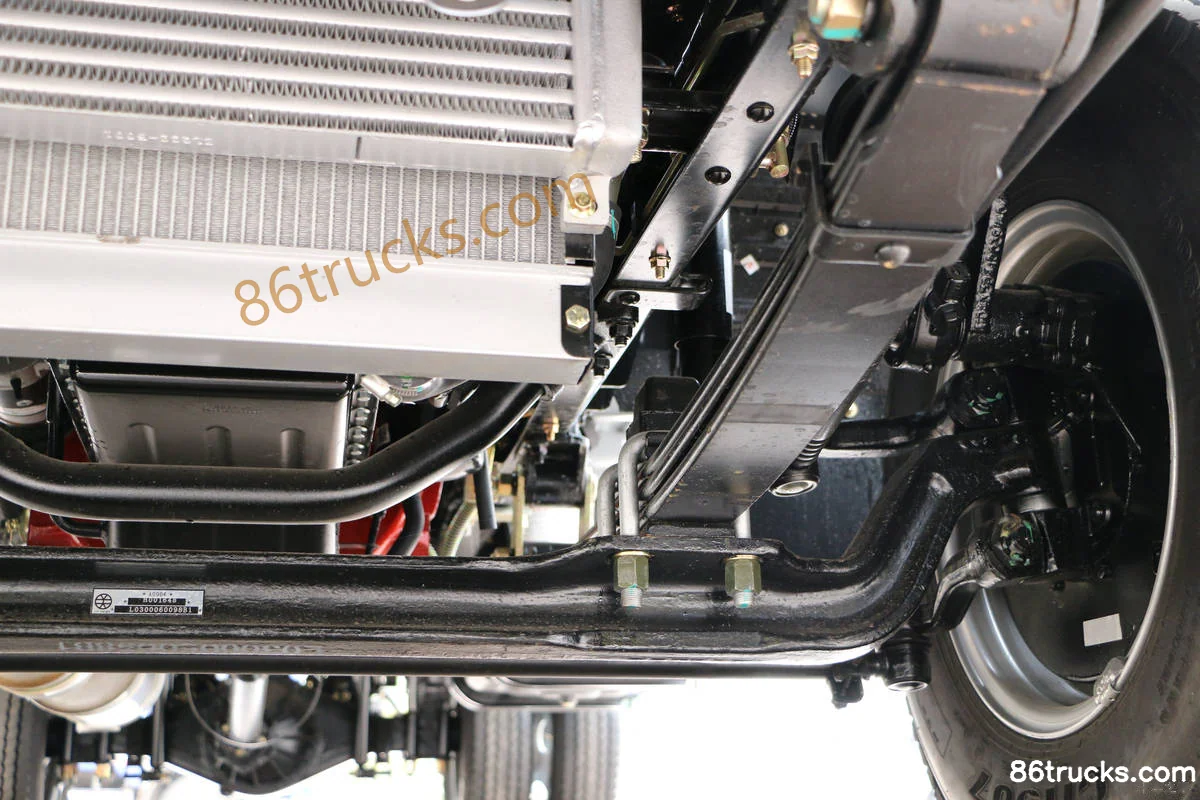

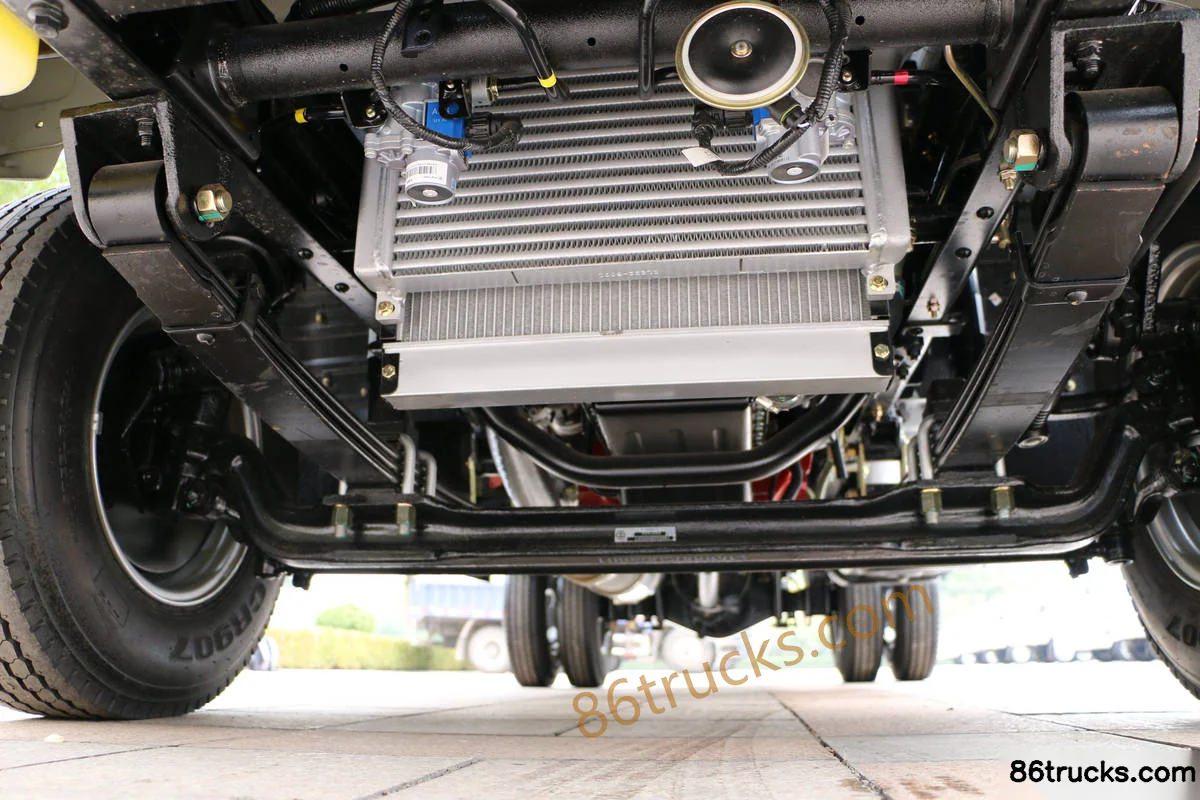

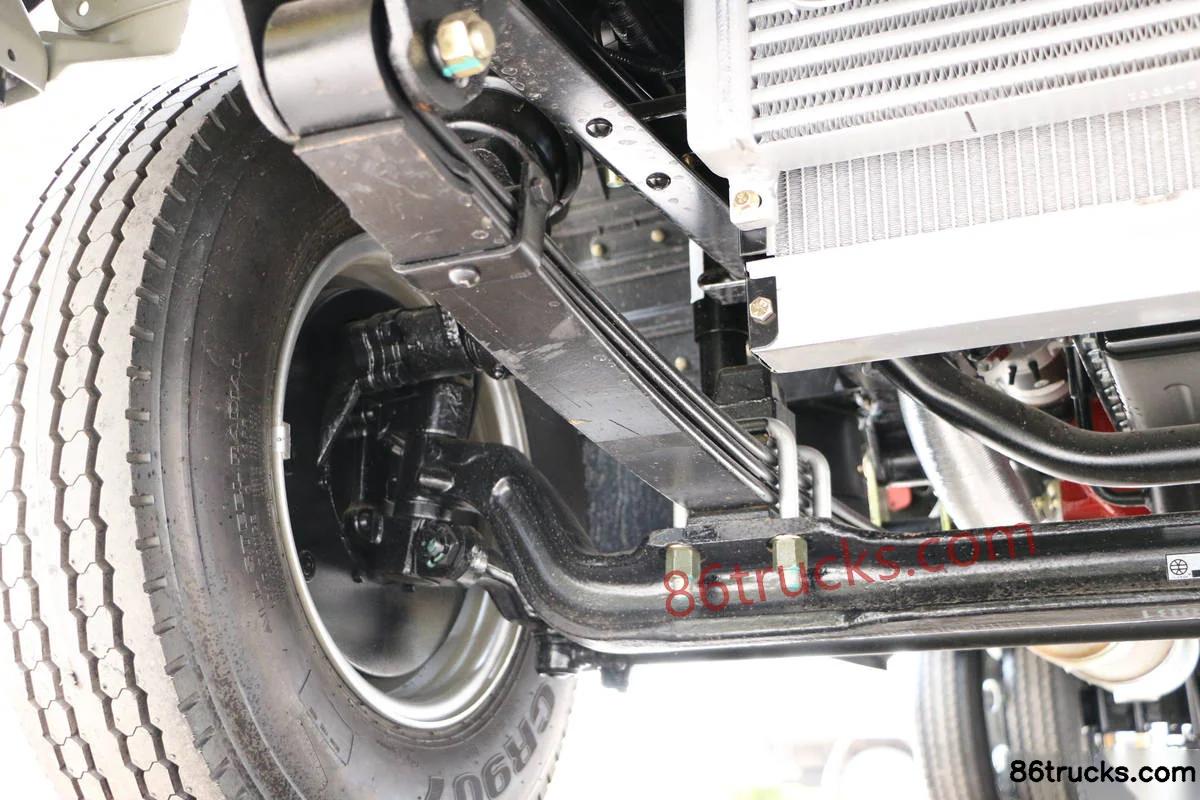

Chassis3

9 photos

FAQ

What is the export price of Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck, and what does it include?

Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck export reference is about From $10,097; MSRP is ¥7.27M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck?

Key specs of Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck suited for?

Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck differ from other variants in the same series?

Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck belongs to Linghang H Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times H1 115hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
