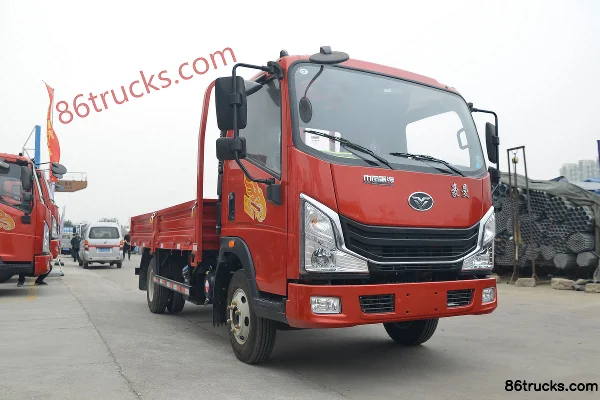

Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI)

Export reference
From $16,667
MSRP ¥12M CNY
Horsepower: 132
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Transmission: WLY
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 132 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1048G17FB5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: QuanchaiQ23-132E60
transmission: WLYWLY5G32
Rear Axle Ratio: 4.875
Cab length: 5.998m
Cab width: 2.25m
Cab height: 2.56m
Front track width: 1605mm
rear track: 1595mm
Curb Weight: 2.56ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Remarks: Optional: LY6GS40 gearbox, 1058 wedge rear axle, widened rear axle, extra-wide rear axle, 4.333 ratio; 5.375 ratio, 120/150L aluminum fuel tank, premium air-suspension driver seat
Front/rear suspension: 1.175/1.543m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-132E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 320N·m
Rated speed: 3000rpm
Engine Type: Common Rail
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.5m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1785kg
Frame Dimensions: 180/800mm
rear axle description: 3.5T
rear axle allowable load: 2710kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Aluminum wheels:
Suspension (front/rear): 3H/5+3H
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI), and what does it include?

Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) export reference is about From $16,667; MSRP is ¥12M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI)?

Key specs of Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI): Drive: 4x2; Horsepower: 132 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) suited for?

Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) differ from other variants in the same series?

Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI) belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MAN Pioneer H3 132hp 4X2(6 wheels) 4.15m single-row flatbed light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
