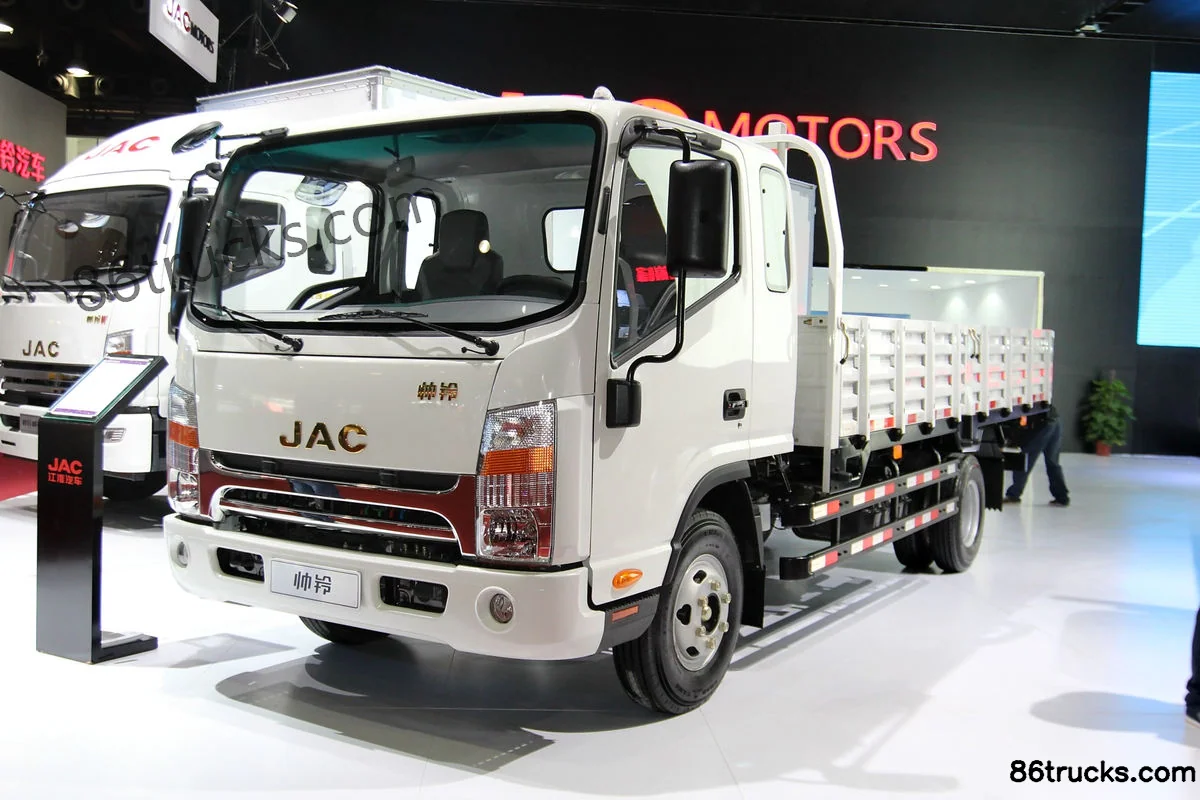

JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck

Export reference
From $20,000
MSRP ¥14.4M CNY
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Lu'an
Curb Weight:: 3.65ton
seating capacity: 3Personnel
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck is a Light Truck featuring 4.845m cargo length, stake body cargo body, 3Personnel volume and 4.995t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1091P71K1C6V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3845mm
Box length class: 4.8m
engine: FotonISF3.8s5154
transmission: Lu'an LC6T540
Rear Axle Ratio: 4.33
Cab length: 7.065m
Cab width: 2.3m
Cab height: 2.43m
Front track width: 1695mm
rear track: 1610mm
Curb Weight: 3.65ton
Rated payload: 4.995ton
GVWR: 8.84ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 27°
departure angle: 13°
market segment: Building materials, agricultural products
Remarks: Optional patterned floor, 7.50R16 steel radial tire, 245/70R19.5 tubeless tire
Front/rear suspension: 1.11/2.11m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Lu'an LC6T540
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.845m
Cargo box width: 2.11m
Cargo box height: 0.55m
*Cargo box interior width: 2.1099998950958
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 3180kg
rear axle allowable load: 5660kg
Axle ratio: 4.33
Leaf spring count: 9/6+6,9/9+7
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

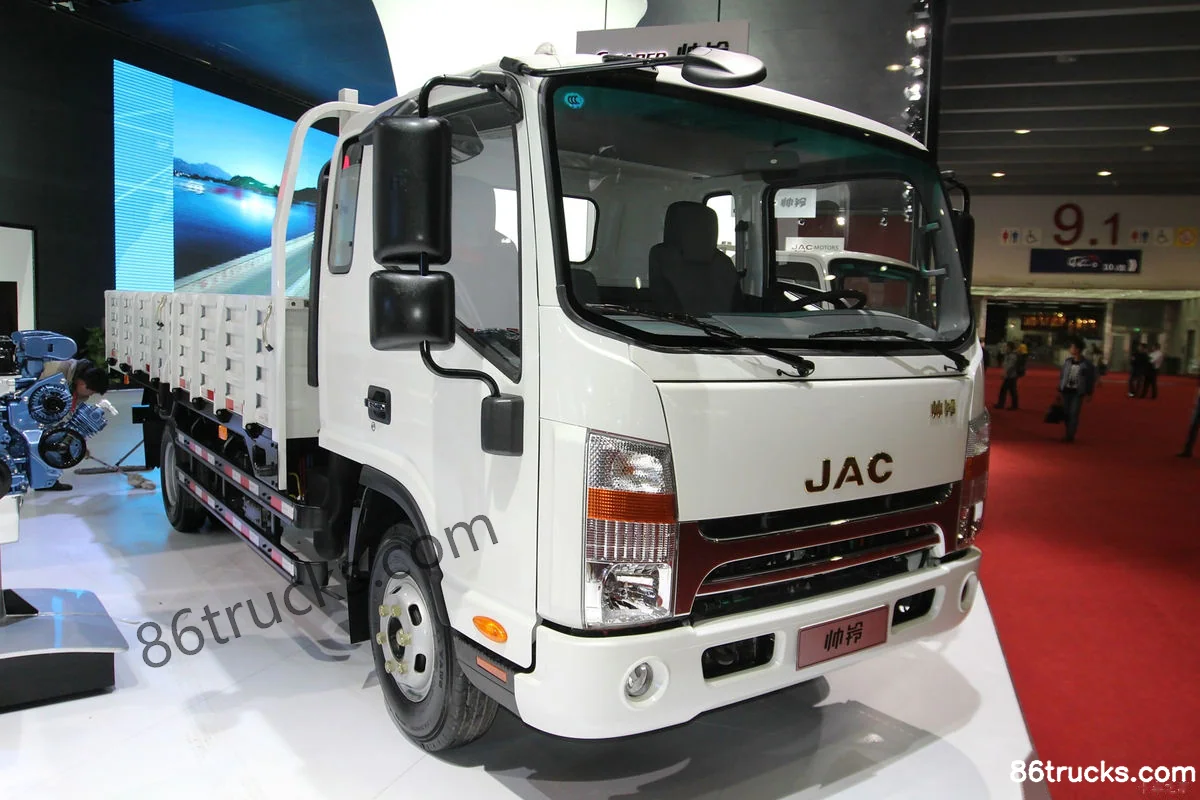

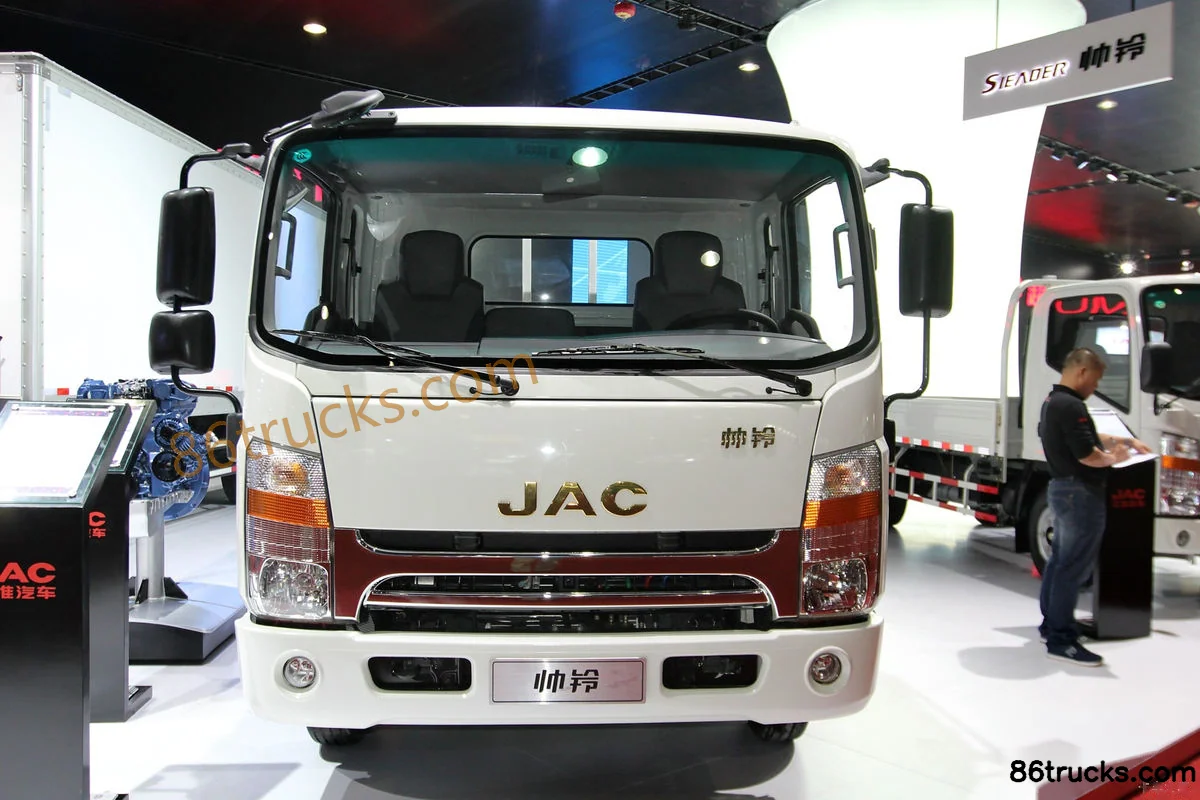

Exterior3

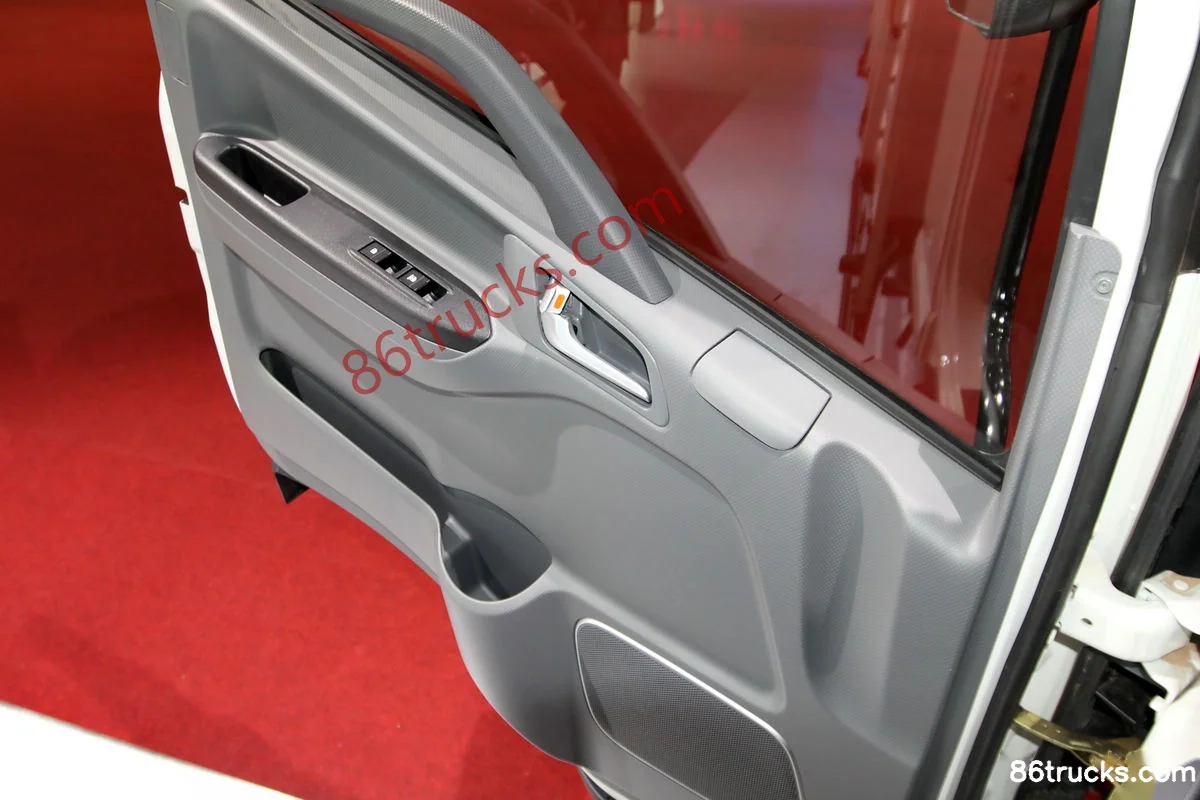

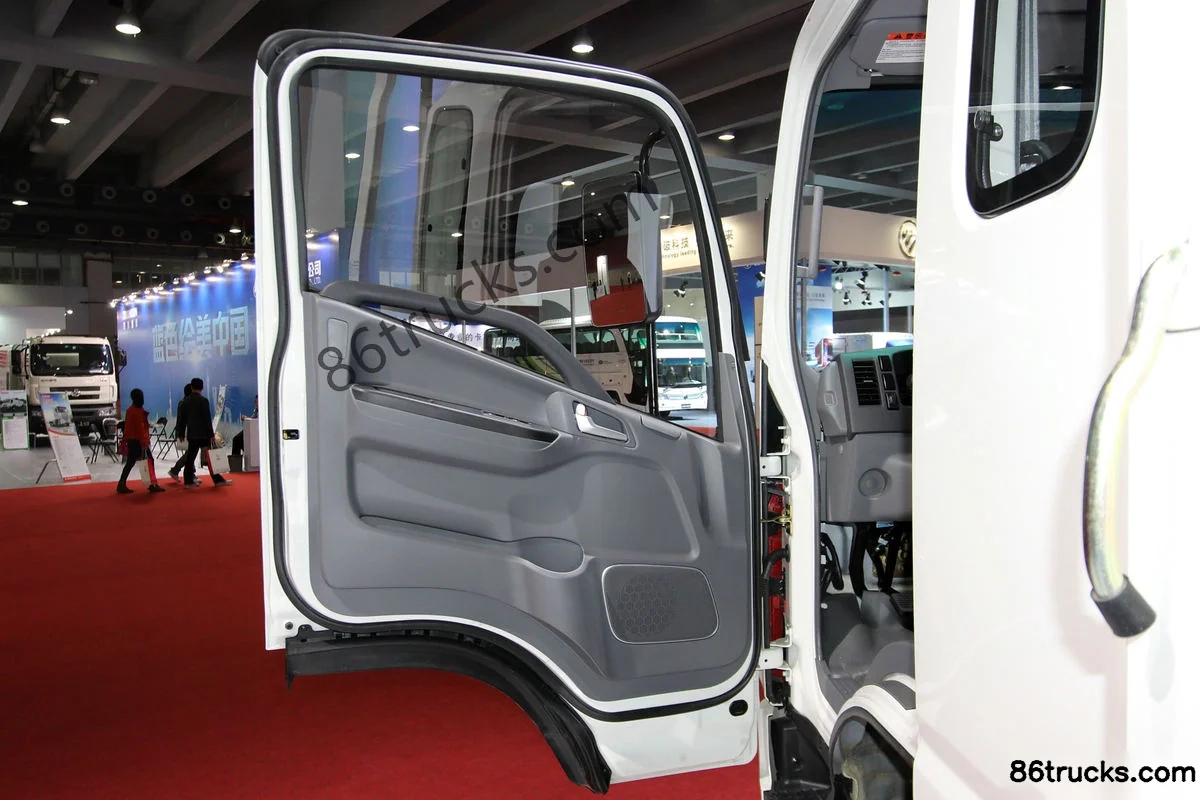

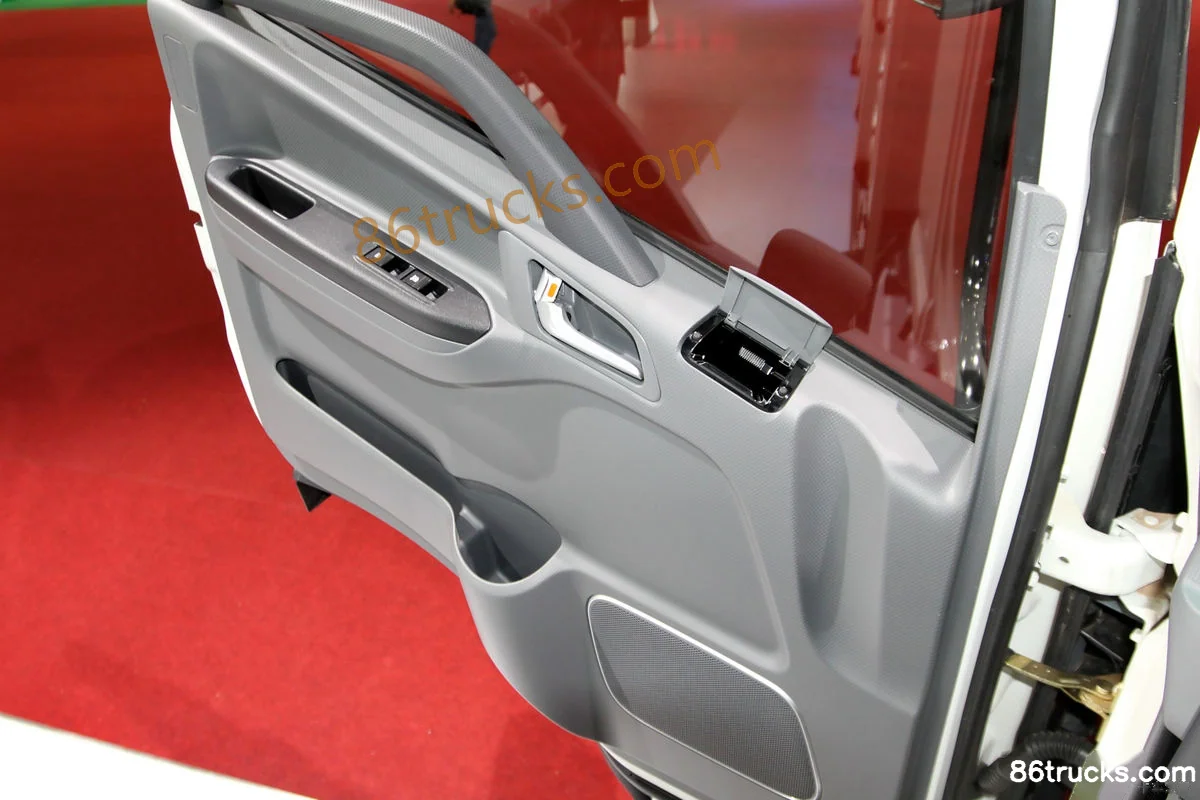

Cab3

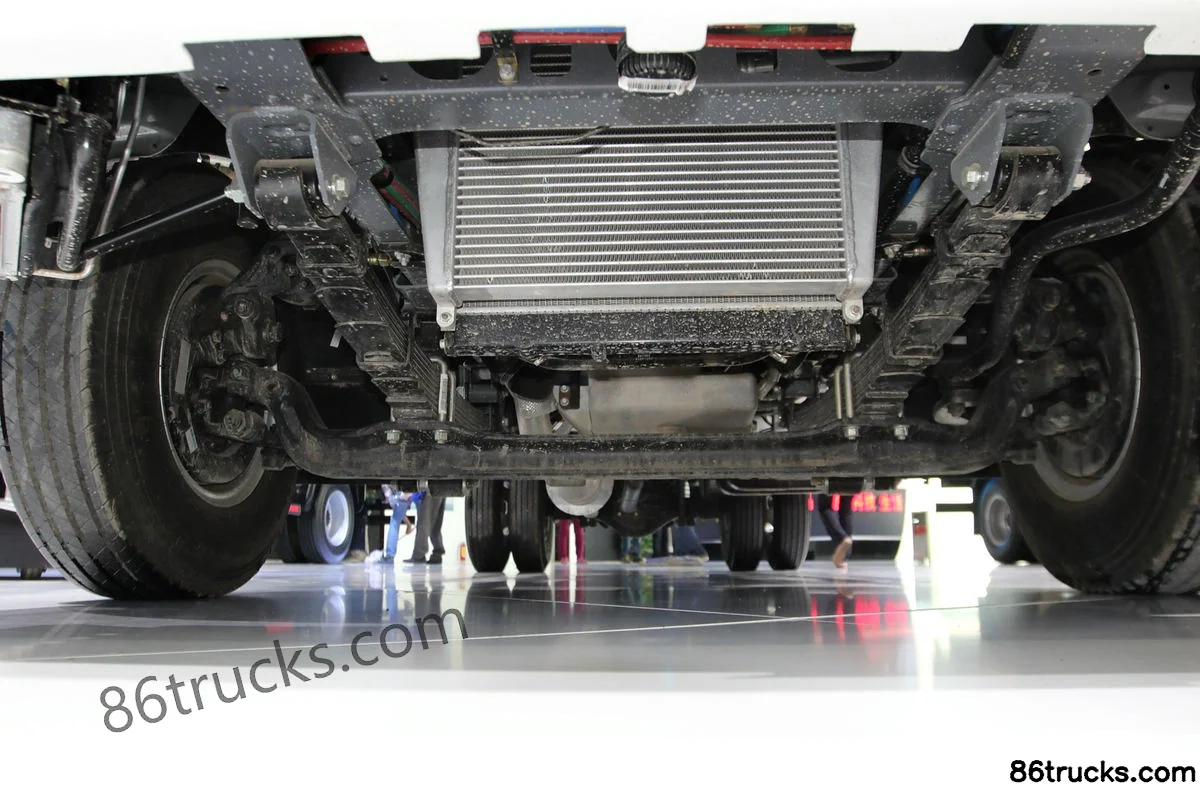

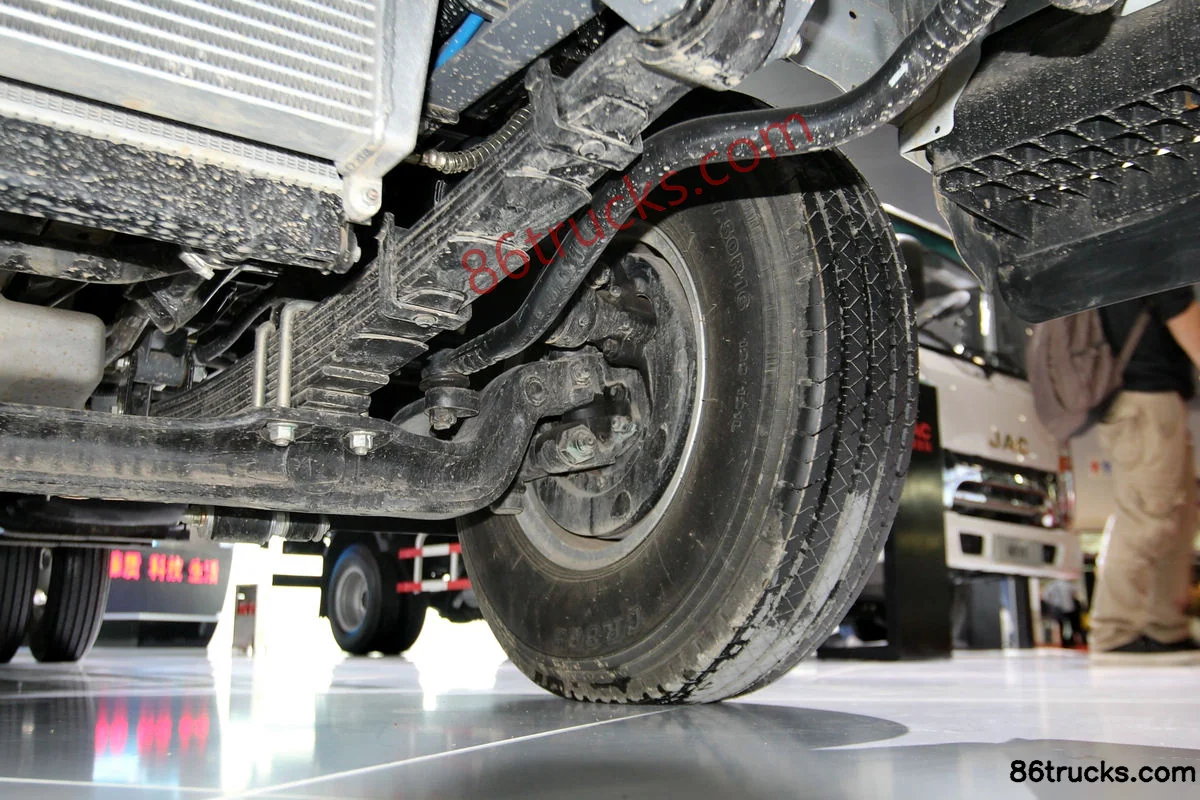

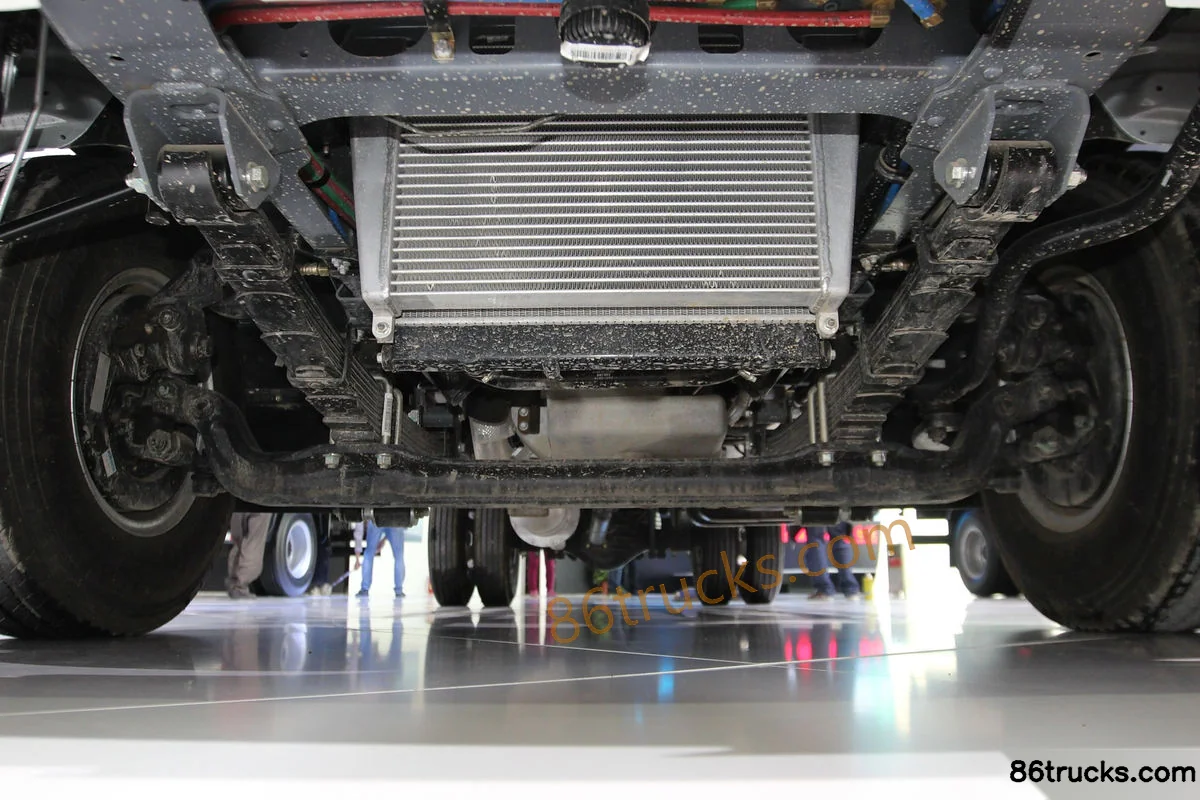

Chassis3

9 photos

FAQ

What is the export price of JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck, and what does it include?

JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck export reference is about From $20,000; MSRP is ¥14.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck?

Key specs of JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck suited for?

JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck differ from other variants in the same series?

JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H384 154 hp 4X2(6 wheels) 4.845m semi-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
