Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh

Export reference
From $47,917
MSRP ¥34.5M CNY
Rated payload:: 8.67ton
Transmission: Fast Gear
Wheelbase:: 7100mm
Cargo box volume:: 60m³
Model code (announced):: LZ5180XYKH5AZBEV101
Type:: enclosed cargo truck
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Langao
Curb Weight: 9.2ton

Overview

The Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh is a Heavy truck featuring 220km battery/range, Langao motor, 4X2 (6 wheels) drive and 8.67t payload. On the powertrain side, it comes with Fast Gear transmission.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5180XYKH5AZBEV101
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.7m
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
CLTC range: 220km
Curb Weight: 9.2ton
Rated payload: 8.67ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ342XSLGV01
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 246.67kWh
Transmission Parameters
Transmission Model: 6.0E+95
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box volume: 60m³
Cargo box type: Wing Van
Cargo box length: 9.7m
Cargo box width: 2.46m
Cargo box height: 2.5m
Cab parameters
Cab width: 2300mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 9T rear axle
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

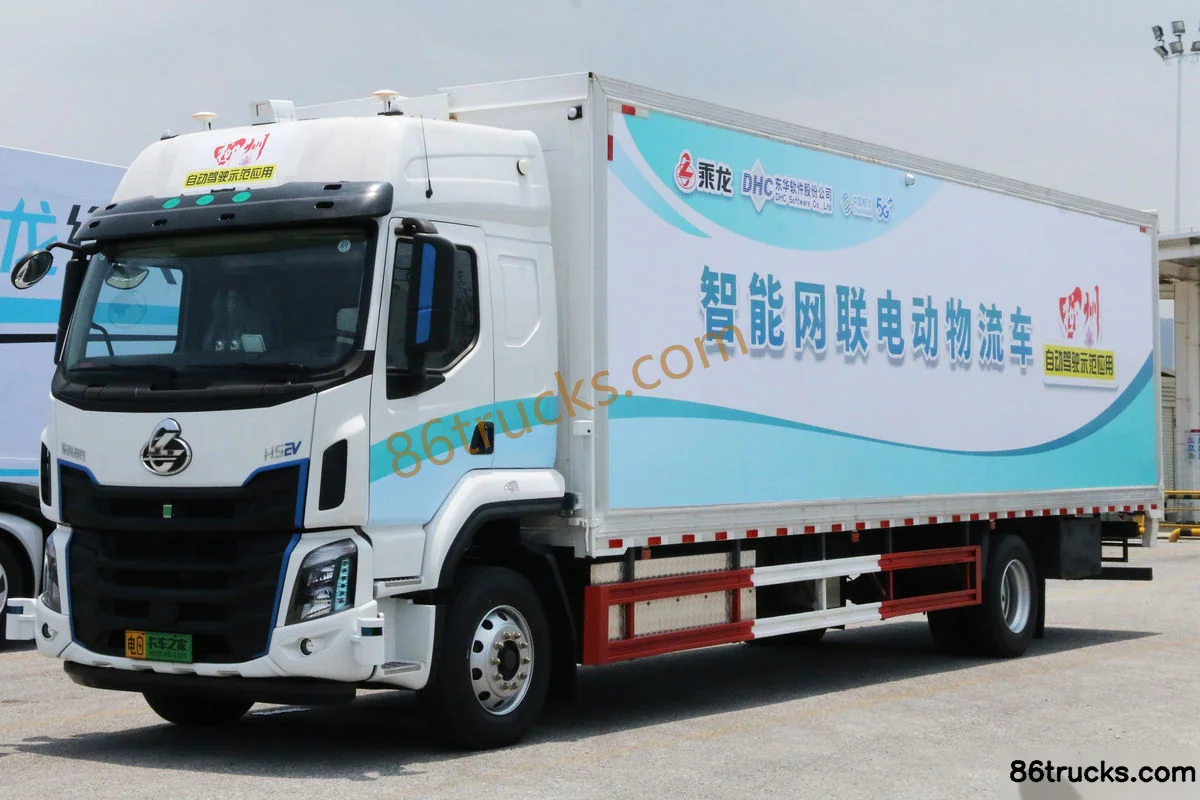

Exterior1

1 photos

FAQ

What is the export price of Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh, and what does it include?

Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh export reference is about From $47,917; MSRP is ¥34.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh?

Key specs of Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh: Drive: 4x2; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh suited for?

Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh differ from other variants in the same series?

Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh belongs to Dongfeng H5 Heavy Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5 4X2(6 wheels) air brake 9.7m semi-sleeper pure electric wing-opening van cargo truck CATL 246.67kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
