Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh

Export reference
From $23,583
MSRP ¥16.98M CNY
Wheelbase:: 2890mm
Cargo box volume:: 7.28
Model code (announced):: SXC5032XXYBEV
Cab length:: 5.2m
GVWR:: 3.49ton
Max. speed:: 100km/h

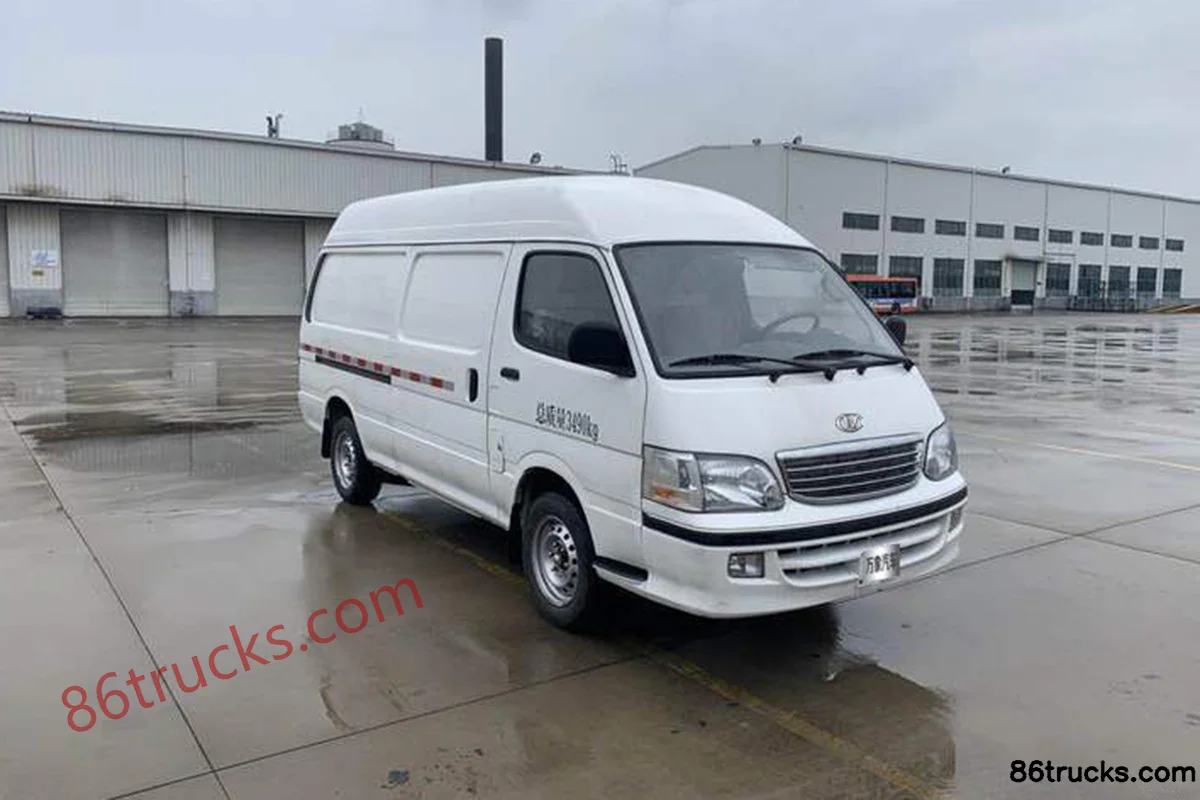

Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh exterior
View more photos (1)
CLTC range: 230km
Motor 1 Brand: King Long
Curb Weight: 1.9ton
Rated payload: 1.46ton

Overview

The Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh is a Electric Panel Van featuring 230km battery/range, King Long motor, 1.46t payload and 7.28 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SXC5032XXYBEV
Wheelbase: 2890mm
Cab length: 5.2m
Cab width: 1.7m
Cab height: 2.08m
CLTC range: 230km
Curb Weight: 1.9ton
Rated payload: 1.46ton
GVWR: 3.49ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ220XS030
Max torque: 300N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 47kW
Peak power: 100kW
total rated torque: 130N·m
Electronic Control
ECU Brand: King Long
Battery/Charging
Charging method: DC fast charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 50.232kWh
fast charge time: 2h
Battery Model: L150V01
Body parameters
Cargo box volume: 7.28
Max body depth: 3.26
Max body width: 1.545
Cargo Box Height: 1.445
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Full load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Manual Side Sliding Door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Cab parameters
Seat rows:
Safety features
Remote key:
Control configuration
ABS:
Stability control (ESP/DSC/VSC etc.):
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera: -/●
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

Exterior1

Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh, and what does it include?

Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh export reference is about From $23,583; MSRP is ¥16.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh suited for?

Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh differ from other variants in the same series?

Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh belongs to Wanxiang AutoQ51 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Wanxiang Auto Q51 3.5T 3.26m Pure Electric Panel Van (Mid Roof) 50.232kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
