Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck

Export reference
MSRP N/A
Horsepower: 156
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 4.5ton
Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck exterior
View more photos (6)
seating capacity: 3Personnel
Rated payload: 4.49ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck is a Light Truck featuring 6.15m cargo length, Van body cargo body, 3Personnel volume and 4.49t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 156 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5099XXY-FD
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4500mm
Box length class: 6.2m
engine: FotonISF3.8s4R154
transmission: WLYWLY6T120
Cab length: 7.995m
Cab width: 2.32m
Cab height: 3.5m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 4.5ton
Rated payload: 4.49ton
GVWR: 9.185ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.12/2.375m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8S4R154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
Transmission Parameters
Transmission Model: WLYWLY6T120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.15m
Cargo box width: 2.17m
Cargo box height: 2.3m
*Cargo box interior width: 2.1700000762939
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 3215kg
rear axle allowable load: 5970kg
Tire

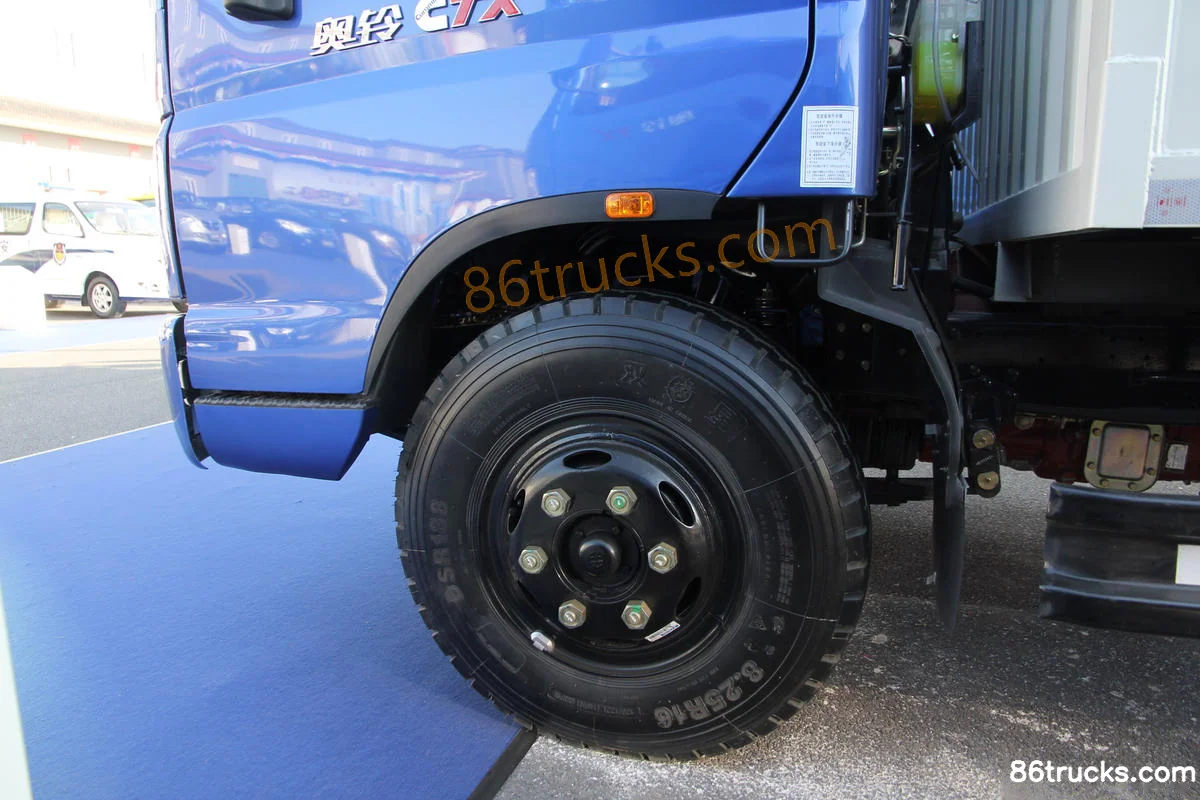

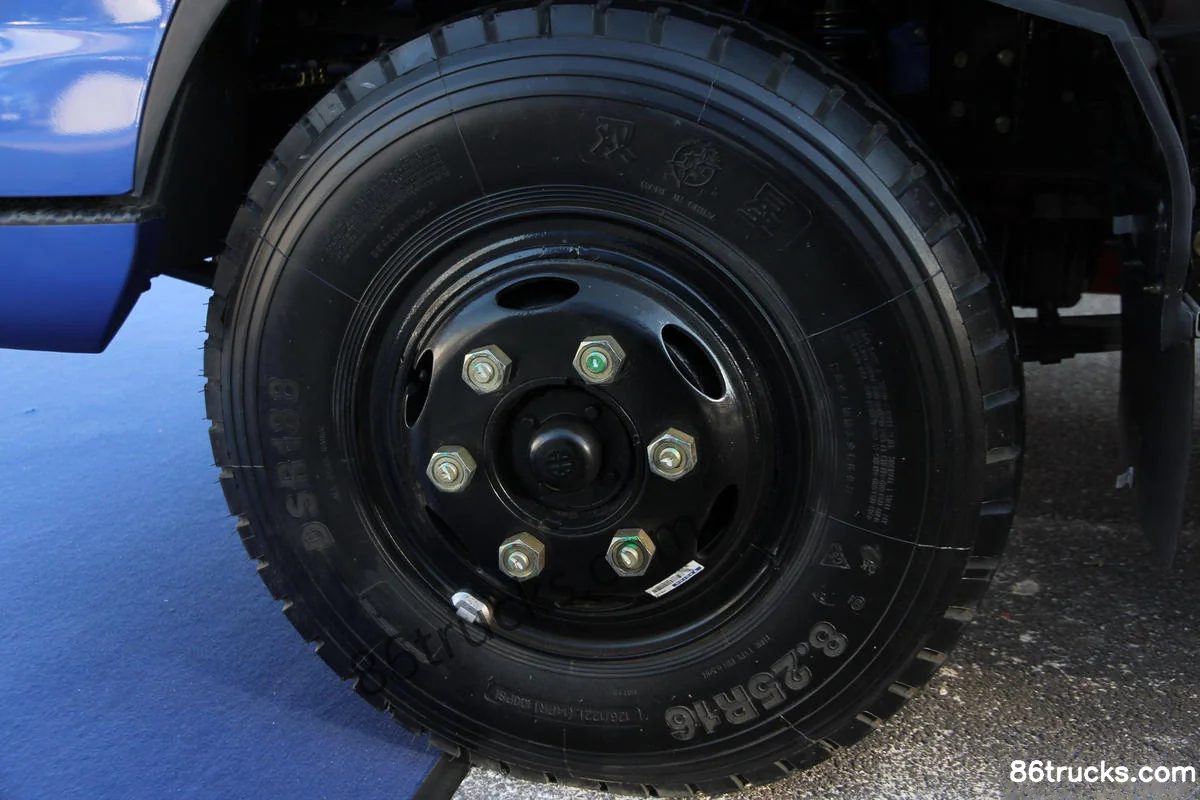

Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

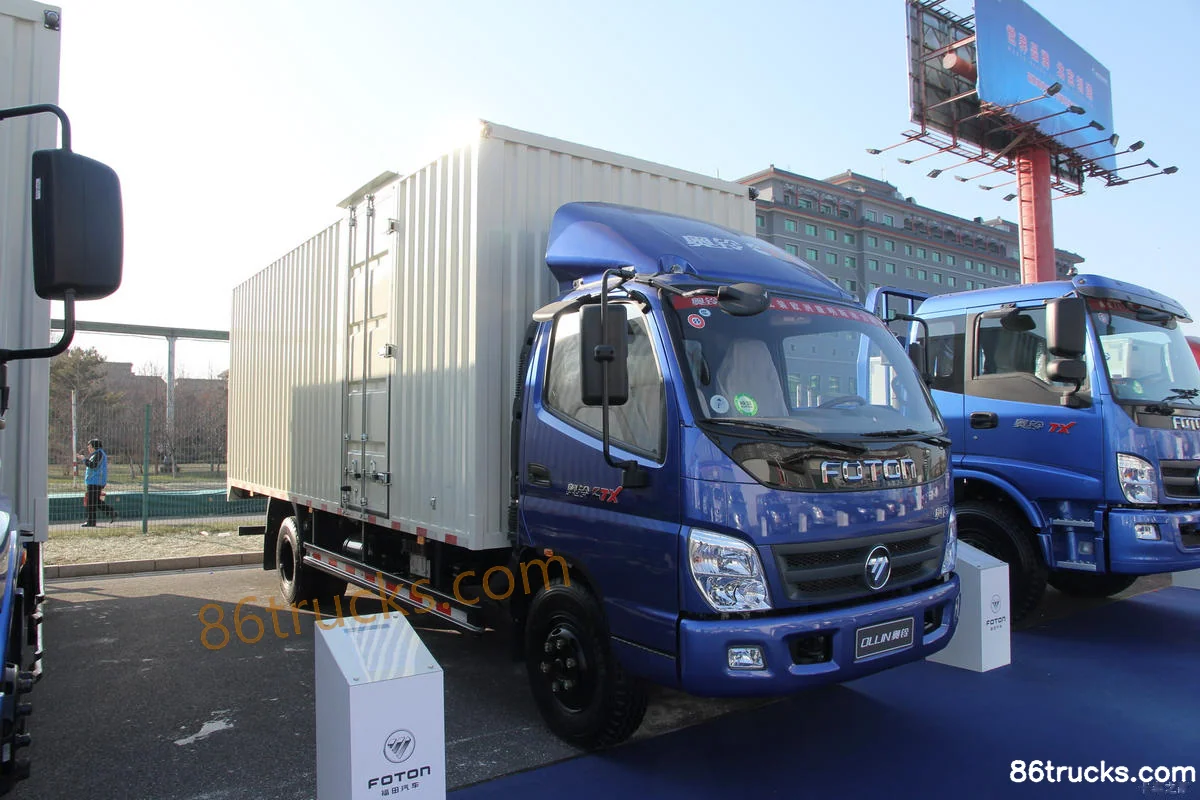

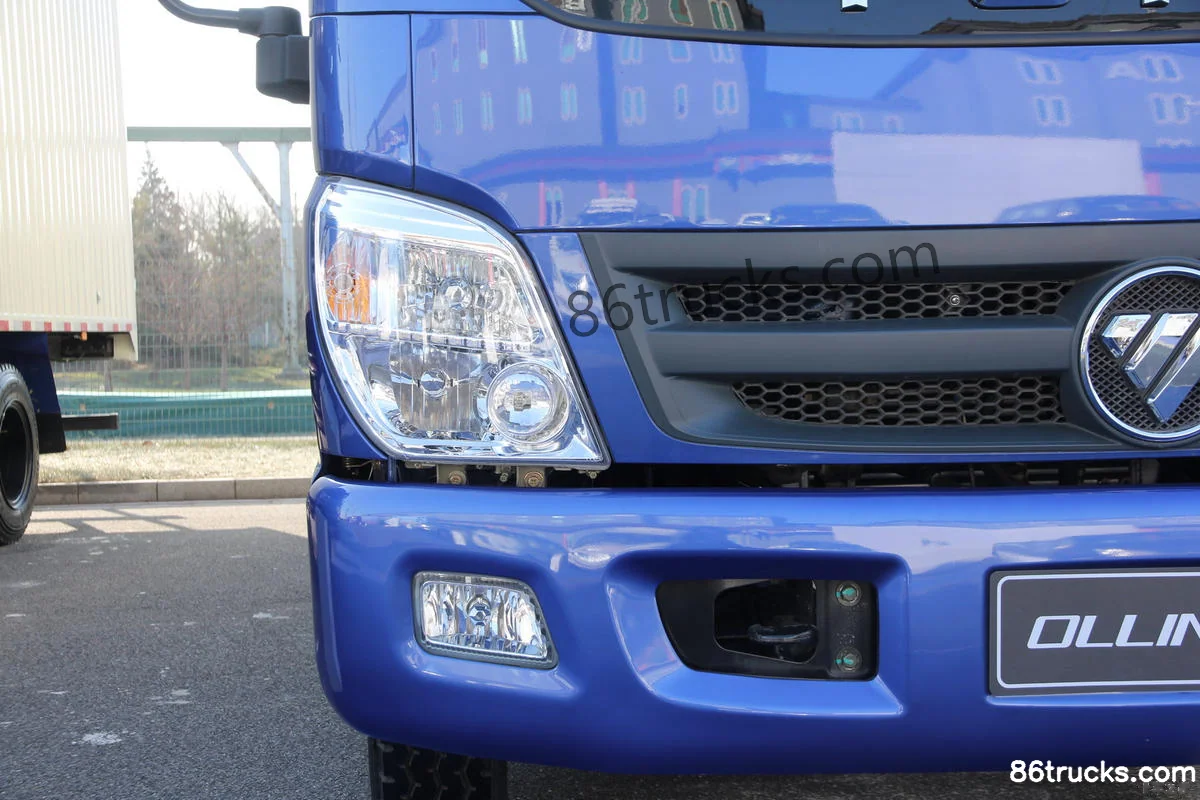

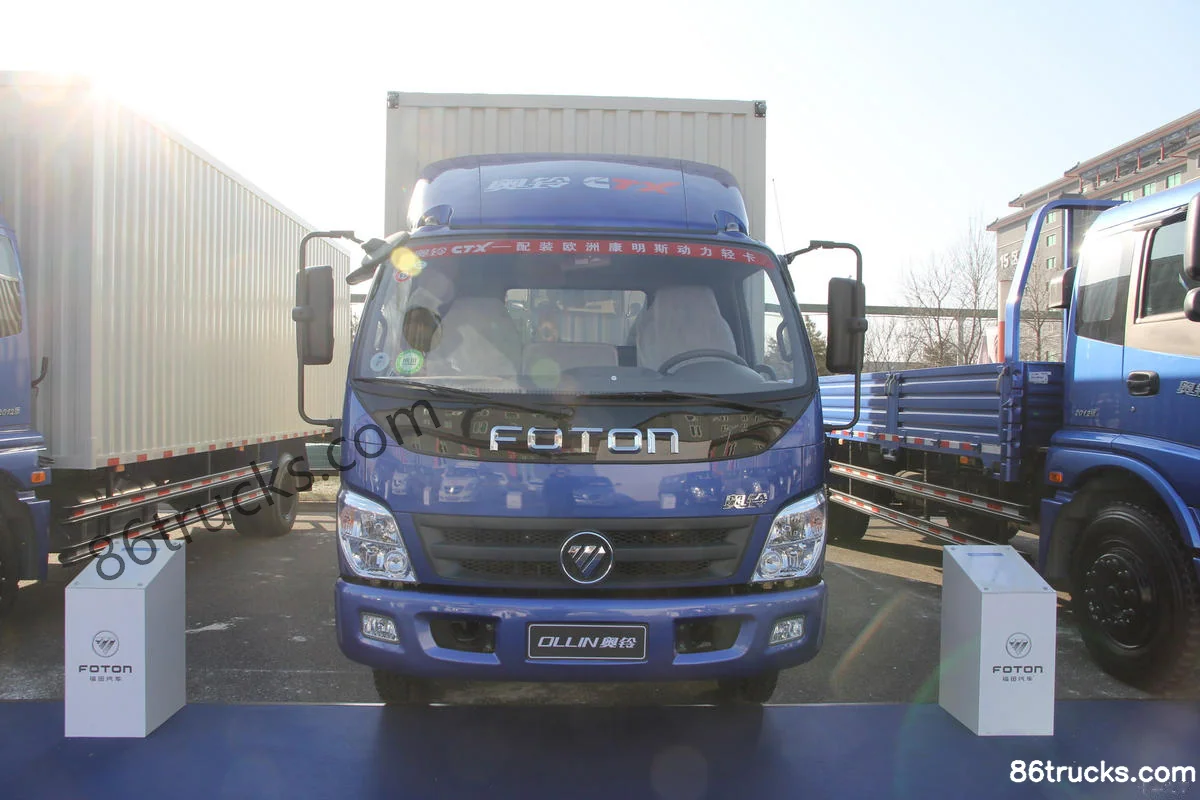

Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Exterior (1) | 86Trucks Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Exterior (2) | 86Trucks Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Exterior (3) | 86Trucks

Chassis3

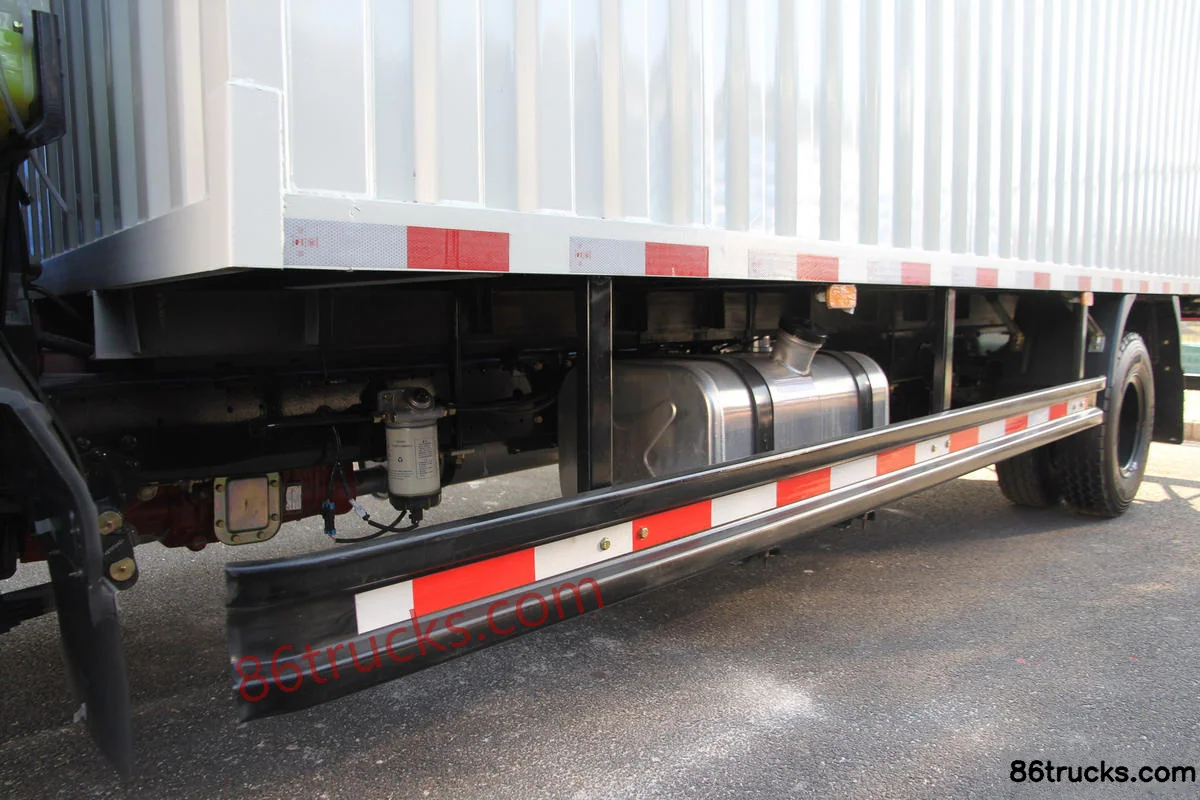

Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Chassis (1) | 86Trucks Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Chassis (2) | 86Trucks Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck?

Key specs of Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck suited for?

Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck differ from other variants in the same series?

Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 156 hp 4X2(6 wheels) 6.2m single-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
