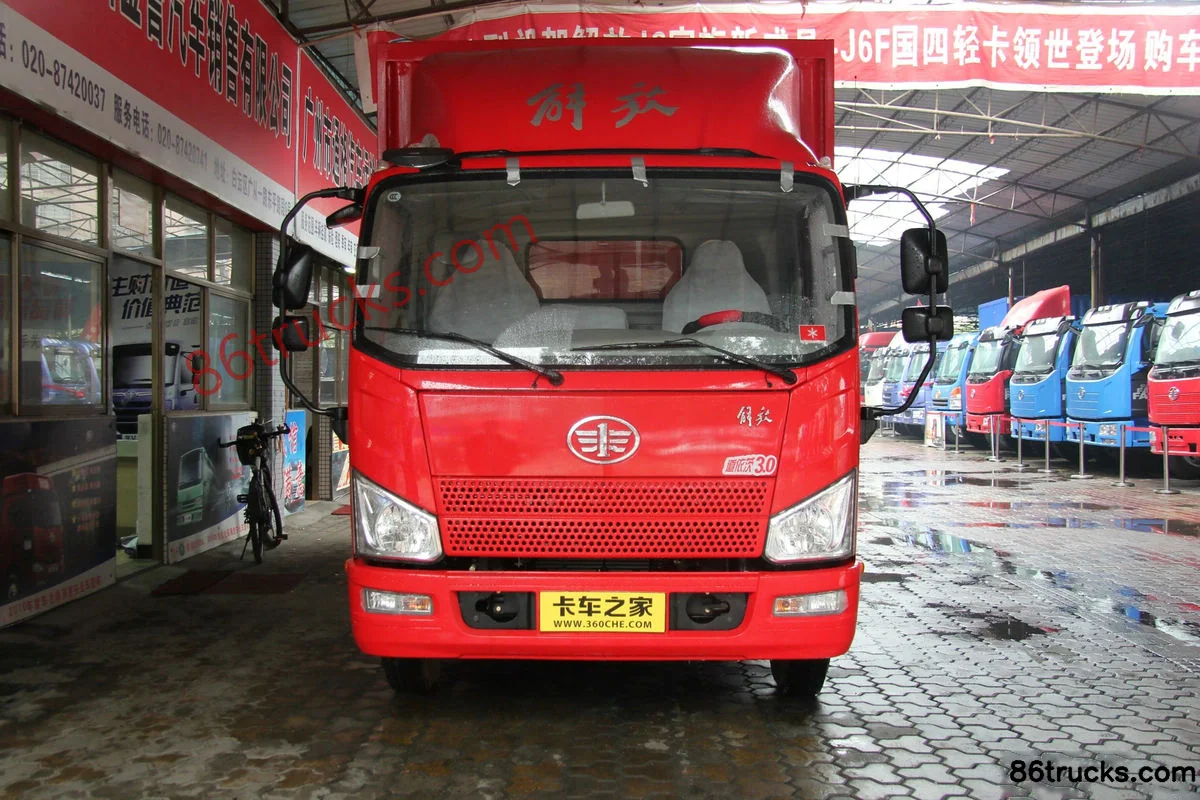

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck

Export reference
From $16,528
MSRP ¥11.9M CNY
Horsepower: 150
Emission: China IV
Fuel: Diesel
Engine: Dachai4DD
Transmission: WLY
Curb Weight:: 4.09ton
seating capacity: 3Personnel
Rated payload: 3.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck is a Light Truck featuring 5.21m cargo length, Van body cargo body, 3Personnel volume and 3.995t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai4DD engine, 150 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5086XXYP40K2L3E4A84-3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3900mm
Box length class: 5.2m
engine: DachaiCA4DD1-15E4R
transmission: WLYWLY5-35
Cab length: 6.995m
Cab width: 2.27m
Cab height: 3.37m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 4.09ton
Rated payload: 3.995ton
GVWR: 8.28ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 14°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.155/1.94m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DD1-15E4R
Engine info: Dachai4DD
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China IV
Max output power: 113kW
Max hp: 150Horsepower
Max torque: 360N·m
Max torque speed: 1400-2900rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY5-35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.21m
Cargo box width: 2.18m
Cargo box height: 2.2m
*Cargo box interior width: 2.1800000667572
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2890kg
rear axle allowable load: 5390kg
Leaf spring count: 3/7+9
Tire
Tire Size: 7.50R16
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Exterior features
Air deflector:
Service brake
Exhaust brake:

Photos

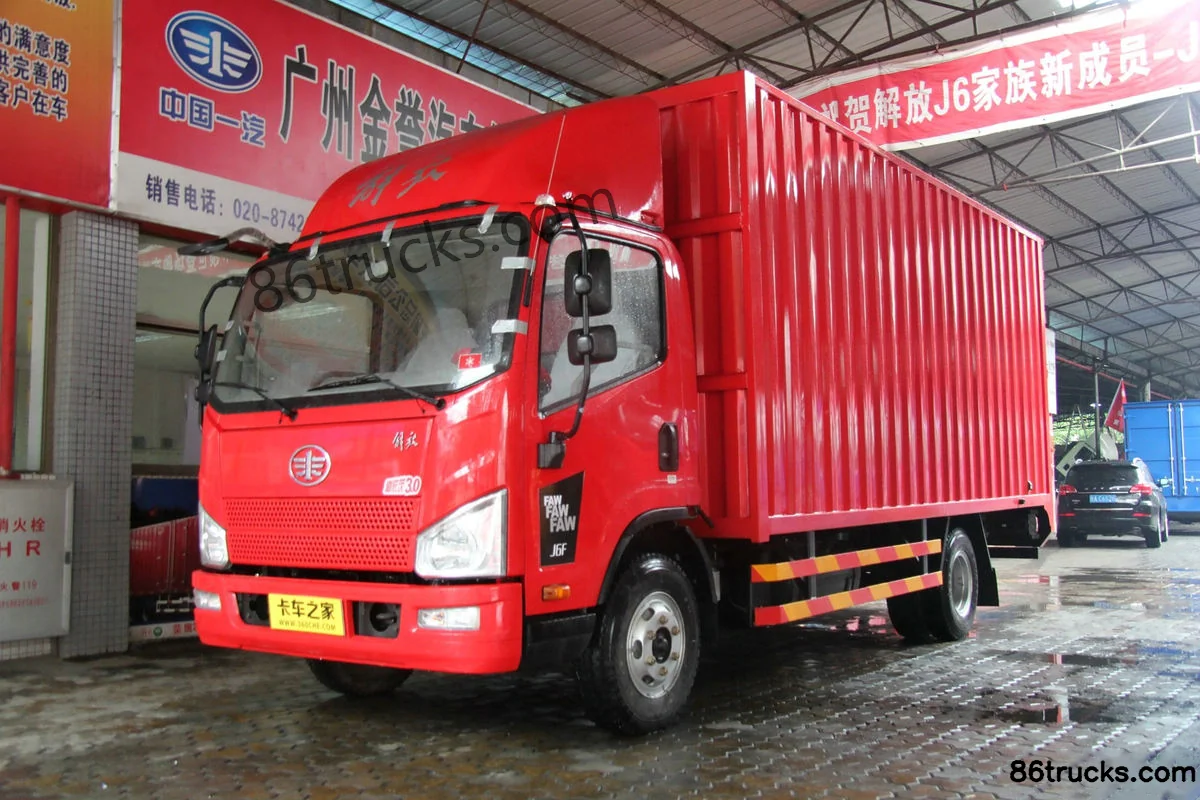

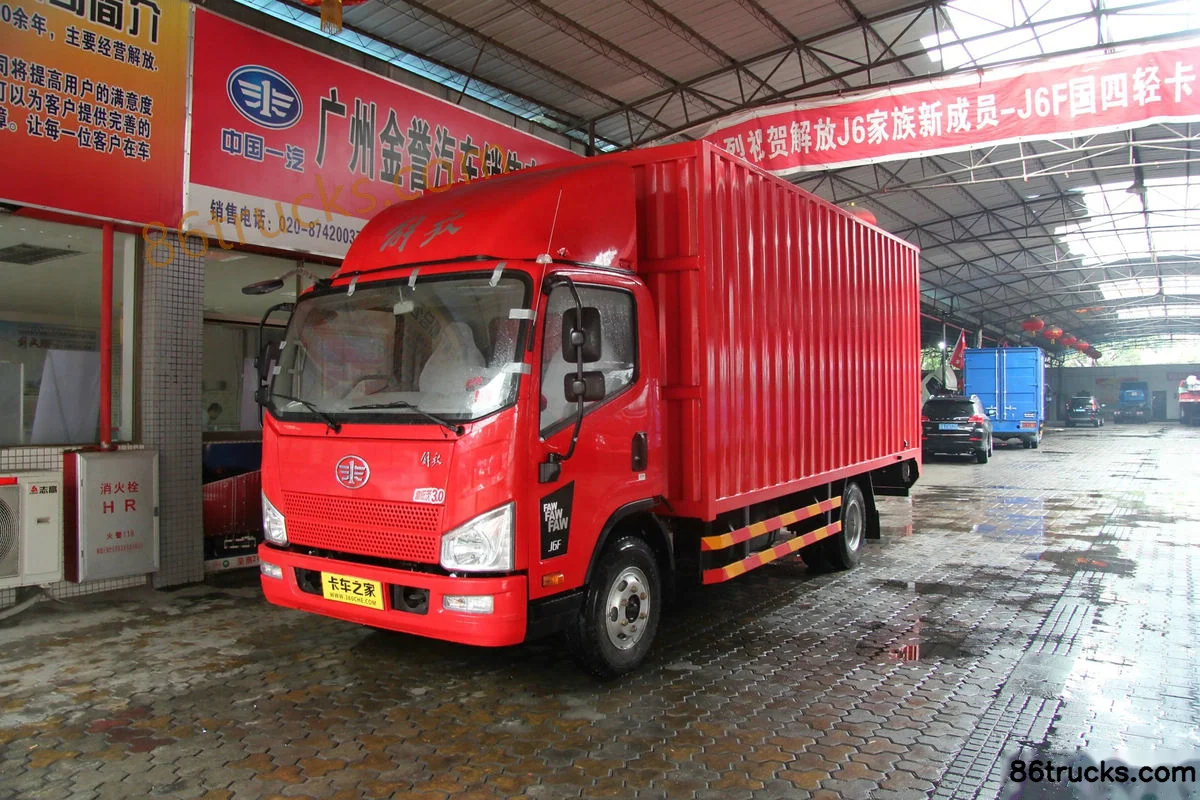

Exterior3

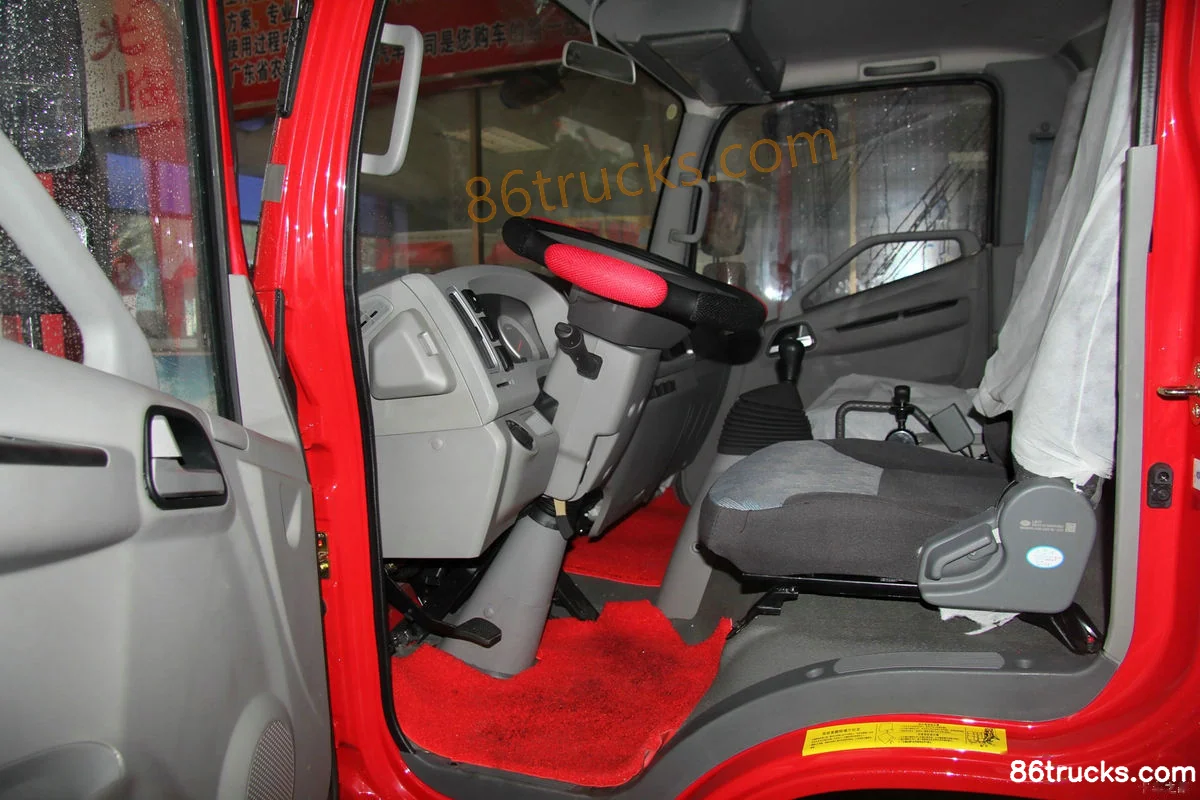

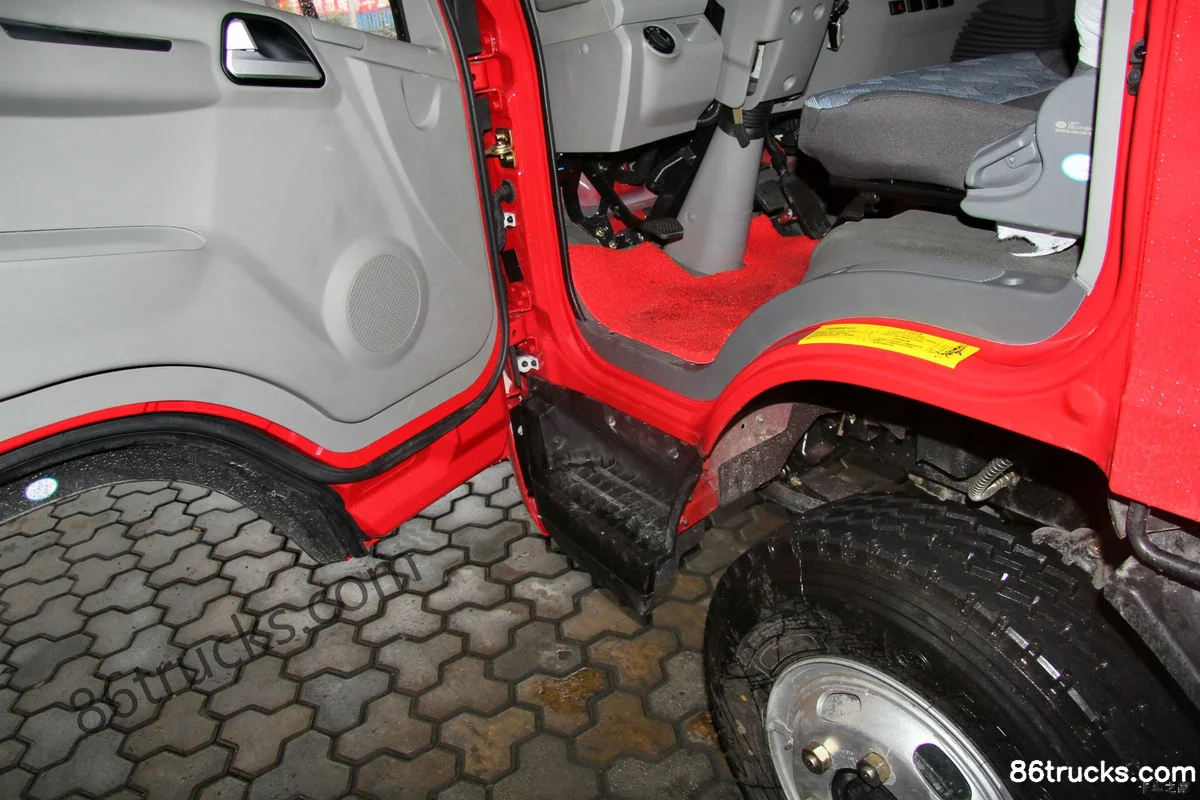

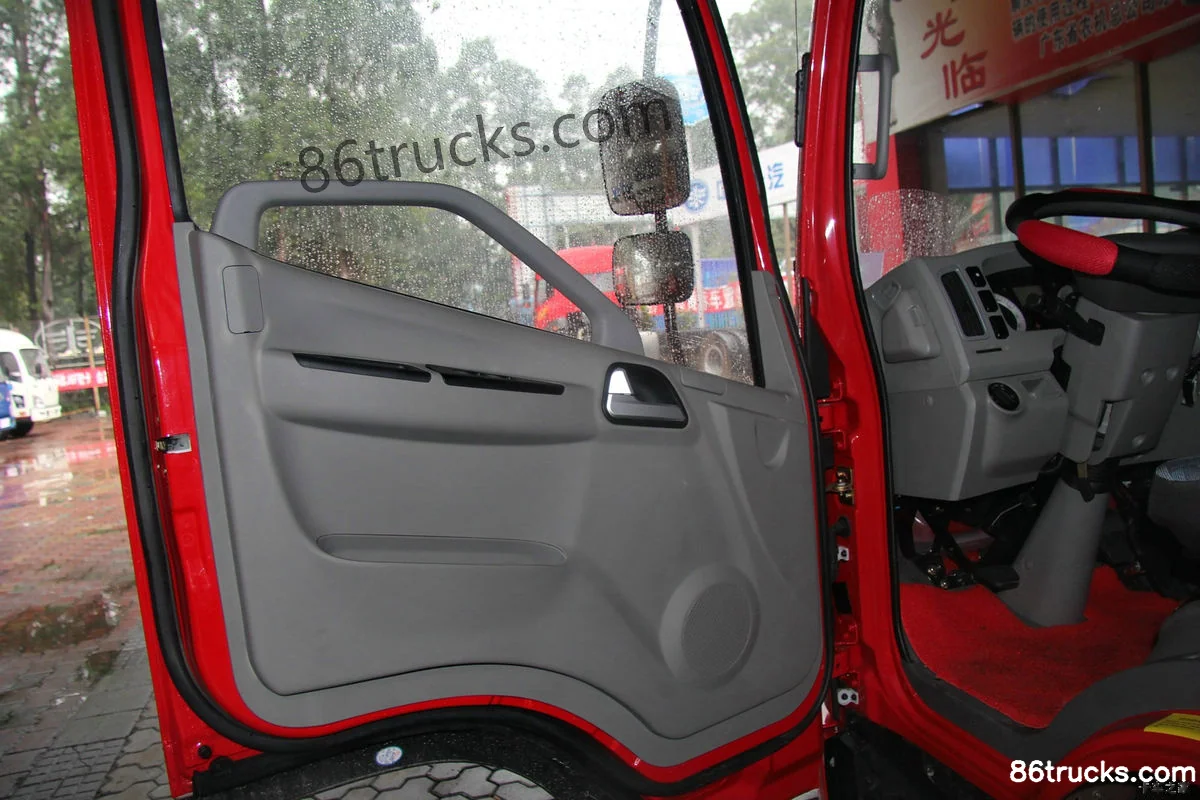

Cab3

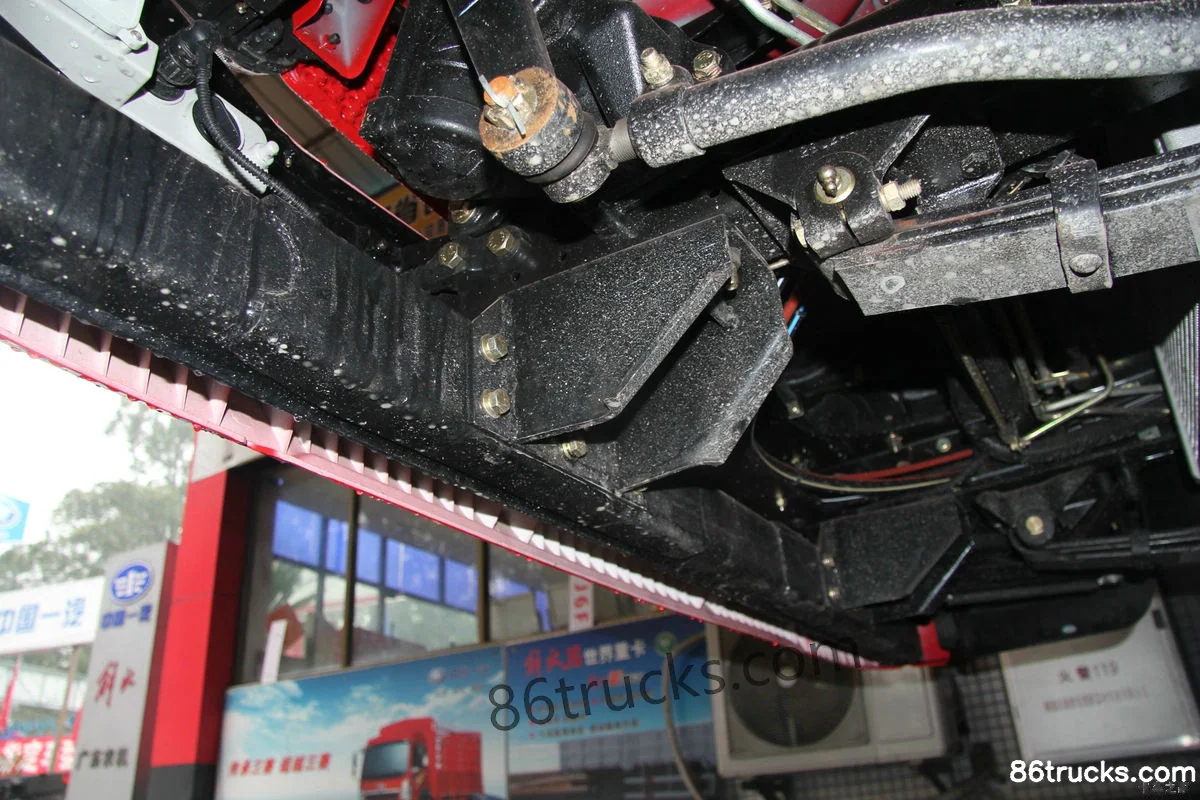

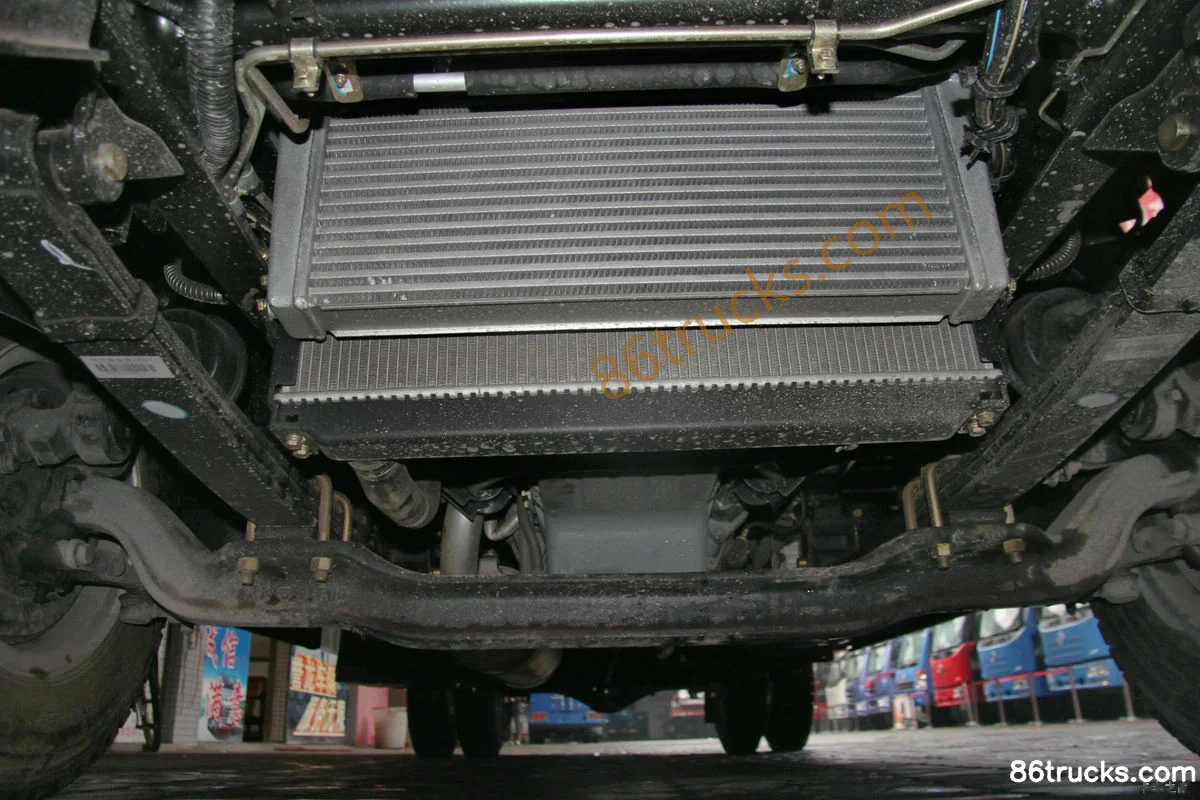

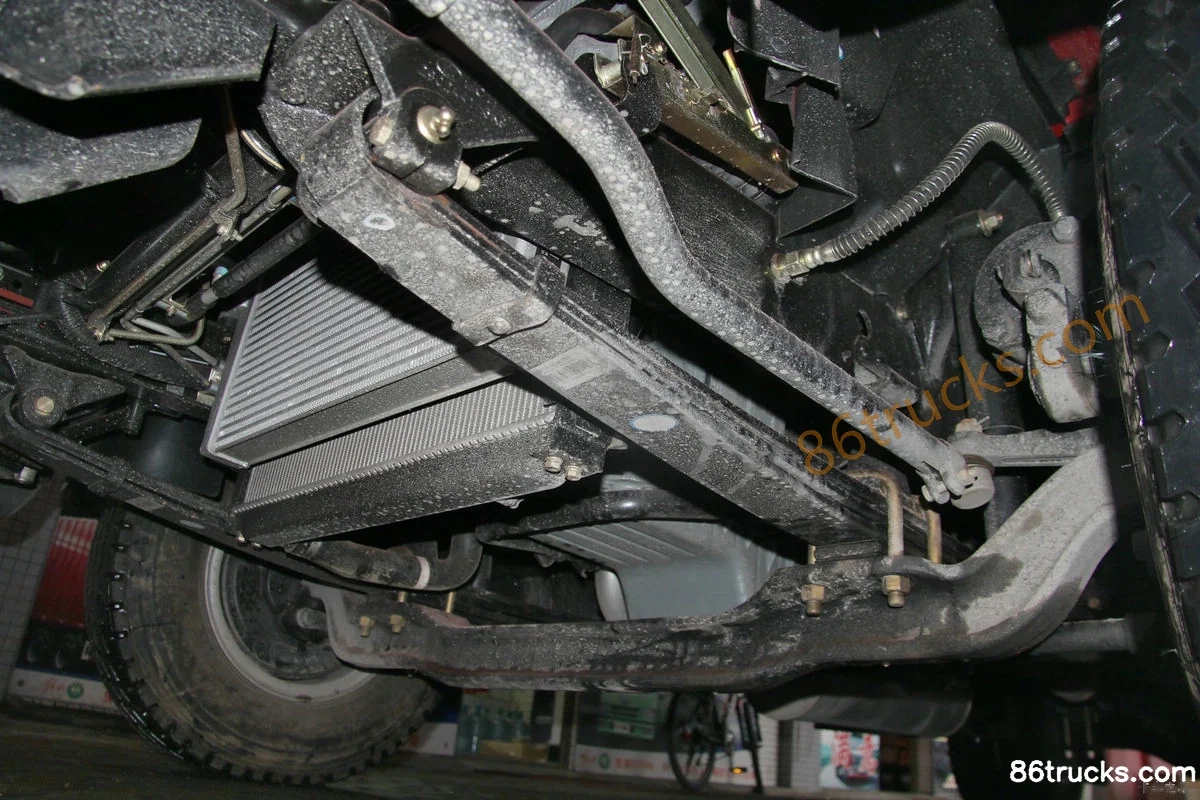

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck, and what does it include?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck export reference is about From $16,528; MSRP is ¥11.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck?

Key specs of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck: Drive: 4x2; Horsepower: 150 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai4DD; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck suited for?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck differ from other variants in the same series?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck belongs to FAW Jiefang J6F Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 150hp 4X2(6 wheels) 5.2m single-row light box truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
