JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck

Export reference
From $49,000
MSRP ¥35.28M CNY
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: Xichai9L
Transmission: Fast Gear
Curb Weight:: 13.6ton
seating capacity: 3Personnel
Rated payload: 17.27ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Van body cargo body, 3Personnel volume and 17.27t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Xichai9L engine, 350 hp, 8X4 (12 wheels) drive and China V emissions.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5311XXYP1K4H45S1V
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DL2-35E5
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.5m
Cab height: 3.98m
Front track width: 2040/2040mm
rear track: 1840/1840mm
Curb Weight: 13.6ton
Rated payload: 17.27ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Daily industrial goods transport
Remarks: Electric tilt cab, engine guard, front underrun protection, right-turn alarm, lane departure warning, onboard power supply, full CAN, iron air reservoir, two airbag suspension, raised cab, optional one-key start, four airbag cab suspension, MP5, cigarette lighter, control switch and body control system (with ESS) with MP5, selectable ratio 4.444/4.111.
Front/rear suspension: 1.495/2.755m
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E5
Engine info: Xichai9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China V
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1470rpm
Rated speed: 2100rpm
Engine Type: Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.48m
Cargo box height: 2.6m
*Cargo box interior width: 2.4800000190735
Cab parameters
Cab: K5W High Roof Flat Floor
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 5T drum
Front axle allowable load: 6500/6500kg
Frame Dimensions: 302×80×8mm
rear axle description: QL350
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Leaf spring count: 3/3/12,9/9/12,3/3/4
Tire
Tire Size: 11.00R20 16PR,12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
Radio:
smart configuration
Cruise control (CCS):

Photos

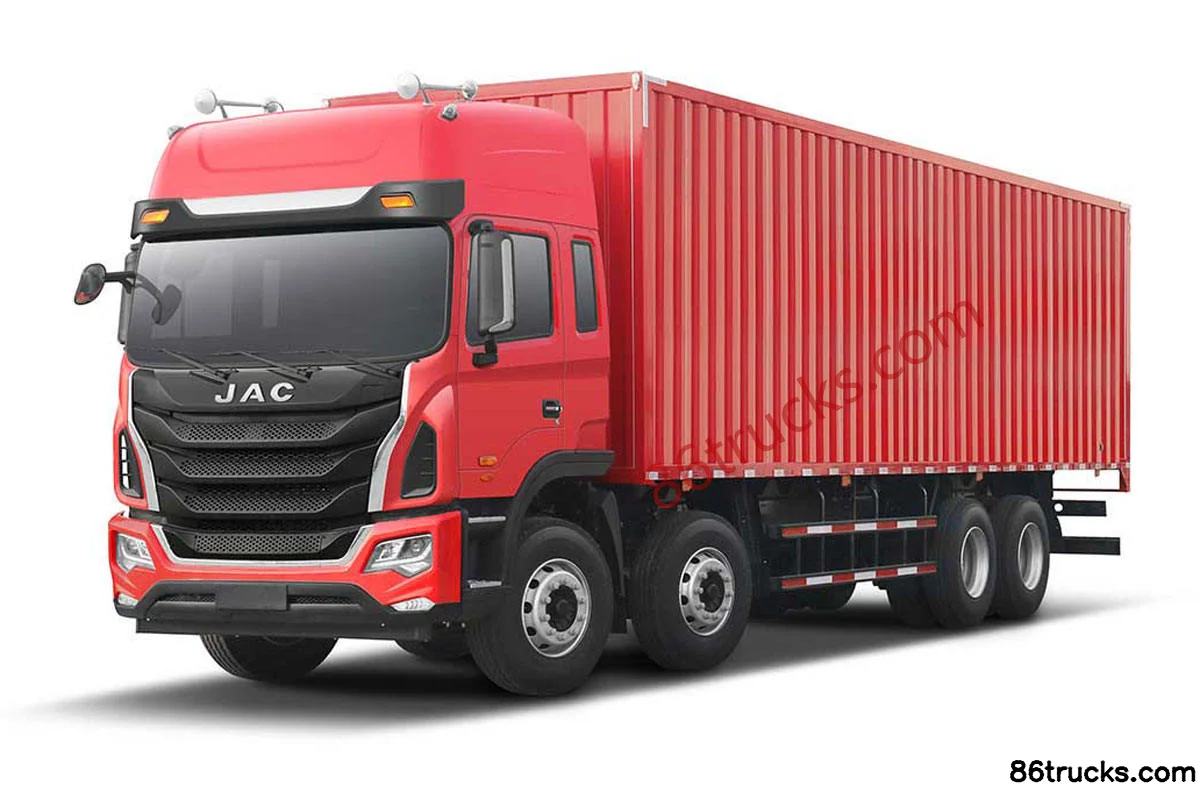

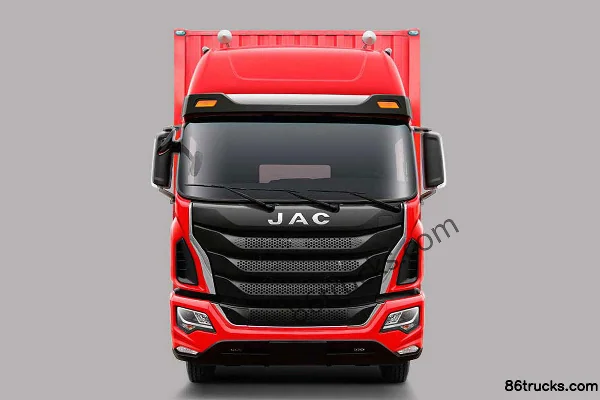

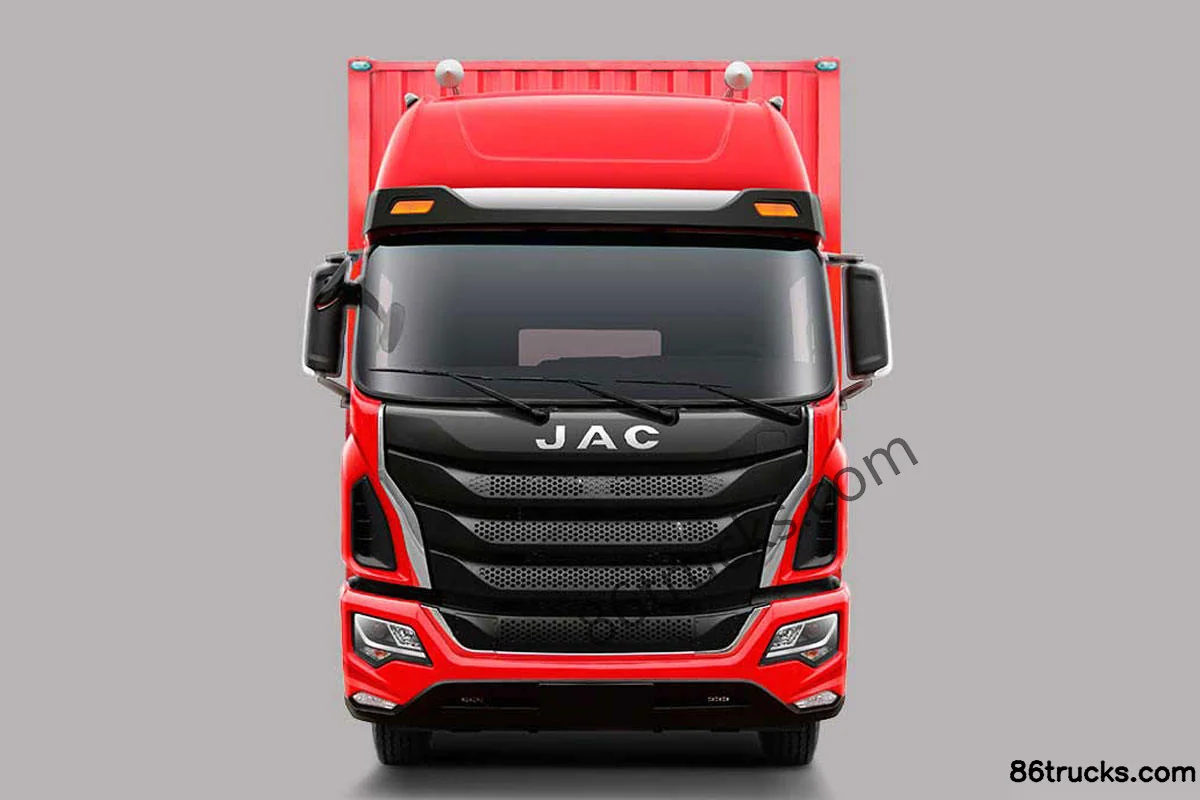

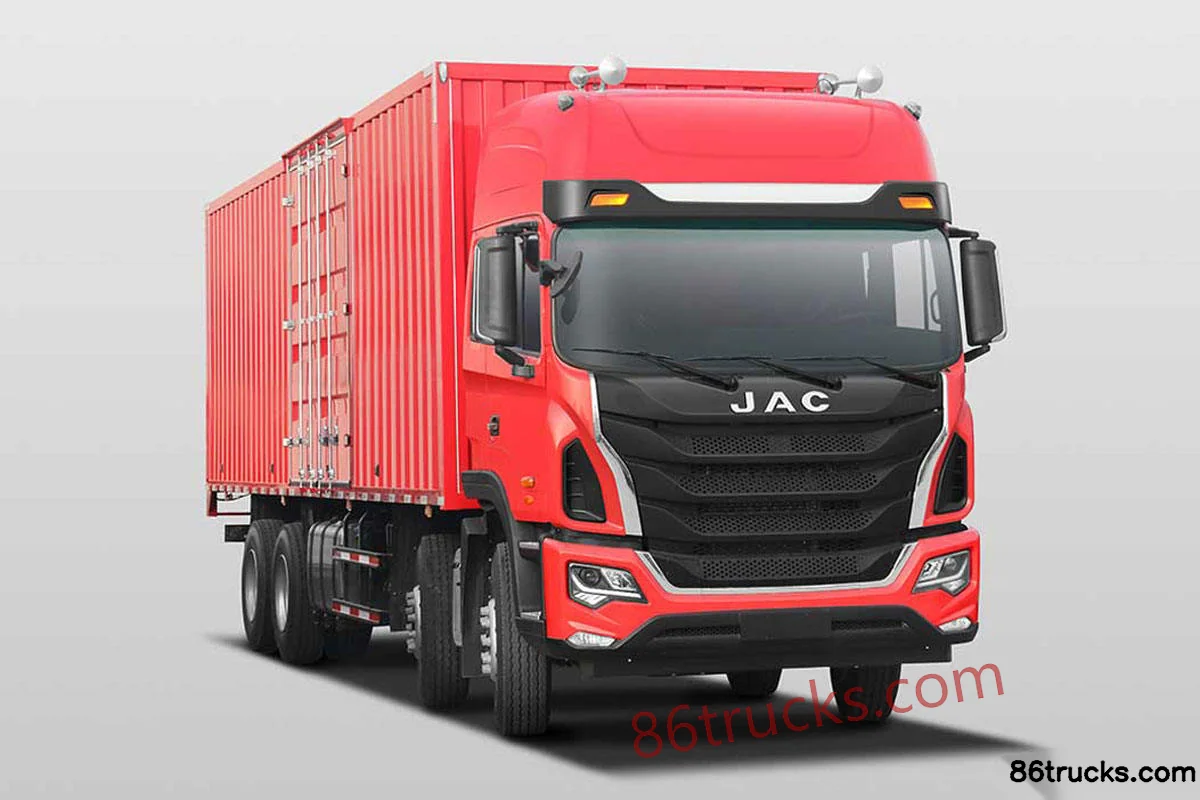

Exterior3

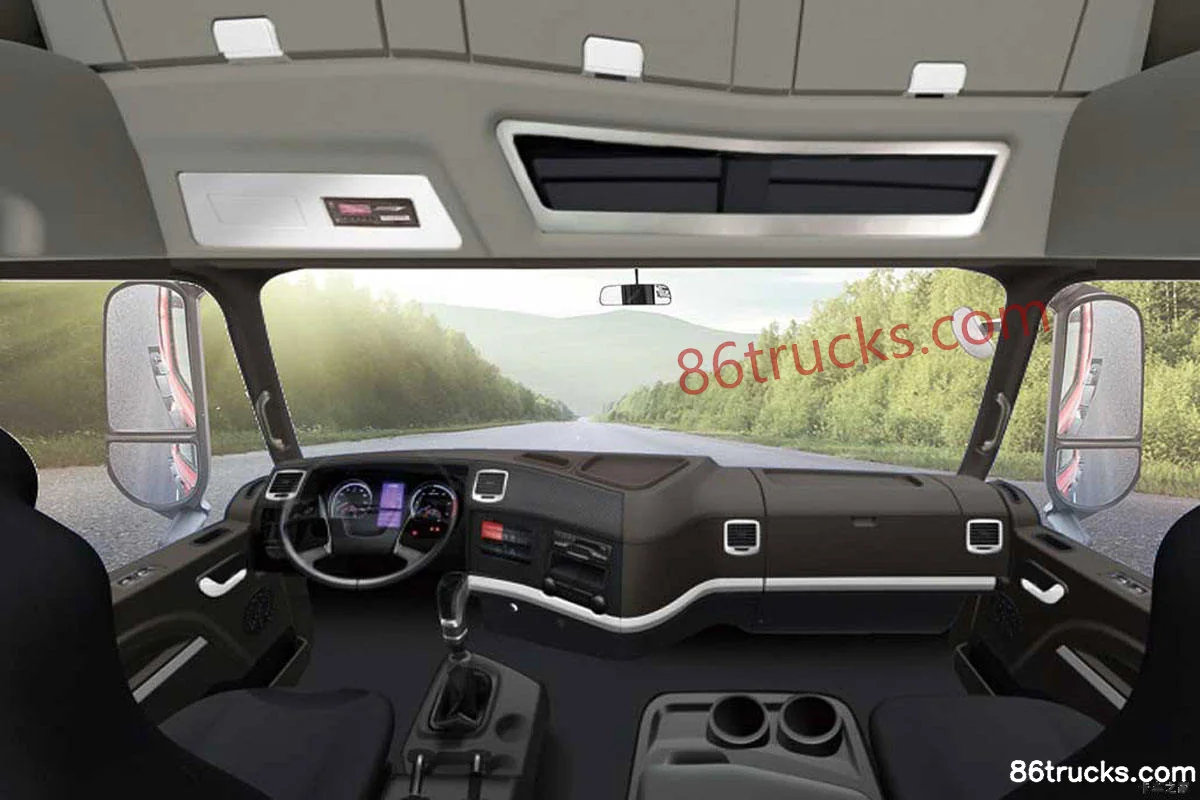

Cab1

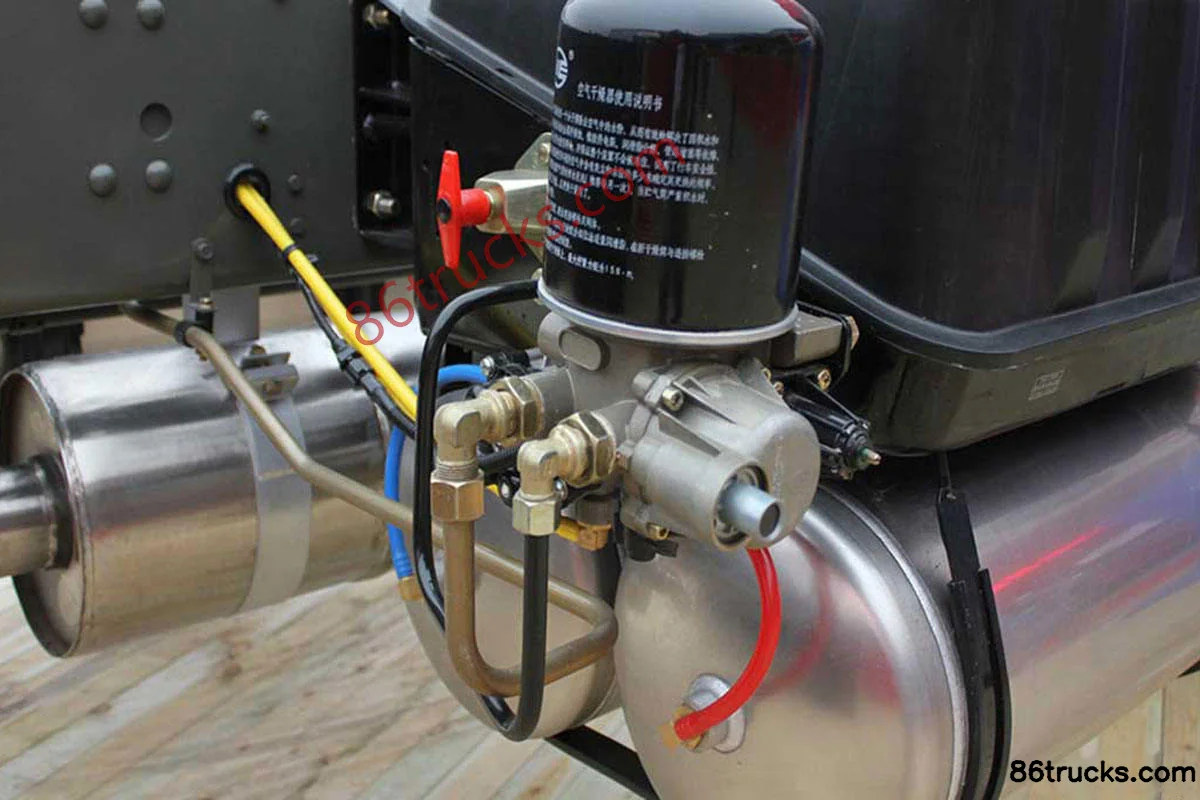

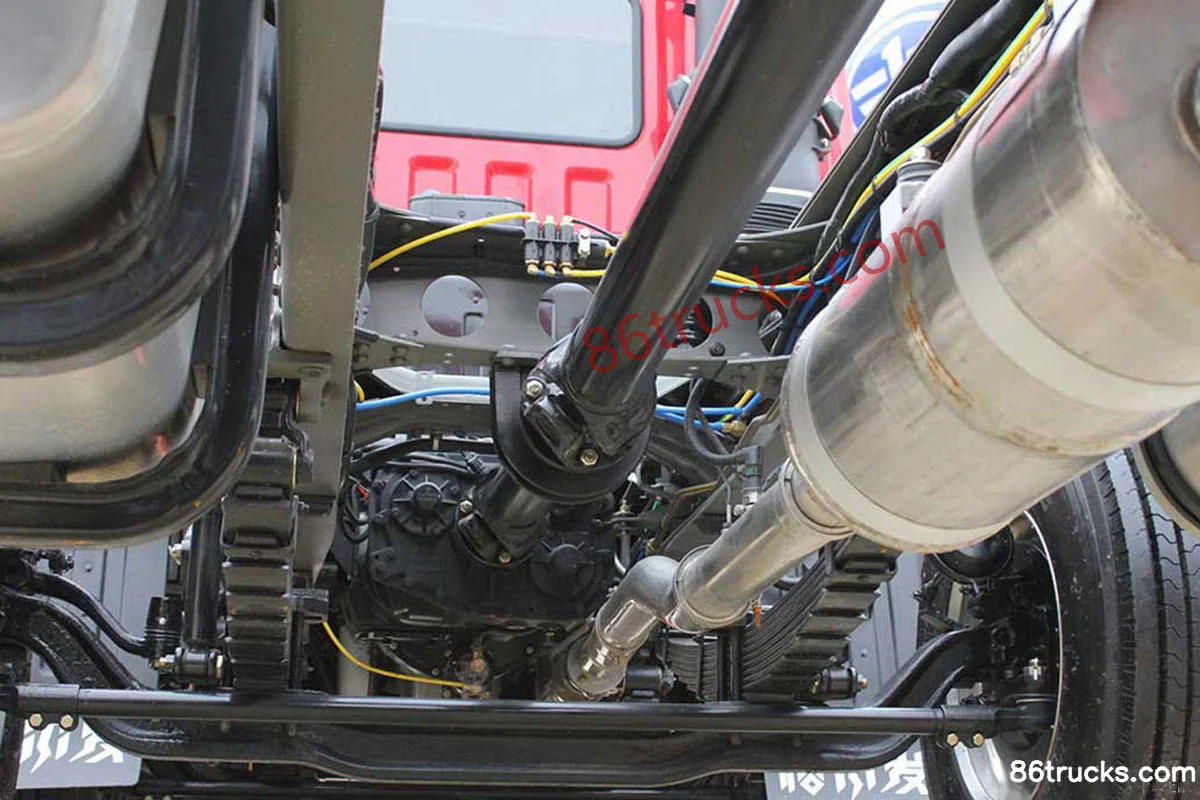

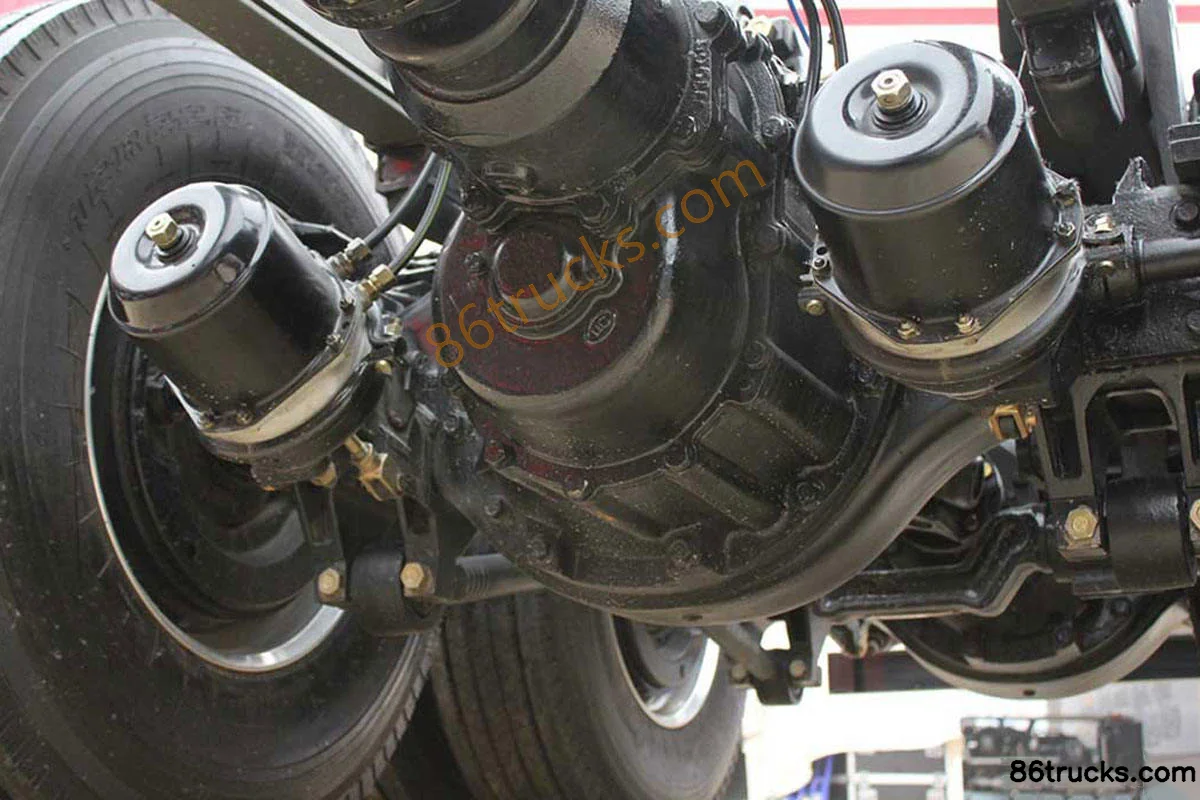

Chassis3

7 photos

FAQ

What is the export price of JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck, and what does it include?

JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck export reference is about From $49,000; MSRP is ¥35.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck?

Key specs of JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: Xichai9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck suited for?

JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck differ from other variants in the same series?

JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
