FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green)

Export reference
From $16,639
MSRP ¥11.98M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 4.95ton
Wheelbase:: 3400mm
Tire Size:: 8.25-16 16PR,8.25R16 16PR
Model code (announced):: CA3100K35L3E5
Rated payload: 4.85ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Rear-dump body

Overview

The FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) is a Light Truck featuring 4.85t payload, 9.995t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRE1 engine, 129 hp, China V emissions and 6-speed transmission transmission.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3100K35L3E5
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYN38CRE1
transmission: 6-speed transmission
Cab length: 5.995m
Cab width: 2.215m
Cab height: 2.6m
Front track width: 1640mm
rear track: 1645mm
Curb Weight: 4.95ton
Rated payload: 4.85ton
GVWR: 9.995ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 25°
departure angle: 20°
Remarks: Standard: air deflector, reverse radar, digital instrument cluster, automatic slack adjuster.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: 6-speed transmission
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.74m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab width: 1880mm
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle allowable load: 3596kg
rear axle allowable load: 6400kg
Leaf spring count: 9/11+8,9/9+6
Tire
Tire Size: 8.25-16 16PR,8.25R16 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

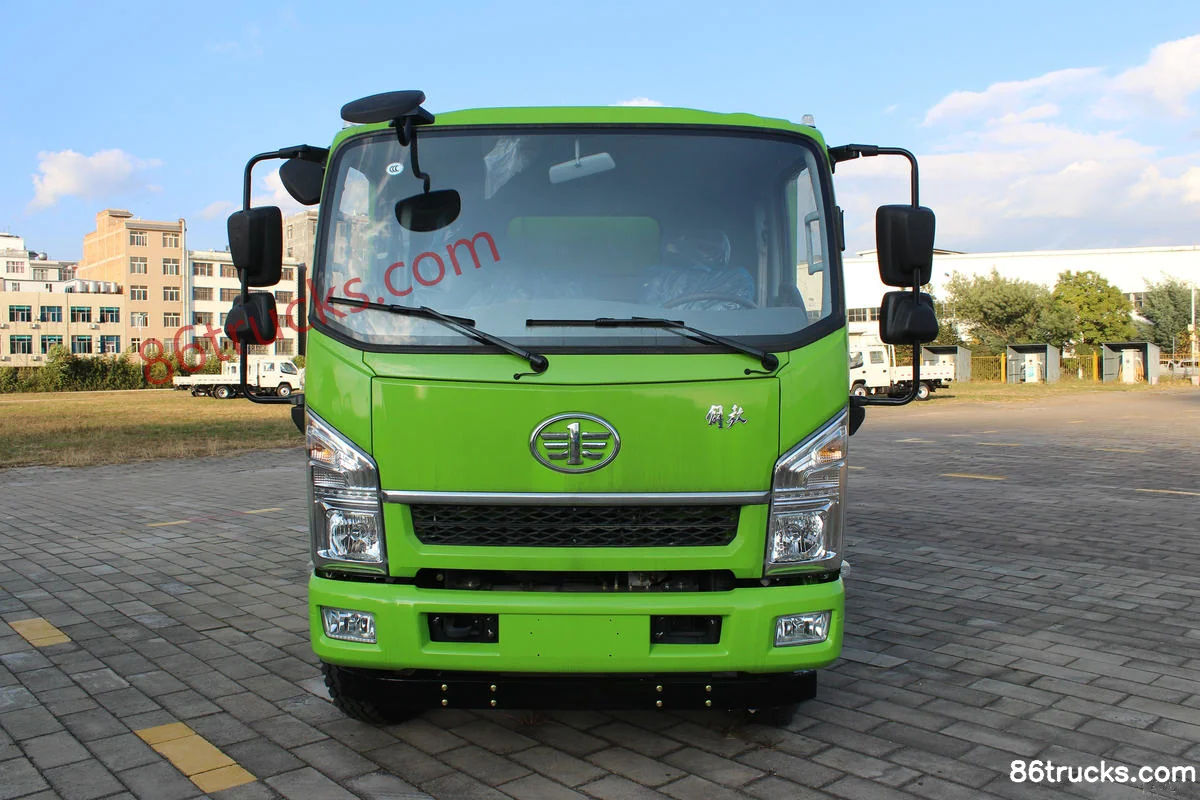

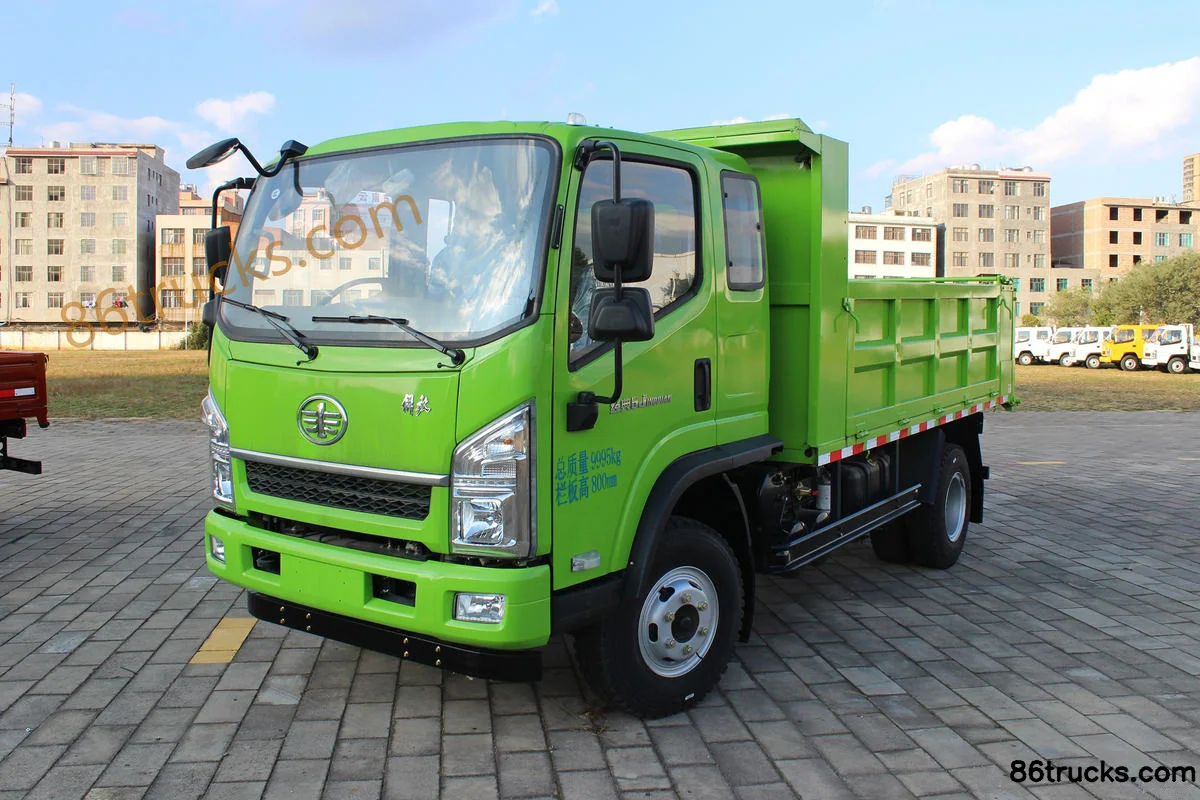

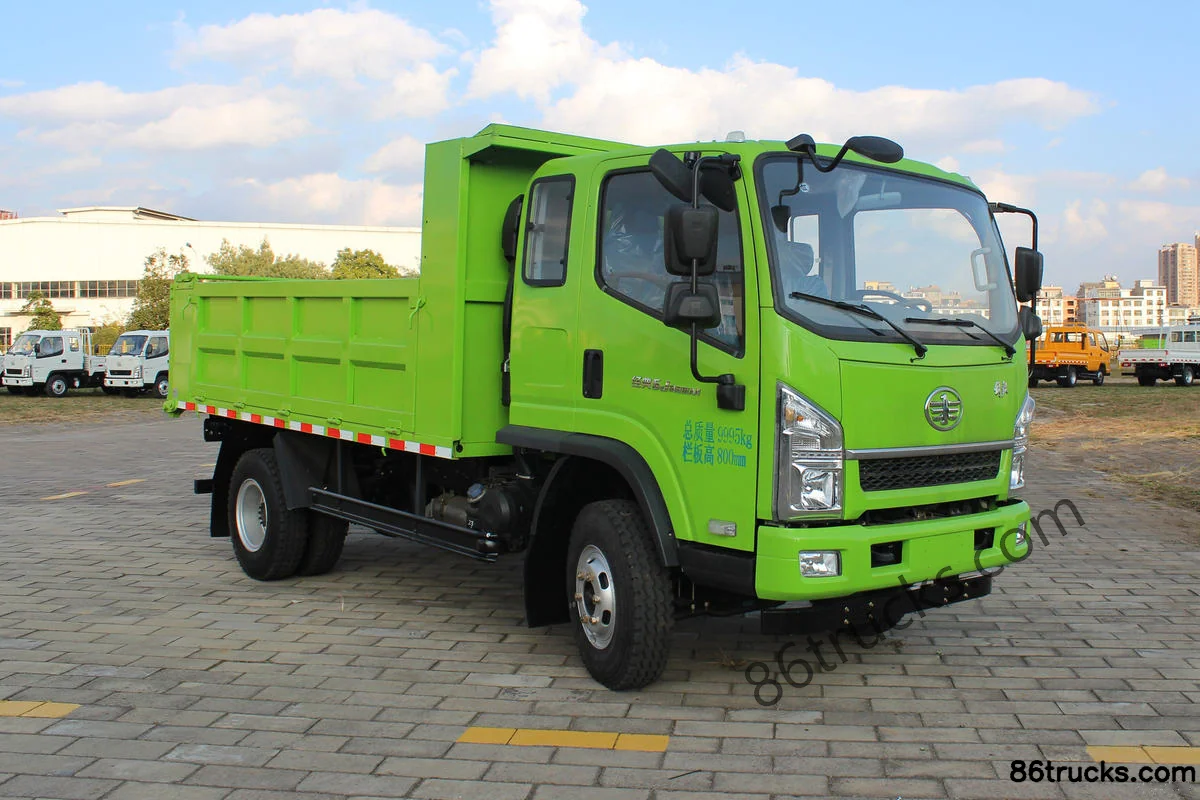

Exterior3

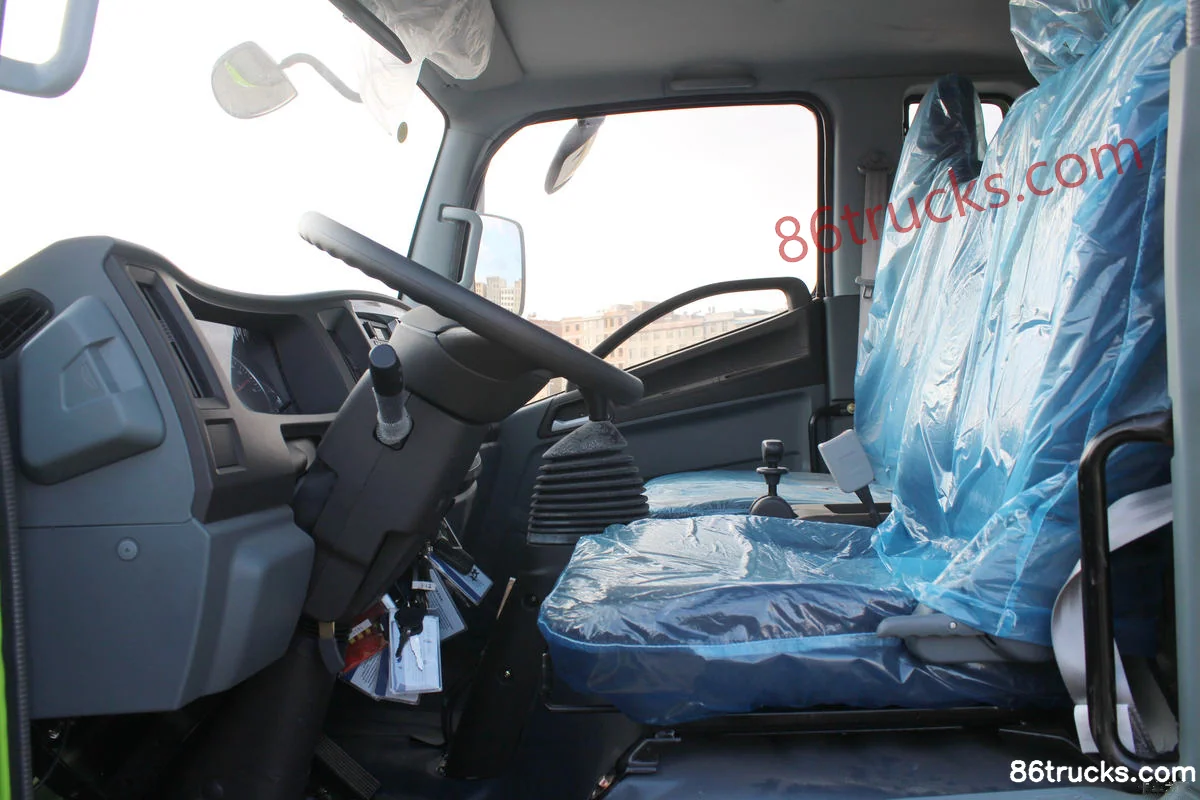

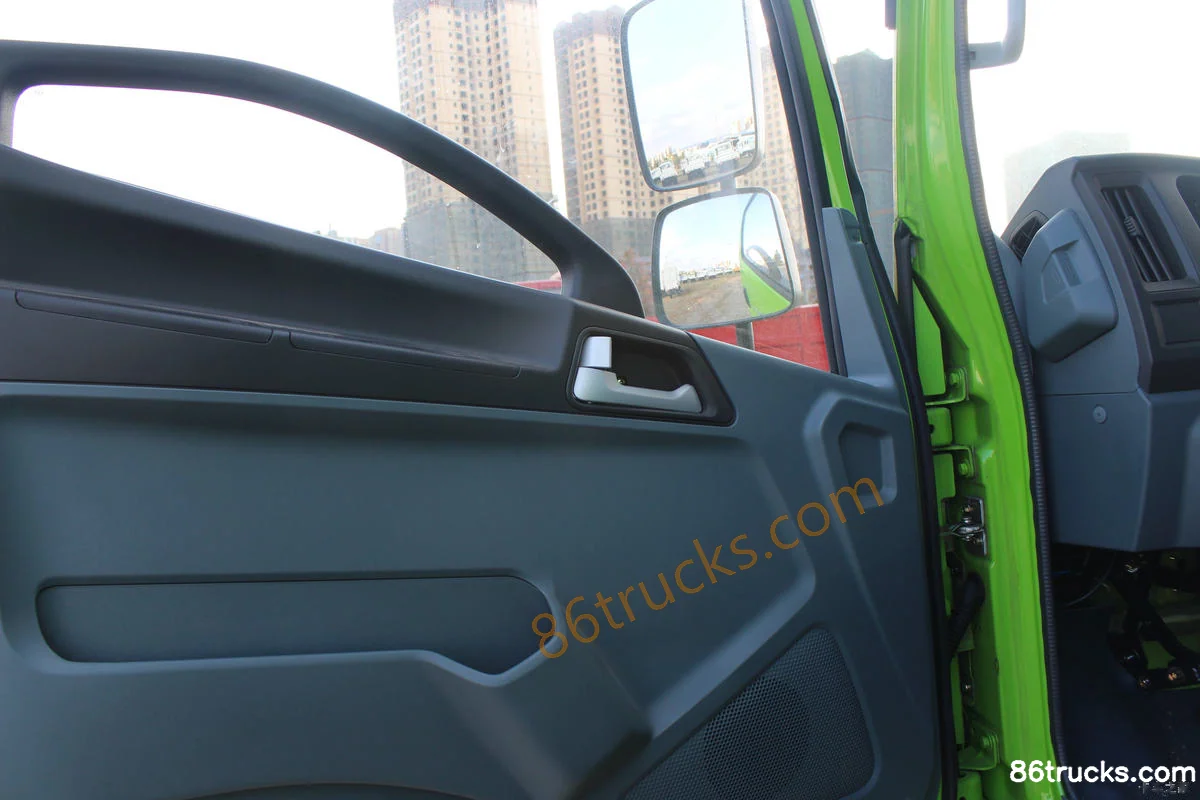

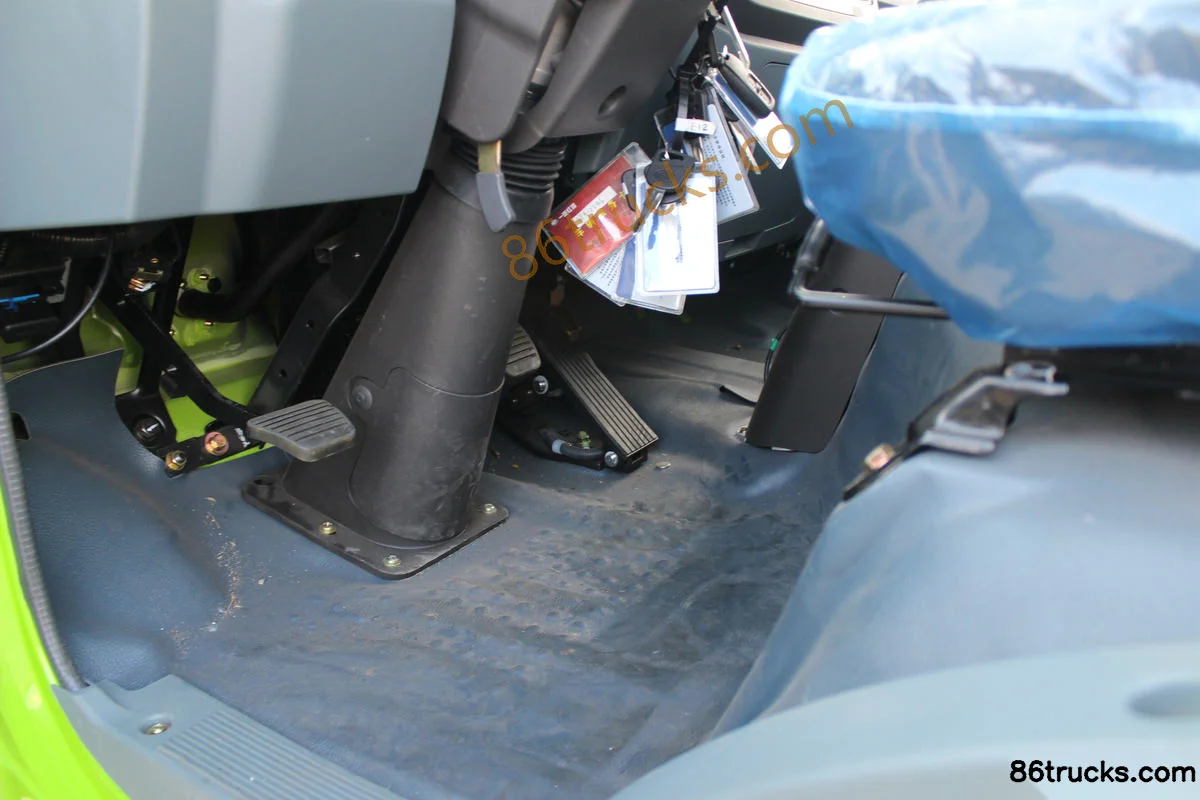

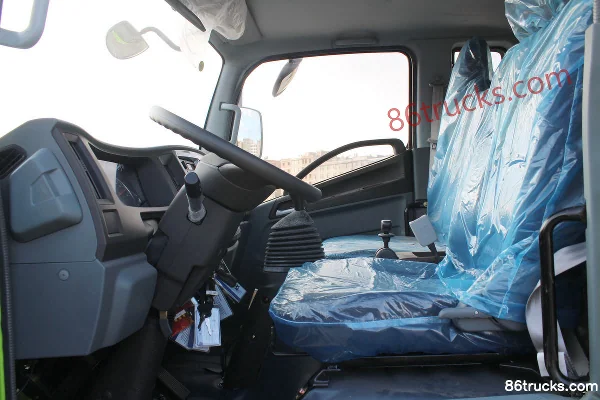

Cab3

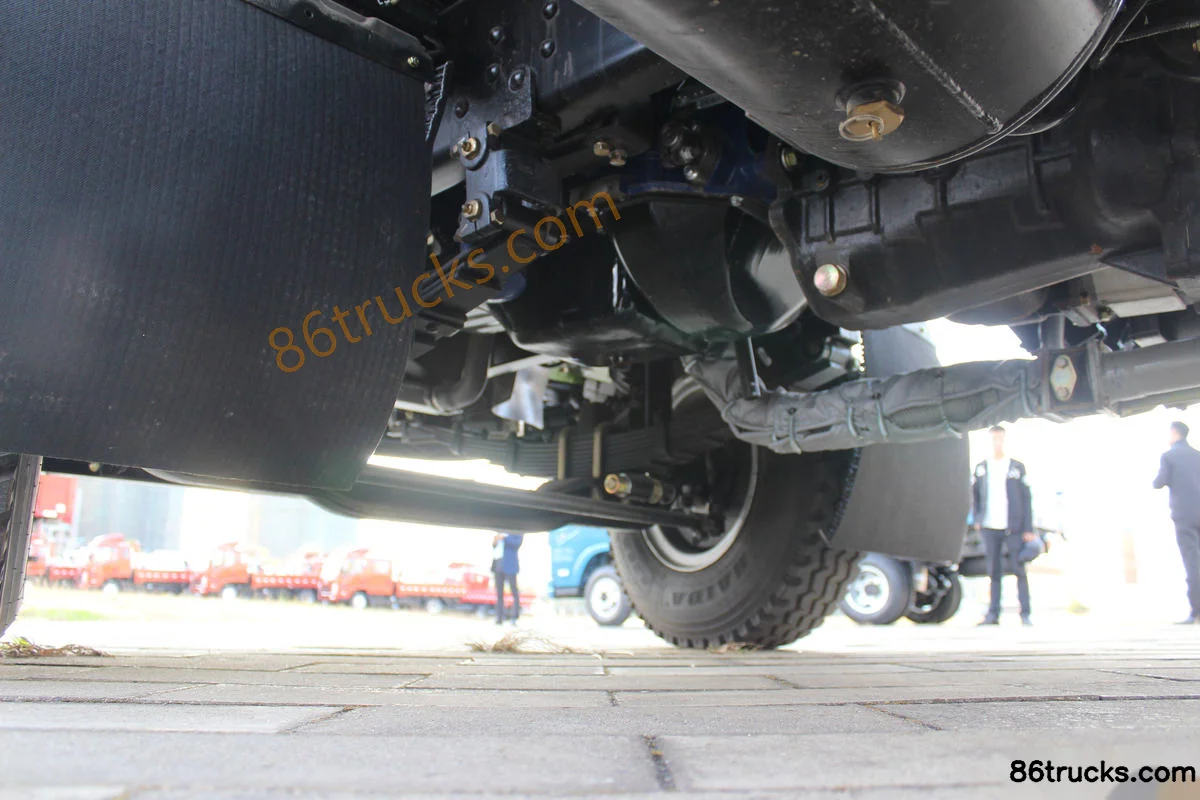

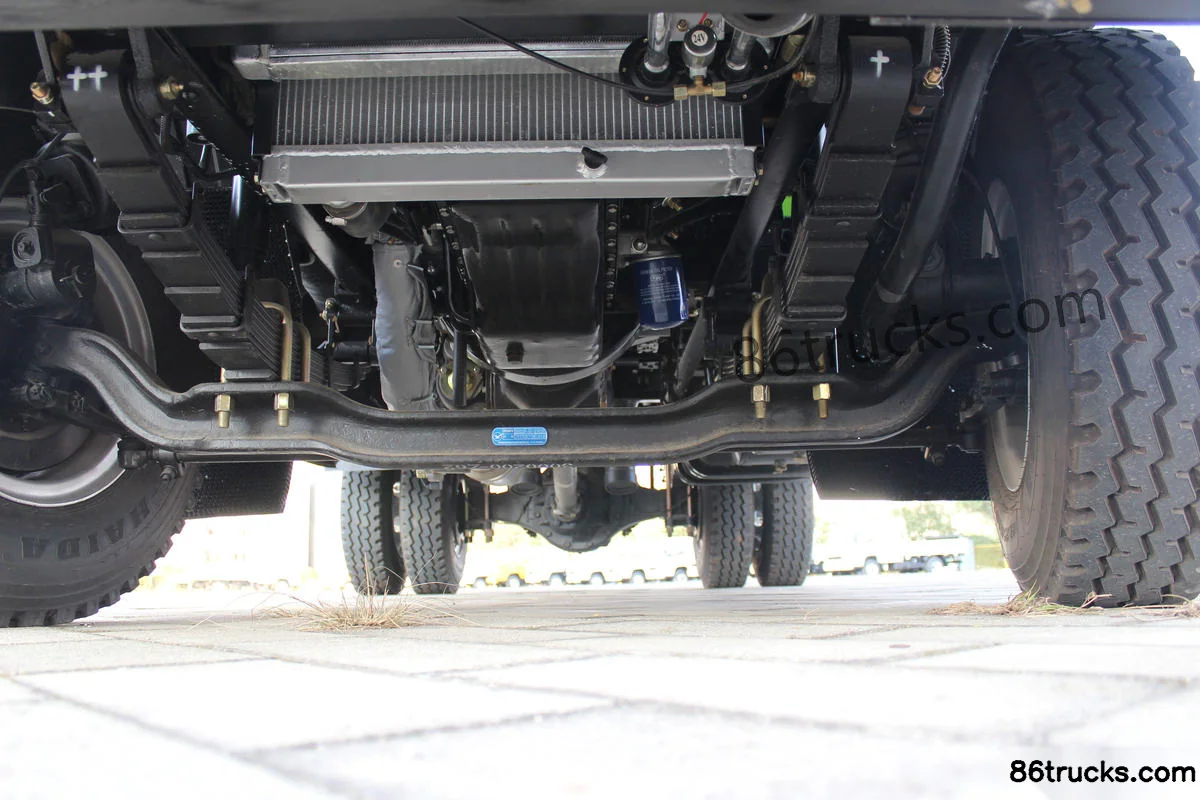

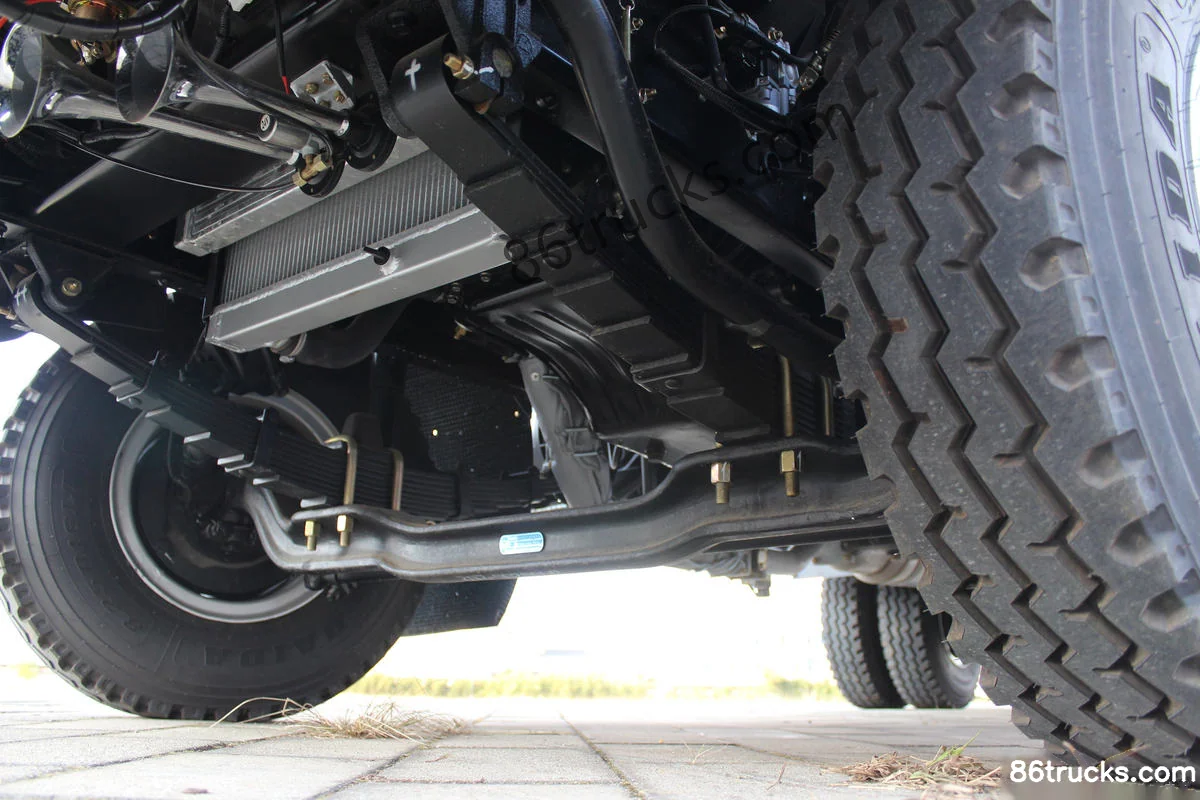

Chassis3

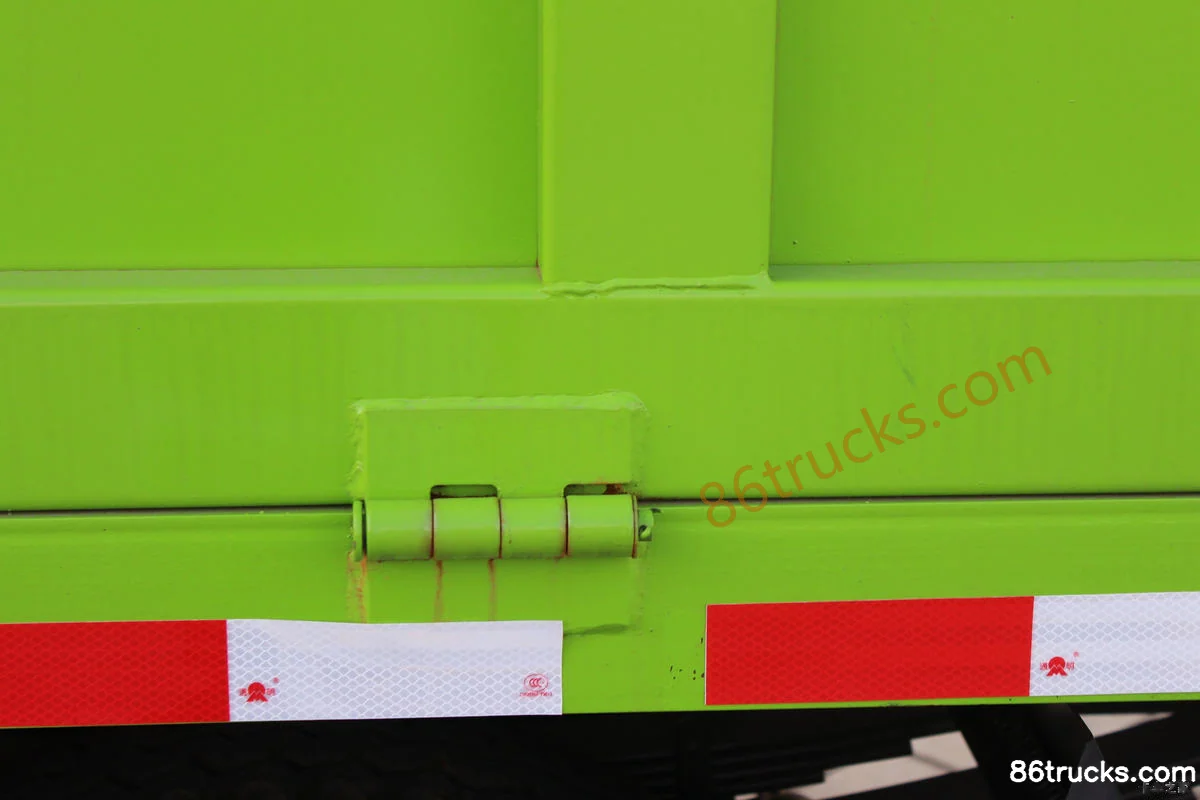

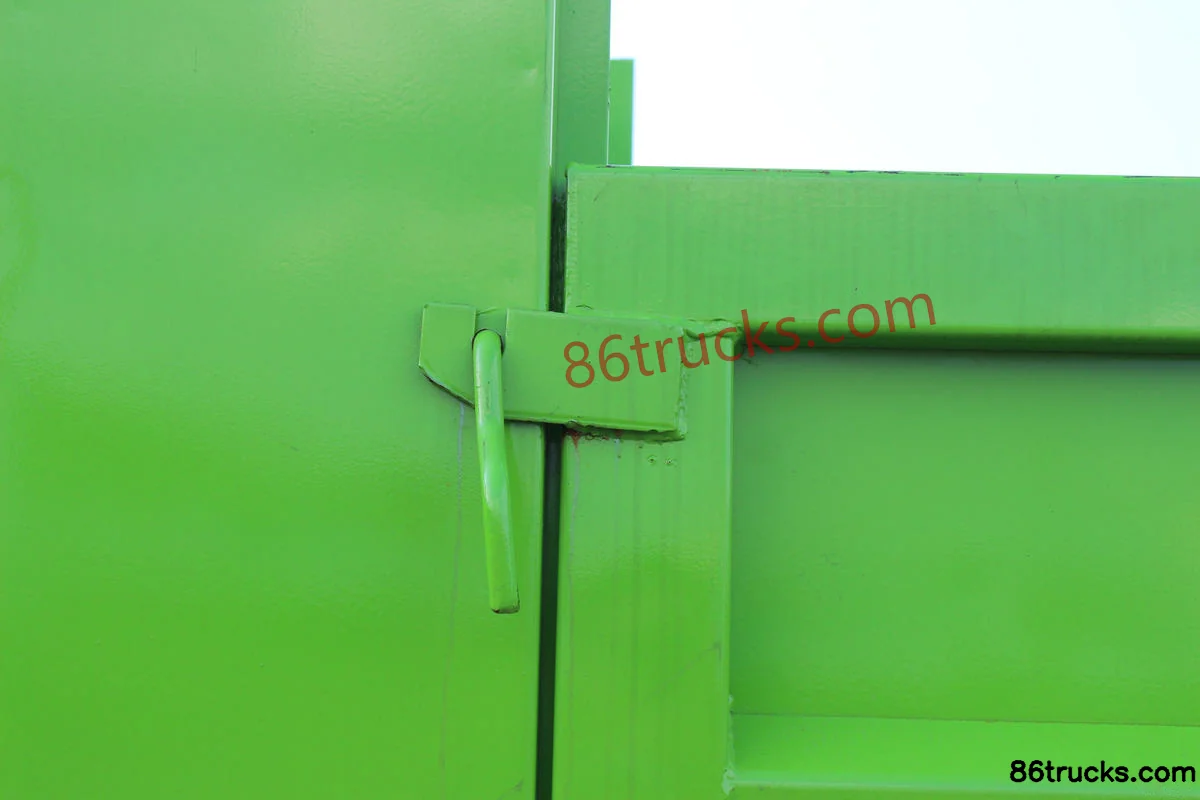

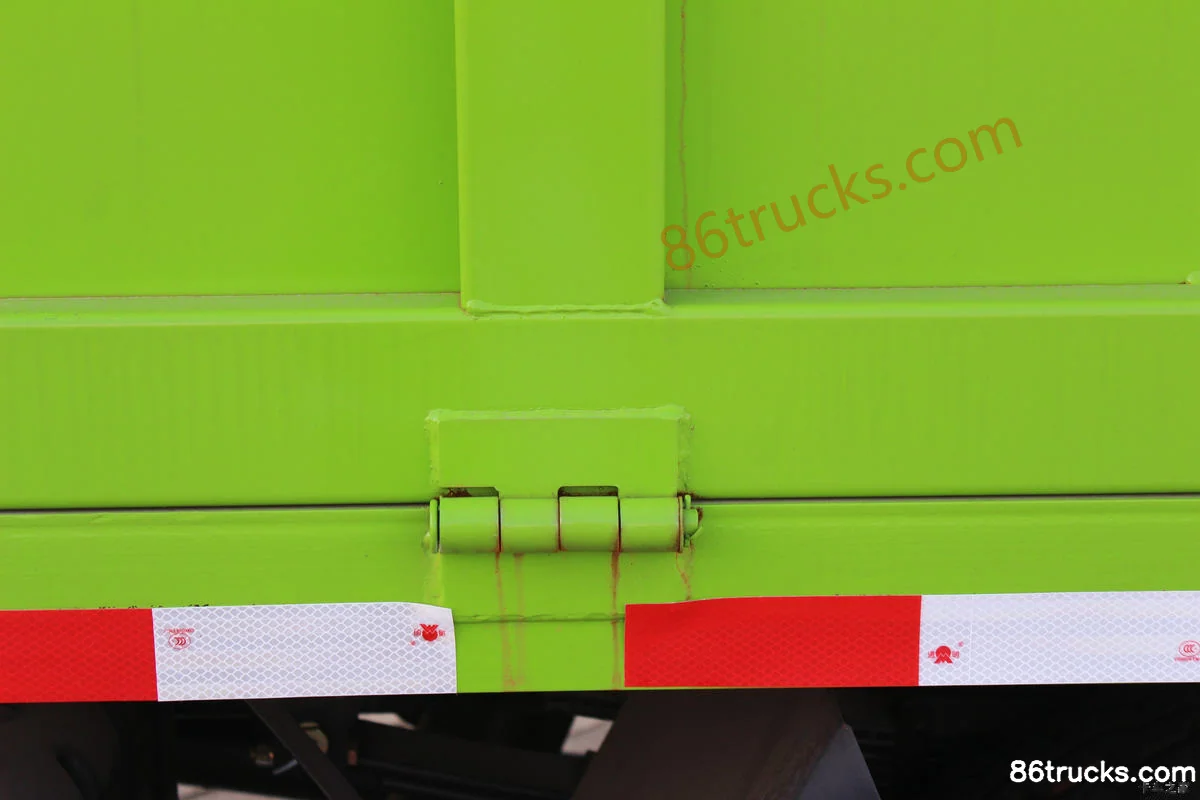

Body3

12 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green), and what does it include?

FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) export reference is about From $16,639; MSRP is ¥11.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green)?

Key specs of FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green): Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) suited for?

FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) differ from other variants in the same series?

FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green) belongs to FAW Hongta FAW Jiefang Classic 5 Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Classic 5 Series 129hp 4X2(6 wheels) 3.74m Dump Truck (Apple Green)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
