FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck

Export reference
From $22,222
MSRP ¥16M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 7.875ton
seating capacity: 3Personnel
Rated payload: 9.595ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.595t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5189CCYPK2L2E5A80
Type: stake truck
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.8m
engine: DachaiCA4DK1-18E5
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1914mm
rear track: 1860mm
Curb Weight: 7.875ton
Rated payload: 9.595ton
GVWR: 18ton
Max. speed: 80km/h
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Remarks: Rear axle optional 378 axle
Front/rear suspension: 1.375/2.375m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.764L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: HanV high-roof double-bunk cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 385 improved cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 7/10+3
Tire
Tire brand: Doublestar
Tire Size: 10.00-20,10.00R20,295/80R22.5,275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

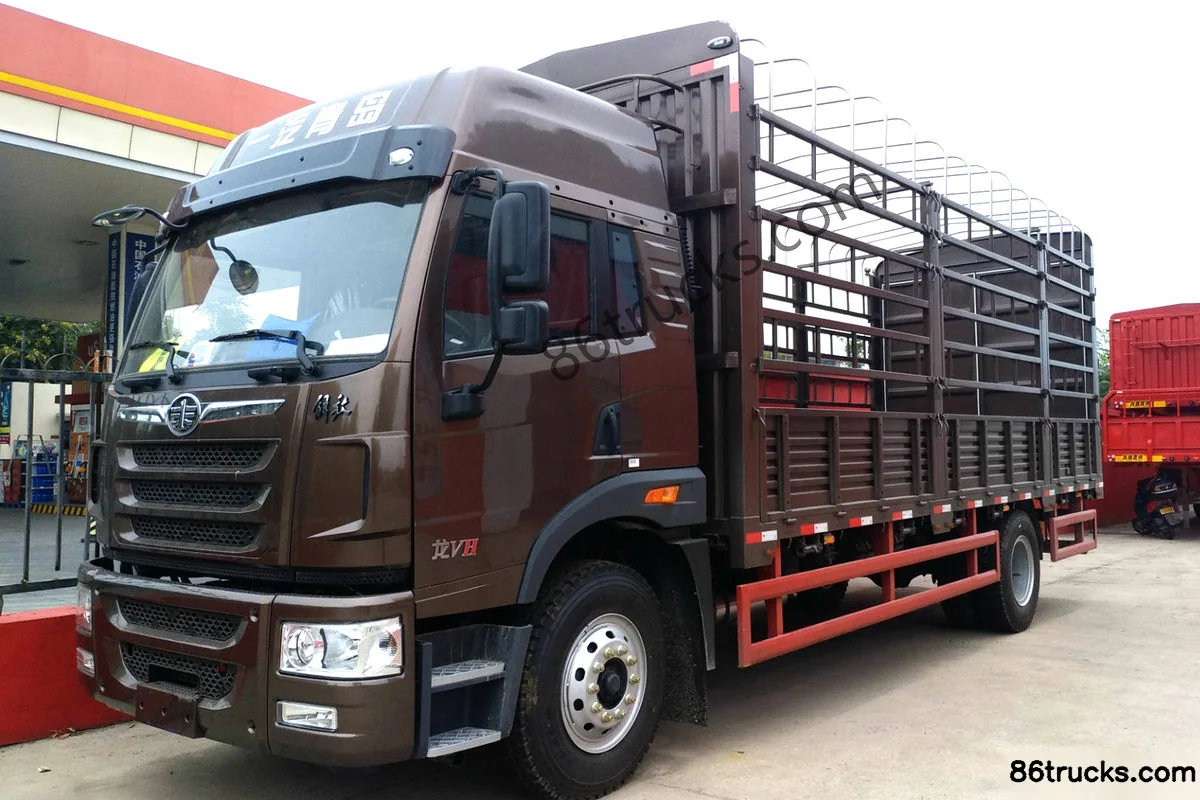

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck, and what does it include?

FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck?

Key specs of FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck suited for?

FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck differ from other variants in the same series?

FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck belongs to FAW Jiefang Qingdao Long VH Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long VH Medium Truck 180 hp 4X2(6 wheels) 6.75m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
