FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed)

Export reference
From $37,500
MSRP ¥27M CNY
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 10ton
seating capacity: 2Personnel
Rated payload: 14.87ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 2Personnel volume and 14.87t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 6X2 (8 wheels) drive and China V emissions.

China V 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P26K1L7T3E5A80
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.5m
engine: DachaiCA6DH1-24E5
transmission: Fast Gear8J95E
Rear Axle Ratio: 4.444
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.71m
Front track width: 2020/2020,2042/2042mm
rear track: 1878,1900mm
Curb Weight: 10ton
Rated payload: 14.87ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle: 12°
market segment: Building materials, agricultural products
Remarks: 150AH battery, 220V power supply, full-vehicle WABCO valves, front underrun protection, on-board information service terminal assembly, self-contained air-assisted system, new regulations, engine extended oil change interval.
Front/rear suspension: 1.495/3m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E5
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8J95E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.46m
Cargo box height: 0.8m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: FAW JiefangJH6
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.1
Leaf spring count: 3/3/10+9
Tire
Tire Size: 12R22.5
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:

Photos

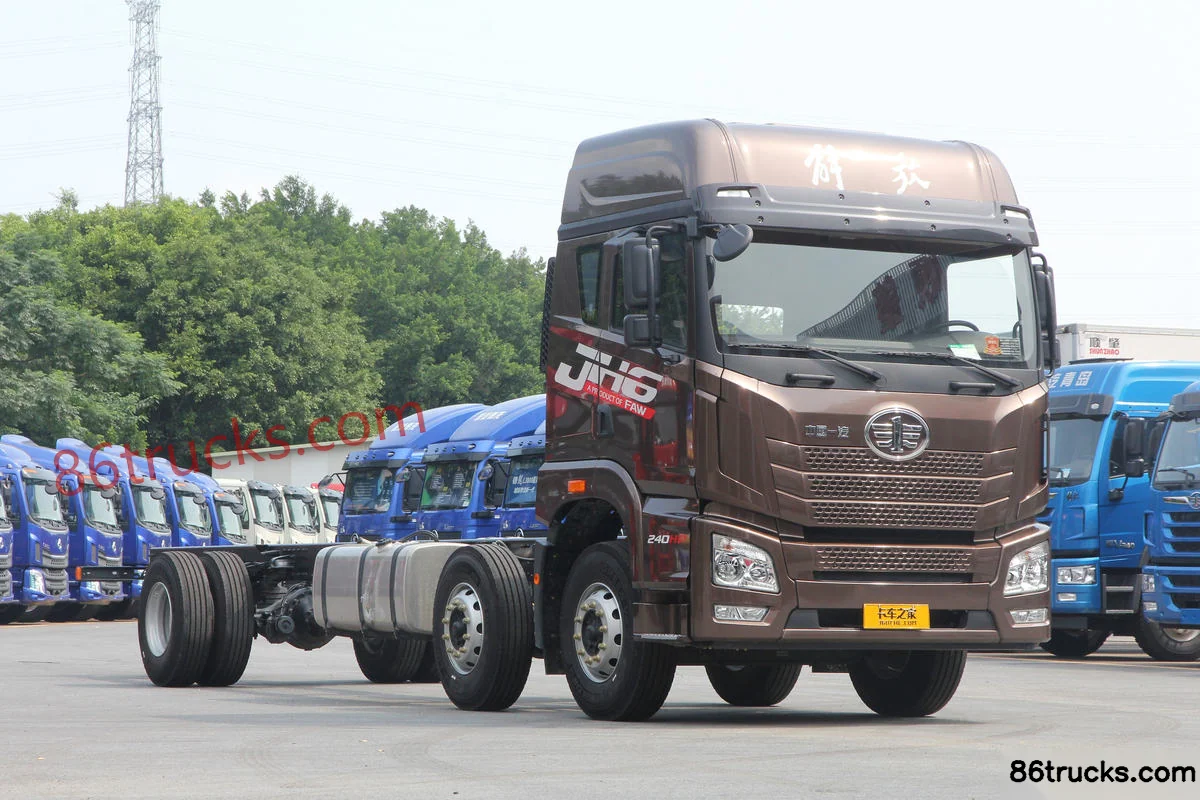

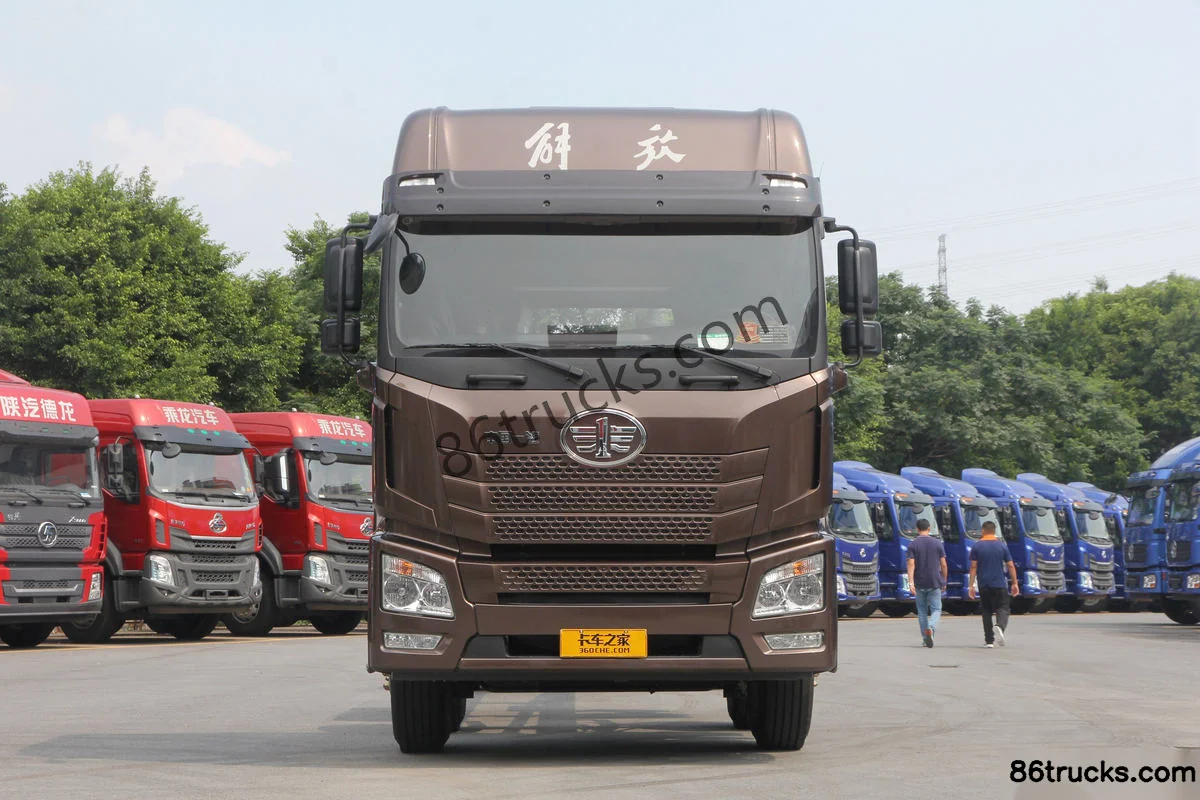

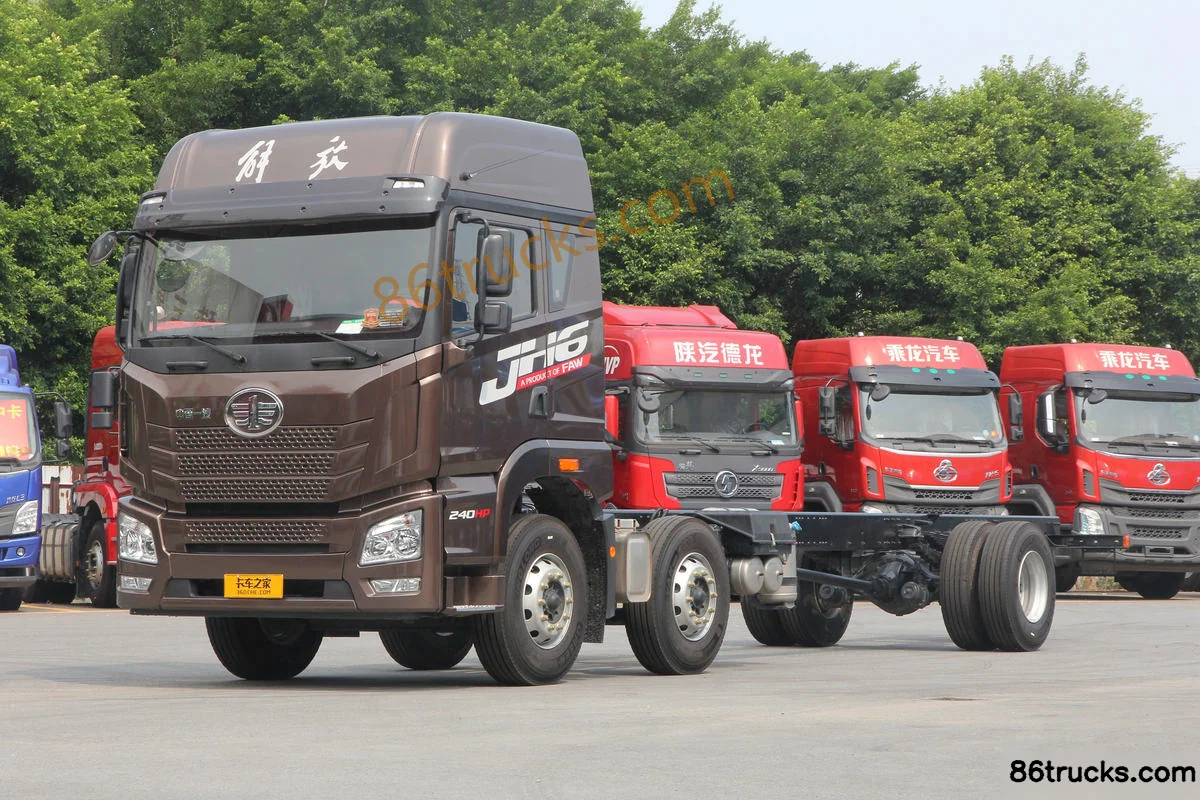

Exterior3

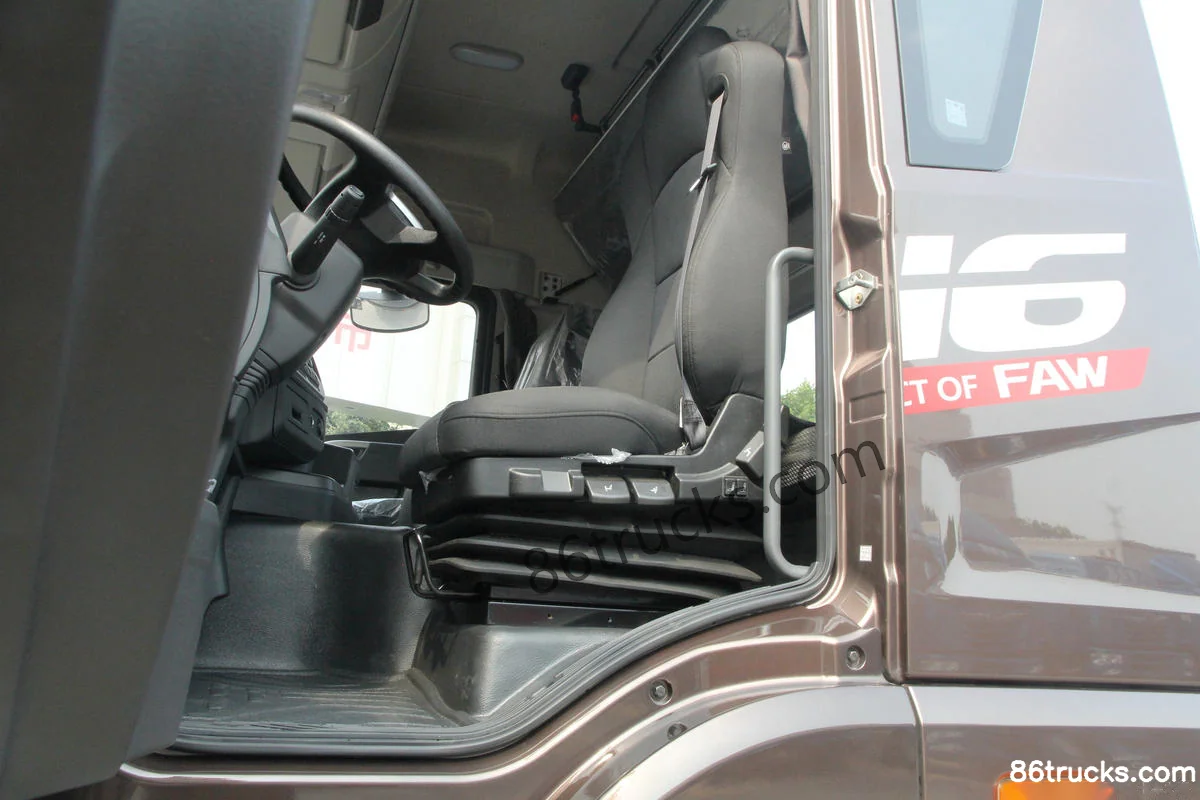

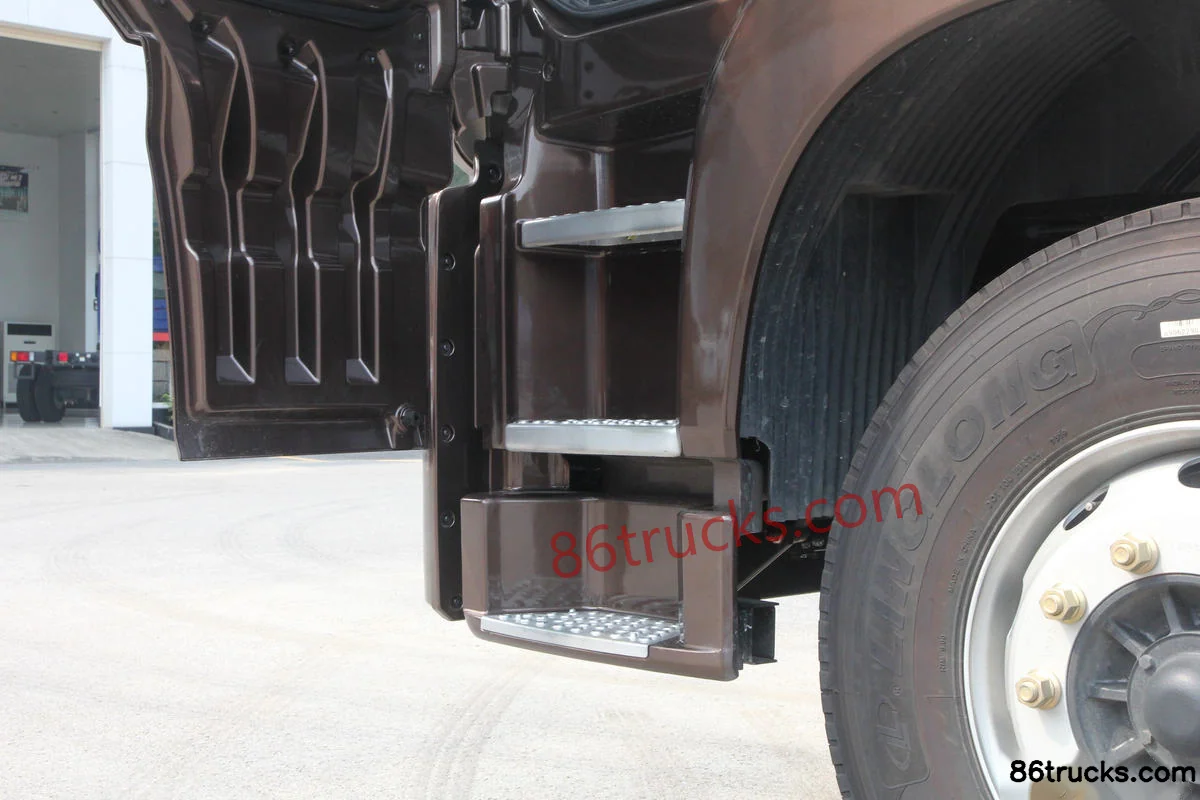

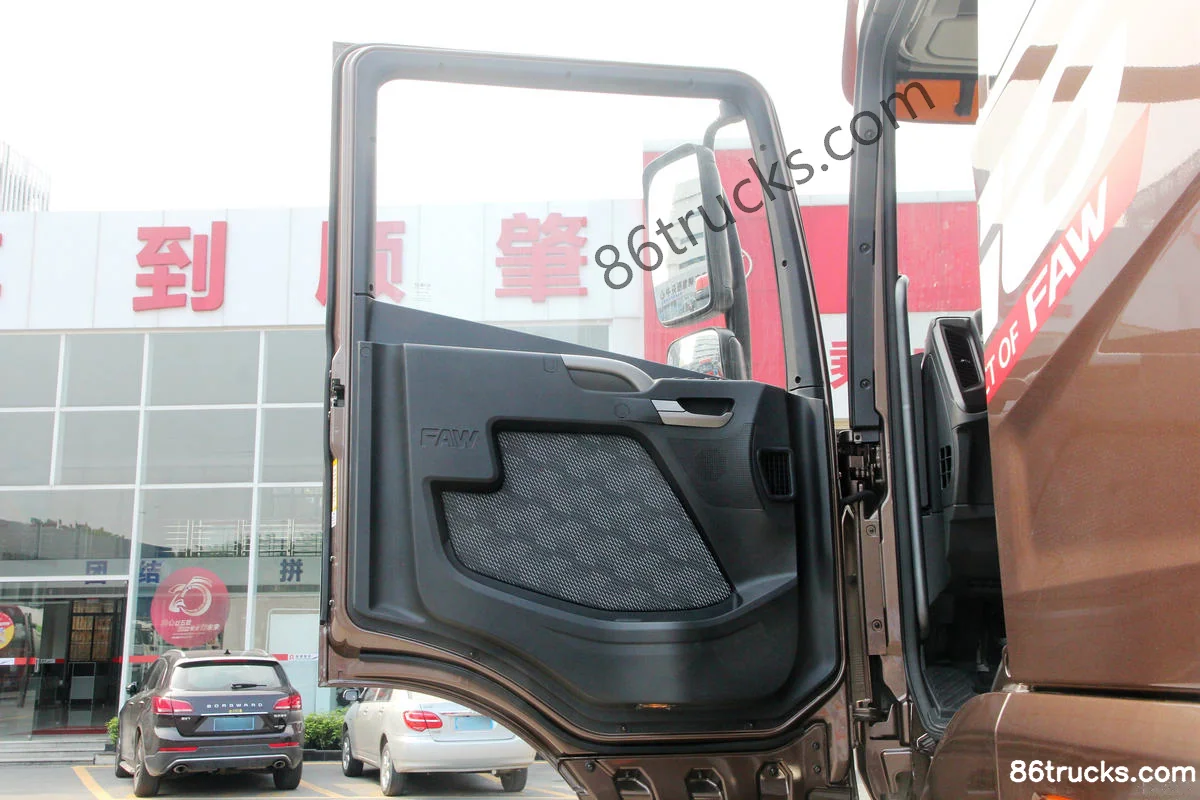

Cab3

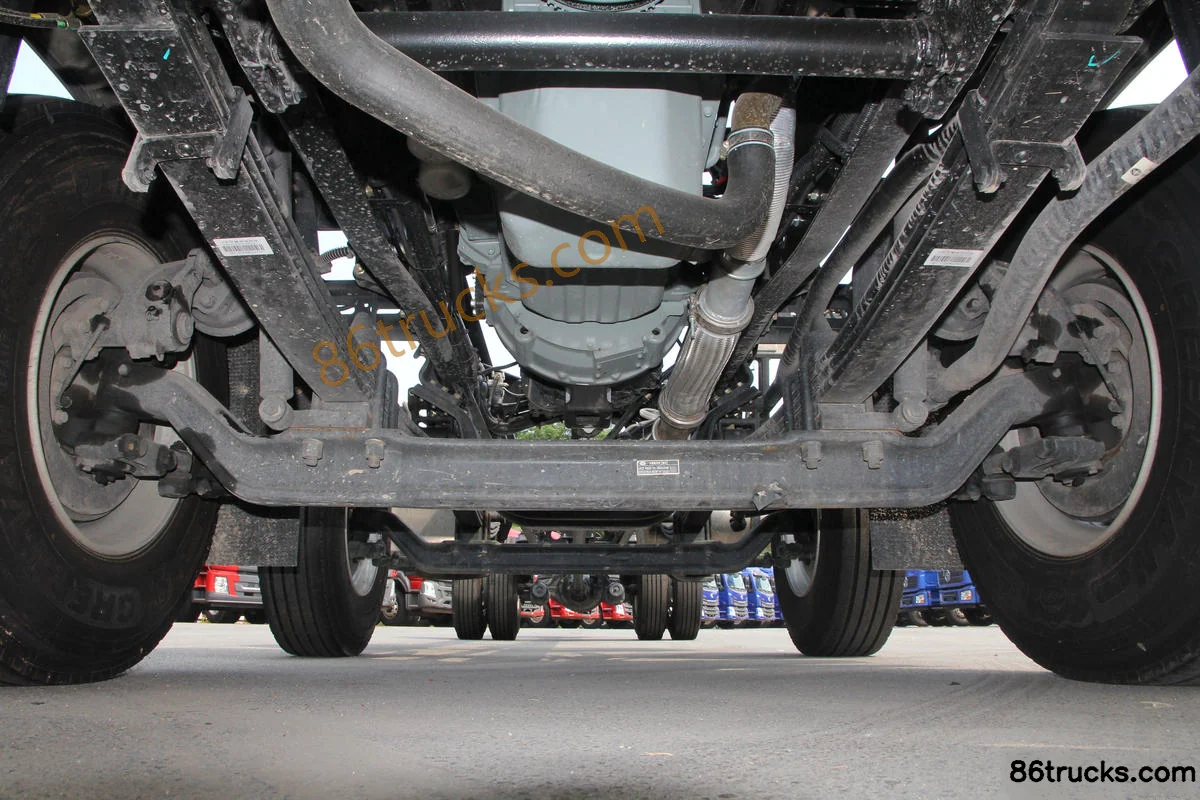

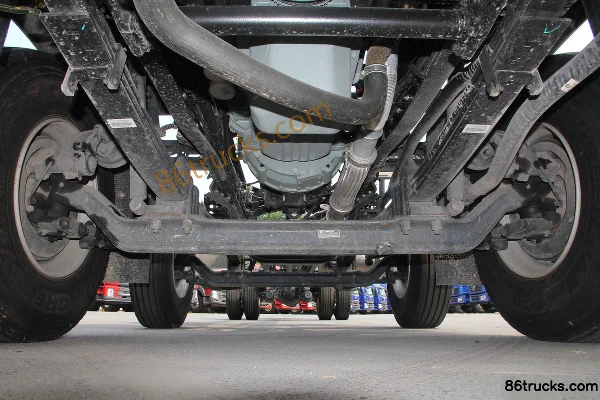

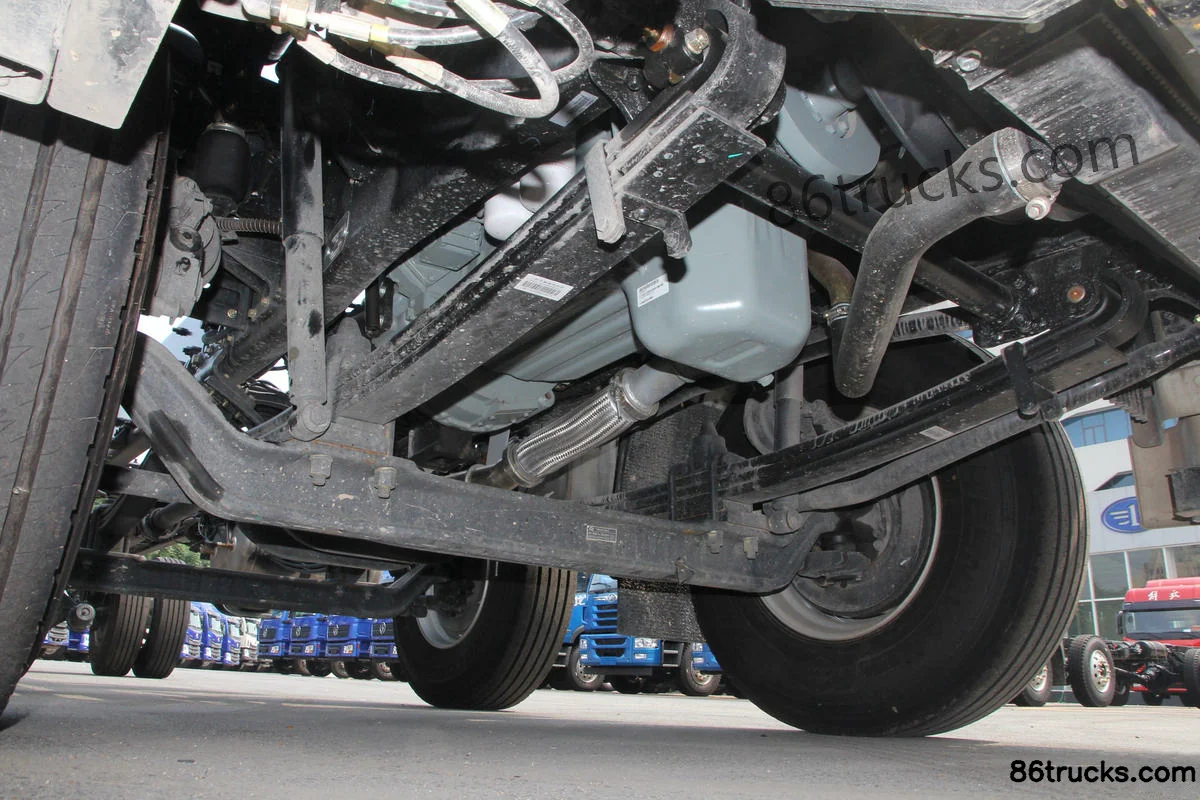

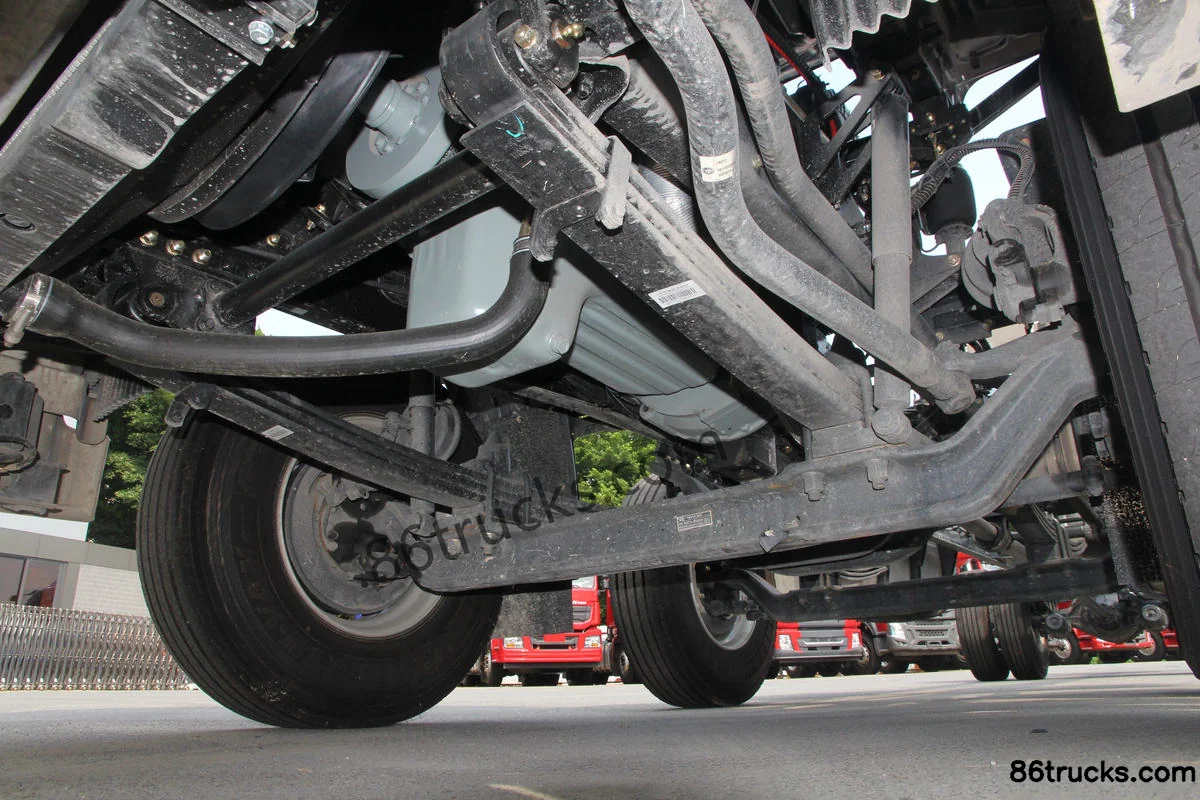

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed), and what does it include?

FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) export reference is about From $37,500; MSRP is ¥27M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed)?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed): Drive: 6x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) suited for?

FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed) belongs to FAW Jiefang Qingdao JH6 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck 240hp 6X2(8 wheels) 9.5m Stake Truck (Fast Gear 8-Speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
