Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate)

Export reference
MSRP N/A
Horsepower: 131
Emission: China VI
Fuel: Diesel
Engine: Fukang F2.5N
Transmission: ZF
Curb Weight:: 2.805ton
Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailg
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) is a Light Truck featuring 4.14m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Logistics Freight and City Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang F2.5N engine, 131 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 131 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5048XXY-FM5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonF2.5NS6B131
transmission: ZFZF5S328
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.7m
Front track width: 1590mm
rear track: 1590mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
market segment: Logistics Freight, City Distribution
Remarks: Non-constant exhaust brake, φ310mm diaphragm spring clutch; optional: electric air conditioner
Front/rear suspension: 1.11/1.525m
Version: Zhiying Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF2.5NS6B131
Engine info: Fukang F2.5N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.498L
Emission standard: China VI
Max output power: 96kW
Max hp: 131Horsepower
Transmission Parameters
Transmission Model: ZFZF5S328
Transmission Brand: ZF
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.14m
Cargo box width: 1.96m
Cargo box height: 1.9m
*Cargo box interior width: 1.960000038147
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1575kg
Frame Dimensions: 180×65×4.5mm
rear axle description: 4.5T
rear axle allowable load: 2920kg
Axle ratio: 4.33
Leaf spring count: 3/5+2
Aluminum wheels:
Suspension (front/rear): Front and rear leaf spring suspension
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
Tire Pressure Monitoring System (TPMS):

Photos

Exterior3

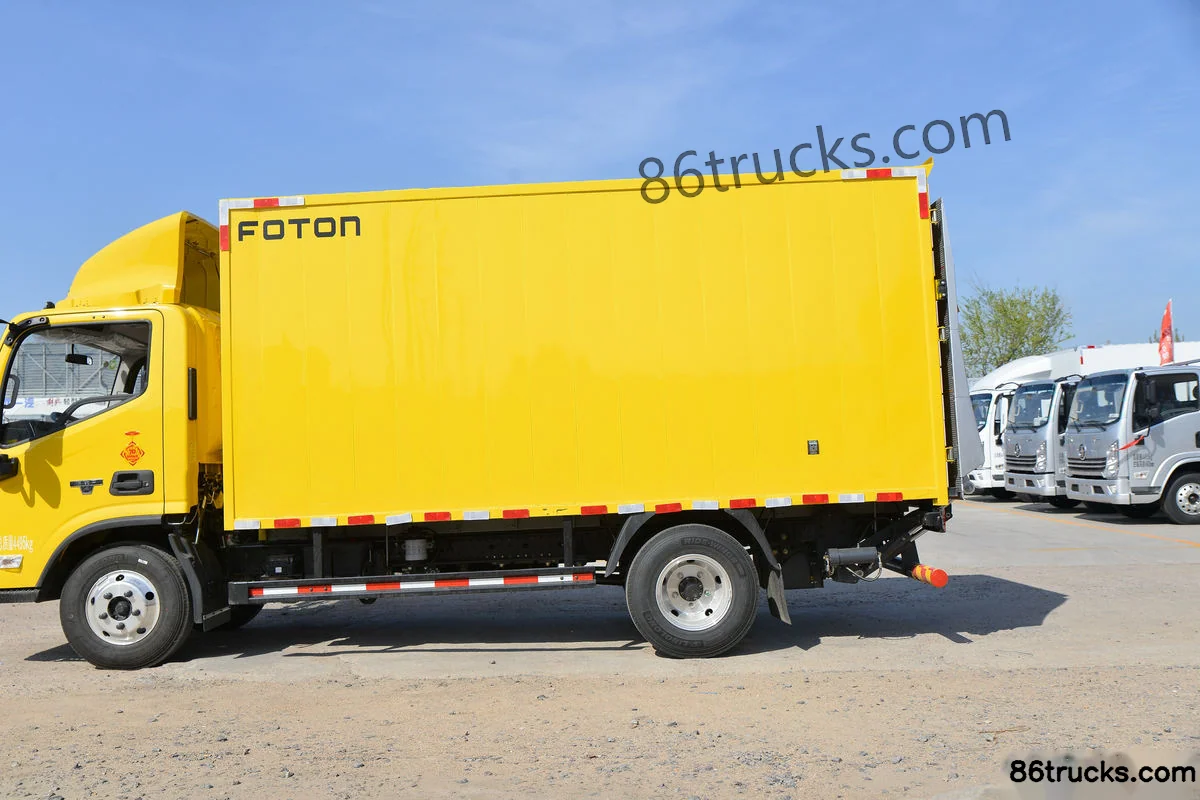

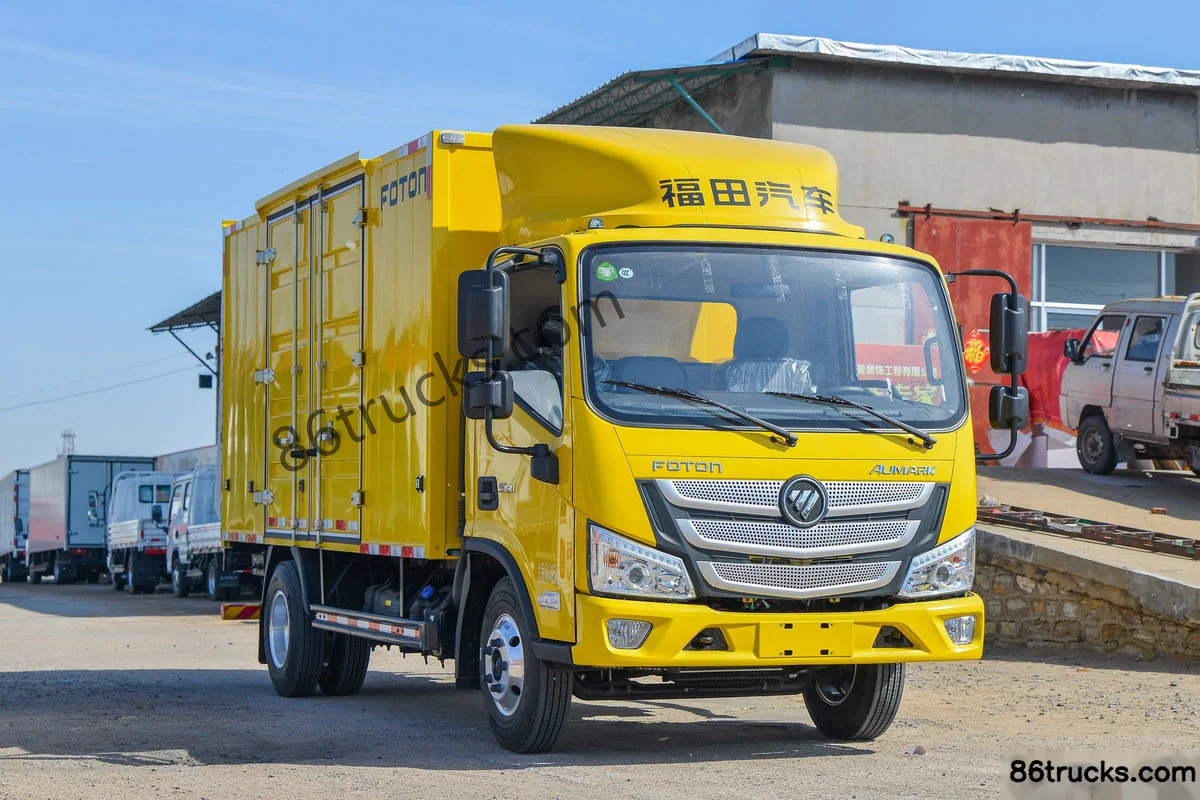

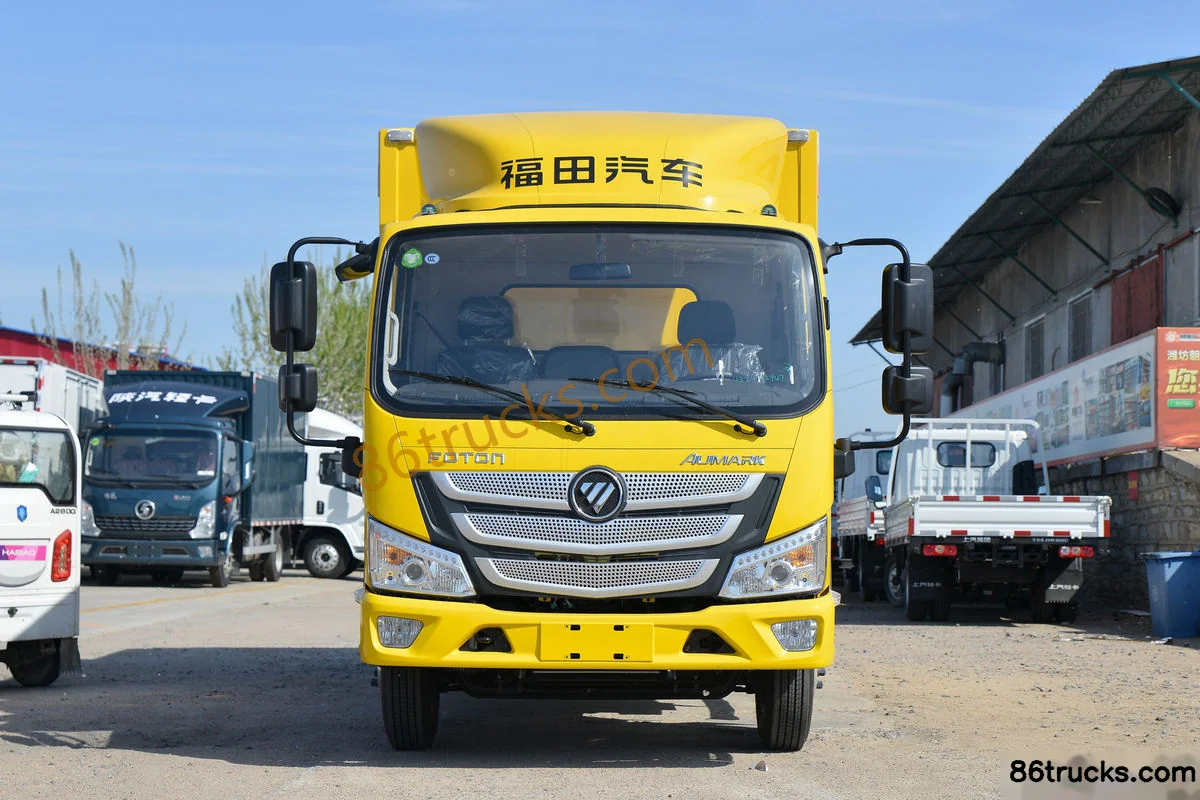

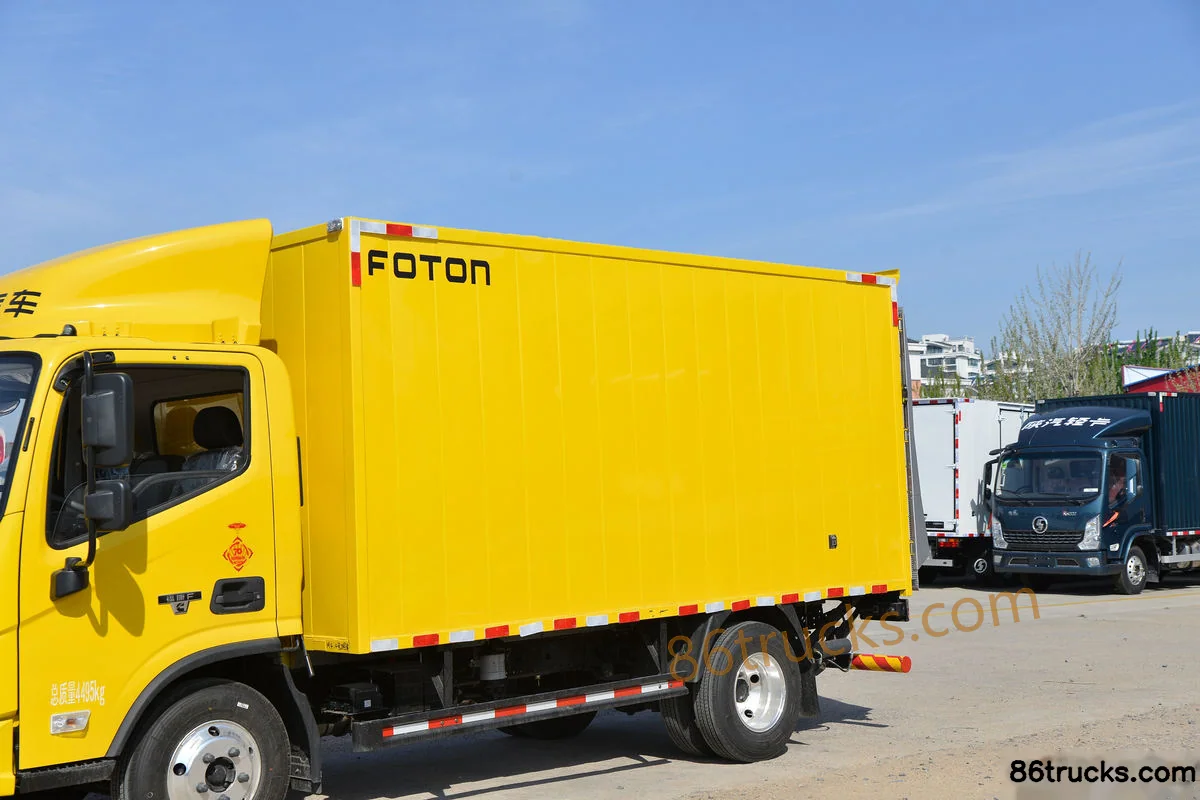

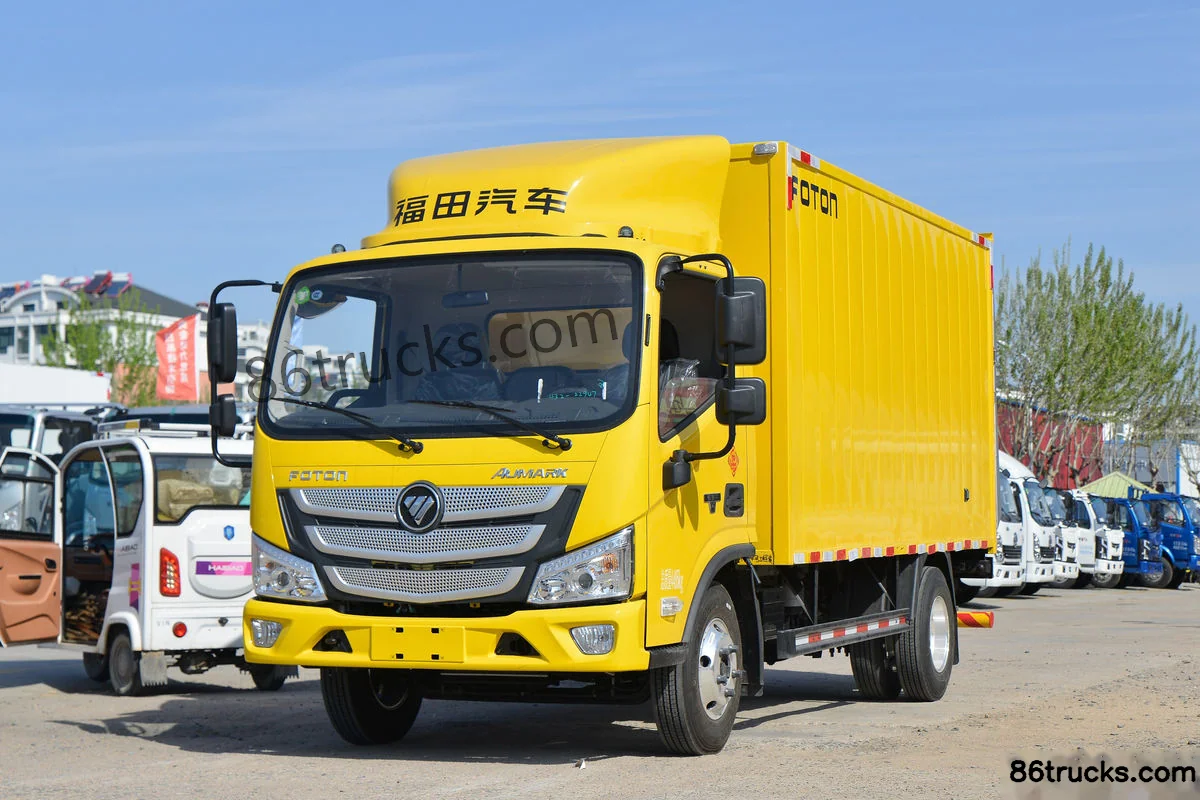

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Exterior (1) Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Exterior (2) Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Exterior (3)

Cab3

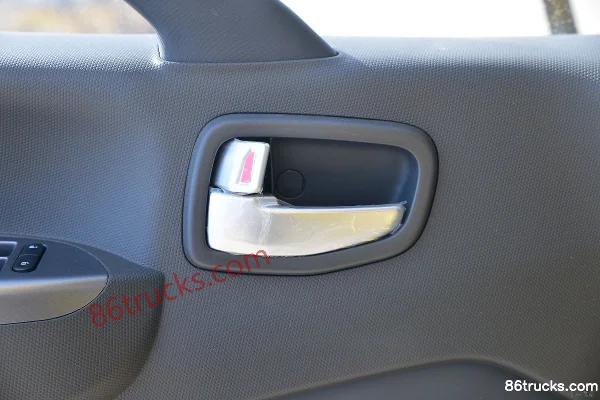

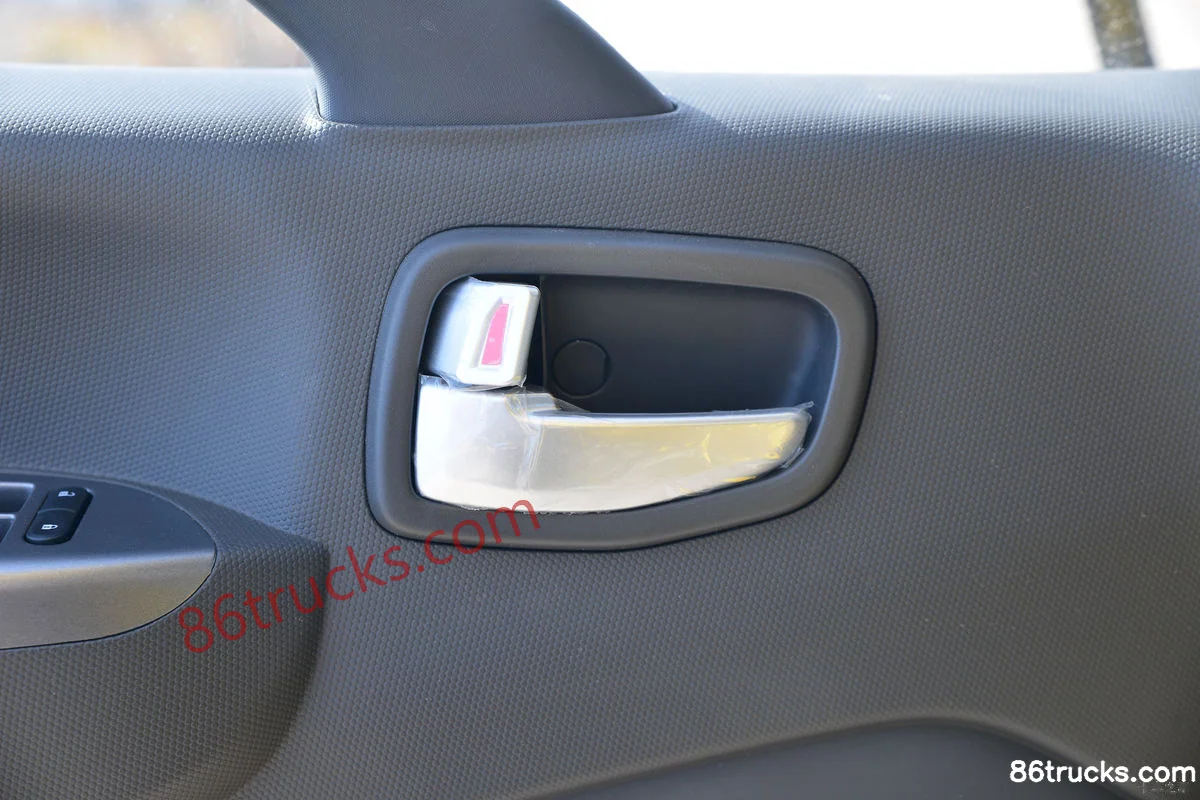

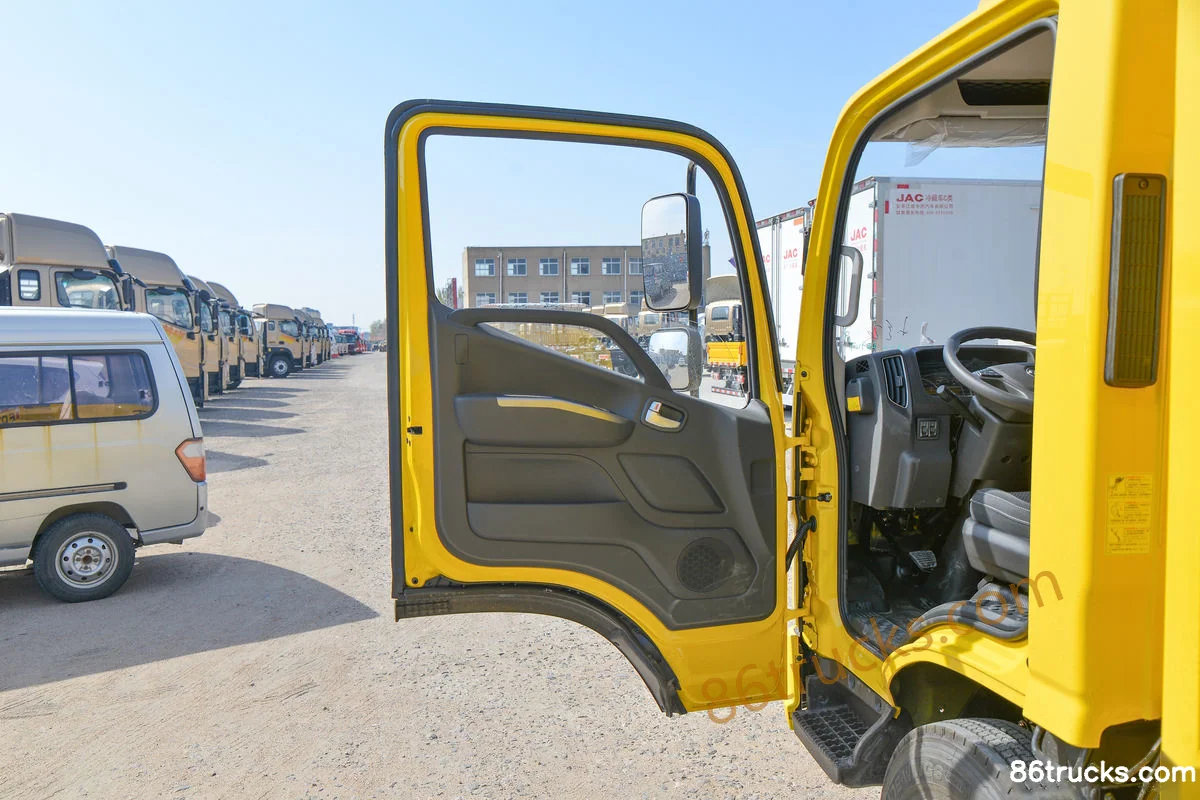

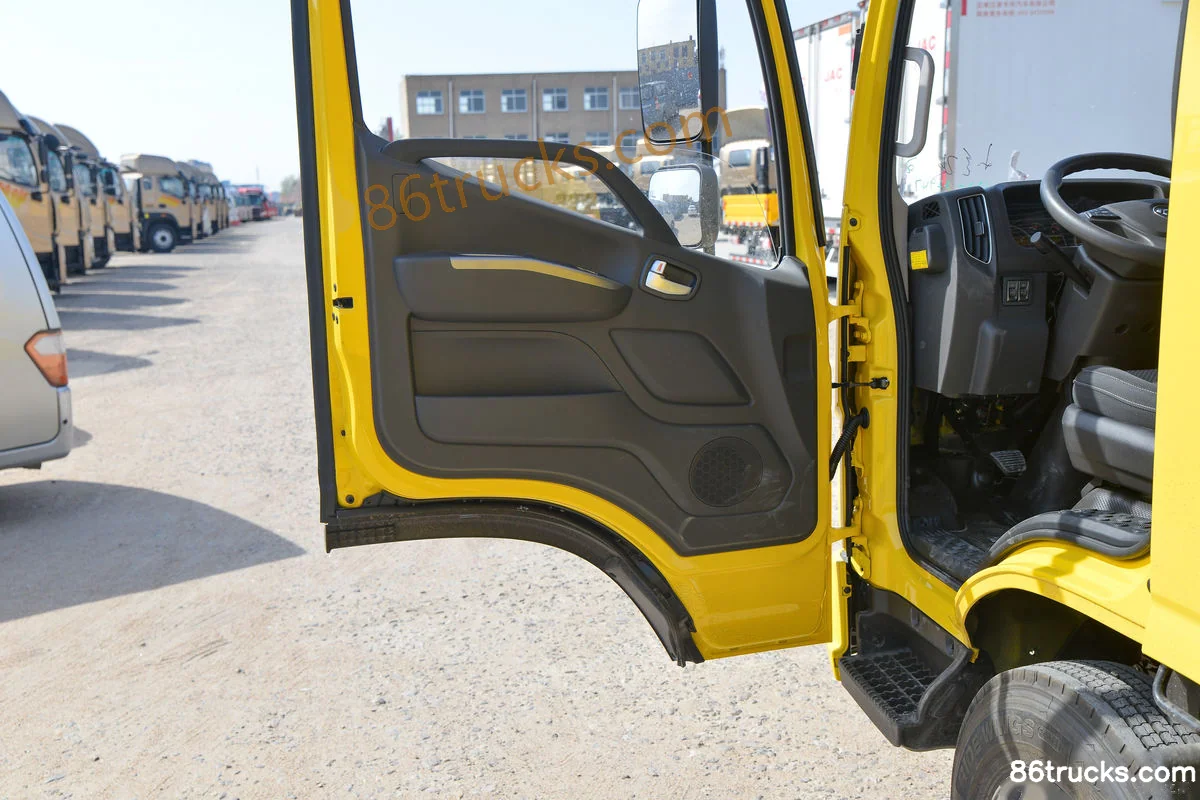

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Cab (1) | 86Tru Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Cab (2) | 86Tru Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Cab (3) | 86Tru

Chassis3

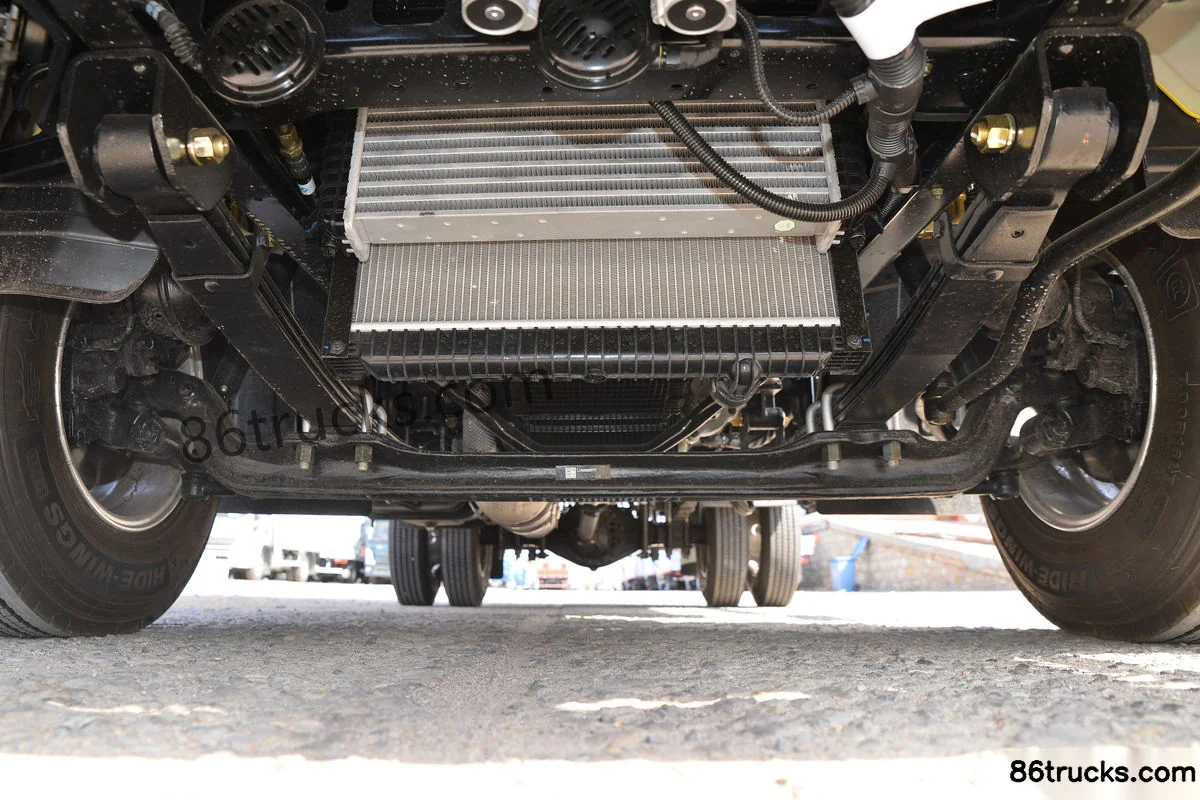

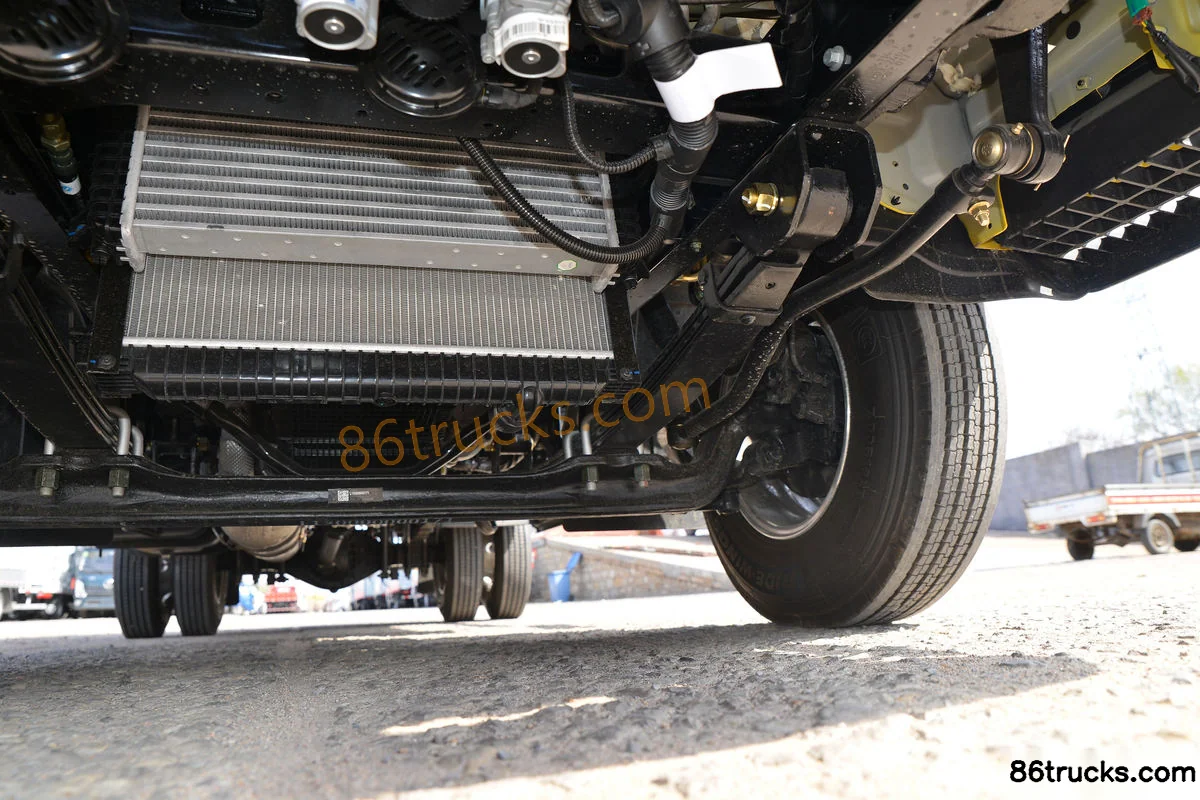

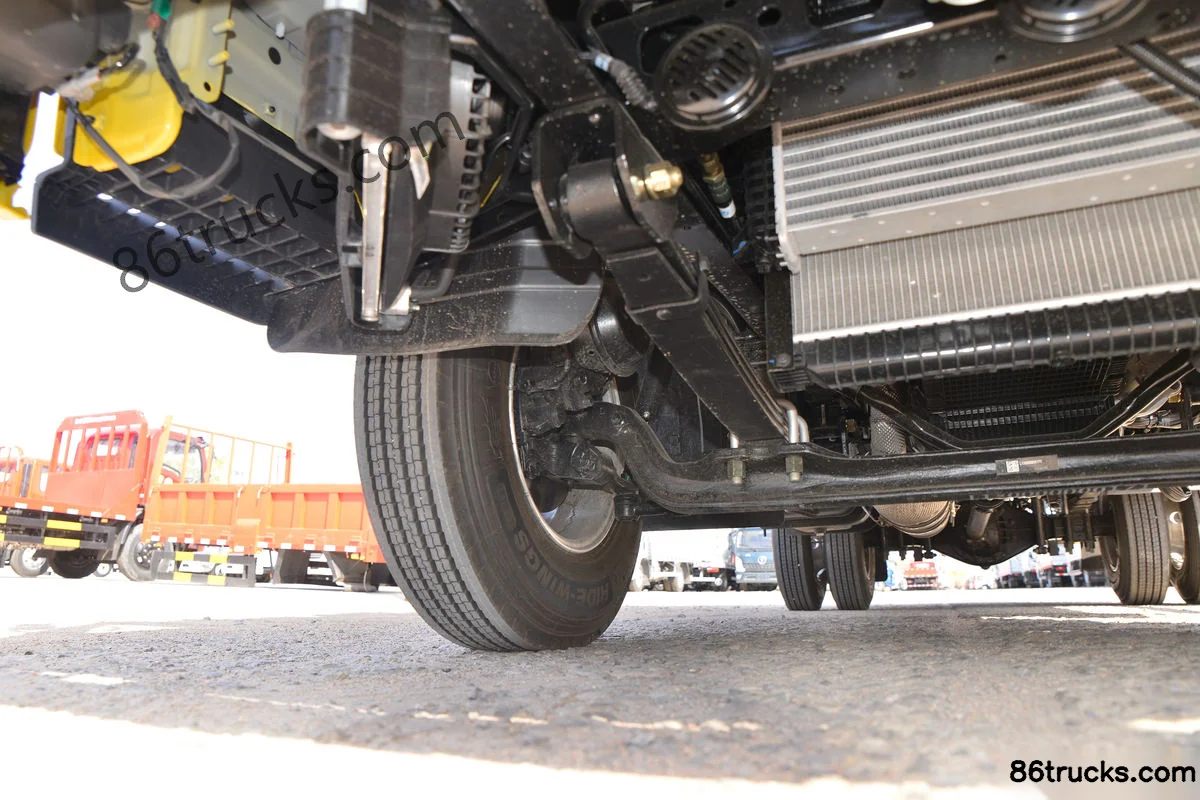

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Chassis (1) | 8 Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Chassis (2) | 8 Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Chassis (3) | 8

Body3

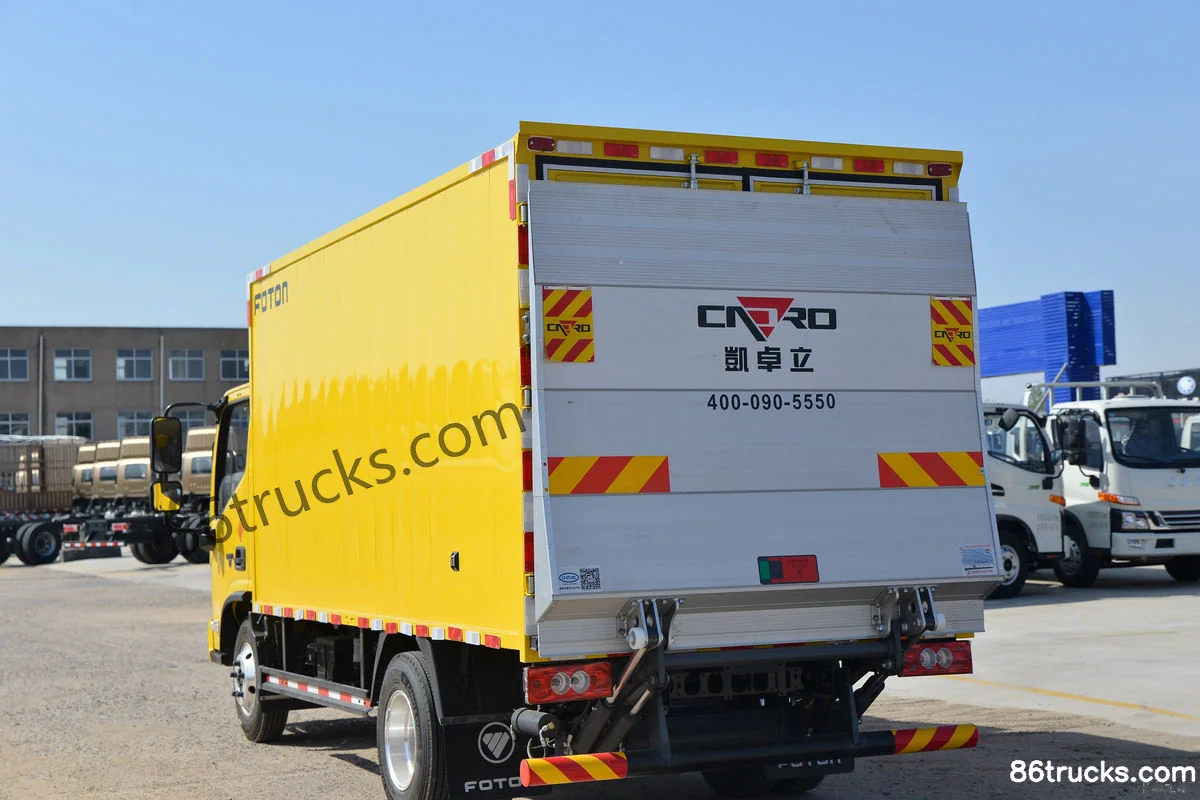

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Body (1) | 86Tr Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Body (2) | 86Tr Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) Body (3) | 86Tr

12 photos

FAQ

What emission standard does Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate)?

Key specs of Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate): Drive: 4x2; Horsepower: 131 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang F2.5N; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) suited for?

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) differ from other variants in the same series?

Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate) belongs to Foton S1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark S1 Series Zhiying Edition 131 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) (Hydraulic Tailgate)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
