Dayun 13m Low Flatbed Semi-trailer

Export reference
From $12,194
MSRP ¥8.78M CNY
Cab width:: 2.55m
suspension:: 4-leaf leaf spring
Fifth Wheel Pin:: 90#
Design load capacity:: 40ton
Cab height:: 0.6m
Wheel brand:: Better / Rishang
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Curb Weight: 5.6ton
Cab length: 13m
Spare Tire Carrier: 1 piecepcs

Overview

The Dayun 13m Low Flatbed Semi-trailer is a flatbed semi-trailer featuring Fuhua Wosheng 400,000 km maintenance-free axle-axle setup, 5.6ton GVW, 13m length and 40ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 40ton
Cab length: 13m
Cab width: 2.55m
Cab height: 0.6m
Curb Weight: 5.6ton
Chassis Specs
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Number of Axles: 3
Axle Load Rating: 13T
Wheel brand: Better / Rishang
Number of wheels: 12
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 90#
Brake chamber: 4/2Ruili
Outrigger: aluminum landing gear
Toolbox: 1 piecepcs
Spare Tire Carrier: 1 piecepcs
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700L
Web Plate: 5mm
frame rail height: 480mm
upper wing panel: 8mm
Box panel: 0.8 corrugated
Lower Wing Plate: 10mm
Other notes
Other: Side guard: aluminum alloy; air tank: aluminum alloy; relay valve: Ruili; paint: full-vehicle electrophoresis + waterborne paint.
Cargo box parameters
Cargo box height: 0.6m
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs

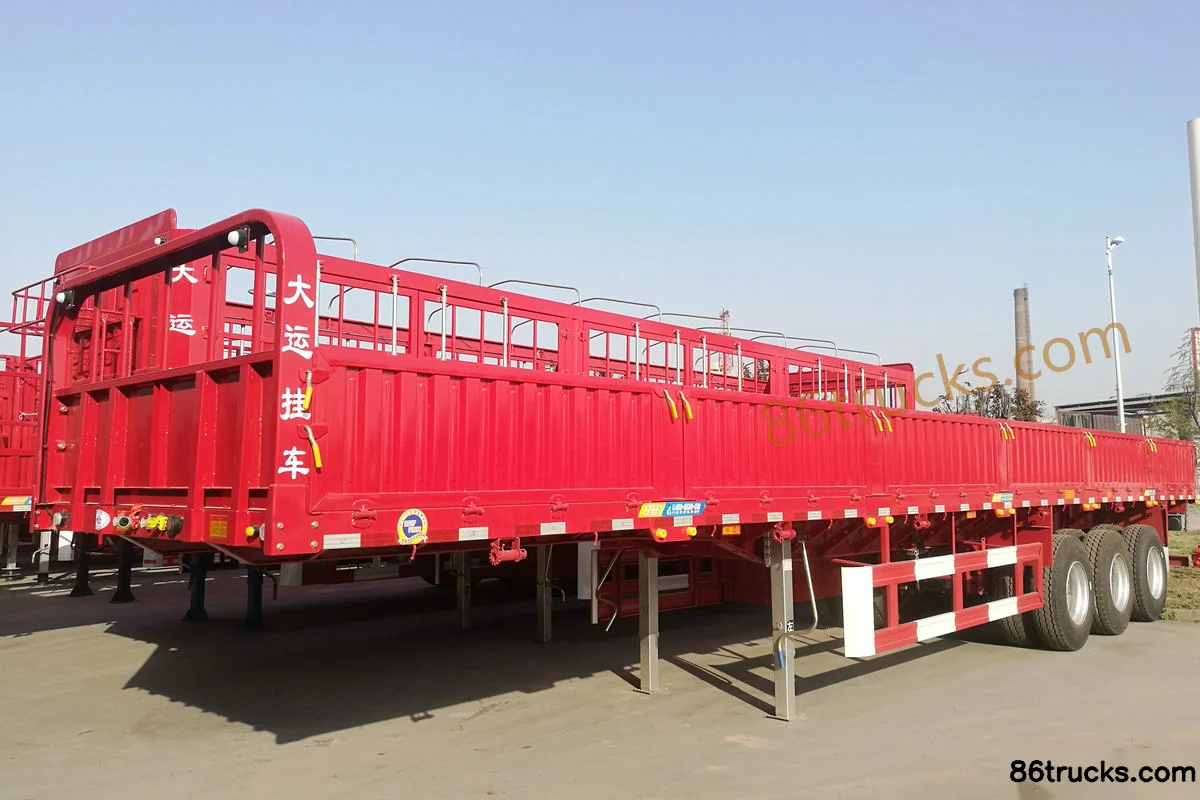

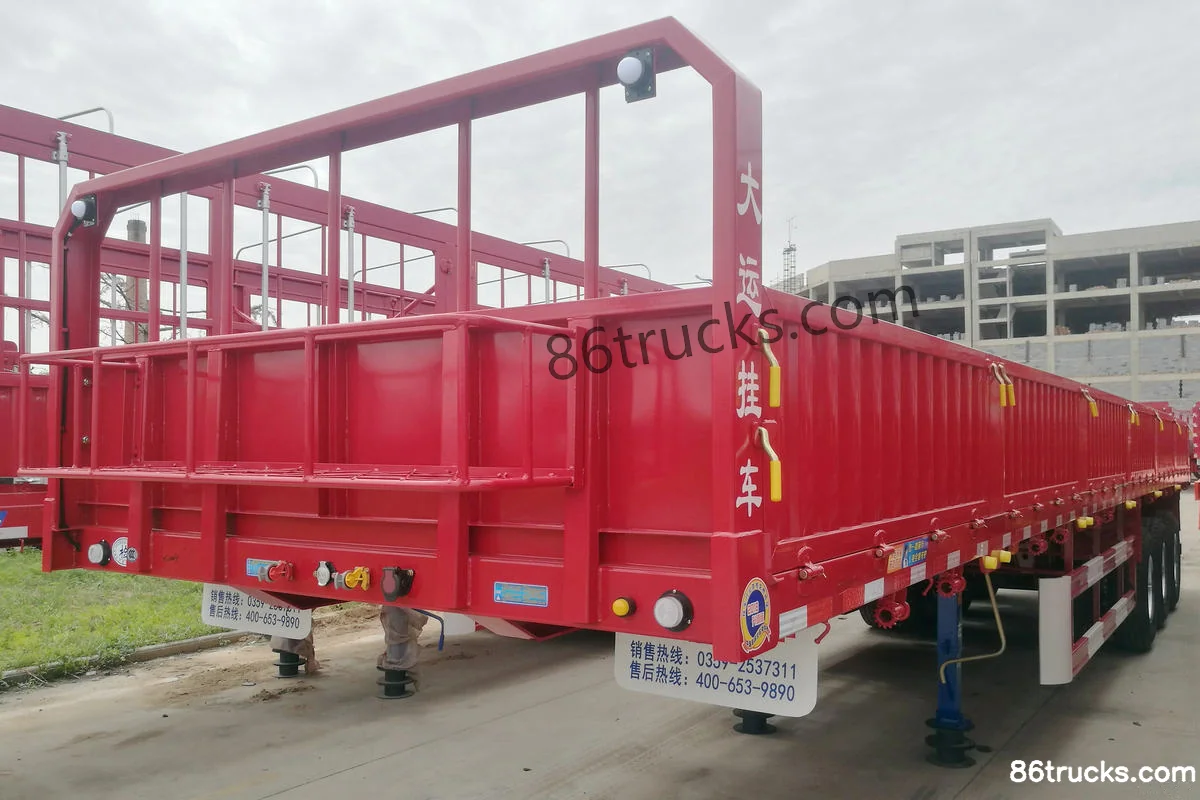

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun 13m Low Flatbed Semi-trailer, and what does it include?

Dayun 13m Low Flatbed Semi-trailer export reference is about From $12,194; MSRP is ¥8.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dayun 13m Low Flatbed Semi-trailer suited for?

Dayun 13m Low Flatbed Semi-trailer is a flatbed semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun 13m Low Flatbed Semi-trailer differ from other variants in the same series?

Dayun 13m Low Flatbed Semi-trailer belongs to Dayun 13m Semi-trailer (flatbed semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 13m Low Flatbed Semi-trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 13m Low Flatbed Semi-trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
