Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI)

Export reference
MSRP N/A
Horsepower: 136
Emission: China VI
Fuel: gasoline
Engine: Honeycomb 1.5L
Curb Weight:: 1.775ton
Wheelbase:: 2700mm
Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) ex
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.59ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) is a Light Truck featuring 3.3m cargo length, stake body cargo body, 2Personnel volume and 1.59t payload. On the powertrain side, it comes with a Honeycomb 1.5L engine, 136 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 136 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1031V5JV5-AA1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 3.3m
engine: Great Wall PowerHY4G15F
transmission: 6-speed manual
Cab length: 5.455m
Cab width: 1.91m
Cab height: 2.16m
Front track width: 1410mm
rear track: 1425mm
Curb Weight: 1.775ton
Rated payload: 1.59ton
GVWR: 3.495ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 16°
departure angle: 14°
Front/rear suspension: 1.105/1.25m
Version: Classic Edition
Energy Type: gasoline
Engine parameters
Engine Brand: Great Wall Power
Engine Model: Great Wall PowerHY4G15F
Engine info: Honeycomb 1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.497L
Emission standard: China VI
Max output power: 100kW
Max hp: 136Horsepower
Max torque: 210N·m
Transmission Parameters
Transmission Model: 6-speed manual
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.3m
Cargo box width: 1.81m
Cargo box height: 0.4m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1225kg
rear axle allowable load: 2270kg
Leaf spring count: 2/2+1
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
AC control type: Optional manual.
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
standard instrument cluster:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

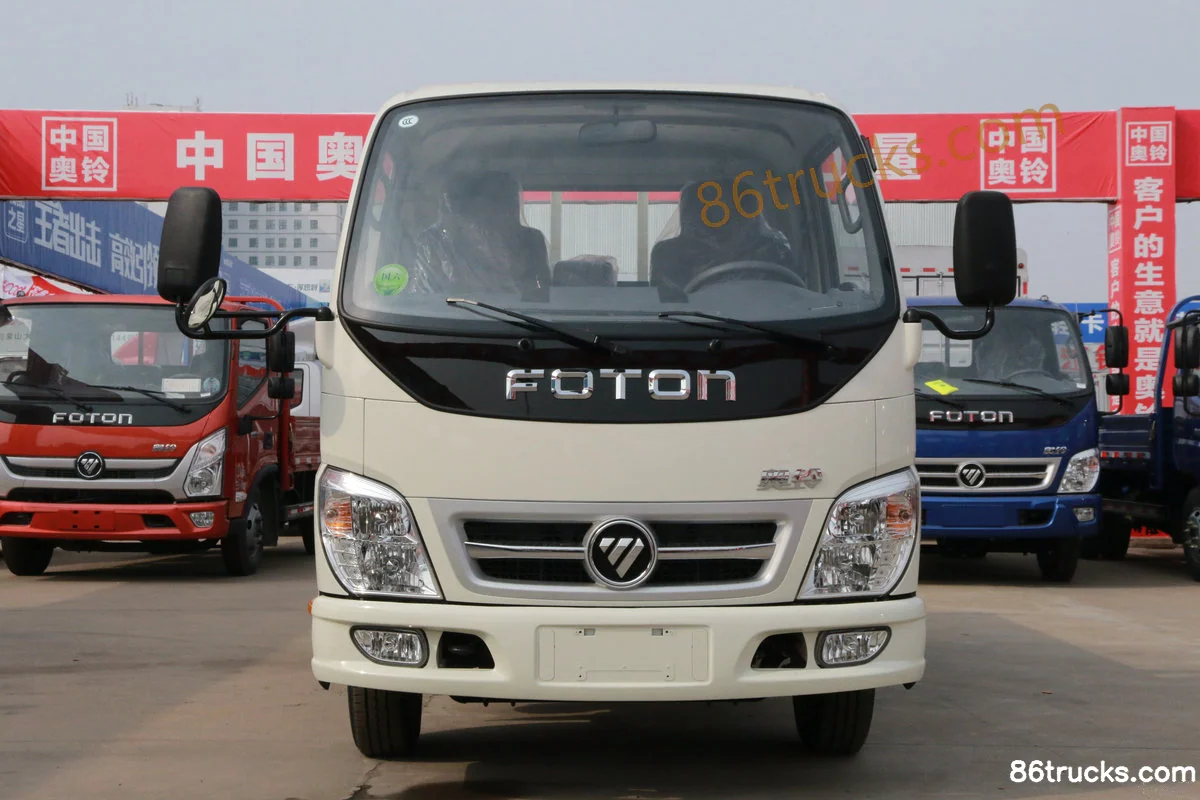

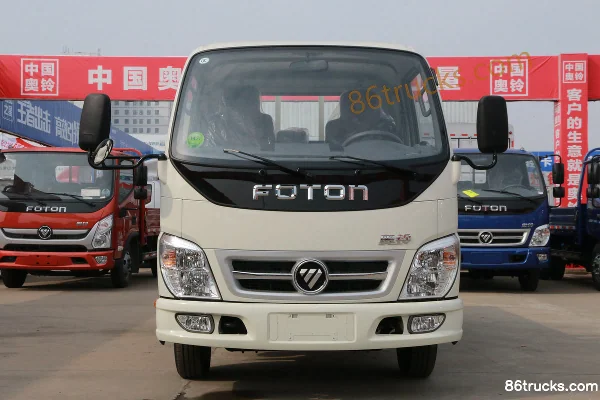

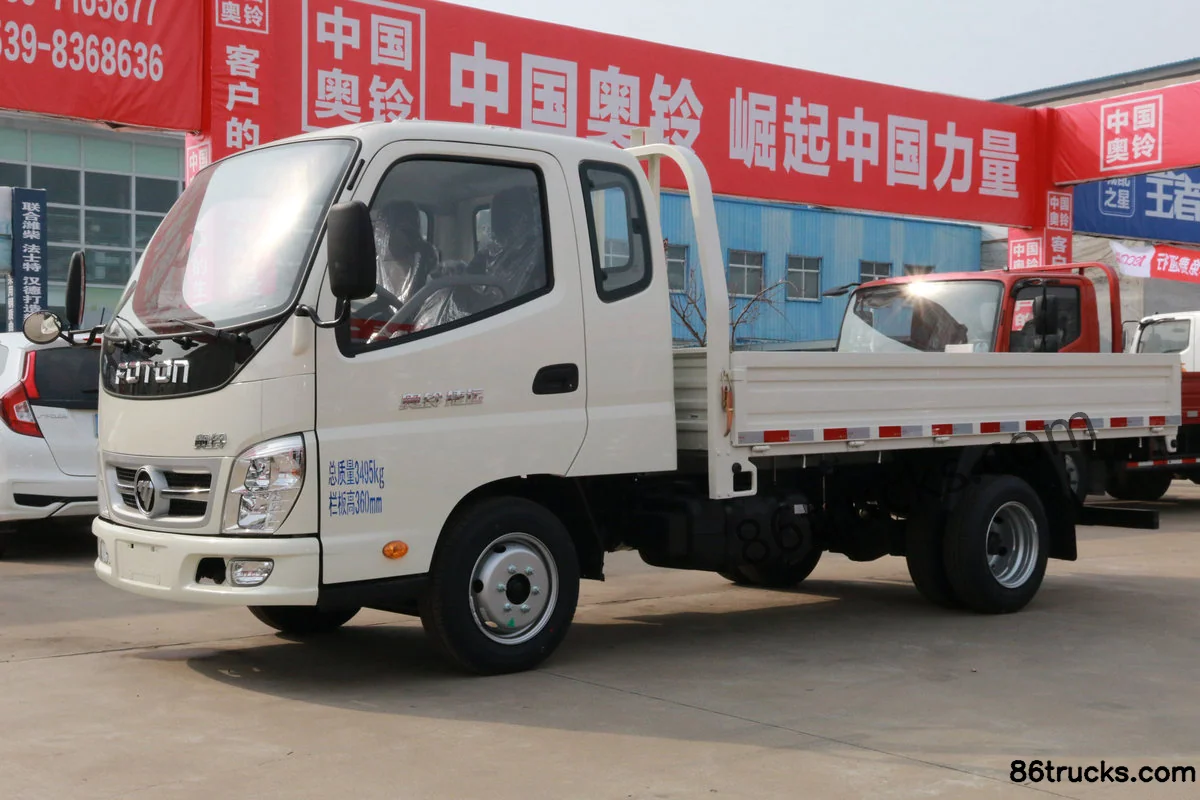

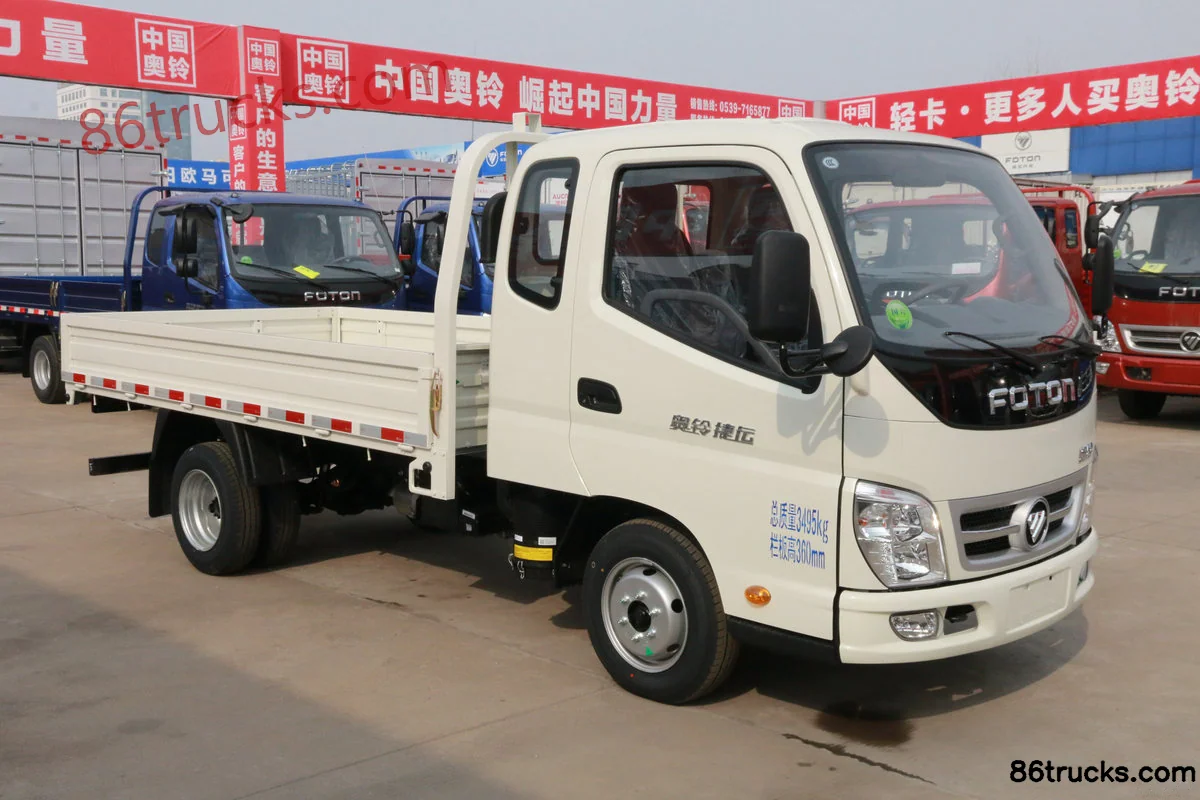

Exterior3

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Exterior (1) | 86Truck Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Exterior (2) | 86Truck Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Exterior (3) | 86Truck

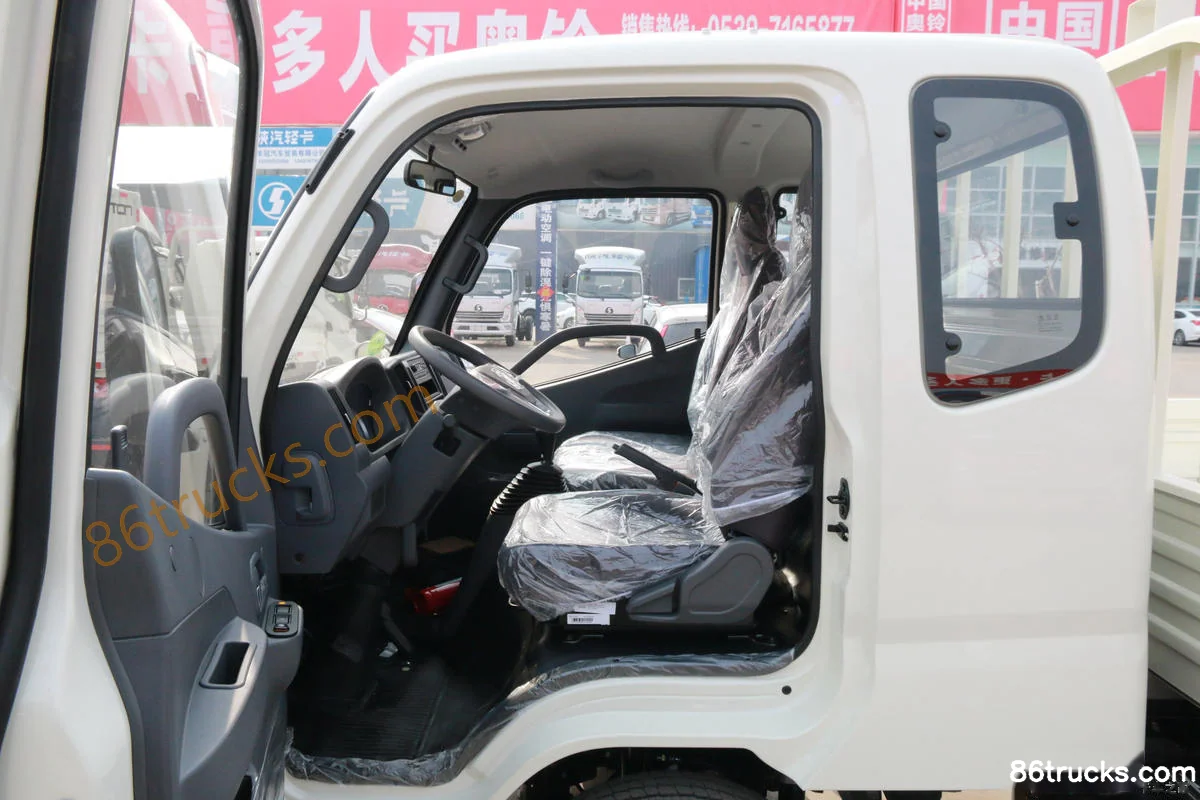

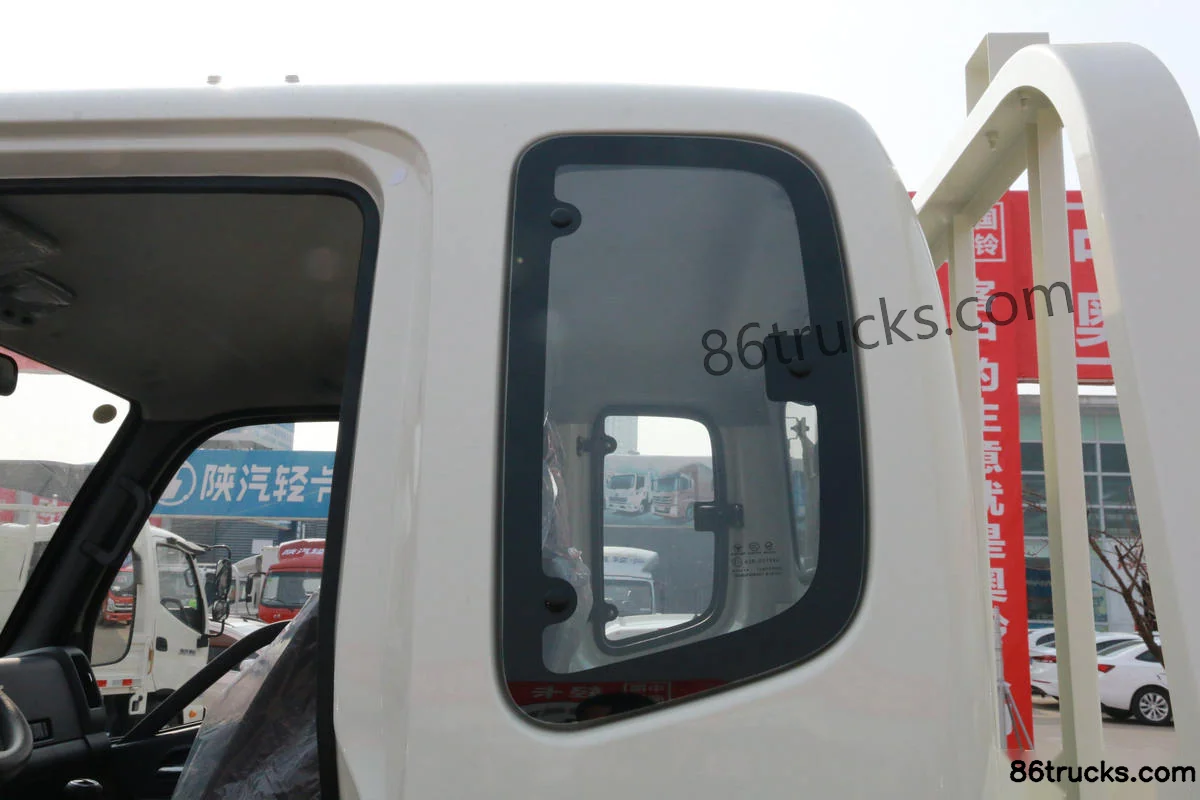

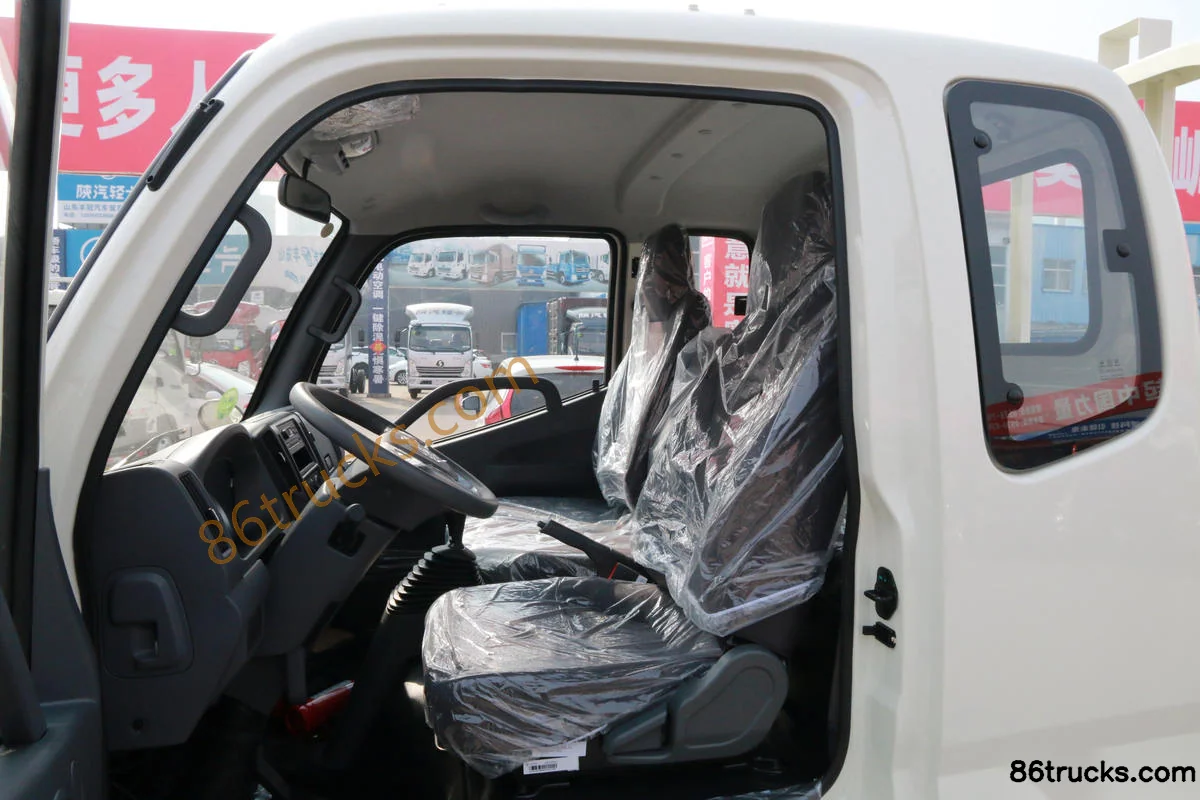

Cab3

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Cab (1) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Cab (2) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Cab (3) | 86Trucks

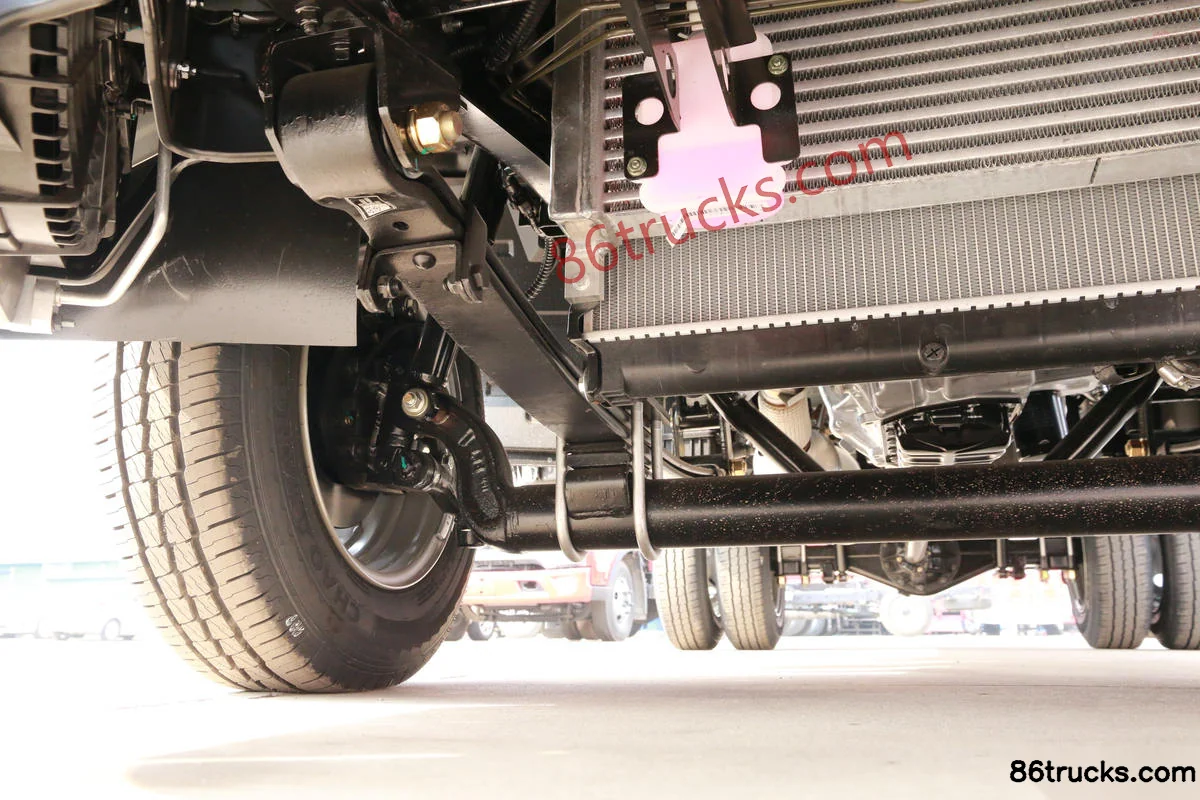

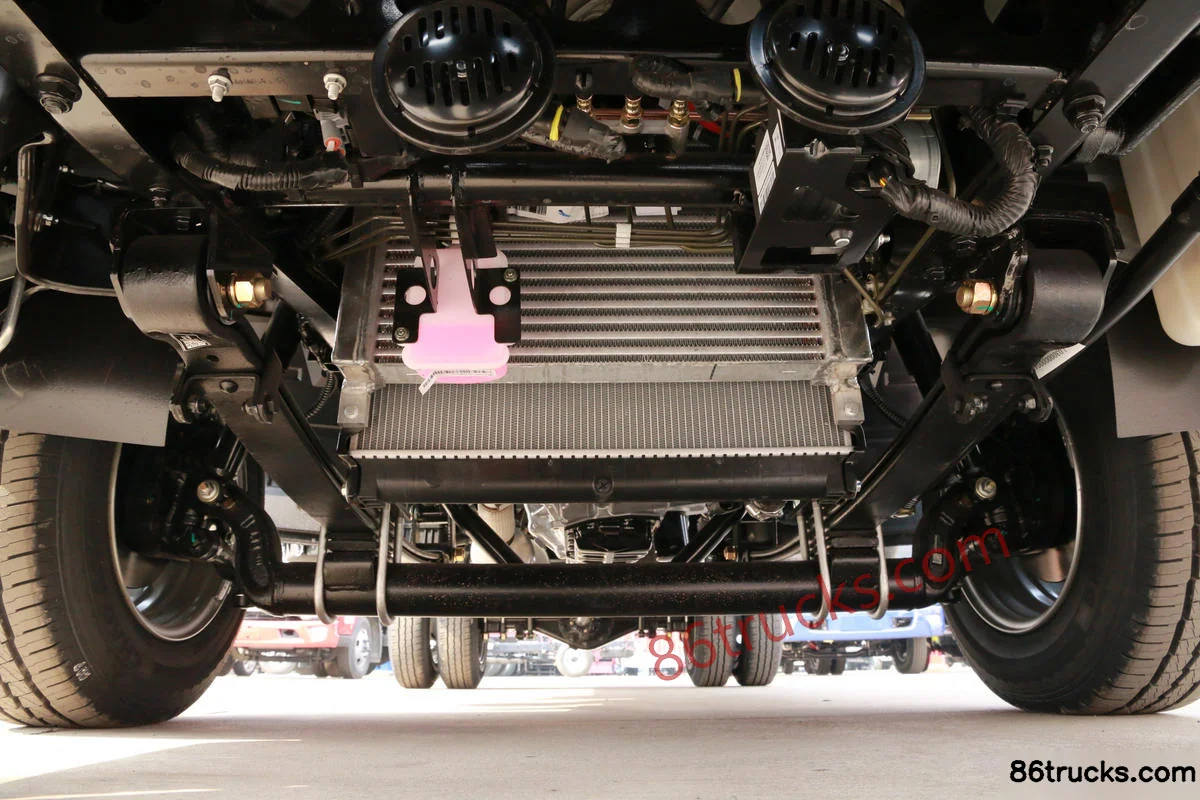

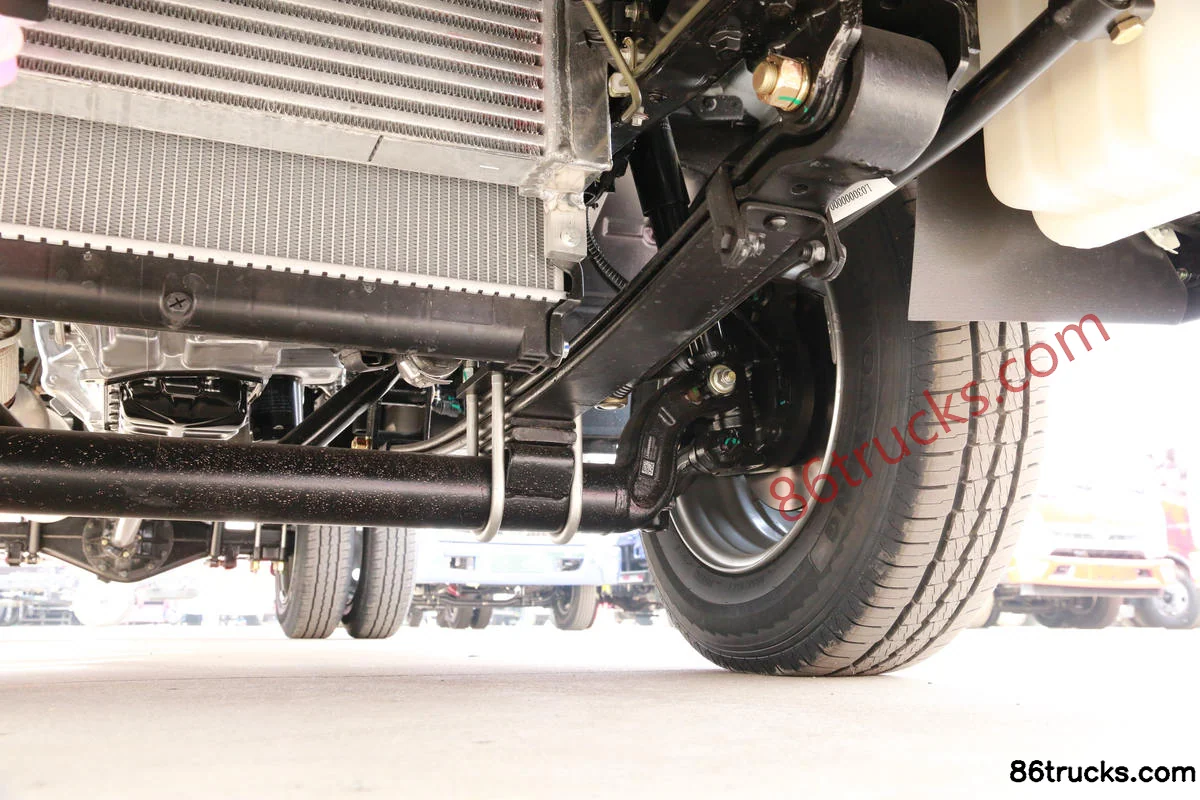

Chassis3

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Chassis (1) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Chassis (2) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Chassis (3) | 86Trucks

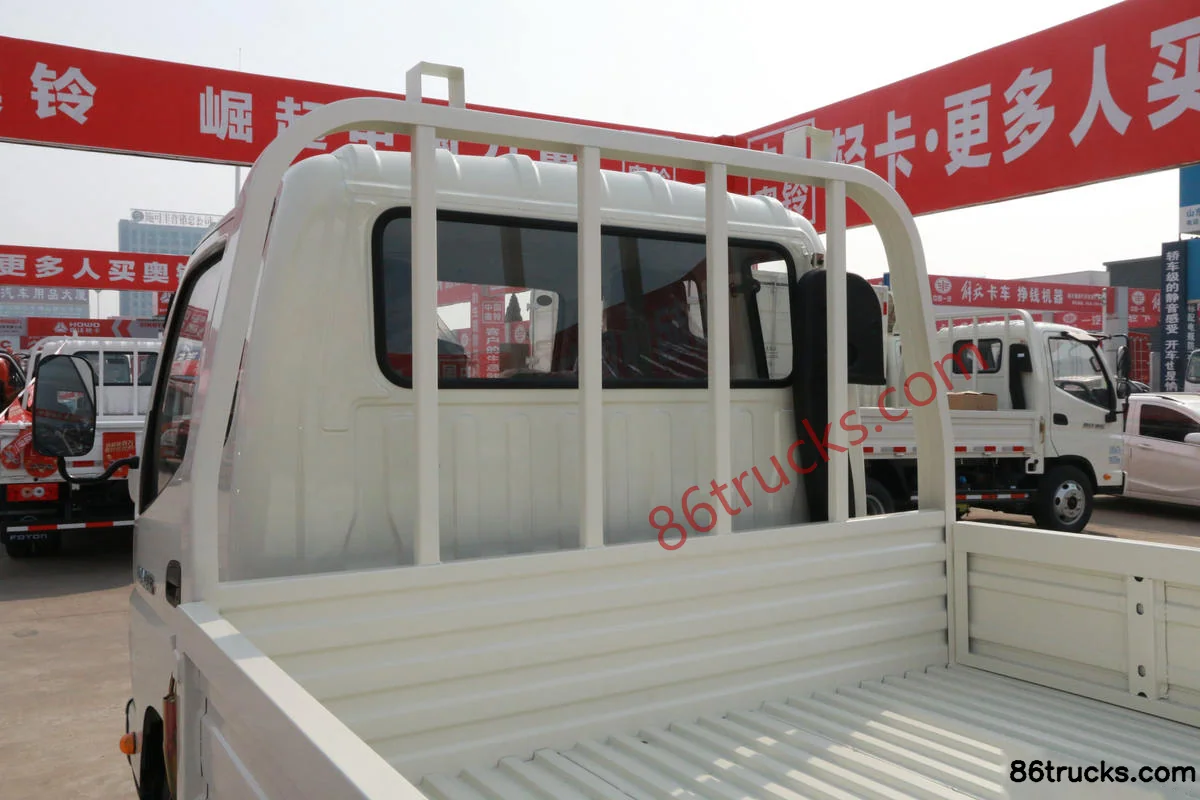

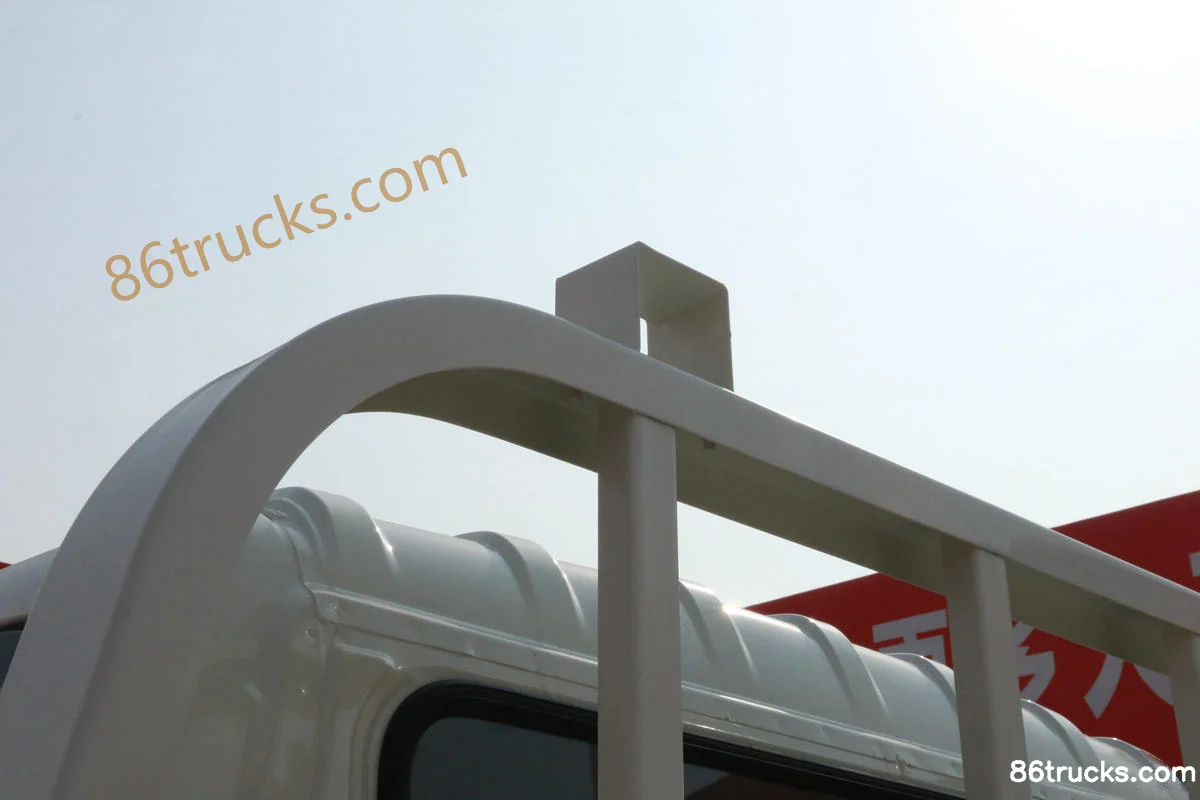

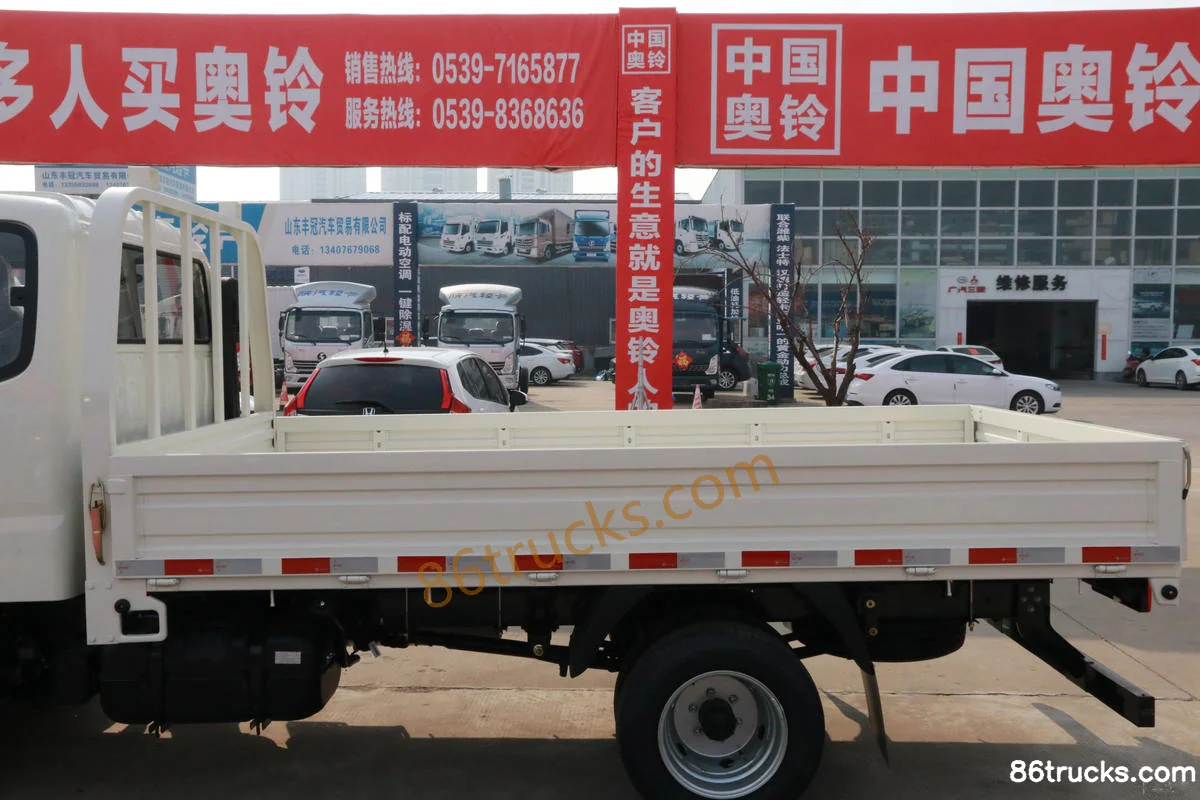

Body3

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Body (1) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Body (2) | 86Trucks Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI)?

Key specs of Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI): Drive: 4x2; Horsepower: 136 hp; Emission: China VI; Fuel: gasoline; Engine: Honeycomb 1.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) suited for?

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) differ from other variants in the same series?

Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI) belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Jieyun Classic Edition 1.5L 136 hp 4X2(6 wheels) gasoline 3.3m single-row flatbed light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
