FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck

Export reference
From $23,083
MSRP ¥16.62M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 3Personnel
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.99t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai4DK engine, 220 hp, 4X2 (6 wheels) drive and China V emissions.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180CCYP28K1L4E5
Type: stake truck
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DachaiCA4DK1-22E5
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1938mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 97km/h
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
market segment: Agricultural and sideline product transport
Front/rear suspension: 1.41/2.29m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-22E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.764L
Emission standard: China V
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 830N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: 4-cylinder, inline, turbocharged with intercooler, high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 237*75*6.5mm
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
smart configuration
Cruise control (CCS):

Photos

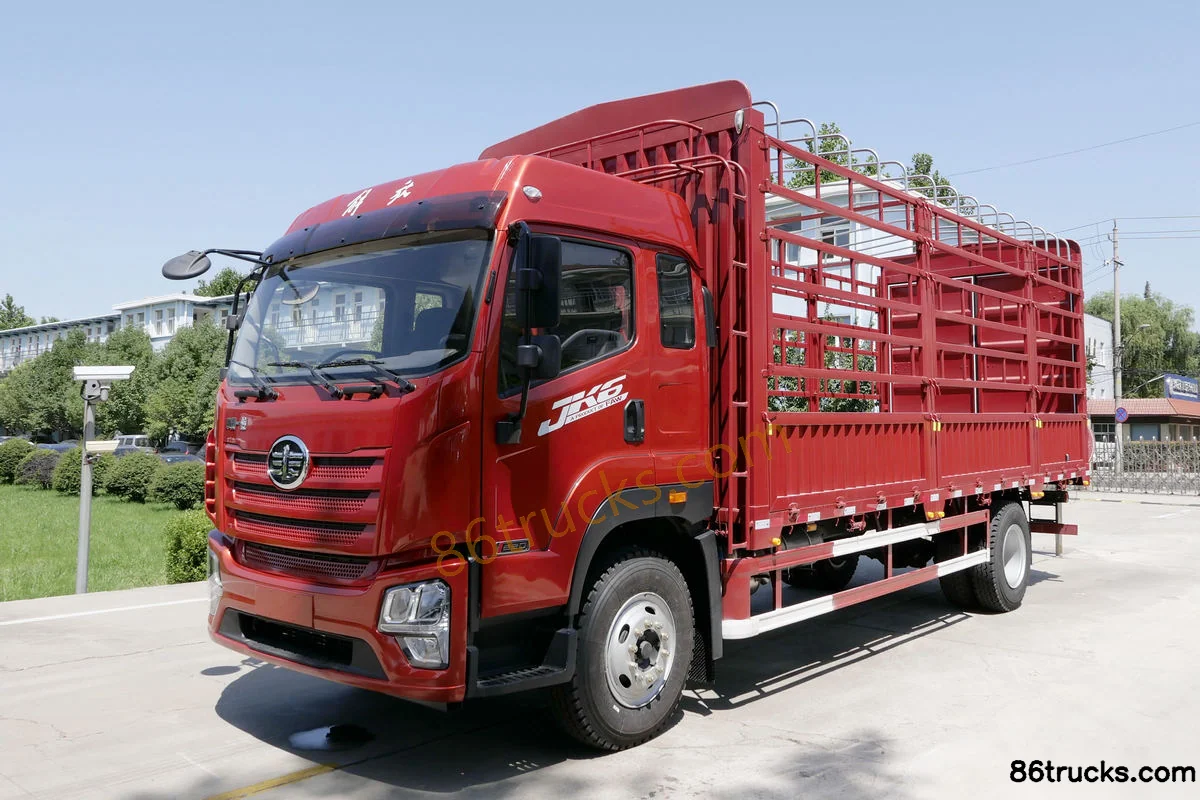

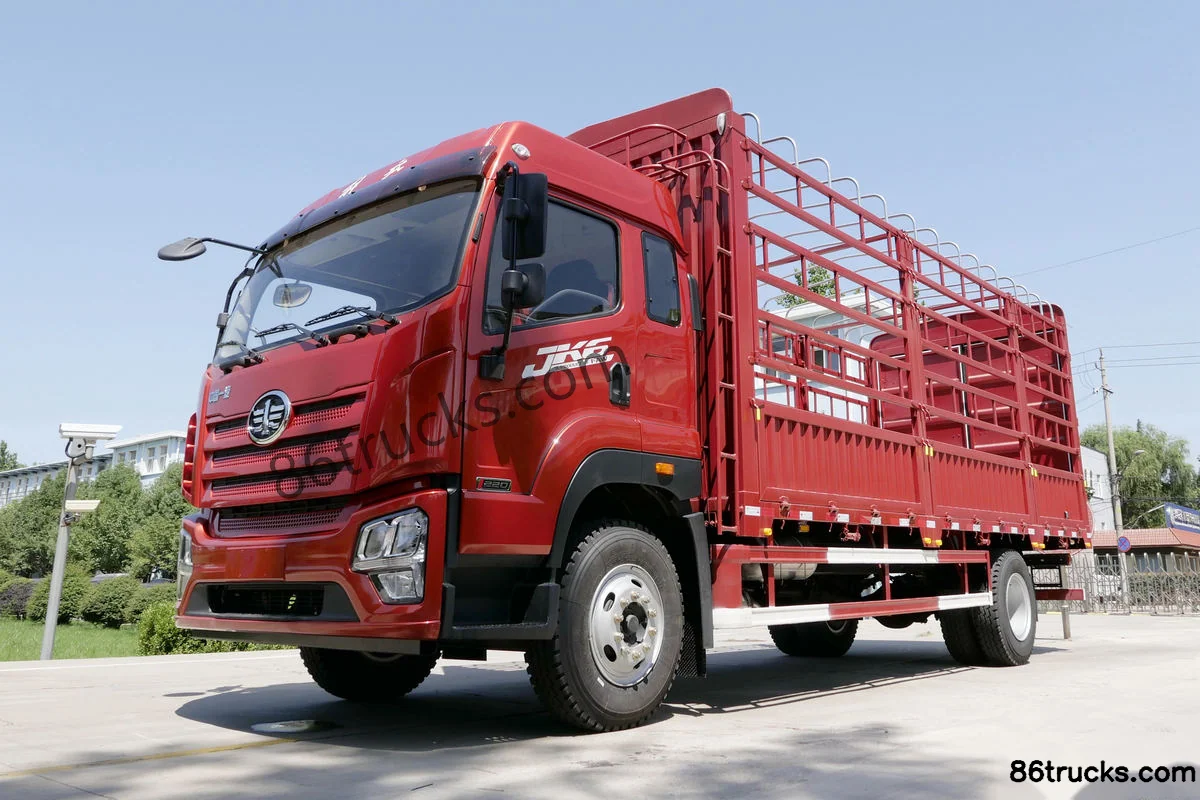

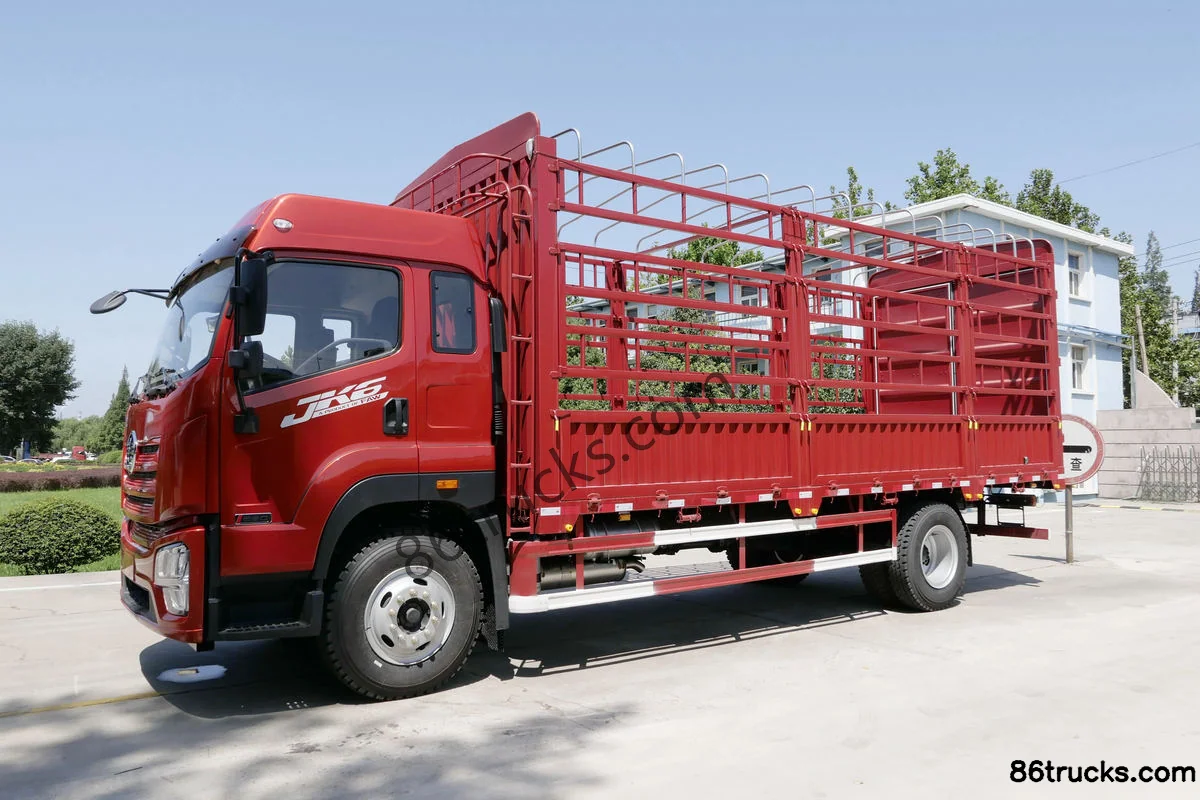

Exterior3

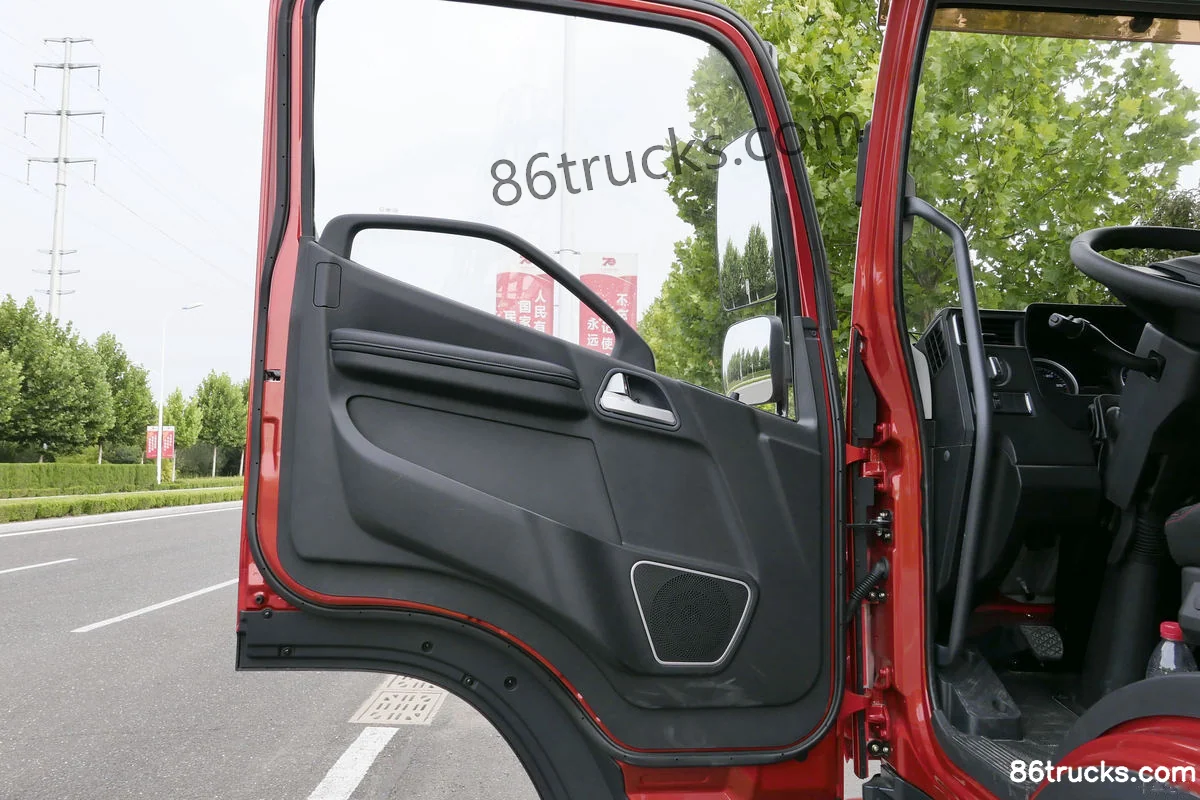

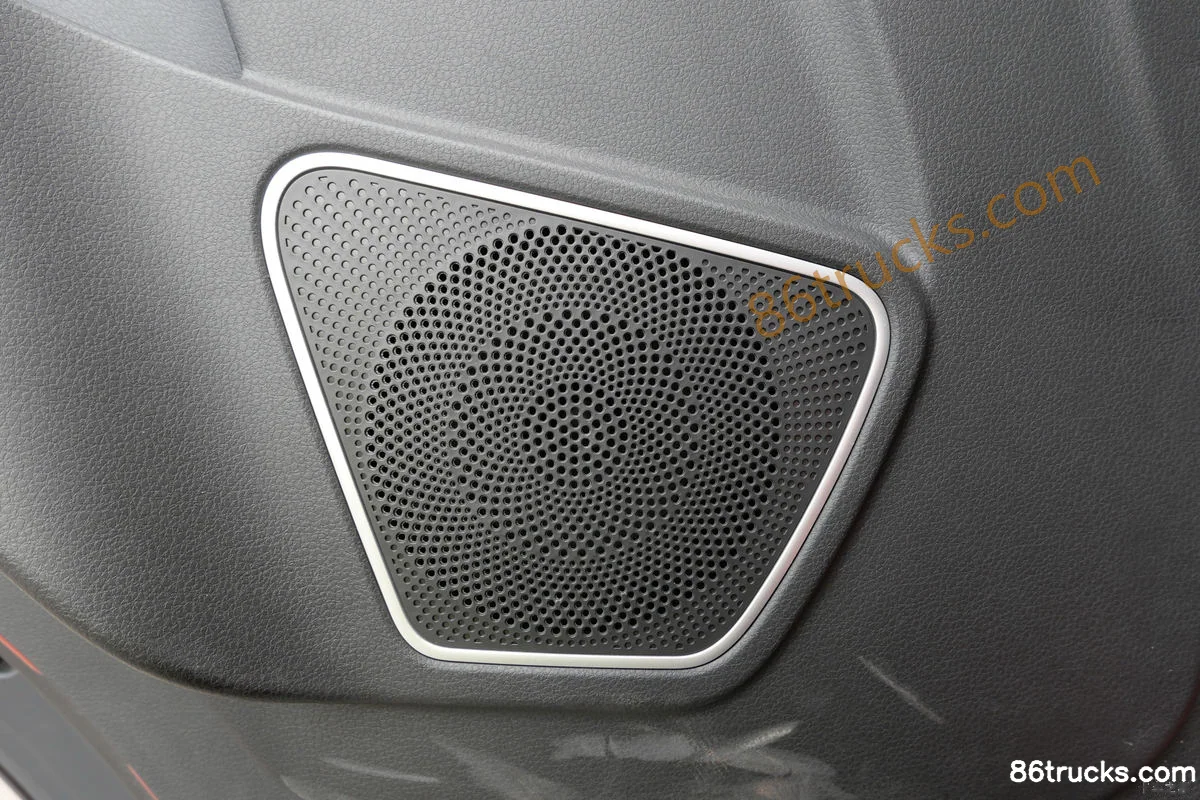

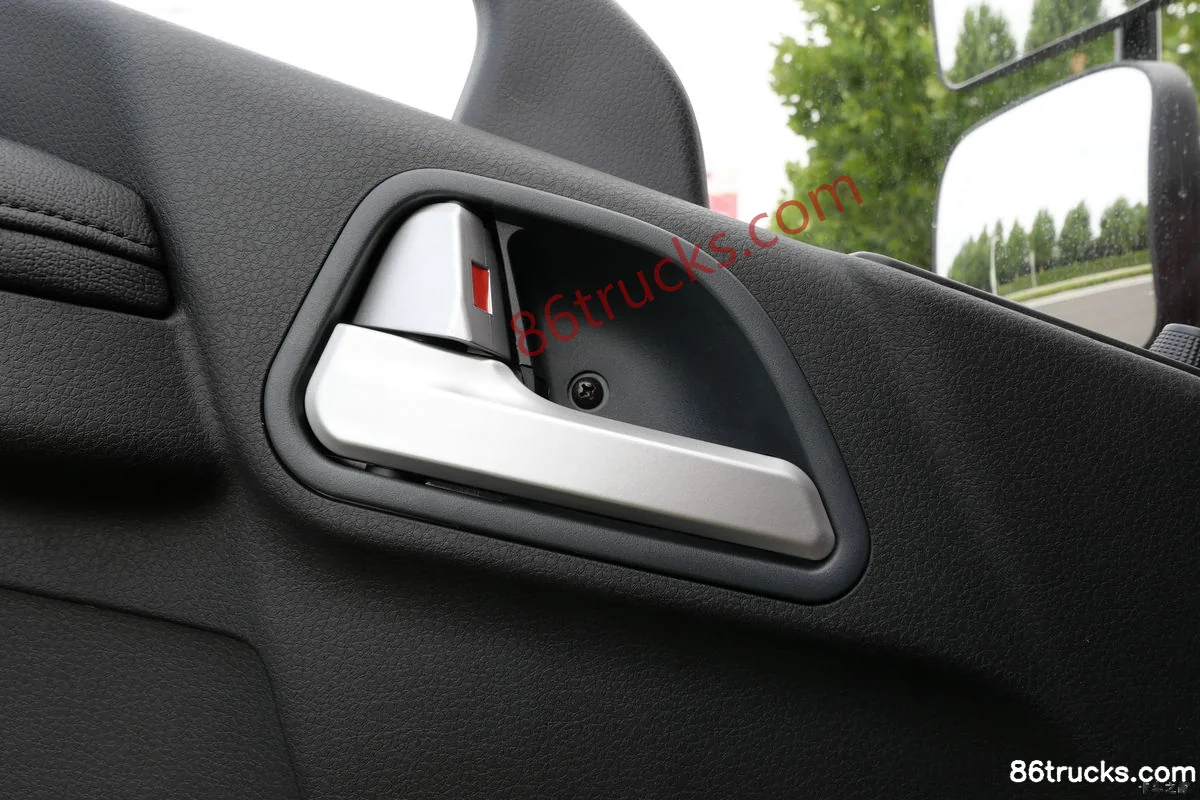

Cab3

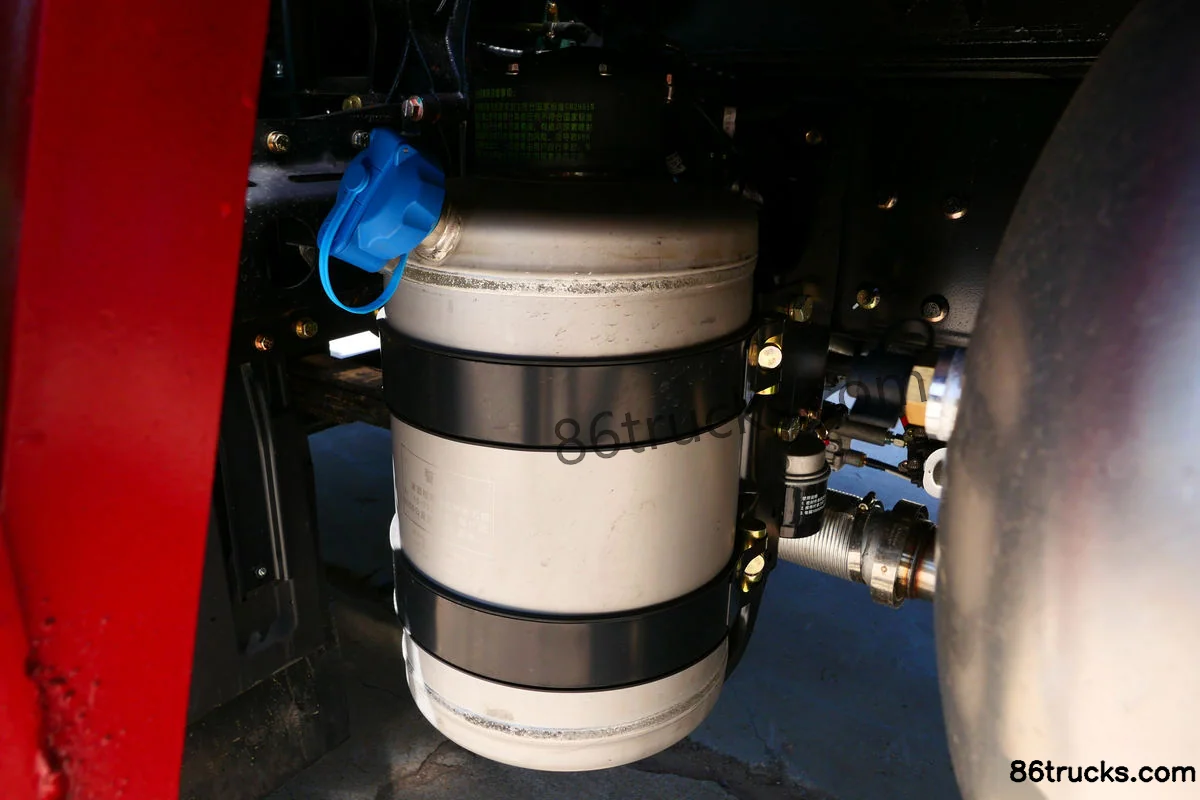

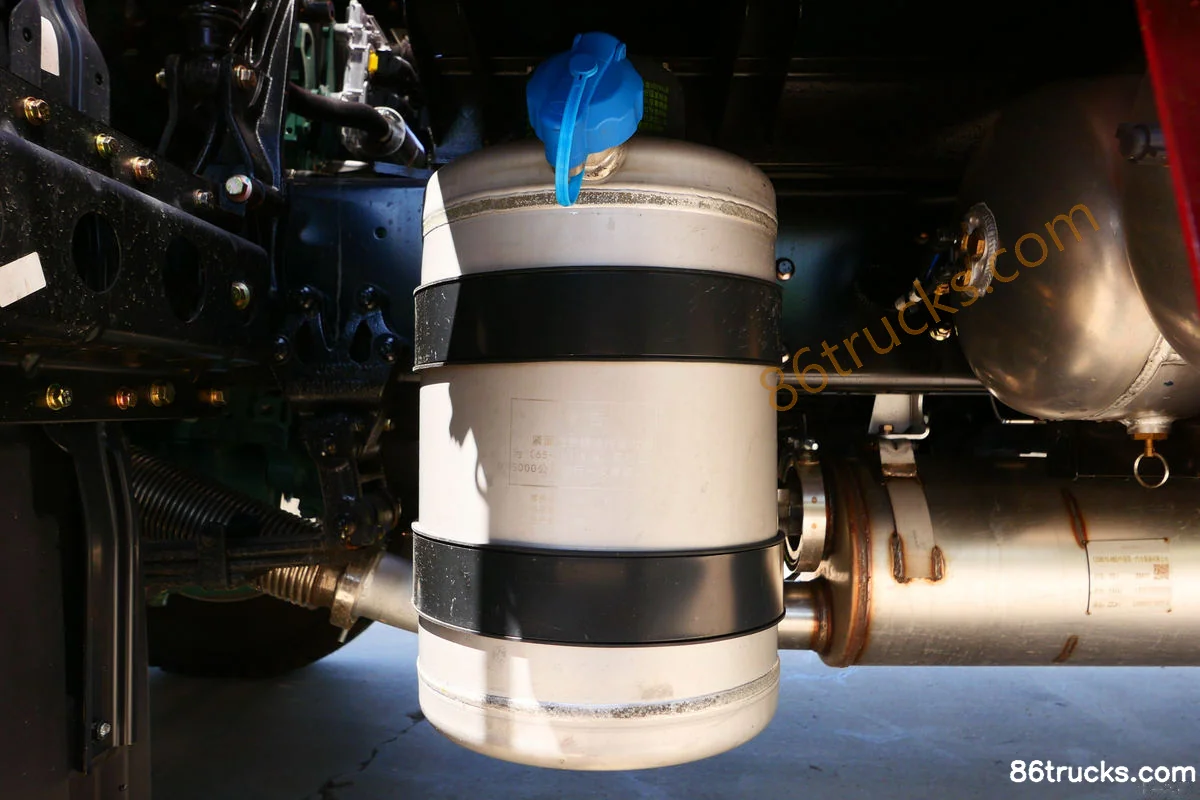

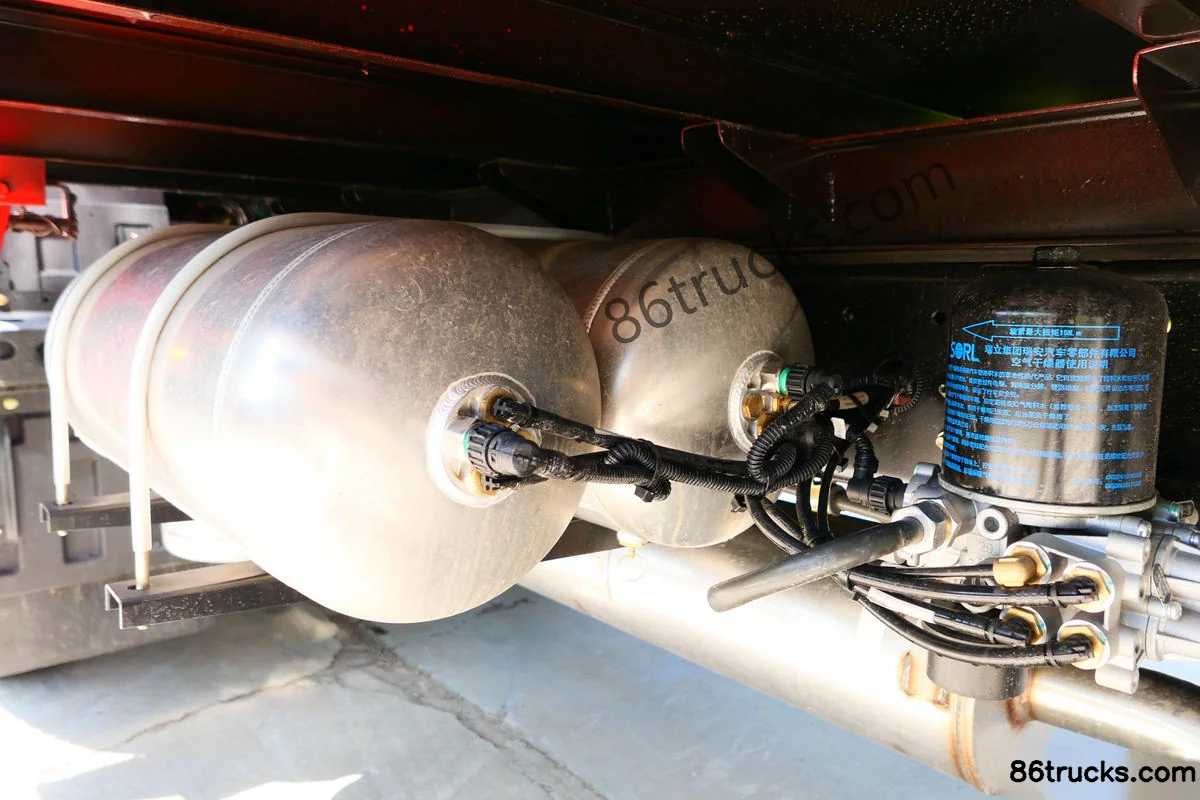

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck, and what does it include?

FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck export reference is about From $23,083; MSRP is ¥16.62M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck suited for?

FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 6.8m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
