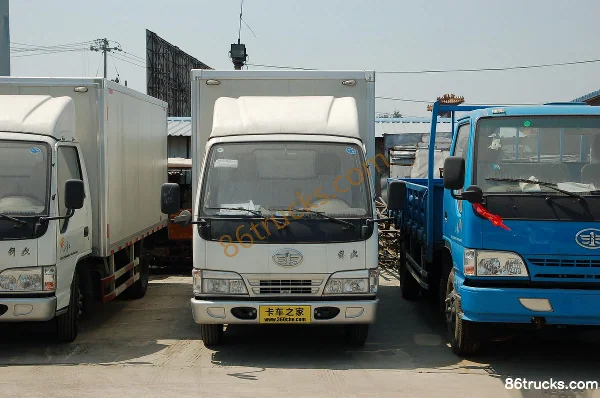

FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck

Export reference
From $11,250
MSRP ¥8.1M CNY
Horsepower: 109
Emission: China II/Euro II
Fuel: gasoline
Engine: FAW Sihuan2.5L
Transmission: FAW Jiefang
Curb Weight:: 2.465ton
seating capacity: 5Personnel
Rated payload: 1.53ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Hongta FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck is a Light Truck featuring 3.07m cargo length, Van body cargo body, 5Personnel volume and 1.53t payload. On the powertrain side, it comes with a FAW Sihuan2.5L engine, 109 hp, 4X2 (6 wheels) drive and China II/Euro II emissions.

China II/Euro II 109 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5047XXYEL2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 3.1m
engine: FAW SihuanCA4G25E
transmission: FAW JiefangCAS5-20
Cab length: 5.81m
Cab width: 1.907m
Cab height: 2.87m
Front track width: 1414mm
rear track: 1370mm
Curb Weight: 2.465ton
Rated payload: 1.53ton
GVWR: 4.32ton
Max. speed: 100km/h
Origin: Harbin
tonnage class: Light Truck
Remarks: This vehicle can be fitted with a deflector; a side door can be opened on the right side of the cargo compartment.
Energy Type: gasoline
Engine parameters
Engine Brand: FAW Sihuan
Engine Model: FAW SihuanCA4G25E
Engine info: FAW Sihuan2.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China II/Euro II
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 206N·m
Max torque speed: 2800-3200rpm
Rated speed: 4400rpm
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, SOHC, multi-point EFI
Transmission Parameters
Transmission Model: FAW JiefangCAS5-20
Transmission Brand: FAW Jiefang
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.07m
Cargo box width: 1.837m
Cargo box height: 1.9m
*Cargo box interior width: 1.8370000123978
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Leaf spring count: 7/8
Tire
Tire Size: 6.50-16
Number of tires: 6pcs

Photos

0 photos

FAQ

What is the export price of FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck, and what does it include?

FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck export reference is about From $11,250; MSRP is ¥8.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck?

Key specs of FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck: Drive: 4x2; Horsepower: 109 hp; Emission: China II/Euro II; Fuel: gasoline; Engine: FAW Sihuan2.5L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck suited for?

FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck differ from other variants in the same series?

FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck belongs to FAW Hongta Xiao FAW Jiefang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang 109 hp 4X2(6 wheels) 3.1m double-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
