Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck

Export reference
From $13,681
MSRP ¥9.85M CNY
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: Foton493
Transmission: JMC
Curb Weight:: 2.7ton
seating capacity: 3Personnel
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck is a Light Truck featuring 4.165m cargo length, Van body cargo body, 3Personnel volume and 1.49t payload. Its segment focus covers Logistics Freight and City Distribution, matching those duty cycles. On the powertrain side, it comes with a Foton493 engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049XXY-C1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Foton4J28TC3
transmission: JMCJC528
Rear Axle Ratio: 6.142
Cab length: 5.995m
Cab width: 2.35m
Cab height: 3.38m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.7ton
Rated payload: 1.49ton
GVWR: 4.32ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Logistics Freight, City Distribution
Front/rear suspension: 1.085/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC3
Engine info: Foton493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, SCR
Transmission Parameters
Transmission Model: JMCJC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.165m
Cargo box width: 2.2m
Cargo box height: 2.3m
*Cargo box interior width: 2.2000000476837
Cab parameters
Cab: Single row L1800
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2620kg
Axle ratio: 6.142
Leaf spring count: 3+1/6+7
Tire
Tire Size: 6.50R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake

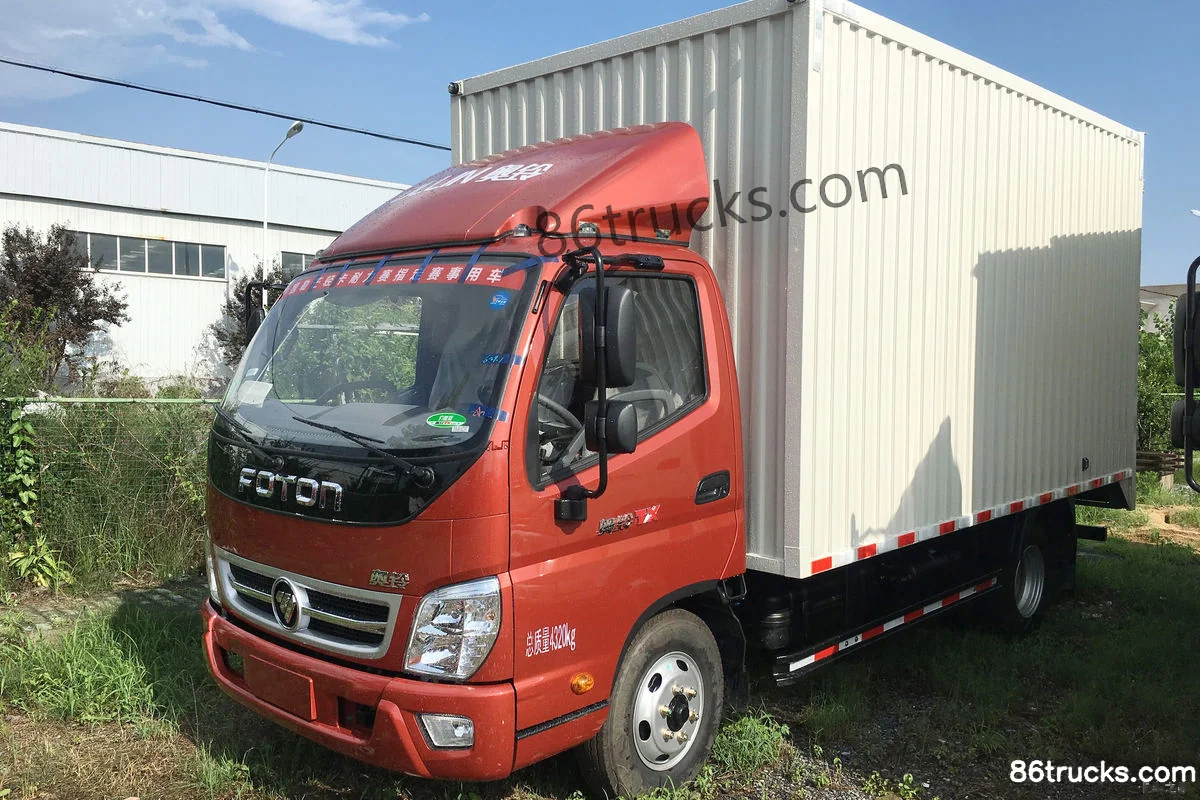

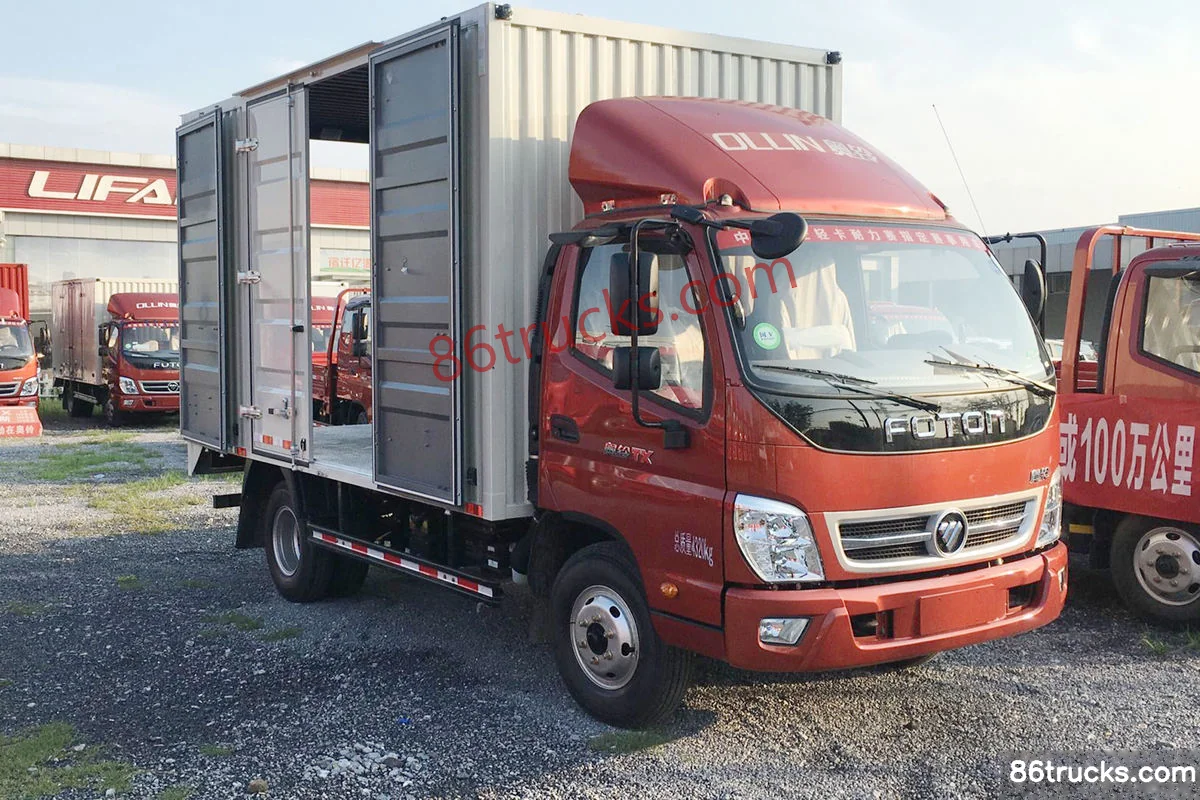

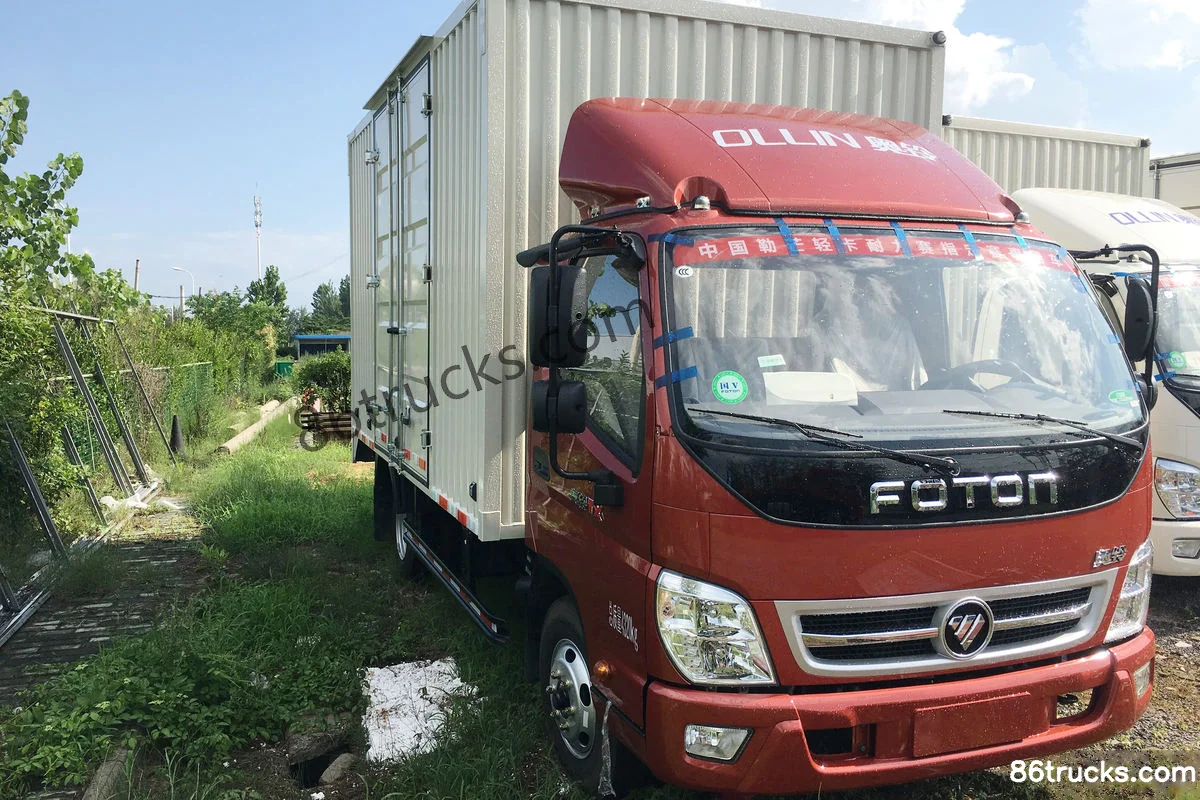

Photos

Exterior3

3 photos

FAQ

What is the export price of Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck, and what does it include?

Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck export reference is about From $13,681; MSRP is ¥9.85M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck?

Key specs of Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: Foton493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck suited for?

Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck differ from other variants in the same series?

Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin TX 110 hp 4X2(6 wheels) 4.165m single-row panel van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
