SANY 75 Ton Truck Crane (STC75)

Export reference
MSRP N/A
Max gradeability:: 40%
Min turning radius:: 23m
Approach/departure angle:: 20°
Rated lifting capacity:: 75ton
Rated lifting moment:: 2400KN.m
Rated lifting moment (fully extended boom):: 318KN.m

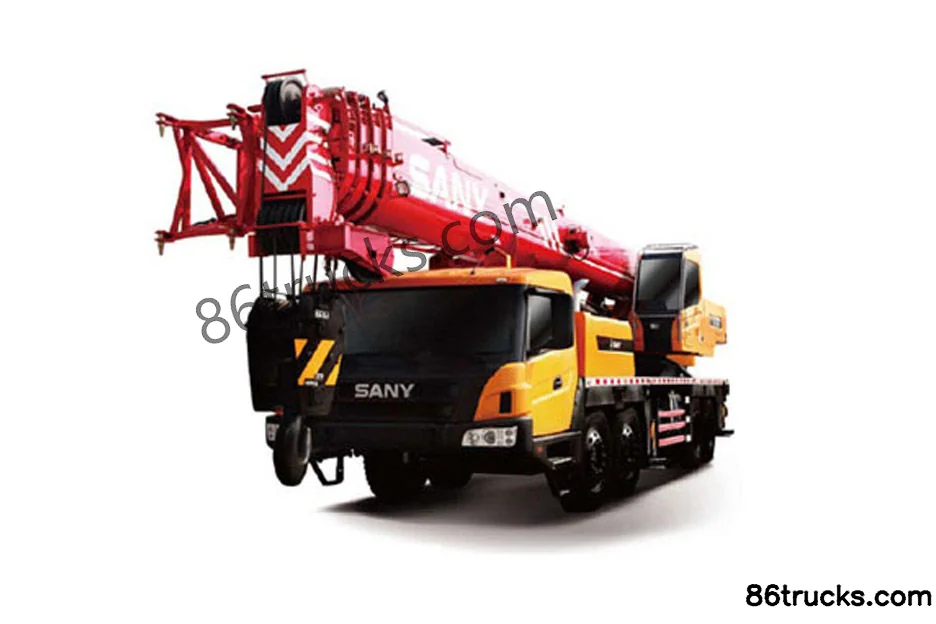

SANY 75 Ton Truck Crane (STC75) exterior
View more photos (1)
Max output power: 275kW
Machine dimensions: L×W×H: 14.0×2.75×3.7m
Model: STC75
Max travel speed: 80km/h

Overview

The SANY 75 Ton Truck Crane (STC75) is a crane truck featuring 275kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 14.0×2.75×3.7m
Model: STC75
Max travel speed: 80km/h
Max gradeability: 40%
Min turning radius: 23m
Approach/departure angle: 20°
Lifting capacity
Rated lifting capacity: 75ton
Rated lifting moment: 2400KN.m
Rated lifting moment (fully extended boom): 318KN.m
Min working radius: 3m
Max lift height - base boom: 12m
Max lift height: 45m
Max lifting height - main boom + jib: 61m
Boom length - main boom: 11.8m
Boom length - fully extended: 45m
Boom length - main boom + jib: 61m
auxiliary jib installation angle: 30°
Operating Parameters
Max hoisting speed of main winch: 130m/min
Auxiliary winch max lift speed: 130m/min
Outrigger span: longitudinal × lateral: 7.6×6.1m
Boom full extension time: 80sec
Engine parameters
Engine Model: WeichaiWP10.336
Max output power: 275kW
Rated speed: 1460rpm

Photos

Exterior1

SANY 75 Ton Truck Crane (STC75) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is SANY 75 Ton Truck Crane (STC75) suited for?

SANY 75 Ton Truck Crane (STC75) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SANY 75 Ton Truck Crane (STC75) differ from other variants in the same series?

SANY 75 Ton Truck Crane (STC75) belongs to SANY truck crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 75 Ton Truck Crane (STC75)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 75 Ton Truck Crane (STC75)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
