Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh

Export reference
From $14,556
MSRP ¥10.48M CNY
Model code (announced):: WHJ6451BEVK133
Cab length:: 4.48m
GVWR:: 2.505ton
Max. speed:: 100km/h
Front/rear suspension:: 0.71/0.87m
Energy Type:: Electric
Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh exterior
View more photos (12)
CLTC range: 306km
Motor 1 Brand: Inovance
Curb Weight: 1.55ton
Wheelbase: 2900mm

Overview

The Chery Commercial Vehicle Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh is a Electric Panel Van featuring 306km battery/range, Inovance motor and 2.505t GVW.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): WHJ6451BEVK133
Wheelbase: 2900mm
Cab length: 4.48m
Cab width: 1.76m
Cab height: 1.995m
CLTC range: 306km
Curb Weight: 1.55ton
GVWR: 2.505ton
Max. speed: 100km/h
Front/rear suspension: 0.71/0.87m
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS000
Motor Type: Permanent magnet synchronous motor
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast charge, slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
Chassis Specs
Front suspension type: MacPherson independent suspension
rear suspension type: Leaf spring non-independent suspension
Body Parameters
Seat count: 6Seats
Door Parameters
side door type: Right single sliding door
Tailgate type: split doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185R14LT 8PR
Rear Wheel Specification: 185R14LT 8PR
Cab parameters
Seat rows: 3
Safety features
Driver airbag:
passenger airbag:
Tire Pressure Monitoring:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
steering wheel adjustment:
AC control type: Automatic
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:

Photos

Exterior3

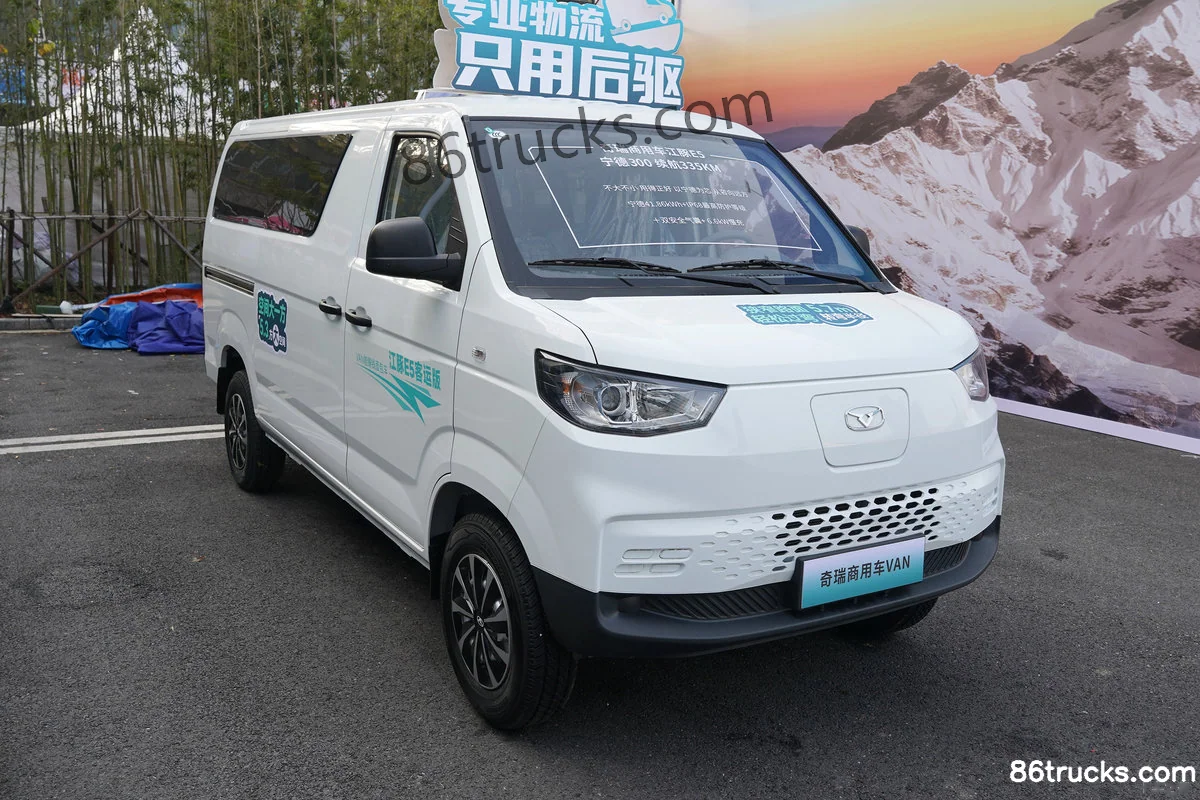

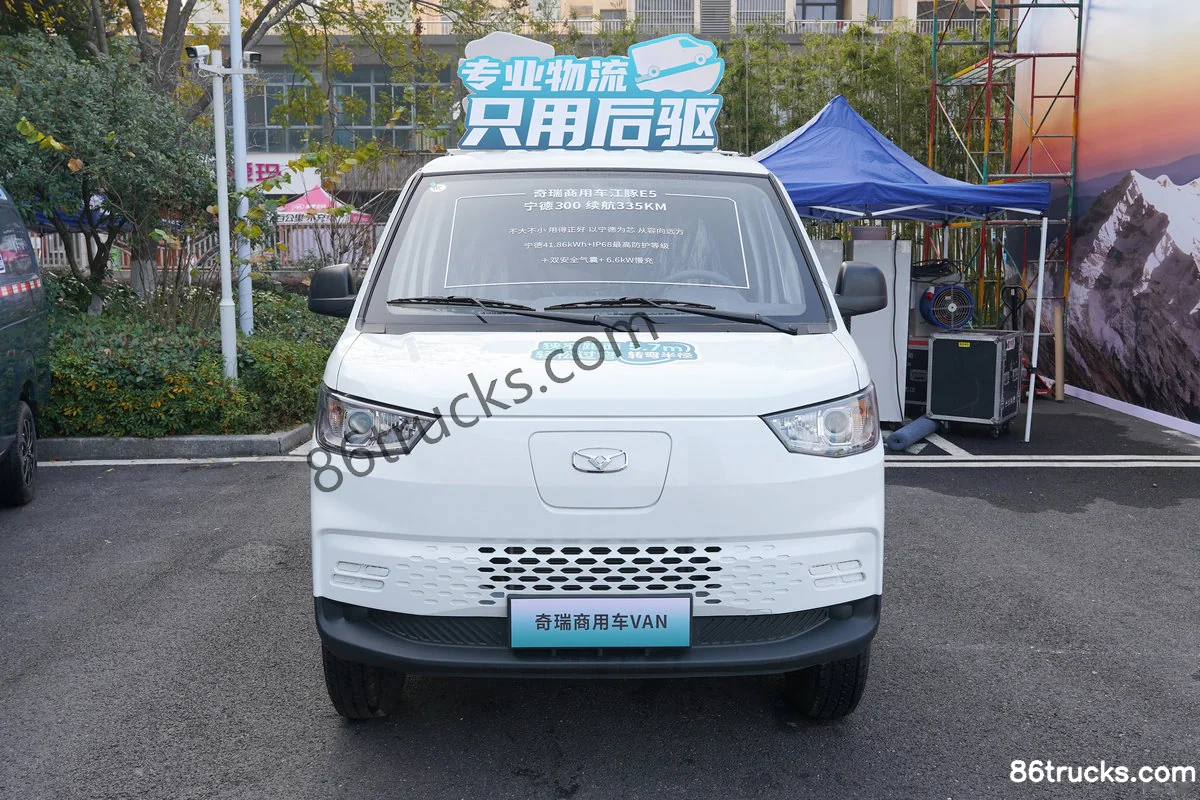

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Exterior (1) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Exterior (2) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Exterior (3) | 86Trucks

Cab3

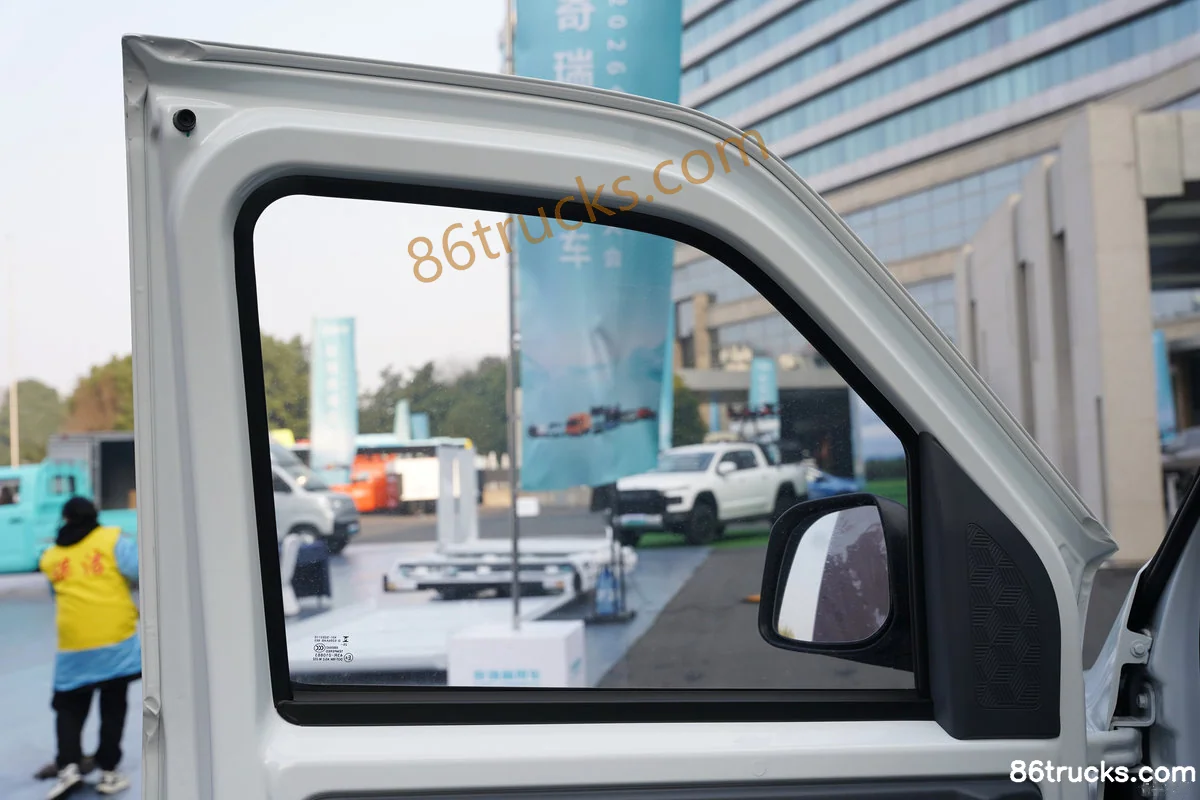

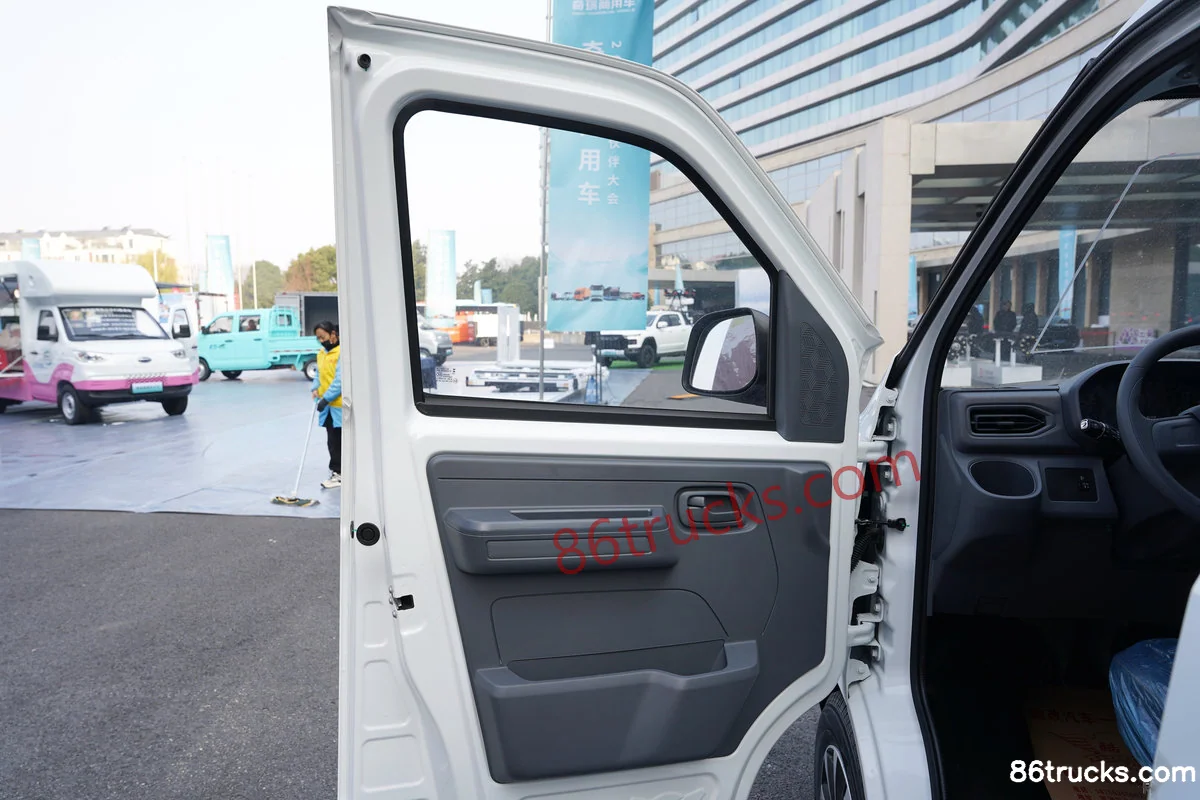

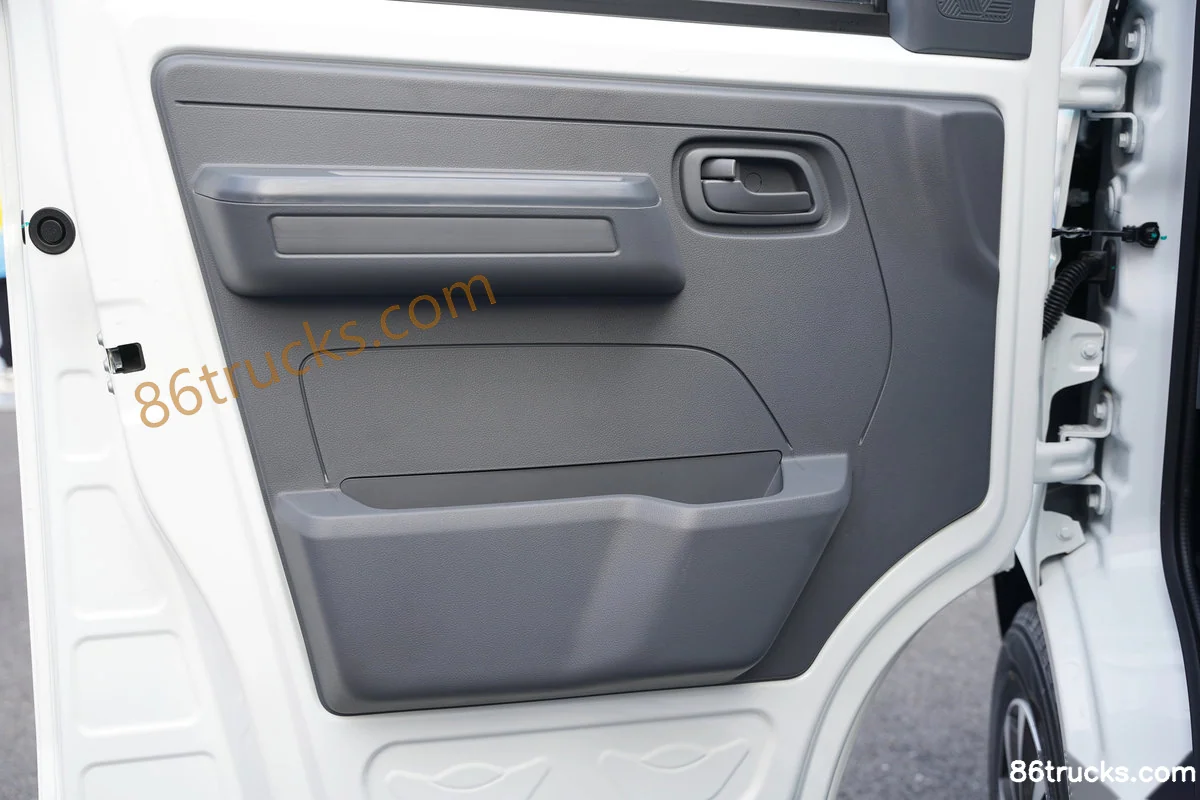

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cab (1) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cab (2) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cab (3) | 86Trucks

Chassis3

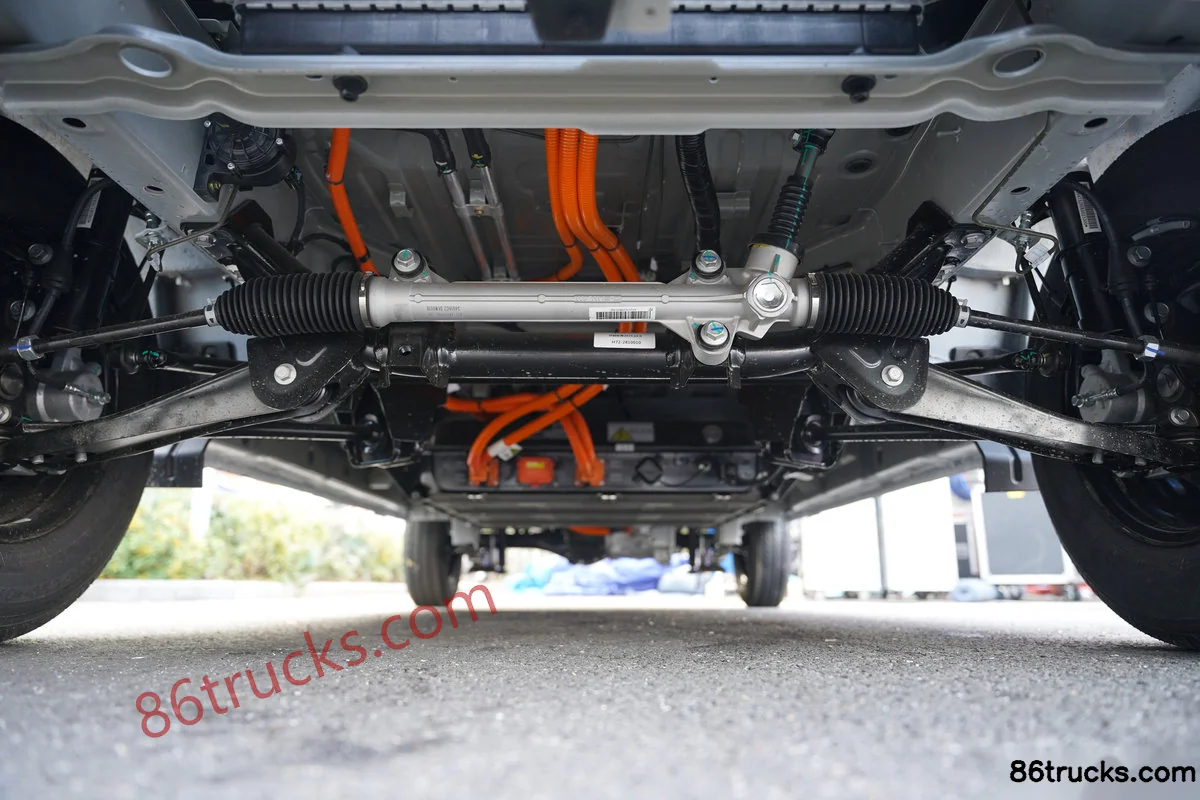

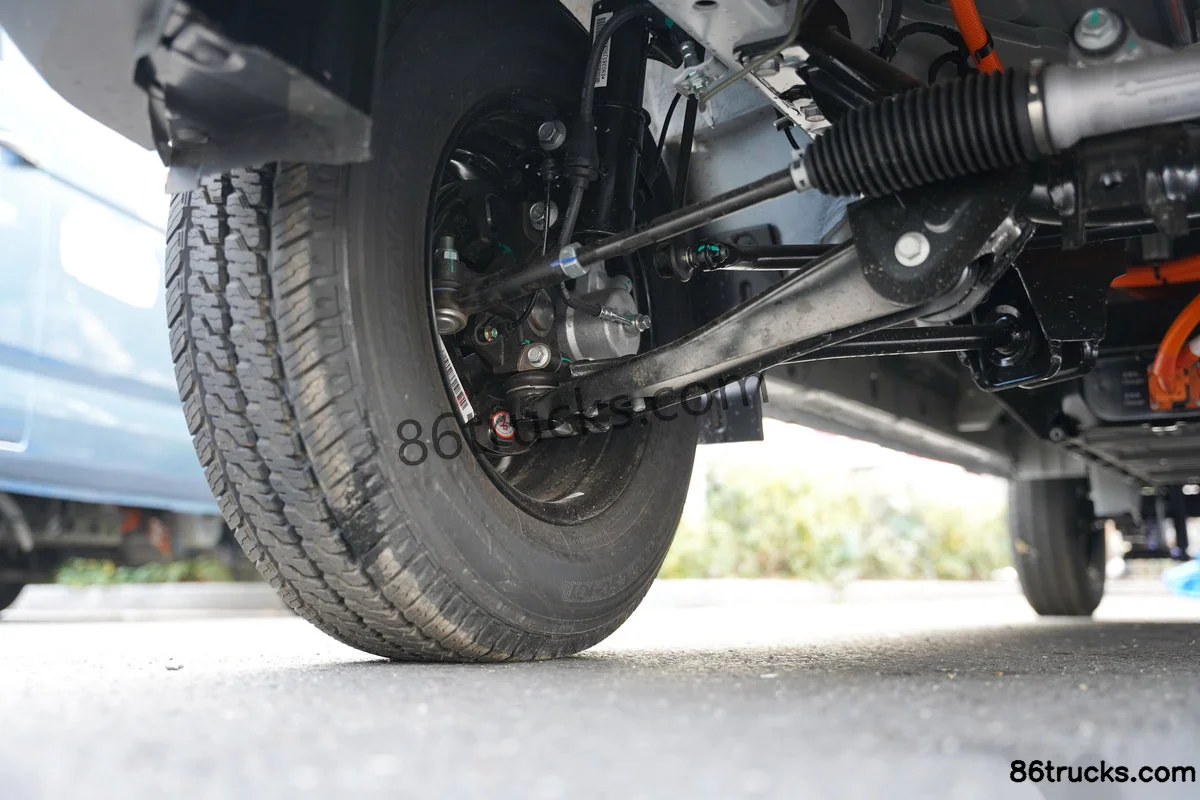

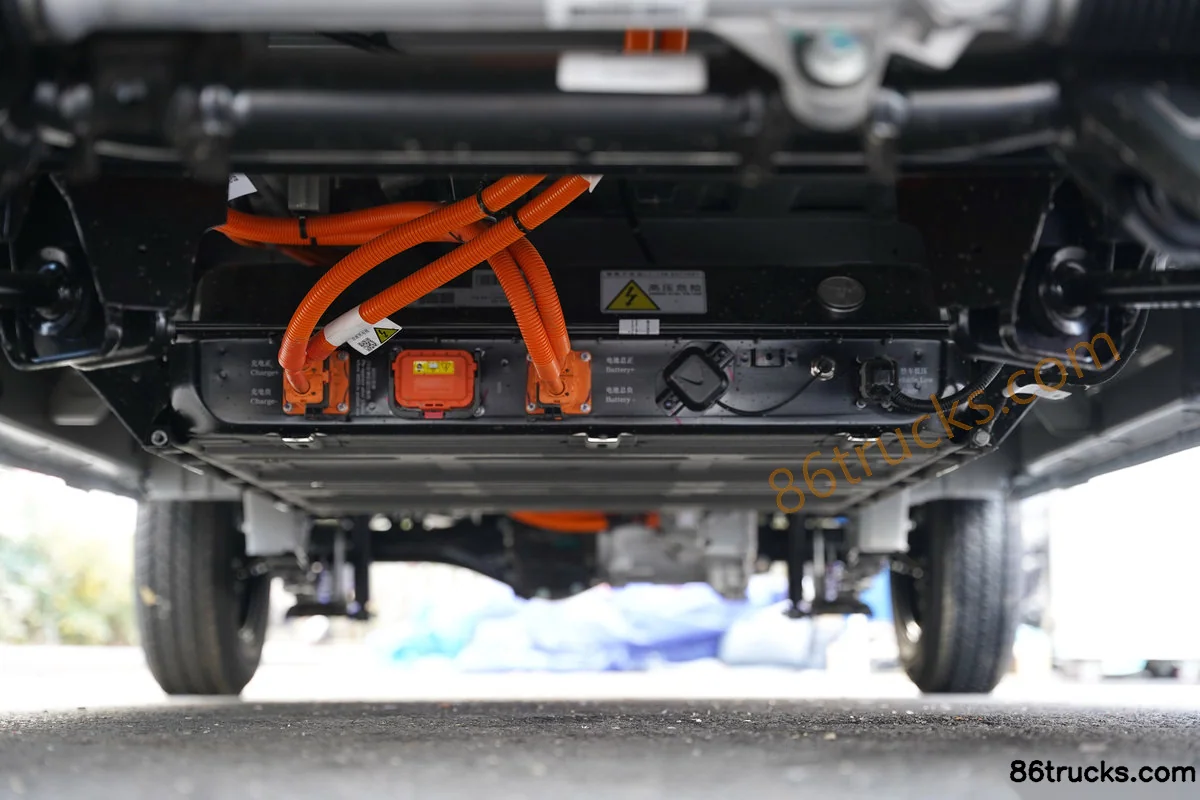

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Chassis (1) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Chassis (2) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Chassis (3) | 86Trucks

Cargo Box3

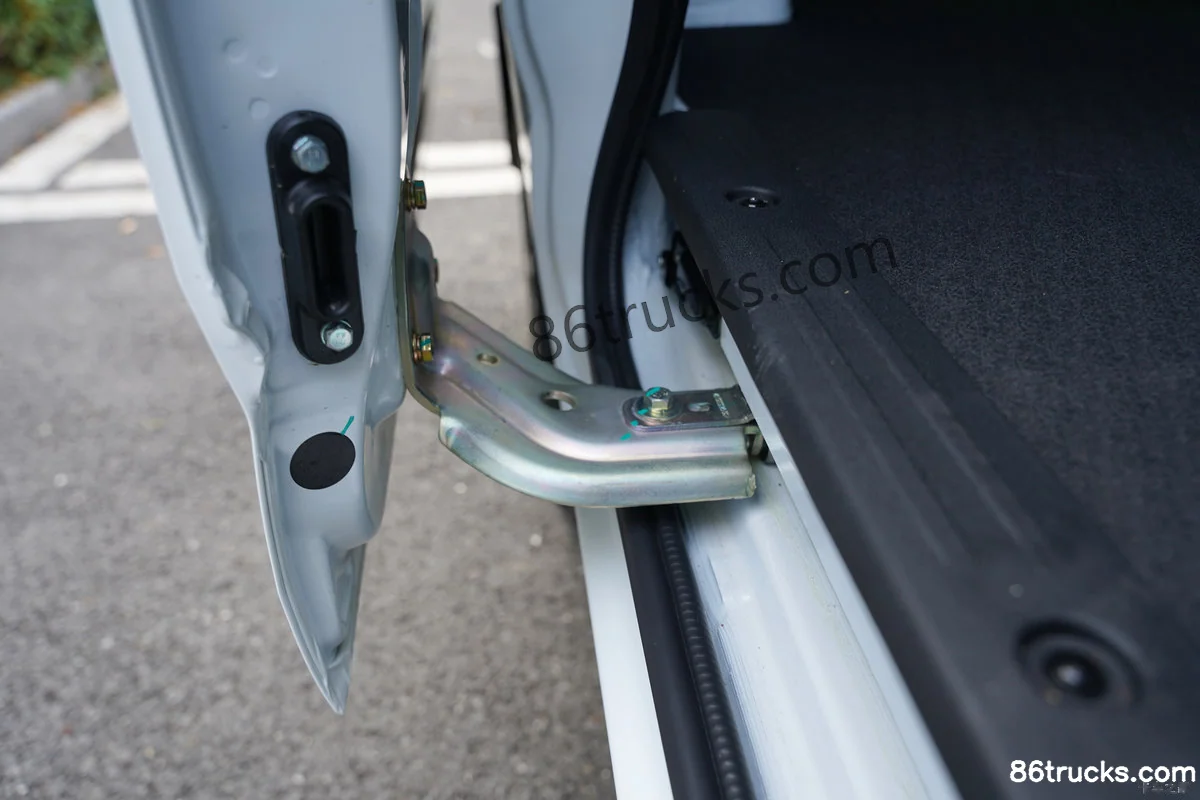

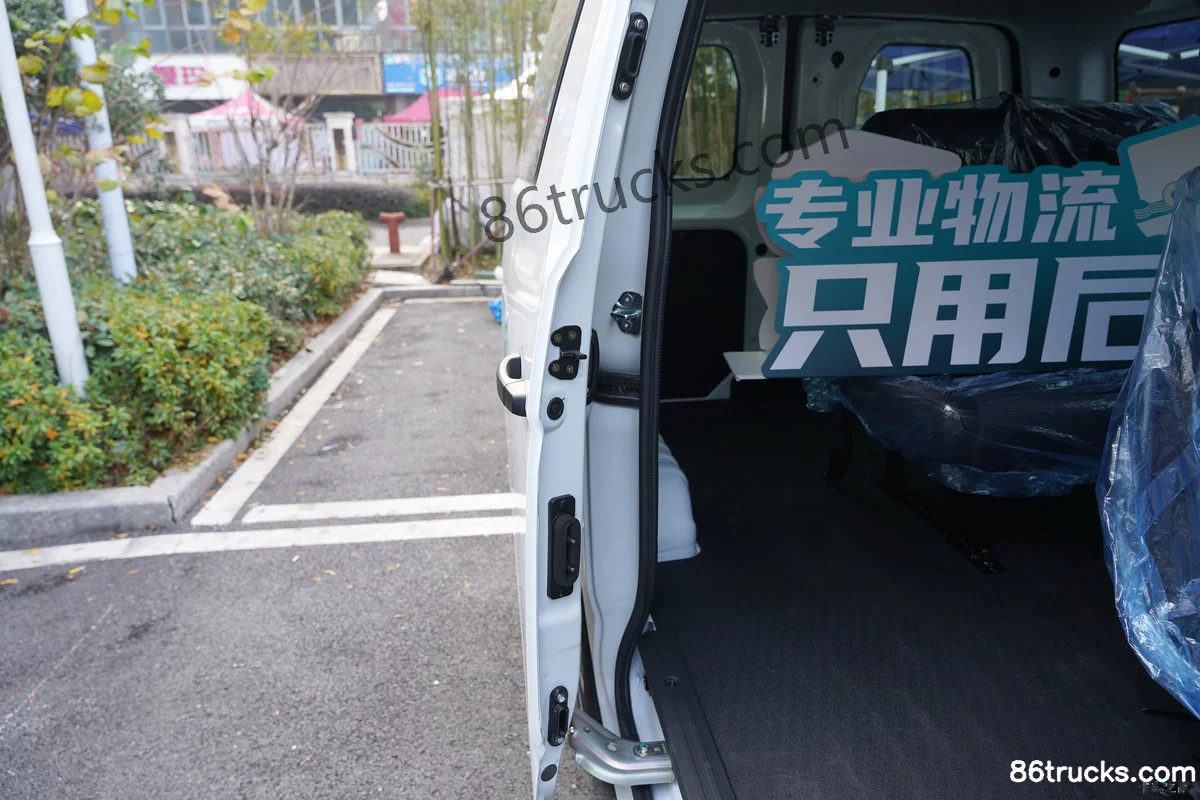

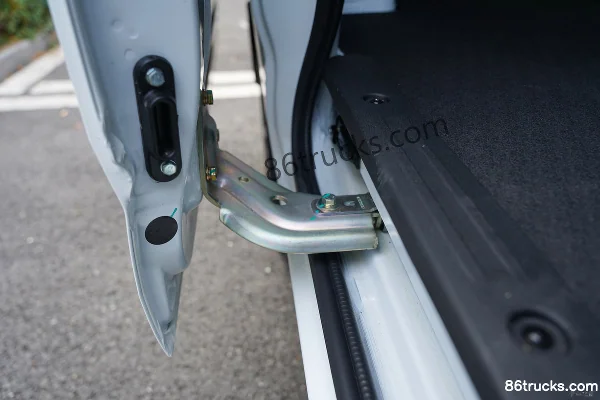

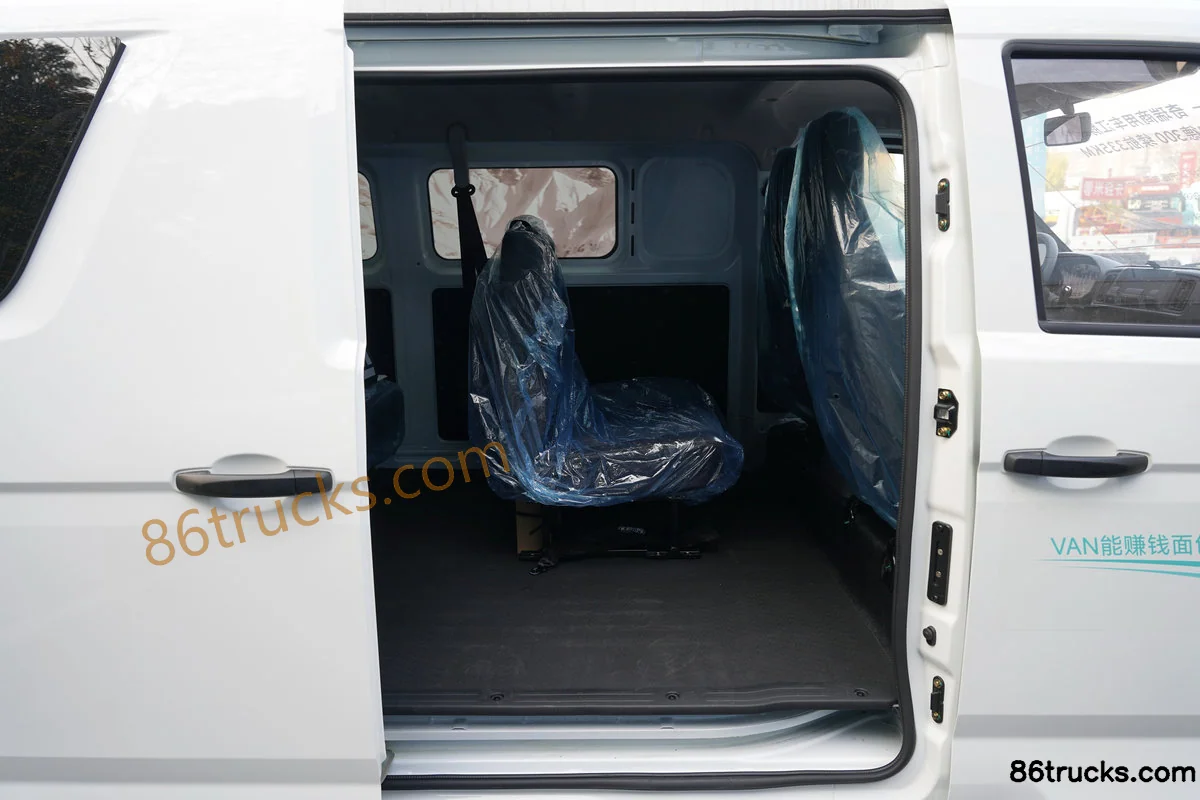

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cargo Box (1) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cargo Box (2) | 86Trucks Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh, and what does it include?

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh export reference is about From $14,556; MSRP is ¥10.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh suited for?

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh differ from other variants in the same series?

Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh belongs to Chery Commercial Vehicle Kaiyi Jiangtun E5 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Jiangtun E5 2025 6-Seat Pure Electric Light Bus CATL 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
