Deyuan Auto 13m Stake Semi-Trailer

Export reference
From $20,833
MSRP ¥15M CNY
Cab width:: 2.55m
suspension:: 230 high-strength
Fifth Wheel Pin:: 50#
Design load capacity:: 33.8ton
Cab height:: 4m
Wheel brand:: 久瑞
Axle Brand: Fuhua Axle
Curb Weight: 6.8ton
Cab length: 13m
Spare Tire Carrier: Spare tire lifterpcs

Overview

The Deyuan Auto 13m Stake Semi-Trailer is a Stake Semi-trailer featuring Fuhua Axle-axle setup, 6.8ton GVW, 13m length and 33.8ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 33.8ton
Cab length: 13m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 6.8ton
Chassis Specs
Axle Brand: Fuhua Axle
Number of Axles: 3
Axle Load Rating: 13 tons
Wheel brand: 久瑞
Number of wheels: 12
suspension: 230 high-strength
Wheel Material: Steel rim
Parts & accessories
Fifth Wheel Pin: 50#
Brake chamber: 4 double 2 single
Outrigger: Aluminum landing gear
Toolbox: 2m aluminum door toolboxpcs
Spare Tire Carrier: Spare tire lifterpcs
ABS: Haina
Body Parameters
Frame material: 8# high-strength strip steel
Web Plate: 5mm
frame rail height: 480mm
upper wing panel: 8mm
Box panel: 40*60*1.3mm
Lower Wing Plate: 10mm
Side beam: 140mm
Number of openings: 13 doors
Other notes
Lead time for customization: 7 days
warranty period: 180 days
warranty method: Frame: lifetime warranty
Other: aluminum alloy side guard, aluminum alloy air tank, 1 ladder, 12 bow rods; drop-side opening form: other forms optional; tailgate form: same as sides, other forms optional; full-vehicle E-coat + waterborne paint, 2 bars per door
Tire
Tire brand: Chaoyang
Tire Size: 12R22.5 12PR
Number of tires: 12pcs

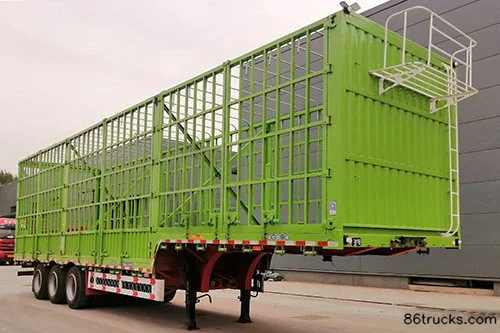

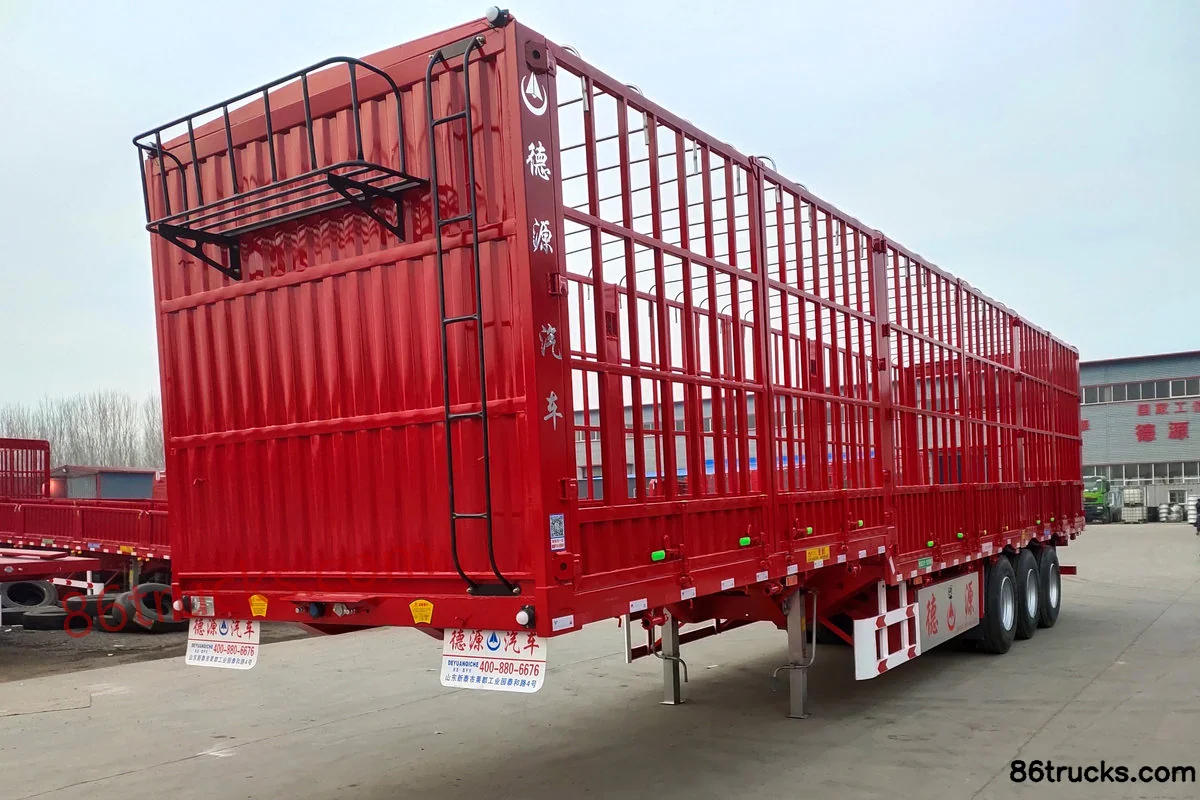

Photos

Exterior2

2 photos

FAQ

What is the export price of Deyuan Auto 13m Stake Semi-Trailer, and what does it include?

Deyuan Auto 13m Stake Semi-Trailer export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Deyuan Auto 13m Stake Semi-Trailer suited for?

Deyuan Auto 13m Stake Semi-Trailer is a Stake Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Deyuan Auto 13m Stake Semi-Trailer differ from other variants in the same series?

Deyuan Auto 13m Stake Semi-Trailer belongs to Deyuan Auto 13m (Stake Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Deyuan Auto 13m Stake Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Deyuan Auto 13m Stake Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
