Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3600+1400mm
Front/rear track width:: Front track: 2080mm; Rear track: 1860/1860mm
Cab length:: 7.245m
GVWR:: 25ton
Max. speed:: 89km/h
Drive 6X4 (10 wheels)
CLTC range: 250km
Motor 2 Brand: Subo
Gross Trailer Weight: 38.975ton

Overview

The Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh is a Heavy truck featuring 250km battery/range, Subo motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Wheelbase: 3600+1400mm
Front/rear track width: Front track: 2080mm; Rear track: 1860/1860mm
Cab length: 7.245m
Cab width: 2.55m
Cab height: 3.98m
CLTC range: 250km
Gross Trailer Weight: 38.975ton
Curb Weight: 9.895ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 2 Brand: Subo
Motor 2 Model: TZ240XY-SP197/436/TZ240XY-SP197/436
Motor 1 Brand: Subo
Motor 1 Model: TZ240XY-SP197/436
Motor Type: Permanent magnet synchronous motor
total rated power: 591kW
Peak power: 1038kW
Motor 1 Peak Power: 346kW
Motor 2 Peak Power: 692kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 301kWh
fast charge time: 0.6h
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
rear axle description: 13T two-stage rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Aluminum wheels:
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Service brake
Brake Type: Air brake
smart configuration
Telematics System:
Cruise control (CCS):

Photos

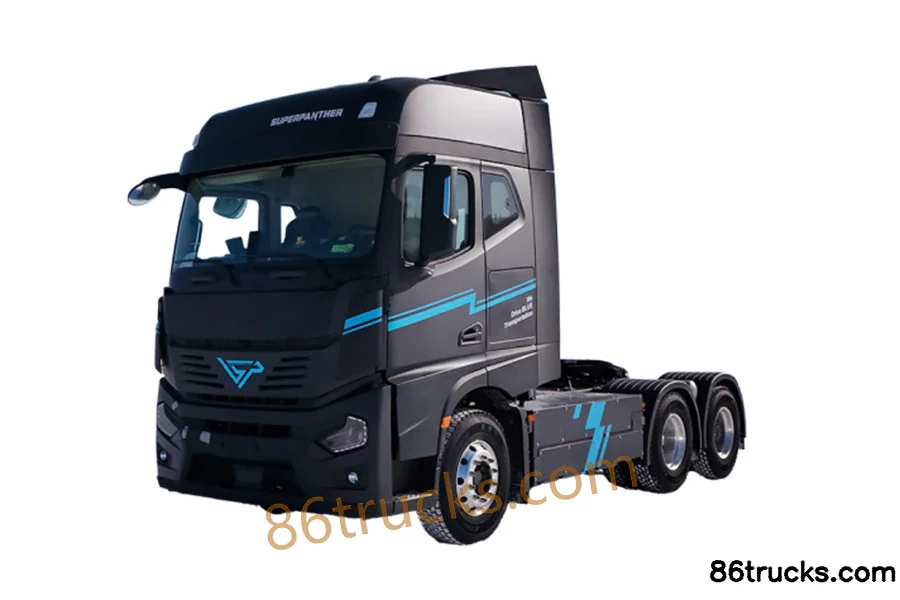

Exterior1

1 photos

FAQ

What are the key specs of Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh?

Key specs of Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh suited for?

Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh differ from other variants in the same series?

Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh belongs to Subo Black King Kong heavy truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Subo Black Diamond 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 301kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
