Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 25ton
Wheelbase:: 3575+1350mm
Tire Size:: 11.00-20,11.00R20
Cab dimensions:: 8.77×2.5×3.96m
Truck Type:: concrete mixer truck
Rated payload: 12.2ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III

Overview

The Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) is a concrete mixer truck featuring 12.2t payload, 25ton GVW, 6X4 (10 wheels) drive and 8.77×2.5×3.96m cab. On the powertrain side, it comes with 336 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.77×2.5×3.96m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3575+1350mm
Front/rear track width: Front track: 2010mm; Rear track: 1847/1847mm
Vehicle origin: Suizhou North Suburb
Curb Weight: 25ton
Rated payload: 12.2ton
Max. speed: 83km/h
Front/rear suspension: 1.465/2.38m
Body Parameters
Water tank capacity: 500L
Feed rate: 3m³/min
Discharge speed: 3m³/min
Discharge residue rate: <0.1%
Filling Rate: 63%
water supply method: Closed hydraulic circuit
Vehicle certification code: HLQ5251GJBB
Body Brand: Shenhu Brand
Engine parameters
Engine Model: Weichai WP10.336
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS119
Chassis Specs
Chassis Model: BJ5257GMPJB-S
Front axle description: 5
rear axle description: 457
Leaf spring count: 9/12
Tire
Tire Size: 11.00-20,11.00R20
Number of tires: 10pcs

Photos

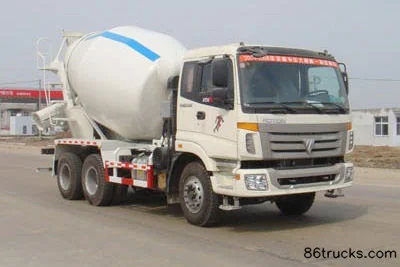

Exterior2

2 photos

FAQ

What emission standard does Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)?

Key specs of Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand): Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) suited for?

Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) differ from other variants in the same series?

Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) belongs to Shenhu Foton Auman chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman 336 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
