Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh

Export reference
MSRP N/A
Rated payload:: 8.77ton
Wheelbase:: 3750mm
Cargo box type:: Rear dump type
Model code (announced):: DFH3180BEV1
Cab length:: 7.025m
GVWR:: 18ton
Drive 4X2 (6 wheels)
Battery Brand: FinDreams
Motor 1 Brand: Lv Kong
Curb Weight: 9.1ton

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh is a Medium-duty truck featuring FinDreams battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 8.77t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3180BEV1
Drive type: 4X2
Wheelbase: 3750mm
Cab length: 7.025m
Cab width: 2.54m
Cab height: 3.08m
Curb Weight: 9.1ton
Rated payload: 8.77ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1113
Motor Type: Permanent magnet synchronous motor
total rated power: 100kW
Peak power: 200kW
total peak torque: 1060N·m
total rated torque: 500N·m
Motor 1 Peak Power: 200kW
Battery/Charging
Battery Brand: FinDreams
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 182kWh
Transmission Parameters
Transmission Model: J4S100 DD
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 4.3m
Cargo box width: 2.34m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: DF435
rear axle allowable load: 11500kg
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

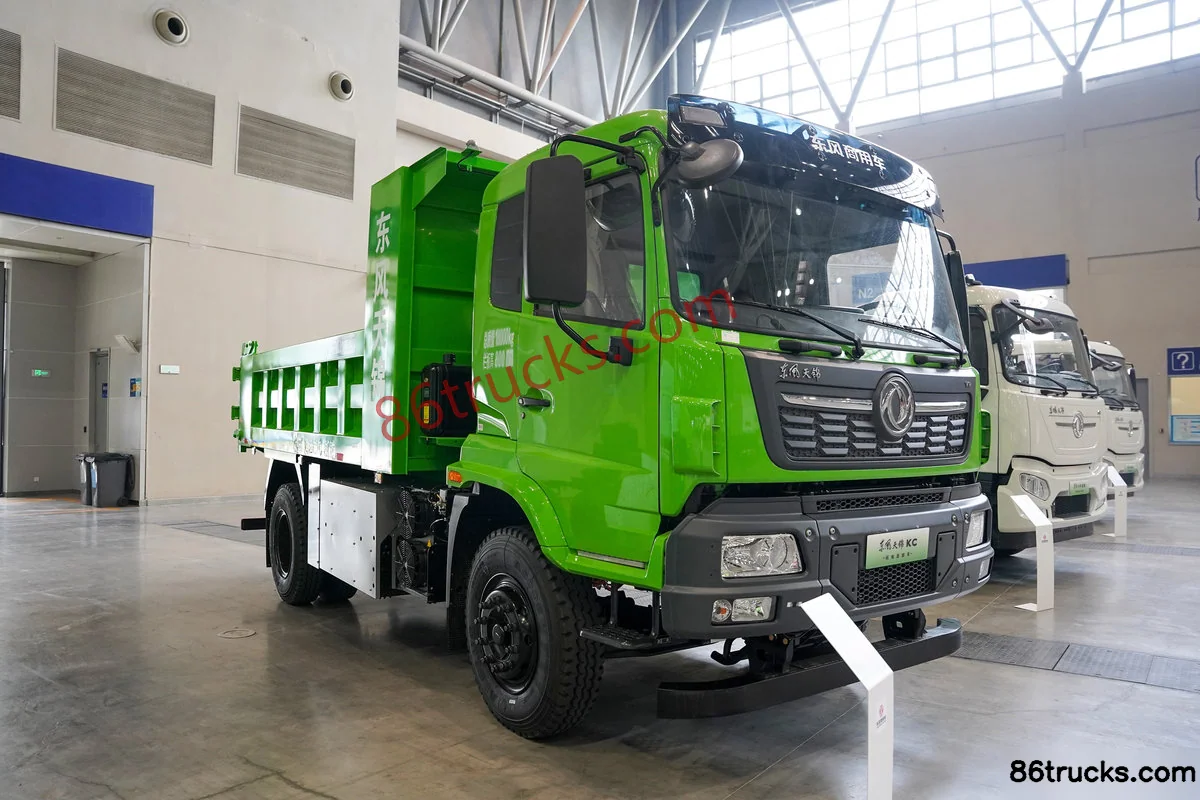

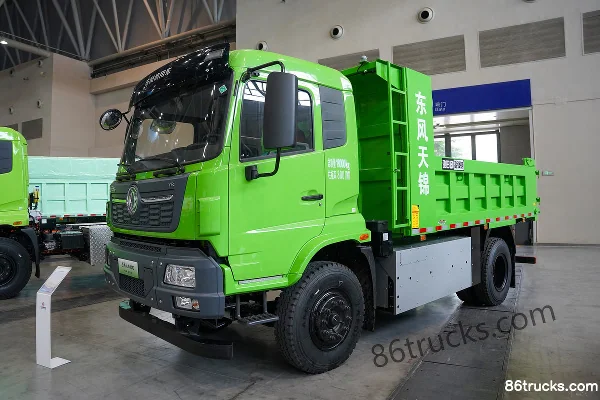

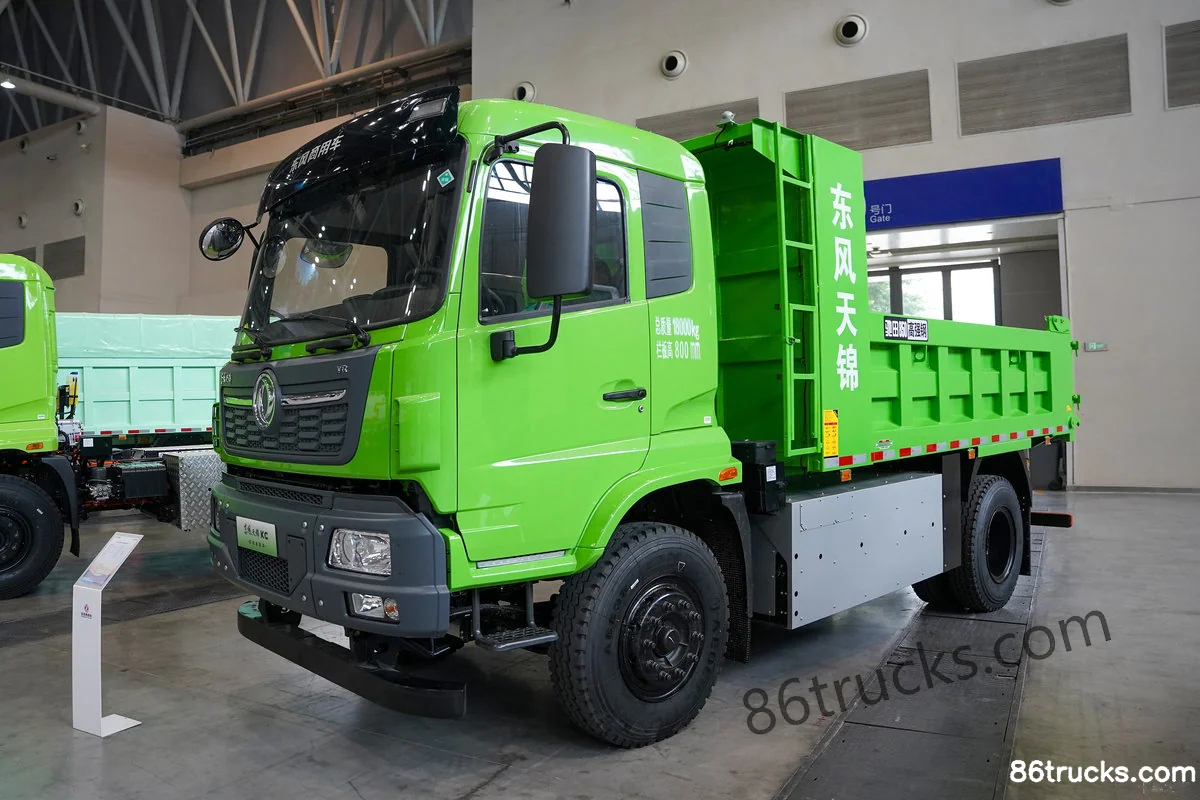

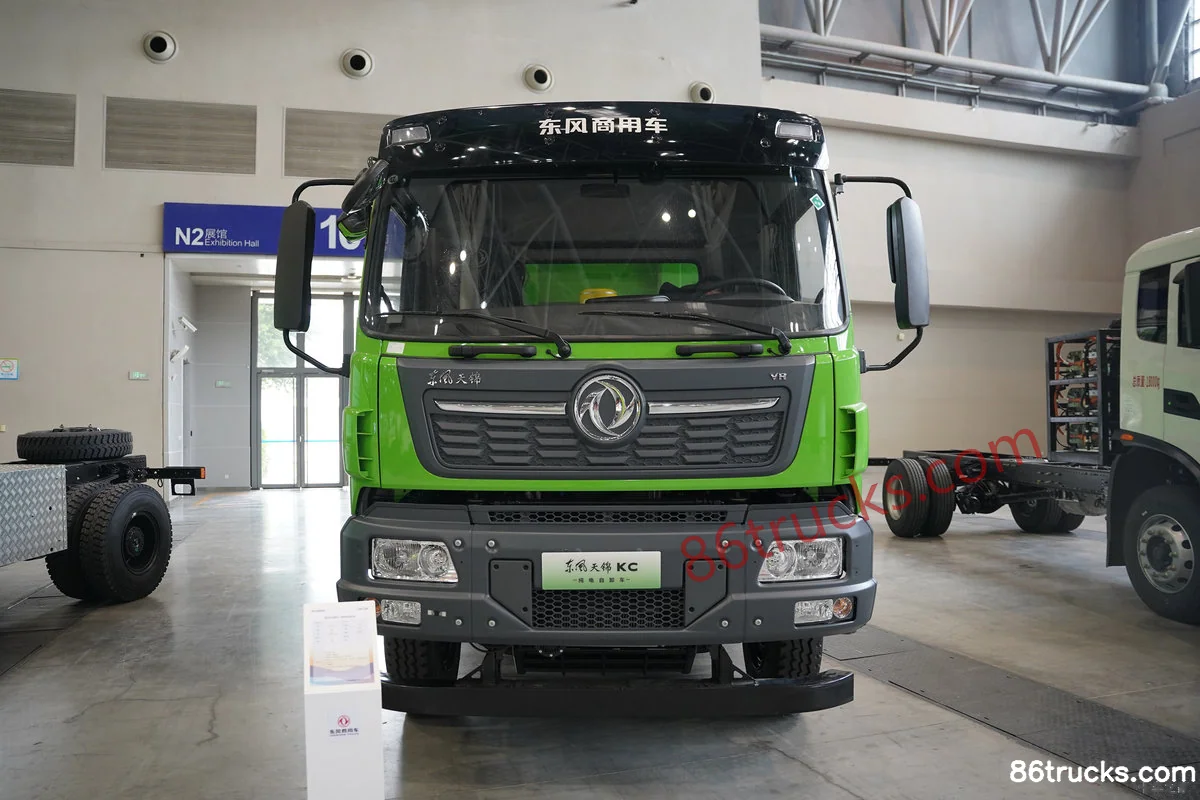

Exterior3

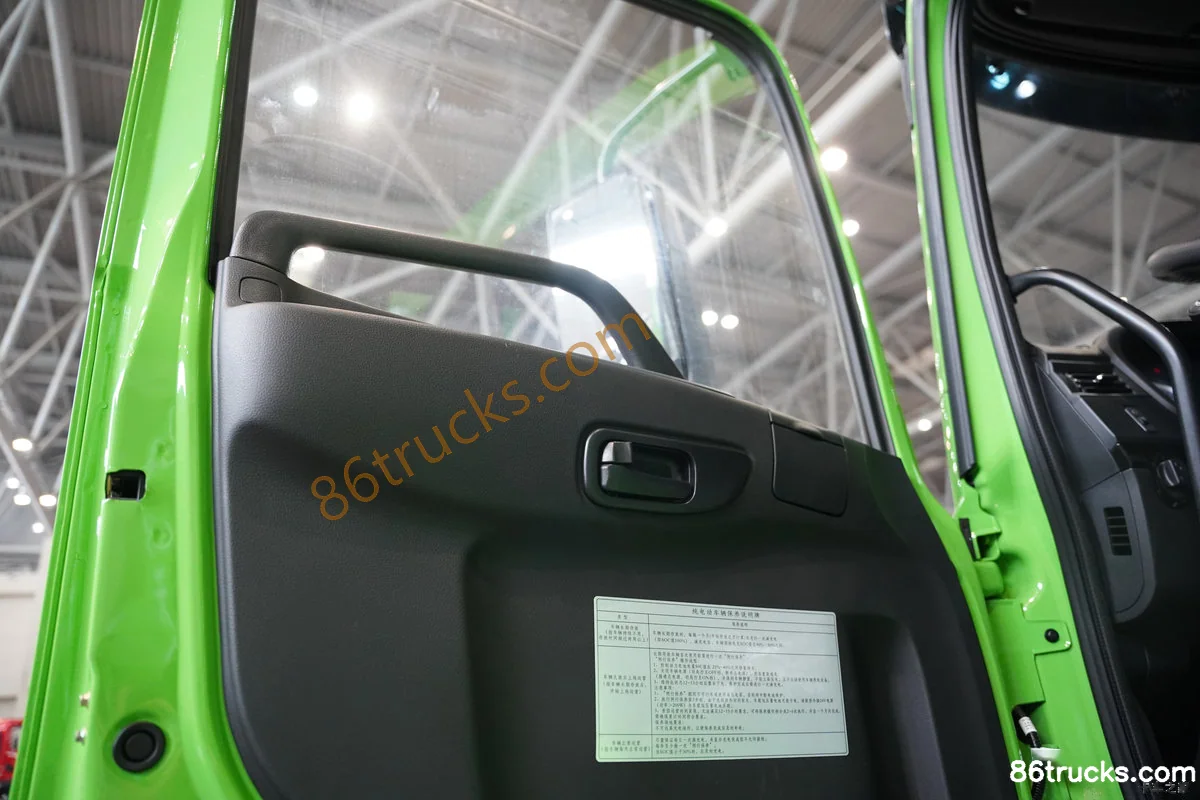

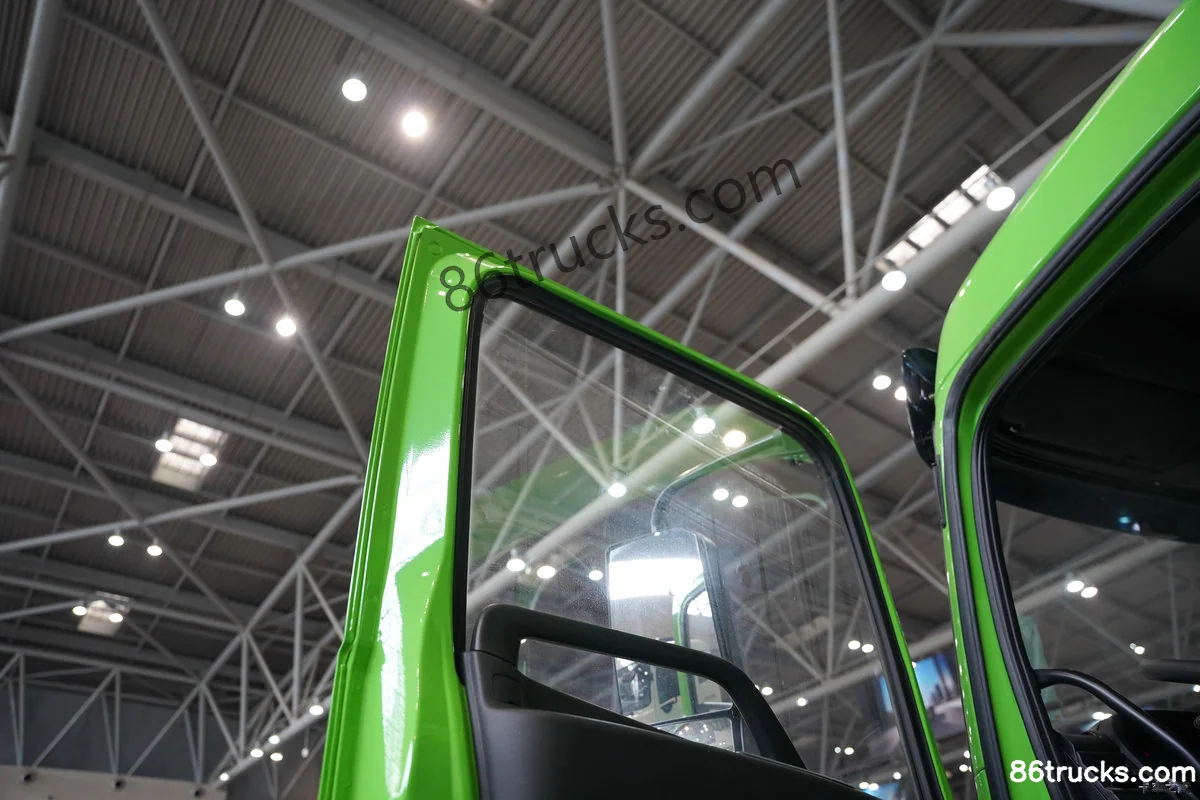

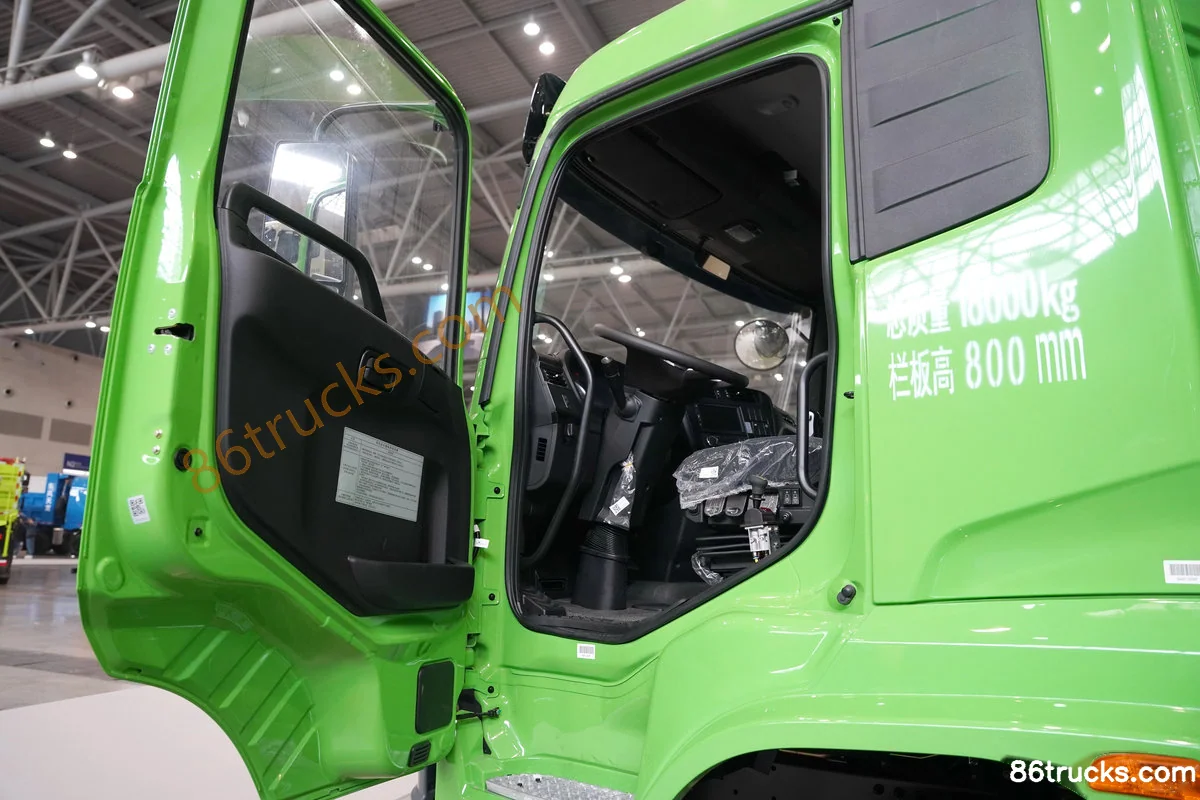

Cab3

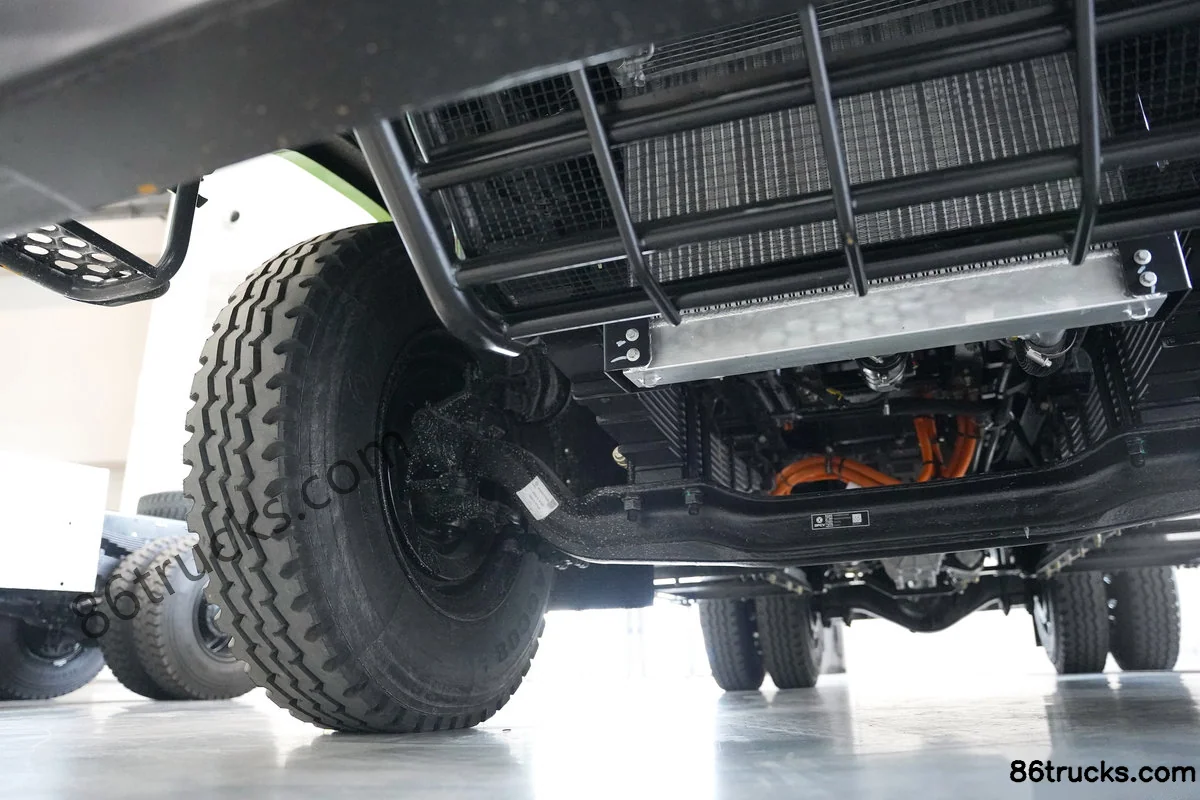

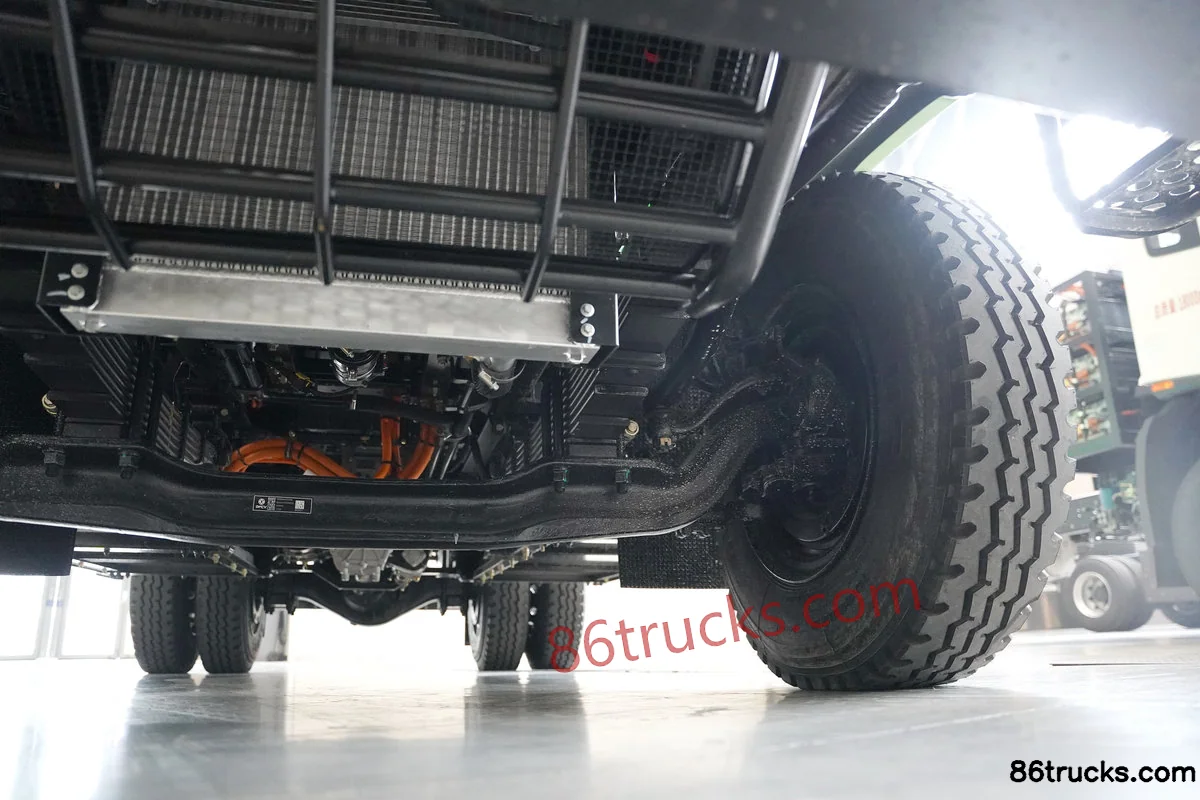

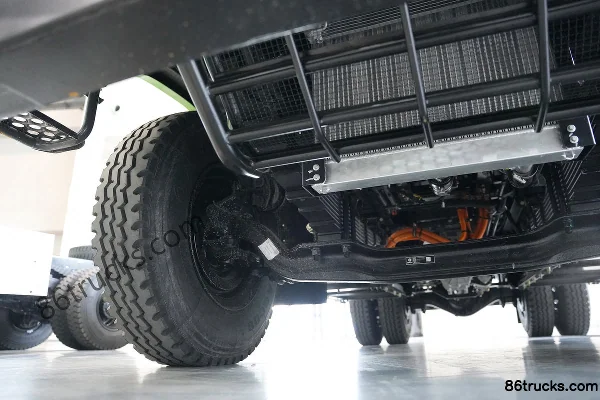

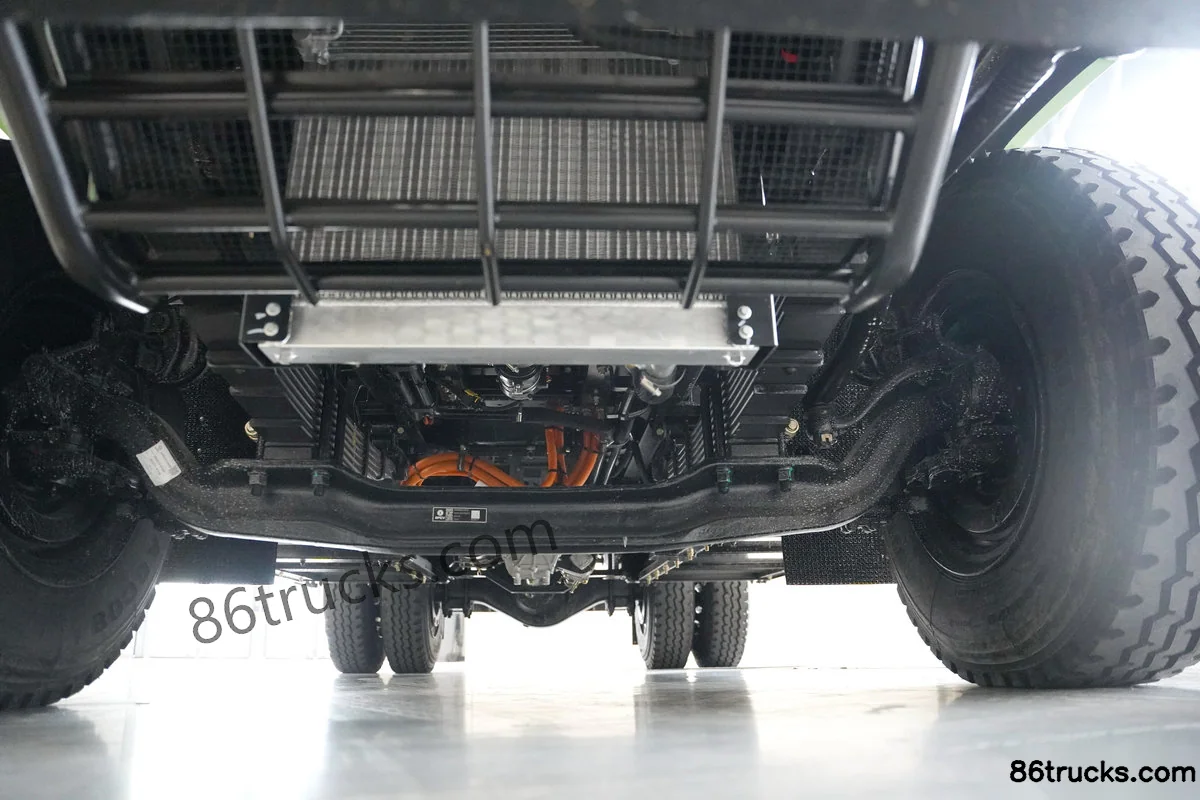

Chassis3

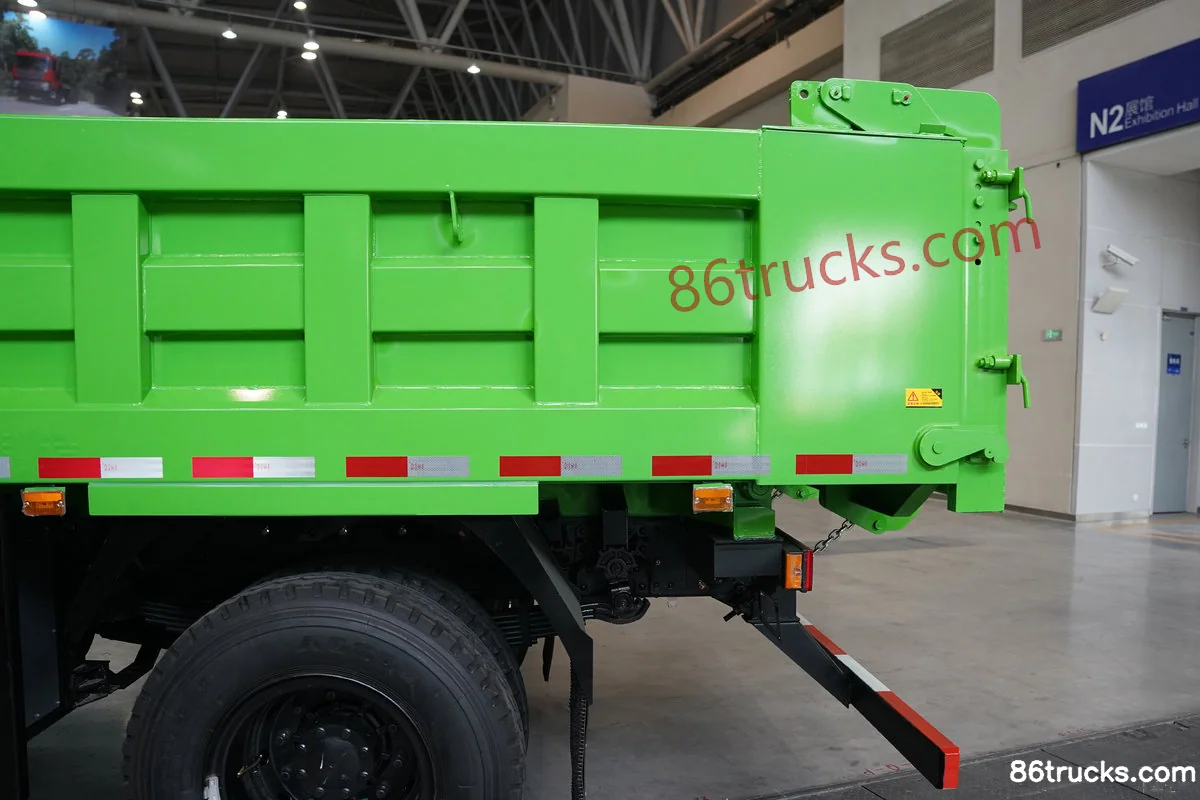

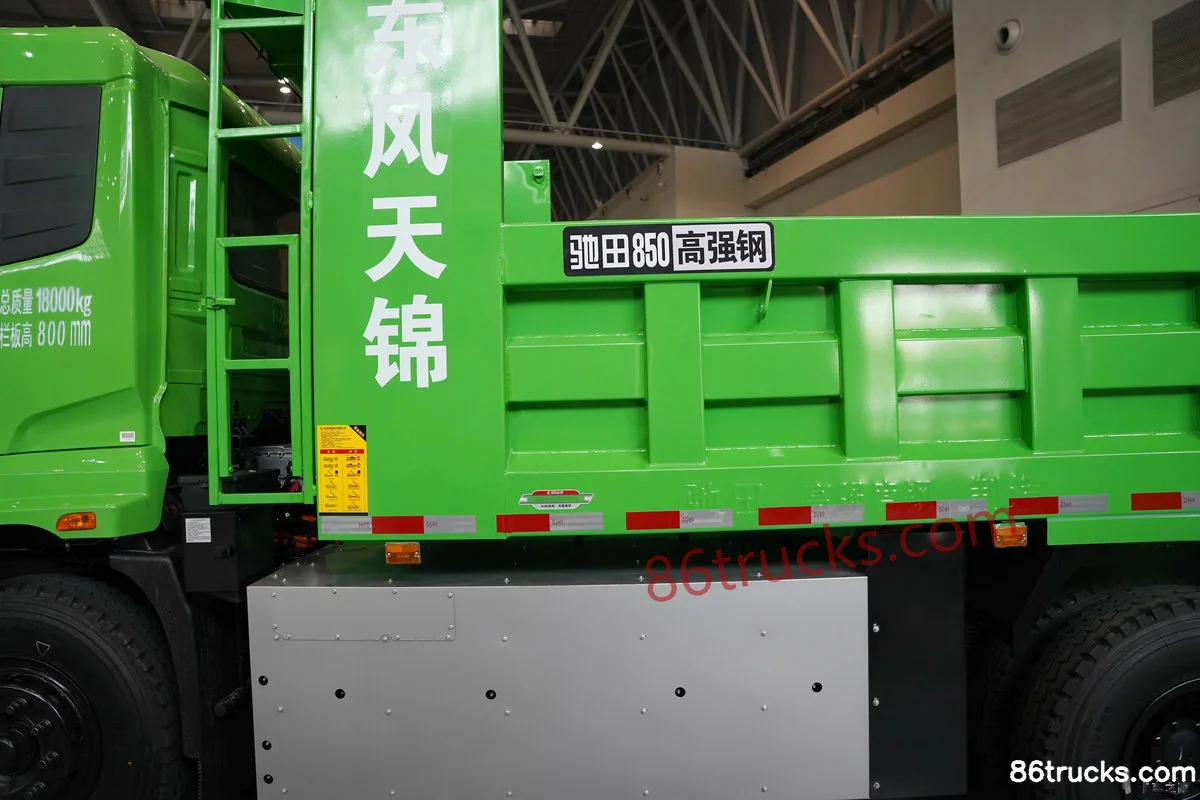

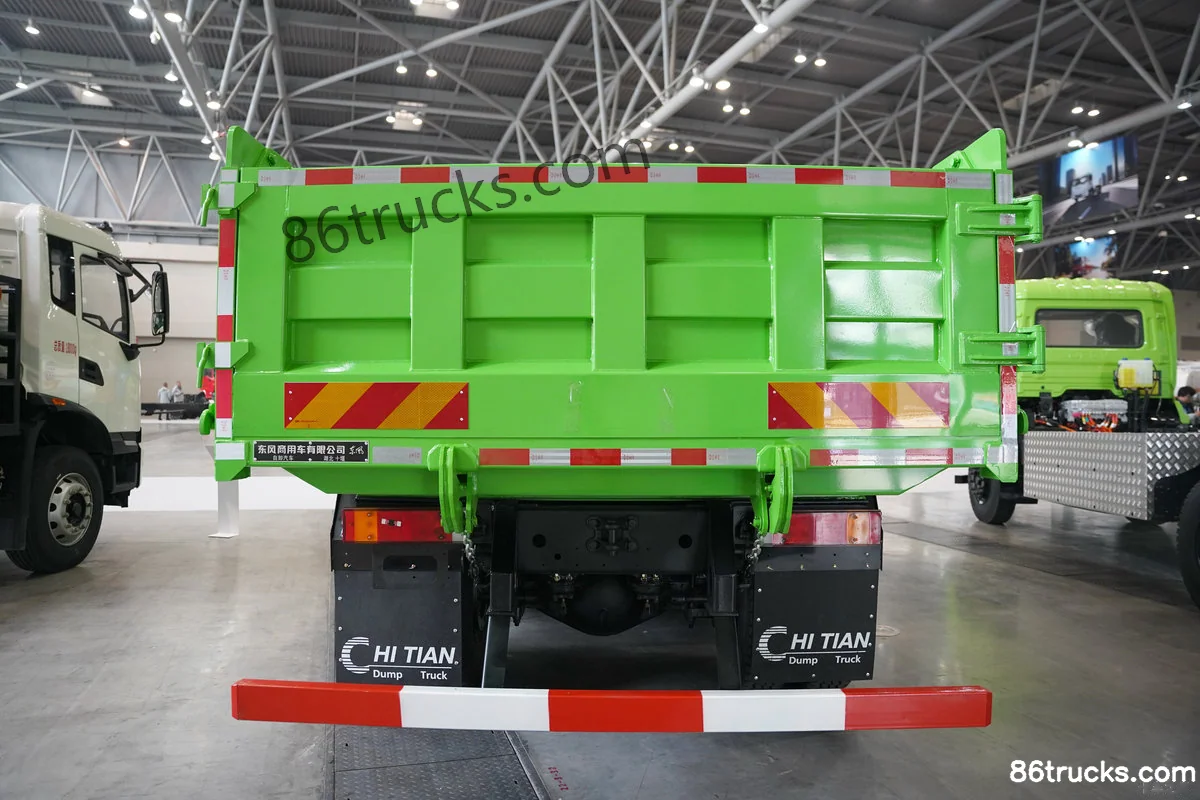

Body3

12 photos

FAQ

What are the key specs of Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh?

Key specs of Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh suited for?

Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh differ from other variants in the same series?

Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh belongs to Dongfeng Tianjin VR medium-duty truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin VR 4X2(6 wheels) 4.3m Electric Dump Truck FinDreams 182kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
