JAC 5 Series Classic 2.0T Diesel 129hp 3-Seat High Roof Long Wheelbase Panel Van

Export reference
From $21,361
MSRP ¥15.38M CNY
Curb Weight:: 2.42ton
Wheelbase:: 3570mm
Front tire specification:: 195/75R16LT
Rated payload:: 1.7ton
Displacement:: 2L
Model code (announced):: HFC5049XXYK2M1S
Drive Front-engine, rear-wheel drive
Horsepower 129
Emission China VI
Fuel Diesel

Overview

The JAC 5 Series Classic 2.0T Diesel 129hp 3-Seat High Roof Long Wheelbase Panel Van is a Van/Light Bus featuring Front-engine, rear-wheel drive drive, 129 hp, 4.25t GVW and China VI emissions. On the powertrain side, it comes with Diesel fuel.

China VI 129 Diesel Front-engine, rear-wheel drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5049XXYK2M1S
Drive type: Front-engine, rear-wheel drive
Truck Type: Enclosed Van
Min. turning diameter: 14m
Vehicle origin: Hefei, Anhui
Wheelbase: 3570mm
Brand/Series: Star Sharp 5 Series
Cab length: 5.84m
Cab width: 2.098m
Cab height: 2.645m
Front track width: 1760mm
rear track: 1645mm
Curb Weight: 2.42ton
Min ground clearance: 160cm
Rated payload: 1.7ton
GVWR: 4.25ton
Max. speed: 130km/h
grade: Large van (light bus)
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 0.965/1.305m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: HFC4DB3-2E4
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 360N·m
Max torque speed: 1600-2200rpm
Rated speed: 3200rpm
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: ZM6T82
shift method: Manual
Forward gears: 6Gear
Body parameters
Cargo box volume: 11.2
Max body depth: 3.25
Max body width: 1.84
Cargo Box Height: 1.87
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Front MacPherson independent suspension
rear suspension type: Rear leaf spring non-independent suspension / 4-leaf
power steering type: hydraulic power steering
Body Parameters
Cab structure: All-metal enclosed monocoque body
Seat count: 3Seats
Fuel tank volume: 80L
Cab parameters
Cab: High roof
Seat rows:
Door Parameters
Tailgate type: split doors
Tailgate opening angle: 180°
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: 195/75R16LT
Rear Wheel Specification: 195/75R16LT
Safety features
Driver airbag:
passenger airbag:
Seat belt reminder:
Remote key:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
Seat height adjustment:
Power-Adjustable Rearview Mirror:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

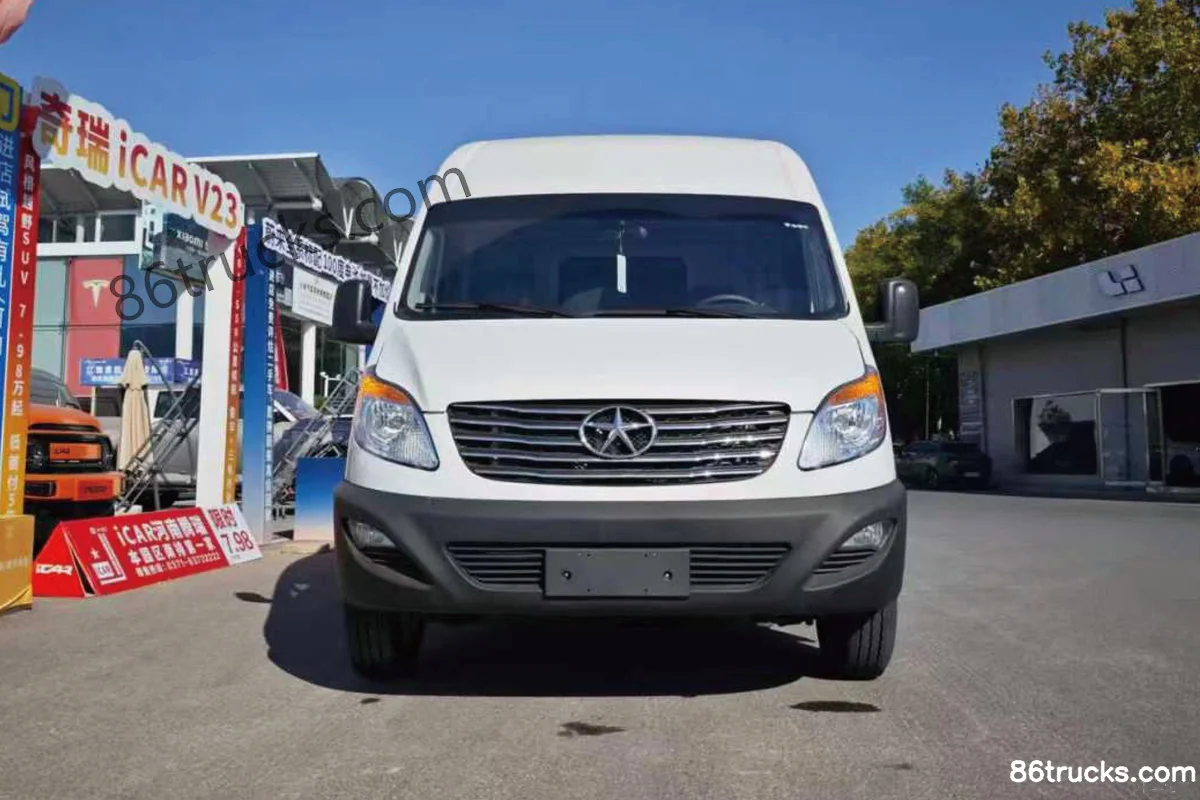

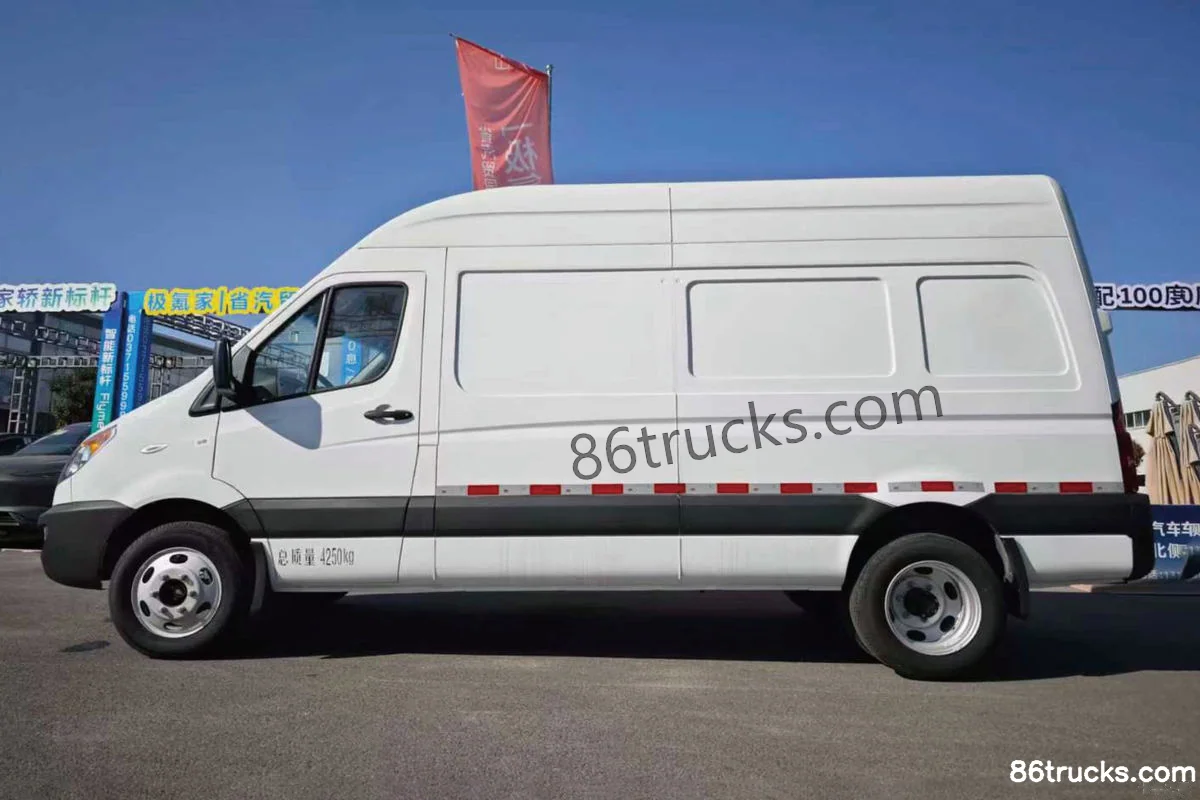

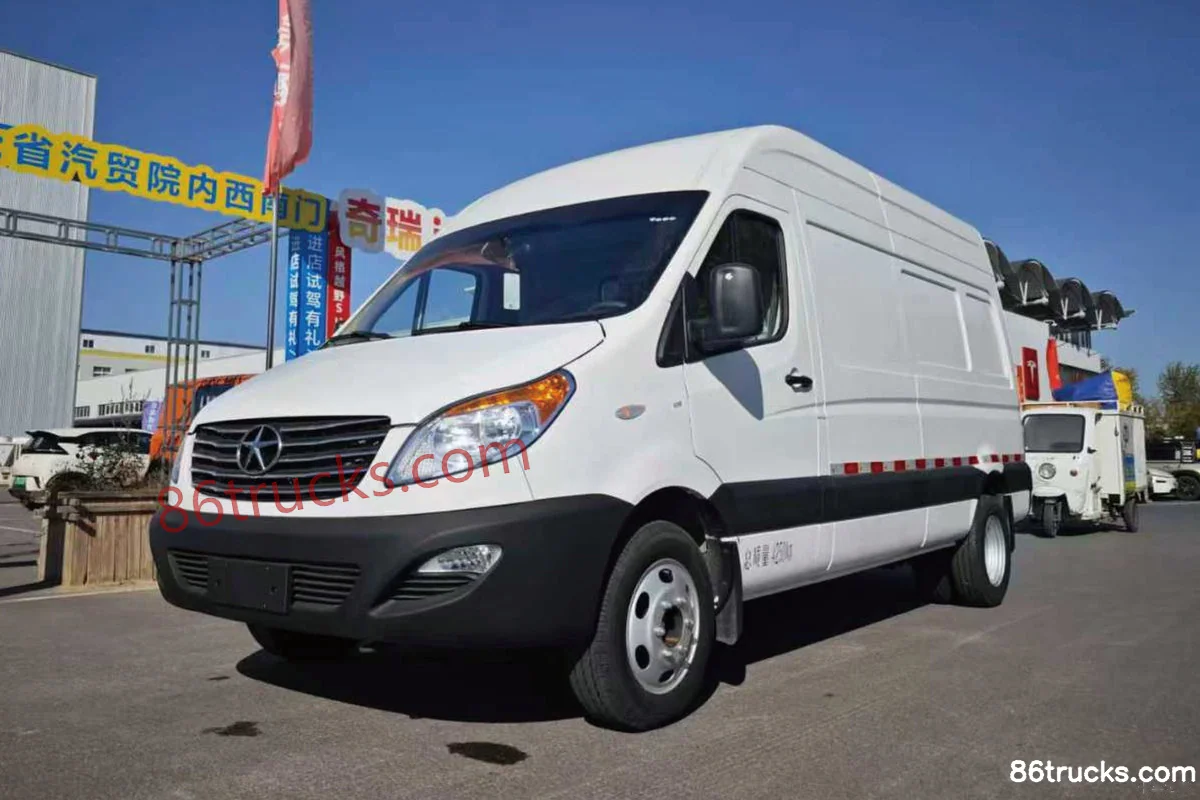

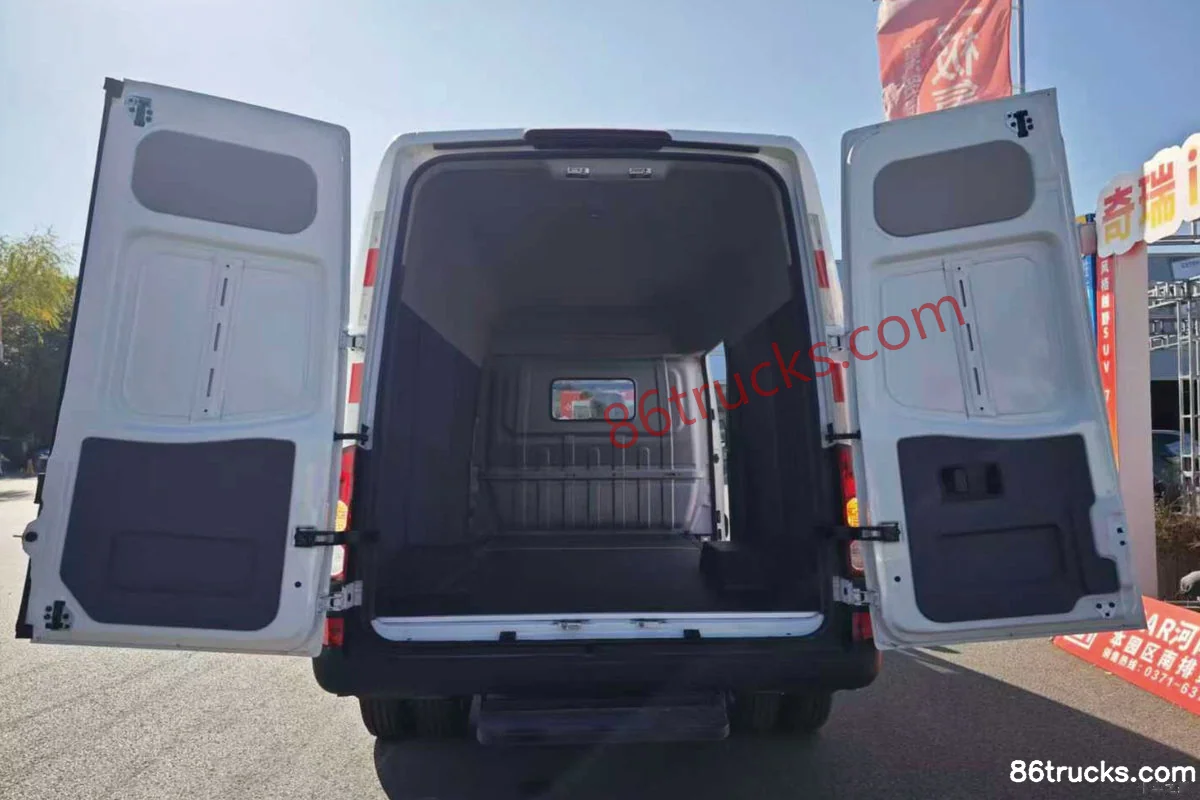

Exterior3

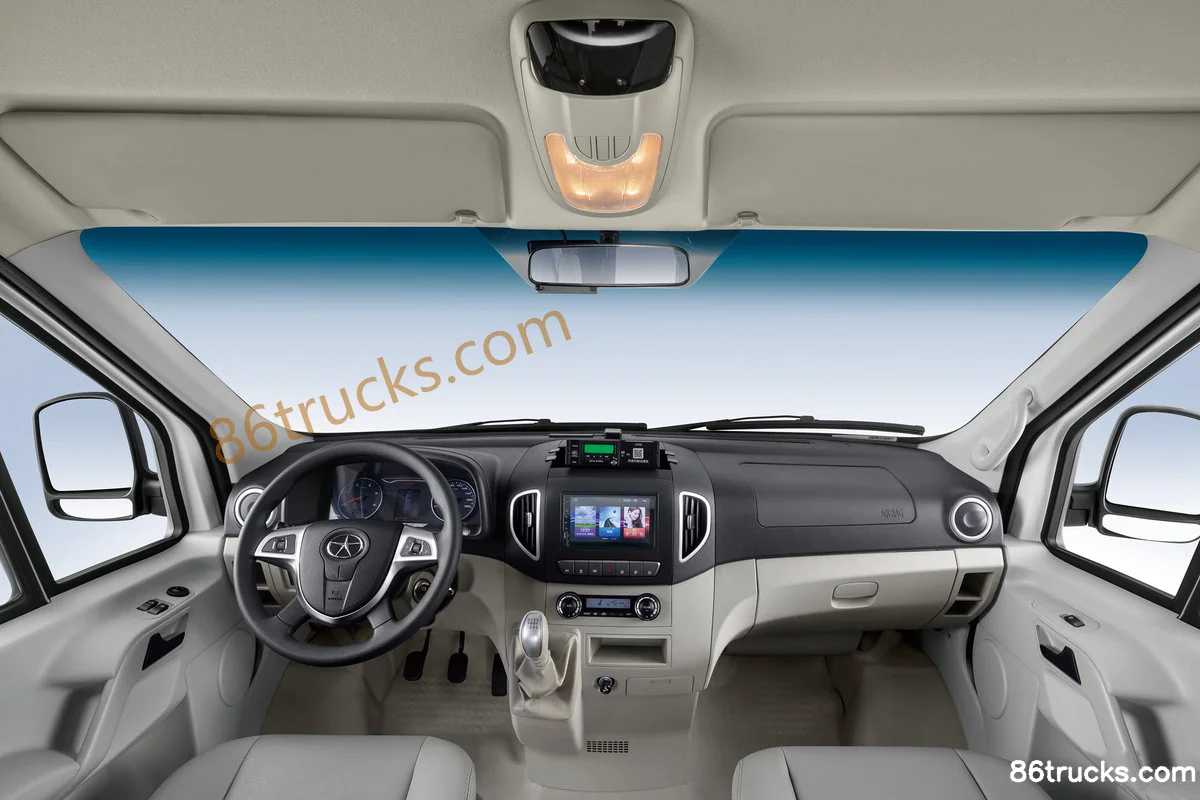

Cab1

Chassis1
