Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels)

Export reference
From $27,611
MSRP ¥19.88M CNY
Rated payload:: 0.685ton
Wheelbase:: 3050mm
Cargo box width:: 1.49m
Model code (announced):: JYB5030XLCBEV
Cab length:: 5.04m
GVWR:: 2.695ton
Drive 4X2 (6 wheels)
CLTC range: 265km
Motor 1 Brand: Quansheng
Curb Weight: 1.88ton

Overview

The Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 265km battery/range, Quansheng motor, 4X2 (6 wheels) drive and 0.685t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JYB5030XLCBEV
Drive type: 4X2
Wheelbase: 3050mm
Cab length: 5.04m
Cab width: 1.64m
Cab height: 2.52m
CLTC range: 265km
Curb Weight: 1.88ton
Rated payload: 0.685ton
GVWR: 2.695ton
Max. speed: 90km/h
Origin: Yanji, Jilin
Energy Type: Electric
electric motor
Motor 1 Brand: Quansheng
Motor 1 Model: TZ210XS30QSC
Motor Type: Permanent magnet synchronous motor
total rated power: 30kW
Peak power: 60kW
total rated torque: 80N·m
Electronic Control
ECU Brand: Shenzhen Quansheng New Technology Development Co., Ltd.
Battery/Charging
Battery Brand: Penghui
Charging method: DC fast charge / optional slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 43.2kWh
Battery rated voltage: 320V
fast charge time:
Energy Density: 130
Battery Model: TX-LFP135S-1P100S-H
Body Parameters
Refrigeration unit: Songz SZ320
Refrigeration temperature: 12 to -20°C
Chassis Specs
Chassis Series: E30
Chassis Model: JYB1030DBEV
Leaf spring count: -/6

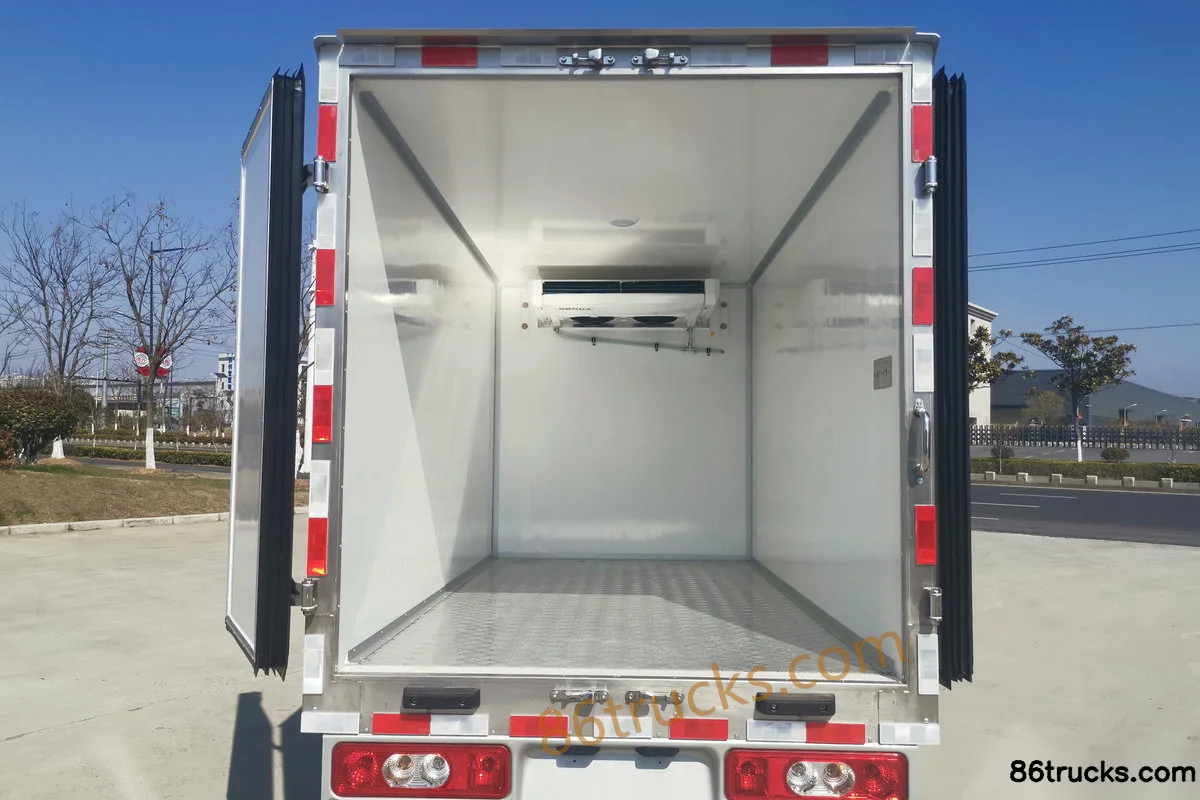

Cargo box parameters
Cargo box width: 1.49m
Cargo box height: 1.6m
Tire
Tire Size: 175/70R14C
Number of tires: 4pcs

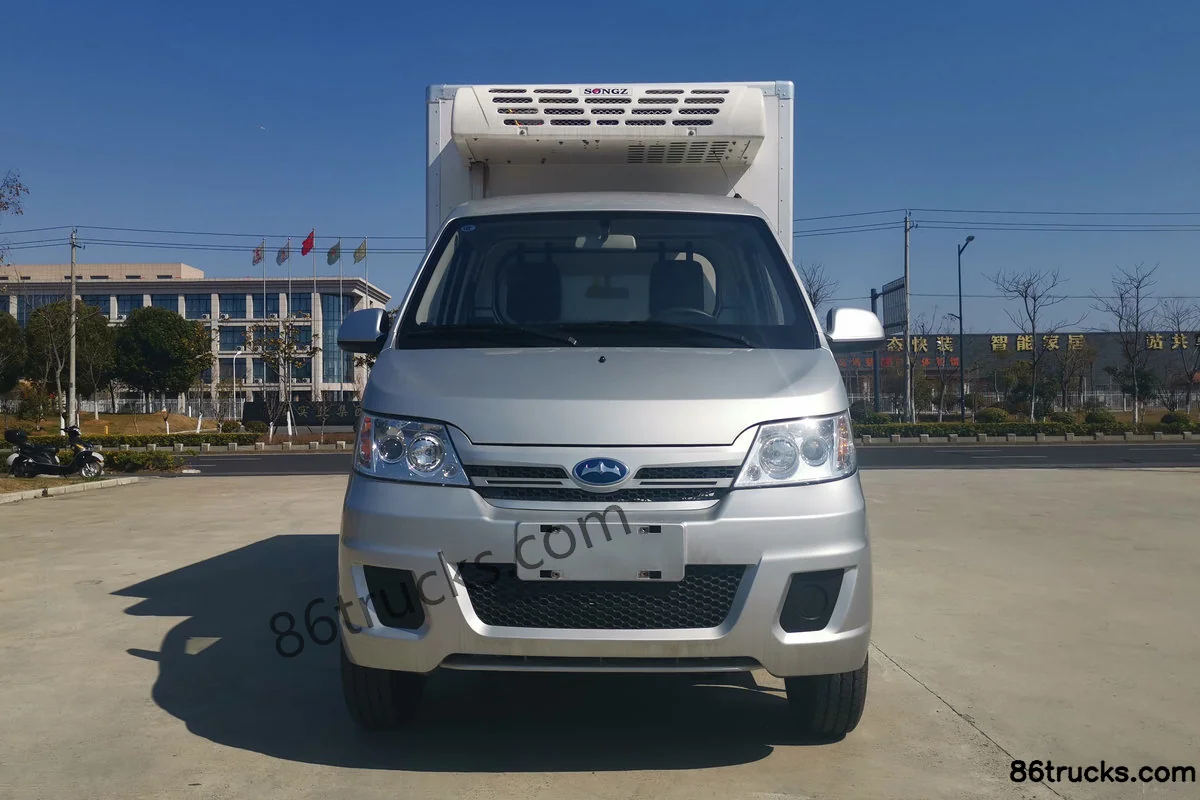

Photos

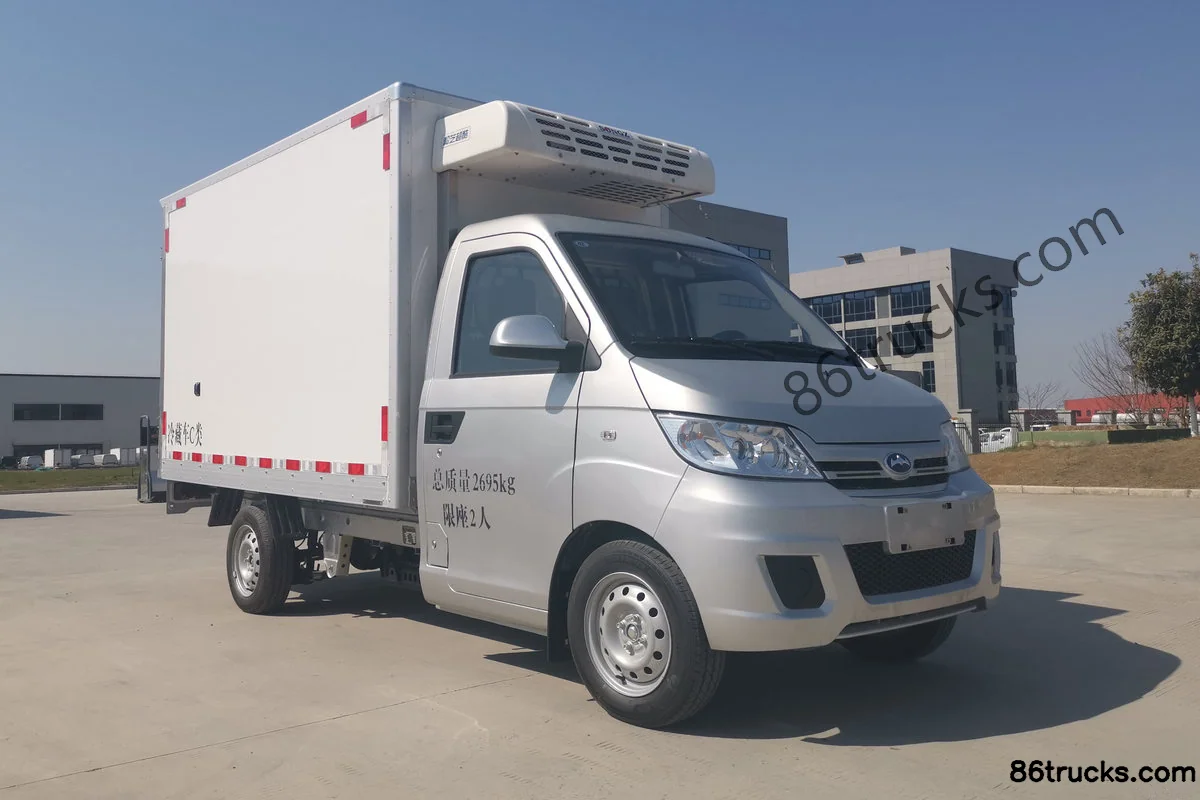

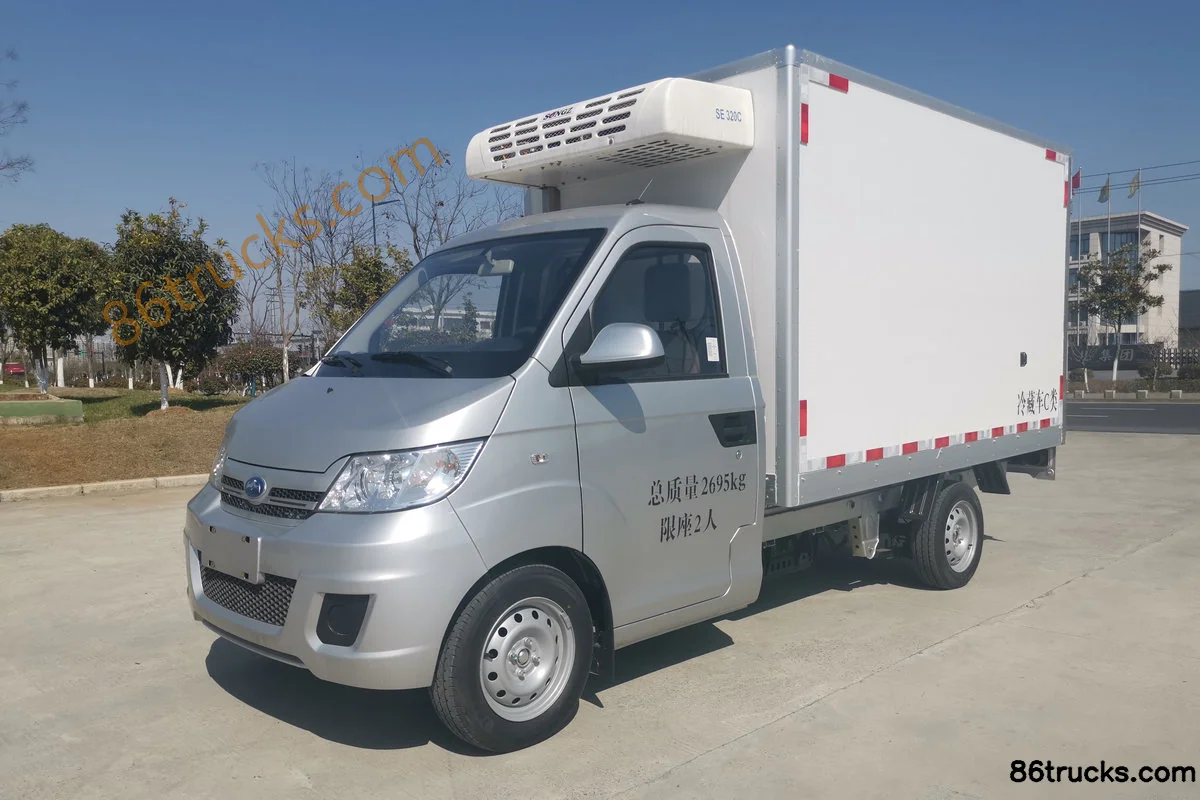

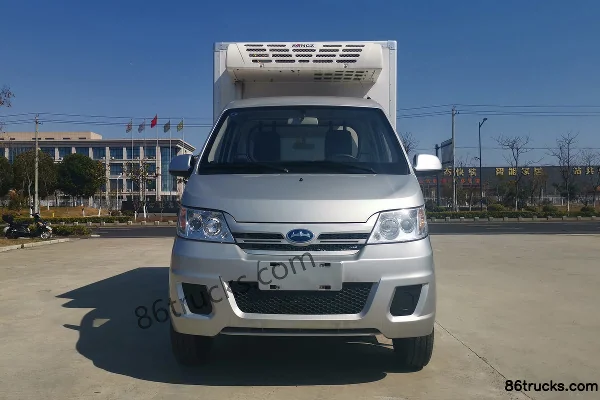

Exterior3

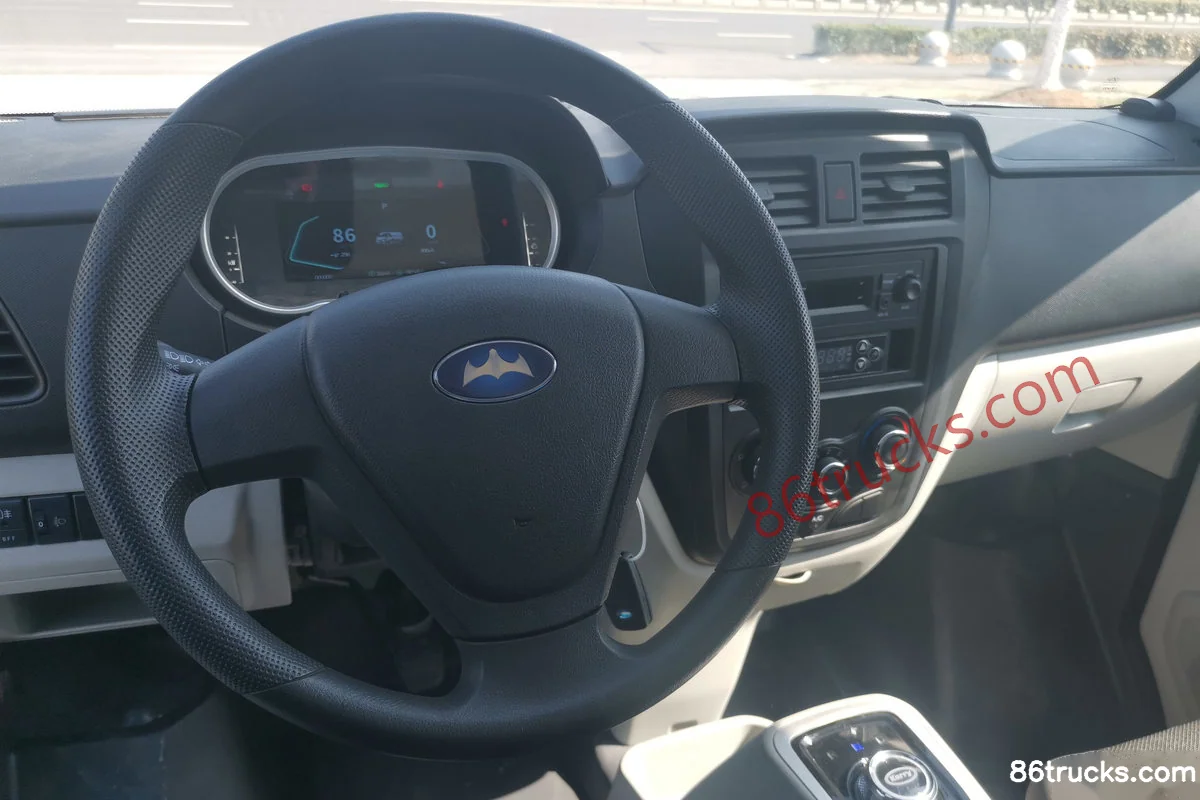

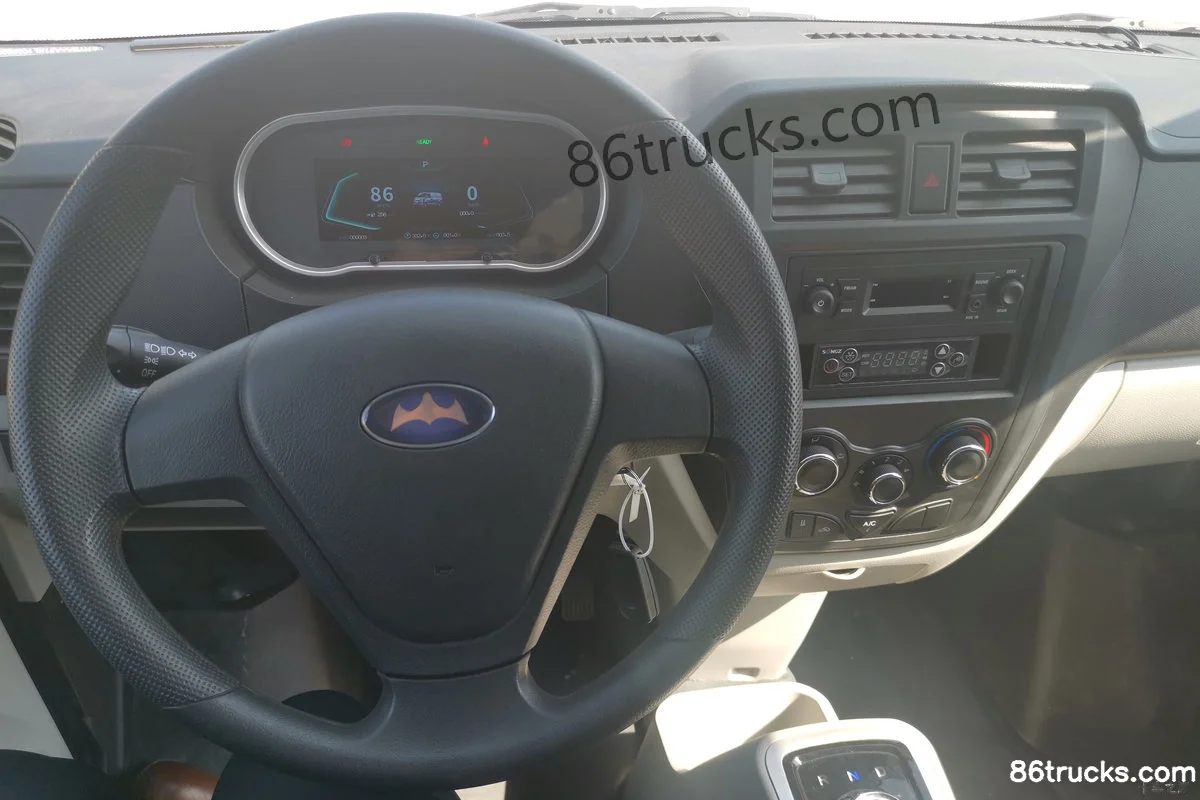

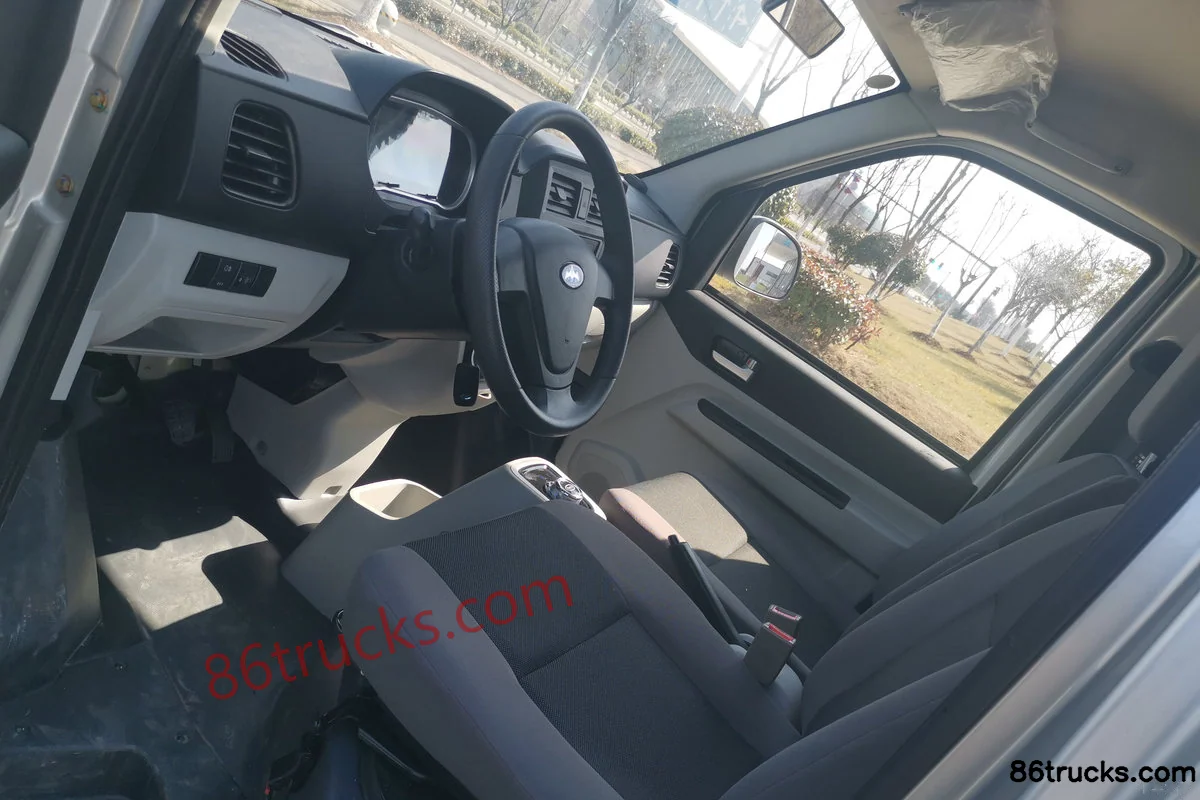

Cab3

Chassis1

7 photos

FAQ

What is the export price of Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels), and what does it include?

Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) export reference is about From $27,611; MSRP is ¥19.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels)?

Key specs of Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) suited for?

Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) differ from other variants in the same series?

Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels) belongs to Guotai Automobile E30 Mini Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Guotai Automobile EL30 2.7T 2.88m single-row pure electric refrigerated truck 43.2kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
