Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh

Export reference
MSRP N/A
Rated payload:: 3.305ton
Wheelbase:: 3815mm
Cargo box type:: Van body
Model code (announced):: QL5080XXYFCEVERKA
Type:: enclosed cargo truck
Box length class:: 4.5m

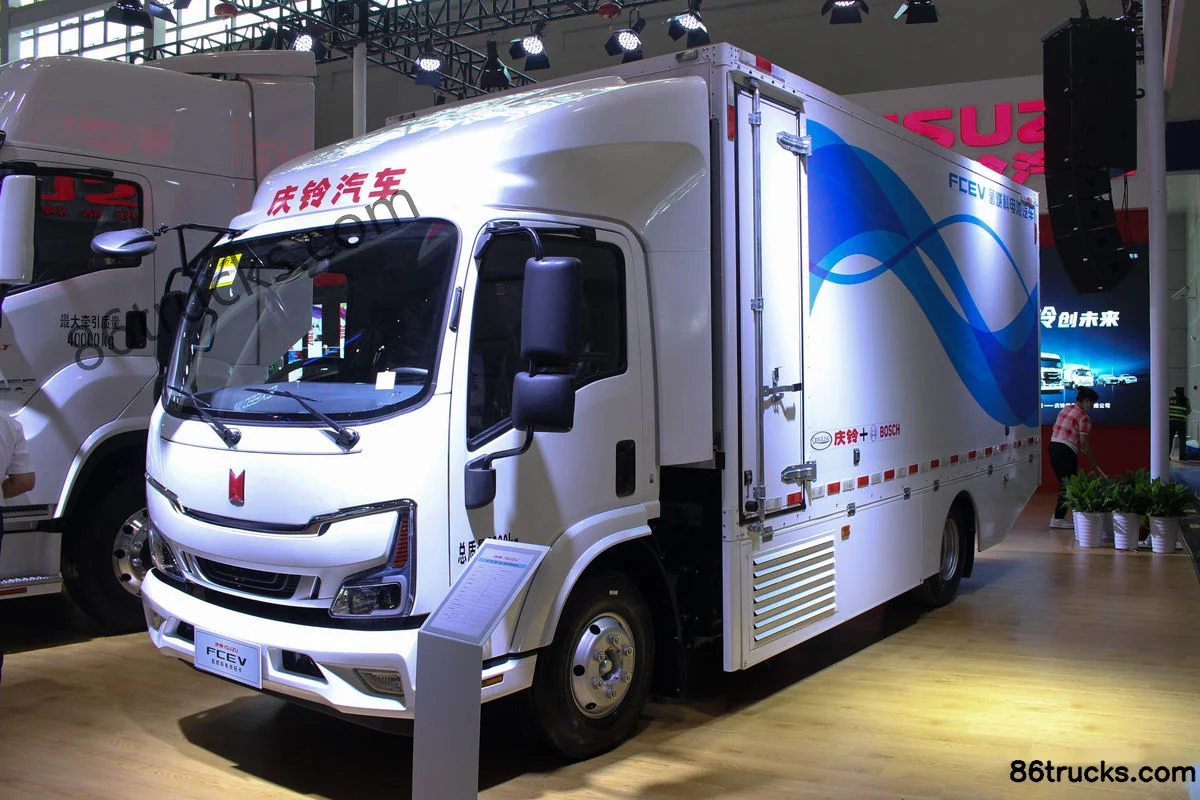

Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery capacity: 47.69kWh
Motor 1 Brand: Jingjin
Curb Weight: 4.78ton

Overview

The Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh is a Light Truck featuring 47.69kWh battery/range, Jingjin motor, 4X2 (6 wheels) drive and 3.305t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL5080XXYFCEVERKA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3815mm
Box length class: 4.5m
Cab length: 7.083m
Cab width: 2.326m
Cab height: 3.21m
Curb Weight: 4.78ton
Rated payload: 3.305ton
GVWR: 8.28ton
Max. speed: 90km/h
Origin: Chongqing
tonnage class: Light Truck

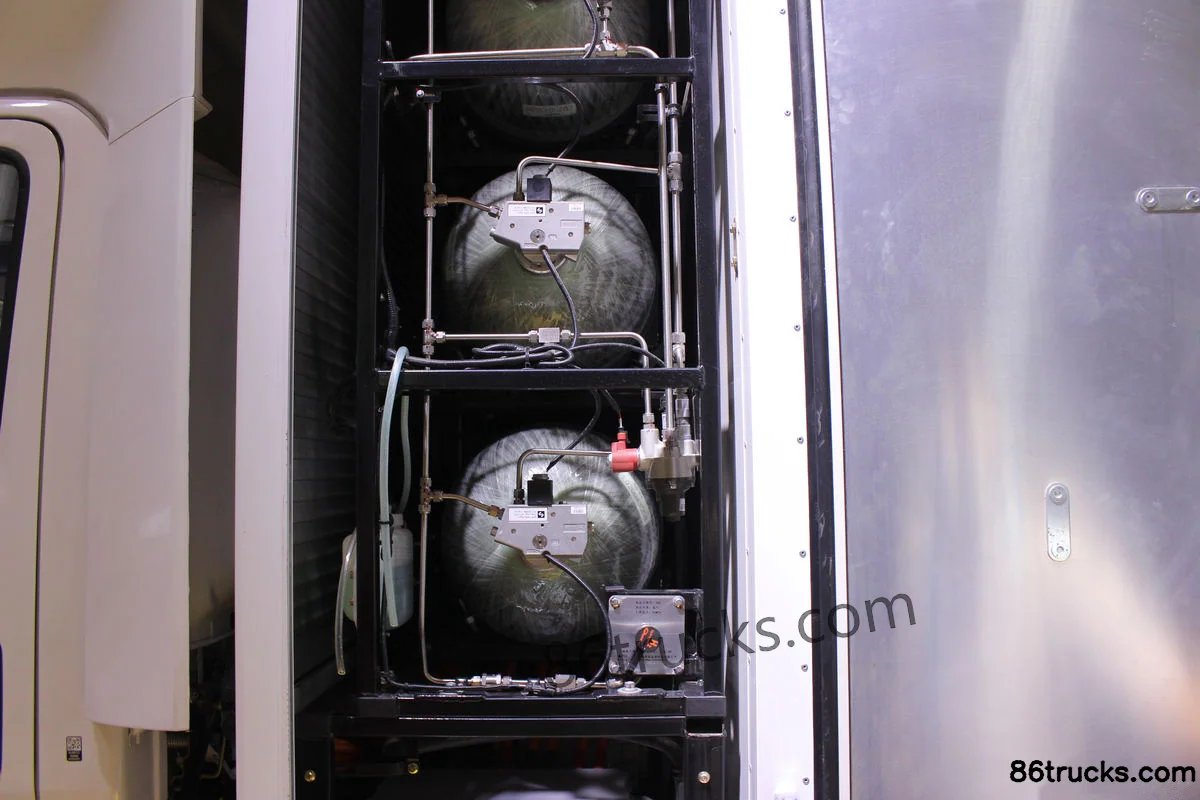

Remarks: Hydrogen storage capacity: 165L×3 H2, full-load constant-speed range (pure H2): 501km / combined: 551km
Energy Type: Hydrogen
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ365XSB05
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hydrogen
total rated power: 89kW
Peak power: 160kW
total peak torque: 950N·m
Battery/Charging
Battery capacity: 47.69kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 2.17m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 3000kg
rear axle allowable load: 5280kg
Tire
Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

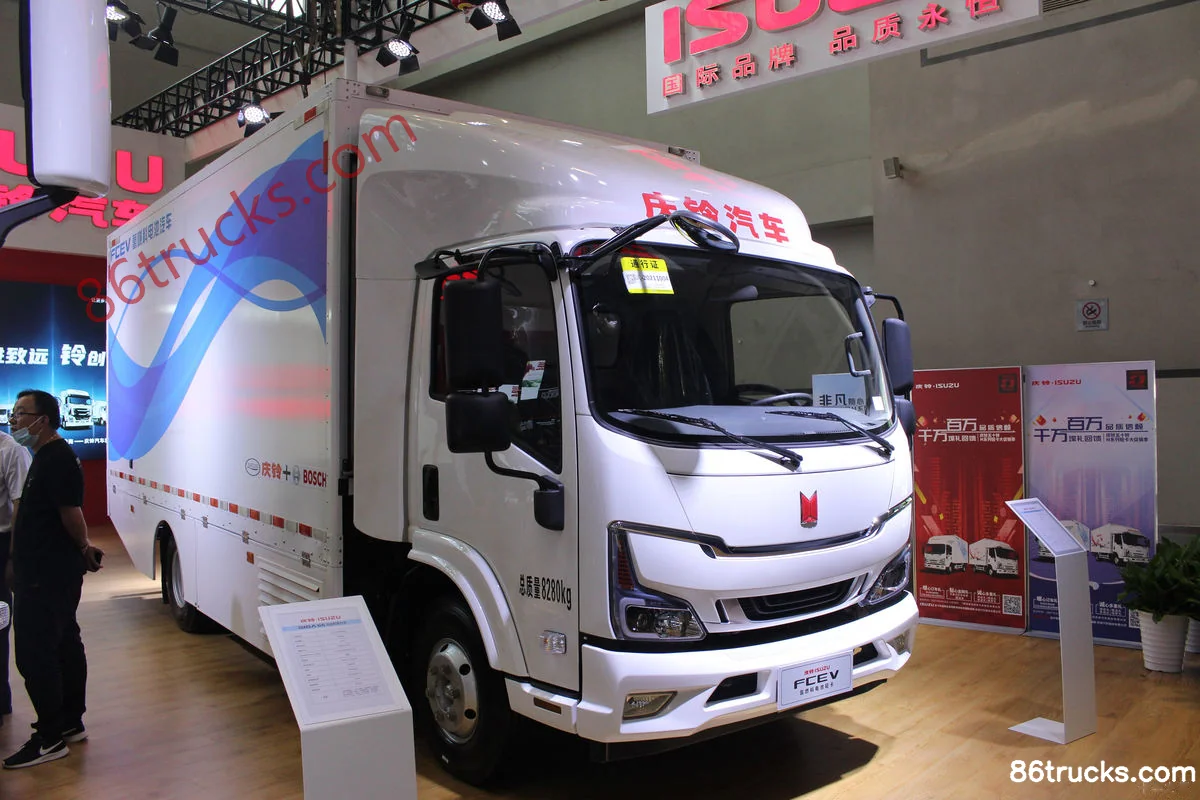

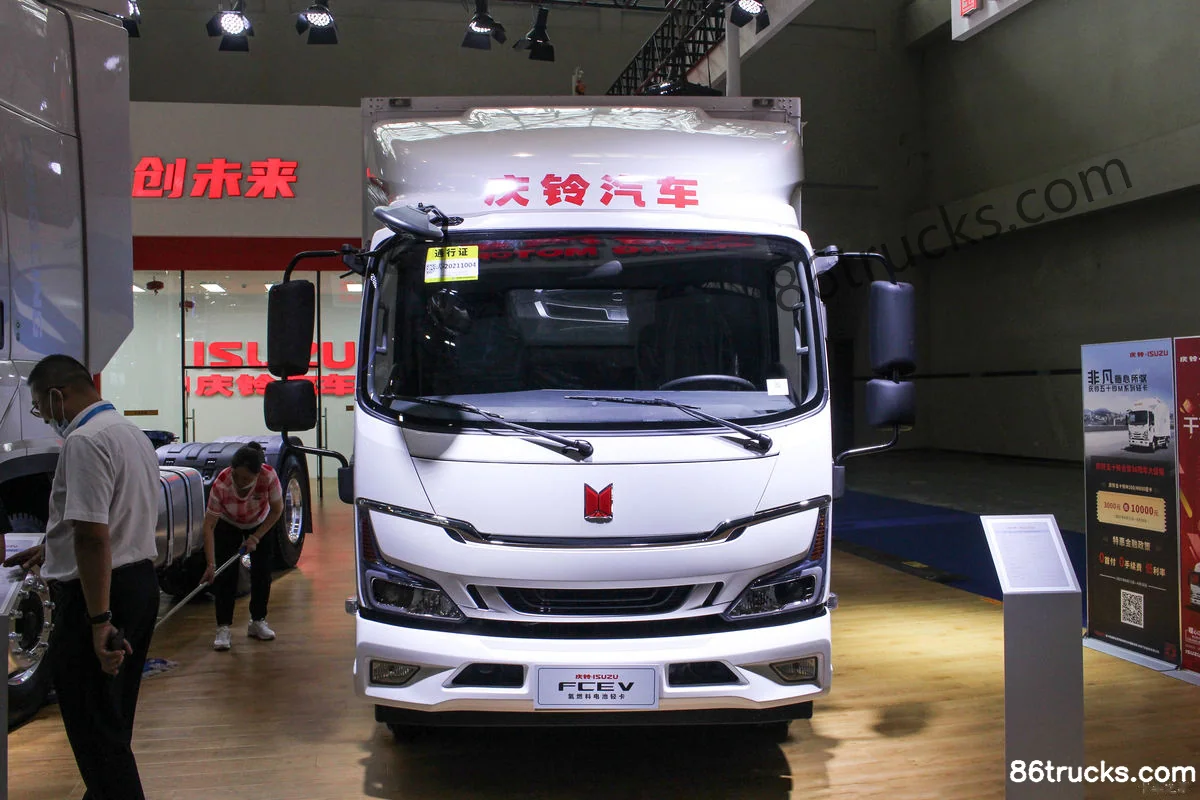

Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Exterior (1) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Exterior (2) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Exterior (3) | 86Trucks

Interior3

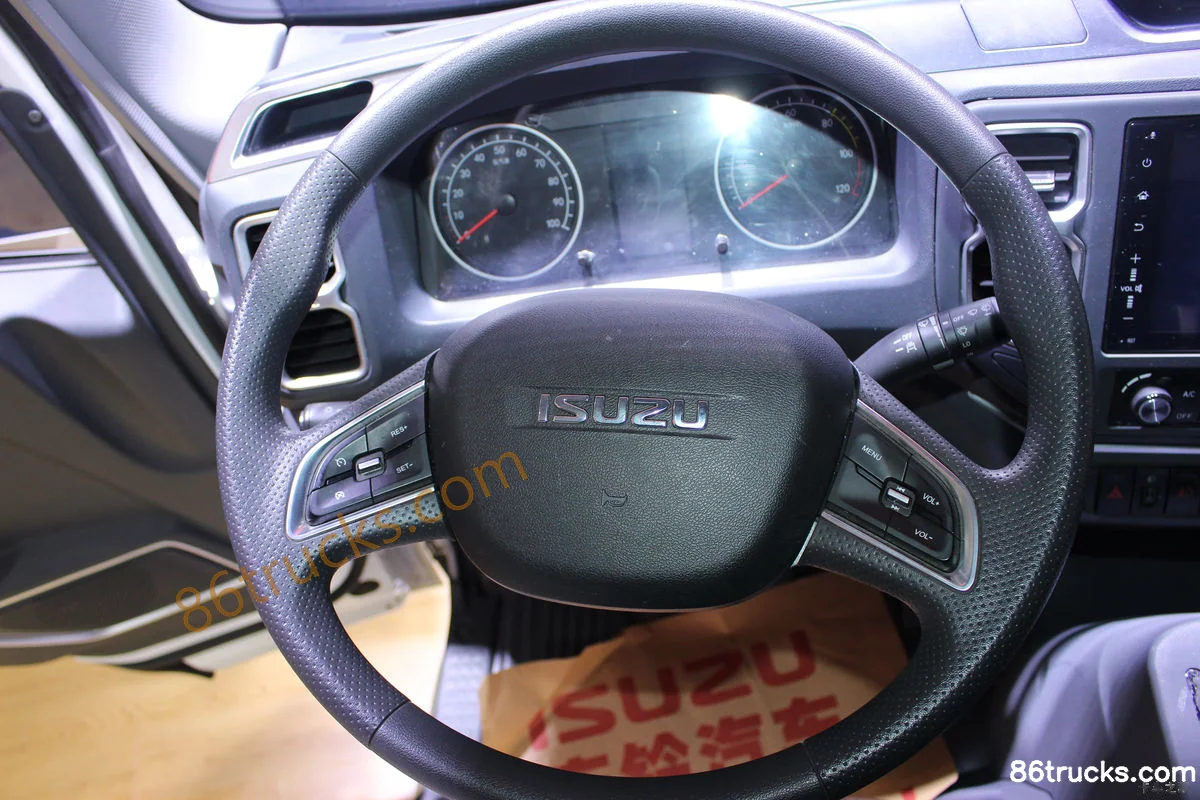

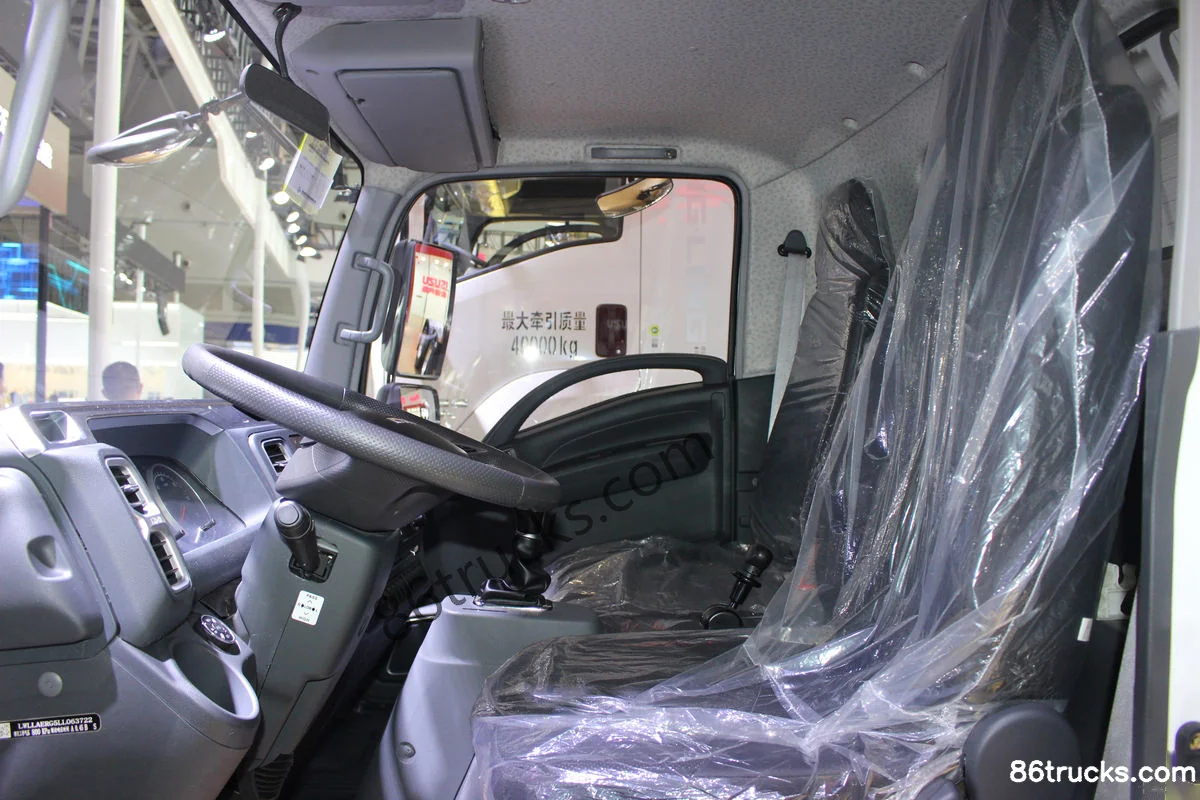

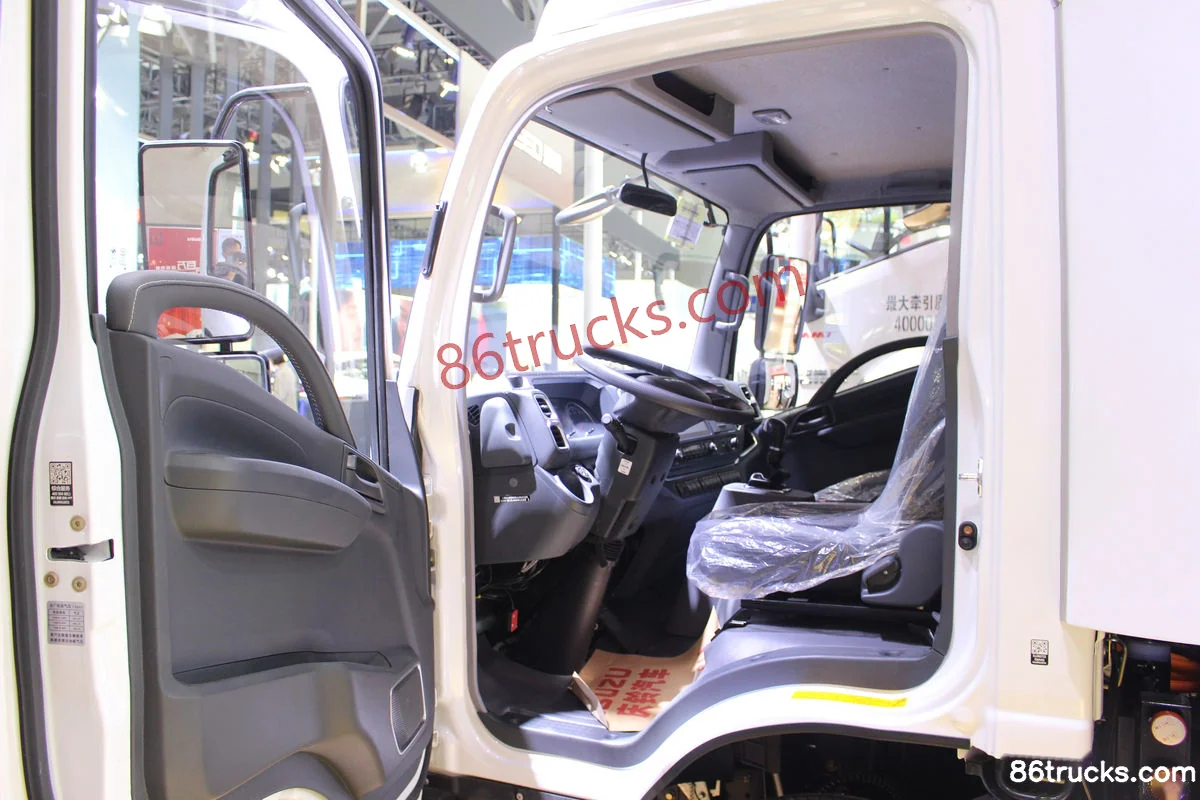

Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Interior (1) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Interior (2) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Interior (3) | 86Trucks

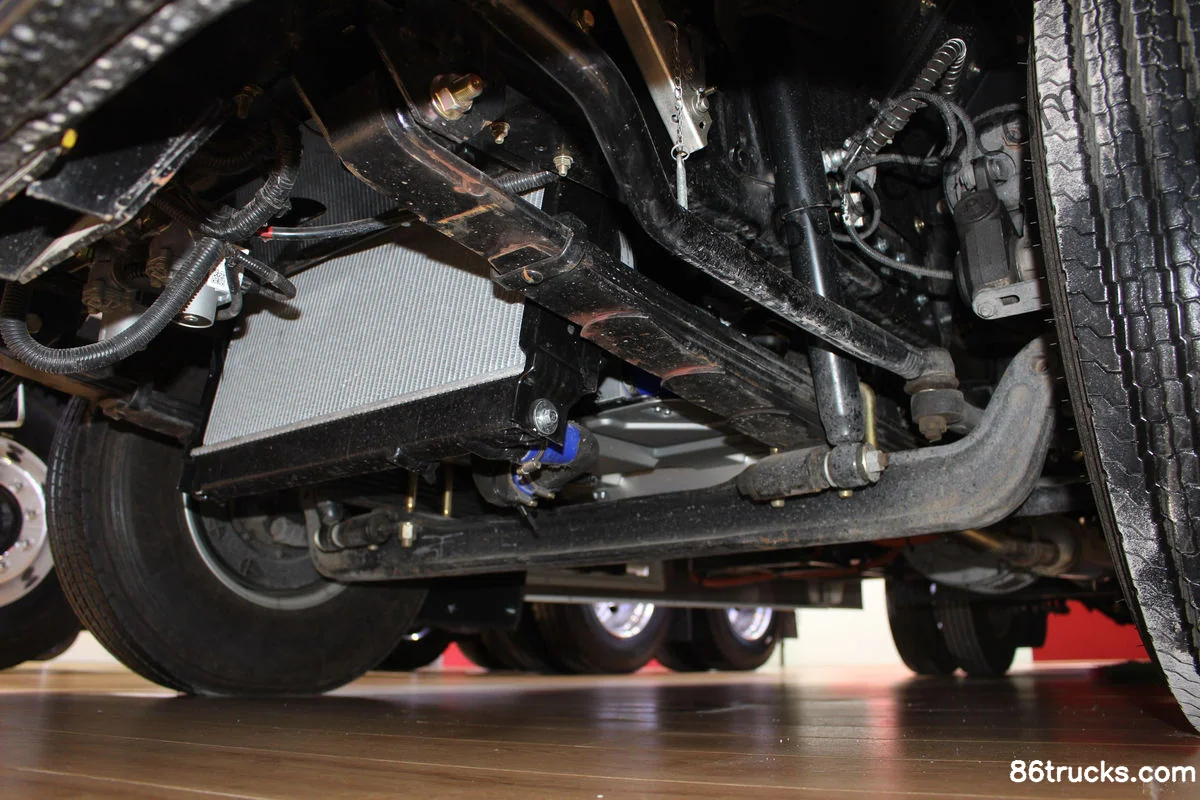

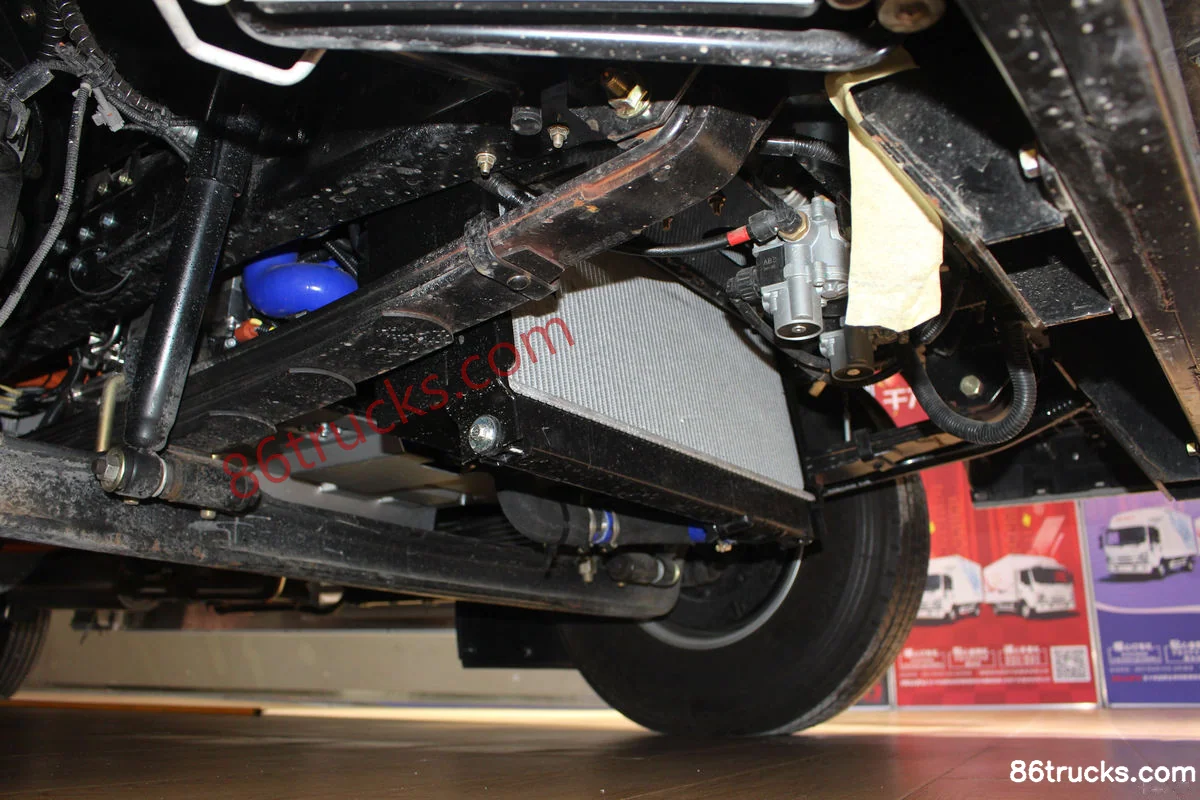

Chassis3

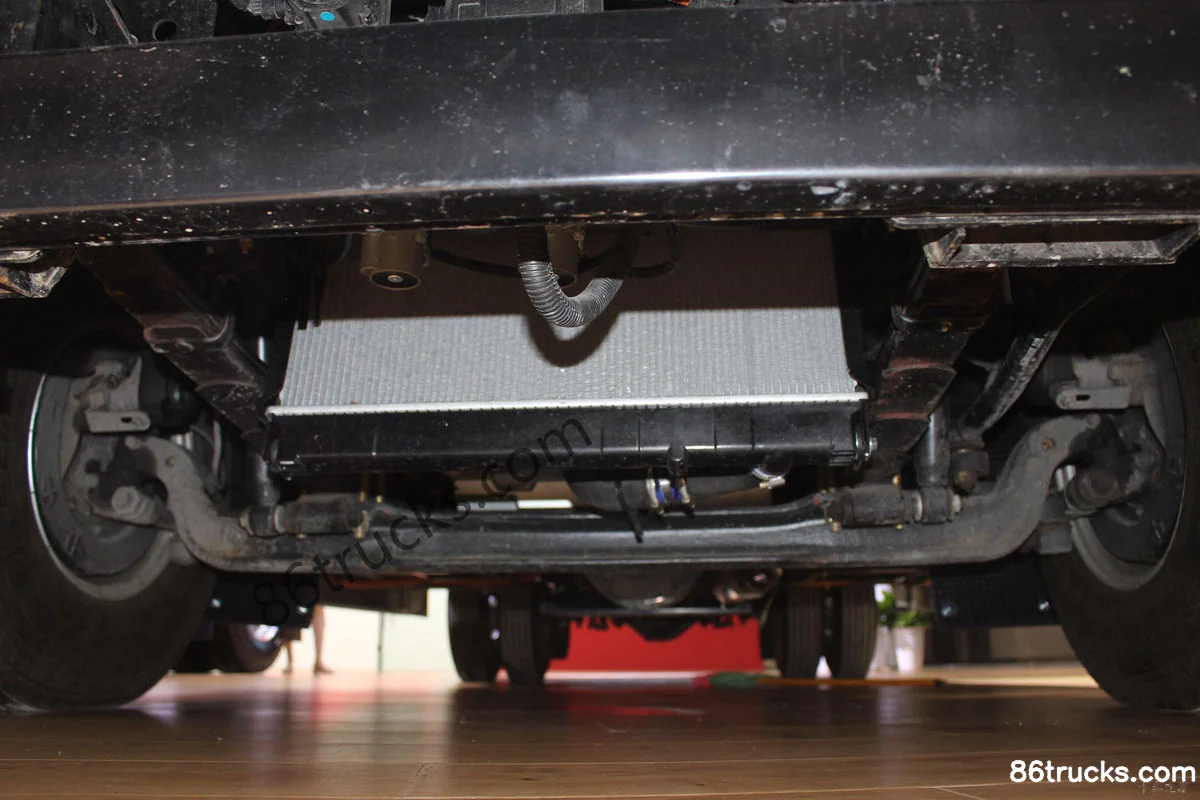

Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Chassis (1) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Chassis (2) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Chassis (3) | 86Trucks

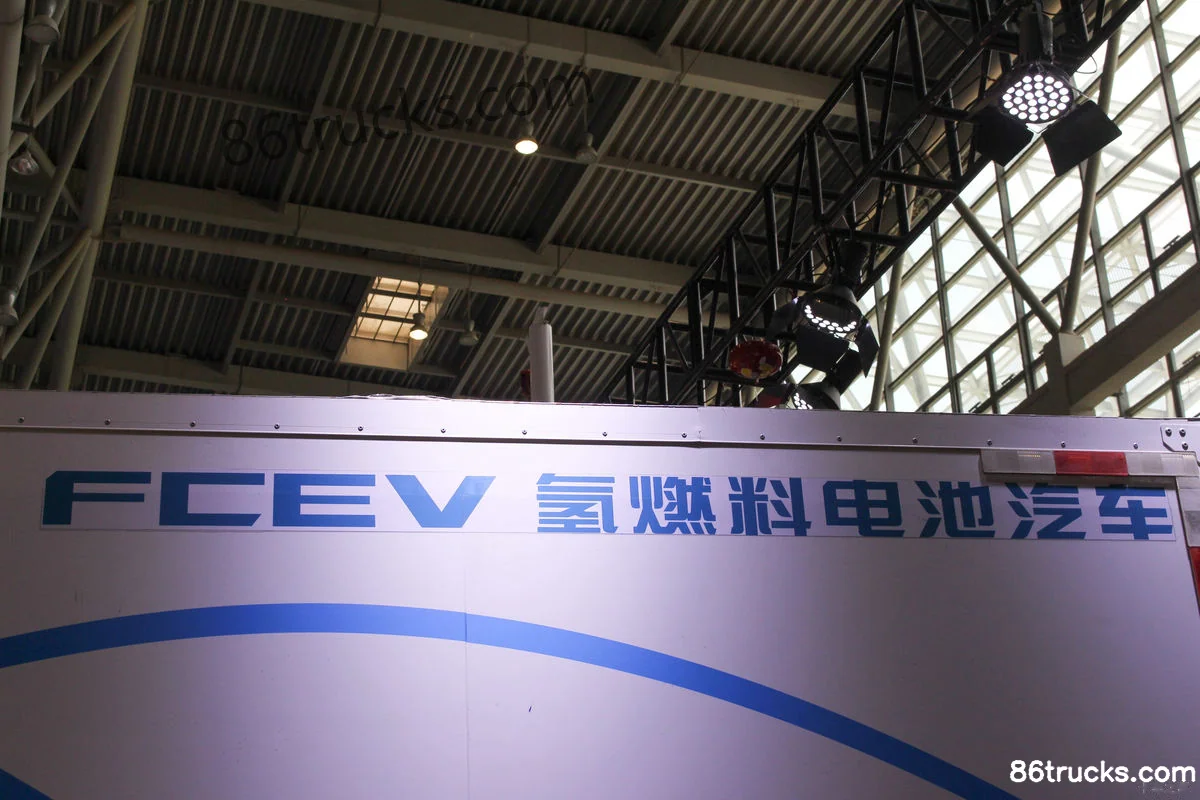

Body3

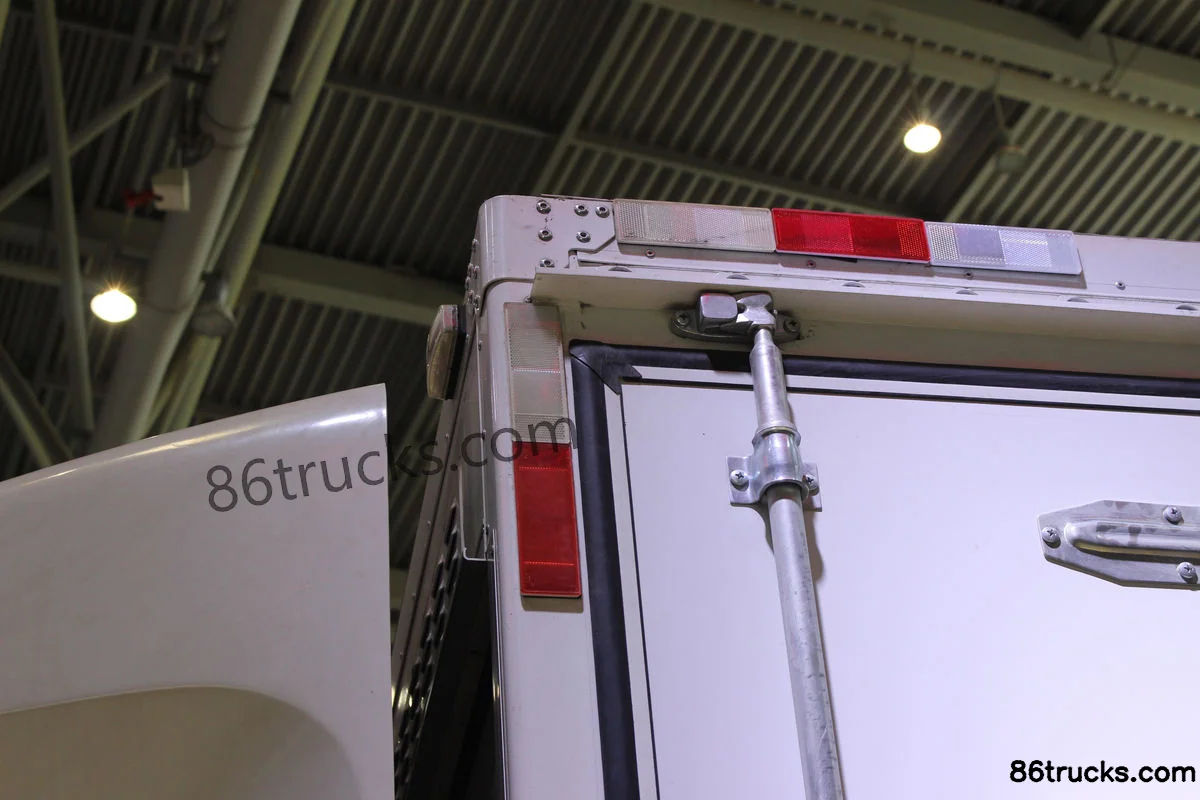

Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Body (1) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Body (2) | 86Trucks Qingling Isuzu M600 4X2(6 wheels) 4.5m hydrogen fuel cell van light truck 47.69kWh Body (3) | 86Trucks
