Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: Isuzu10L
Transmission: ZF
Curb Weight:: 12.55ton
seating capacity: 2Personnel
Rated payload: 18.32ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 2Personnel volume and 18.32t payload. On the powertrain side, it comes with a Isuzu10L engine, 350 hp, 8X4 (12 wheels) drive and China V emissions.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL1310U1VDH
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1850+4575+1370mm
Box length class: 9.4m
engine: Qingling Isuzu6UZ1-TCG51
transmission: ZFZF8S2030TO
Cab length: 12m
Cab width: 2.54m
Cab height: 3.18m
Front track width: 2065/2065mm
rear track: 1855/1855mm
Curb Weight: 12.55ton
Rated payload: 18.32ton
GVWR: 31ton
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 17°
Front/rear suspension: 1.37/2.835m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6UZ1-TCG51
Engine info: Isuzu10L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.839L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1422N·m
Transmission Parameters
Transmission Model: ZFZF8S2030TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.43m
Cargo box height: 0.6m
*Cargo box interior width: 2.4300000667572
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 7/7/10
Tire
Tire Size: 315/80R22.5 16PR,12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

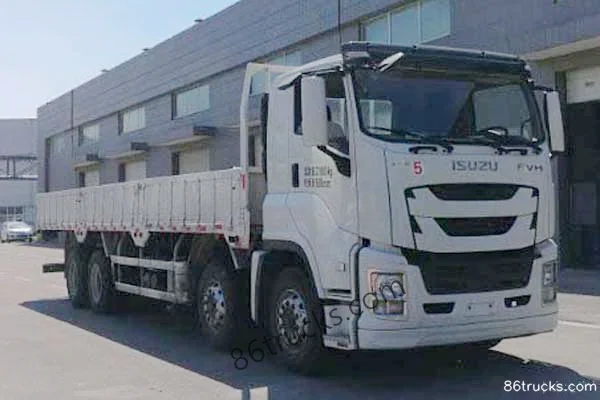

Exterior1

1 photos

FAQ

What emission standard does Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck?

Key specs of Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu10L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck suited for?

Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck differ from other variants in the same series?

Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck belongs to Qingling Isuzu Giga (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu Giga 350hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
