FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV

Export reference
MSRP N/A
Fuel: Diesel
Engine: XichaiCA6DL6
Transmission: Allison
Curb Weight:: 11.587ton
Wheelbase:: 3850mm
Tire brand:: Triangle
FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV exterior
View more photos (12)
seating capacity: 3Personnel
Drive 4X4 (6 wheels)
Horsepower 320
Emission China VI

Overview

The FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV is a Medium-duty truck featuring 3Personnel volume, 5.995m cab and 3850mm wheelbase. On the powertrain side, it comes with a XichaiCA6DL6 engine, 320 hp, 4X4 (6 wheels) drive and China VI emissions.

China VI 320 Diesel 4X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5120XLJ21
Drive type: 4X4
Wheelbase: 3850mm
engine: XichaiCA6DL6-32E68
transmission: 6-speed transmission
Cab length: 5.995m
Cab width: 2.545m
Cab height: 3.77m
Front track width: 2107mm
rear track: 2085mm
Curb Weight: 11.587ton
GVWR: 11.595ton
Max. speed: 99km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 45°
departure angle: 30°
Front/rear suspension: 1.1/1.045m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL6-32E68
Engine info: XichaiCA6DL6
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China VI
Max output power: 236kW
Max hp: 320Horsepower
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: 6-speed transmission
Transmission Brand: Allison
shift method: AMT manual/auto
Forward gears: 6Gear
Number of Reverse Gears:
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 5895kg
rear axle allowable load: 6100kg
Leaf spring count: -/-
Suspension (front/rear): Dual A-type swing arm independent suspension
Tire
Tire brand: Triangle
Tire Size: 365/80R20
Number of tires: 4pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

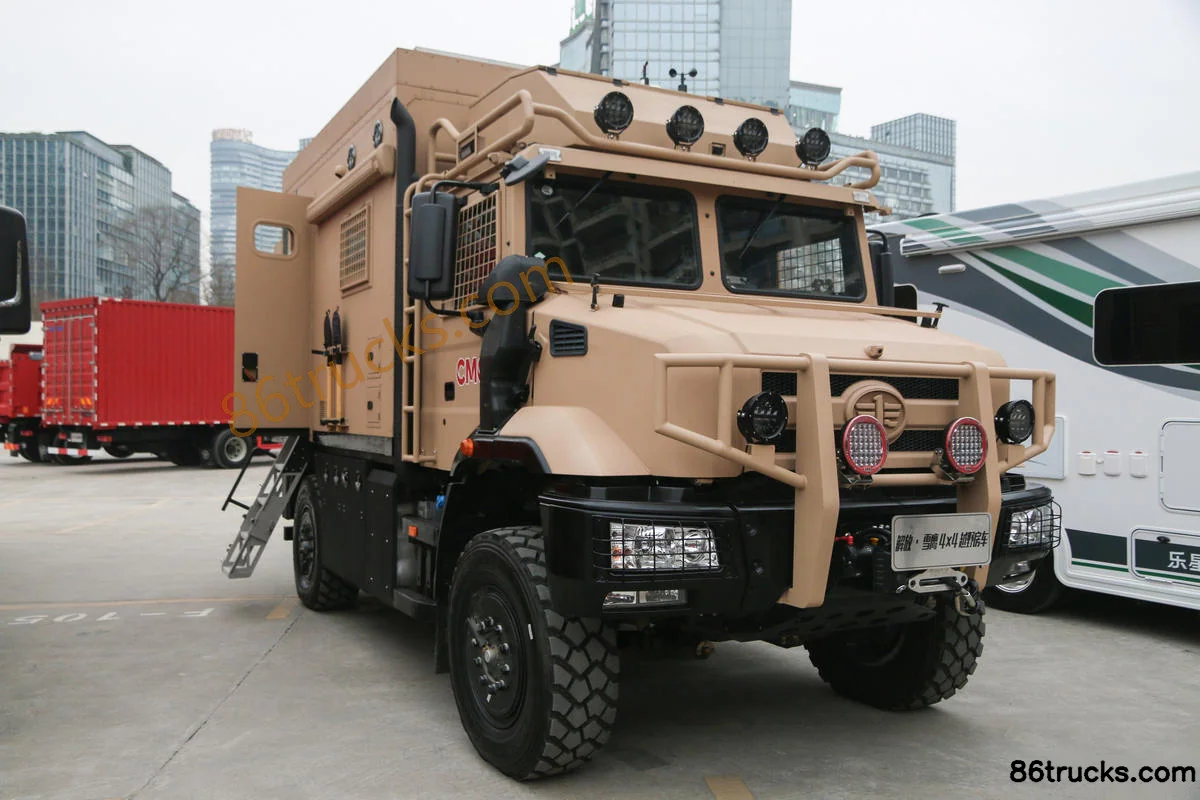

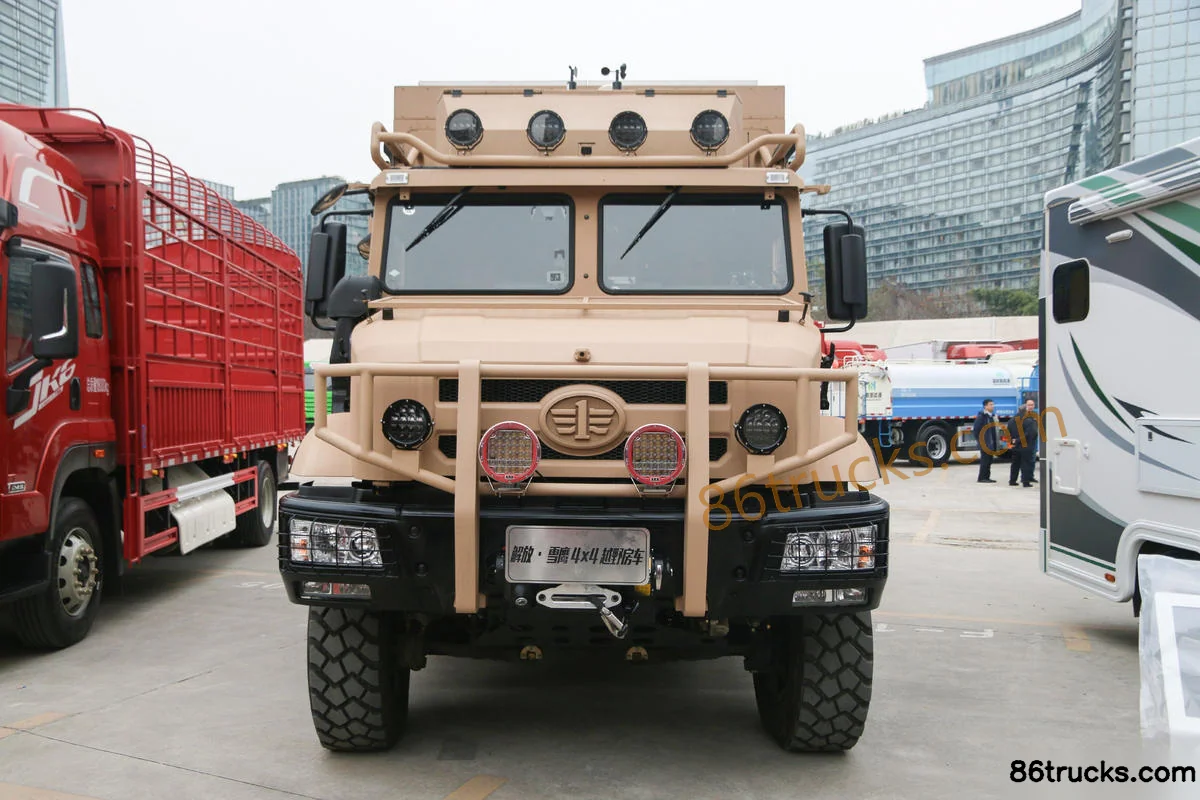

Exterior3

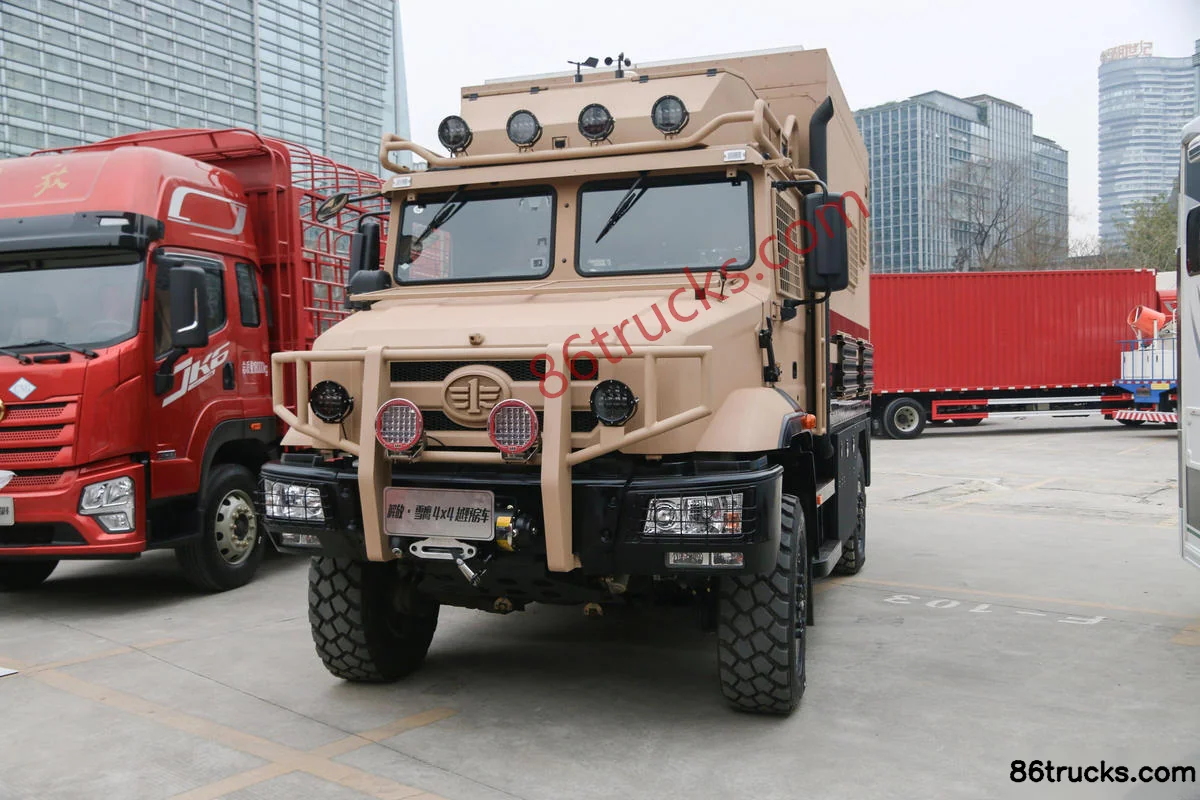

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Exterior (1) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Exterior (2) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Exterior (3) | 86Trucks

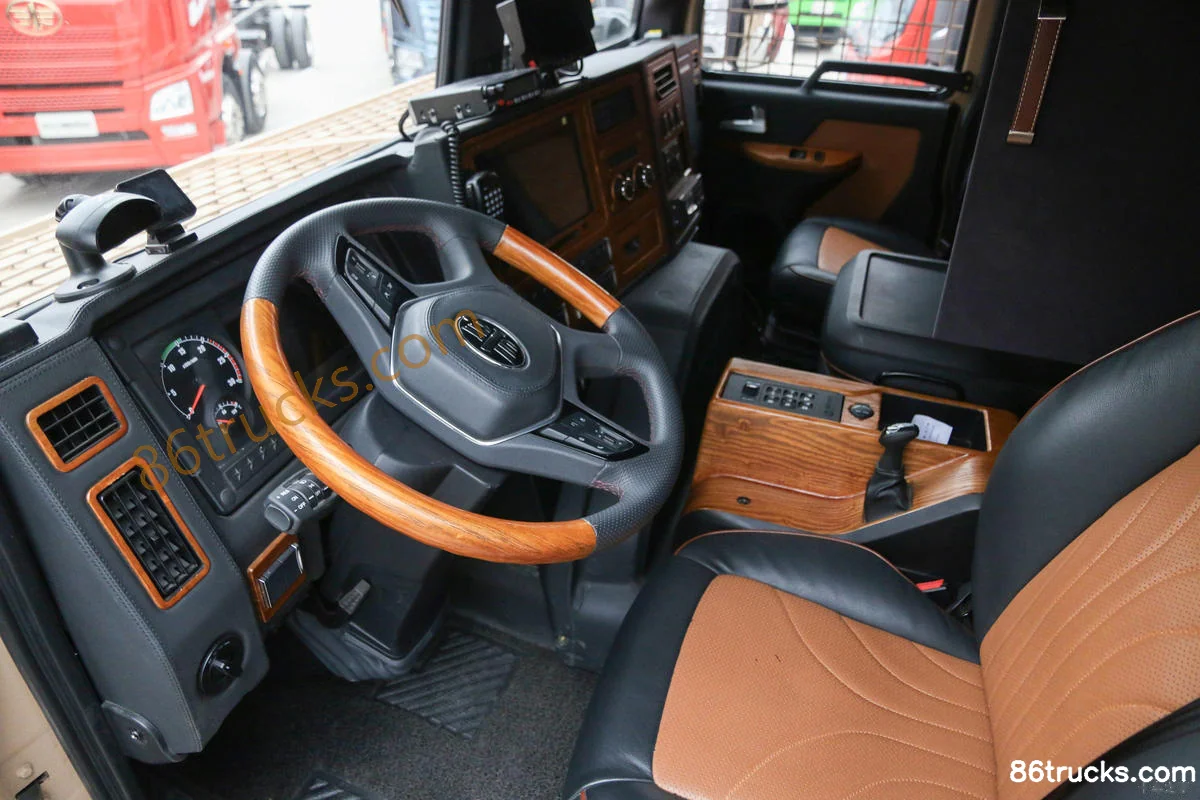

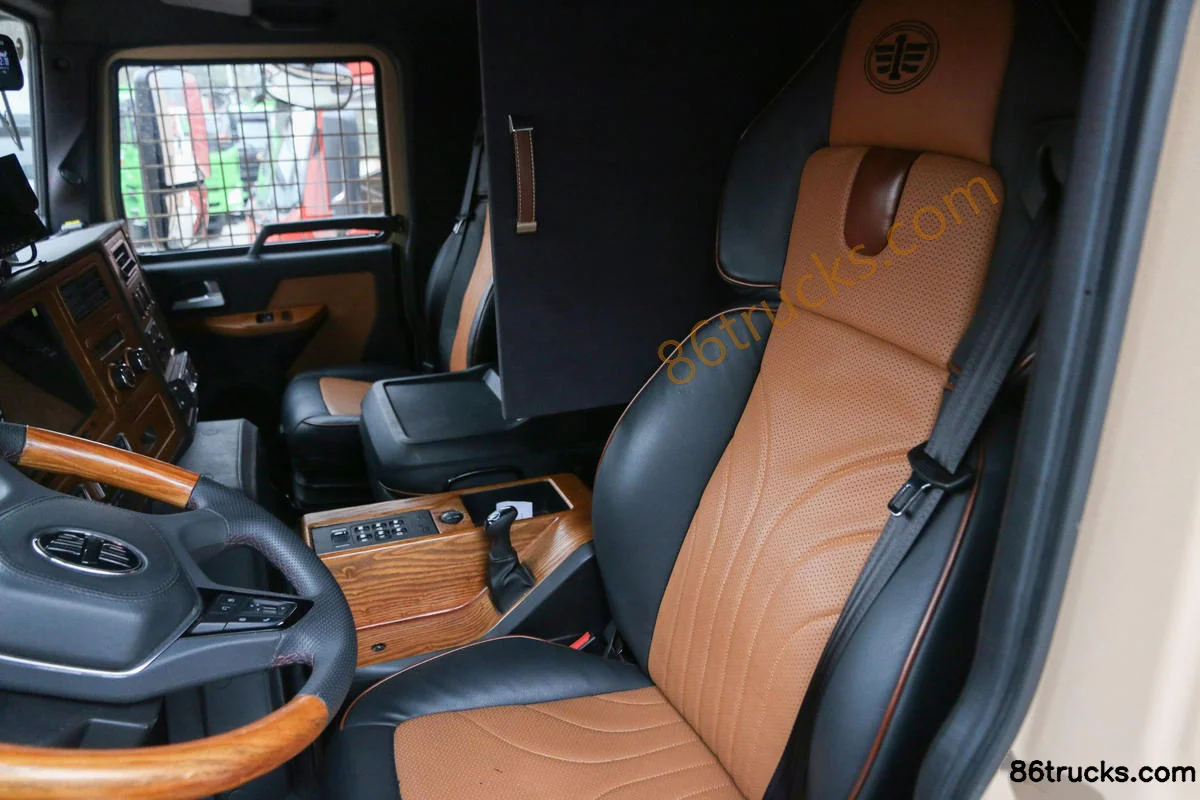

Cab3

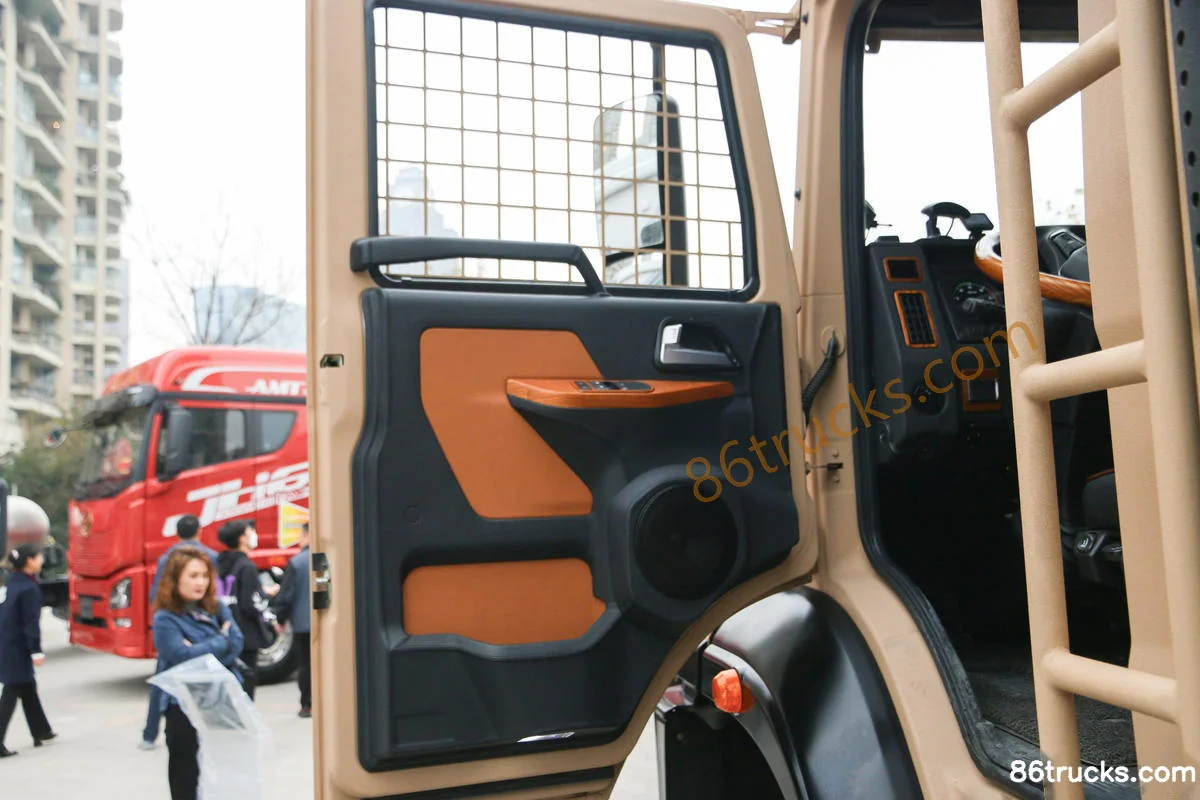

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Cab (1) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Cab (2) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Cab (3) | 86Trucks

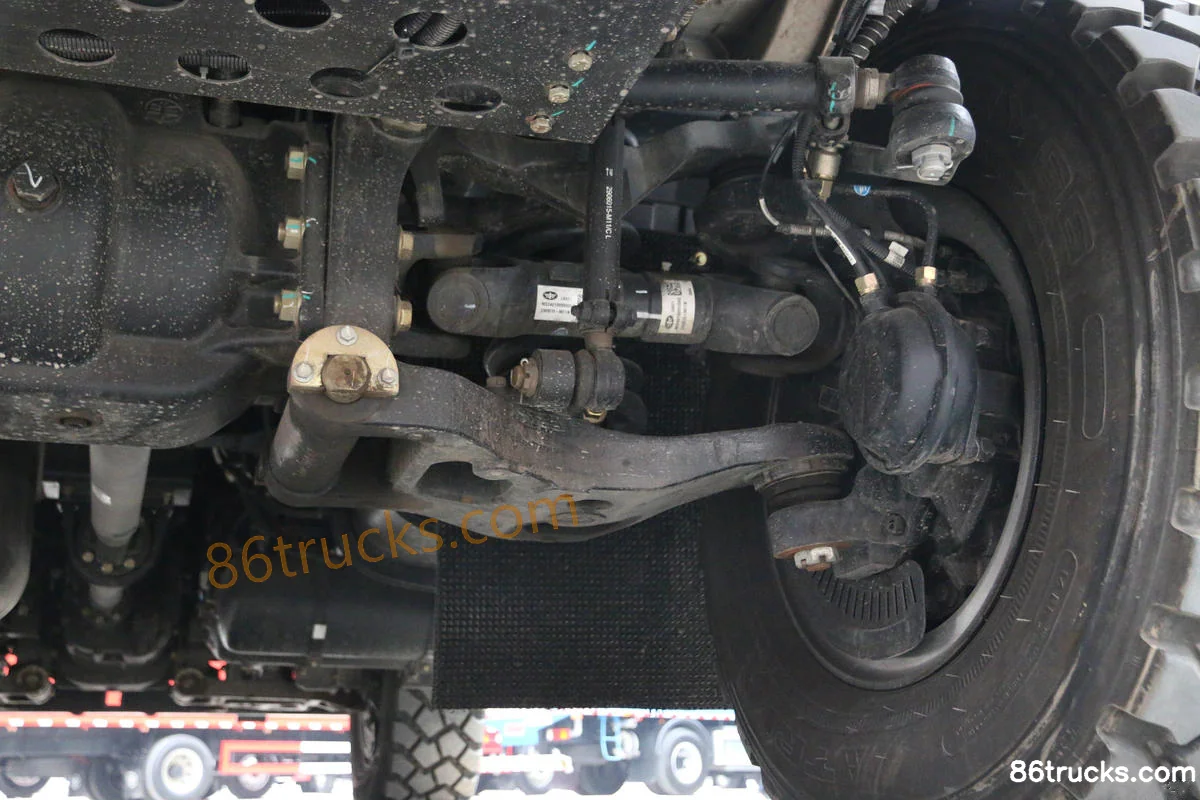

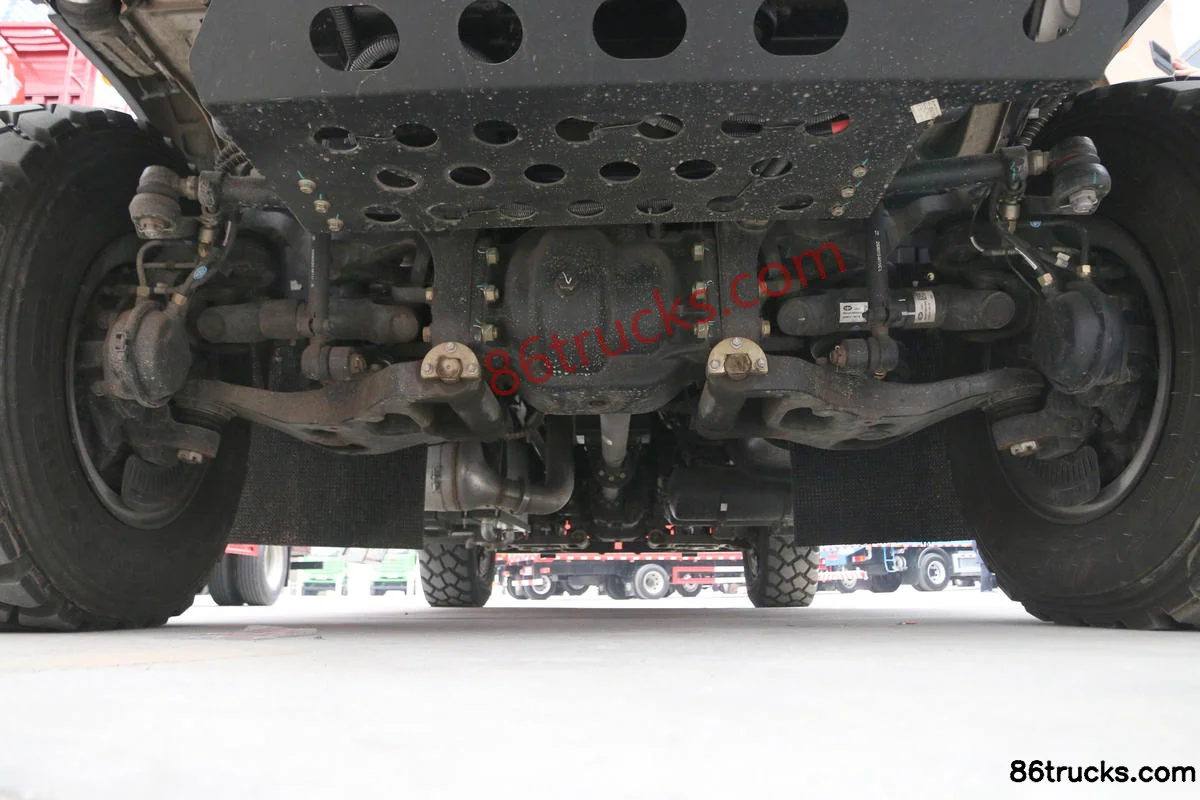

Chassis3

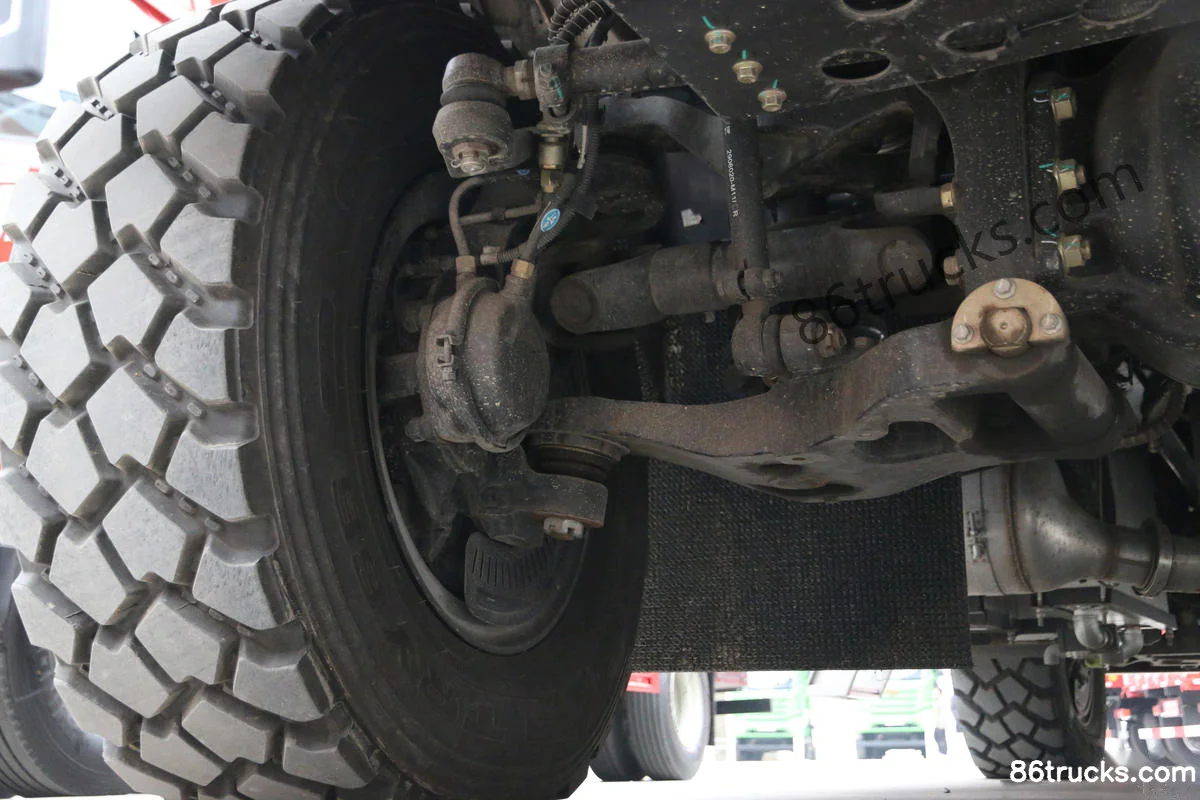

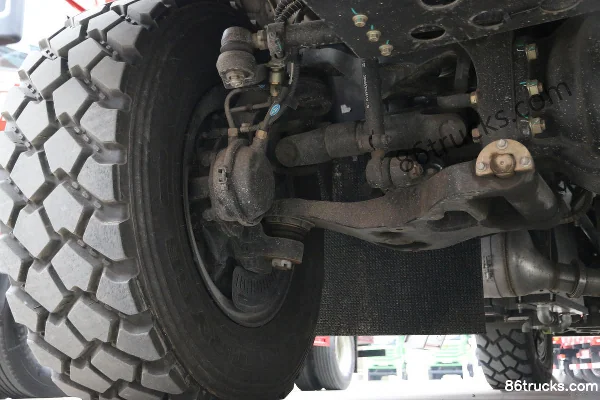

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV (1) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV (2) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV (3) | 86Trucks

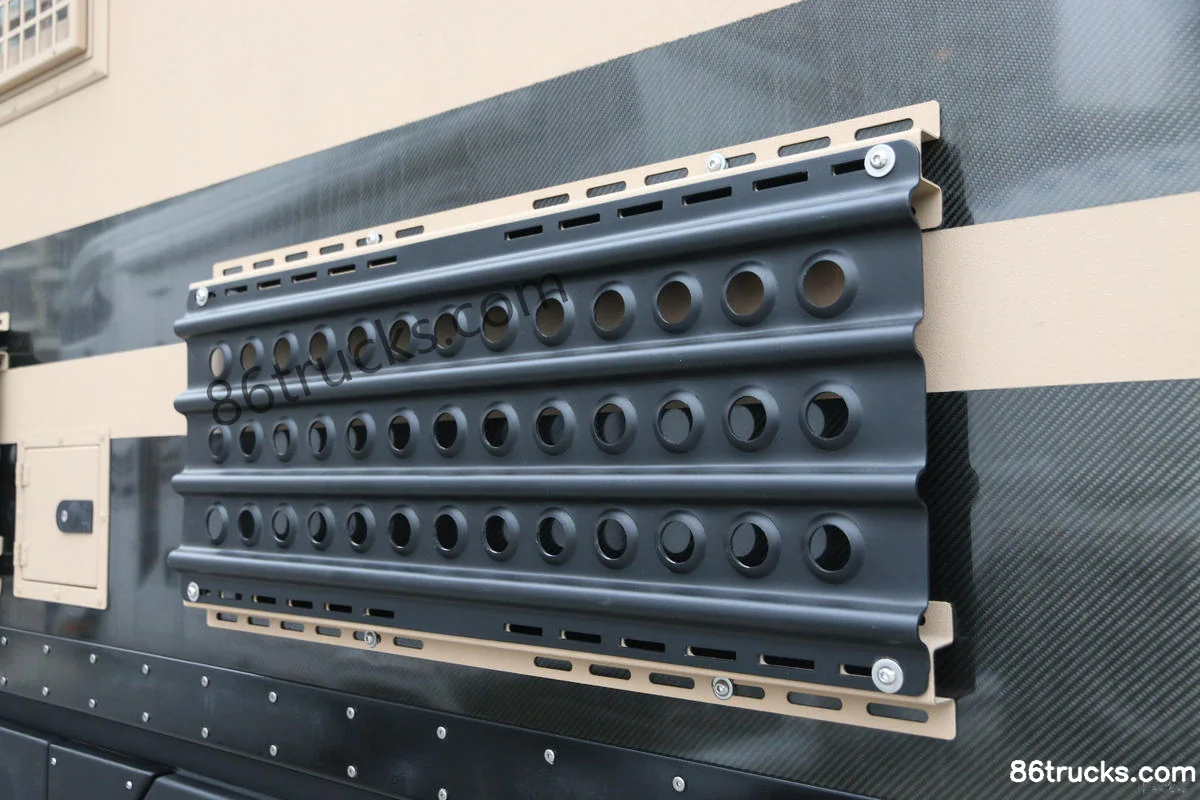

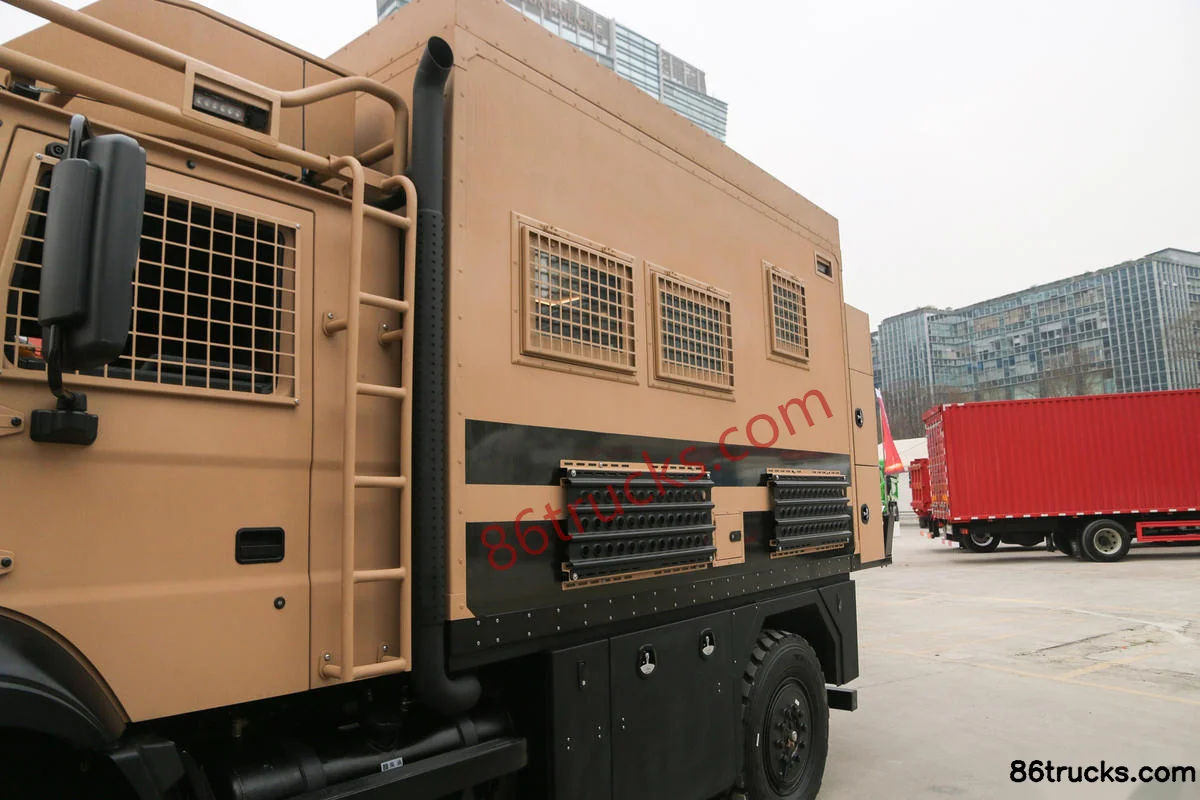

Body3

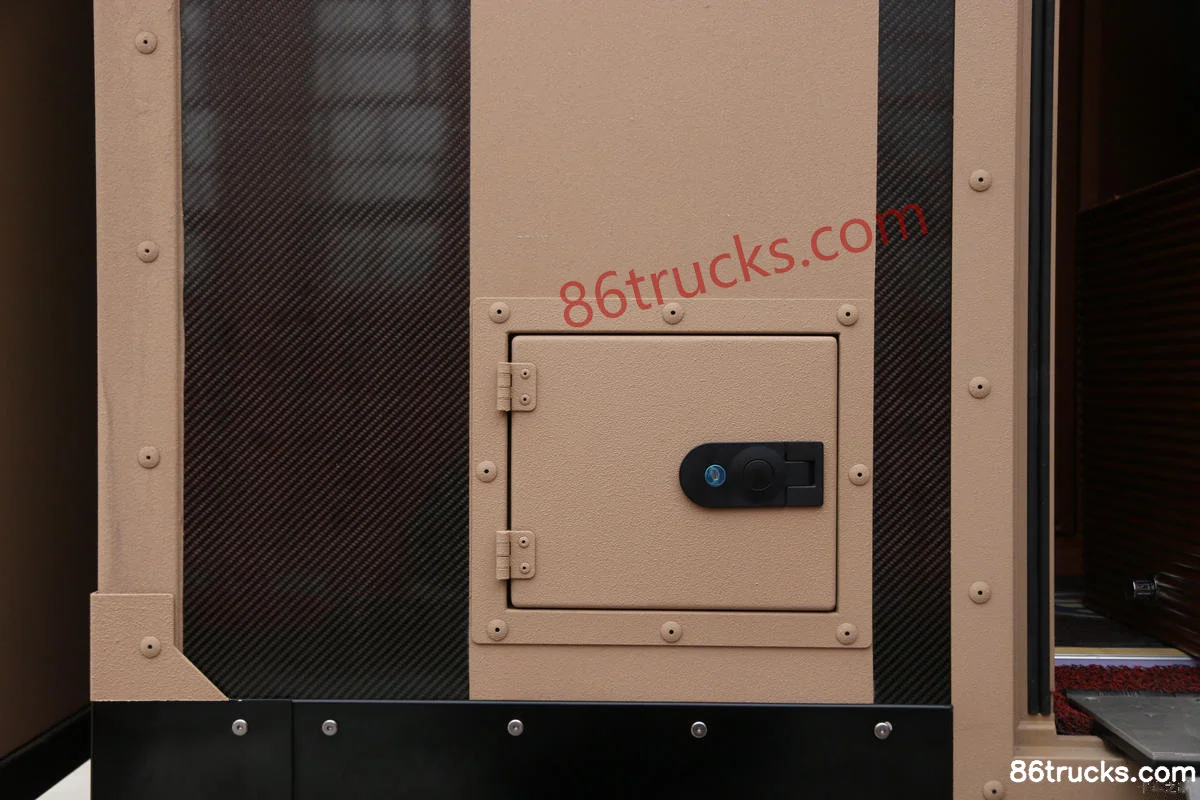

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Body (1) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Body (2) | 86Trucks FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV?

Key specs of FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV: Drive: 4x4; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel; Engine: XichaiCA6DL6; Transmission: Allison. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV suited for?

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV differ from other variants in the same series?

FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV belongs to FAW Jiefang M41 Chassis (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang M41 Chassis 320hp 4X4(6 wheels) Xueying Off-road RV?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
