Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: LZ4250H5DZBEV3
Front/rear track width:: Front track: 2040mm; Rear track: 1860/1860mm
Cab length:: 7.39m
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 320km
Motor 1 Brand: Suzhou Green Control
Gross Trailer Weight: 38.87ton

Overview

The Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh is a Heavy truck featuring 320km battery/range, Suzhou Green Control motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4250H5DZBEV3
Drive type: 6X4
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860mm
Wheelbase: 3800+1350mm
Cab length: 7.39m
Cab width: 2.525m
Cab height: 3.69m
Gross Trailer Weight: 38.87ton
CLTC range: 320km
Curb Weight: 10ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ460XS-LKM2602
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 420kW
Motor 1 Peak Power: 420kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 2*440
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

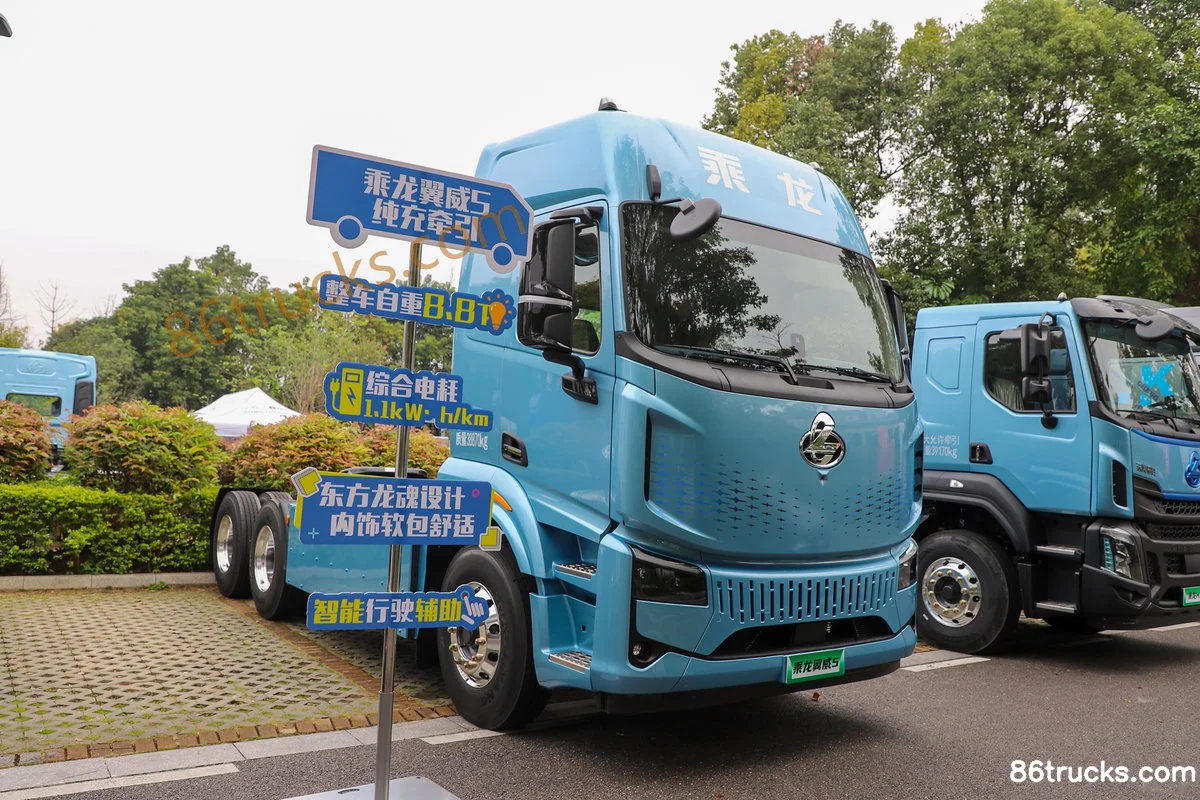

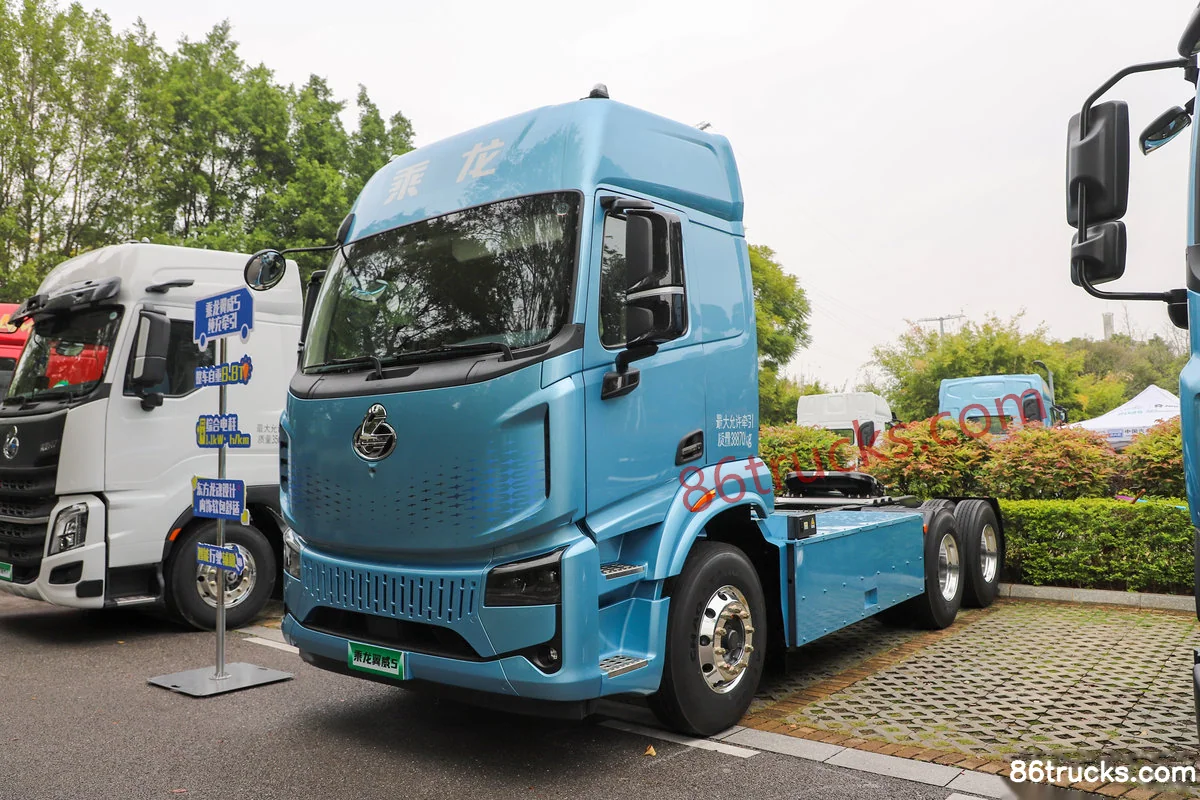

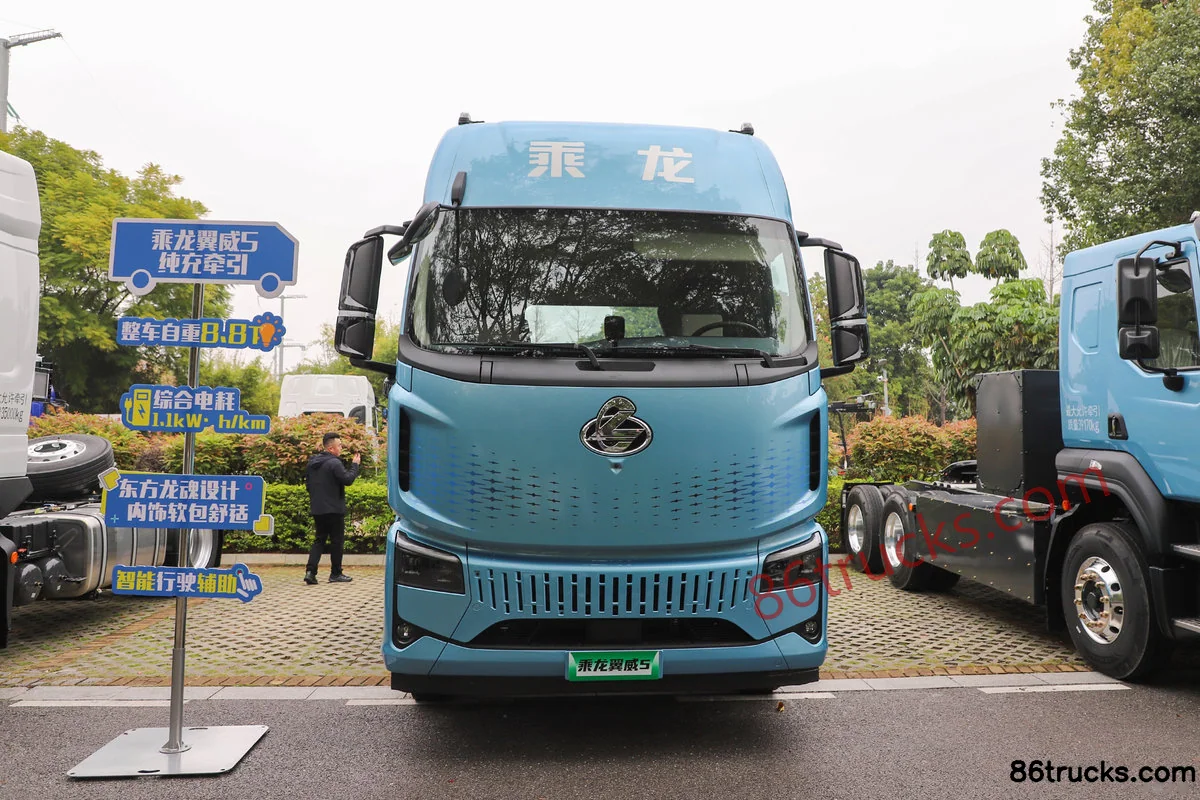

Exterior3

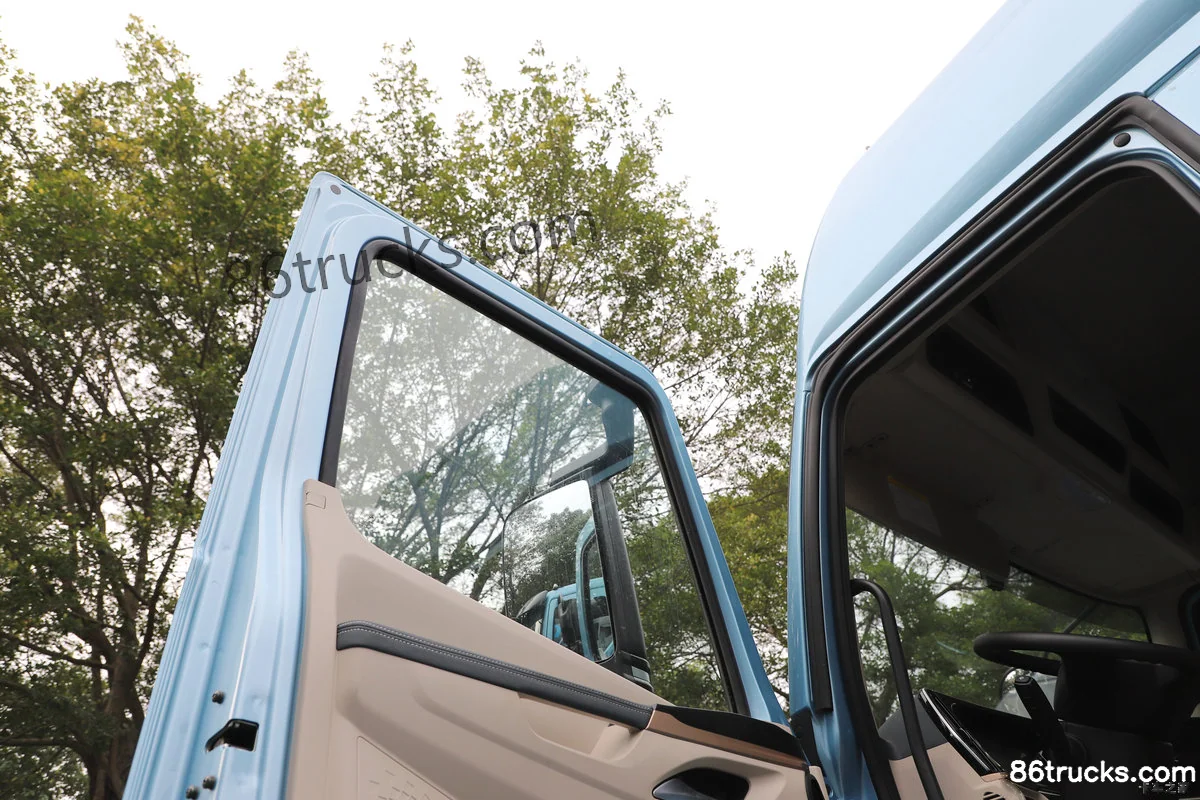

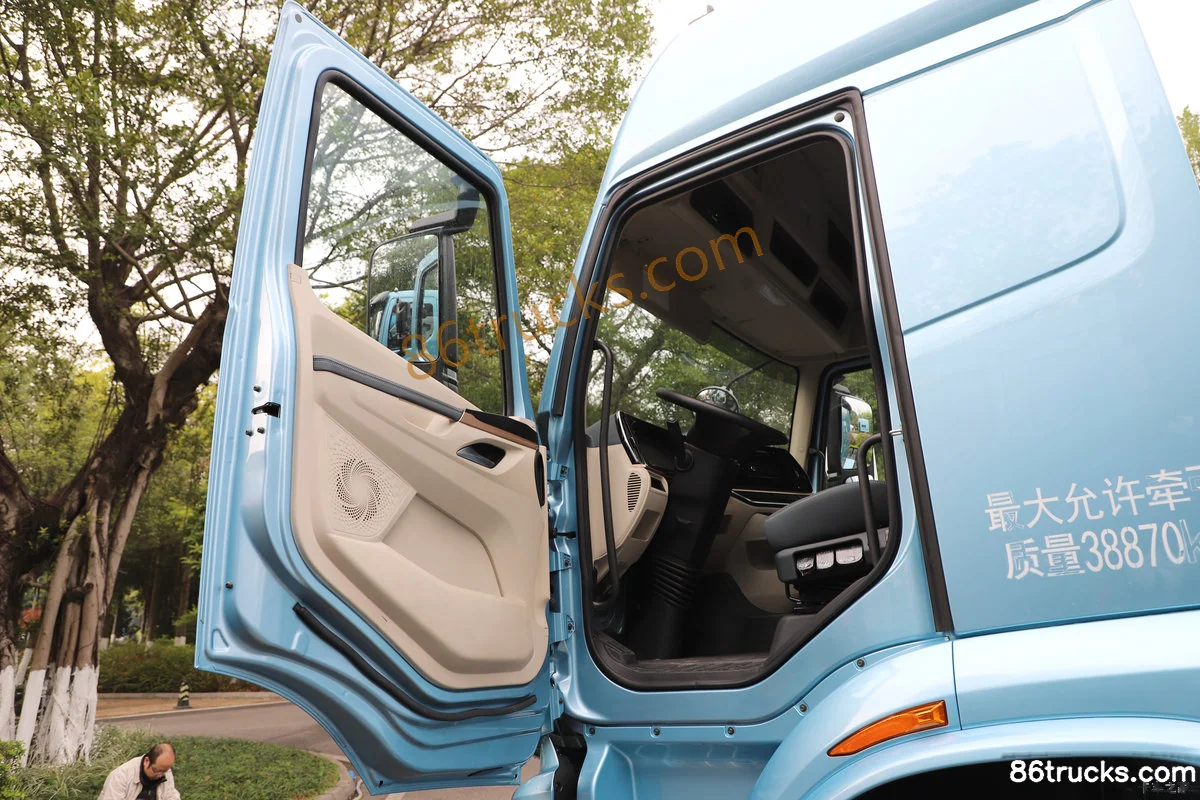

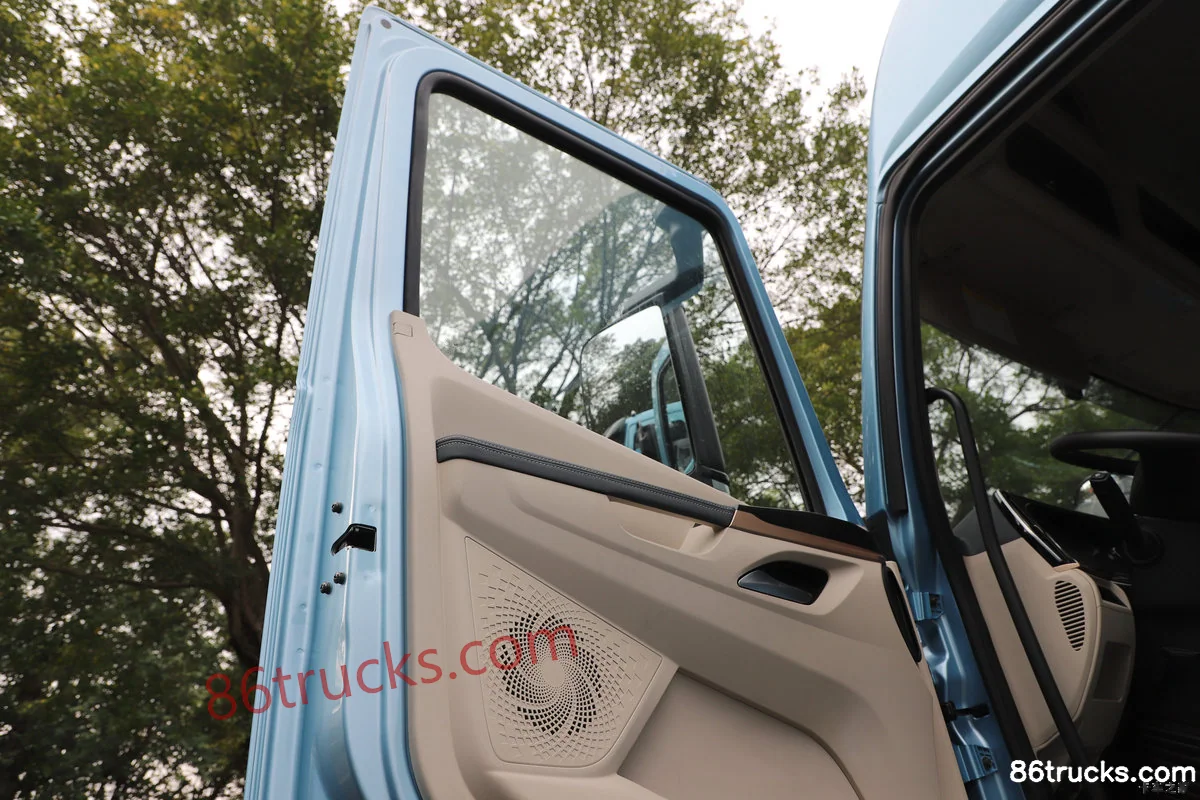

Cab3

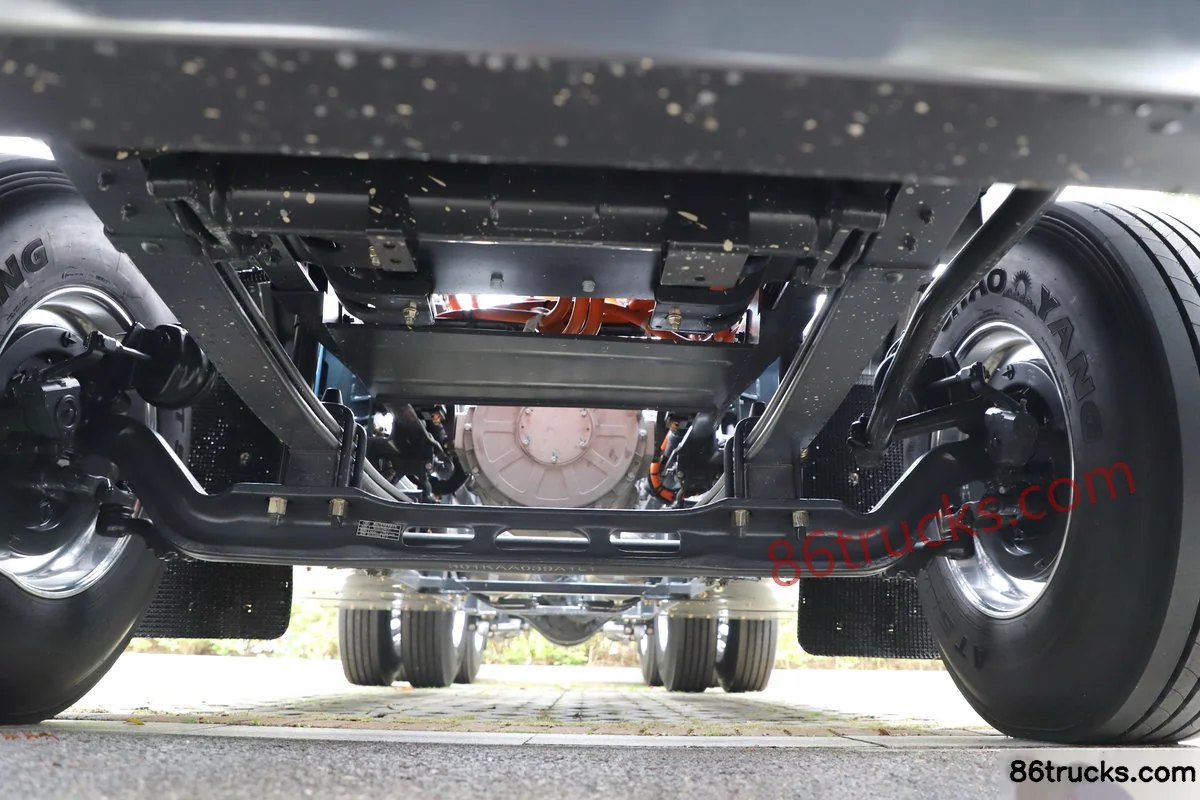

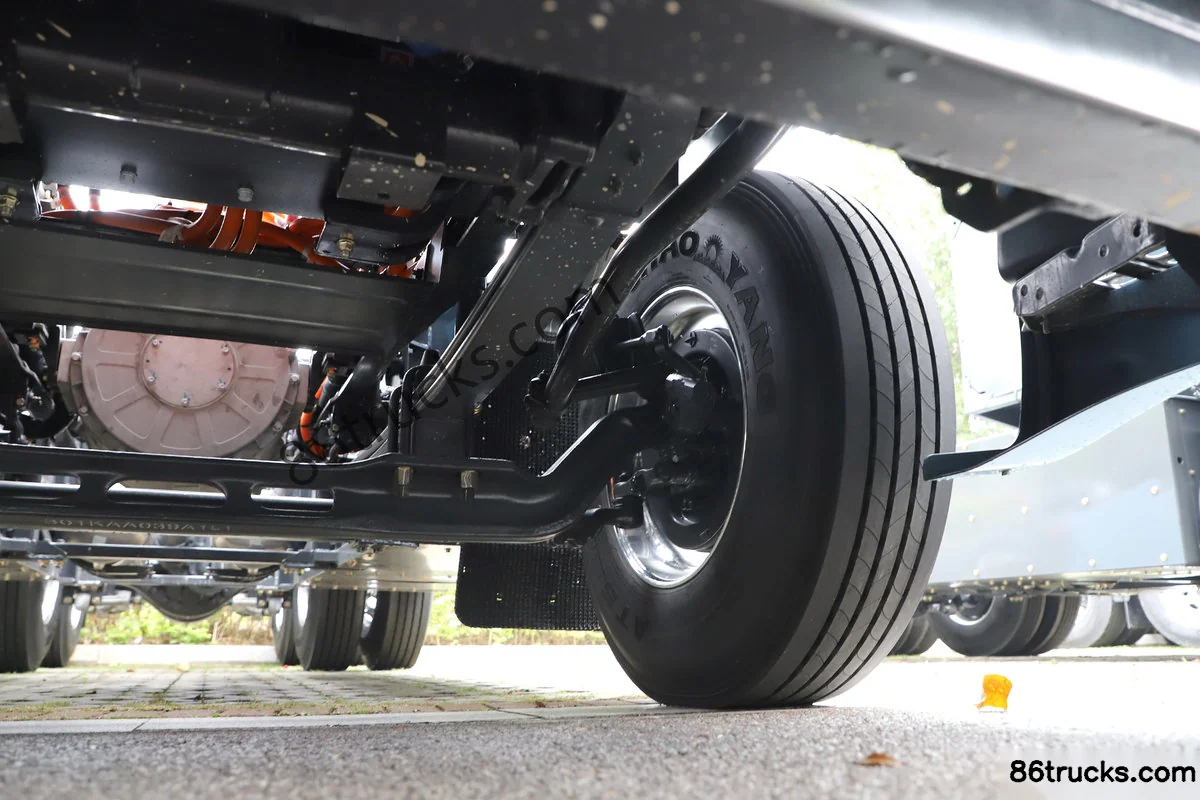

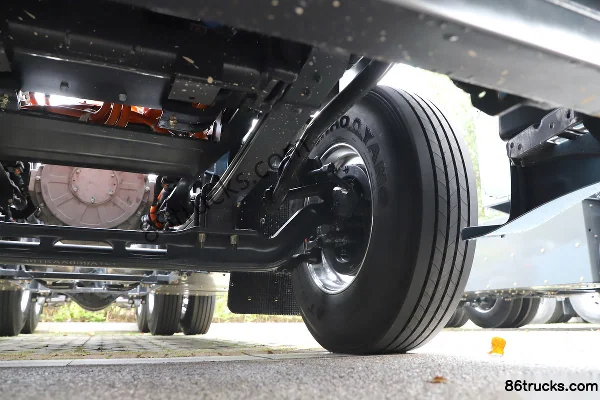

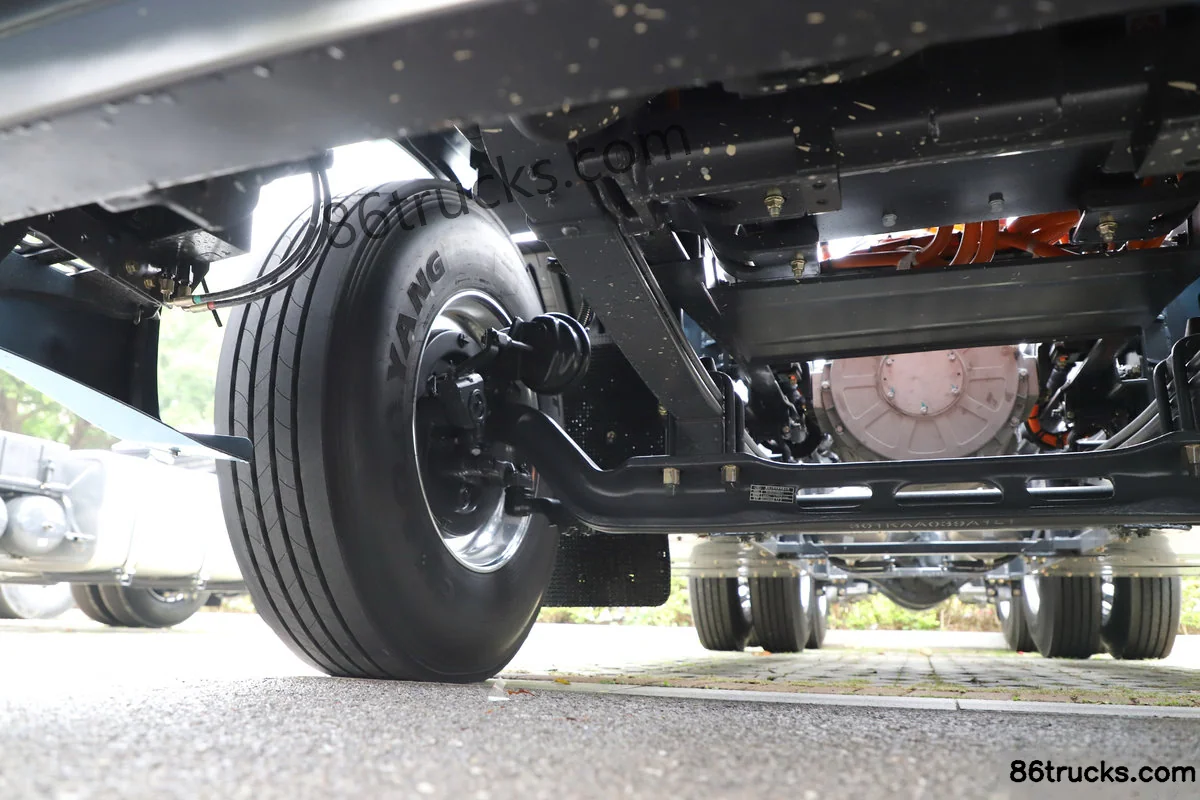

Chassis3

9 photos

FAQ

What are the key specs of Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh?

Key specs of Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh suited for?

Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh differ from other variants in the same series?

Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh belongs to Dongfeng Yiwei 5 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yiwei 5 6X4(10 wheels) pure electric tractor truck, CATL 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
