Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand)

Export reference
From $54,972
MSRP ¥39.58M CNY
Emission: China IV
Fuel: Diesel
Curb Weight:: 11.28ton
Wheelbase:: 1800+4575+1400mm
Tire Size:: 11.00R20 steel radial tire
Cab dimensions:: 11.995×2.5×3.995m
Rated payload: 19.59ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.335×2.375×2.49m
Horsepower 280

Overview

The CIMC Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) is a Refrigerated Truck featuring 9.335×2.375×2.49m cargo body, 19.59t payload, 11.995×2.5×3.995m cab and 1800+4575+1400mm wheelbase. On the powertrain side, it comes with 280 hp, 8X4 (12 wheels) drive, China IV emissions and Diesel fuel.

China IV 280 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.995×2.5×3.995m
Truck Type: Refrigerated Truck
Drive type: 8X4
Vehicle origin: Jinan
Wheelbase: 1800+4575+1400mm
Front track width: 1830/1830mm
rear track: 2015/2015mm
Curb Weight: 11.28ton
Rated payload: 19.59ton
Max. speed: 110km/h
Remarks: Optional ratio 4.11
Front/rear suspension: 1.43/2.28m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC07.28-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China IV
Max output power: 203kW
Max hp: 280Horsepower
Max torque: 1100N·m
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Cargo box parameters
Cargo box dimensions: 9.335×2.375×2.49m
Cargo box width: 2.375m
Cargo box height: 2.49m
Body Parameters
Body Brand: CIMC brand
Others: Cab: C5H-W mid-length cab, factory A/C, air-suspension driver seat, adjustable multifunction steering wheel, MP5 entertainment system, cruise control, central door lock + remote key, power-adjustable mirrors, heated mirrors, power windows, four-point suspension, manual/electric cab tilt, manual sunroof, wind deflector, SmartConnect B version, rear window + door sunshade + full-wrap curtains + bunk curtains; Engine: standard EVB exhaust brake, Bosch urea SCR system and Tenneco muffler; Clutch system: WABCO Germany; Steering: ZF8198 steering gear and ZF steering pump, ZF Germany; Intake: MANN+HUMMEL air filter (Germany); Fuel tank: 400L aluminum; Brake system: ABS+ASR+EBL+TPM, WABCO Germany, VOSS fittings, TMD disc brake pads, spiral cable, aluminum air tanks;
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK G7H
Chassis Model: ZZ1316M466GD1
Front axle description: VPD060QB front axle (6.3t disc) Sinotruk patent
Steering gear: Imported
rear axle description: MCY11 German MAN technology disc rear axle
Axle ratio: 3.7
Leaf spring count: 3/3/4
clutch: Φ430
Transmission Parameters
Number of gears: 9Gear
Transmission Model: ZF ZF9S1310TO
Tire
Tire Size: 11.00R20 steel radial tire
Number of tires: 12pcs

Photos

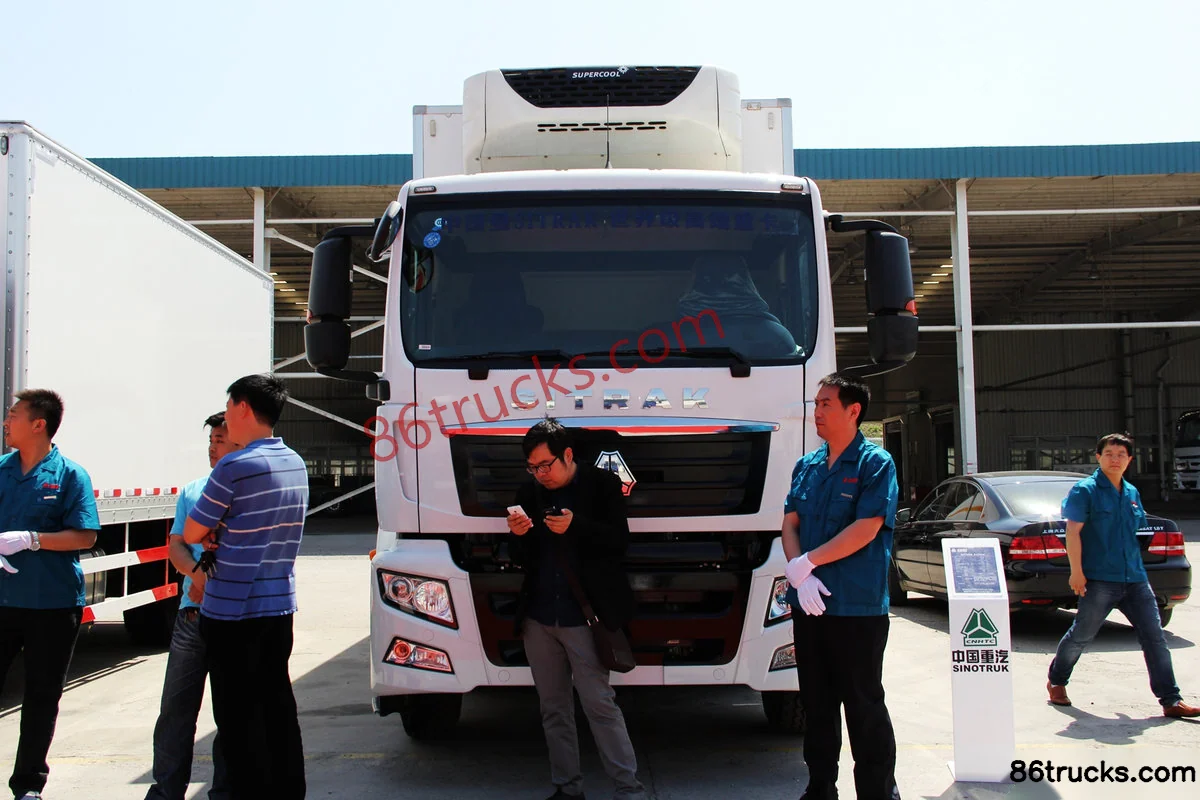

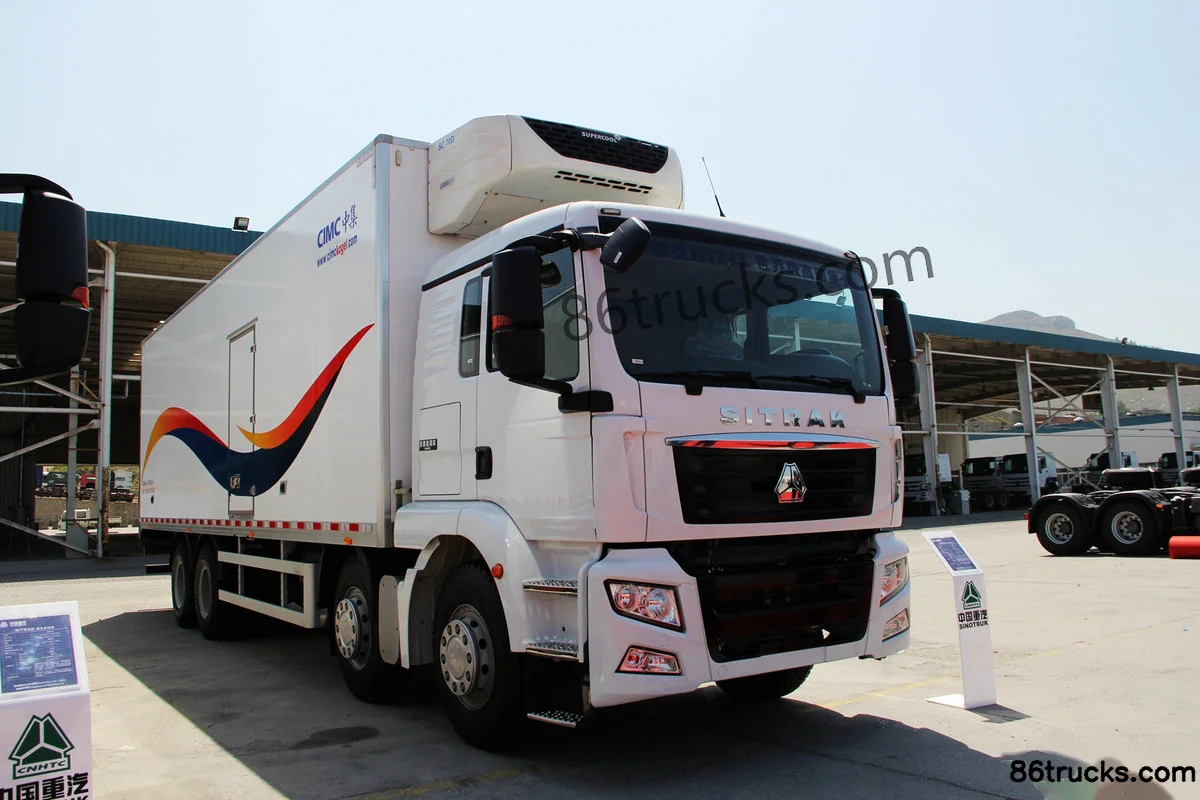

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand), and what does it include?

Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) export reference is about From $54,972; MSRP is ¥39.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand)?

Key specs of Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand): Drive: 8x4; Horsepower: 280 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) suited for?

Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) differ from other variants in the same series?

Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) belongs to CIMC Sitrak chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK G7H 280hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
