Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.69ton
Wheelbase:: 2700mm
Cargo box type:: stake body
Model code (announced):: ZB1040BEVADC3
Type:: Cargo Trucks
Box length class:: 3.1m
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: Nanjing Yuebo
Curb Weight: 1.76ton

Overview

The Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels) is a Light Truck featuring 230km battery/range, Nanjing Yuebo motor, 4X2 (6 wheels) drive and 1.69t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040BEVADC3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 3.1m
Cab length: 4.975m
Cab width: 1.69m
Cab height: 2.01m
CLTC range: 230km
Curb Weight: 1.76ton
Rated payload: 1.69ton
GVWR: 3.58ton
Max. speed: 90km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Nanjing Yuebo
Motor 1 Model: TZ200XS-YBM417
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 70kW
total peak torque: 160N·m
Battery/Charging
Battery Brand: Jiangsu Mingmei
Battery type: NMC lithium battery pack
Battery capacity: 51.39kWh
Energy Density: 152.2
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.08m
Cargo box width: 1.61m
Cargo box height: 0.36m
Cab parameters
Cab: F3 single row
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1150kg
rear axle allowable load: 2430kg
Tire
Tire Size: 175R14LT 6PR,175R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

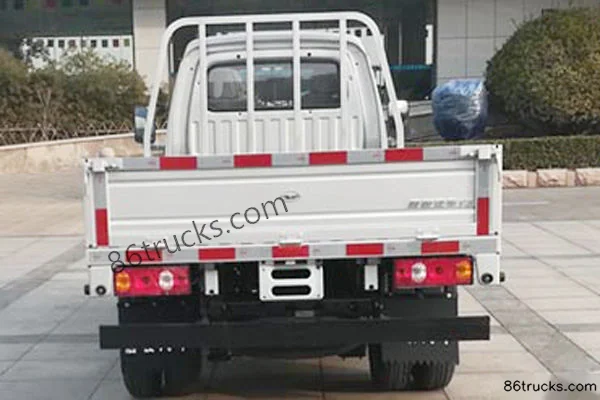

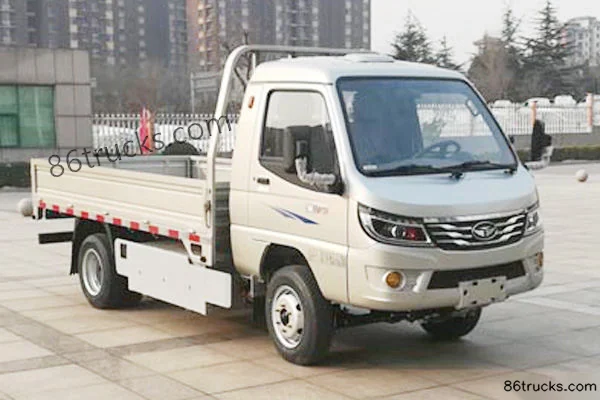

Exterior2

2 photos

FAQ

What are the key specs of Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels)?

Key specs of Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels) suited for?

Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels) differ from other variants in the same series?

Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels) belongs to Tangjun Sailing Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Sailing F3 Series 3.58T 3.08m single-row pure electric panel light truck 51.39kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
