JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase)

Export reference
From $15,681
MSRP ¥11.29M CNY
Curb Weight:: 1.945ton
Front tire specification:: 215/70 R15C
Displacement:: 2.8L
Model code (announced):: JX6477DA-M
Cab length:: 4.666m
Front track width:: 1692mm
Drive rear-wheel drive
Horsepower 109
Emission China IV
Fuel Diesel

Overview

The JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) is a Van/Light Bus featuring rear-wheel drive drive, 109 hp, 3.51t GVW and China IV emissions. On the powertrain side, it comes with Diesel fuel.

China IV 109 Diesel rear-wheel drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX6477DA-M
Drive type: rear-wheel drive
Cab length: 4.666m
Cab width: 1.974m
Cab height: 2.2m
Front track width: 1692mm
rear track: 1700mm
Min ground clearance: 165cm
Curb Weight: 1.945ton
GVWR: 3.51ton
Max. speed: 120km/h
grade: Medium VAN (light bus).
Model Year: 2016 Model
Driver's license: A1,A2,B1,B2,C1
Energy Type: Diesel
Engine parameters
Engine Model: Nanchang JMC JX493ZLQ4
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.8L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 245N·m
Max torque speed: 1800~2000rpm
Rated speed: 3600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed manual
Body parameters
Cargo box volume: 6
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Independent suspension
Body structure: Load-bearing
rear suspension type: Leaf spring
Aluminum wheels:
Body Parameters
Seat count: 6Seats
Fuel tank volume: 68L
Door Parameters
Number of Doors: 5

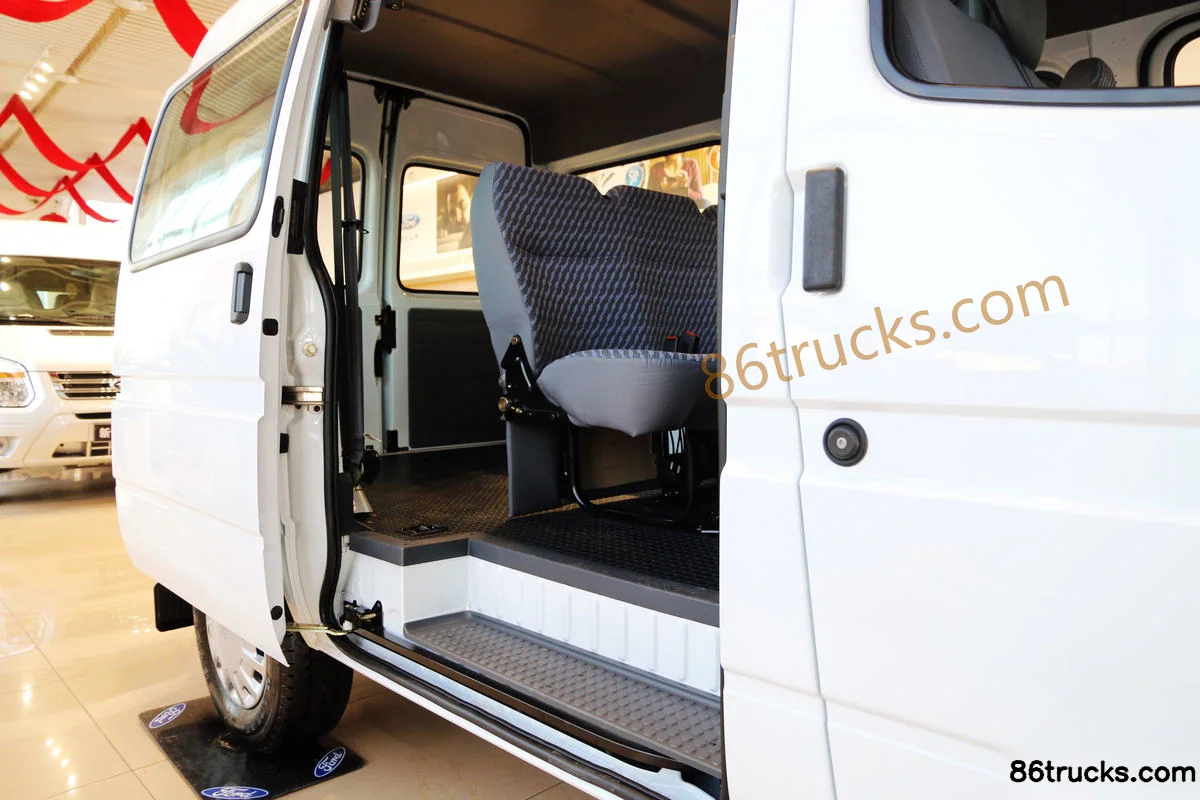

side door type: Sliding side door
Tailgate type: double doors
Wheel brake
Front brake type: Disc
rear brake type: Drum Type

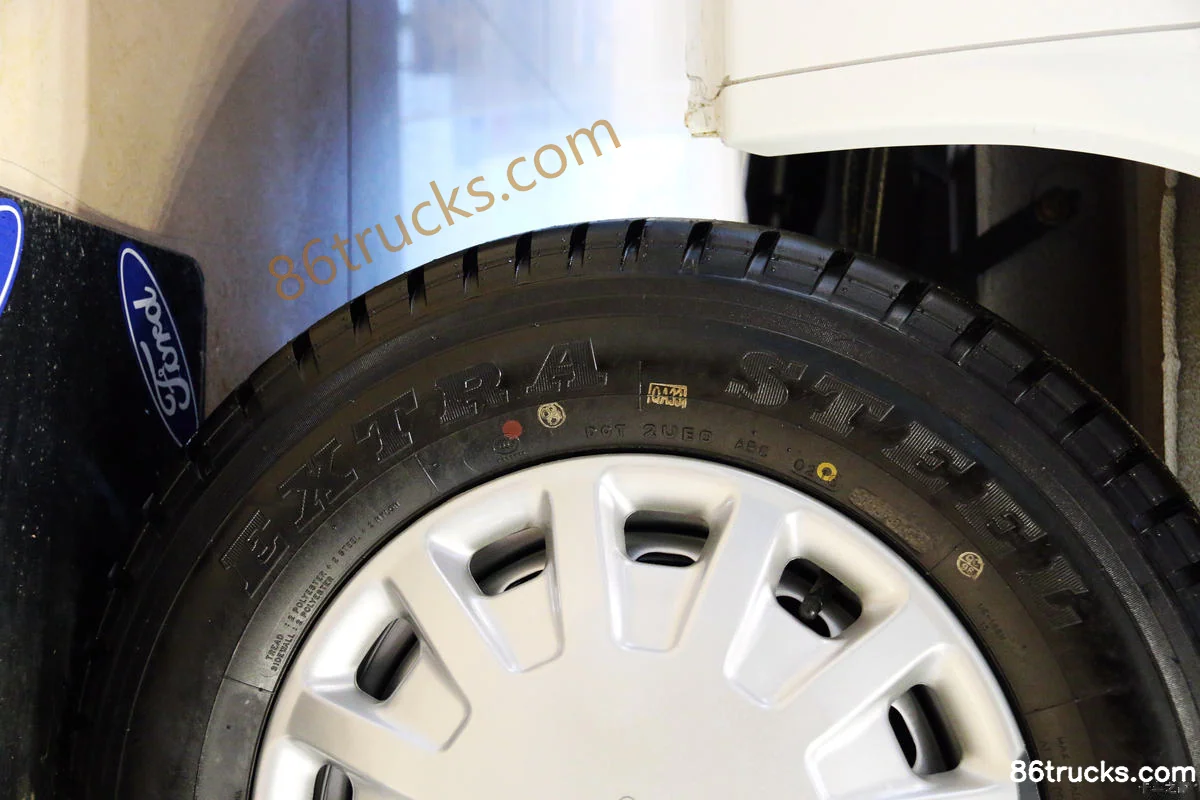

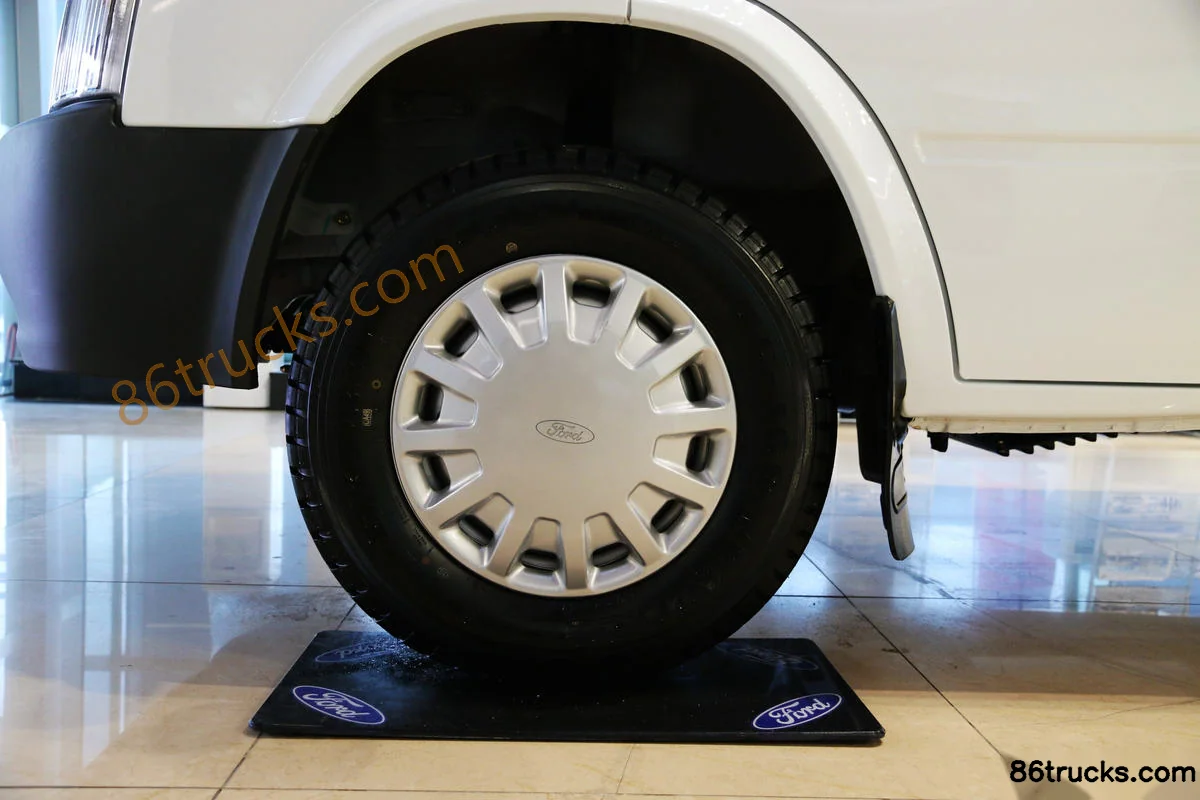

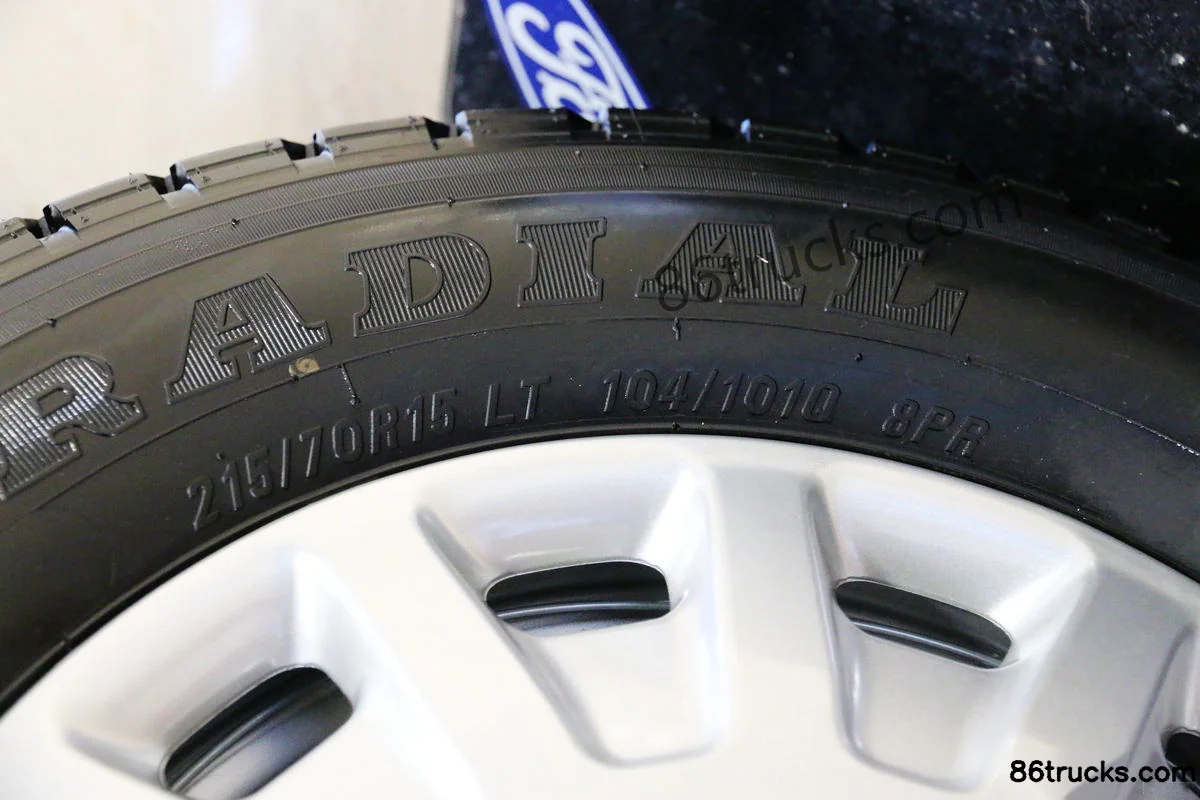

Front tire specification: 215/70 R15C
Rear Wheel Specification: 215/70R15C
Safety features
Driver airbag:
Seat belt reminder:
Control configuration
ABS:
interior configuration
Steering Wheel Material: ABS plastic
AC control type: Manual
Power Windows:
Seat material: Fabric
lighting configuration
Front fog lamp:

Photos

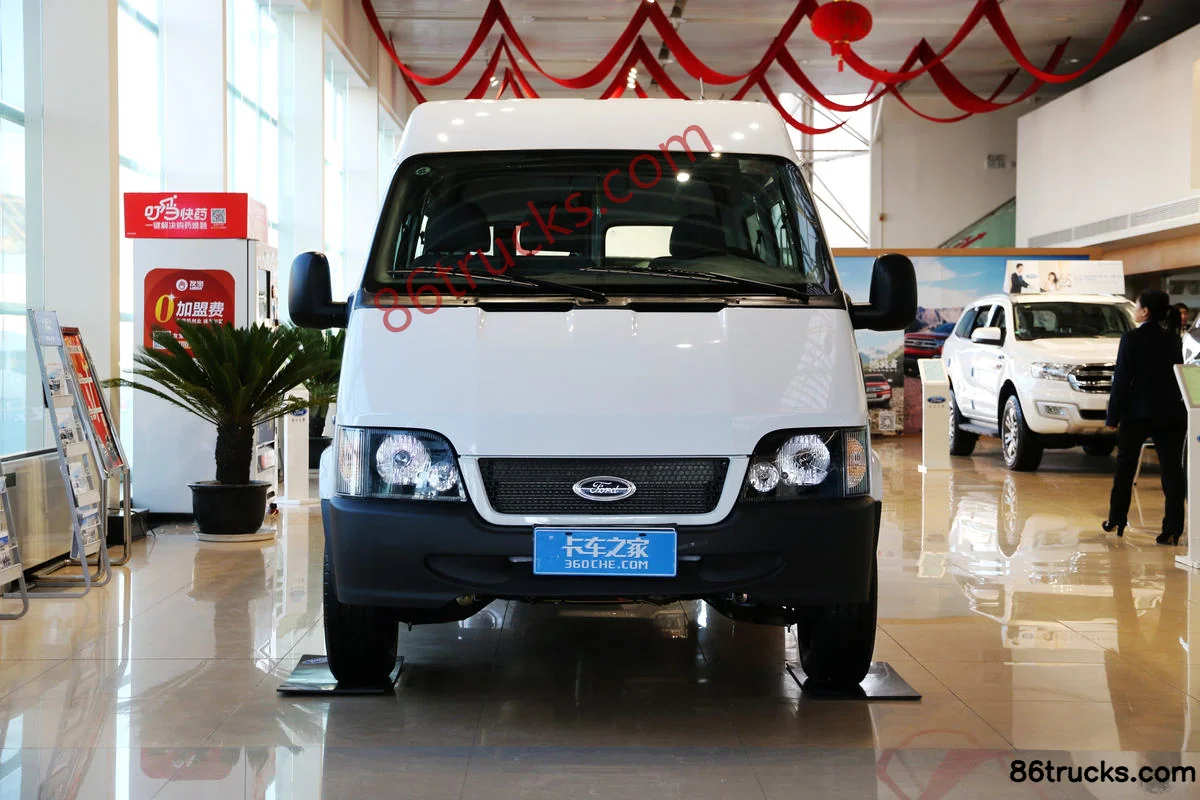

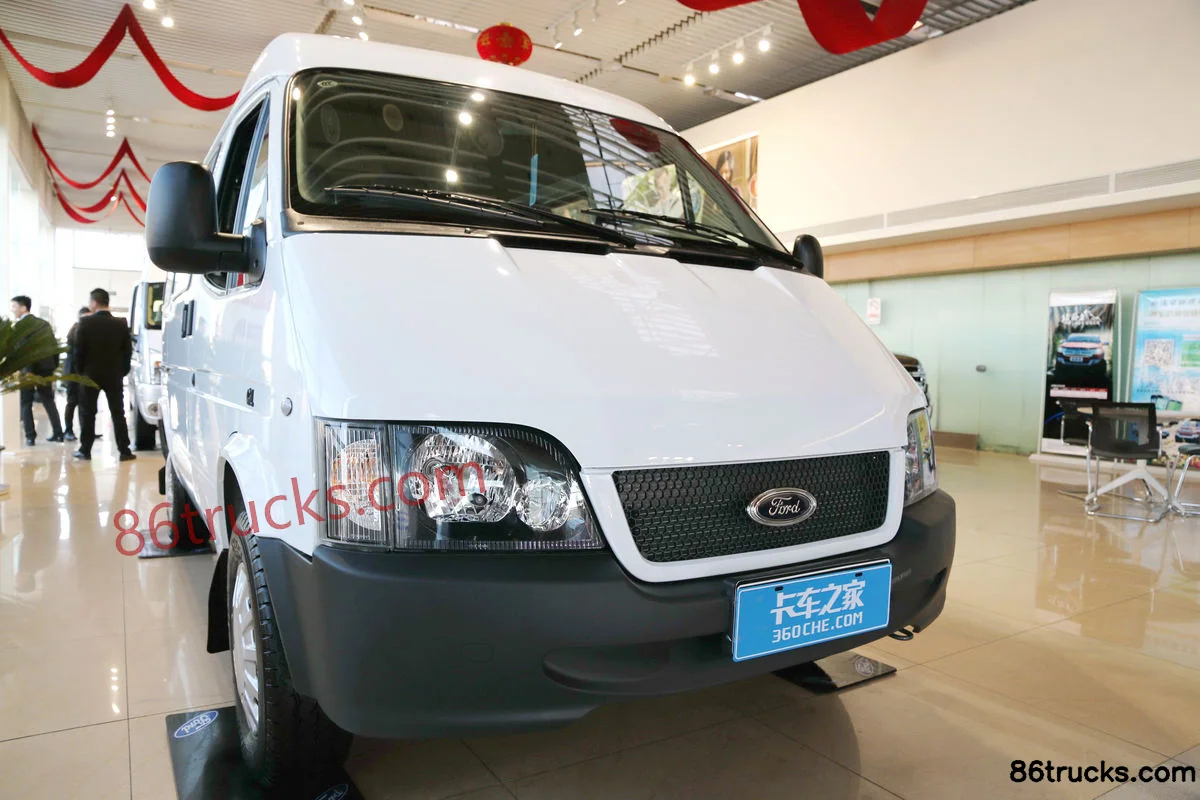

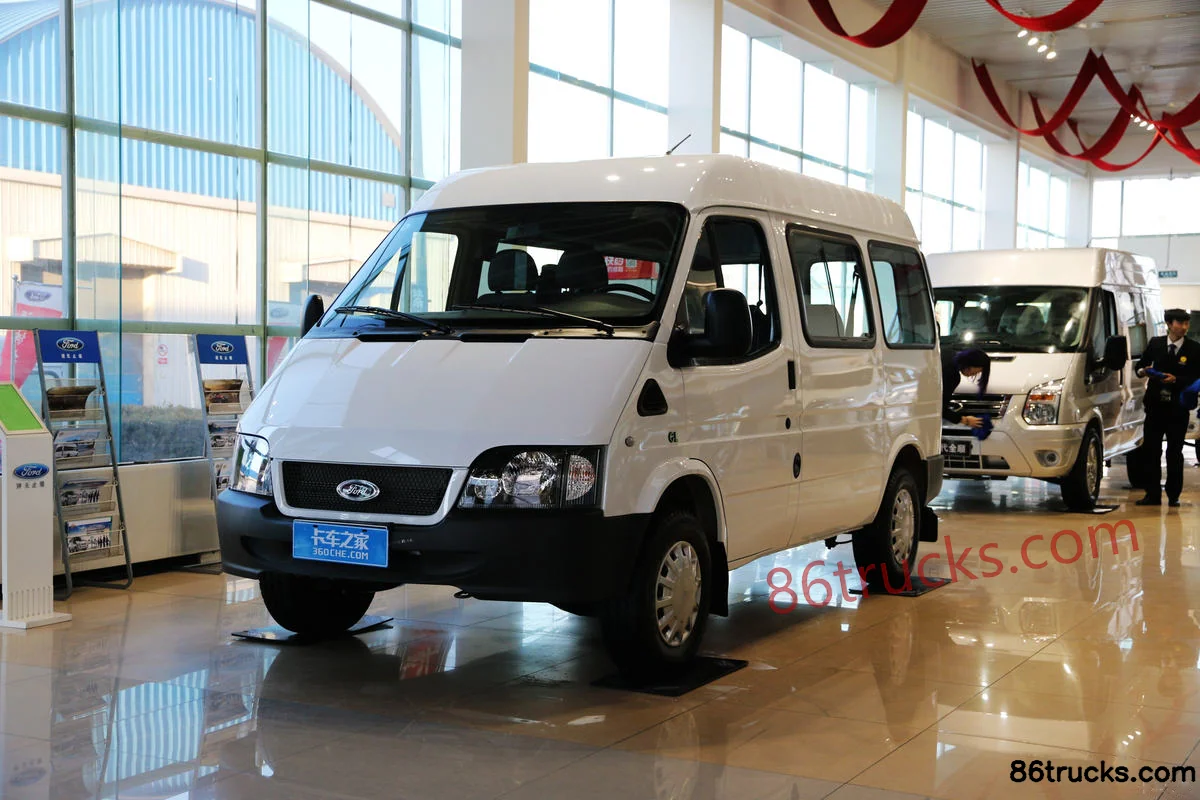

Exterior3

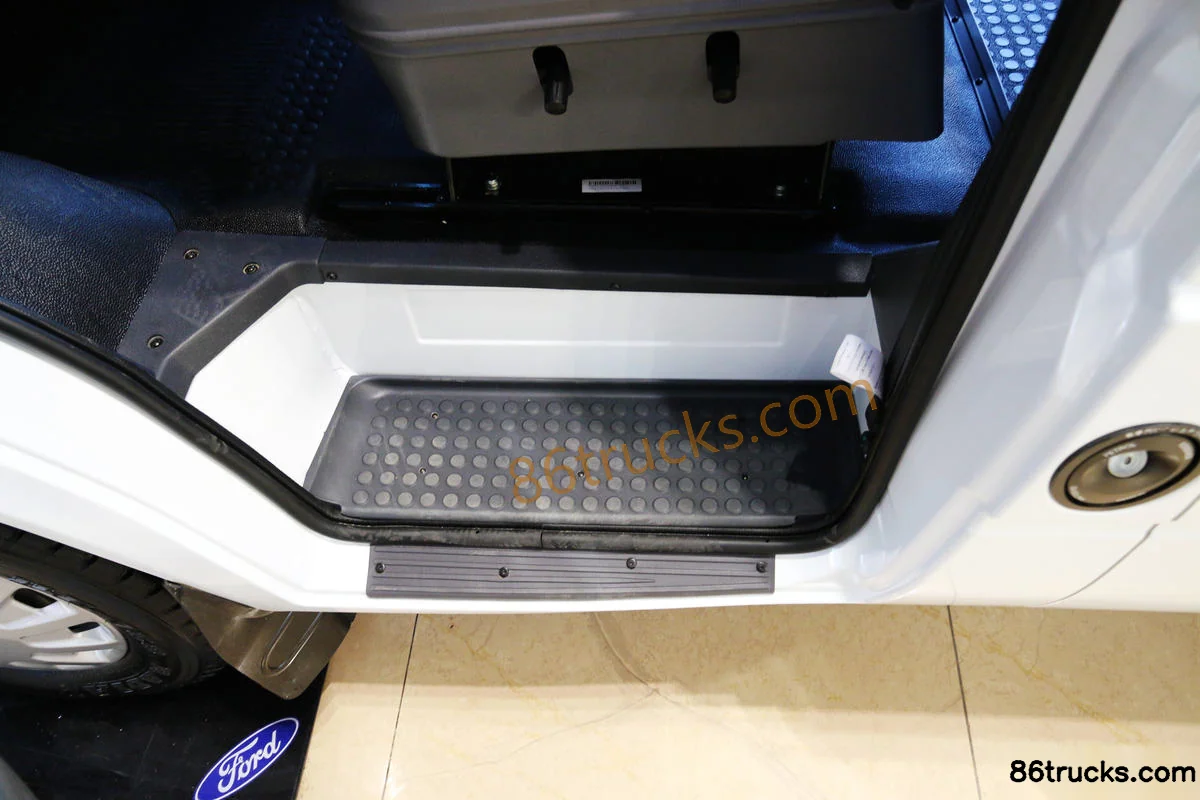

Cab3

Chassis3

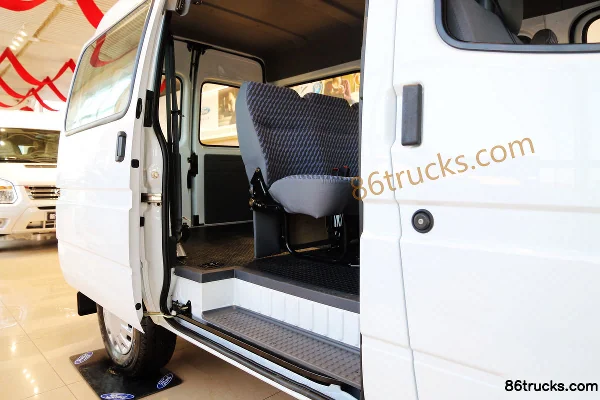

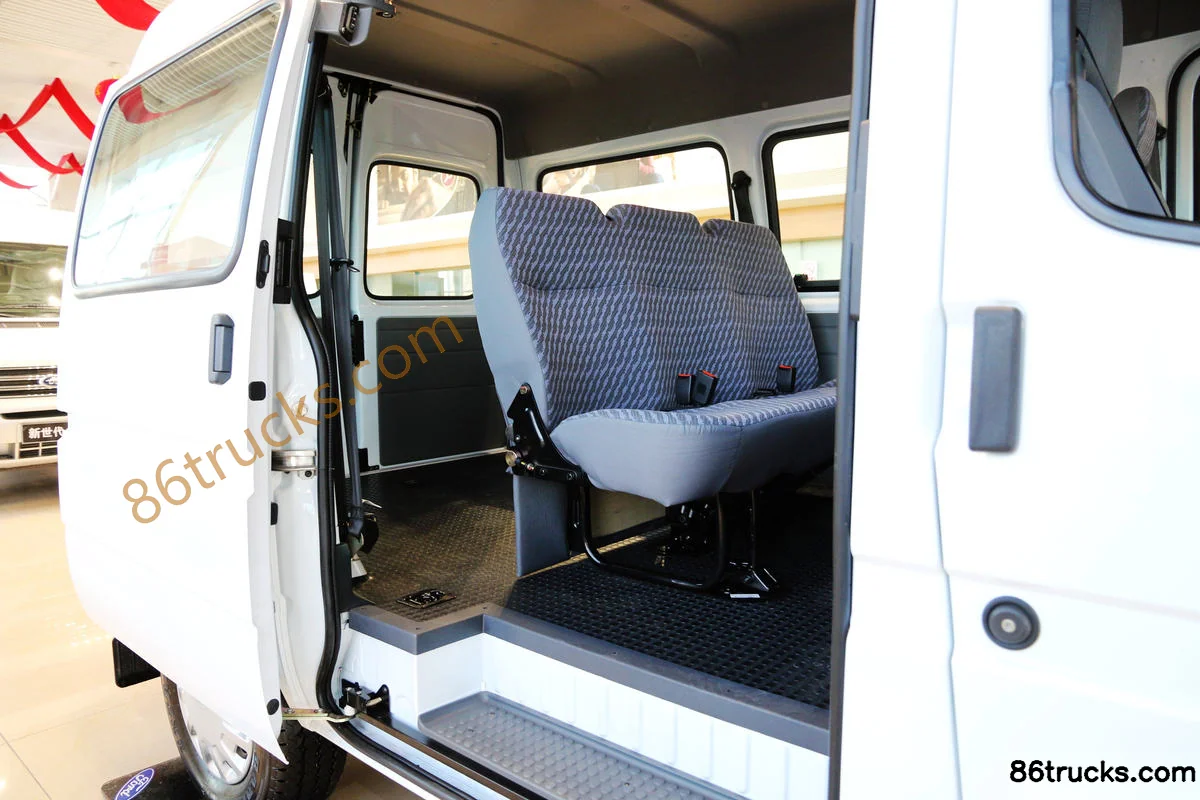

Cargo Box3

12 photos

FAQ

What is the export price of JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase), and what does it include?

JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) export reference is about From $15,681; MSRP is ¥11.29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase)?

Key specs of JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase): Drive: rear-wheel drive; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) suited for?

Match JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) differ from other variants in the same series?

JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase) belongs to JMC Classic Transit (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Classic Transit 2016 109hp Enclosed Van (Short Wheelbase)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
