NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck

Export reference
From $21,486
MSRP ¥15.47M CNY
Horsepower: 113
Fuel: Diesel
Engine: SOFIM 2.8L
Curb Weight:: 2.56ton
Wheelbase:: 3950mm
Tire Size:: 6.50R16C 6.50R16LT
seating capacity: 2Personnel
Rated payload: 2.245ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck is a Light Truck featuring 4.5m cargo length, stake body cargo body, 2Personnel volume and 2.245t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SOFIM 2.8L engine, 113 hp, 4X2 (6 wheels) drive and Diesel fuel.

113 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJ1056SJM5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3950mm
Box length class: 4.5m
engine: SOFIM 8140.43
transmission: 5-speed transmission
Cab length: 6.9m
Cab width: 2.02m
Cab height: 2.325m
Front track width: 1683mm
rear track: 1540mm
Curb Weight: 2.56ton
Rated payload: 2.245ton
GVWR: 5ton
Max. speed: 115km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
market segment: Building materials, agricultural products
Energy Type: Diesel
Engine parameters
Engine Brand: NAVECO
Engine Model: SOFIM 8140.43
Engine info: SOFIM 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Max output power: 83kW
Max hp: 113Horsepower
Max torque: 285N·m
Max torque speed: 1800rpm
Rated speed: 2800rpm
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.5m
Cargo box width: 1.94m
Cargo box height: 0.4m
*Cargo box interior width: 1.9400000572205
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
rear axle allowable load: 3250kg
Leaf spring count: -/8
Tire
Tire Size: 6.50R16C 6.50R16LT
Number of tires: 6pcs

Photos

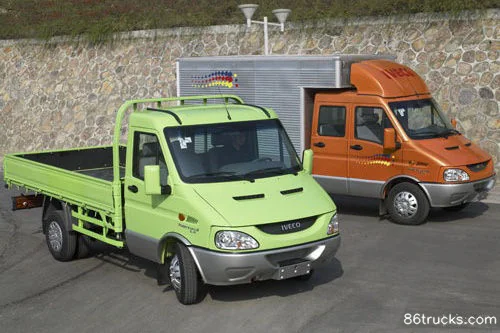

Exterior1

1 photos

FAQ

What is the export price of NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck, and what does it include?

NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck export reference is about From $21,486; MSRP is ¥15.47M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck?

Key specs of NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck: Drive: 4x2; Horsepower: 113 hp; Fuel: Diesel; Engine: SOFIM 2.8L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck suited for?

NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck differ from other variants in the same series?

NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck belongs to NAVECO Ouba Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NAVECO Ouba 113hp 4X2(6 wheels) 4.5m single-row panel cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
