FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh

Export reference
From $16,778
MSRP ¥12.08M CNY
Wheelbase:: 2800mm
Model code (announced):: CA5021XXYEVH4
Cab length:: 4.405m
GVWR:: 2.35ton
Max. speed:: 120km/h
Version:: Logistics Edition
CLTC range: 260km
Motor 1 Brand: Zhongke Shenjiang
Curb Weight: 1.46ton
Rated payload: 0.76ton

Overview

The FAW Jilin FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh is a Electric Panel Van featuring 260km battery/range, Zhongke Shenjiang motor, 0.76t payload and 2.35t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5021XXYEVH4
Wheelbase: 2800mm
Cab length: 4.405m
Cab width: 1.68m
Cab height: 1.91m
CLTC range: 260km
Curb Weight: 1.46ton
Rated payload: 0.76ton
GVWR: 2.35ton
Max. speed: 120km/h
Version: Logistics Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Zhongke Shenjiang
Motor 1 Model: SJ2103P030-L1
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
Battery/Charging
Charging method: Fast charge, slow charge
Battery type: NMC lithium battery pack
fast charge time: 2h
Battery capacity: 40kWh
Energy Density: 122.98
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
Tailgate type: single door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/75R14C
Rear Wheel Specification: 175/75R14C
Cab parameters
Seat rows:
Safety features
Central door lock:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Seat material: Fabric
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:

Photos

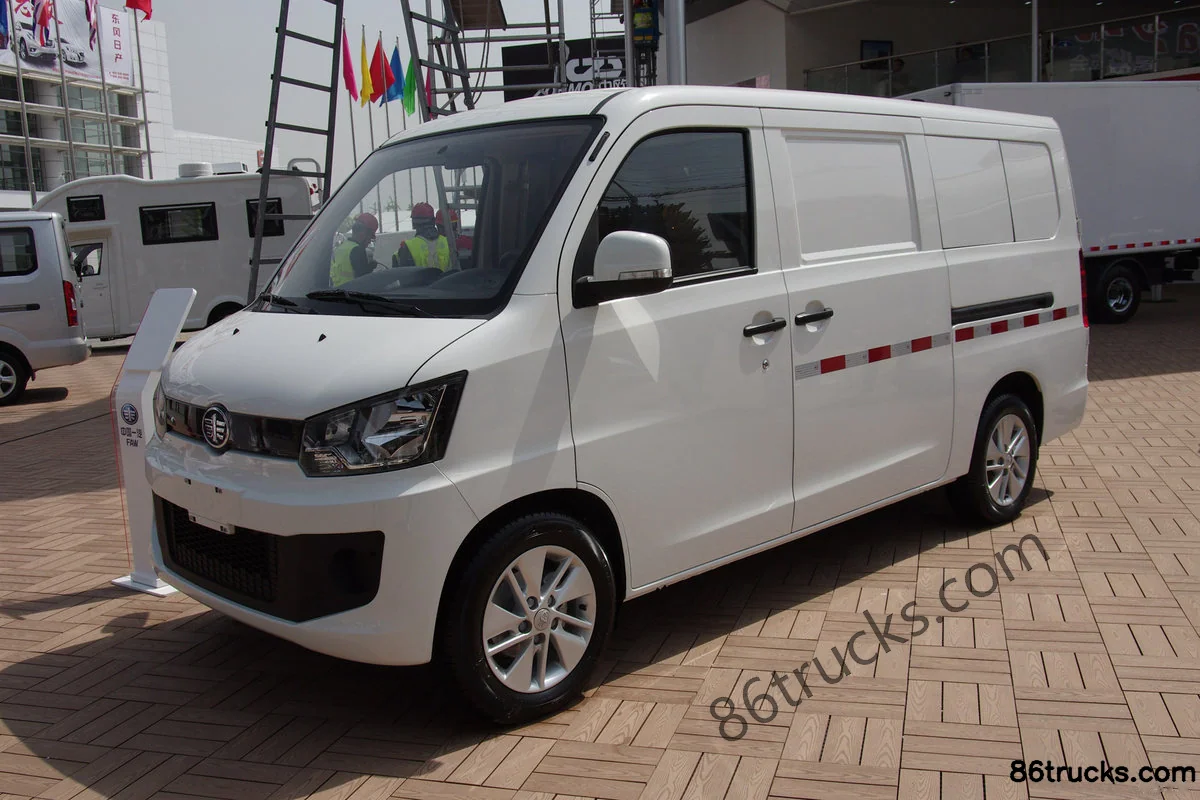

Exterior1

1 photos

FAQ

What is the export price of FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh, and what does it include?

FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh export reference is about From $16,778; MSRP is ¥12.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh suited for?

FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh differ from other variants in the same series?

FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh belongs to FAW Jilin Jiabao V (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiabao V80L EV 2019 Logistics Edition 2.4T 4.41m Electric Panel Van 40kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
