Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck

Export reference
MSRP N/A
Horsepower: 290
Emission: China VI
Fuel: Diesel
Engine: Sinotruk6.9L
Transmission: Fast Gear
Curb Weight:: 7.88ton
Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck is a Medium-duty truck featuring 5.4m cargo length, Van body cargo body, 2Personnel volume and 9.925t payload. On the powertrain side, it comes with a Sinotruk6.9L engine, 290 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 290 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 5.4m
engine: SinotrukMC07.29-61
transmission: Fast Gear8JSX110TC
Rear Axle Ratio: 4.11
Cab length: 6.995m
Cab width: 2.4m
Cab height: 2.56m
Front track width: 1795mm
rear track: 1695mm
Curb Weight: 7.88ton
Rated payload: 9.925ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.28/1.965m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.29-61
Engine info: Sinotruk6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China VI
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1200N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Transmission Parameters
Transmission Model: Fast Gear8JSX110TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.4m
Cargo box width: 2.2m
Cargo box height: 2.2m
*Cargo box interior width: 2.2
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 3/5+3,11/9+7
Tire
Tire Size: 10.00R20 18PR,11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

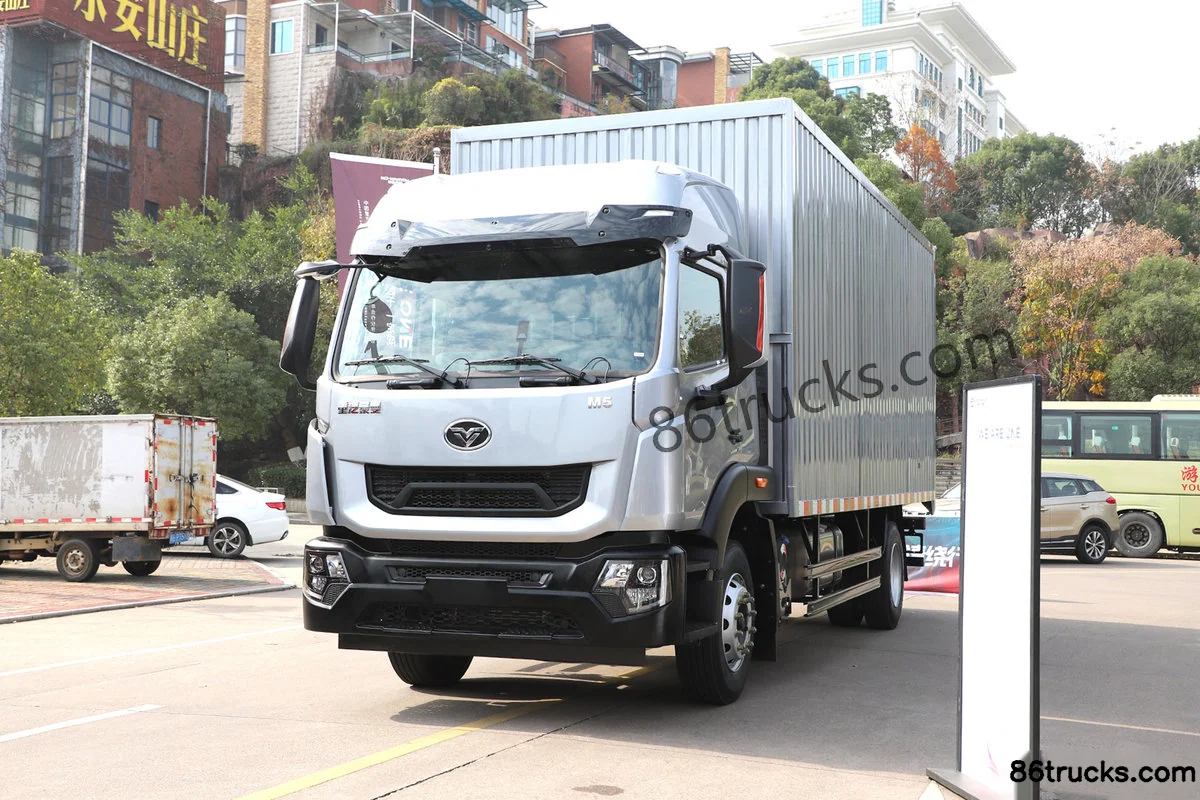

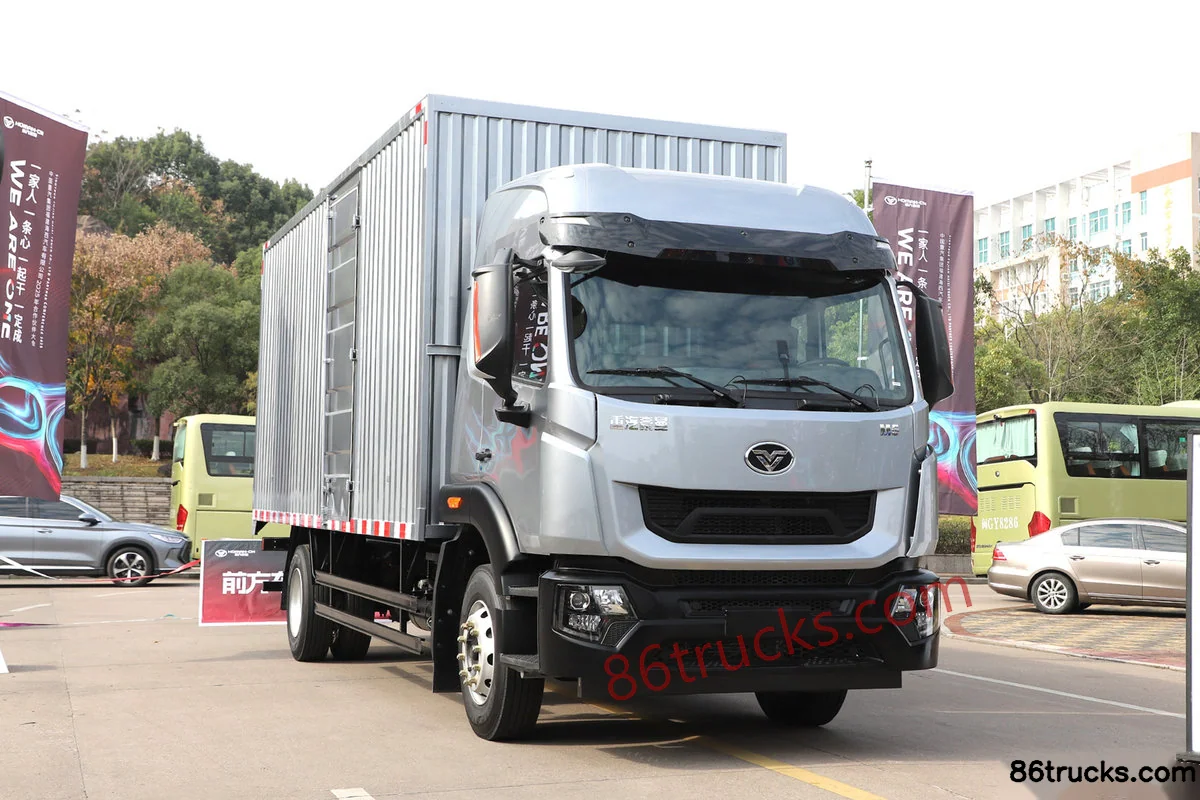

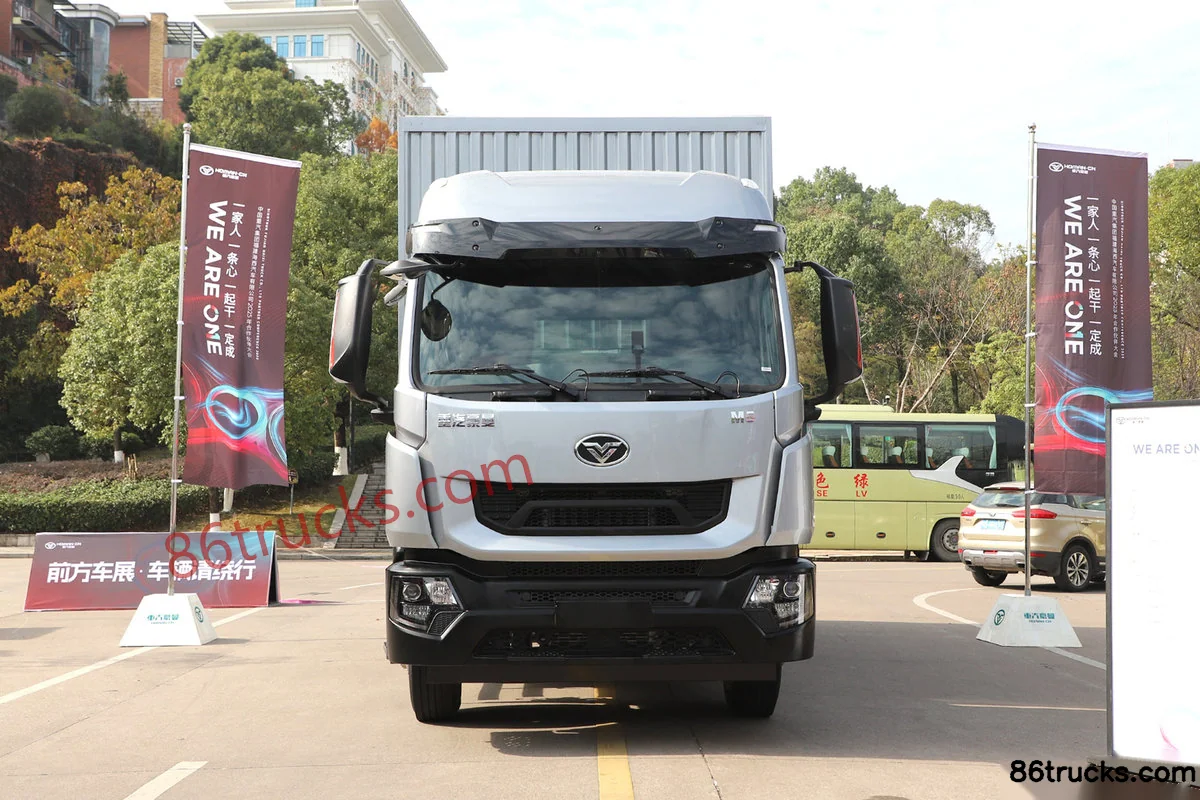

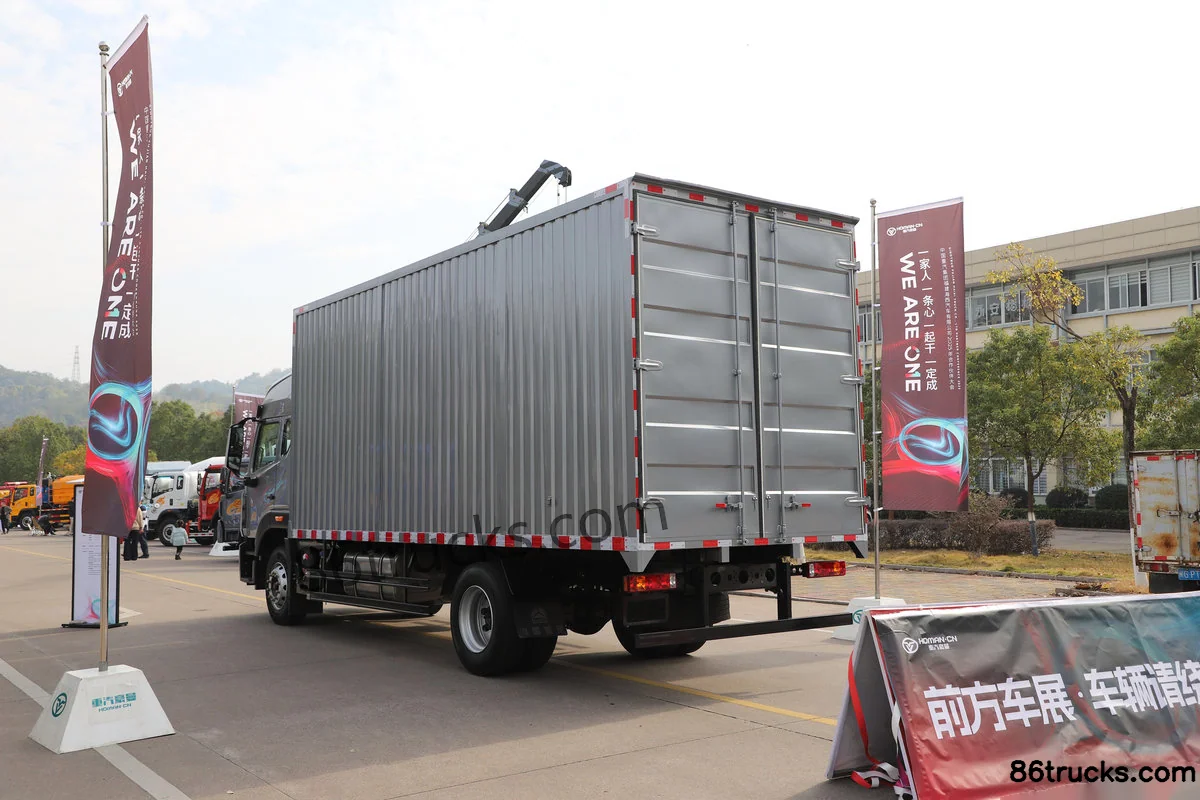

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Exterior (1) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Exterior (2) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Exterior (3) | 86Trucks

Cab3

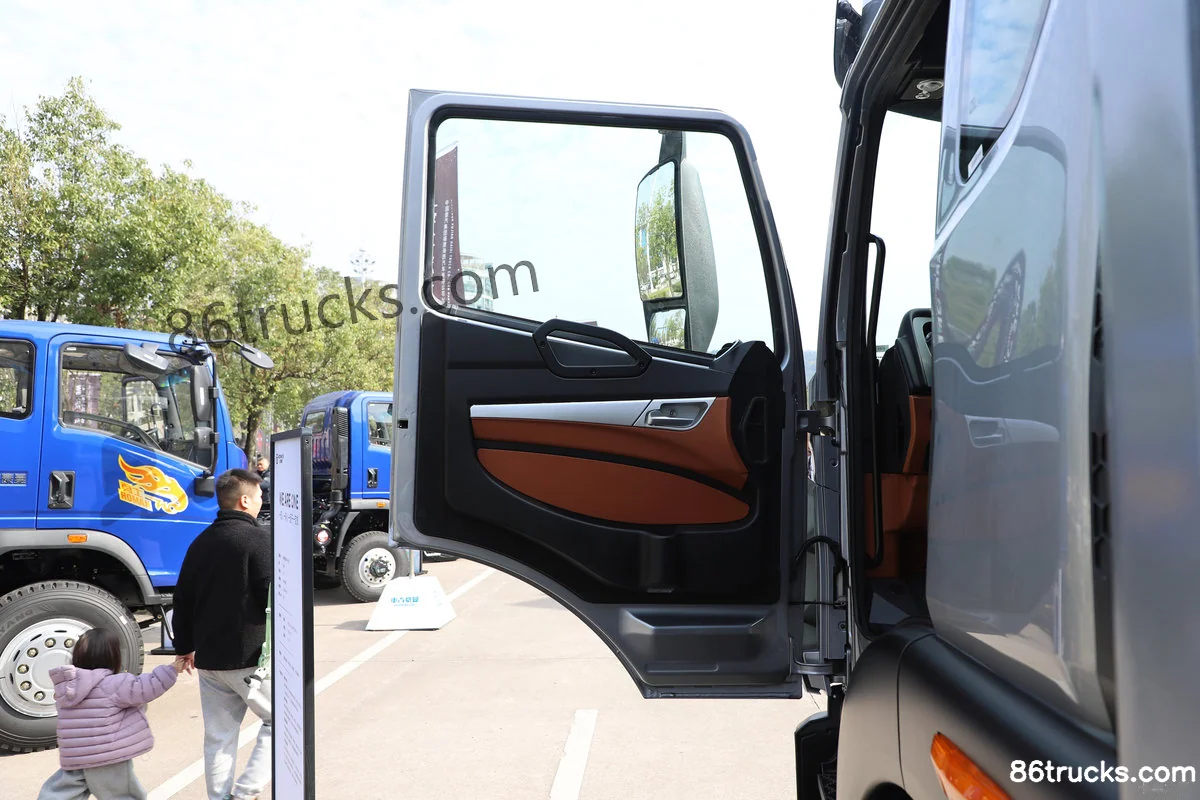

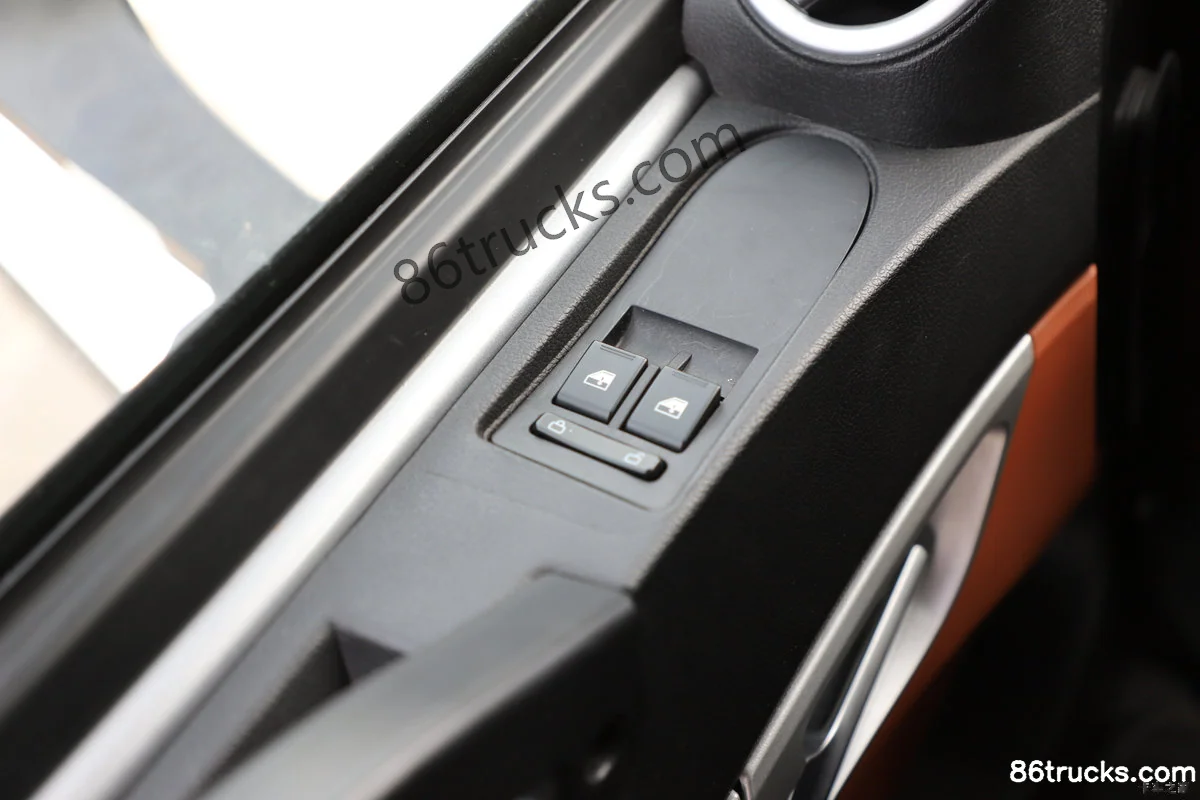

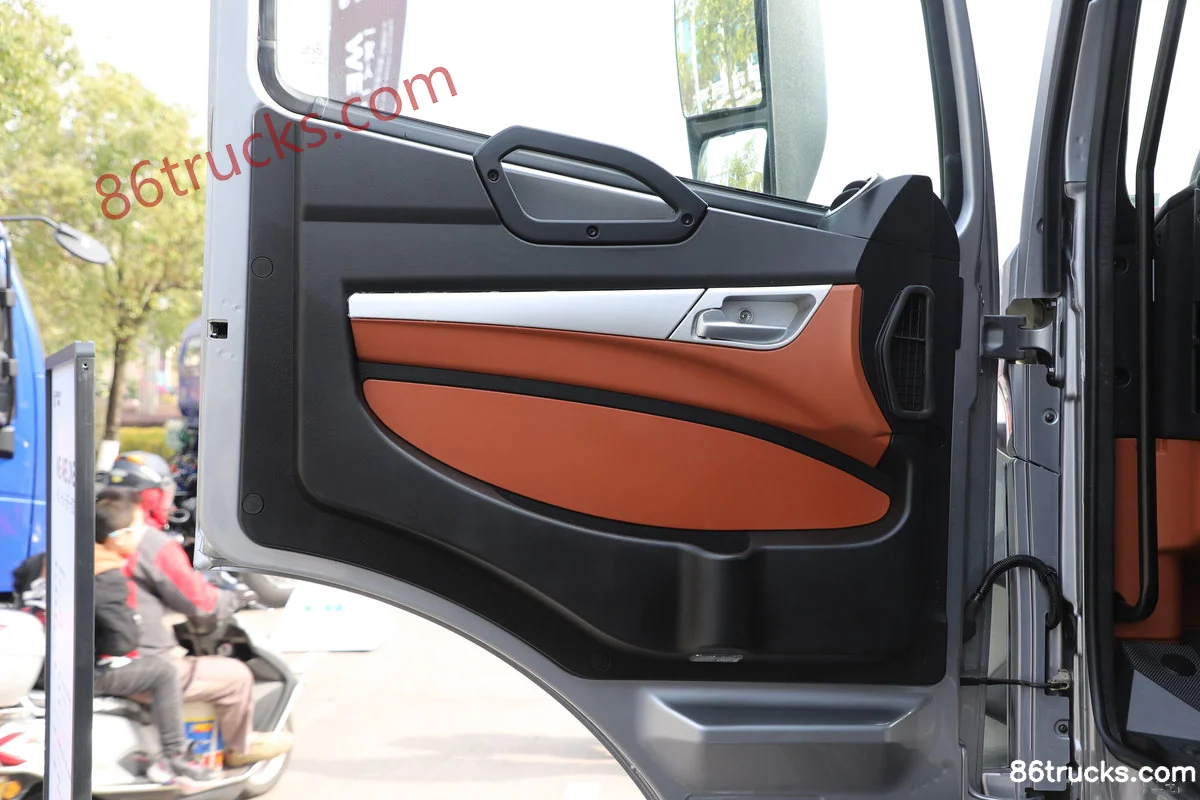

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Cab (1) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Cab (2) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Cab (3) | 86Trucks

Chassis3

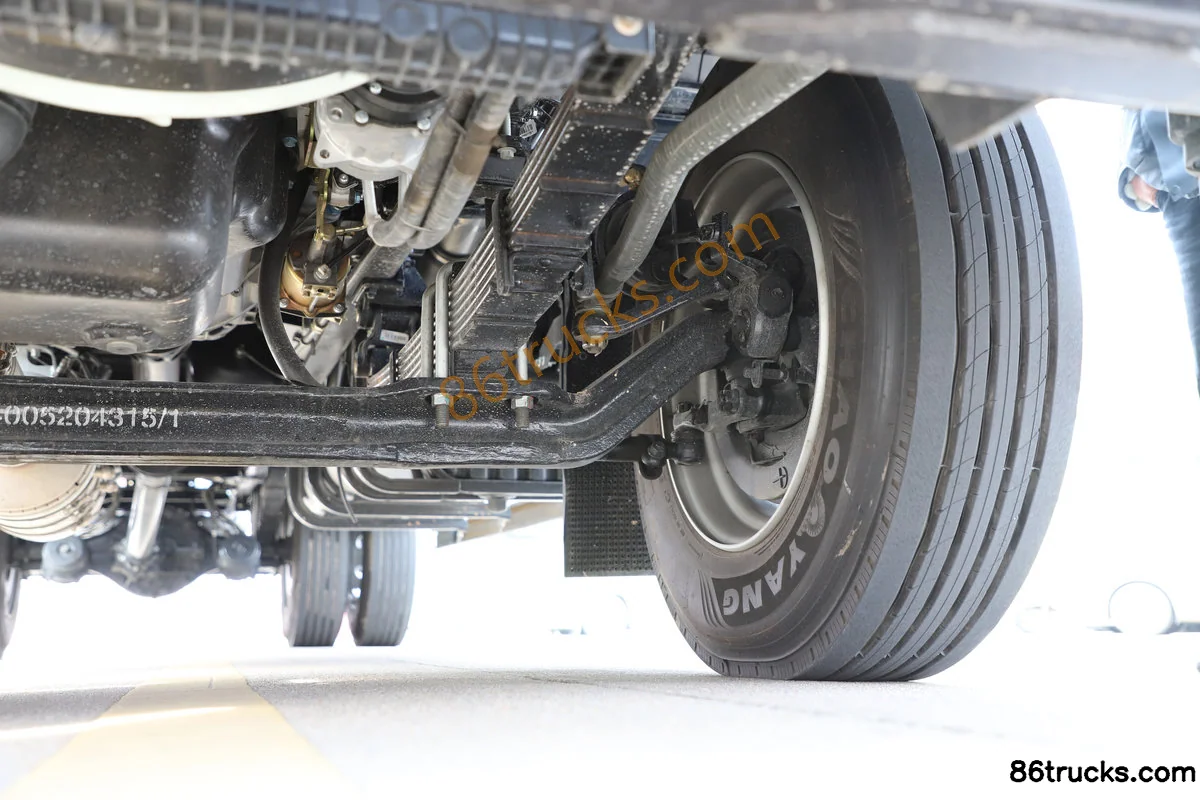

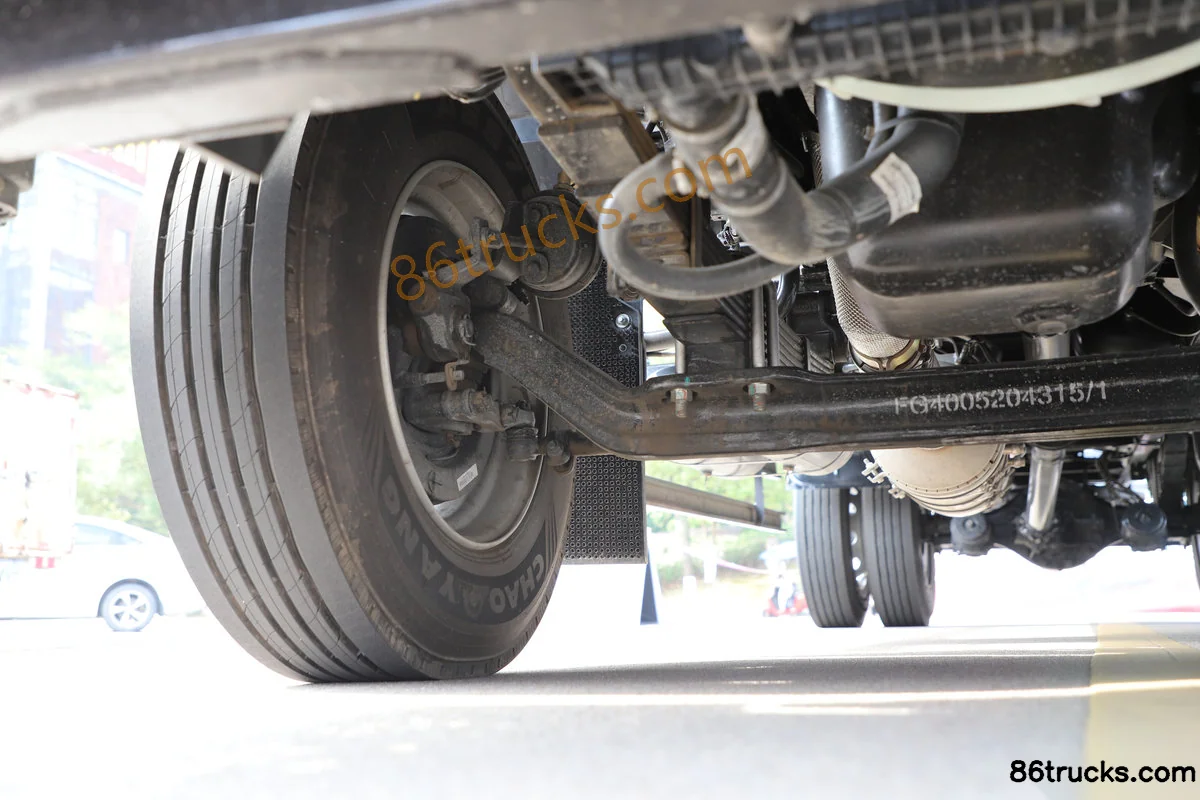

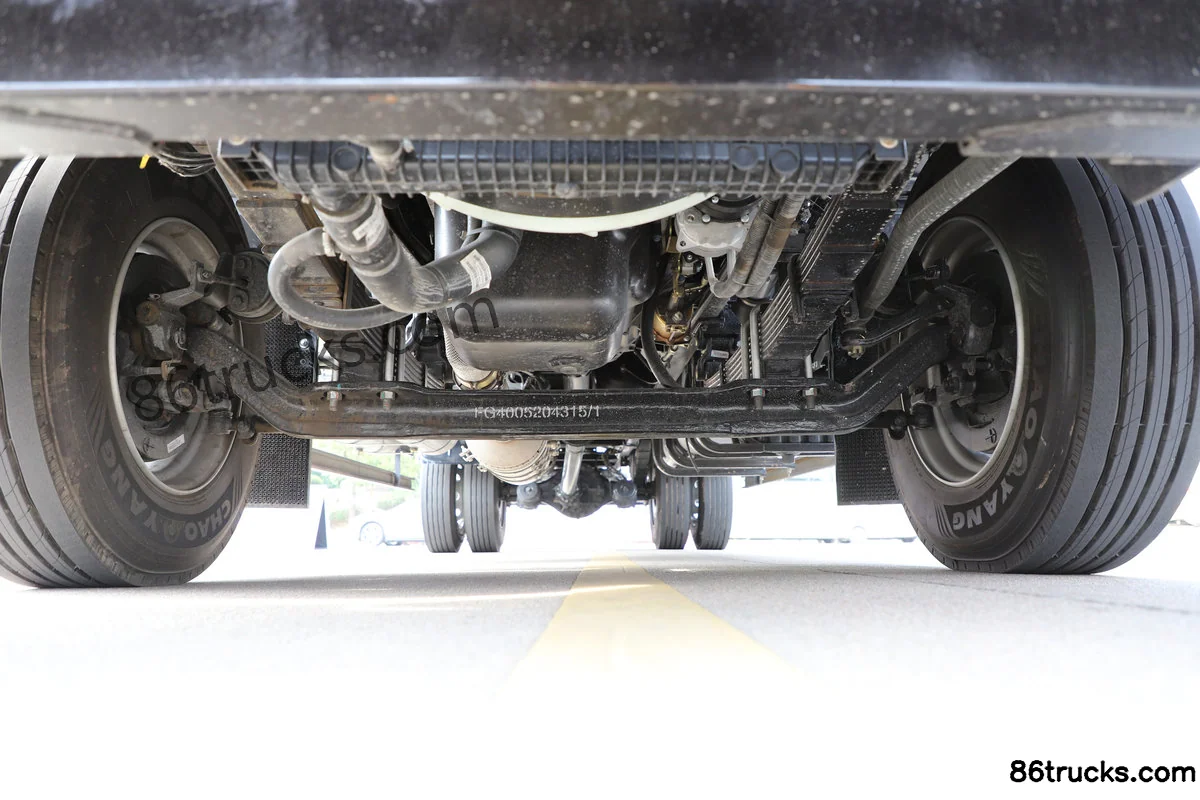

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Chassis (1) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Chassis (2) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Chassis (3) | 86Trucks

Body3

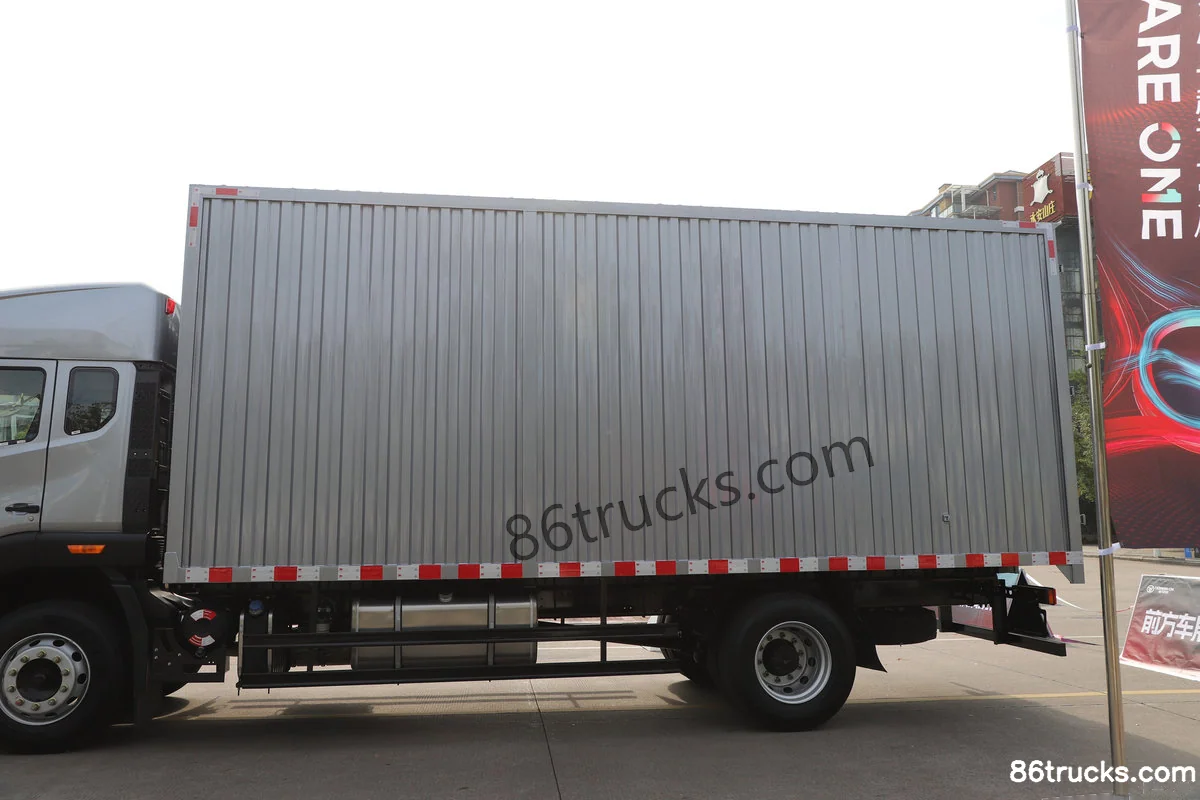

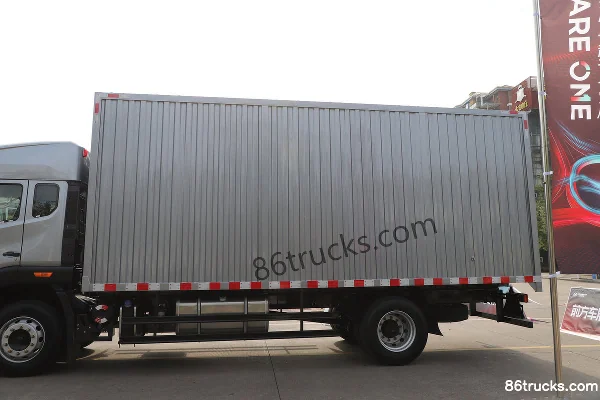

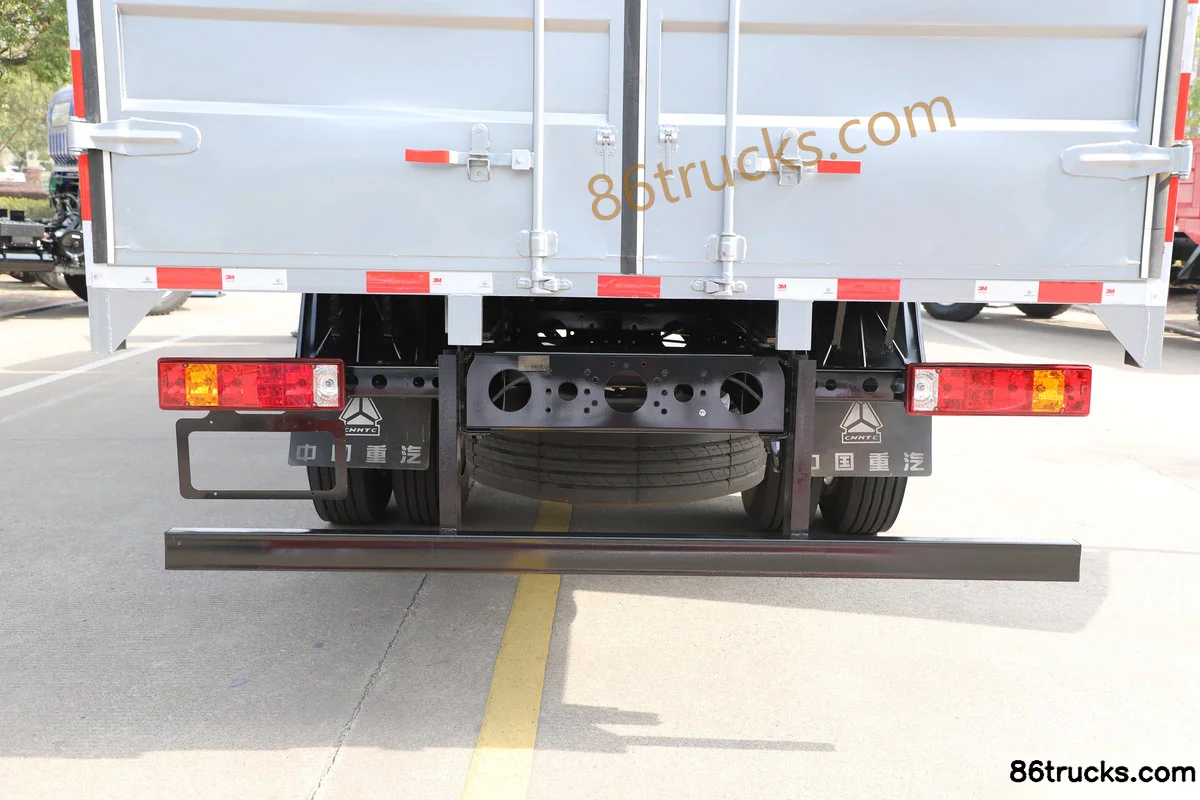

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Body (1) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Body (2) | 86Trucks Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck?

Key specs of Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck: Drive: 4x2; Horsepower: 290 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck suited for?

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck differ from other variants in the same series?

Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck belongs to Sinotruk M5 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk MAN M5 Medium Truck 290hp 4X2(6 wheels) 5.4m Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
