Foton Leisha 25 ton crane truck (FTC25Q5)

Export reference
MSRP N/A
Model:: FTC25Q5
Max travel speed:: 80km/h
Max gradeability:: 40%
Min turning radius:: 11m
Approach/departure angle:: 9/12.5°
Min ground clearance:: 235cm
Foton Leisha 25 ton crane truck (FTC25Q5) exterior
View more photos (6)
Operating weight: 25ton
Max output power: 199kW
Wheelbase: 4525+1350mm
Machine dimensions: L×W×H: 12.75X2.5X3.58m

Overview

The Loxa Heavy Machinery Foton Leisha 25 ton crane truck (FTC25Q5) is a crane truck featuring 25ton GVW and 199kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 12.75X2.5X3.58m
Model: FTC25Q5
Operating weight: 25ton
Wheelbase: 4525+1350mm
total counterweight: 32.4ton
Max travel speed: 80km/h
Max gradeability: 40%
Min turning radius: 11m
Approach/departure angle: 9/12.5°
Min ground clearance: 235cm
Lifting capacity
Rated lifting capacity: 25ton
Min working radius: 3m
Max lift height - base boom: 11.2m
Max lift height: 41.2m
Max lifting height - main boom + jib: 50.2m
Boom length - main boom: 10.7m
Boom length - fully extended: 41.2m
Boom length - main boom + jib: 49.5m
auxiliary jib length: 8.3m
Operating Parameters
Swing Speed: 2.3r/min
Max hoisting speed of main winch: 130m/min
Auxiliary winch max lift speed: 130m/min
Outrigger span: longitudinal × lateral: 5.35x6.2m
Engine parameters
Engine Model: WeichaiWP7.270E51
Max output power: 199kW
Rated speed: 2100rpm

Photos

Exterior3

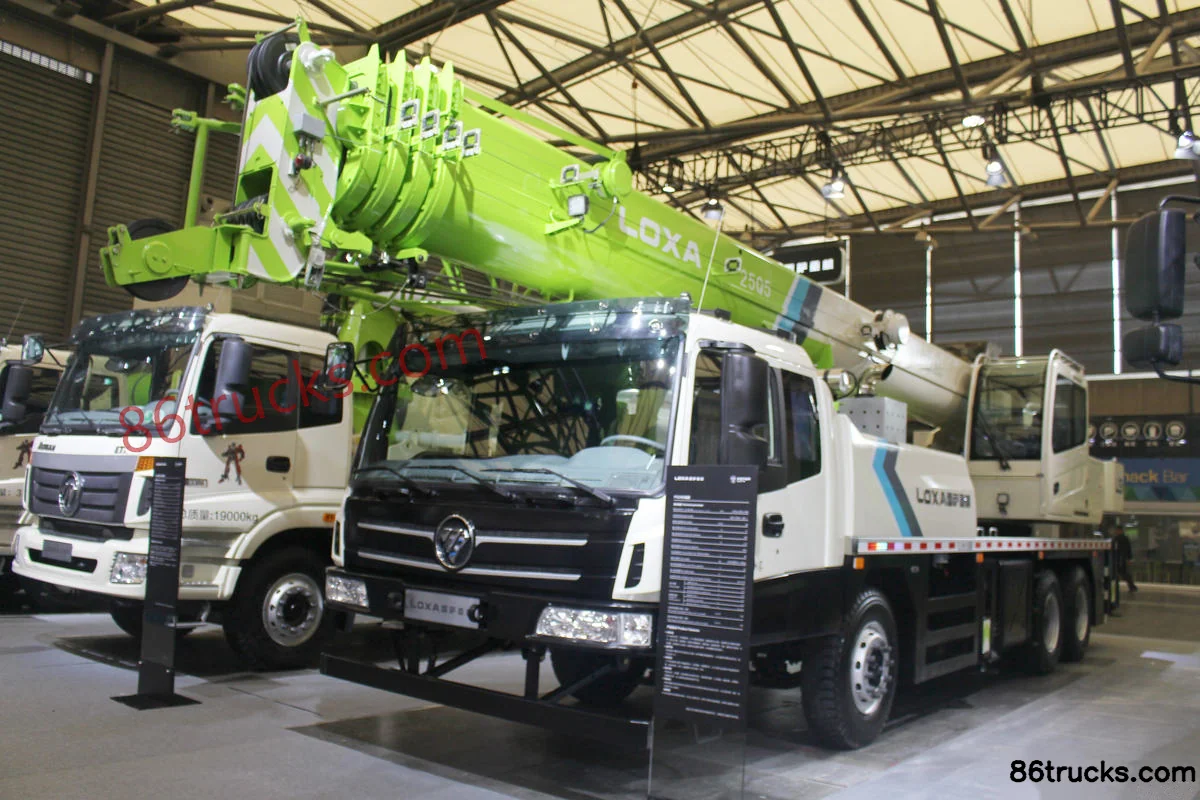

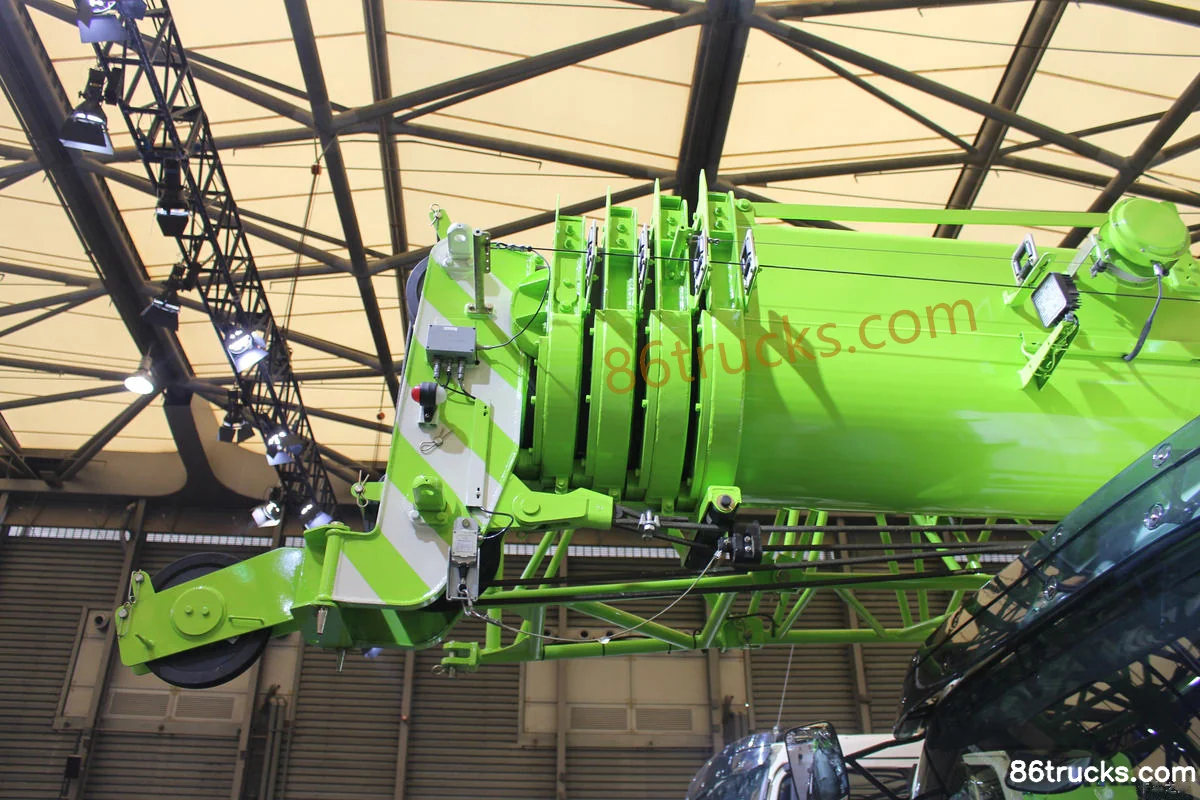

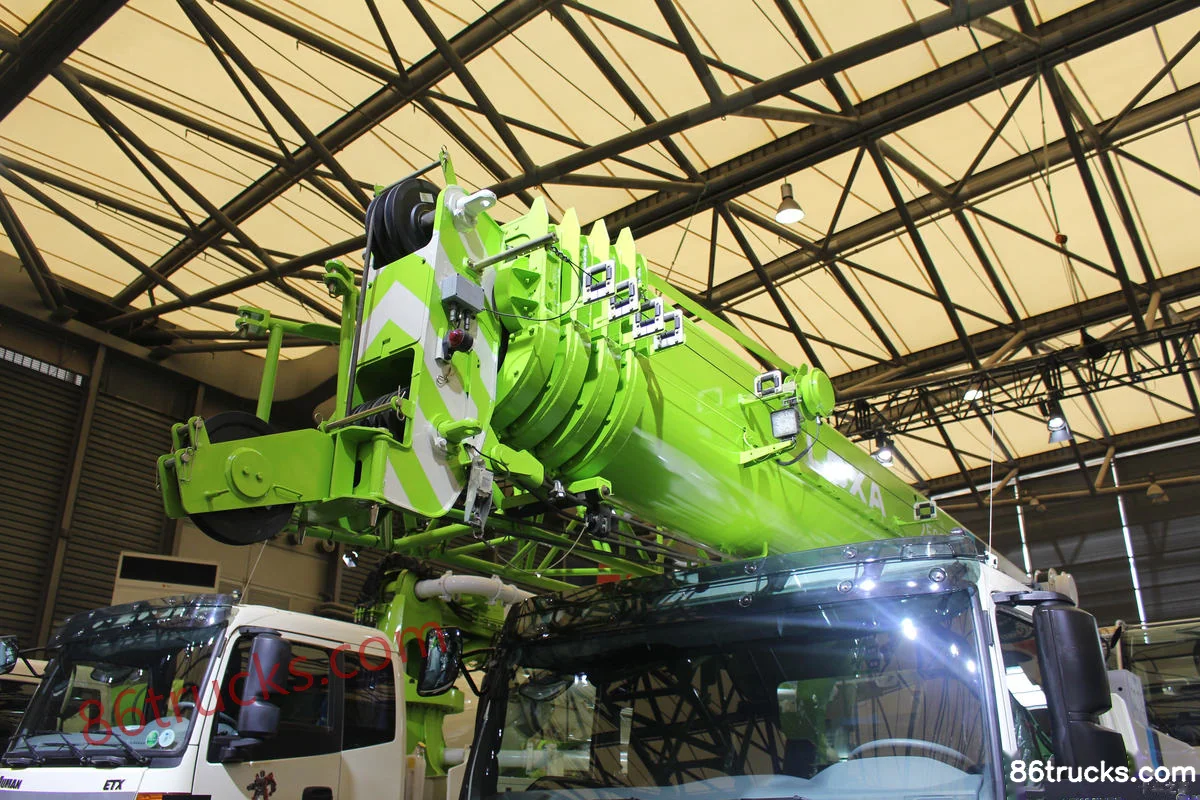

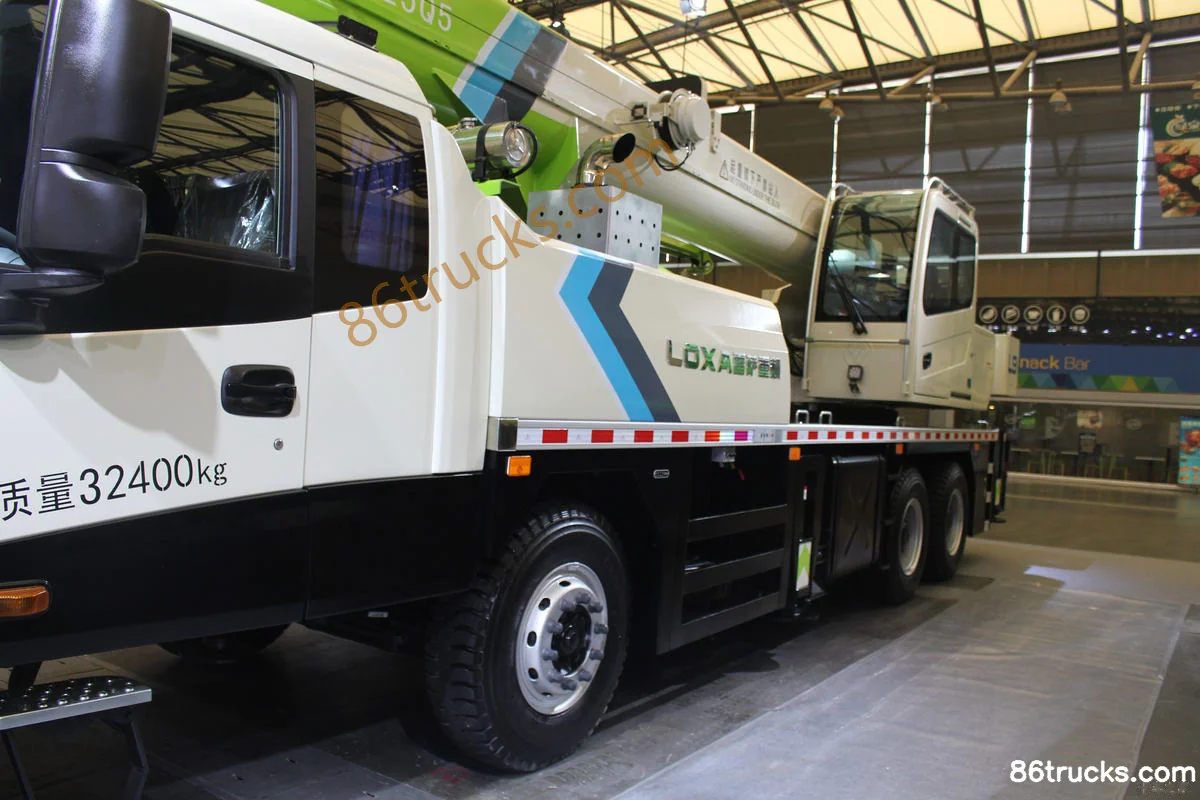

Foton Leisha 25 ton crane truck (FTC25Q5) Exterior (1) | 86Trucks Foton Leisha 25 ton crane truck (FTC25Q5) Exterior (2) | 86Trucks Foton Leisha 25 ton crane truck (FTC25Q5) Exterior (3) | 86Trucks

Chassis3

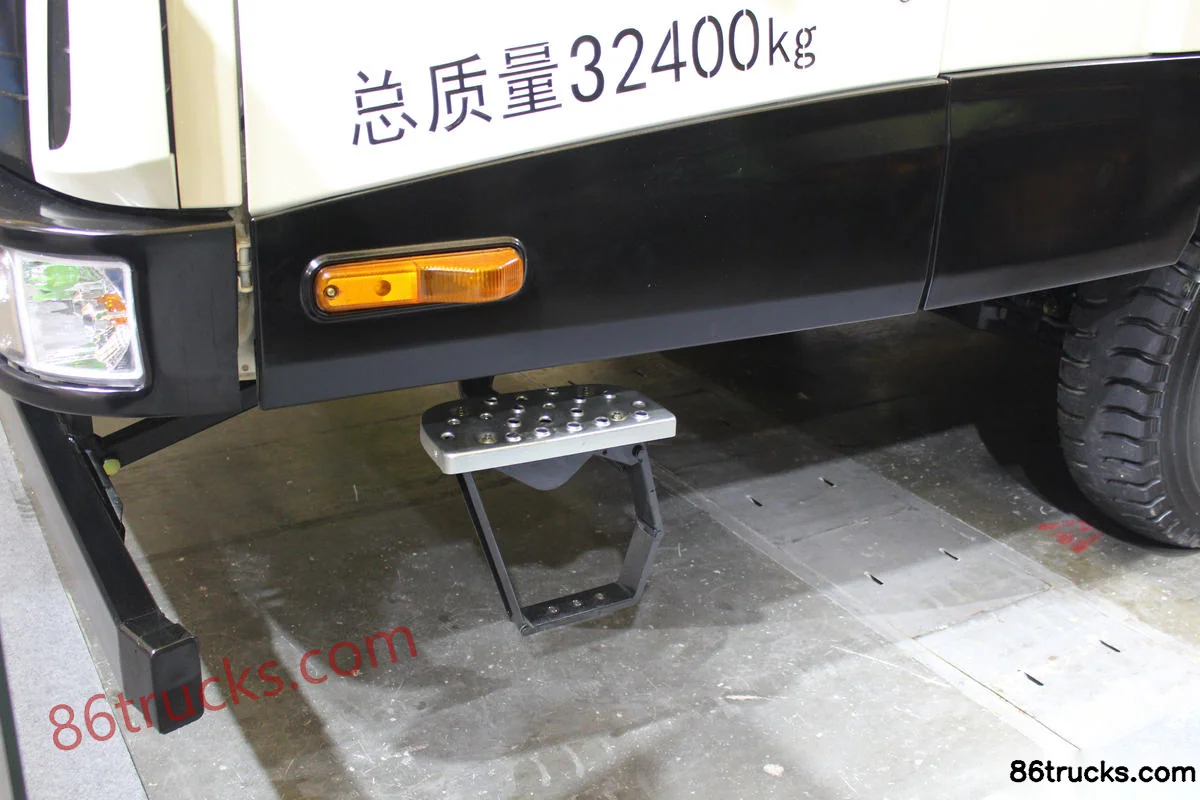

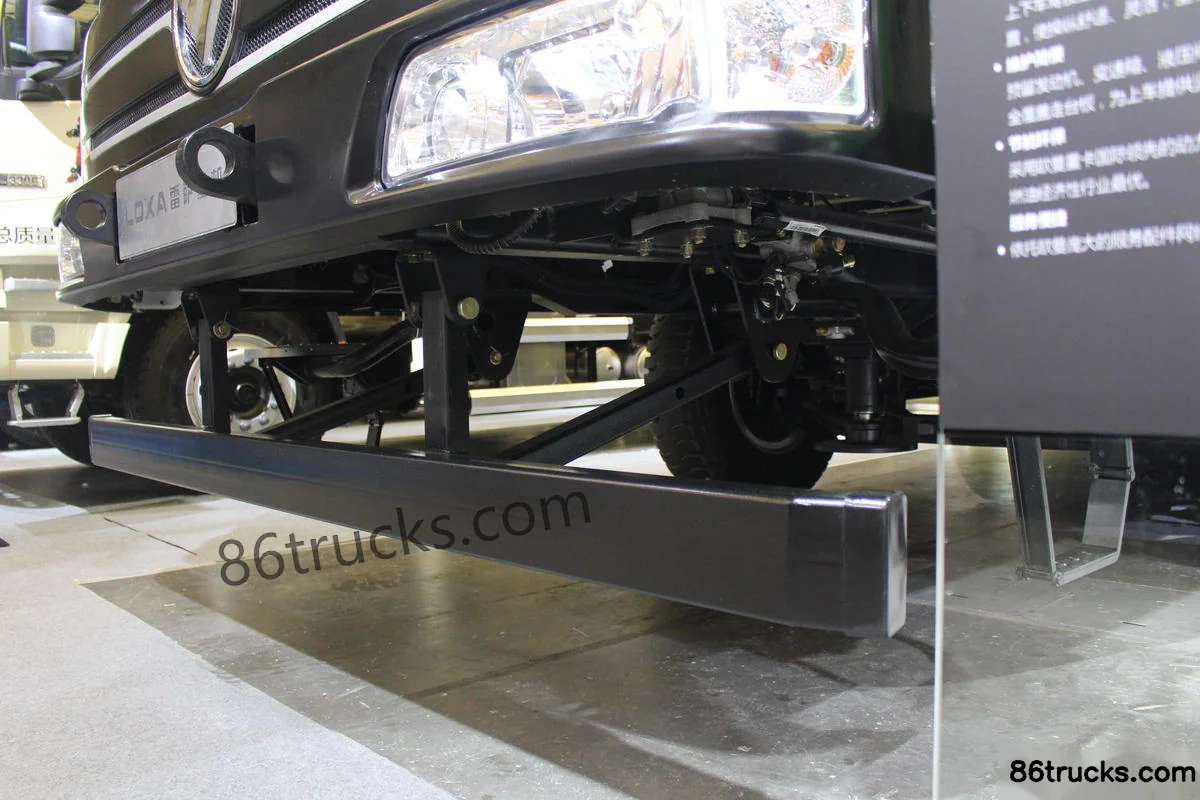

Foton Leisha 25 ton crane truck (FTC25Q5) Chassis (1) | 86Trucks Foton Leisha 25 ton crane truck (FTC25Q5) Chassis (2) | 86Trucks Foton Leisha 25 ton crane truck (FTC25Q5) Chassis (3) | 86Trucks

6 photos

FAQ

What transport jobs is Foton Leisha 25 ton crane truck (FTC25Q5) suited for?

Foton Leisha 25 ton crane truck (FTC25Q5) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Leisha 25 ton crane truck (FTC25Q5) differ from other variants in the same series?

Foton Leisha 25 ton crane truck (FTC25Q5) belongs to Loxa Heavy Machinery Loxa (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Leisha 25 ton crane truck (FTC25Q5)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Leisha 25 ton crane truck (FTC25Q5)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
