Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4200mm
Cab dimensions:: 6.785×2.5×3.3m
Type:: garbage truck with swing arm
Front/rear track width:: Front track: 1882mm; Rear track: 1720mm
GVWR:: 14.055ton
Drive 4X2 (6 wheels)
Horsepower 156
Rated mass: 7.56ton
Emission China V

Overview

The Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck is a garbage truck featuring 14.055t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E2 engine, 156 hp, China V emissions and Diesel fuel.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.785×2.5×3.3m
Type: garbage truck with swing arm
Drive type: 4X2
Wheelbase: 4200mm
Front/rear track width: Front track: 1882mm; Rear track: 1720mm
Rated mass: 7.56ton
GVWR: 14.055ton
Front/rear suspension: 1.27/1.715m
Energy Type: Diesel
Engine parameters
Engine Model: Yunnei PowerYNF40E2
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Rated speed: 2600rpm
Body Parameters
Vehicle certification code: FD5141ZBSP63K5
Body Brand: Feidi
Chassis Specs
Chassis Brand: Feidi
Chassis Series: Aochi D Series
Chassis Model: FD1141P63K5
rear axle description: 8 tons
Leaf spring count: 8/8+8,8/10+7,10/12+9
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed with auxiliary transmission
Cab parameters
Cab: Wide-body D3 crew cab
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs

Photos

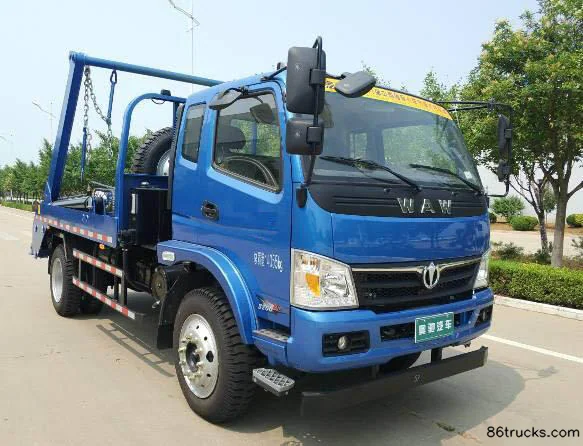

Exterior1

1 photos

FAQ

What emission standard does Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck?

Key specs of Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck suited for?

Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck differ from other variants in the same series?

Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck belongs to Aochi D Series Light Truck (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi D3 156 hp 4X2(6 wheels) Swing Arm Garbage Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
