Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh

Export reference
MSRP N/A
Wheelbase:: 2350mm
Cargo box volume:: 2.6
Model code (announced):: HDY5010XXYBEV06
Cab length:: 3.49m
GVWR:: 1.45ton
Max. speed:: 71km/h
Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh exterior
View more photos (11)
CLTC range: 200km
Motor 1 Brand: Minxian
Curb Weight: 0.91ton
Rated payload: 0.41ton

Overview

The Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh is a Electric Panel Van featuring 200km battery/range, Minxian motor, 0.41t payload and 2.6 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HDY5010XXYBEV06
Wheelbase: 2350mm
Cab length: 3.49m
Cab width: 1.465m
Cab height: 1.685m
CLTC range: 200km
Curb Weight: 0.91ton
Rated payload: 0.41ton
GVWR: 1.45ton
Max. speed: 71km/h
Front/rear suspension: 0.48/0.66m
Version: Fortune Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Minxian
Motor 1 Model: TZ145MEMX7.5
Max torque: 24N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 7.5kW
Peak power: 15kW
total peak torque: 90N·m
Battery/Charging
Battery Brand: Ganfeng
Charging method: Constant Flow
Battery type: Lithium Iron Phosphate Battery
fast charge time: 8h
Battery capacity: 20.72kWh
Body parameters
Cargo box volume: 2.6
Max body depth: 1.62
Max body width: 1.265
Cargo Box Height: 1.125
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 3
side door type: Sliding side door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70R13
Rear Wheel Specification: 165/70R13
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power Windows:
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:

Photos

Exterior3

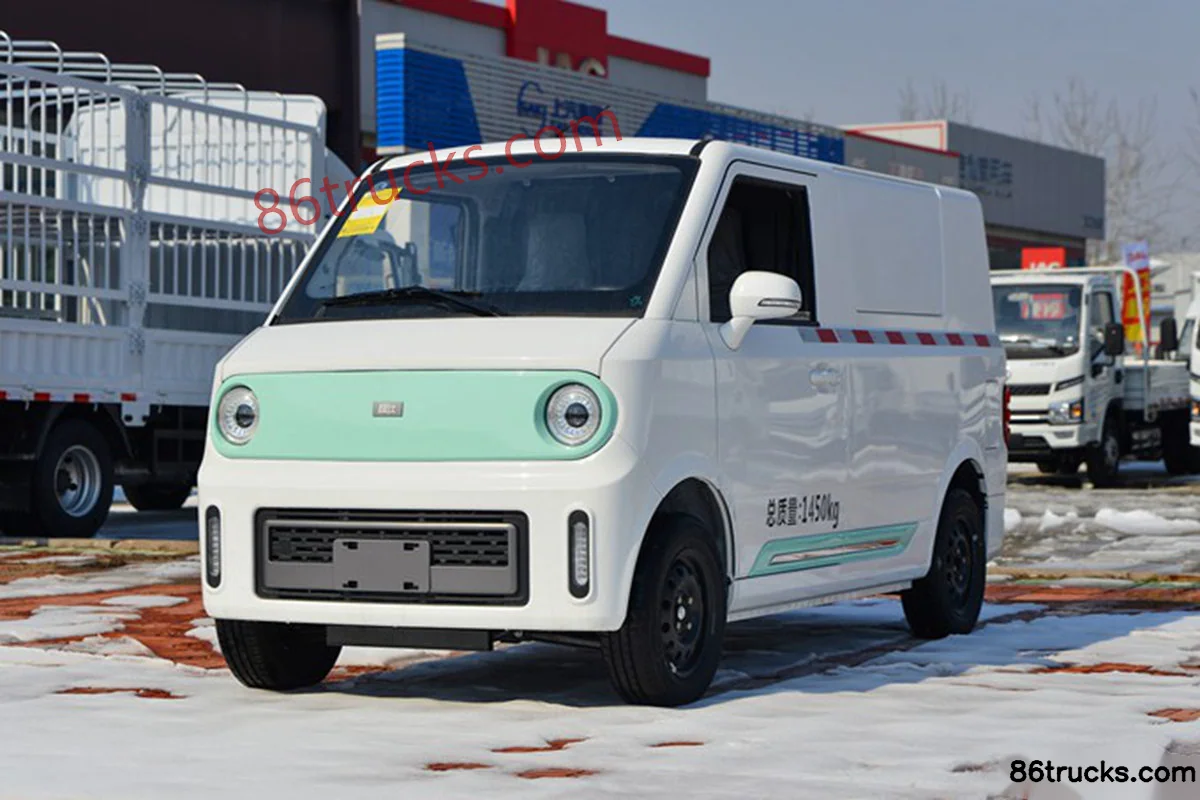

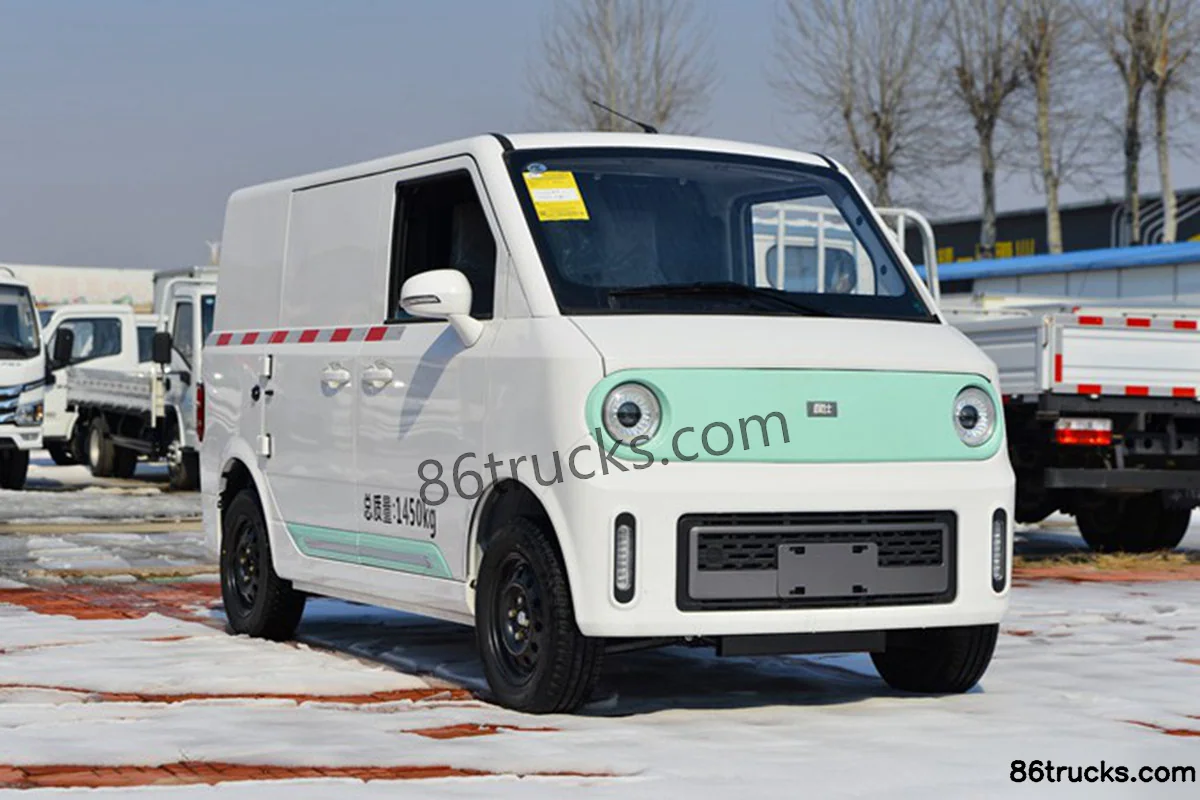

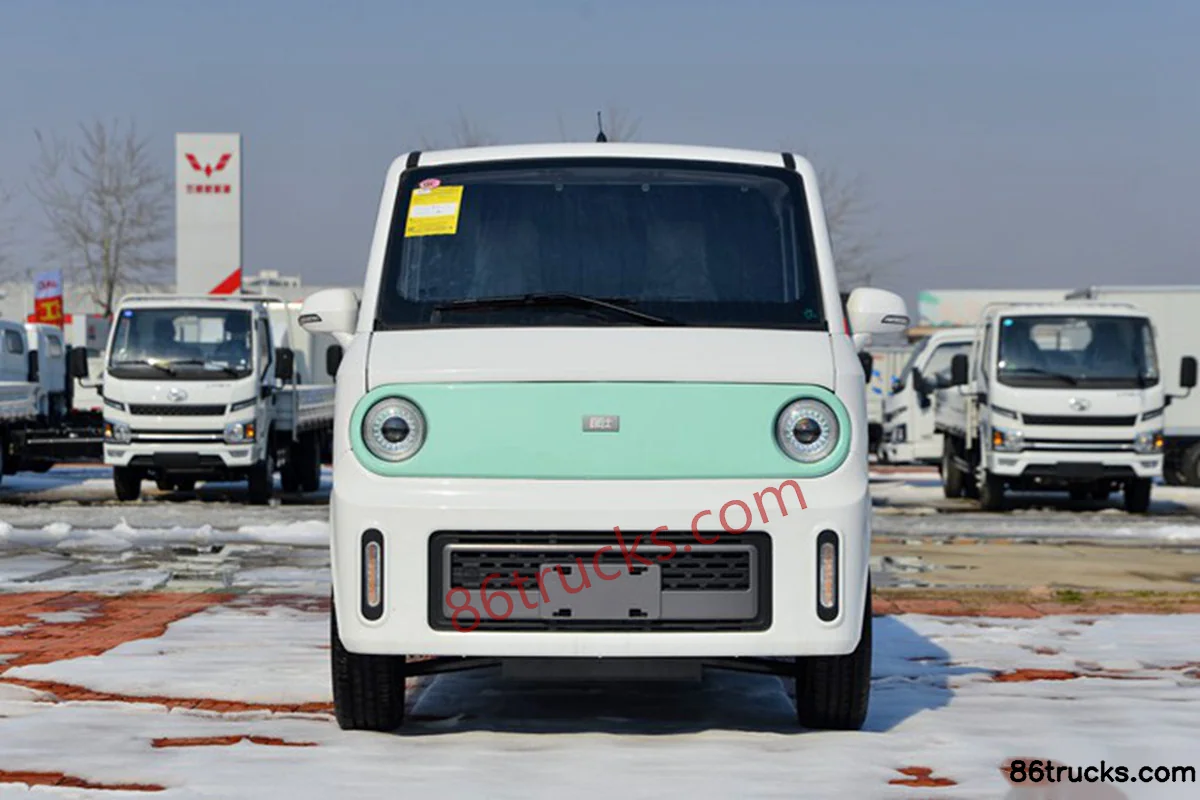

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Exterior (1) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Exterior (2) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Exterior (3) | 86Trucks

Cab3

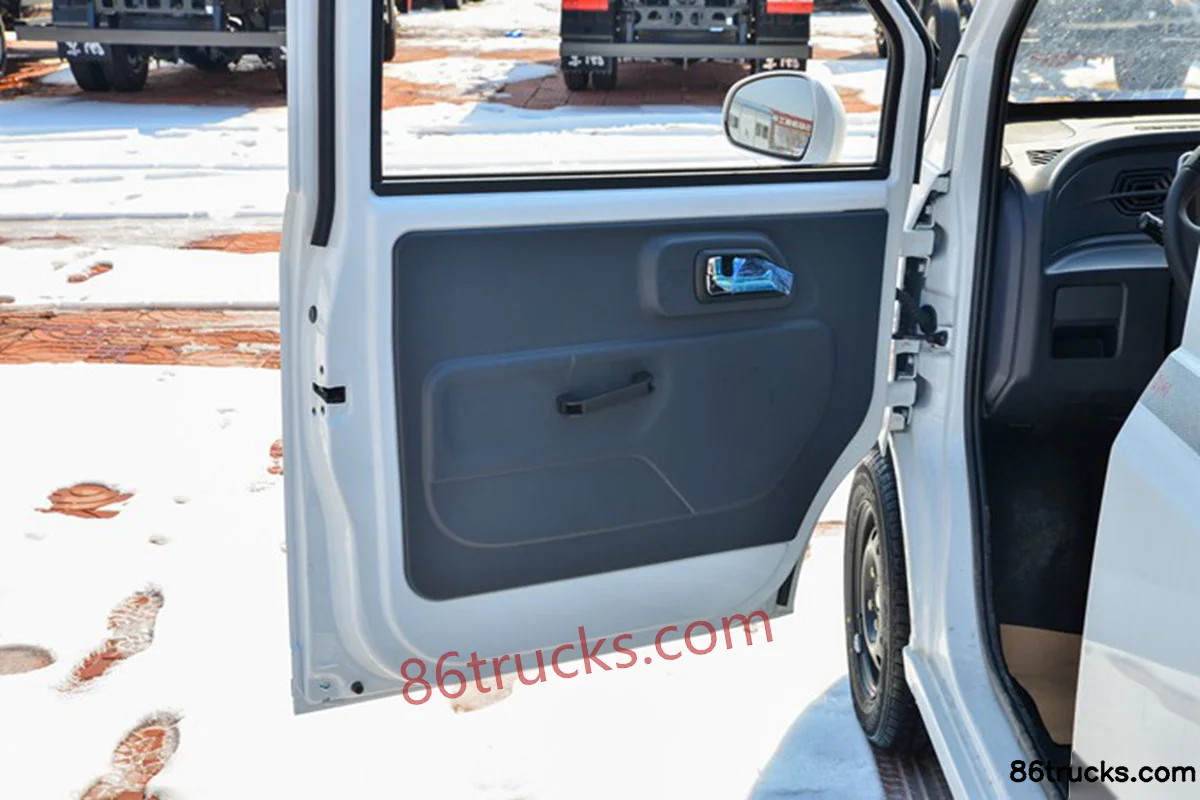

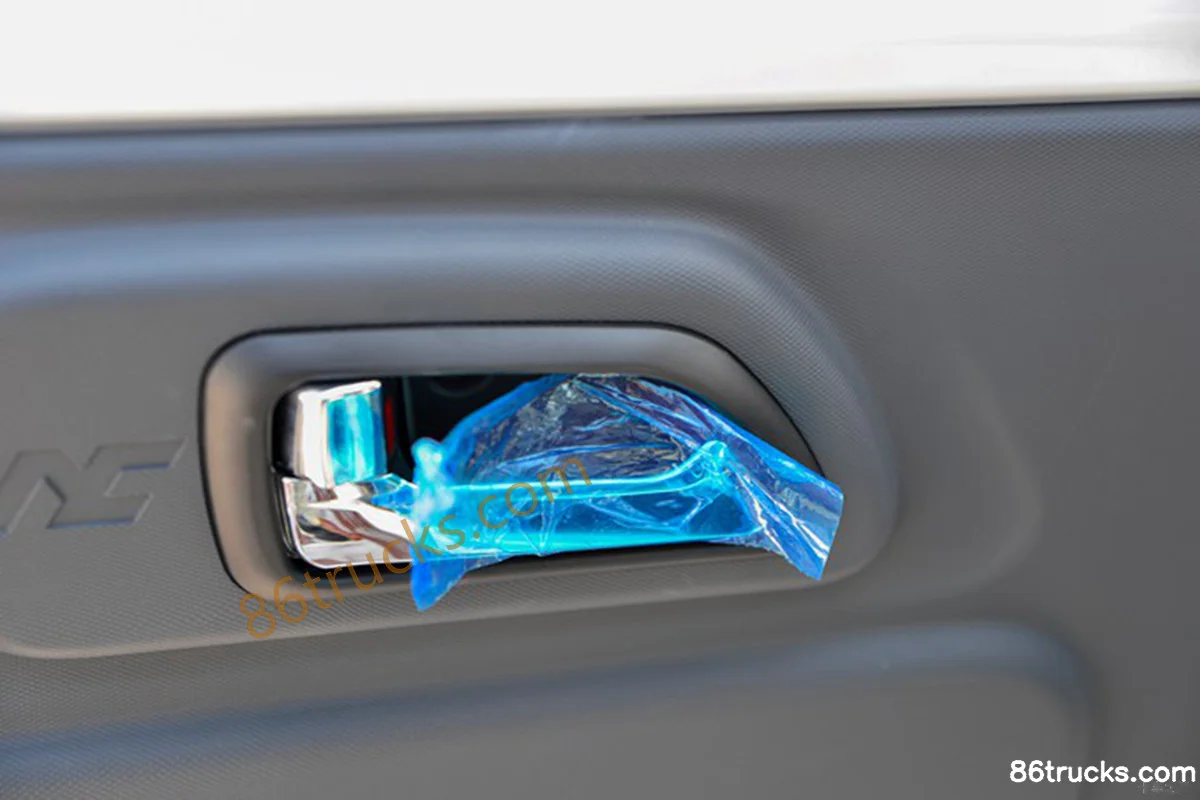

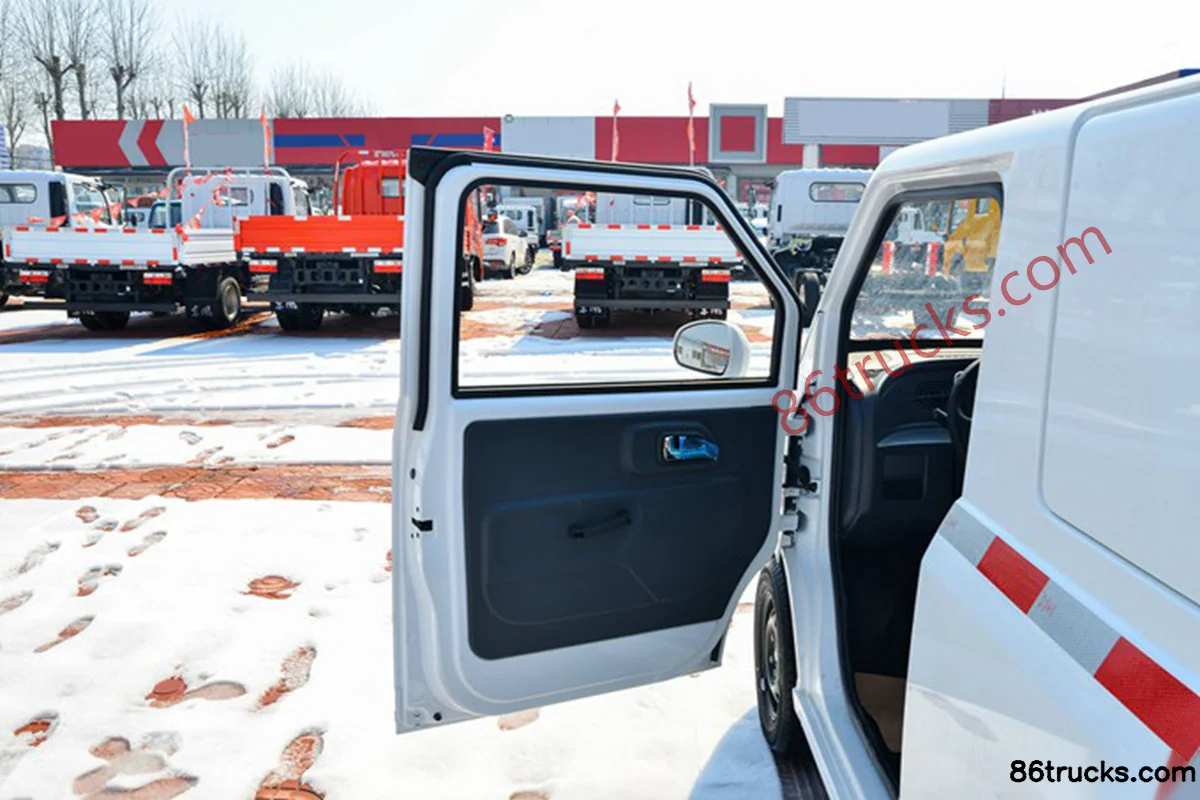

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Cab (1) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Cab (2) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Cab (3) | 86Trucks

Chassis3

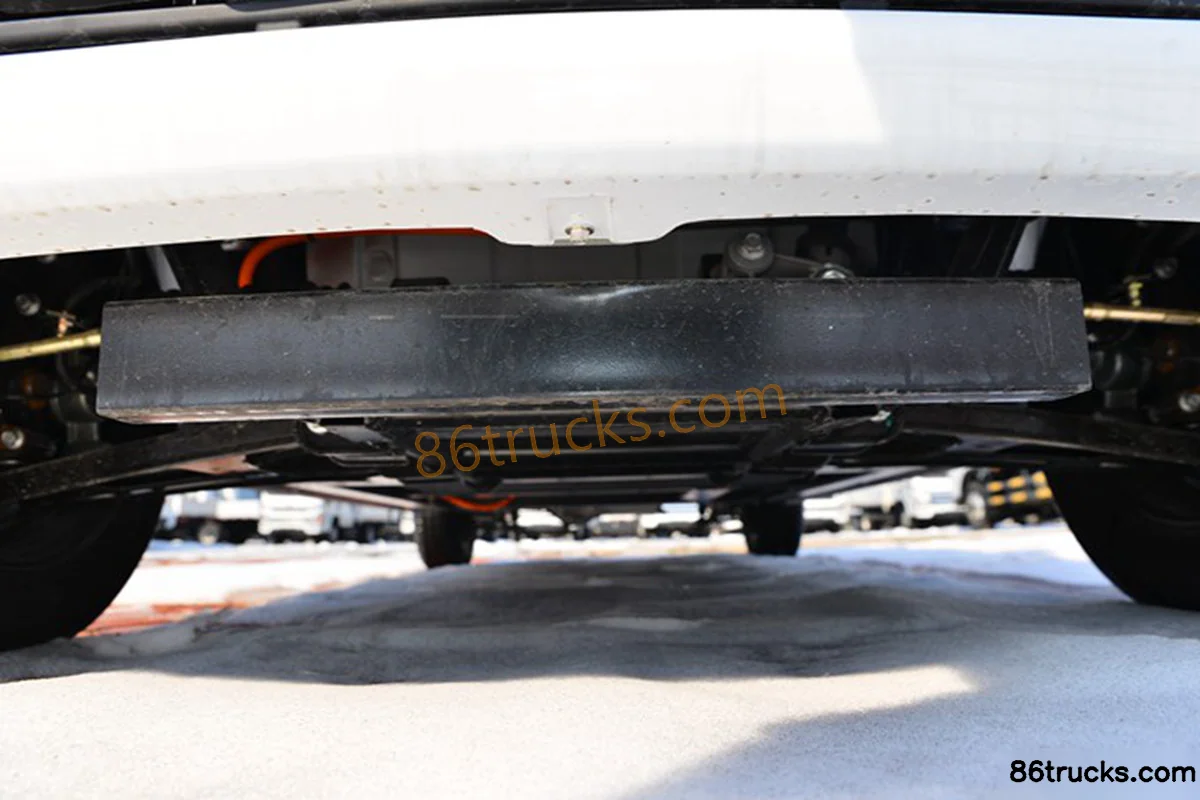

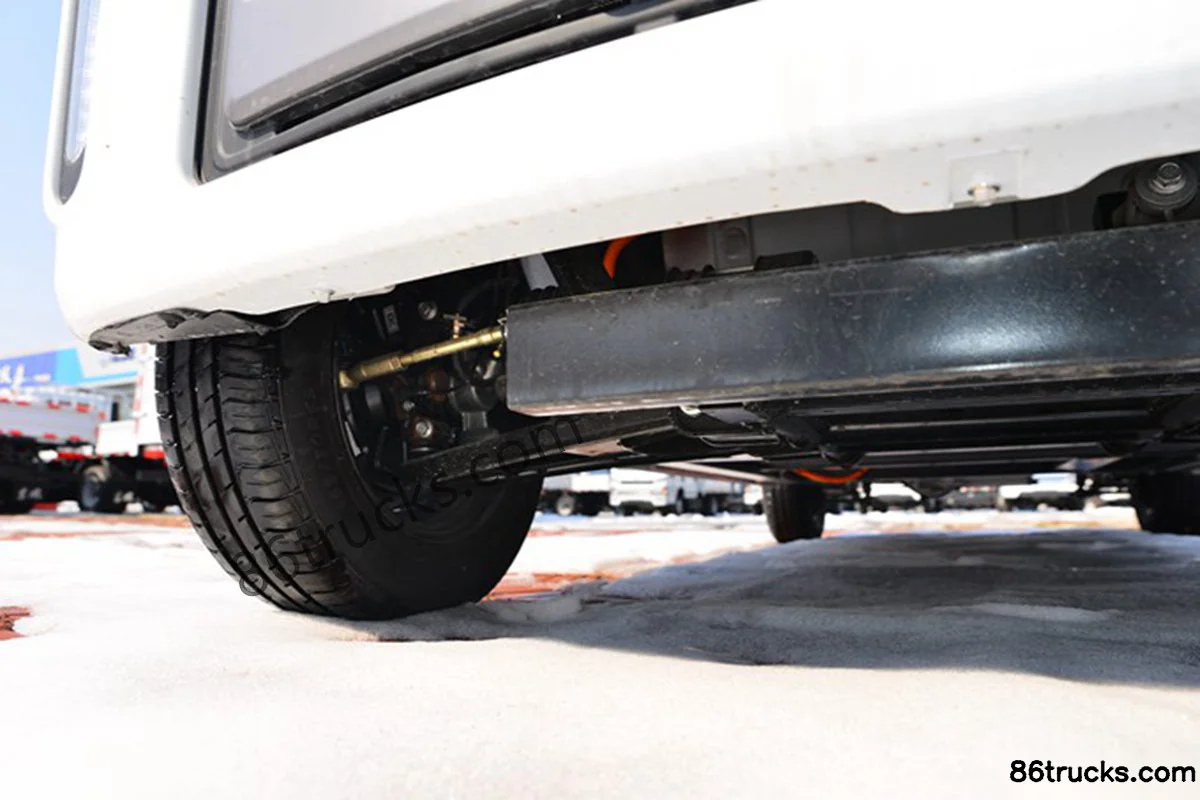

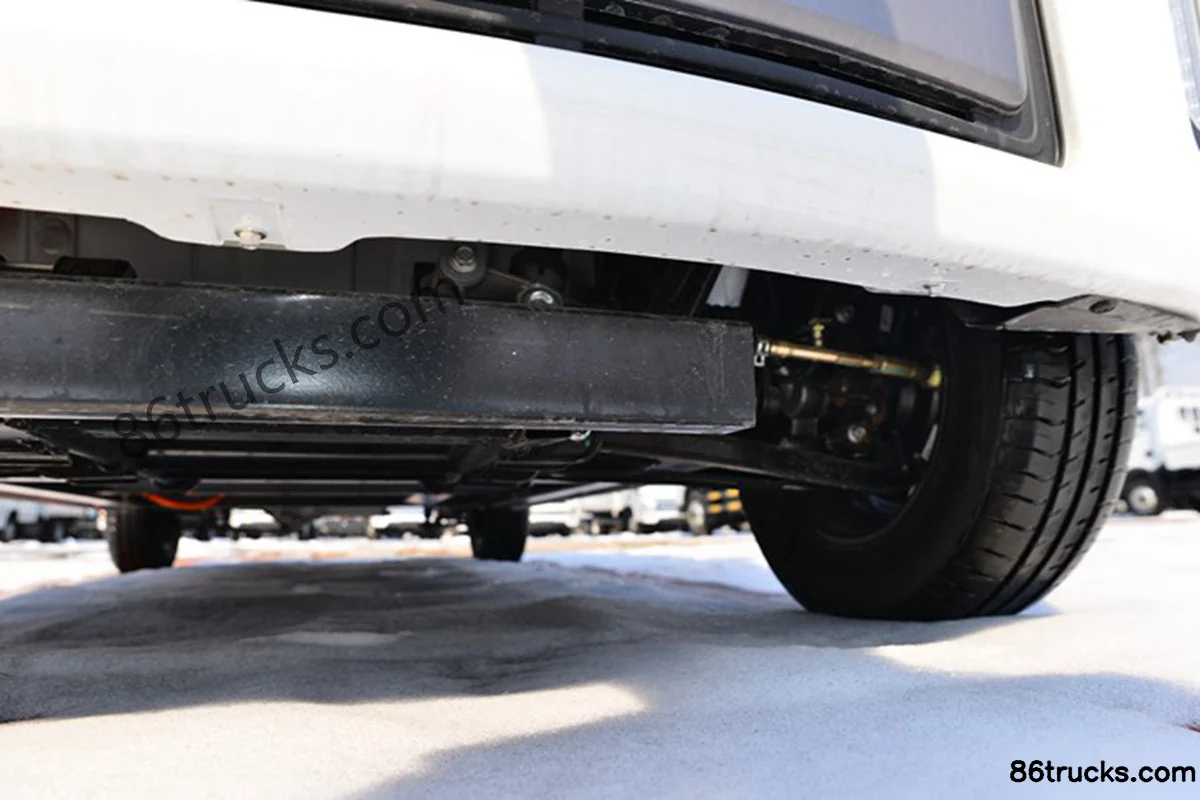

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Chassis (1) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Chassis (2) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Chassis (3) | 86Trucks

Body2

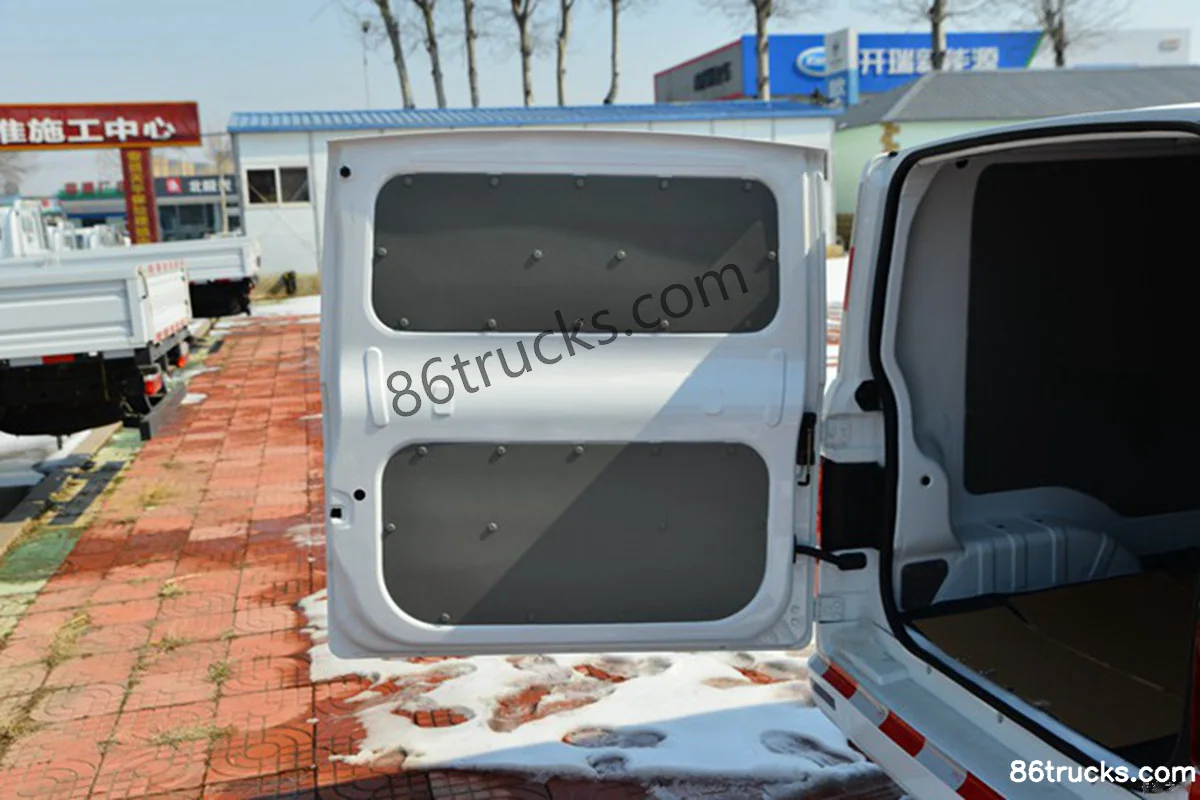

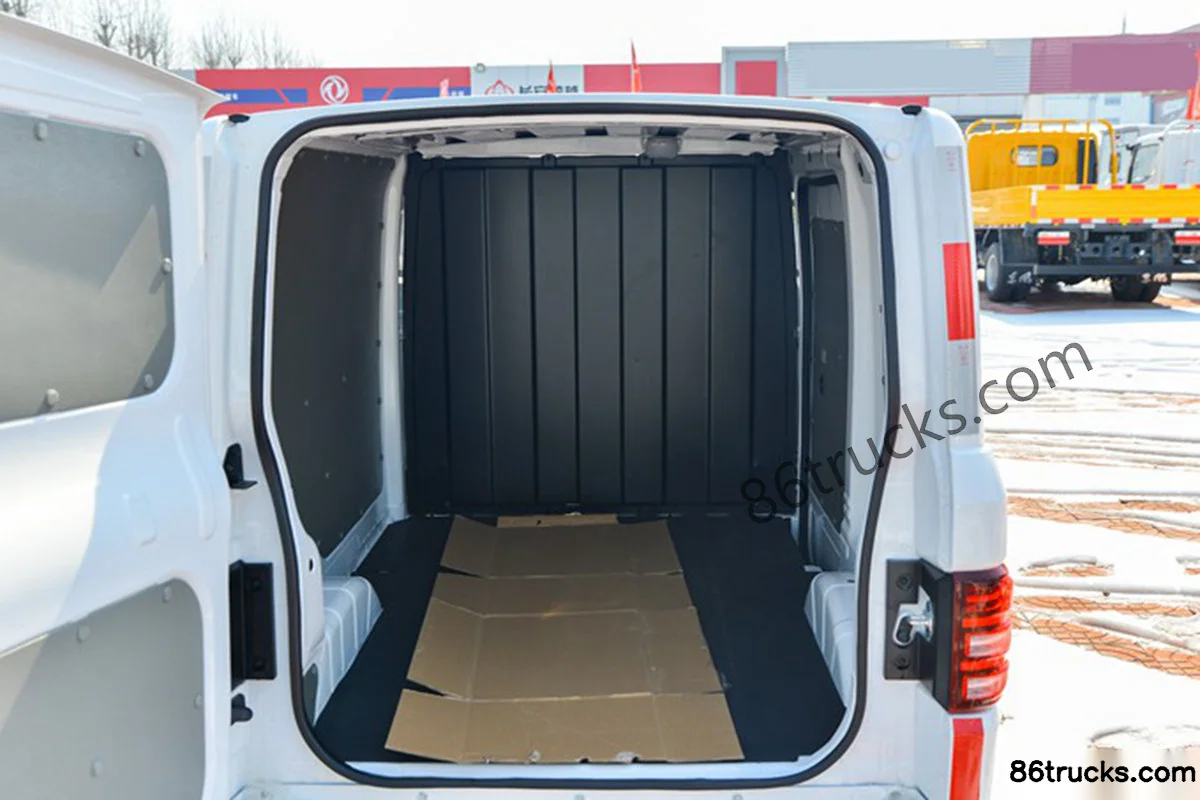

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Body (1) | 86Trucks Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh Body (2) | 86Trucks

11 photos

FAQ

What transport jobs is Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh suited for?

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh differ from other variants in the same series?

Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh belongs to Chengshi01 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengshi 01 Fortune Edition 1.5T 3.49 m single-row pure electric enclosed van 20.72 kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
