Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI)

Export reference
MSRP N/A
Horsepower: 200
Emission: China VI
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.7ton
Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 12.105ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Forland Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 12.105t payload. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 200 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1184VLPFK-11
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.8m
engine: YuchaiYCS04200-68
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.875
Cab length: 8.995m
Cab width: 2.55m
Cab height: 2.705m
Front track width: 1865mm
rear track: 1810mm
Curb Weight: 5.7ton
Rated payload: 12.105ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 12°
Front/rear suspension: 1.24/2.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-68
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.16L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 8/10+6
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

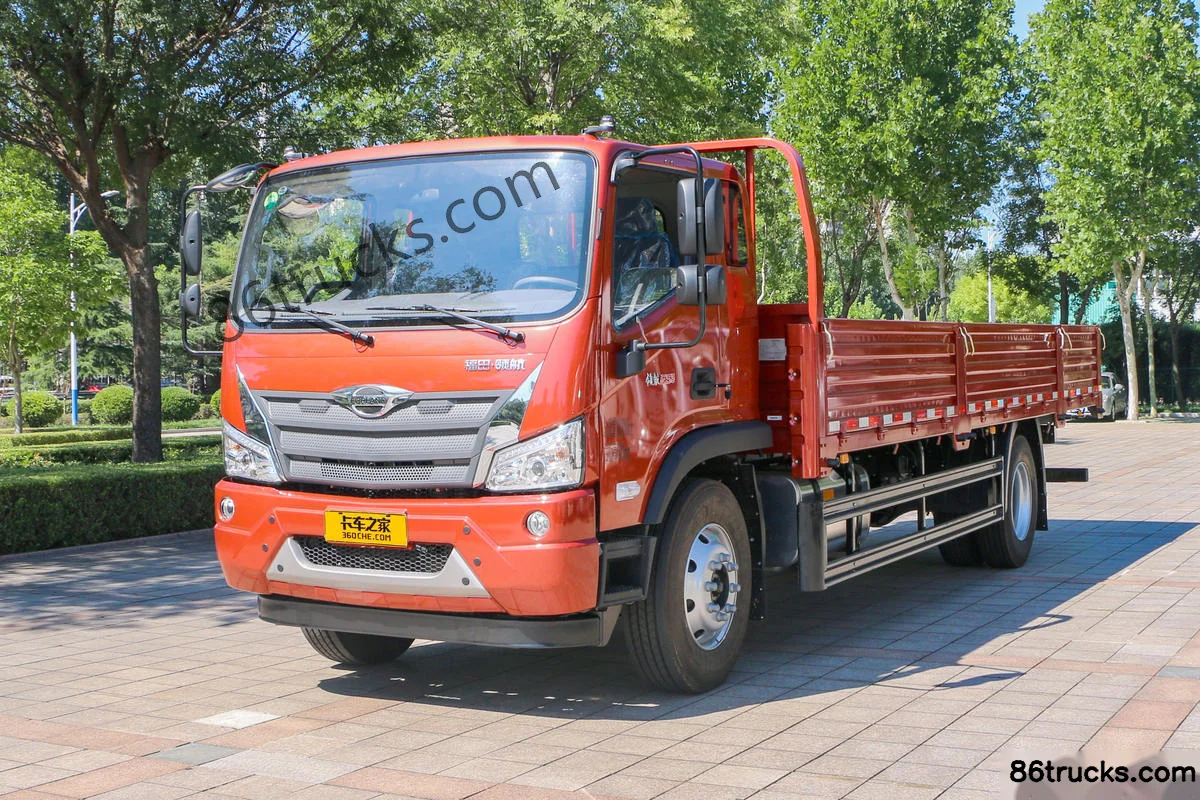

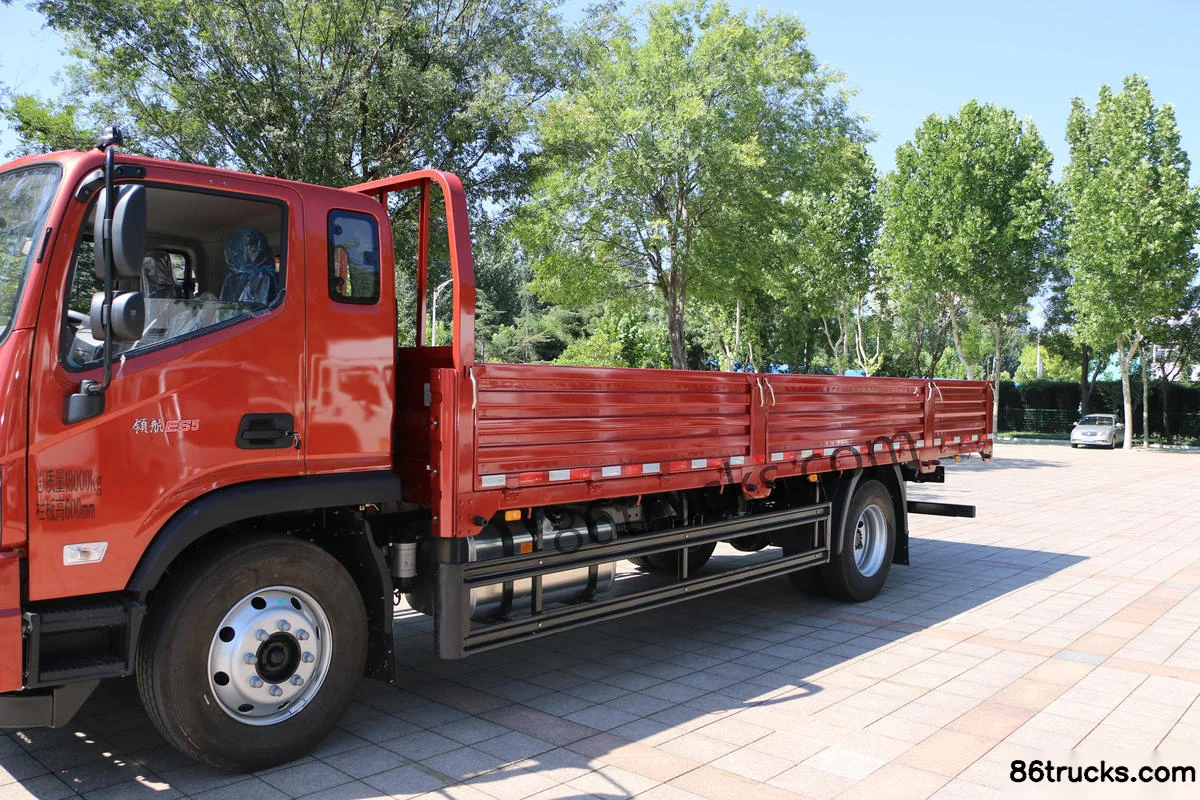

Exterior3

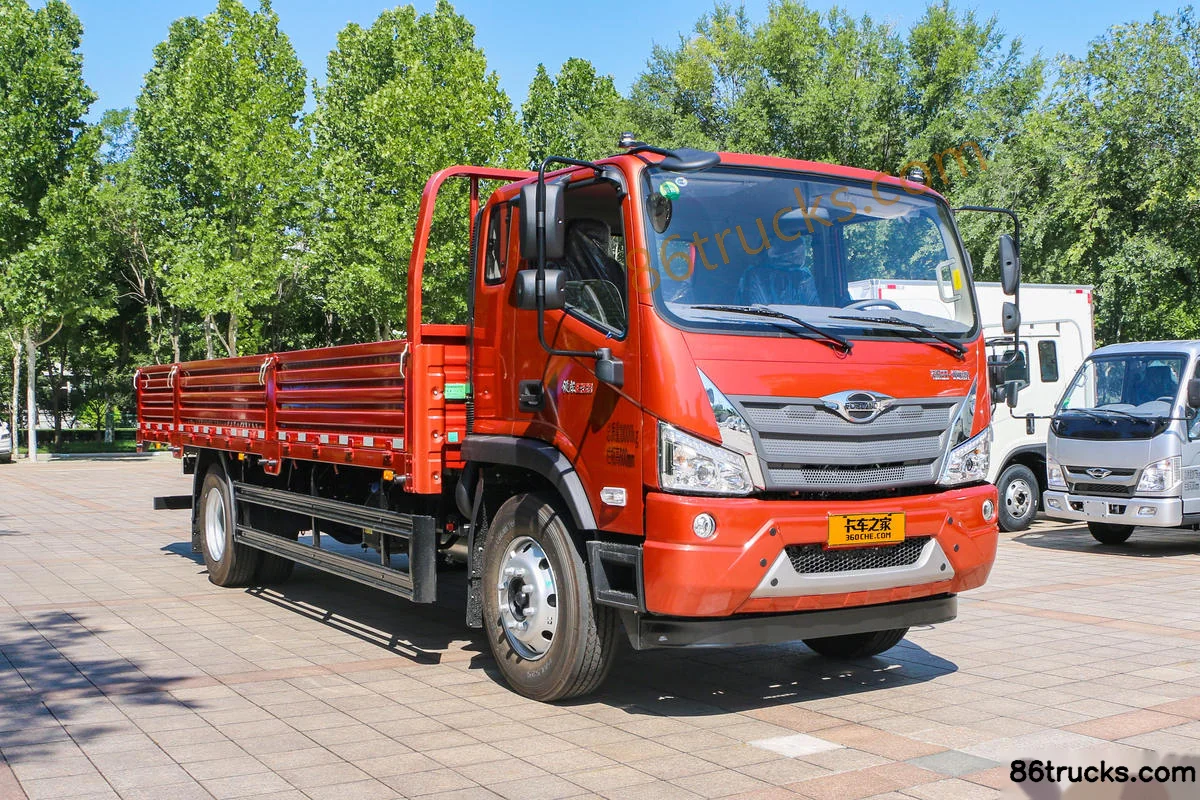

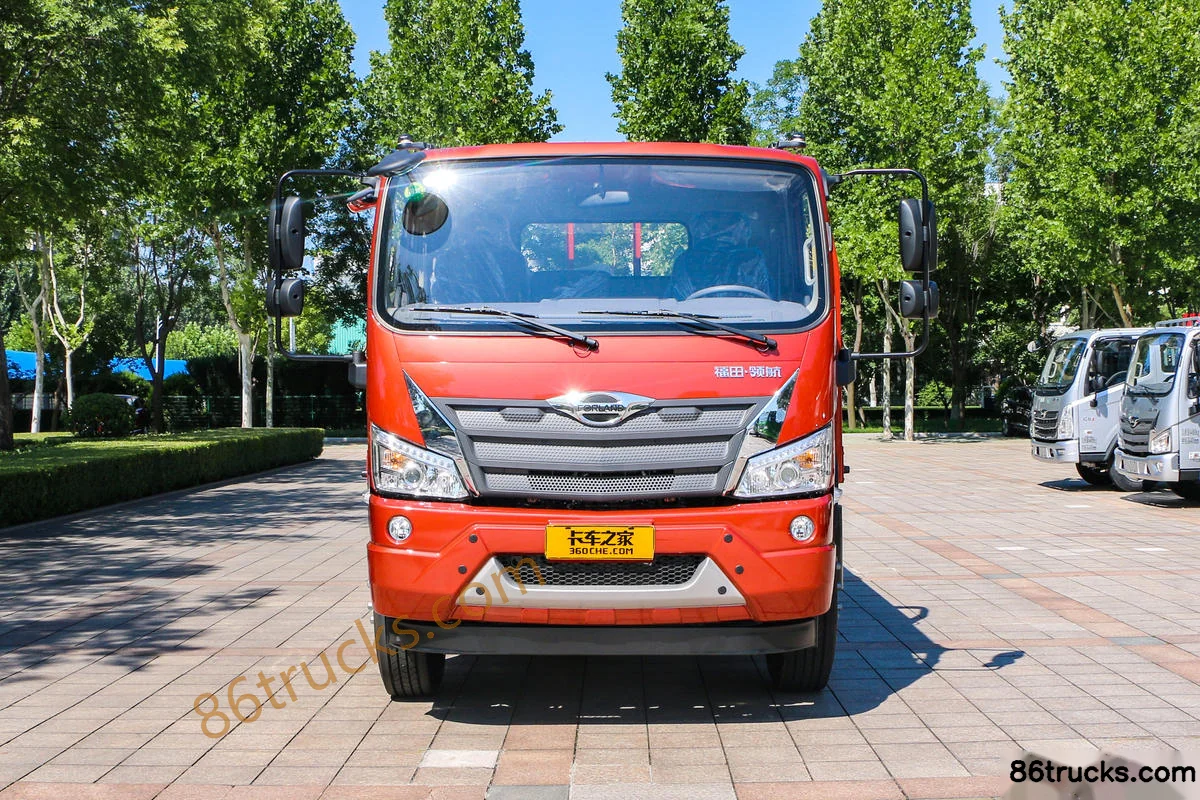

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Exterior (1) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Exterior (2) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Exterior (3) | 86Trucks

Cab3

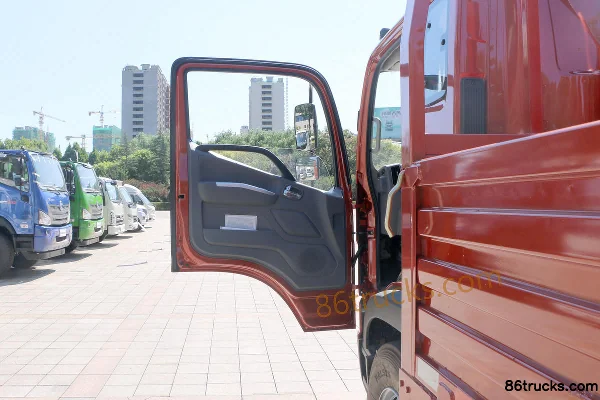

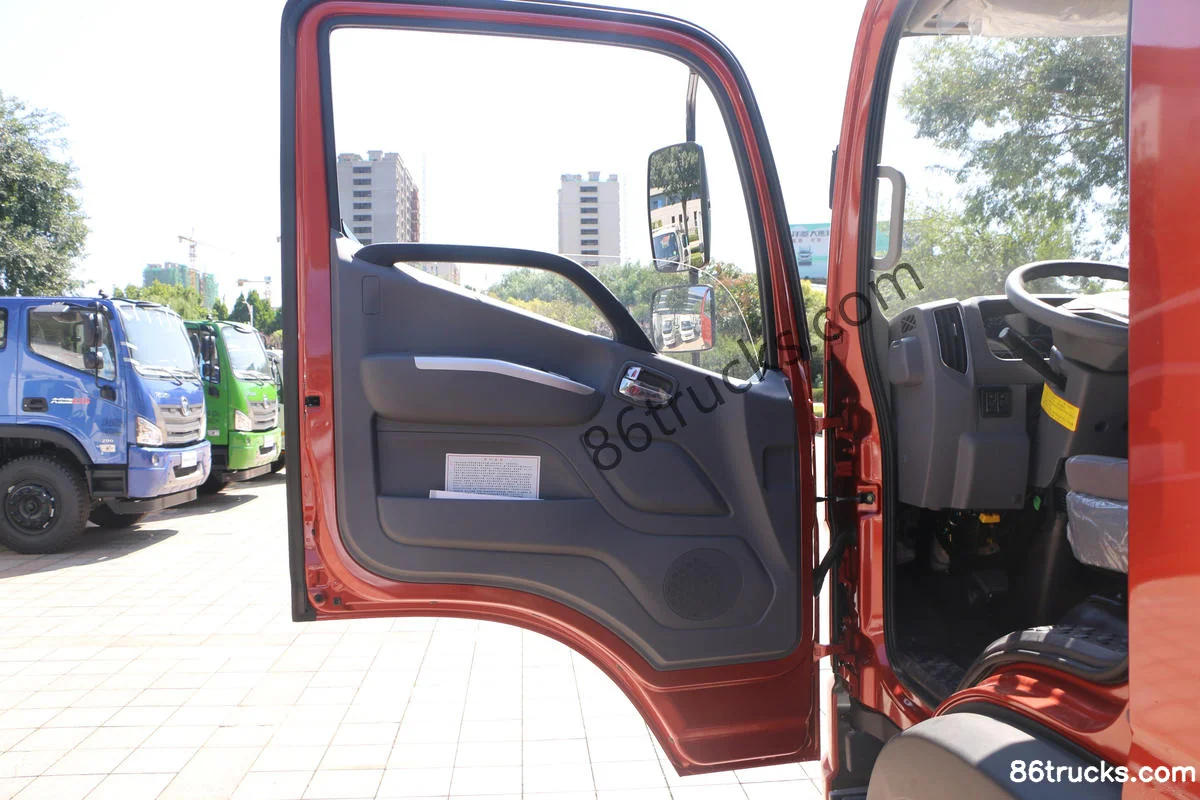

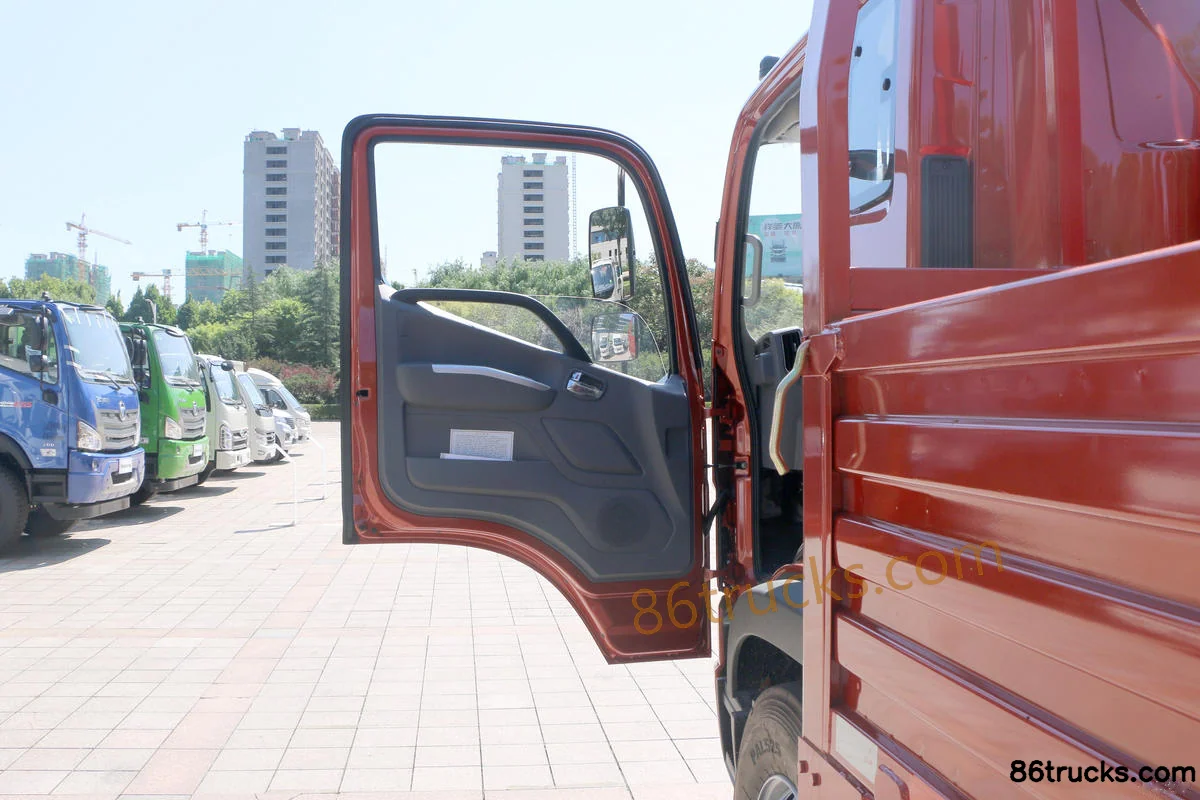

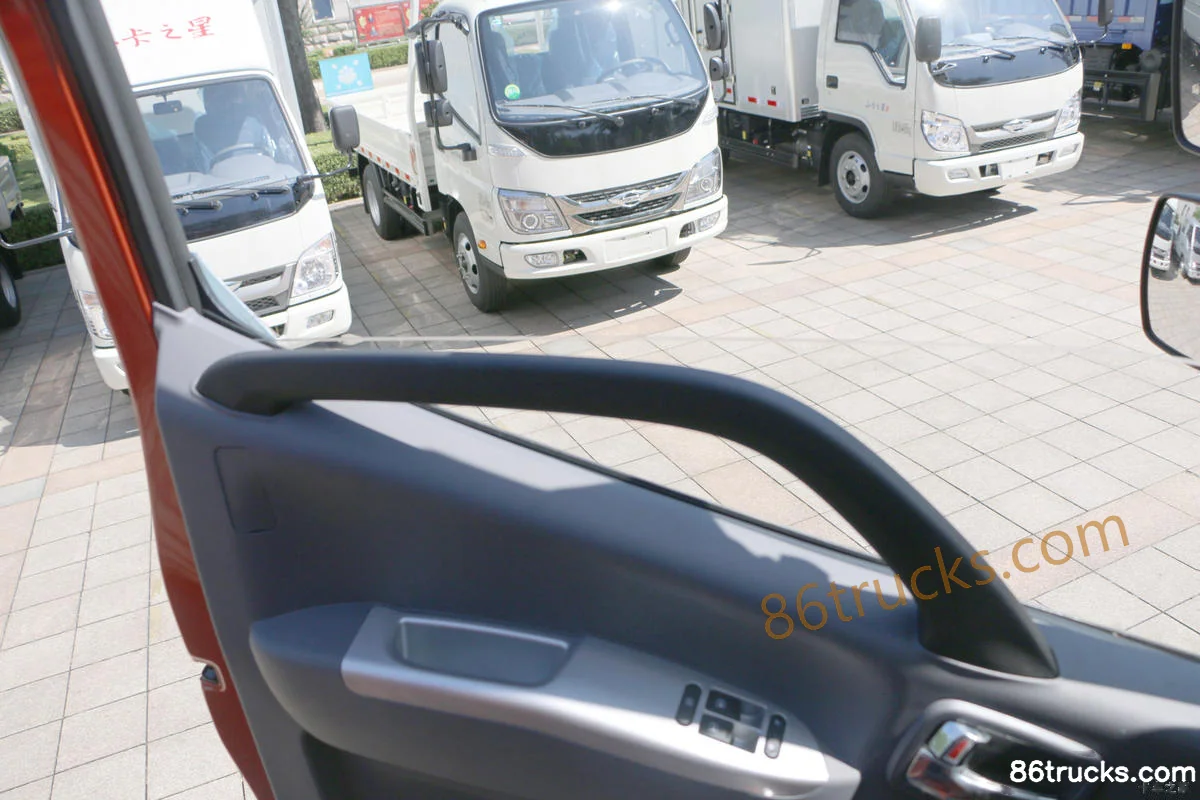

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Cab (1) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Cab (2) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Cab (3) | 86Trucks

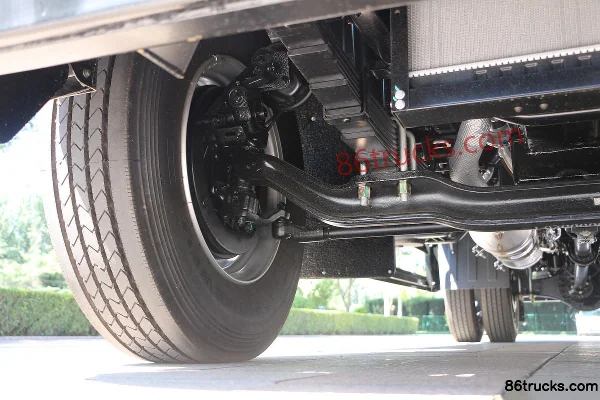

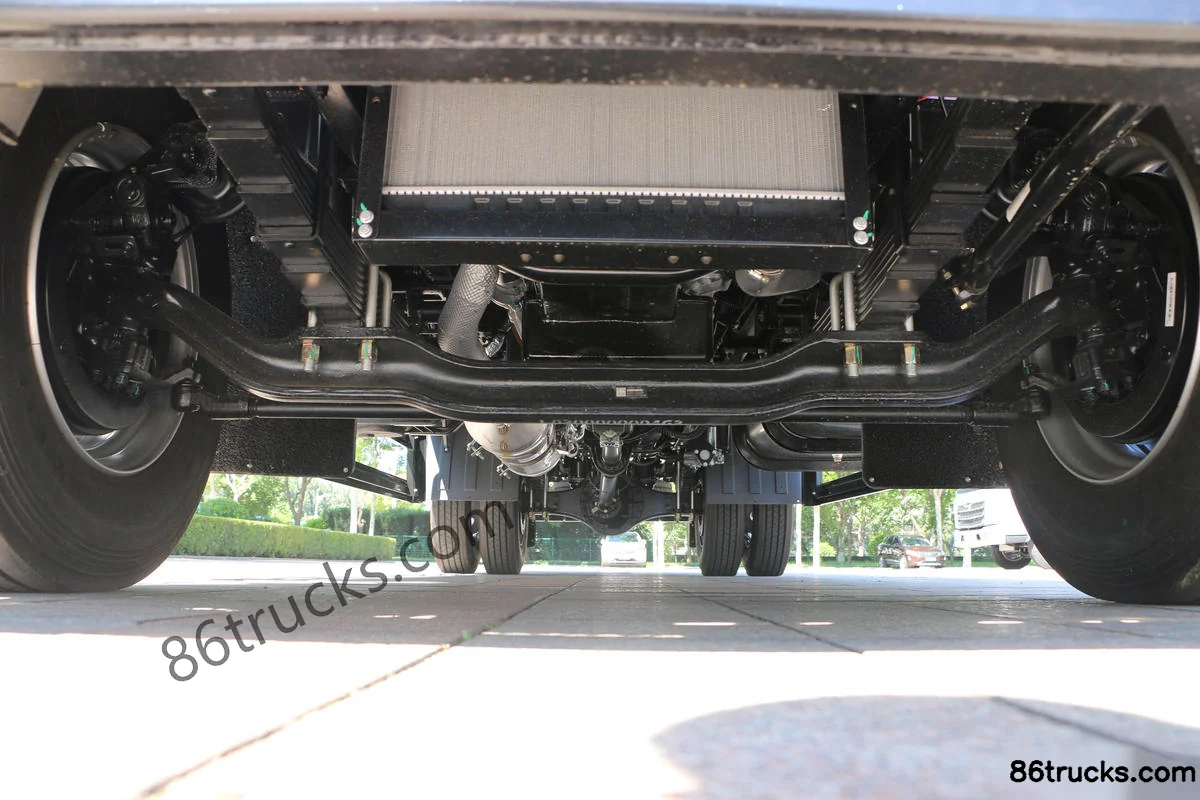

Chassis3

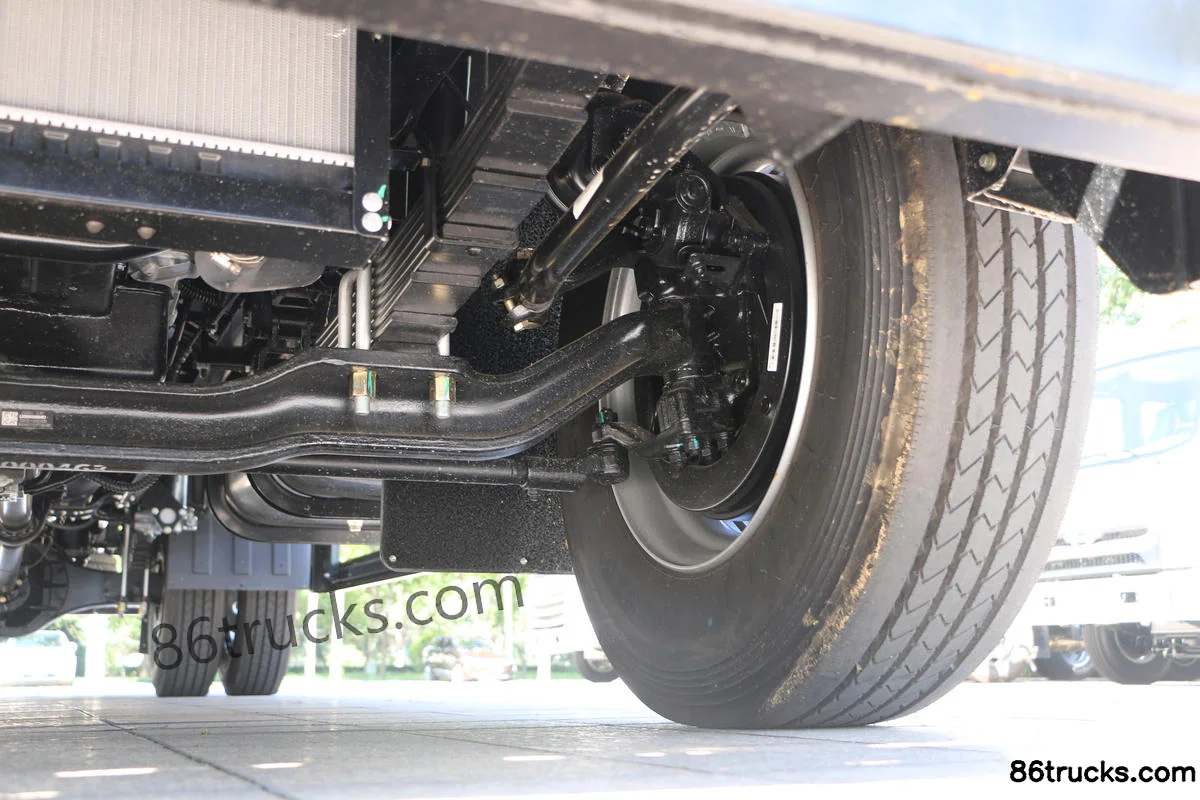

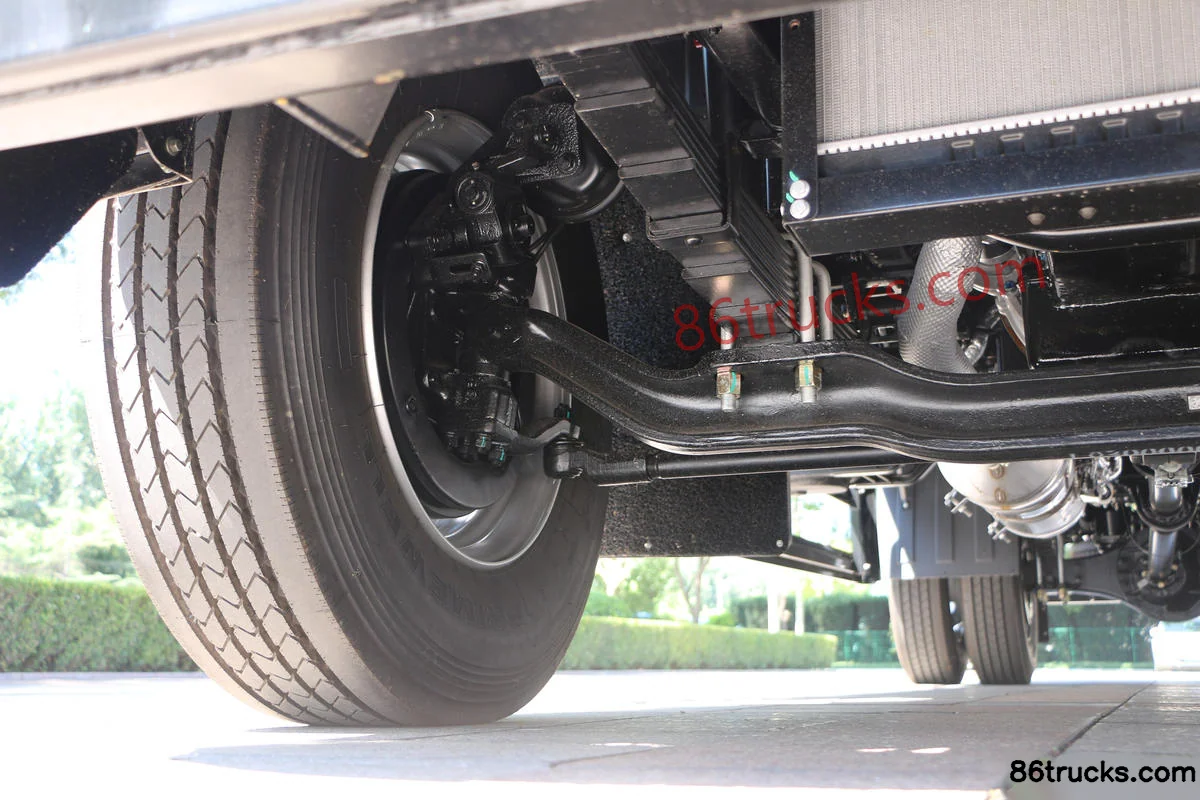

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Chassis (1) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Chassis (2) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Chassis (3) | 86Trucks

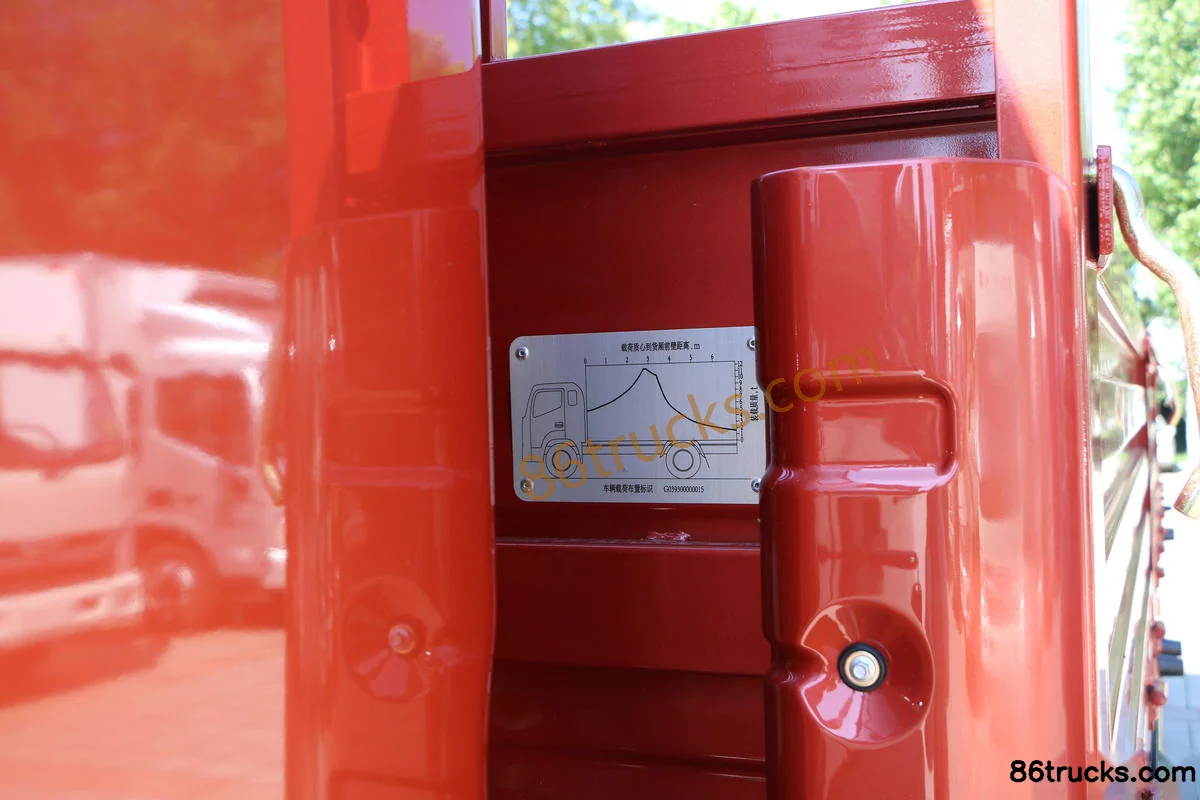

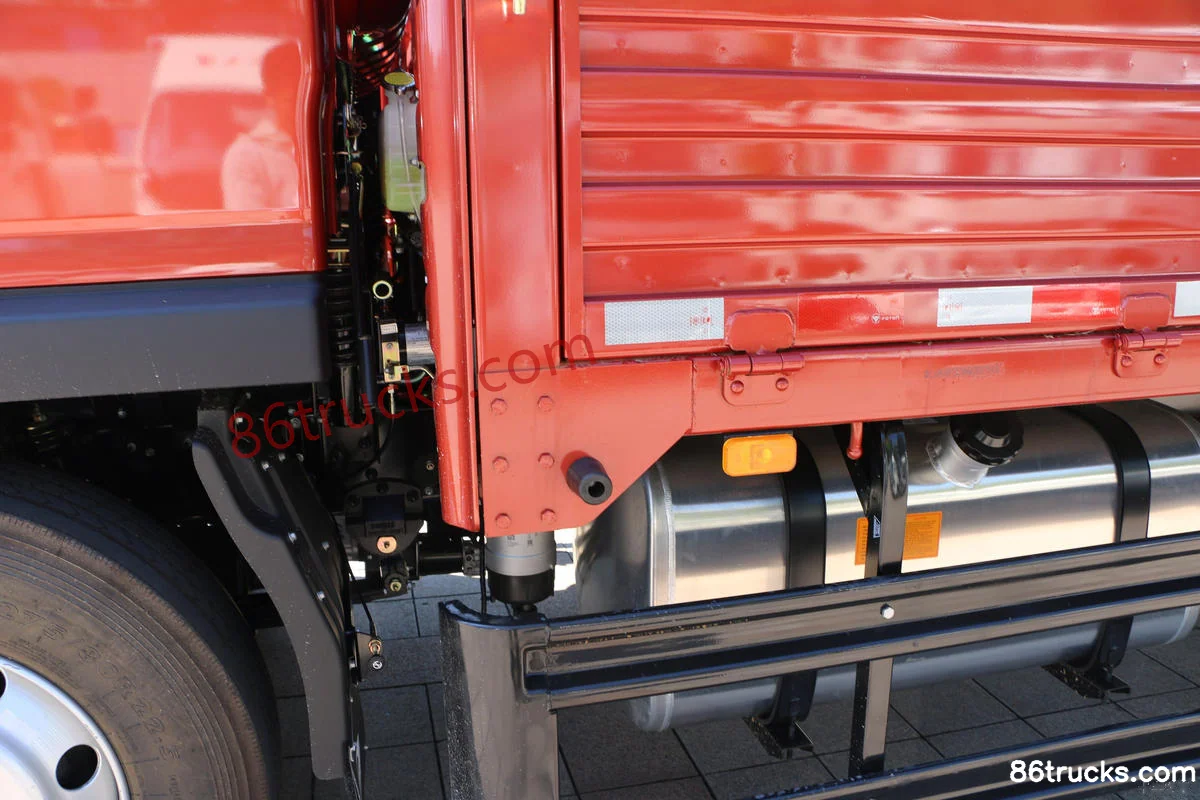

Body3

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Body (1) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Body (2) | 86Trucks Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI)?

Key specs of Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) suited for?

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) differ from other variants in the same series?

Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI) belongs to Foton Forland Linghang ES5 Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Linghang ES5 200hp 4X2(6 wheels) 6.8m semi-row flatbed cargo truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
