SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 430
Emission: China VI
Fuel: Diesel
Engine: SAIC Fiat Powertrain Hongyan11L
Transmission: Fast Gear
Curb Weight:: 14.8ton

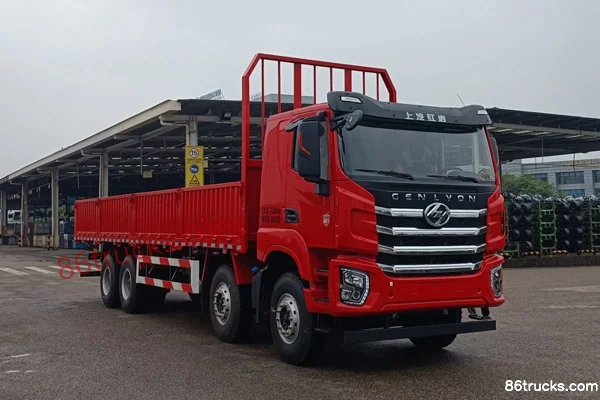

SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) exterior
seating capacity: 2Personnel
Rated payload: 16.07ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 2Personnel volume and 16.07t payload. Its segment focus covers LTL transport, daily bulk cargo and green channel, matching those duty cycles. On the powertrain side, it comes with a SAIC Fiat Powertrain Hongyan11L engine, 430 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 430 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CQ1317SV11446H
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 2000+4400+1400mm
Box length class: 9.6m
engine: SAIC Fiat Powertrain HongyanF3GCE611B*M
transmission: Fast Gear12JSDX220T-B
Cab length: 12m
Cab width: 2.55m
Cab height: 3.24m
Front track width: 2020/2020mm
rear track: 1858/1858mm
Curb Weight: 14.8ton
Rated payload: 16.07ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 18°
market segment: LTL transport, daily bulk cargo, green channel
Remarks: Optional: New JieShi H6 high-roof standard-length cab (double bunk), electronic power master switch in cab, 400L/(400+150)L/800L/800L+180L fuel tank, driver air seat (adjustable damping, ventilated/heated), passenger air seat (fixed damping, with seatbelt), automatic sensor headlights, front tire blowout emergency device, front tire pressure monitoring, Henglong steering gear, anti-corrosion wiring harness, fire extinguisher, 220V power supply (300W), LED daytime running lights, LED turn signals, LED taillights, 10-inch central screen (integrated radio)/12-inch central screen (integrated radio), onboard water dispenser, onboard refrigerator, wireless phone charging, under-bunk drawer, side storage box, intelligent anti-theft fuel system, ambient lighting, bunk control module, front sunshade (main/passenger electric), speakers (6-channel), soft-leather dashboard, keyless entry (with one-button start), steering column pneumatic unlock, Hongyan logo (gold)/Hongyan logo (illuminated), northern version, 360° surround view.
Front/rear suspension: 1.46/2.74m
Version: Smart Value Edition
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF3GCE611B*M
Engine info: SAIC Fiat Powertrain Hongyan11L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.12L
Emission standard: China VI
Max output power: 318kW
Max hp: 430Horsepower
Max torque: 2050N·m
Max torque speed: 1000-1500rpm
Transmission Parameters
Transmission Model: Fast Gear12JSDX220T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.43m
Cargo box height: 0.8m
*Cargo box interior width: 2.4300000667572
Cab parameters
Cab: Flat roof standard length
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 980_865/317×80×8+8mm
rear axle description: HY320
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 9/9/12
Aluminum wheels:
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
LED taillight:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What emission standard does SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI)?

Key specs of SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI): Drive: 8x4; Horsepower: 430 hp; Emission: China VI; Fuel: Diesel; Engine: SAIC Fiat Powertrain Hongyan11L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) suited for?

SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) differ from other variants in the same series?

SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI) belongs to SAIC Hongyan Genlyon H6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon H6 Smart Edition 430 hp 8X4(12 wheels) 9.6m Flatbed Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
