Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh

Export reference
From $16,806
MSRP ¥12.1M CNY
Wheelbase:: 3050mm
Cargo box volume:: 5.8
Model code (announced):: SQR5036XXYBEVH36
Cab length:: 4.746m
GVWR:: 2.68ton
Max. speed:: 80km/h
CLTC range: 276km
Motor 1 Brand: Inovance
Curb Weight: 1.5ton
Rated payload: 1050ton

Overview

The Chery Commercial Vehicle Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh is a Electric Panel Van featuring 276km battery/range, Inovance motor, 1050t payload and 5.8 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5036XXYBEVH36
Wheelbase: 3050mm
Cab length: 4.746m
Cab width: 1.76m
Cab height: 1.965m
CLTC range: 276km
Curb Weight: 1.5ton
Rated payload: 1050ton
GVWR: 2.68ton
Max. speed: 80km/h
Front/rear suspension: 0.706/0.99m
Version: Wide-heart version
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS000
Motor Type: Permanent magnet synchronous motor
total rated power: 32kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: Guoxuan High-Tech
Charging method: slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 40.55kWh
Body parameters
Cargo box volume: 5.8
Max body depth: 2.785
Max body width: 1.595
Cargo Box Height: 1.31
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Panel Van
Seat count: 2Seats
Door Parameters
Tailgate type: split doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT 12PR
Rear Wheel Specification: 185/65R15LT 12PR
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration

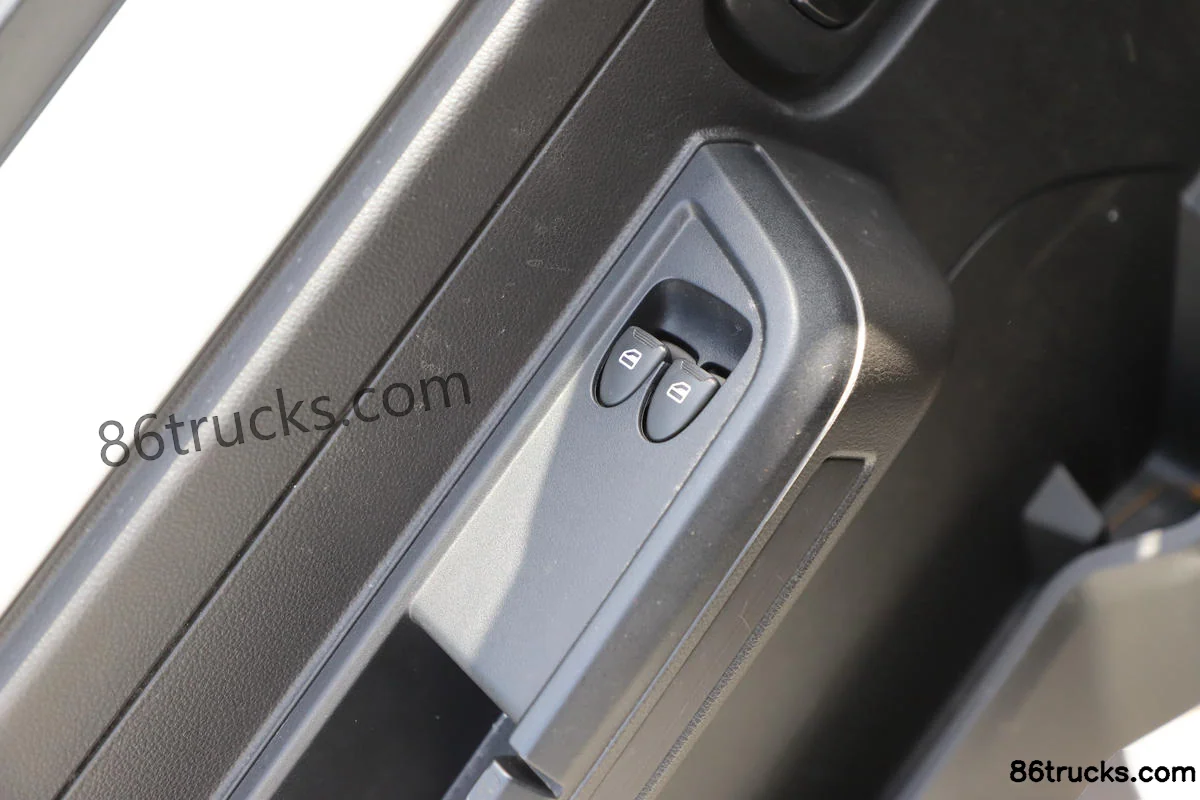

Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:

Photos

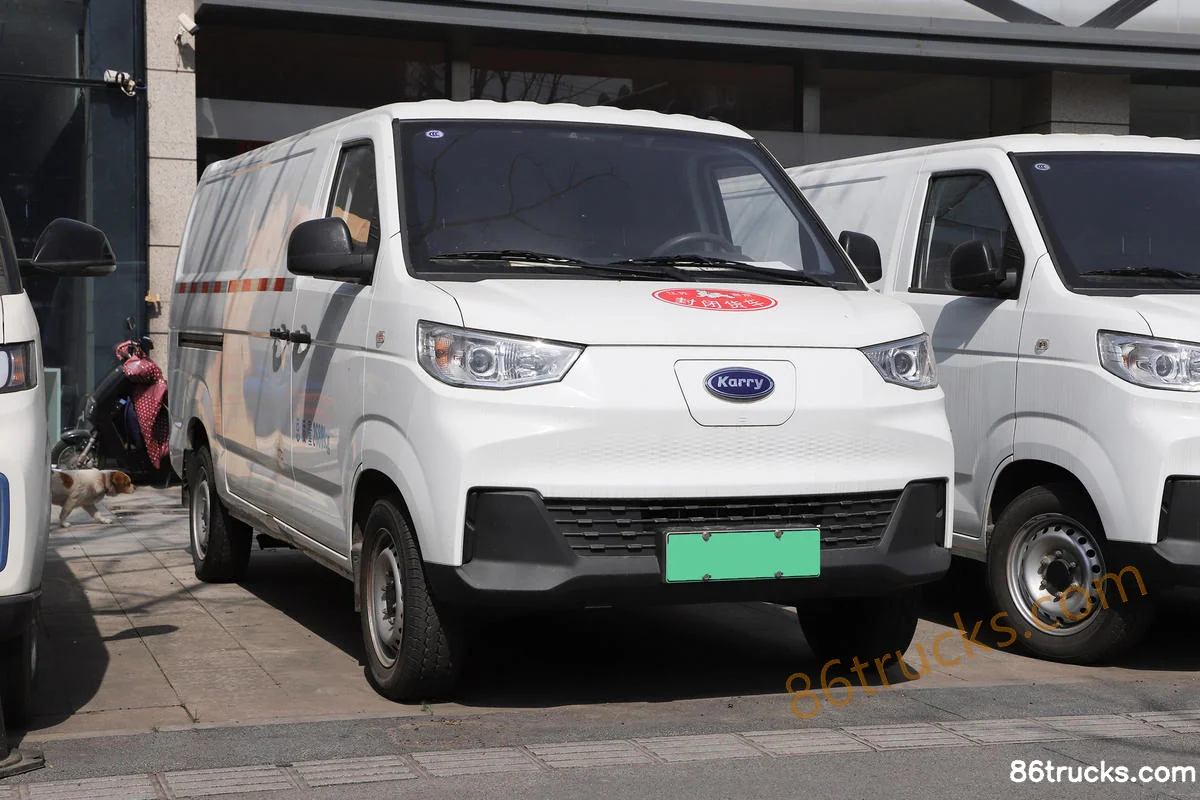

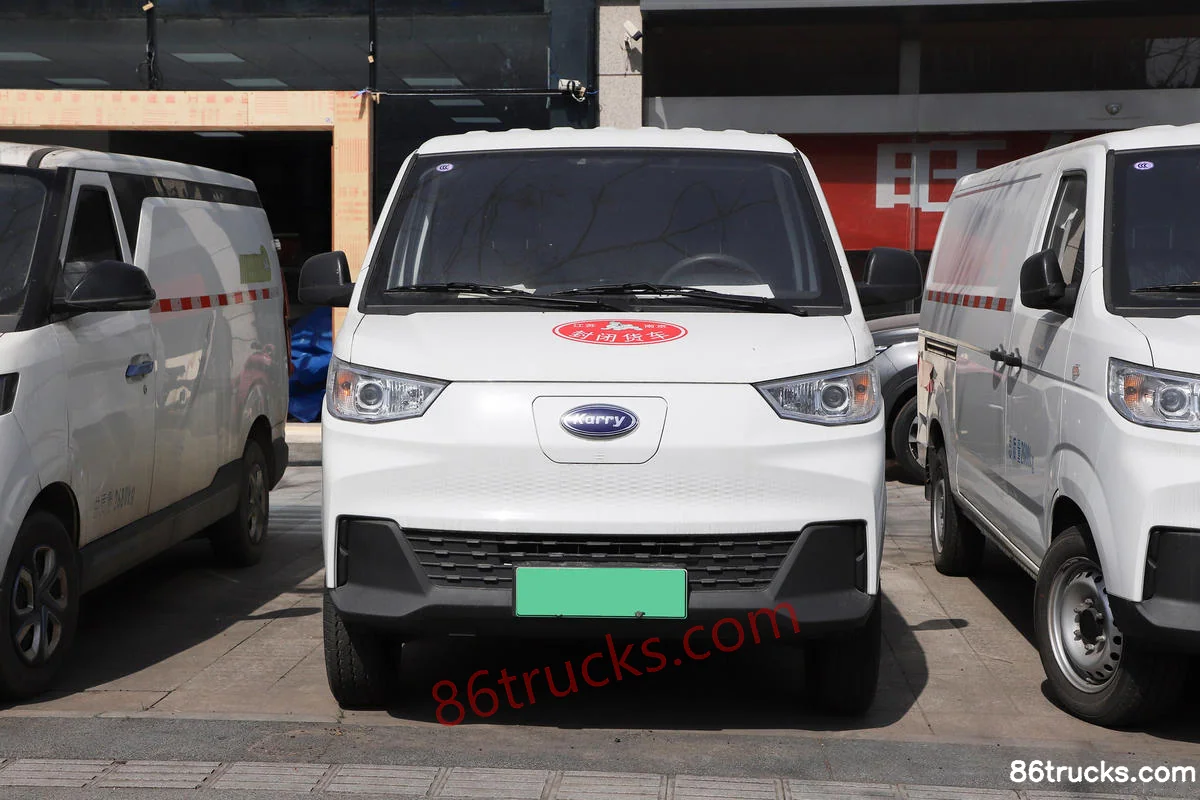

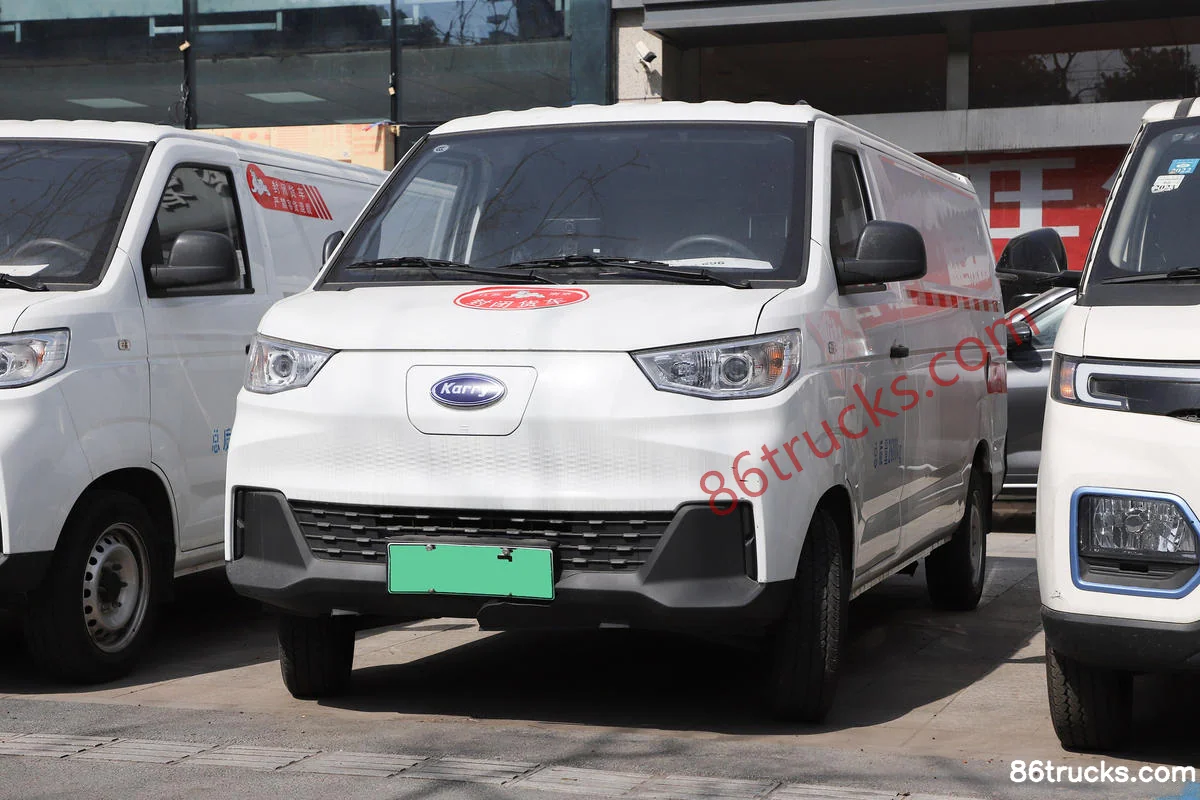

Exterior3

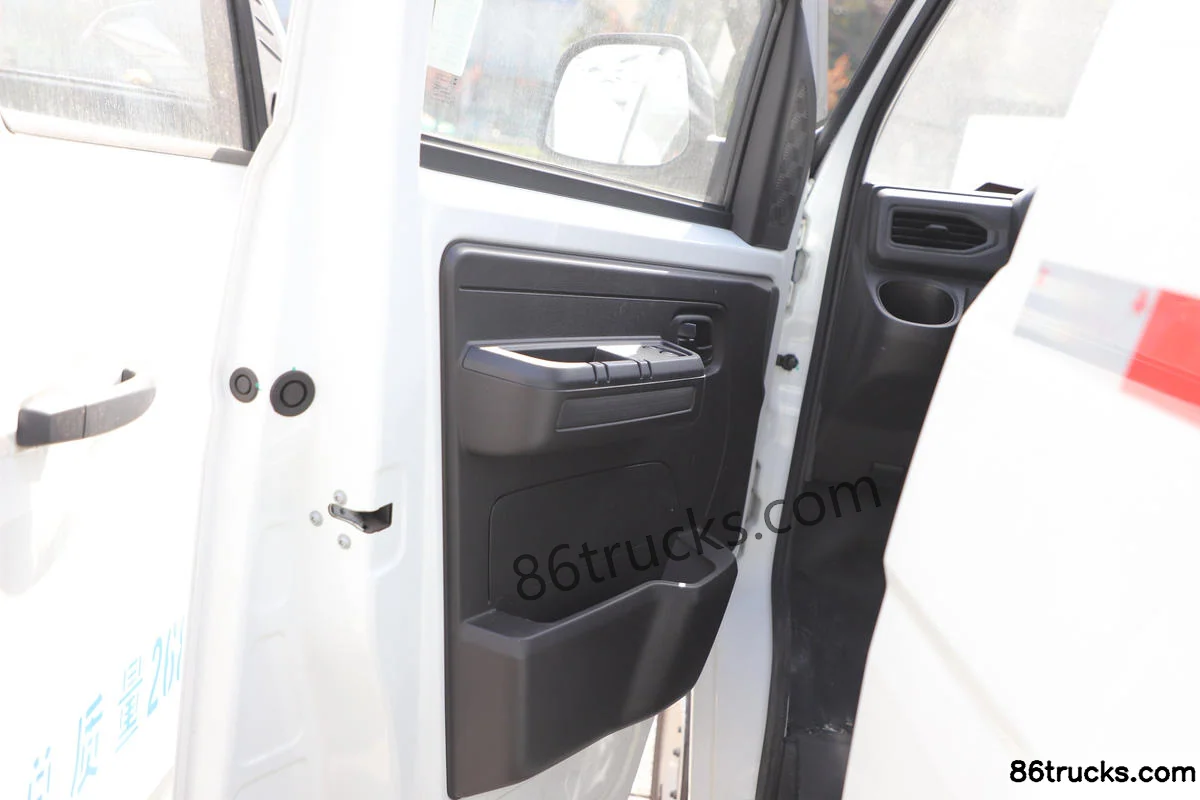

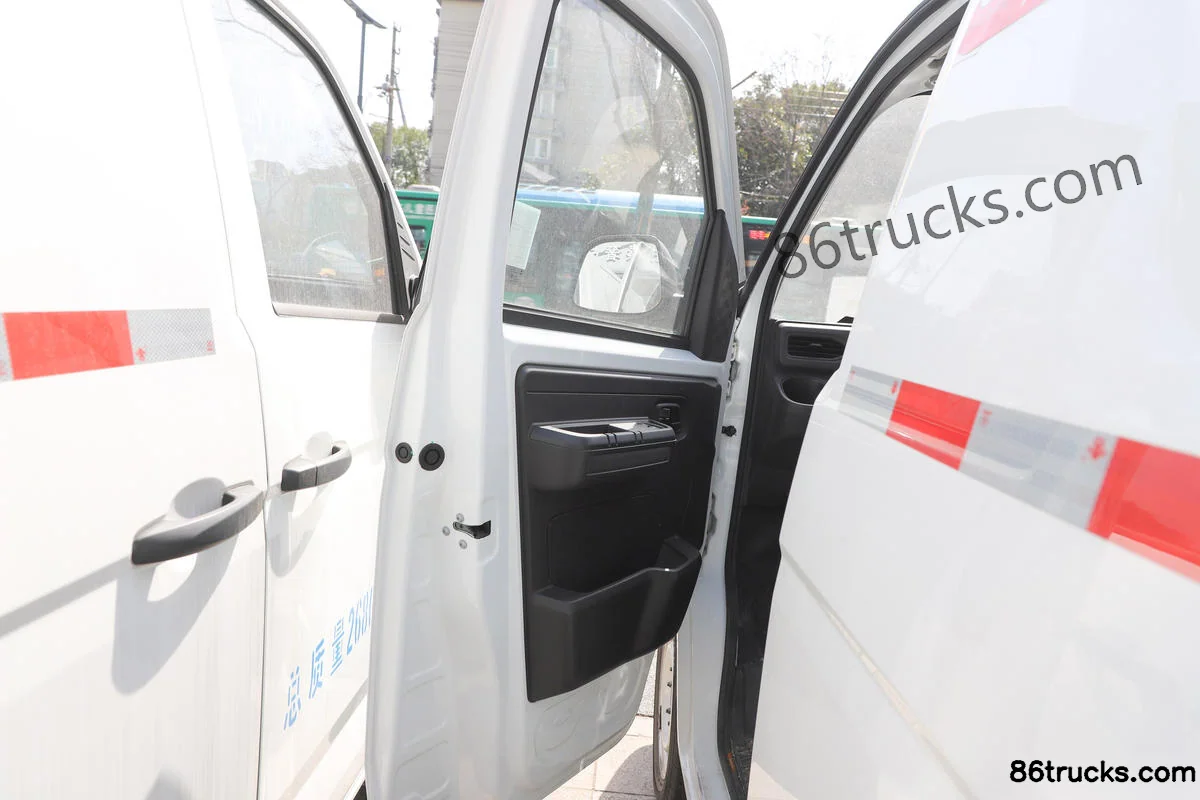

Cab3

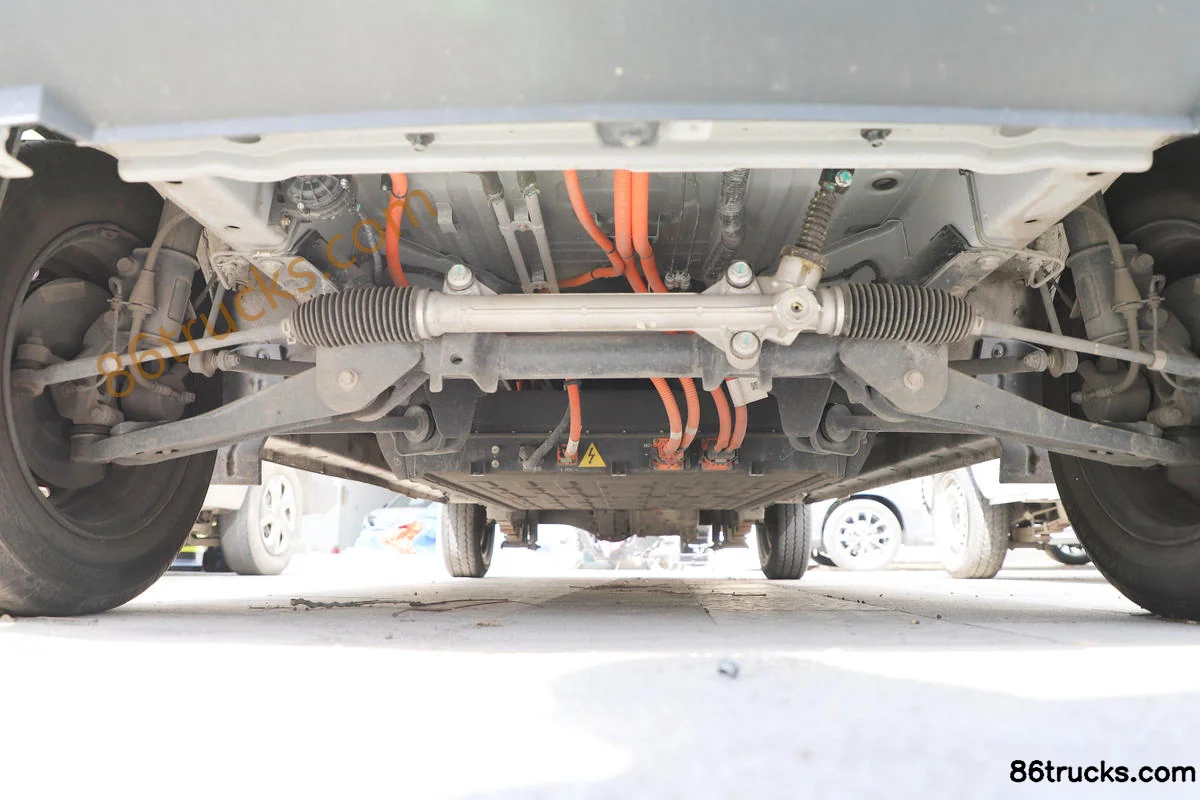

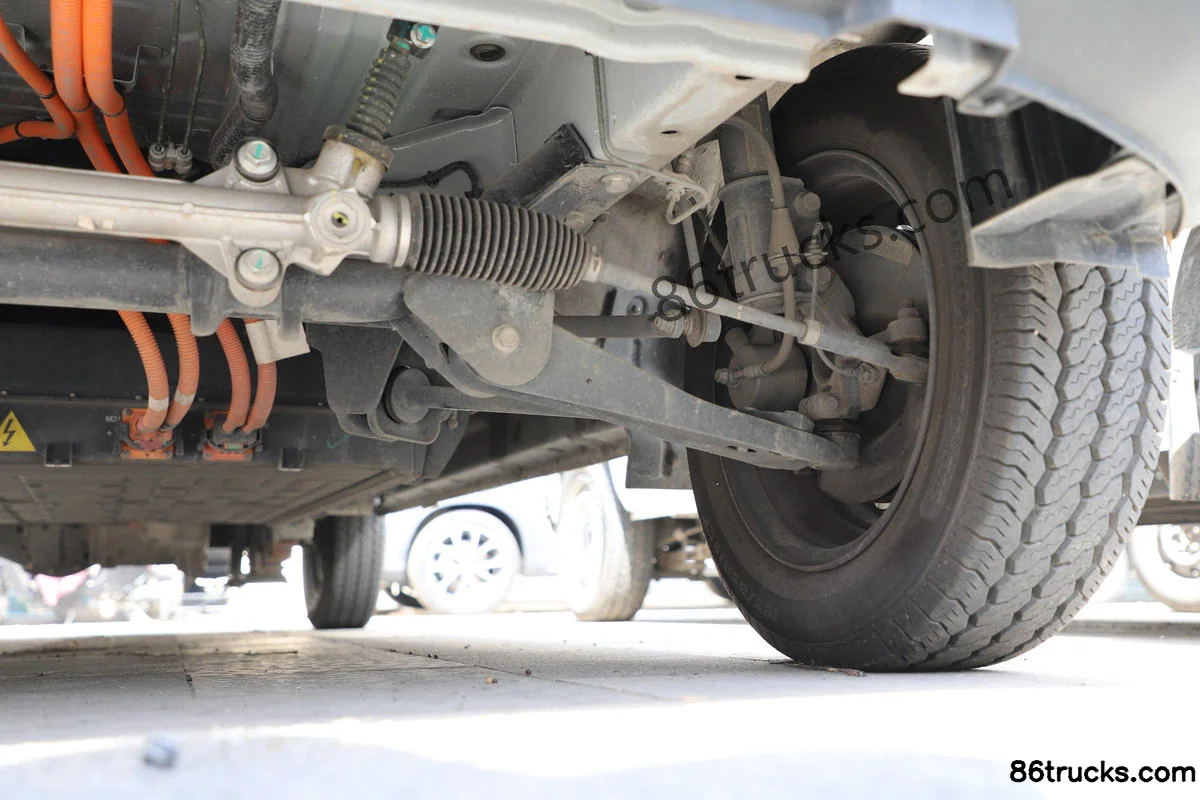

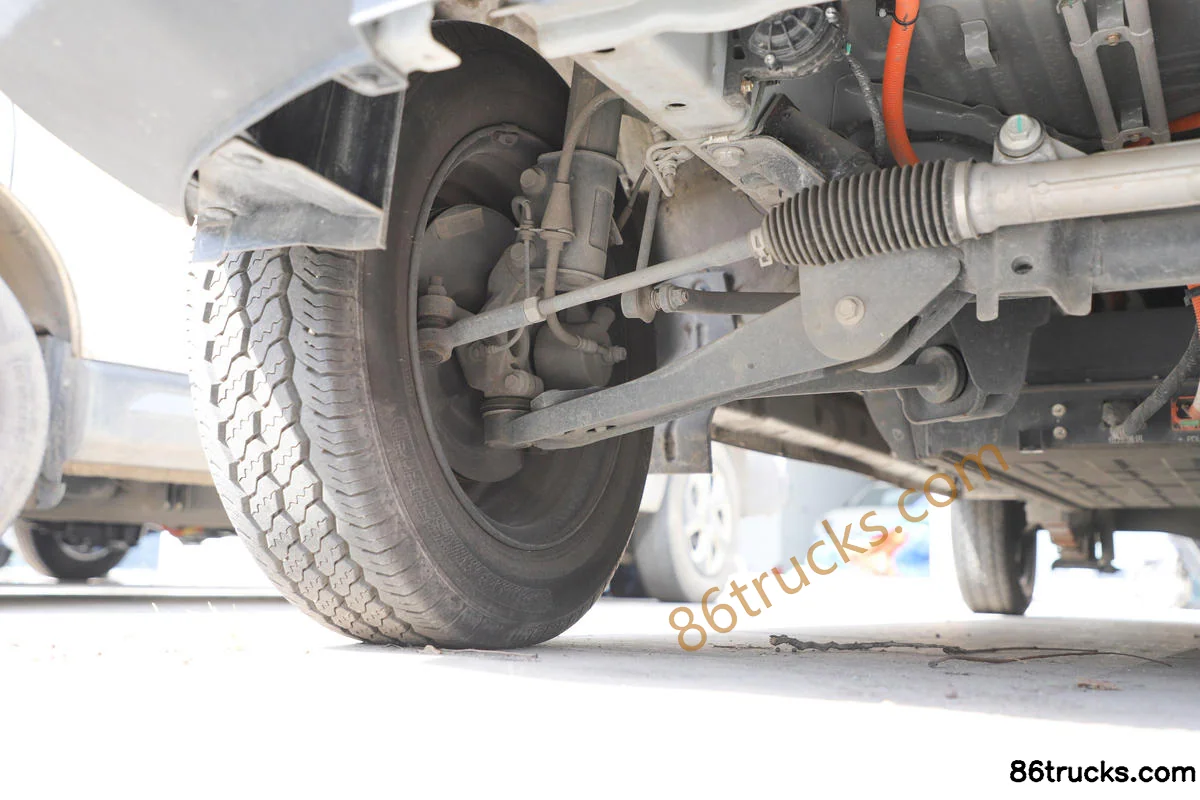

Chassis3

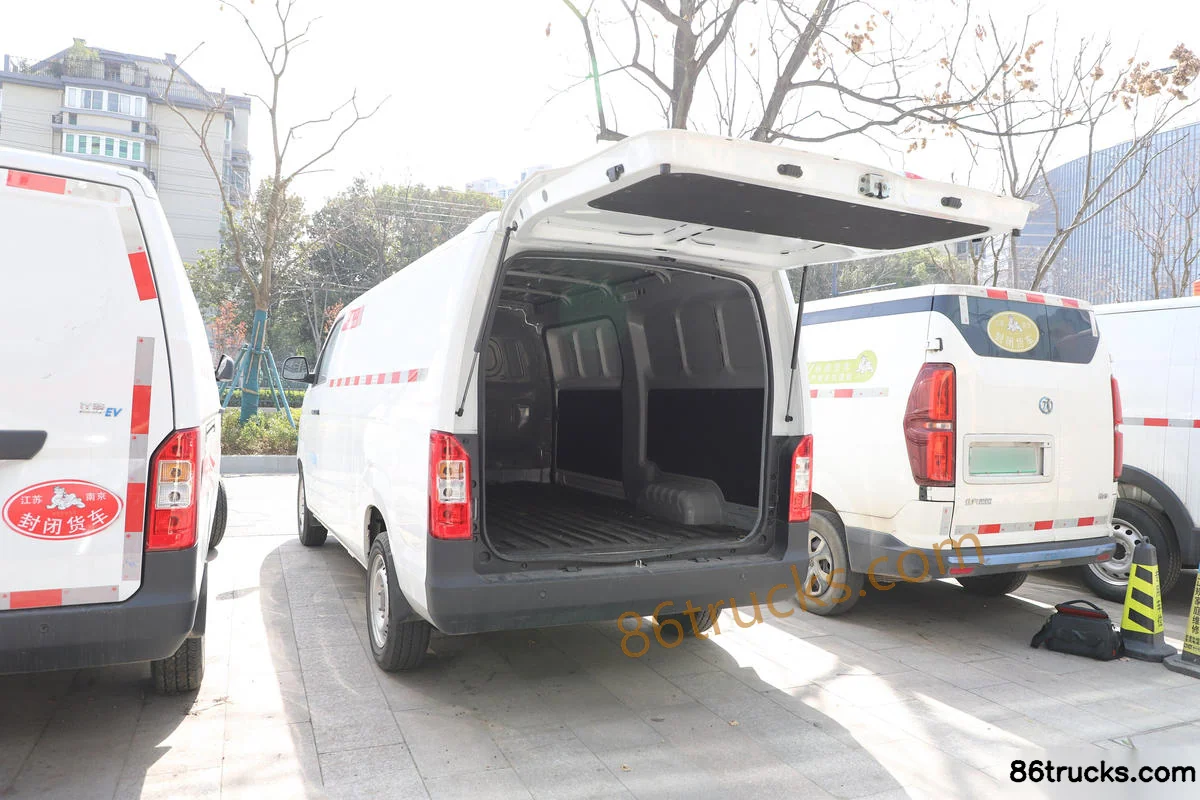

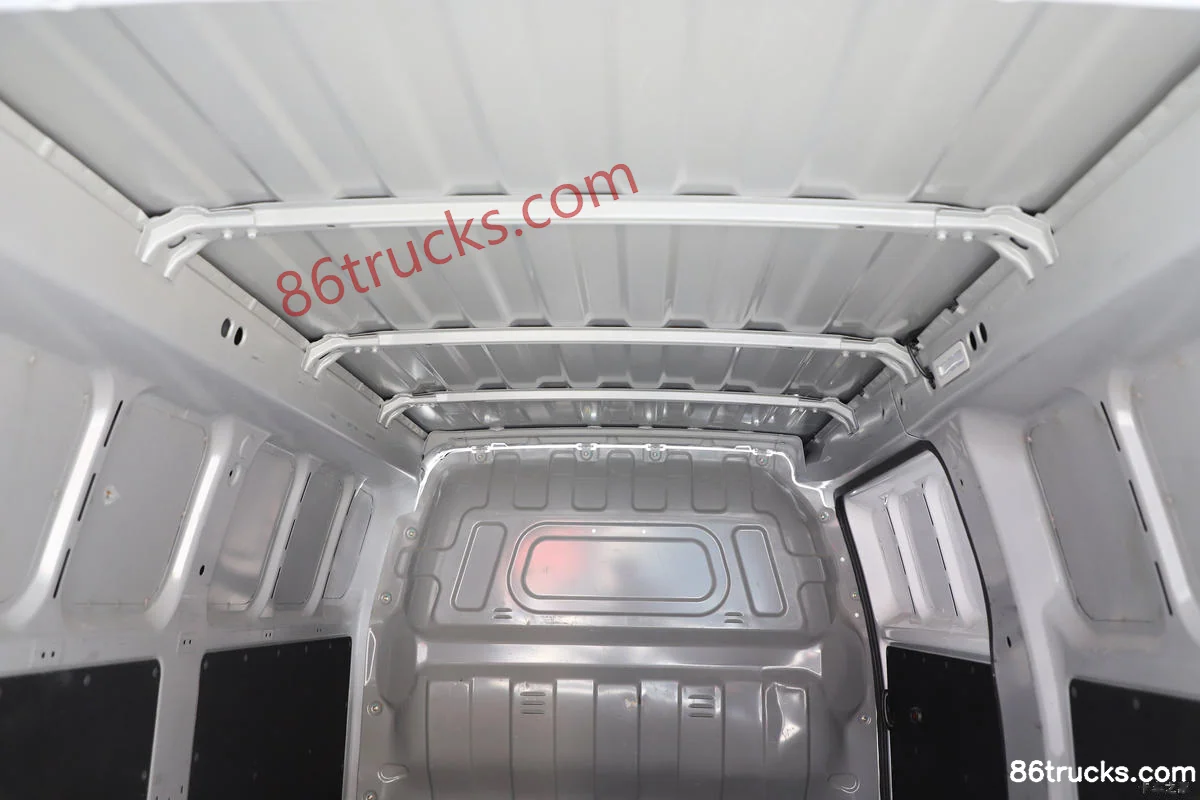

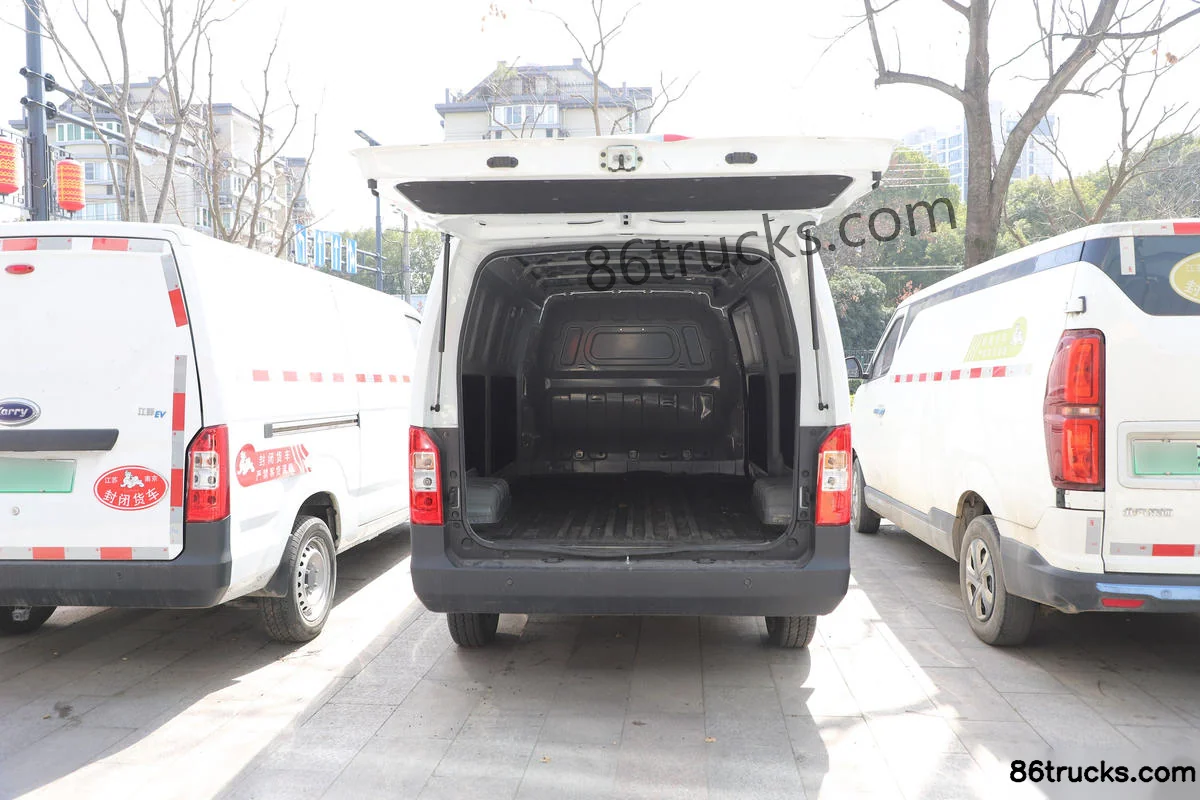

Cargo Box3

12 photos

FAQ

What is the export price of Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh, and what does it include?

Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh export reference is about From $16,806; MSRP is ¥12.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh suited for?

Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh differ from other variants in the same series?

Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh belongs to Karry Auto Jiangtun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Jiangtun E6 2023 Wide Comfort Edition 2-Seat Pure Electric Panel Van Guoxuan High-Tech 40.55kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
