Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11)

Export reference
MSRP N/A
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.9L
Model code (announced):: CGC4250D6FCCH
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Fuel Diesel

Overview

The Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a FotonX13NS6B560 engine, Fast GearC12JSDQXL260TA+FHB400 transmission and Diesel fuel.

China VI 560 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC4250D6FCCH
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: FotonX13NS6B560
transmission: Fast GearC12JSDQXL260TA+FHB400
Rear Axle Ratio: 4.11
Cab length: 6.835m
Cab width: 2.55m
Cab height: 3.86m
Front track width: 2030mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Remarks: Standard: hydraulic retarder, passenger small table, 4.3-inch color screen combination instrument, bunk reading light, 220V power supply; Optional: low rolling resistance tires, 180Ah low-temperature battery
Version: Northern Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS6B560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.9L
Emission standard: China VI
Max output power: 412kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: Fast GearC12JSDQXL260TA
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 800L
Chassis Specs
Front axle description: 6.5T457
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×(8+4)mm
rear axle description: 13T upgraded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 3/5
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
interior configuration
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Exterior features
Air deflector:

Photos

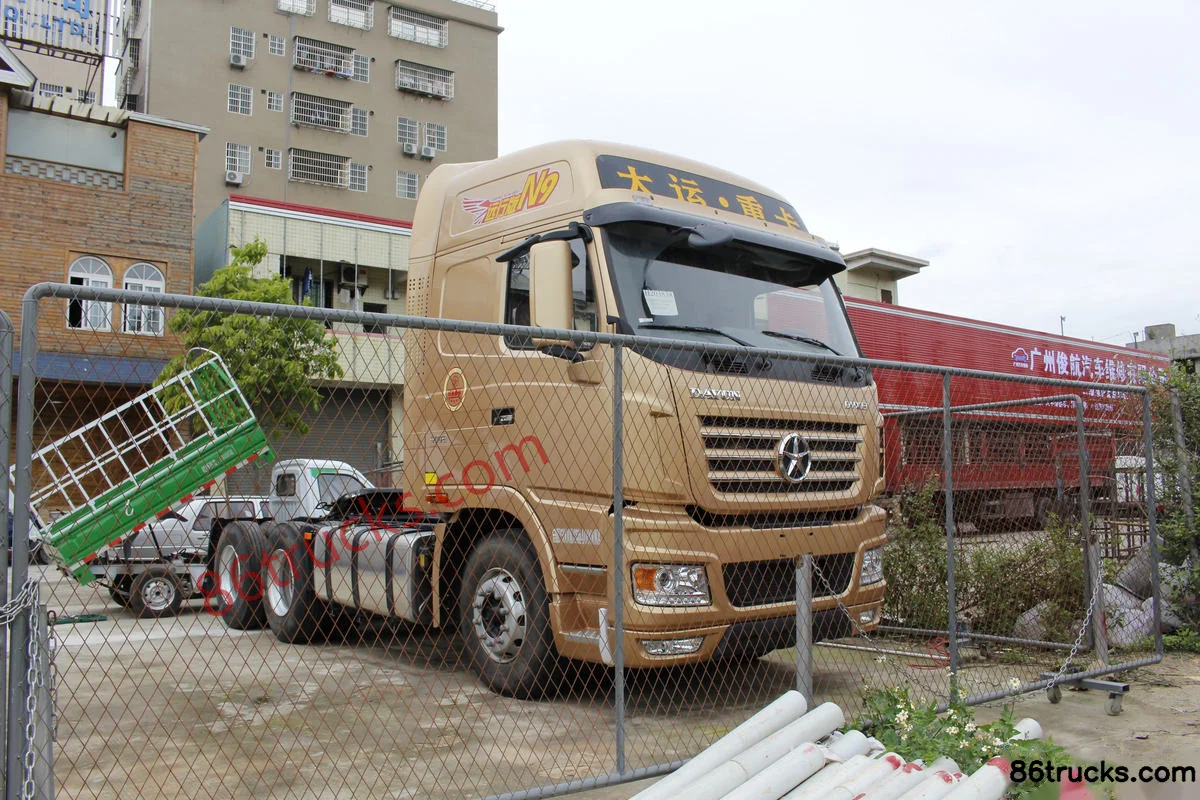

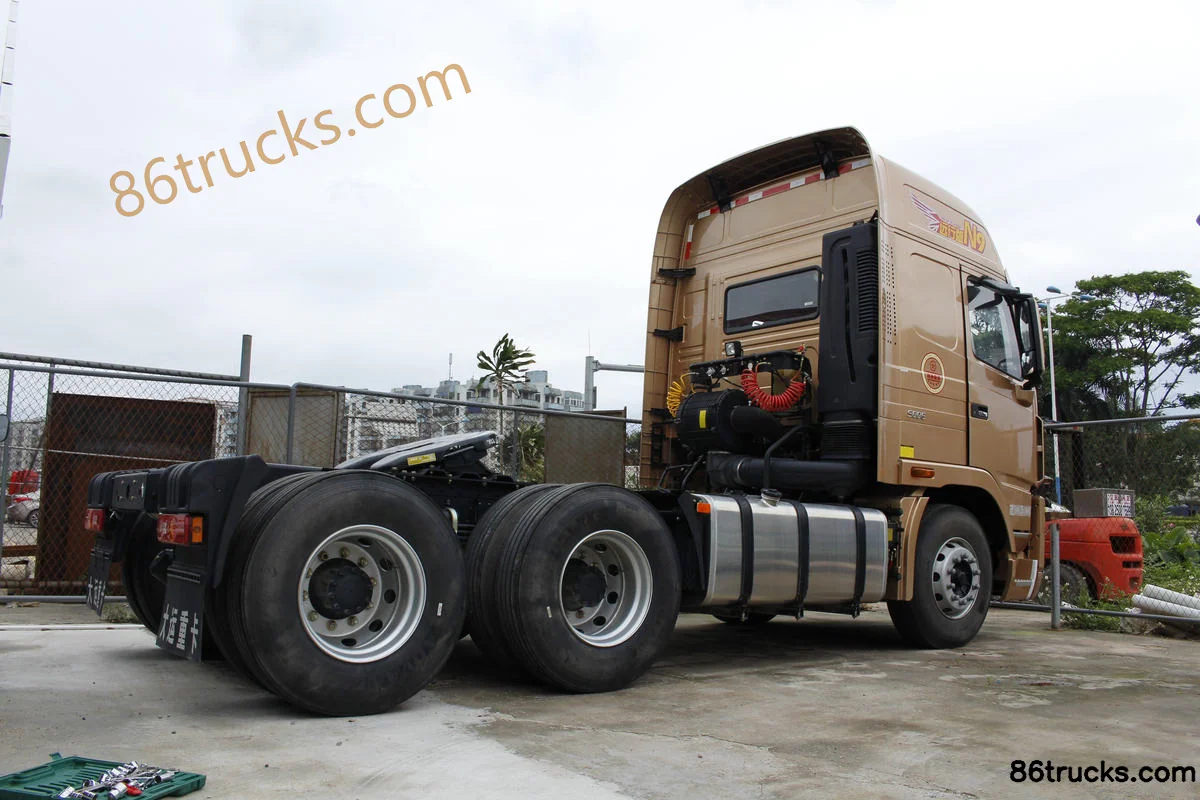

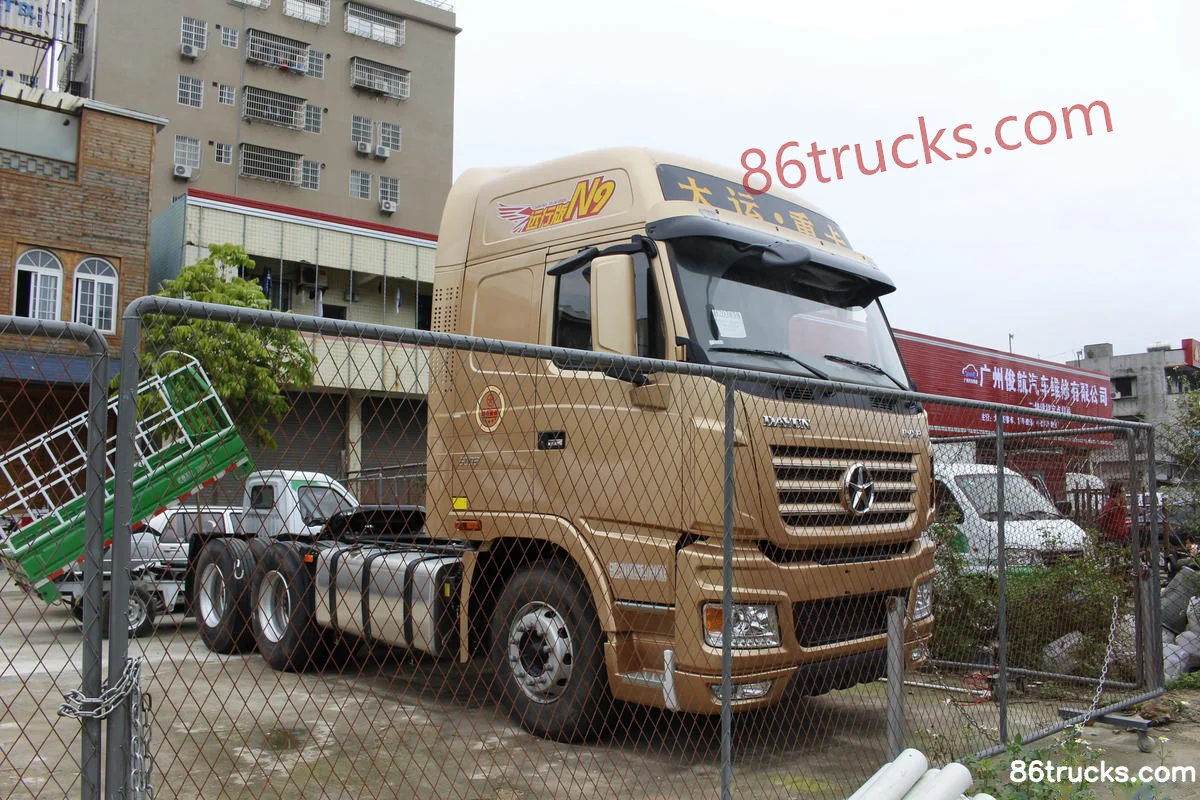

Exterior3

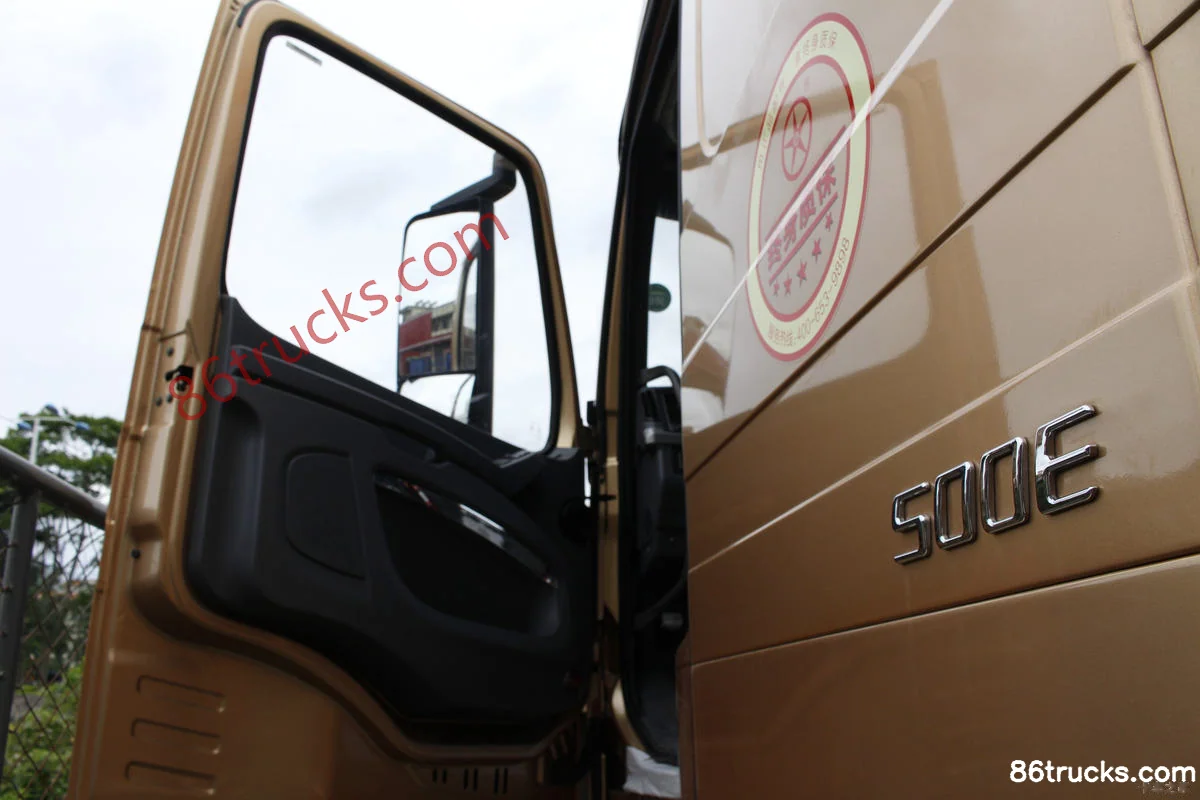

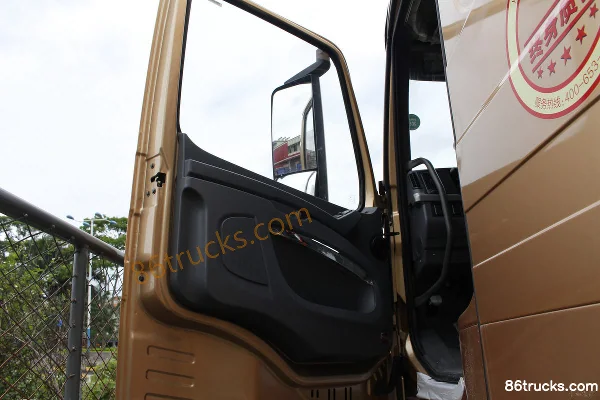

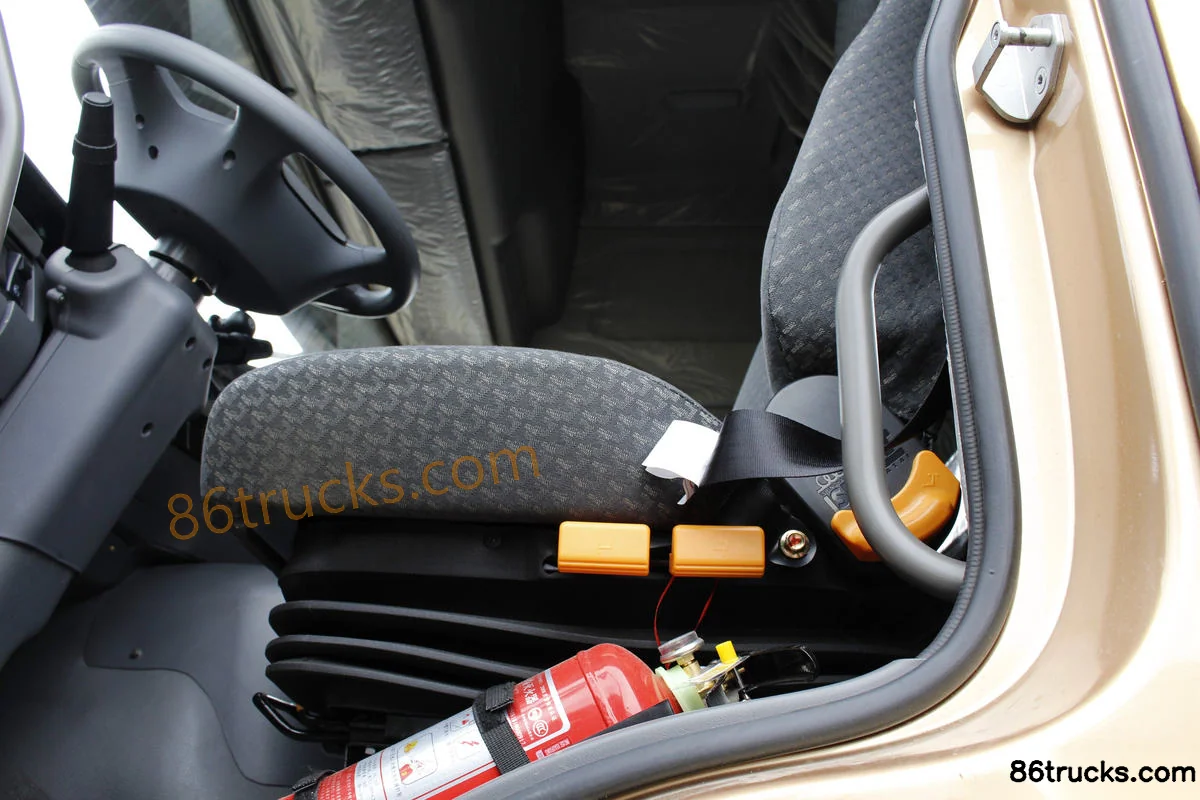

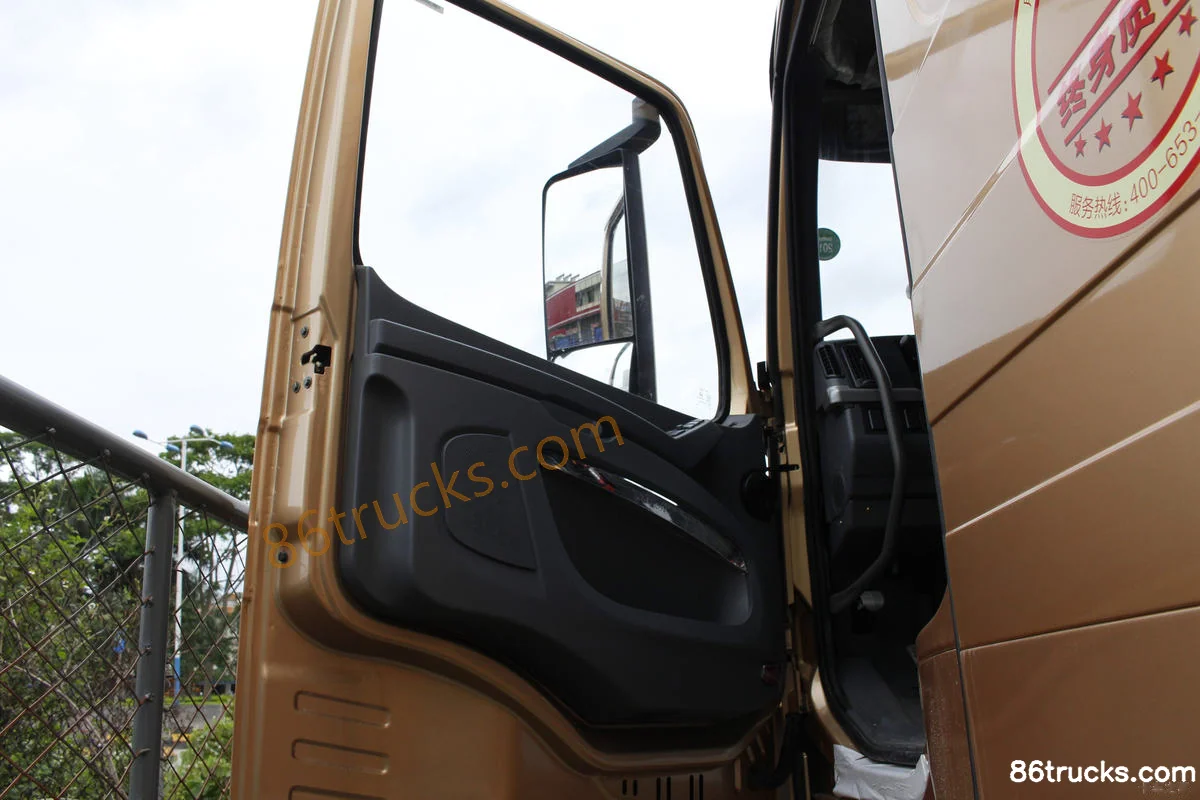

Cab3

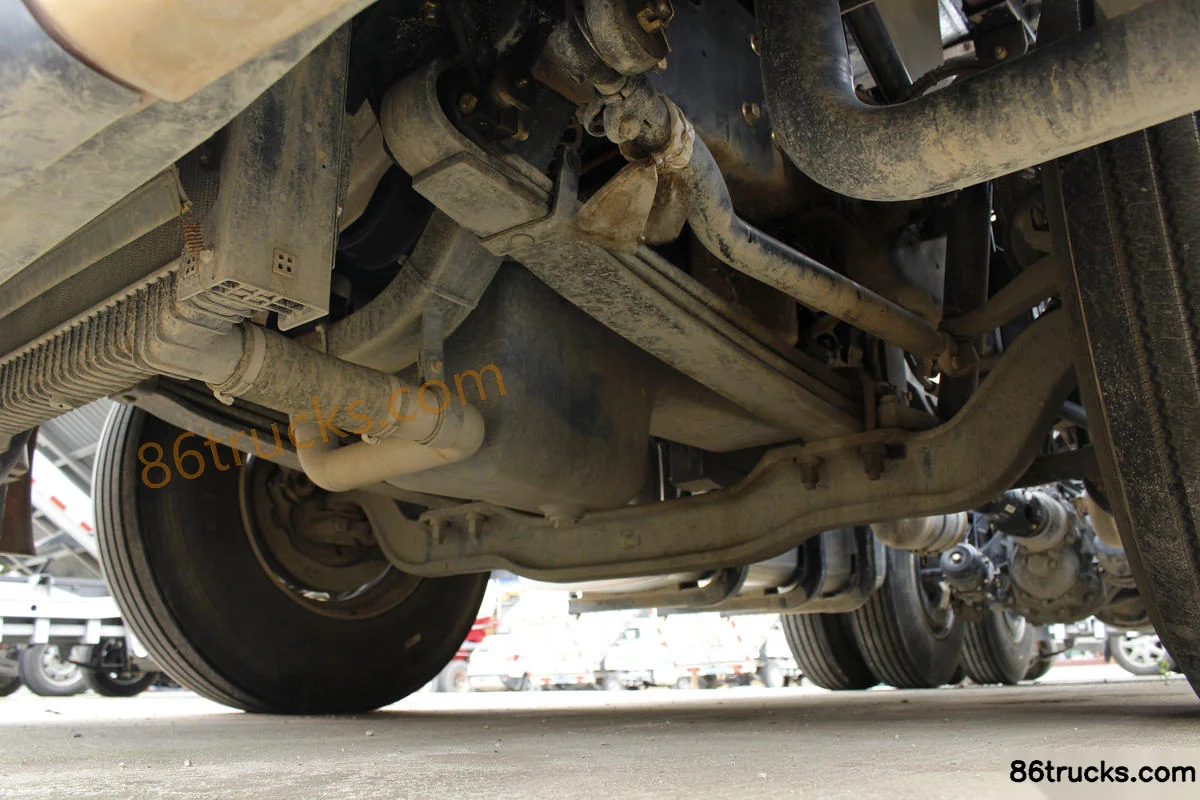

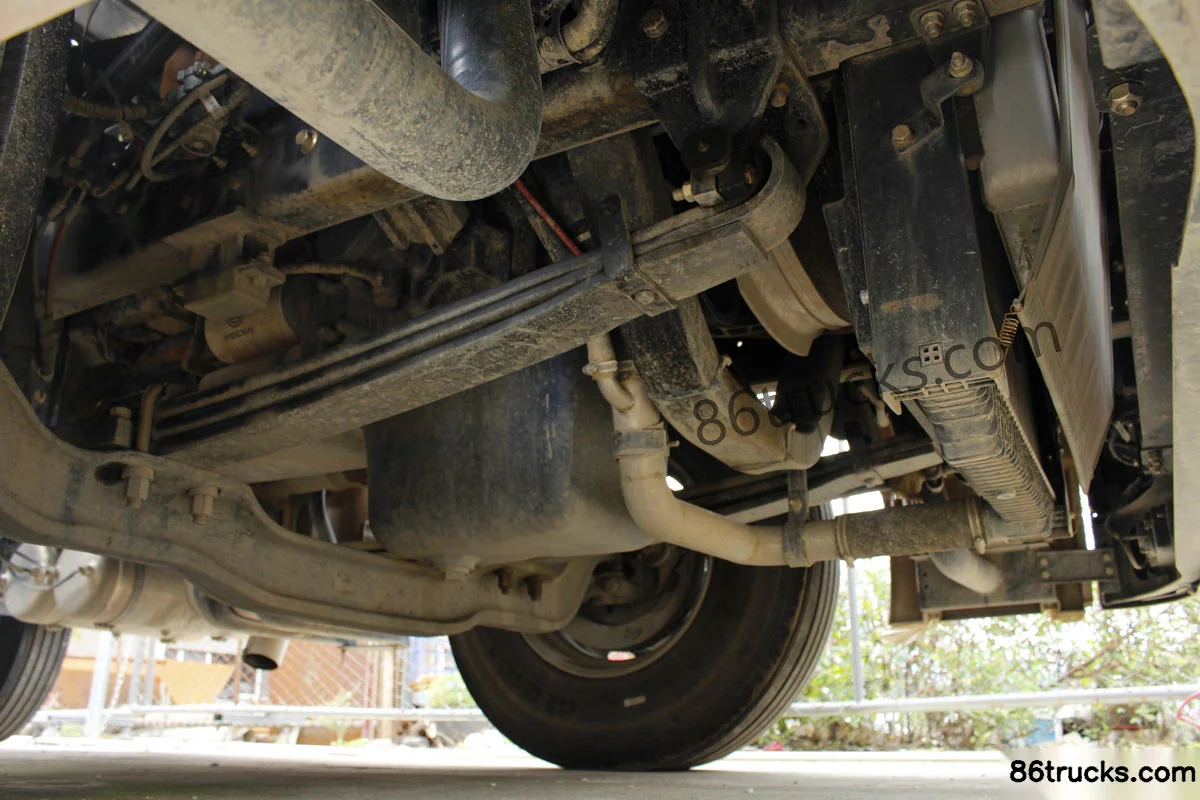

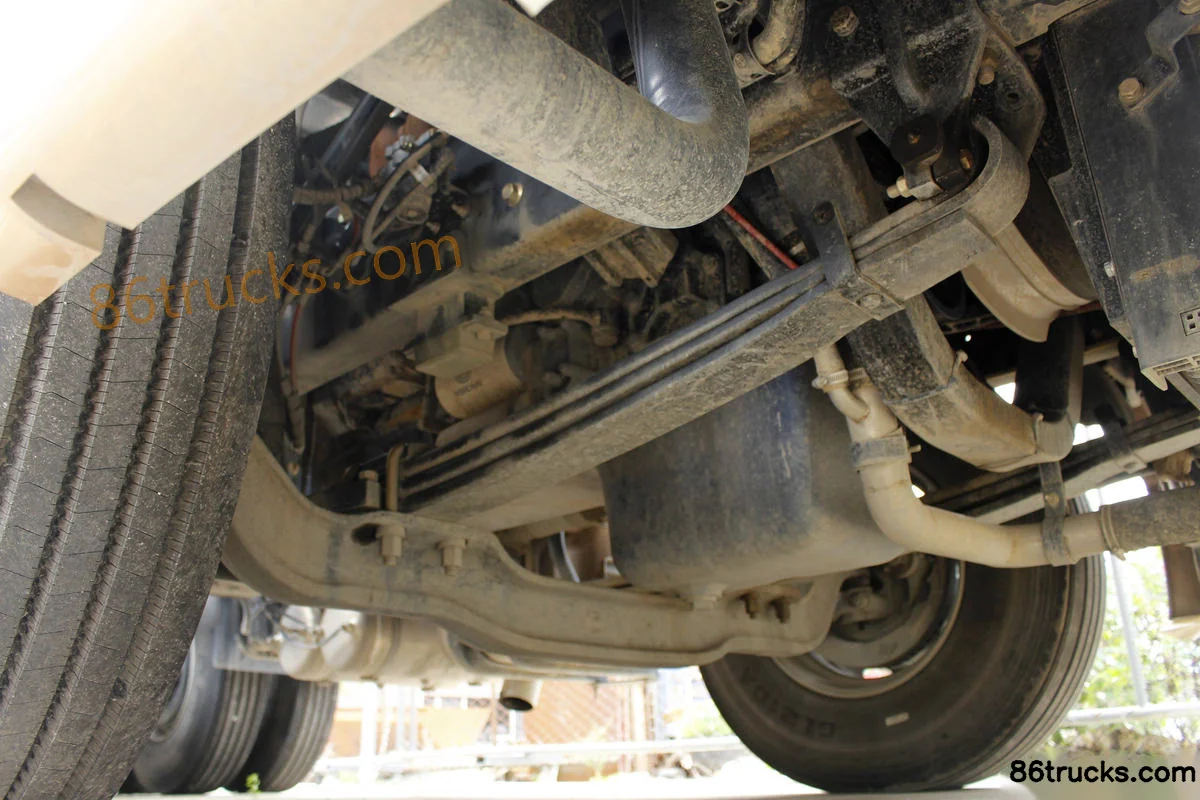

Chassis3

9 photos

FAQ

What emission standard does Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11)?

Key specs of Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11): Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) suited for?

Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) differ from other variants in the same series?

Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11) belongs to Dayun N9H Heavy-duty Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N9H Heavy Truck Northern Edition 560hp 6X4(10 wheels) Tractor Truck (China VI) (with Hydraulic Retarder) (Cummins Power) (Ratio 4.11)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
