Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.225ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: HN5040XXYG14C3BEV
Type:: enclosed cargo truck
Box length class:: 4.1m
Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) exterior
View more photos (3)
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Jingjin
Curb Weight: 3.14ton

Overview

The Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) is a Light Truck featuring 300km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.225t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HN5040XXYG14C3BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.1m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.98m
CLTC range: 300km
Curb Weight: 3.14ton
Rated payload: 1.225ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Ma'anshan, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ290XS905E
Max torque: 1000N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 70kW
Peak power: 140kW
total rated torque: 450N·m
total peak torque: 1000N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 82.4kWh
Battery rated voltage: 588.8V
fast charge time:
Slow charge time: 11h
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.1m
Cargo box width: 2.1m
Cargo box height: 2m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
steering wheel adjustment: Manual
AC control type: Automatic
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder: GPS
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

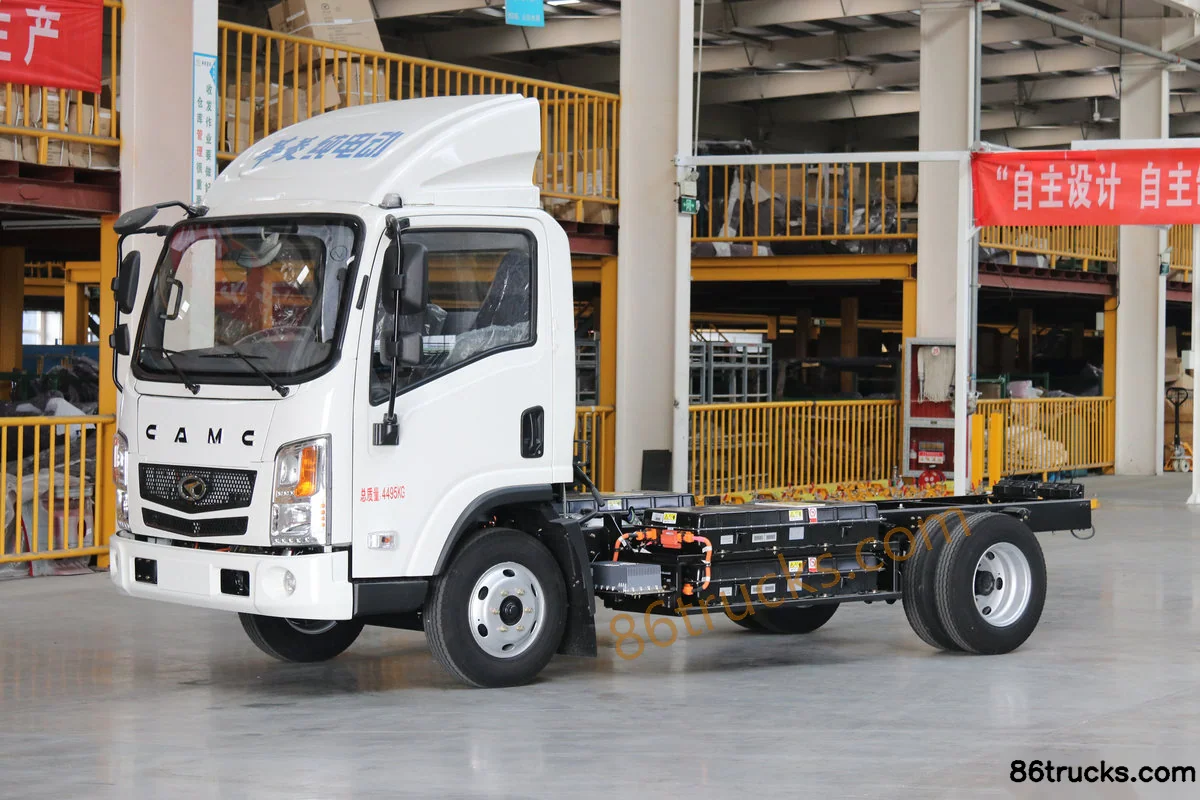

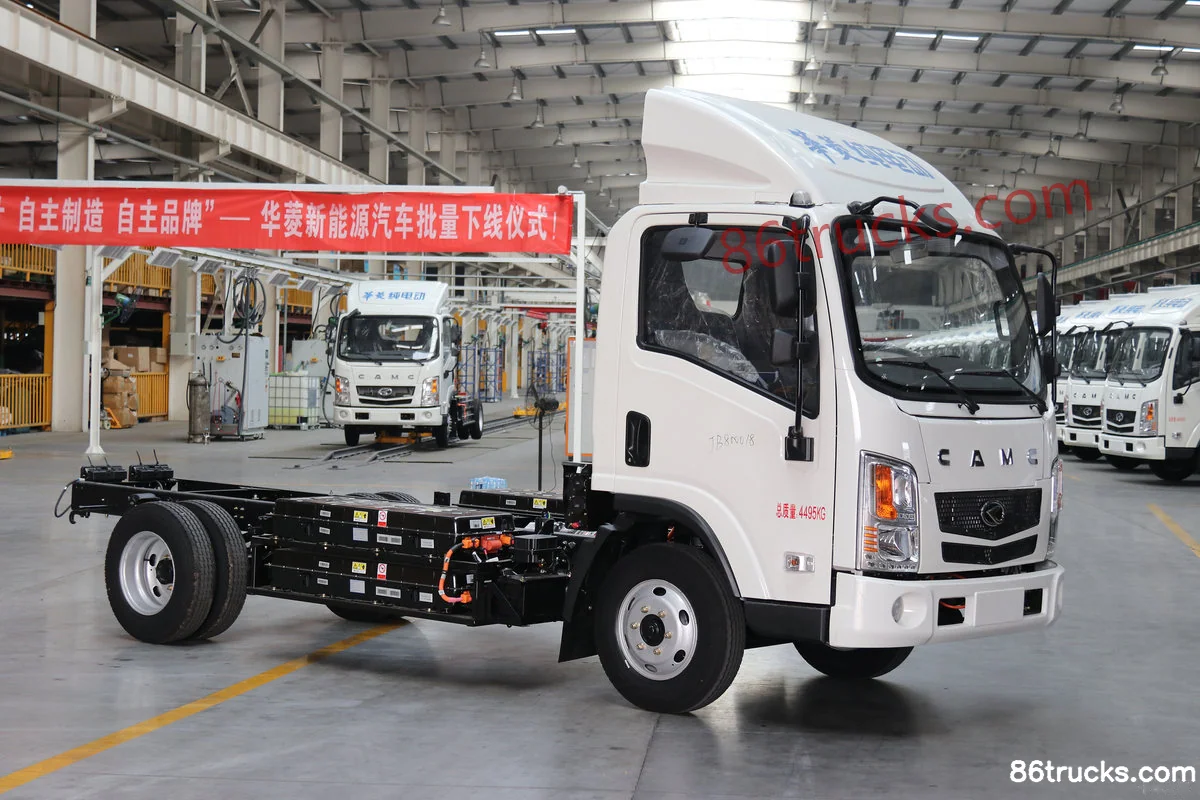

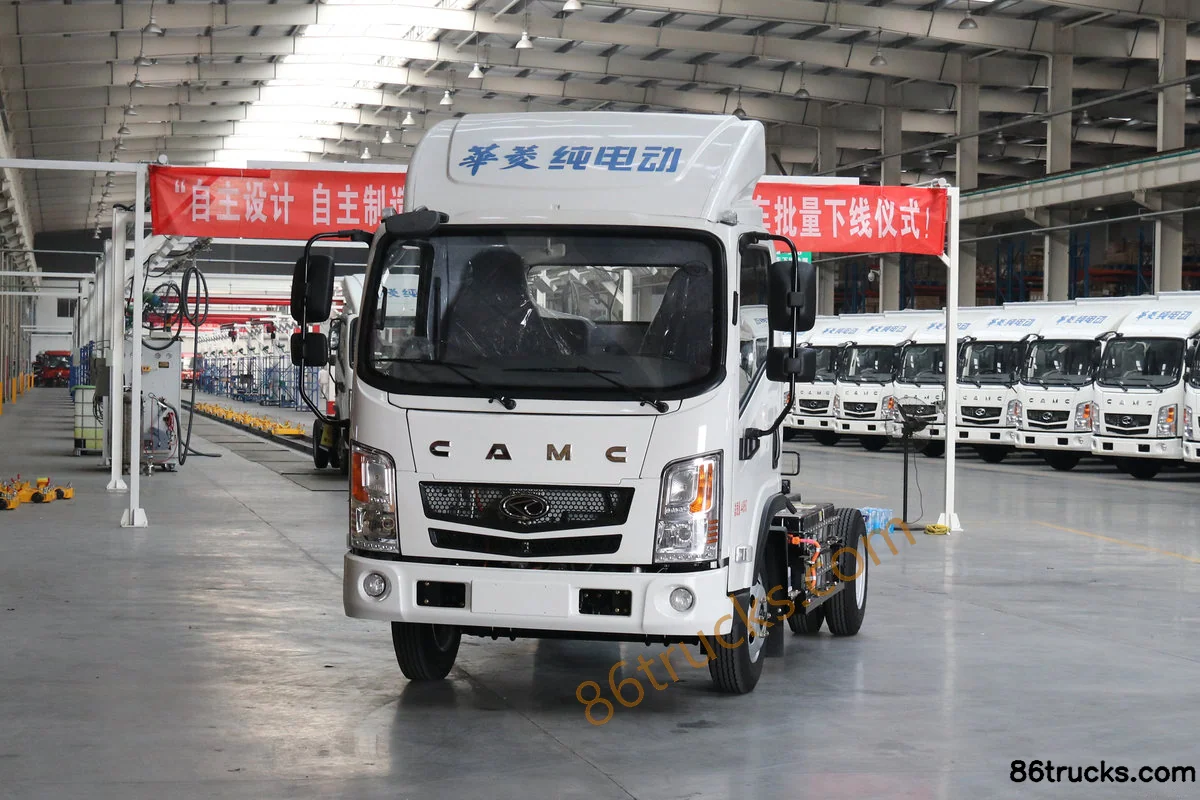

Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) Exterior (1) | 86Trucks Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) Exterior (2) | 86Trucks Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) Exterior (3) | 86Trucks

3 photos

FAQ

What are the key specs of Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels)?

Key specs of Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) suited for?

Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) differ from other variants in the same series?

Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels) belongs to Hualing Lingma H1 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Lingma H1 4.5T 4.1m single-row pure electric van light truck 82.4kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
