Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh

Export reference
MSRP N/A
Rated payload:: 17.87ton
Wheelbase:: 1995+3600+1350mm
Cargo box type:: Rear dump type
Model code (announced):: DFH3310EEV
Cab length:: 10.425m
GVWR:: 31ton
Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh exterior
View more photos (9)
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Lv Kong
Curb Weight: 13ton

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh is a Heavy truck featuring CATL battery/range, Lv Kong motor, 8X4 (12 wheels) drive and 17.87t payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFH3310EEV
Drive type: 8X4
Wheelbase: 1995+3600+1350mm
Cab length: 10.425m
Cab width: 2.55m
Cab height: 3.19m
Curb Weight: 13ton
Rated payload: 17.87ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ460XS-LKM3101
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 450kW
total rated torque: 1450N·m
total peak torque: 3100N·m
Motor 1 Peak Power: 450kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 352kWh
Transmission Parameters
Number of gears: 4Gear
Transmission Model: J4S240 DD
Forward gears: 4Gear
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: DF400
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

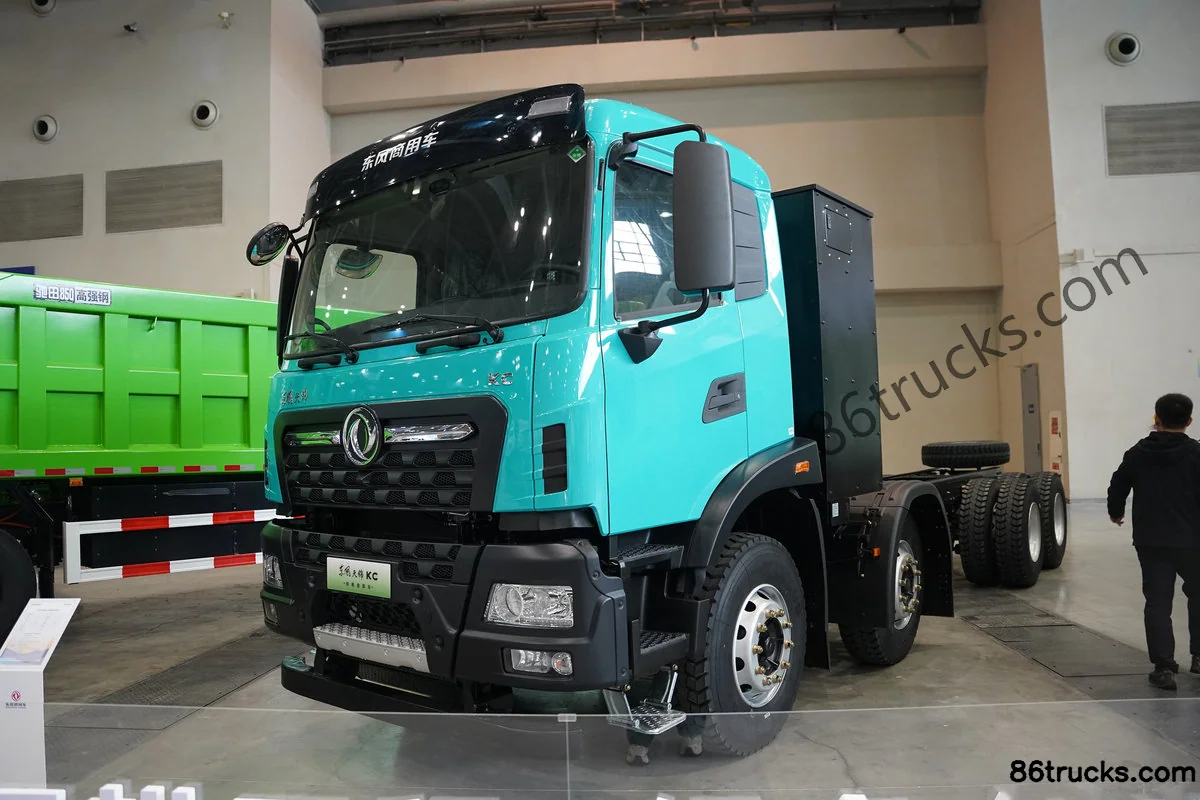

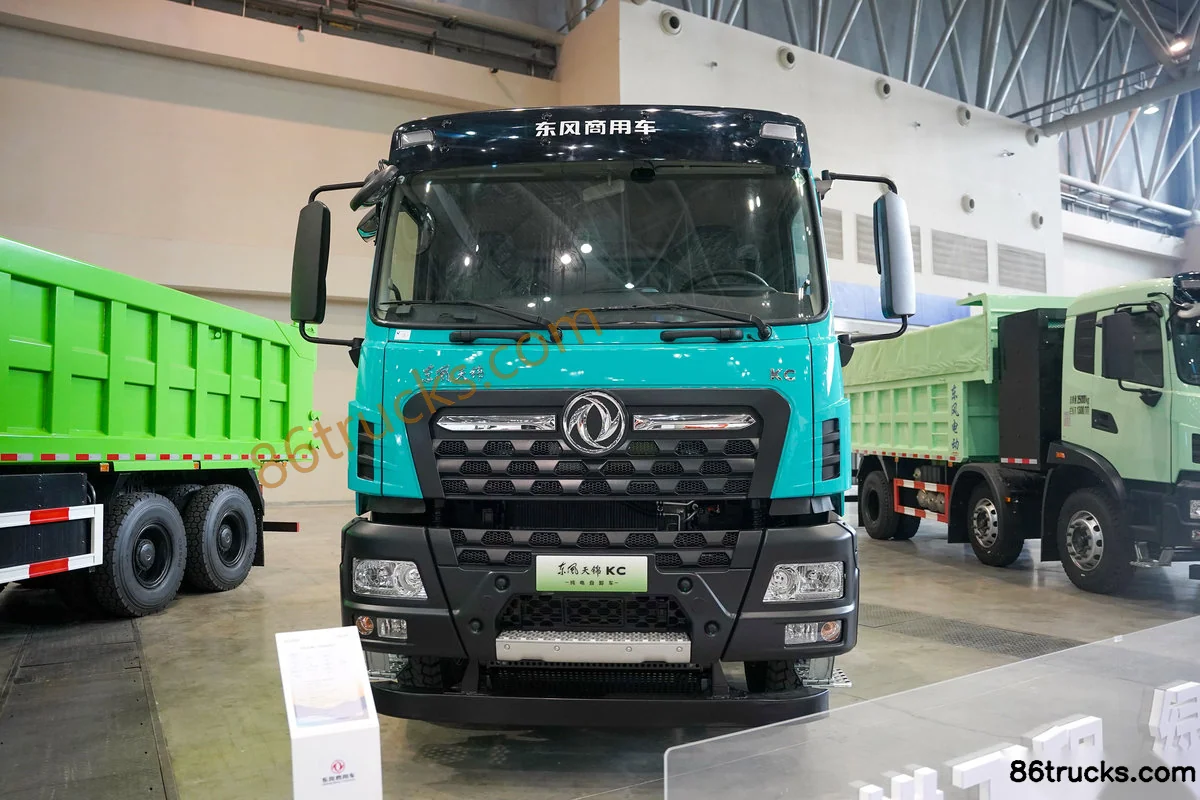

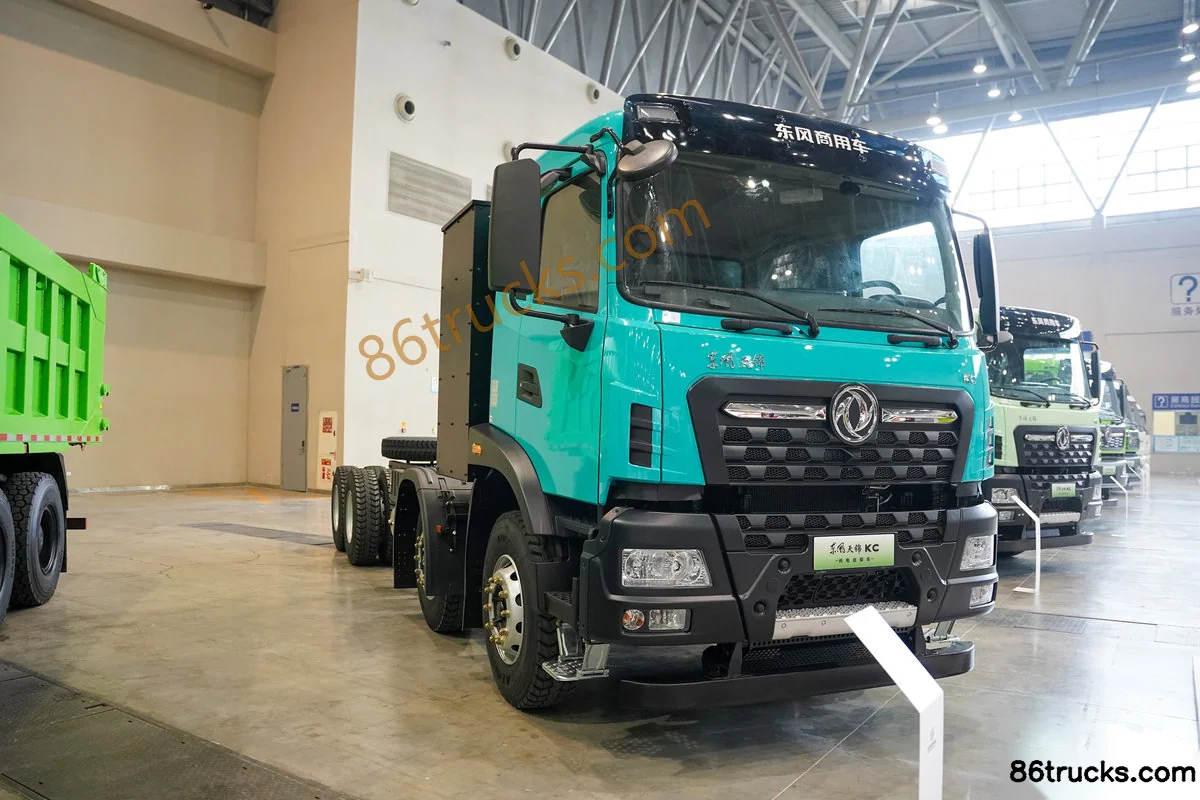

Exterior3

Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Exterior (1) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Exterior (2) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Exterior (3) | 86Trucks

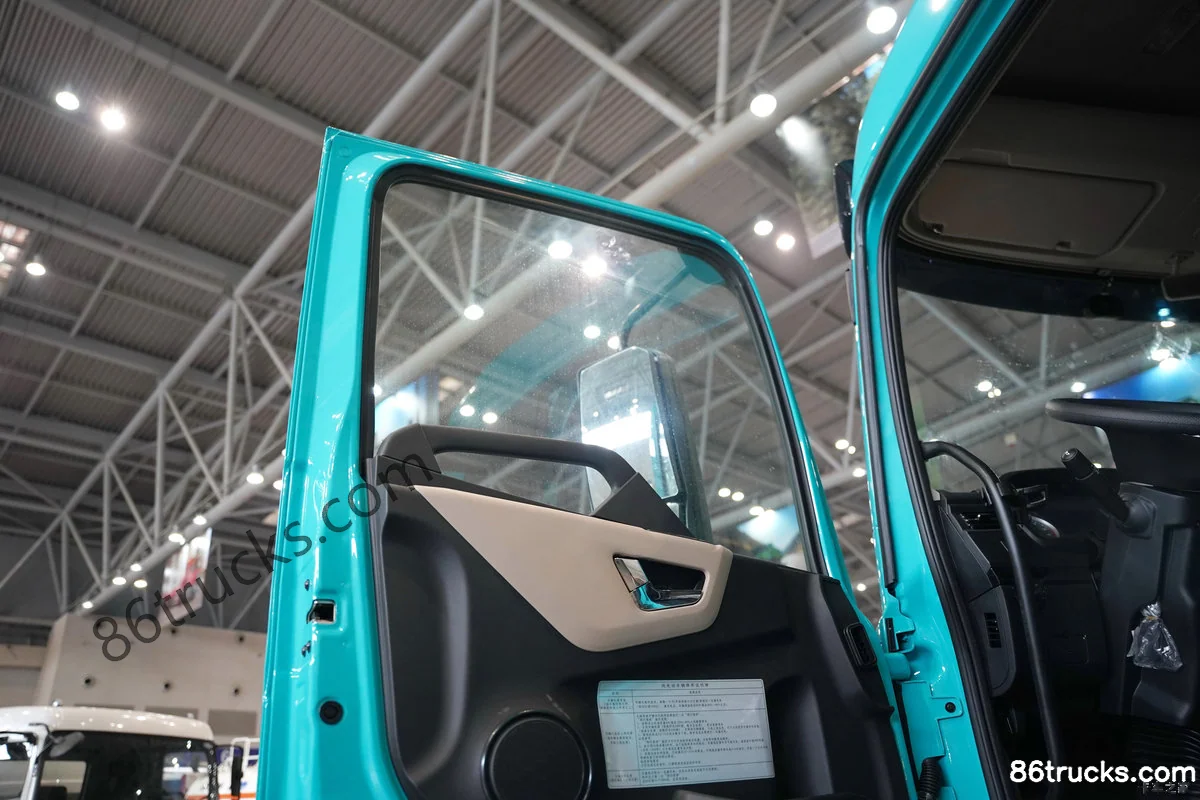

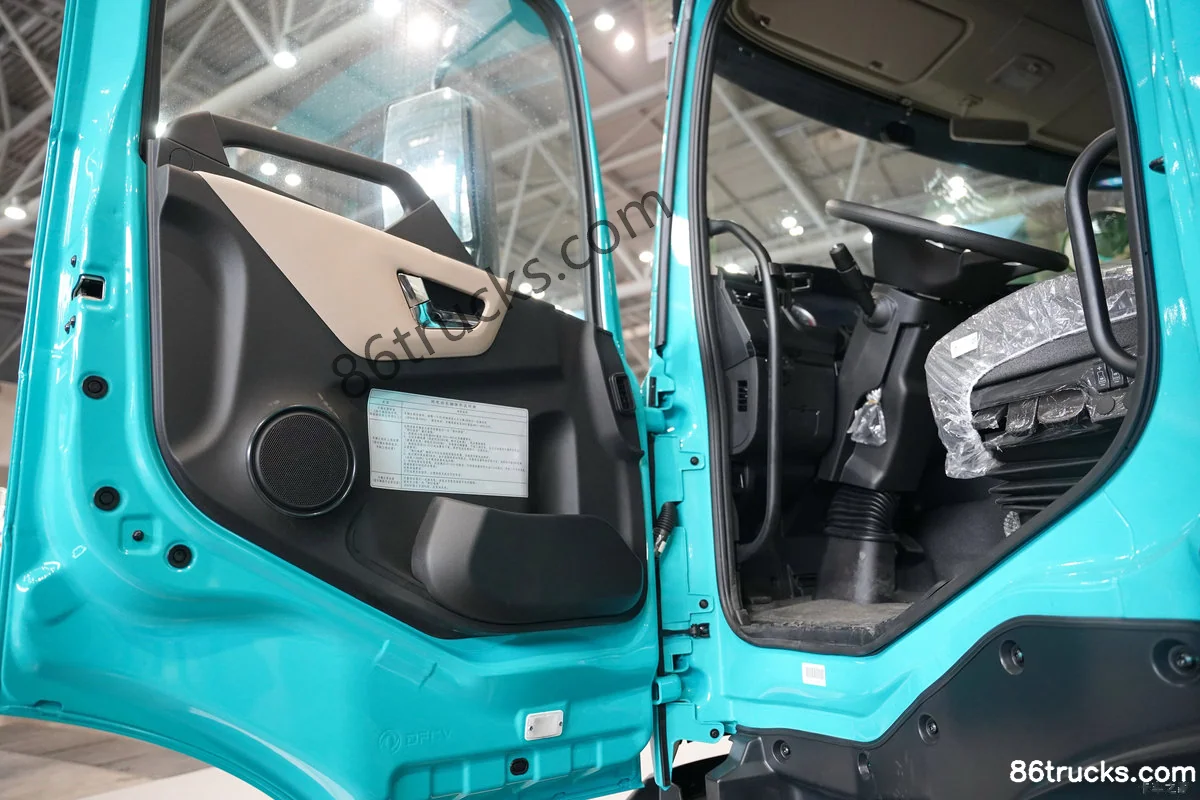

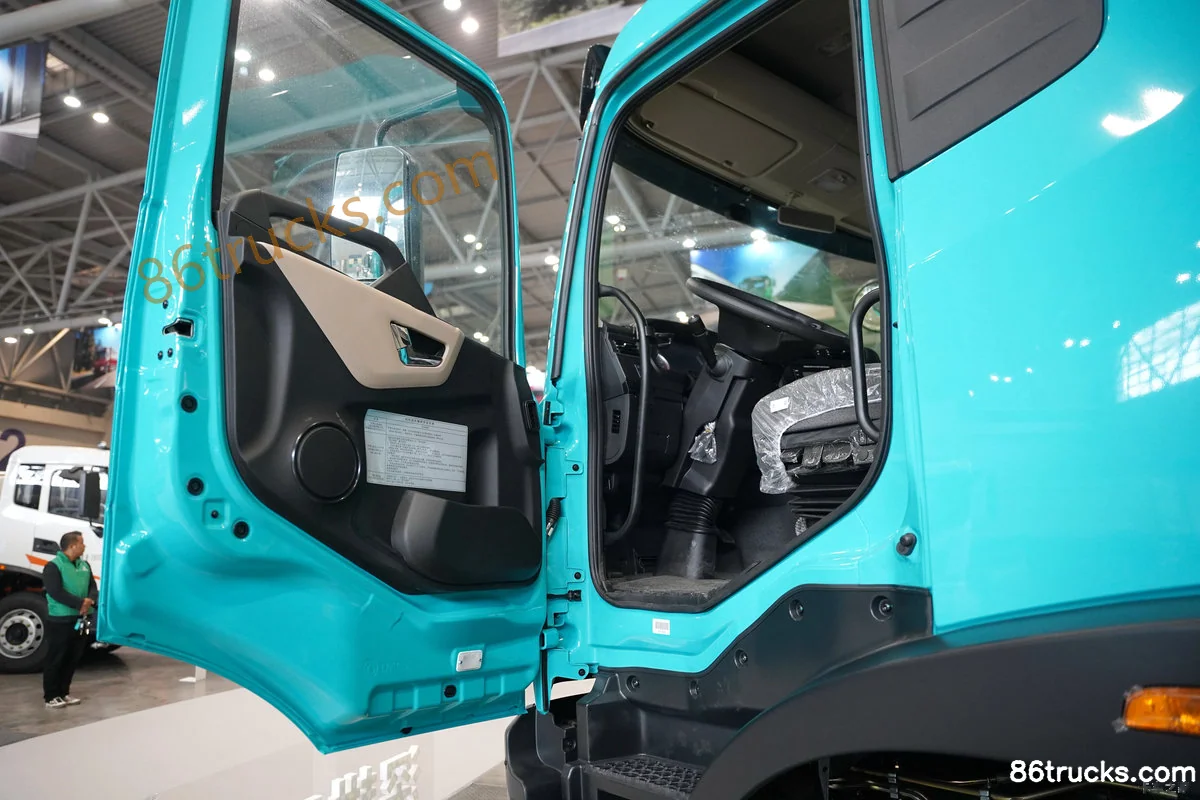

Cab3

Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Cab (1) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Cab (2) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Cab (3) | 86Trucks

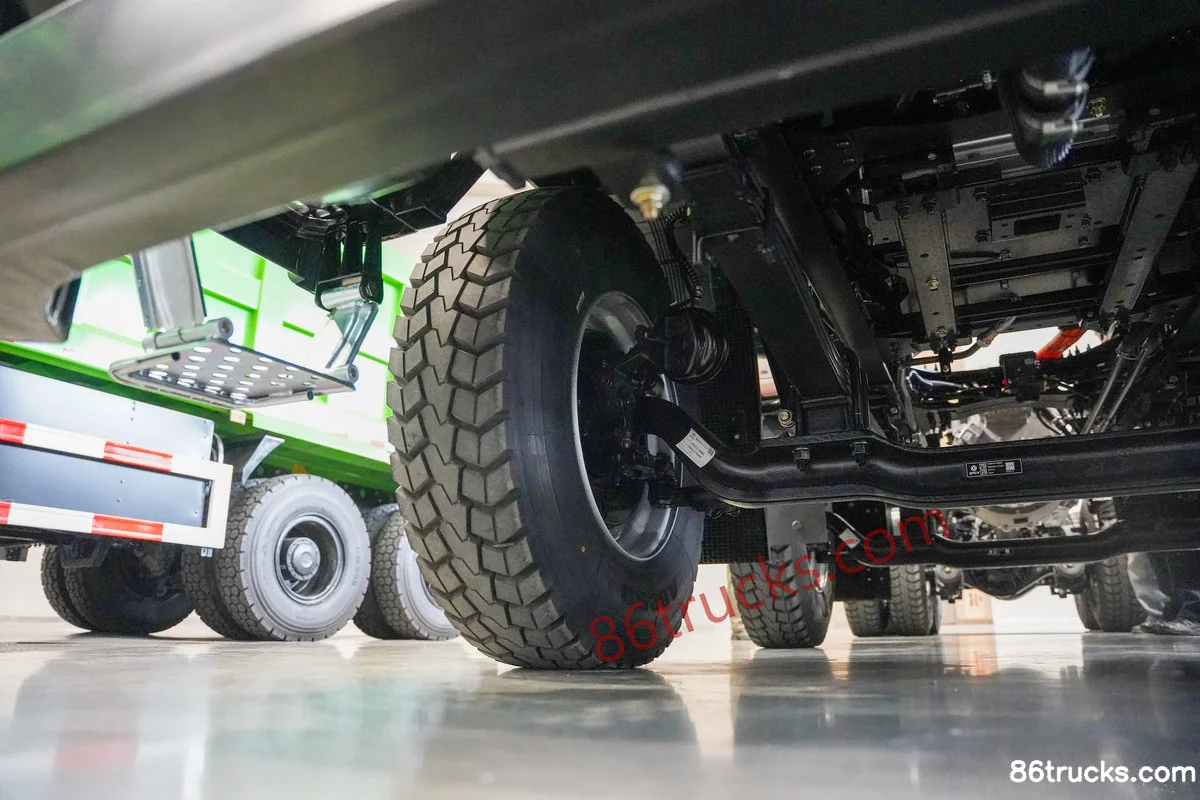

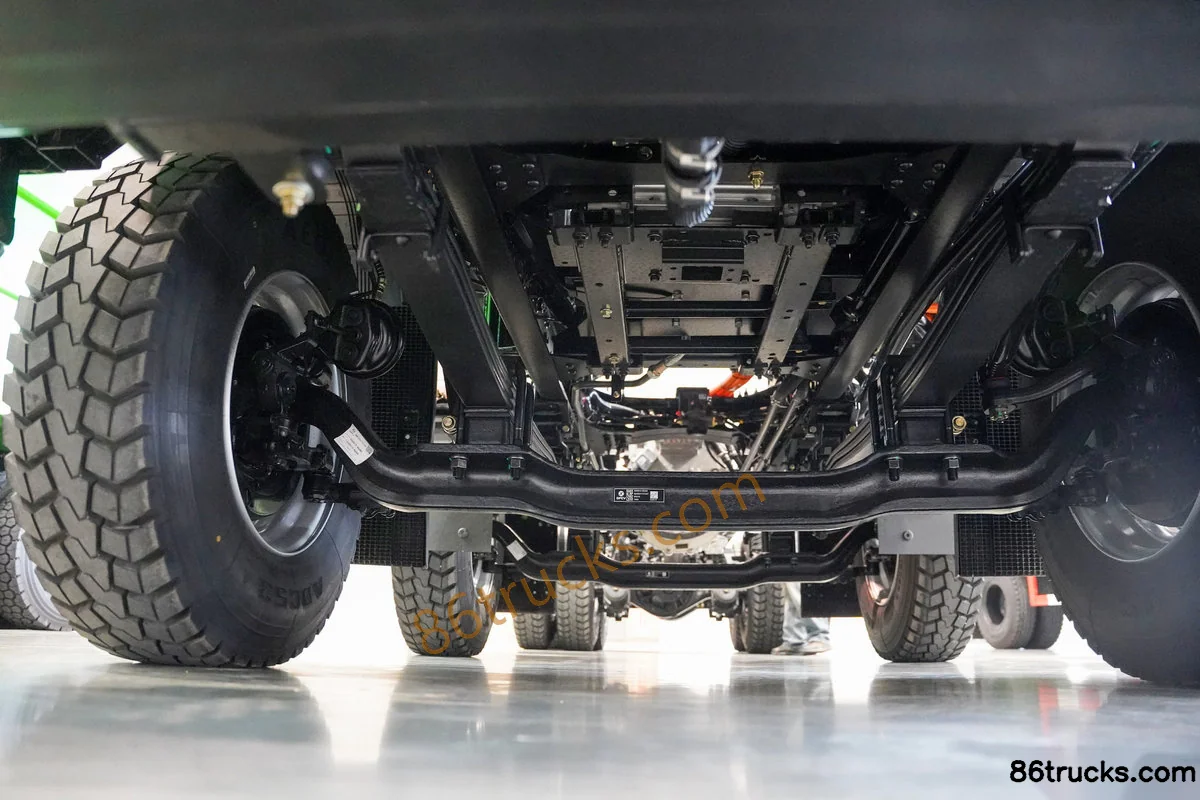

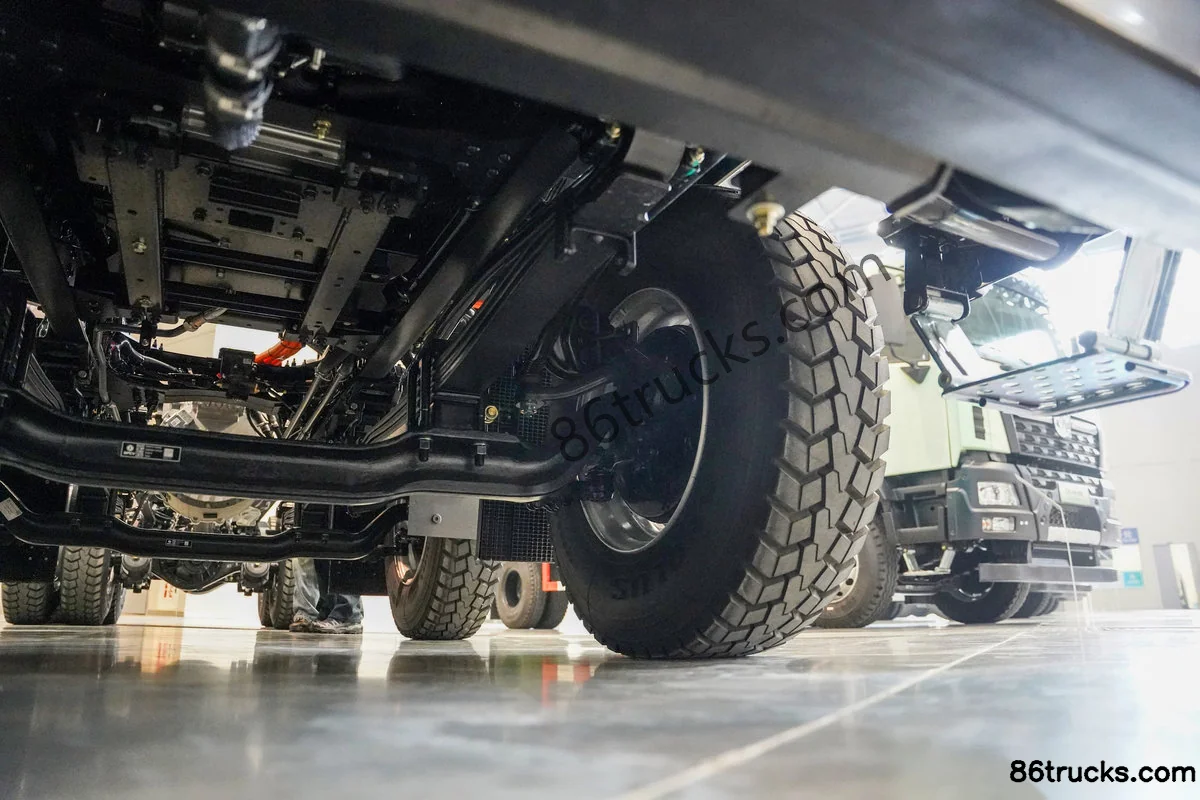

Chassis3

Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Chassis (1) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Chassis (2) | 86Trucks Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh?

Key specs of Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh suited for?

Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh differ from other variants in the same series?

Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh belongs to Dongfeng Tianjin KC heavy-duty truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KC 8X4(12 wheels) 6.5m Electric Dump Truck CATL 352kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
