Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 6.605ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Model code (announced):: ZZ5117CCYK3615Z1BEVF1
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Sinotruk
Curb Weight: 4.4ton

Overview

The Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, Sinotruk motor, 4X2 (6 wheels) drive and 6.605t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5117CCYK3615Z1BEVF1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.55m
Cab height: 3.35m
Curb Weight: 4.4ton
Rated payload: 6.605ton
GVWR: 11.2ton
Max. speed: 90km/h
Origin: Shandong Zhangqiu
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ220XS-ZQV22
Motor Type: Permanent magnet synchronous motor
total rated power: 95kW
Peak power: 190kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140.41kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.2m
Cargo box width: 2.44m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:

Photos

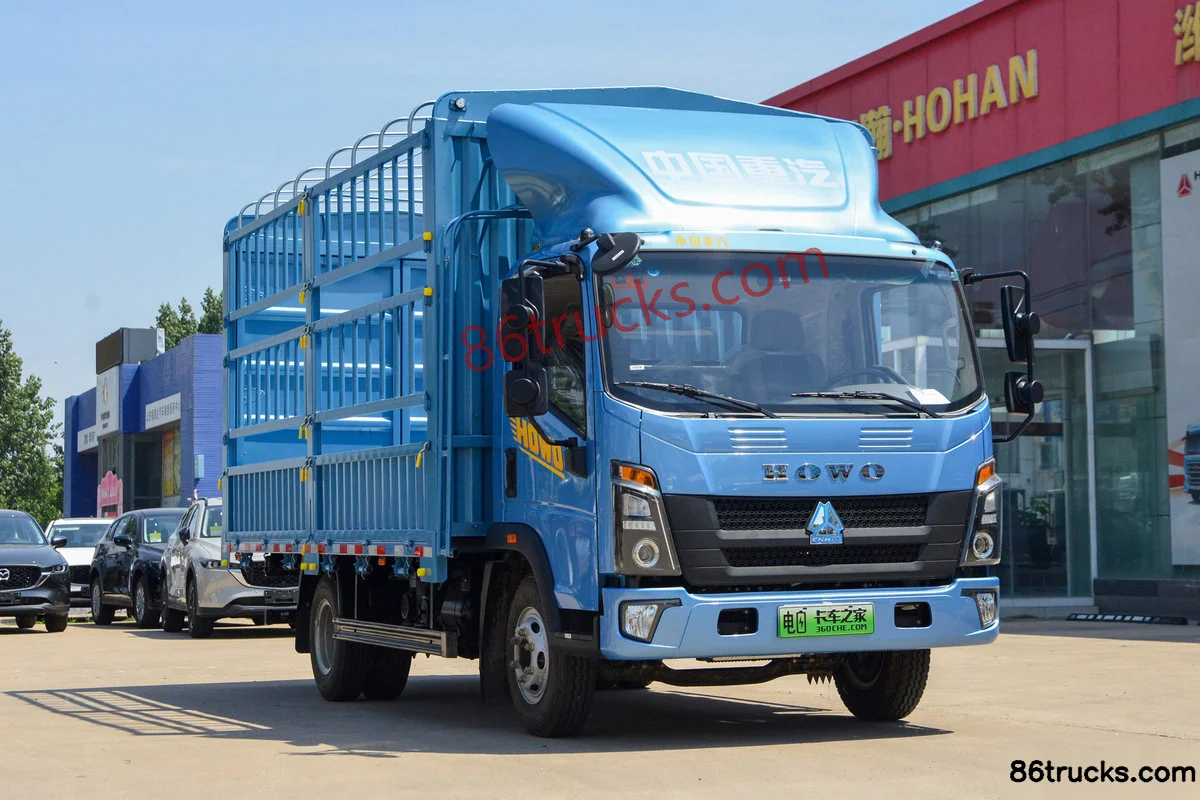

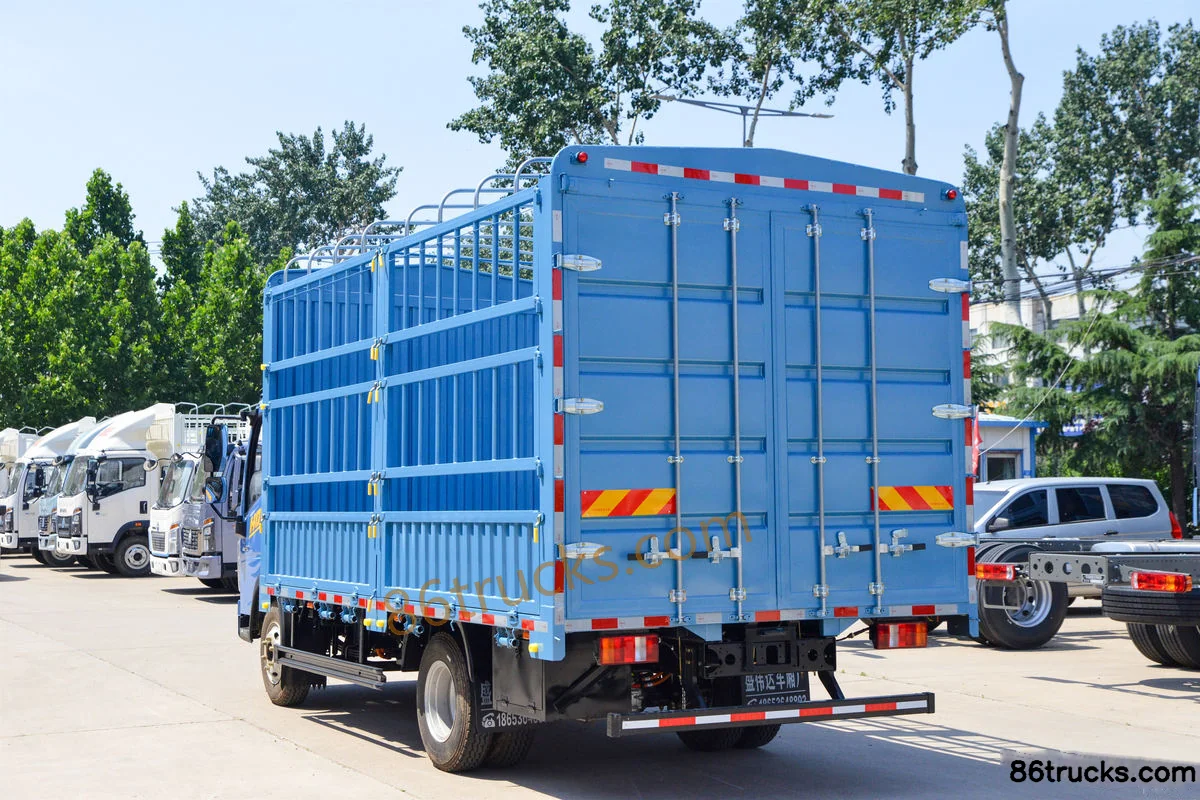

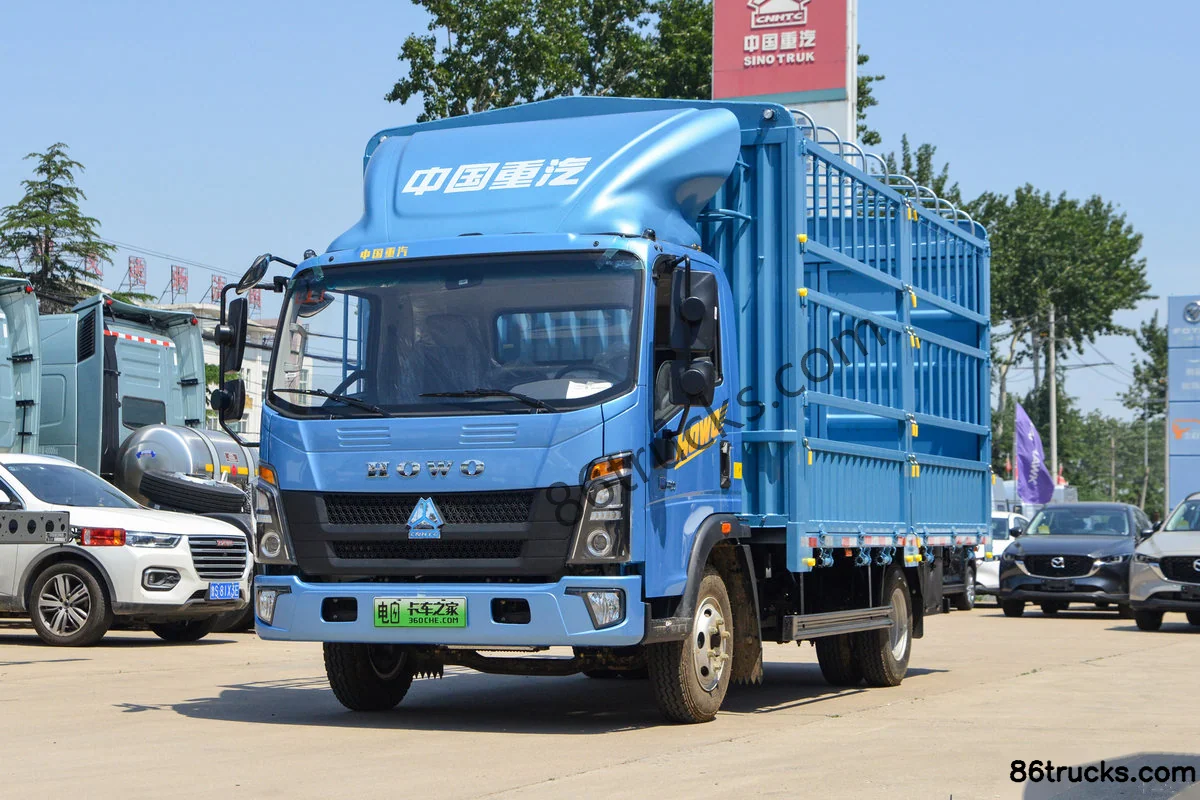

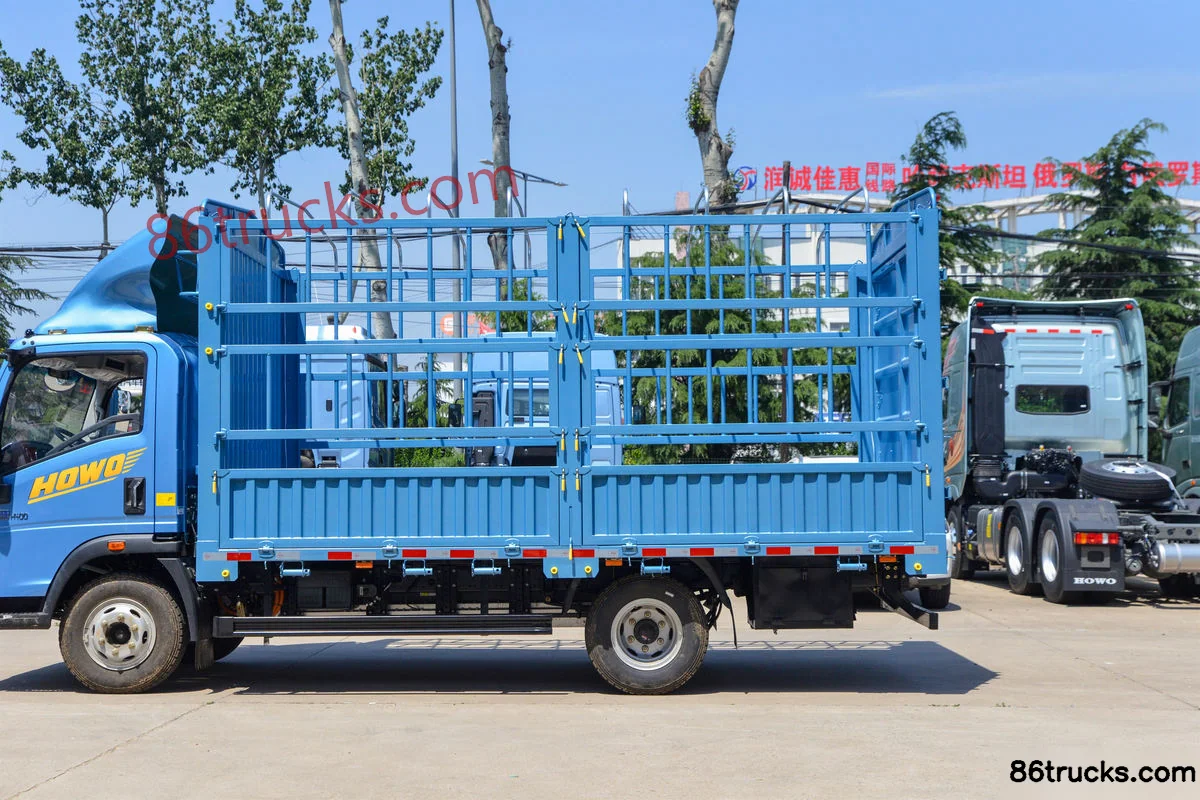

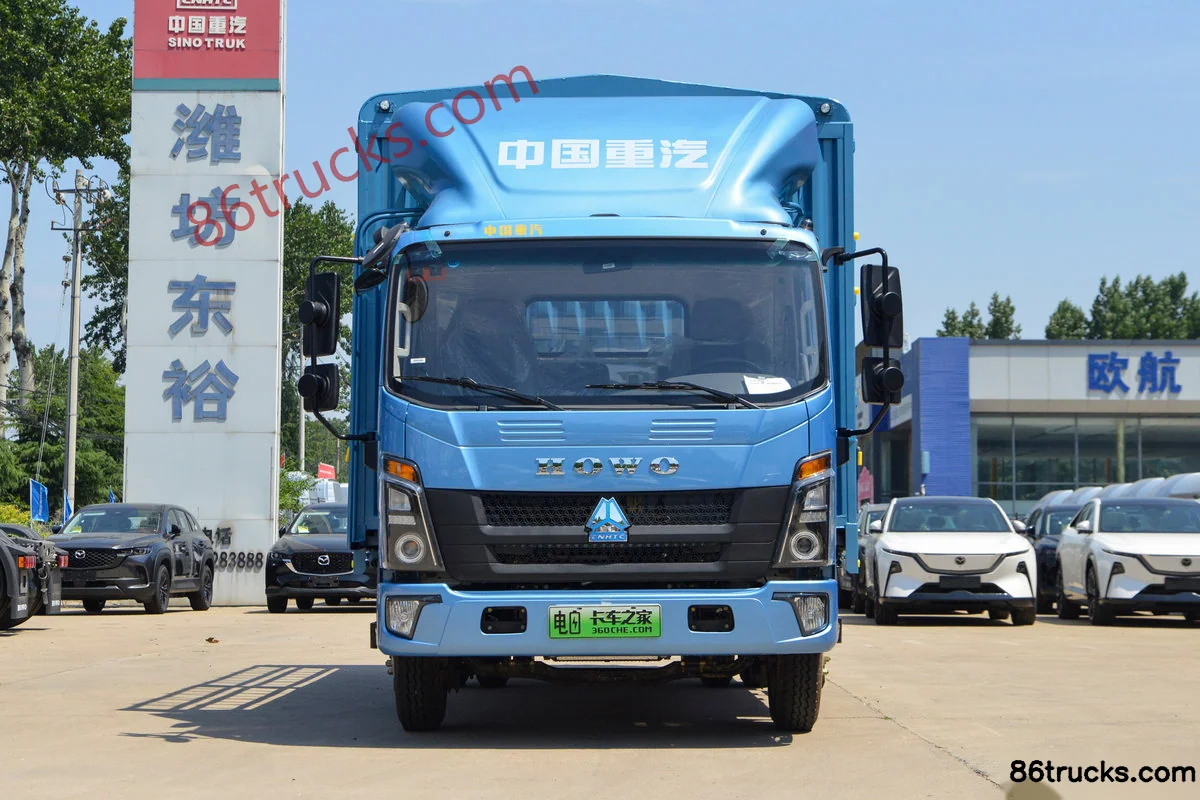

Exterior3

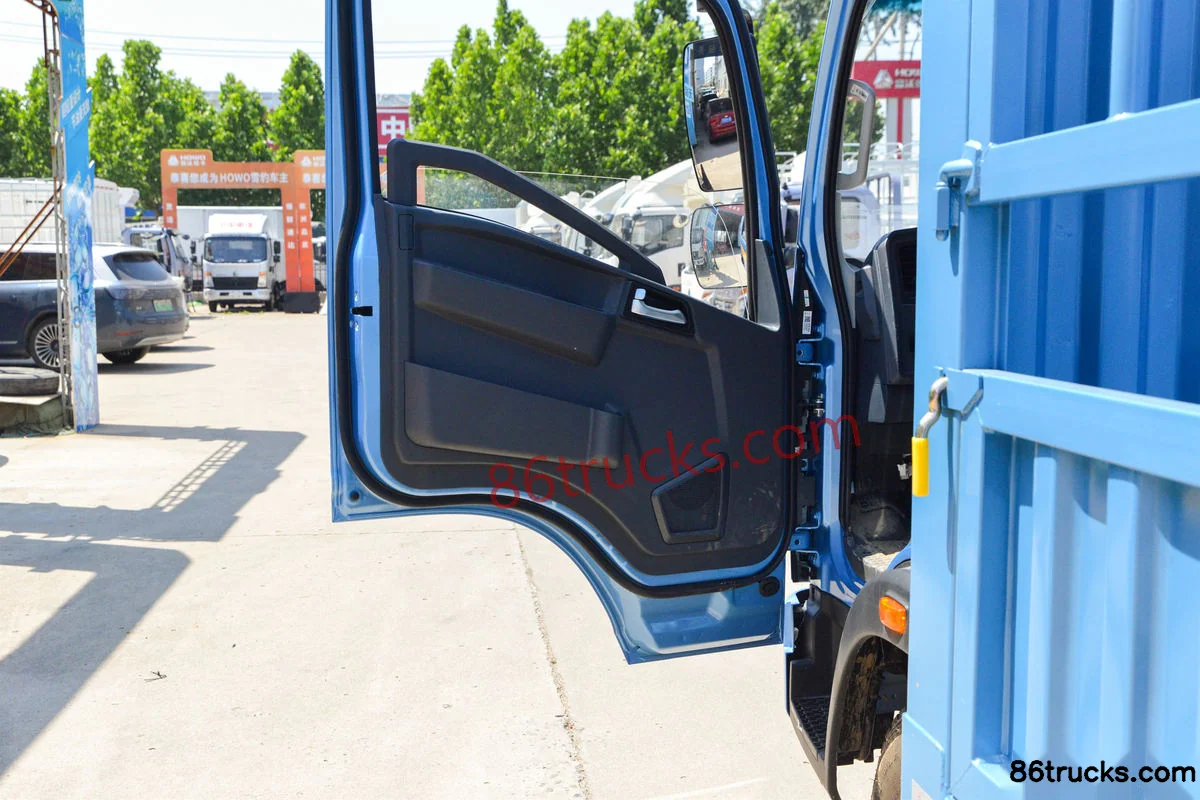

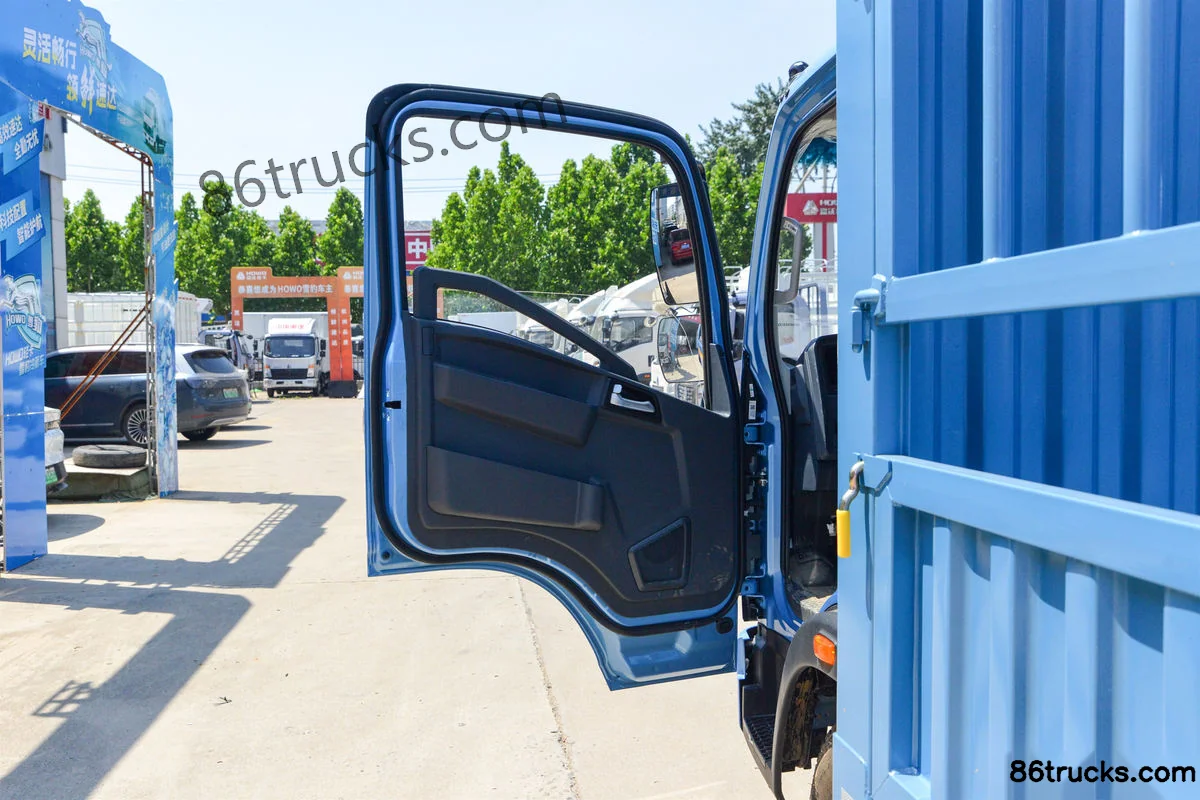

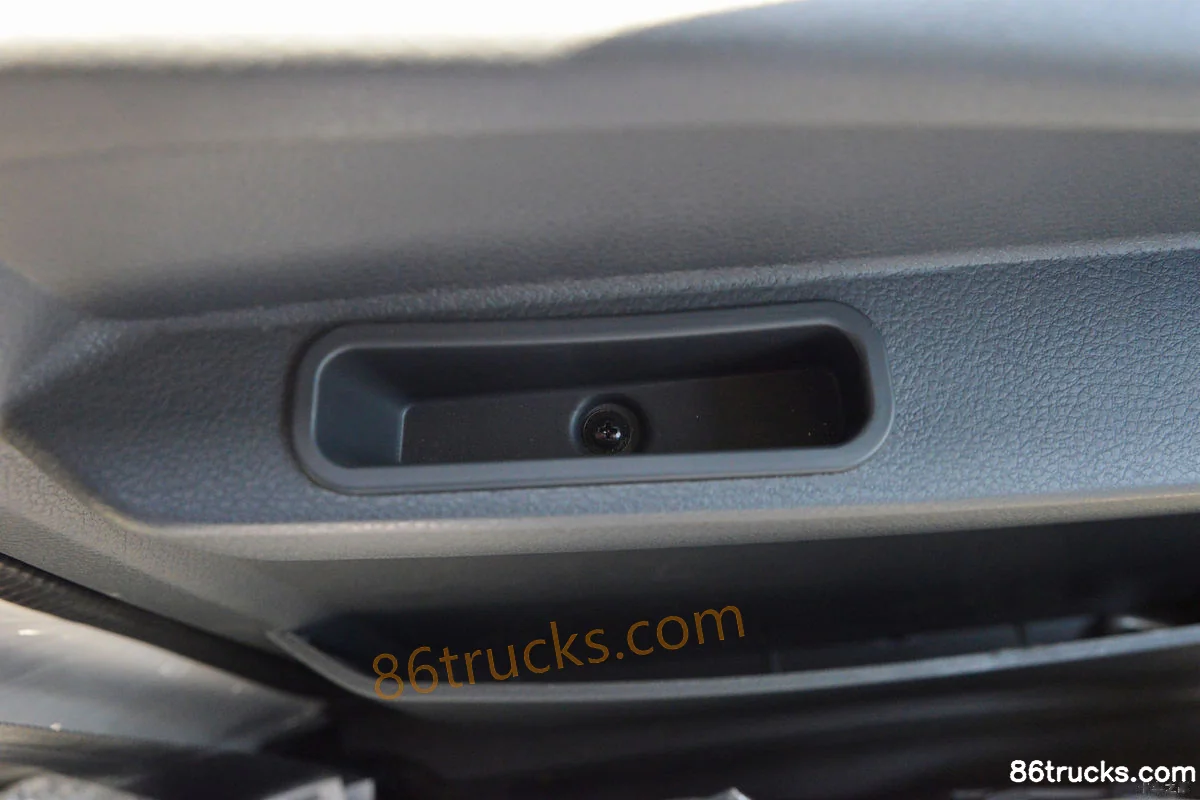

Cab3

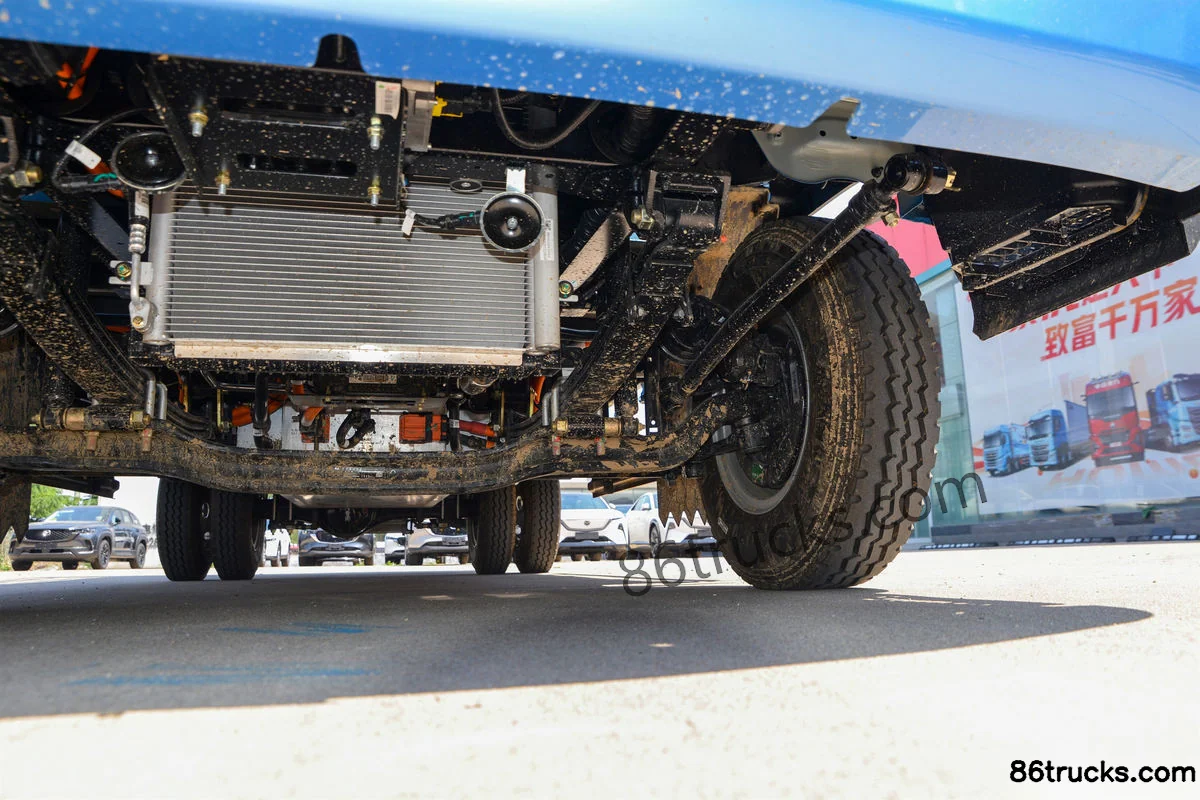

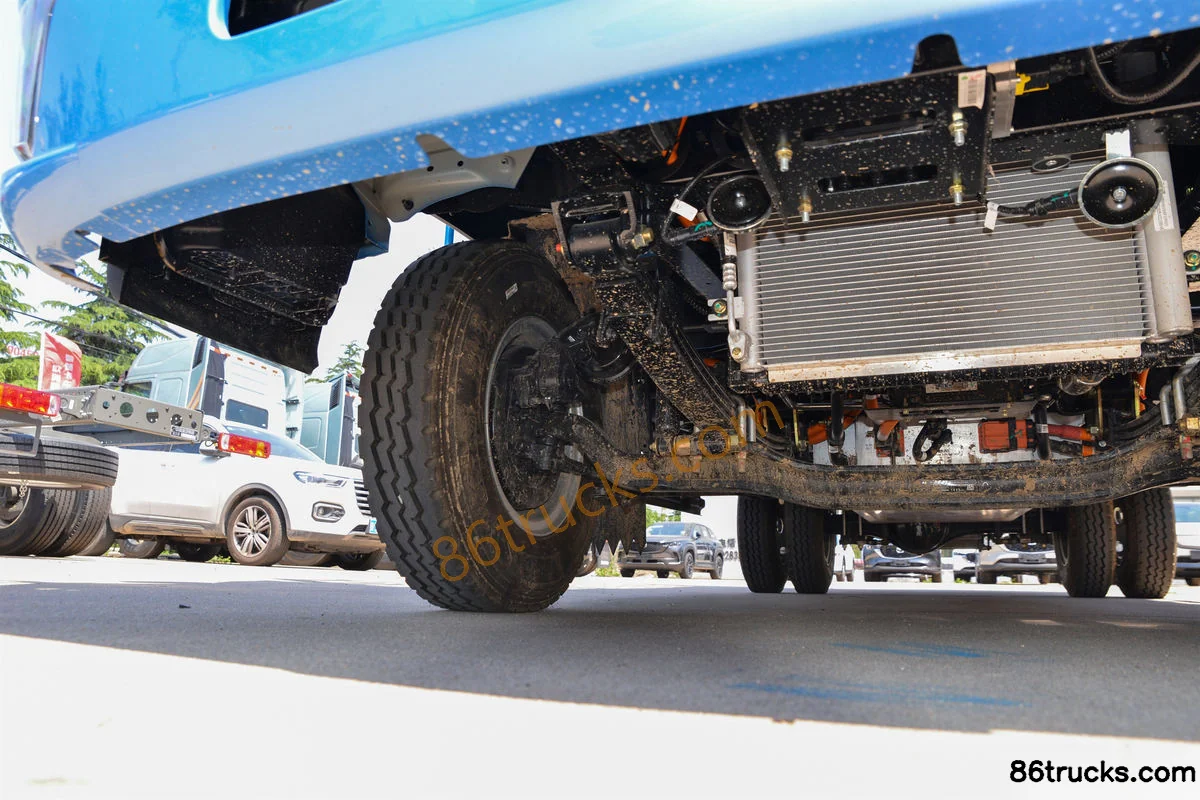

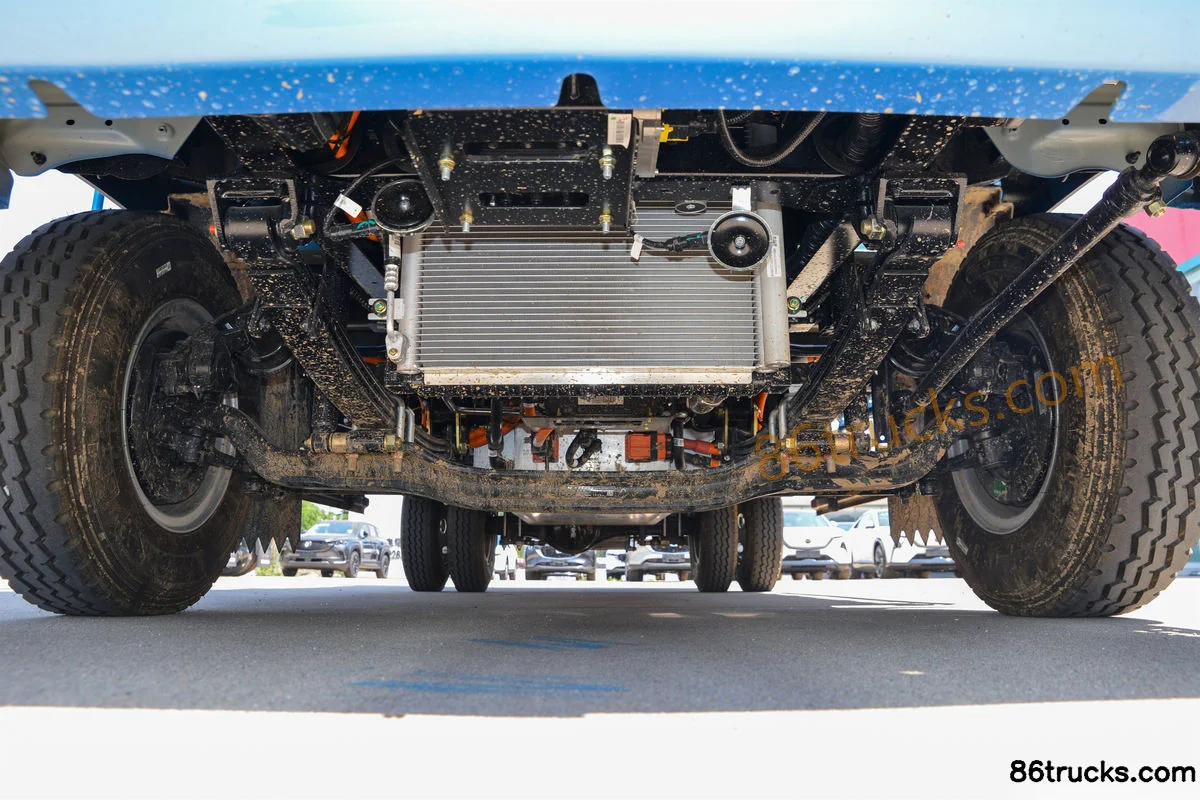

Chassis3

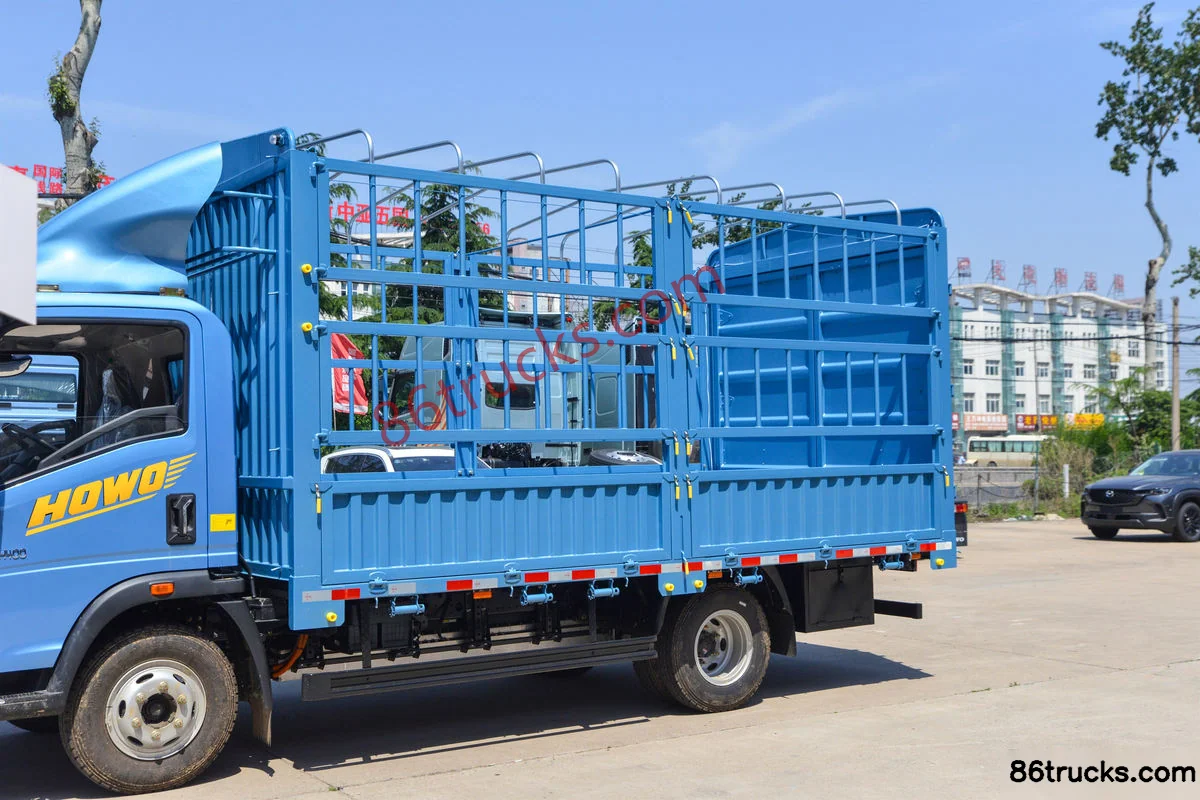

Body3

12 photos

FAQ

What are the key specs of Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels)?

Key specs of Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels) suited for?

Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels) differ from other variants in the same series?

Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels) belongs to Sinotruk Hanjiang Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hanjiang H400 4.2m Single Row Pure Electric Cage Van Light Truck CATL 140.41kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
