JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 3360mm
Cab dimensions:: 5.825×1.986×2.38m
Type:: sweeper truck
Front/rear track width:: Front track: 1385, Rear track: 1425mm
GVWR:: 5.79ton
Box volume: 4m³
Drive 4X2 (6 wheels)
Horsepower 105
Rated mass: 1.32ton

Overview

The Dongzheng (Yandi) JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) is a sweeper truck featuring 4m³ tank capacity, 4m³ volume, 5.79t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 105 hp and China III / Euro III emissions.

China III / Euro III 105 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.825×1.986×2.38m
Type: sweeper truck
Drive type: 4X2
Front/rear track width: Front track: 1385, Rear track: 1425mm
Wheelbase: 3360mm
Rated mass: 1.32ton
GVWR: 5.79ton
Front/rear suspension: 1.015/1.475m
Body Parameters

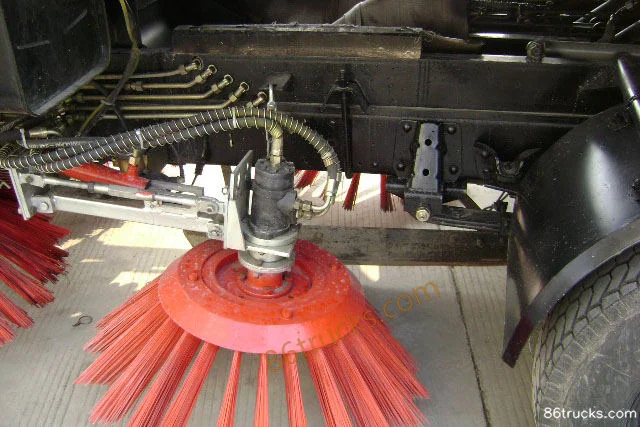

Other special notes: Side guard replaced by sweeping brush; rear guard replaced by suction dust collector.
Vehicle certification code: SZD5060TSL
Body Brand: Yandi brand
Engine parameters
Engine Model: JMC JX493ZLQ3
Displacement: 2.771L
Emission standard: China III / Euro III
Max output power: 85kW
Max hp: 105Horsepower
Cargo box parameters
Box volume: 4m³
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda
Chassis Model: JX1060TG23
Leaf spring count: 7/5+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Tire
Tire Size: 7.00R16LT,7.00-16LT
Number of tires: 6pcs

Photos

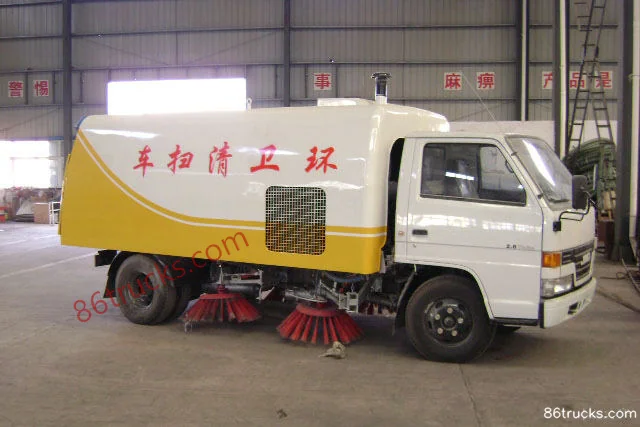

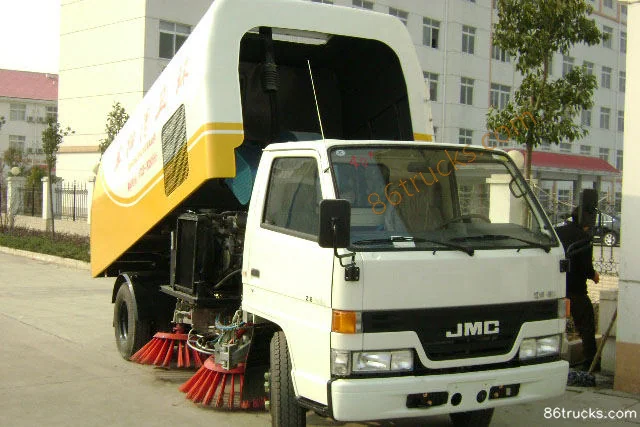

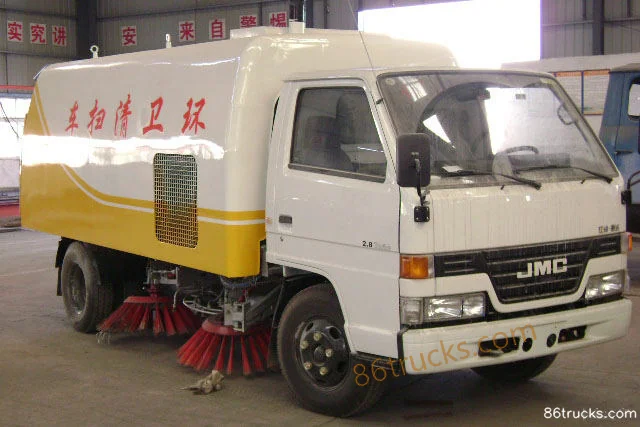

Exterior3

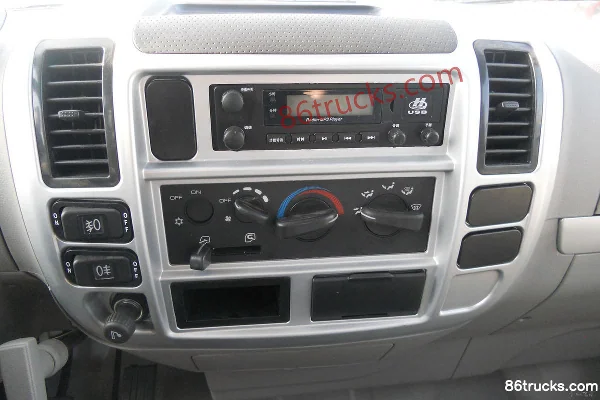

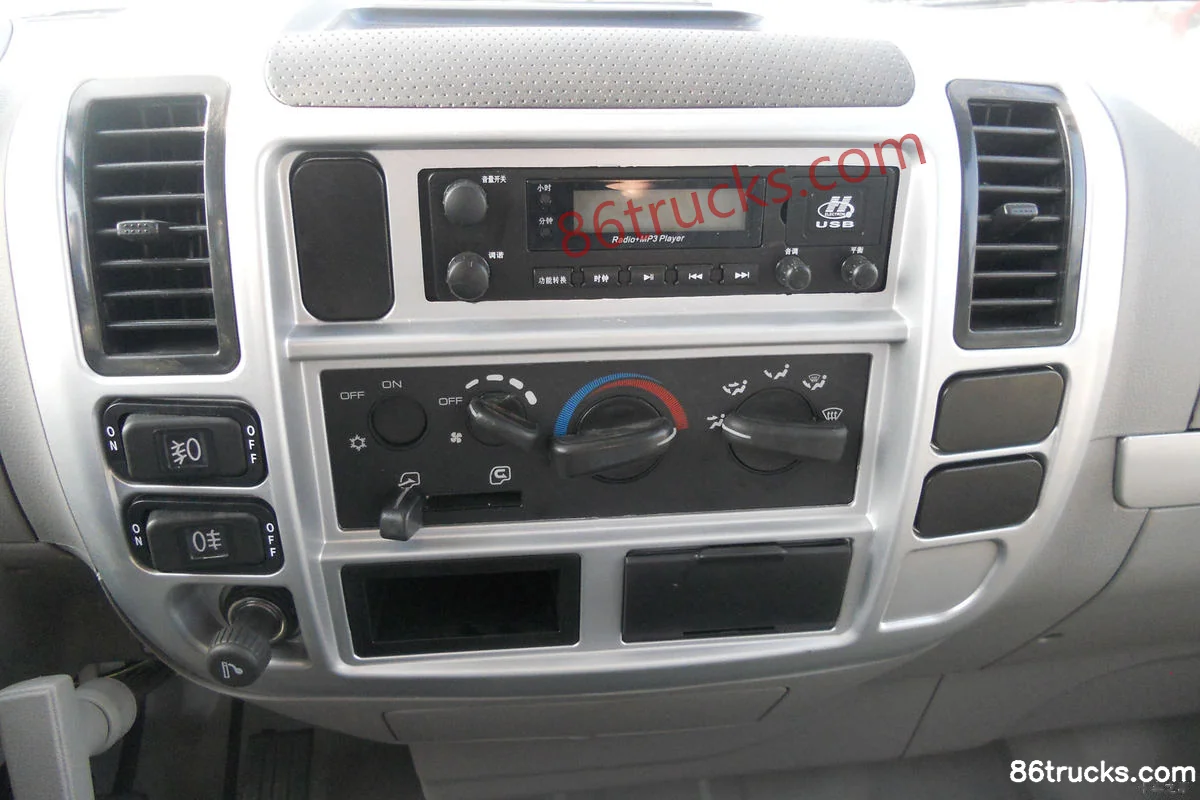

Cab1

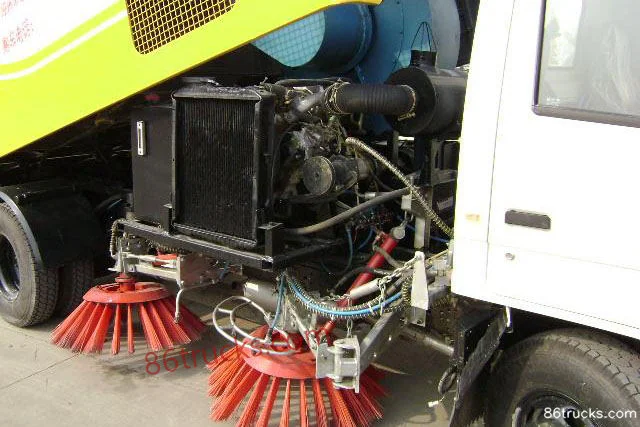

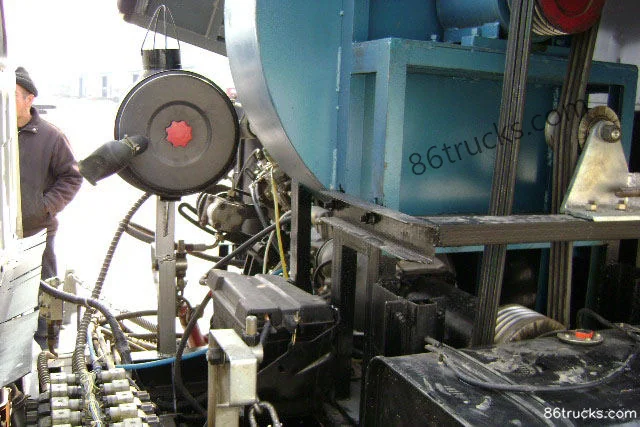

Chassis3

7 photos

FAQ

What emission standard does JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand)?

Key specs of JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand): Drive: 4x2; Horsepower: 105 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) suited for?

JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) is a sweeper truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) differ from other variants in the same series?

JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand) belongs to Dongzheng (Yandi) JMC chassis (sweeper truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 105hp 4X2(6 wheels) Sweeper Truck (Yandi Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
