JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 4.495ton
Wheelbase:: 3308mm
Tire Size:: 7.00R16LT 8PR
Cab dimensions:: 5.995×2.23×3.5m
Rated payload: 1.09ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.015×2.3×1.65m
Horsepower 129

Overview

The JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) is a Refrigerated Truck featuring 4.015×2.3×1.65m cargo body, 1.09t payload, Junling V5 cab and 3308mm wheelbase. On the powertrain side, it comes with 129 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.23×3.5m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3308mm
Vehicle origin: Suizhou, Hubei
Front track width: 1685mm
rear track: 1705mm
Curb Weight: 4.495ton
Rated payload: 1.09ton
Max. speed: 95km/h
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF2.8s5129T
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.78L
Emission standard: China V
Max output power: 96kW
Max hp: 129Horsepower
Max torque: 300N·m
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Cargo box parameters
Cargo box dimensions: 4.015×2.3×1.65m
Cargo box width: 2.3m
Cargo box height: 1.65m
Body Parameters
Vehicle certification code: HFC5043XLCP71K1C2V
Body Brand: Chengliwei
Chassis Specs
Chassis Brand: JAC
Chassis Series: Junling V5
Chassis Model: HFC1043P71K6C2V
Axle ratio: 4.875
Leaf spring count: 5/4+3
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed transmission
Cab parameters
Cab: Junling V5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

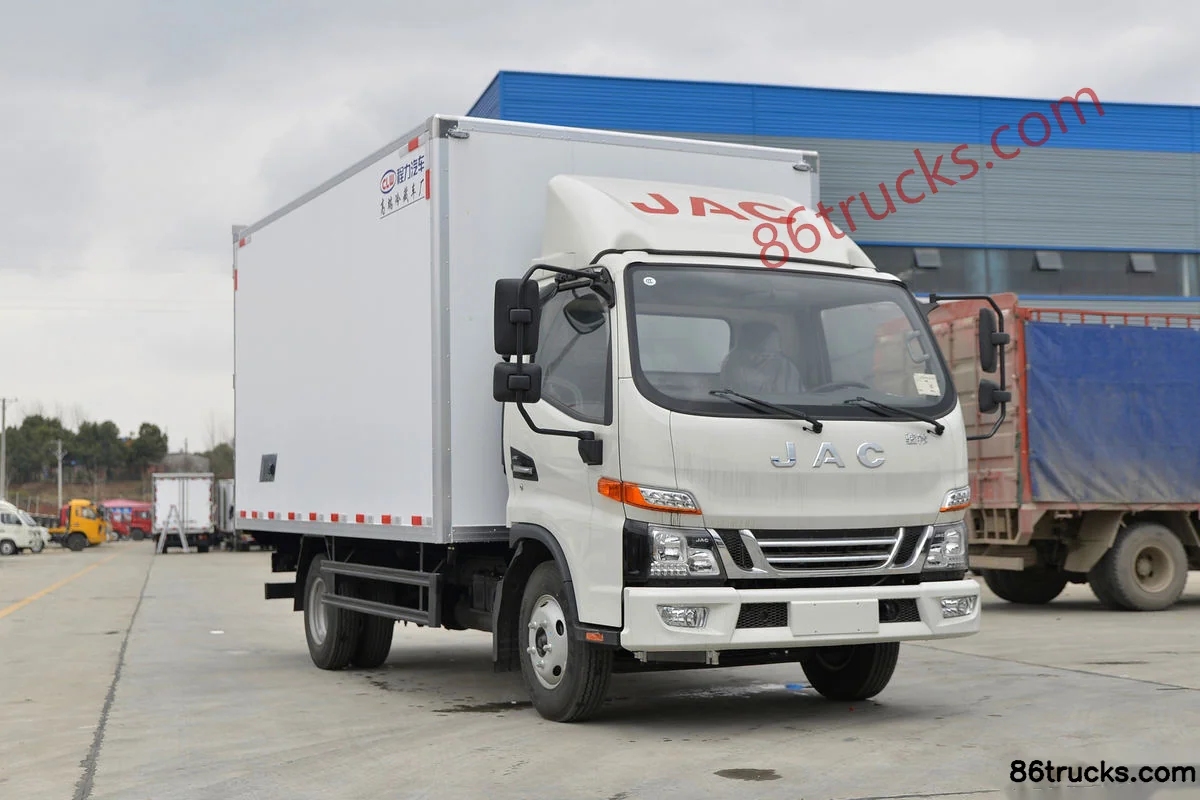

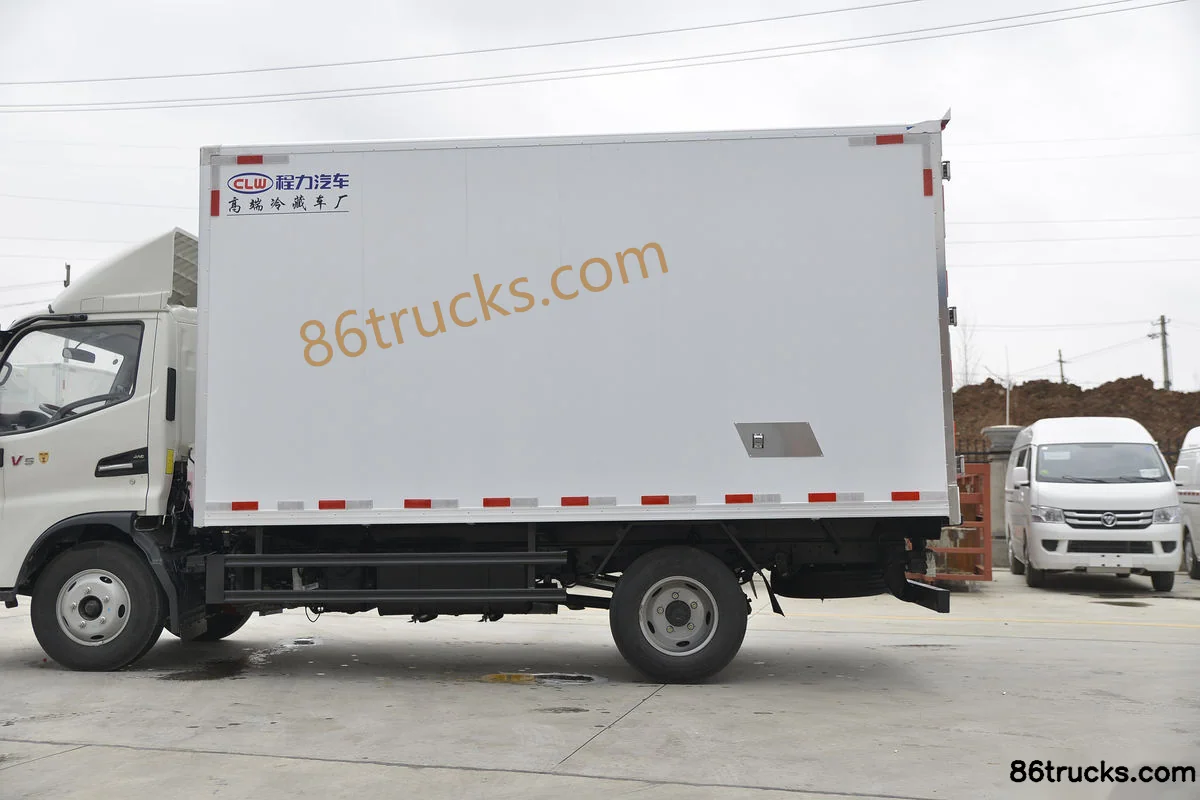

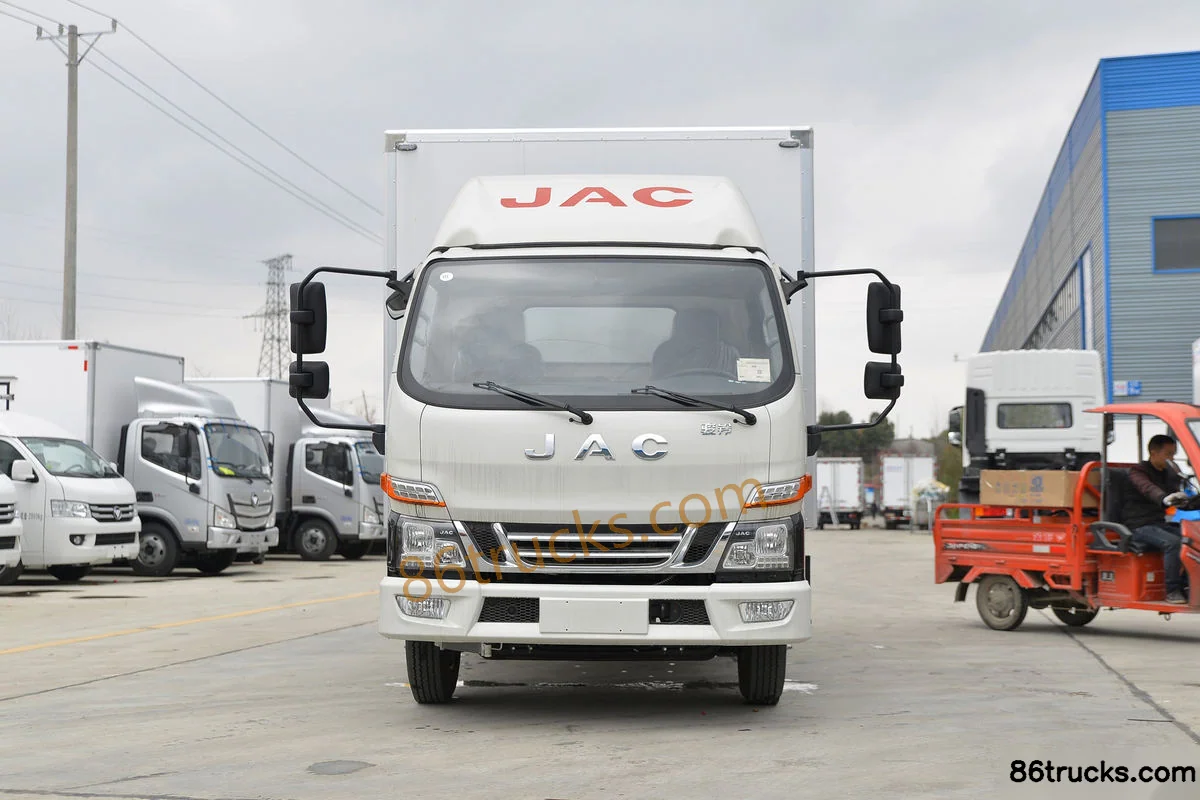

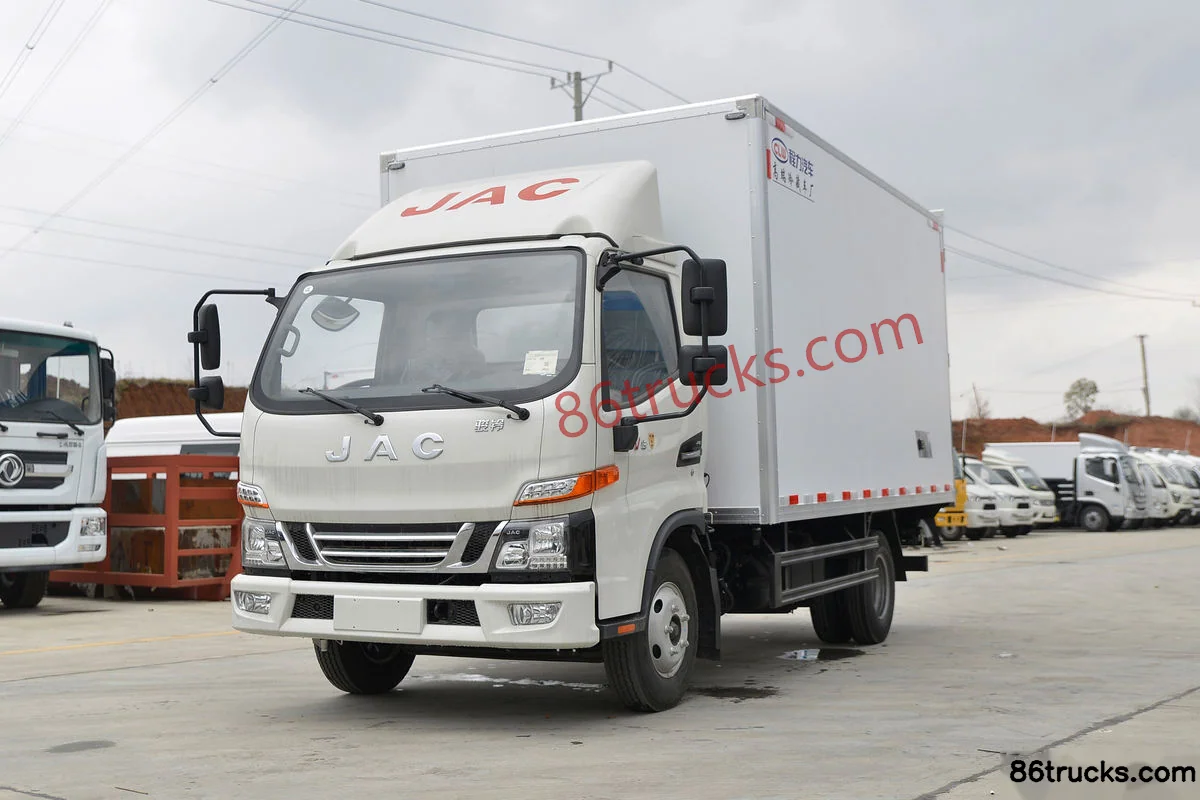

Exterior3

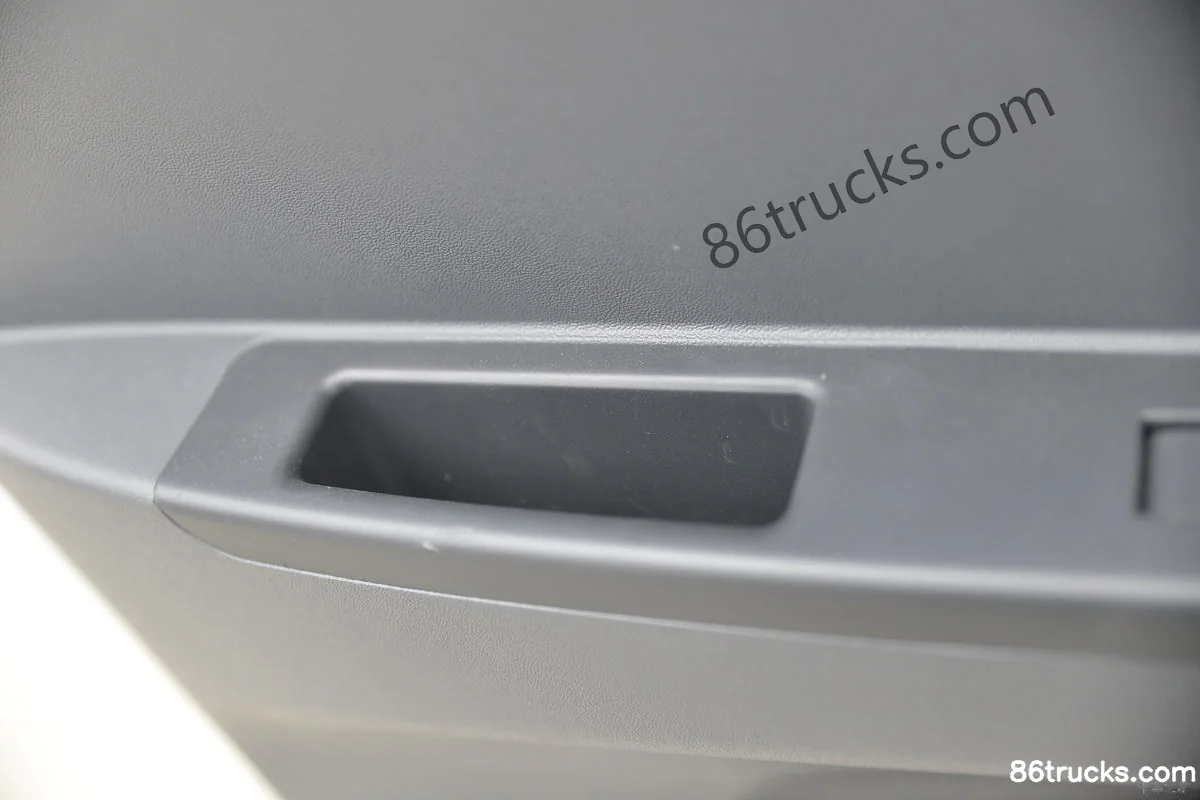

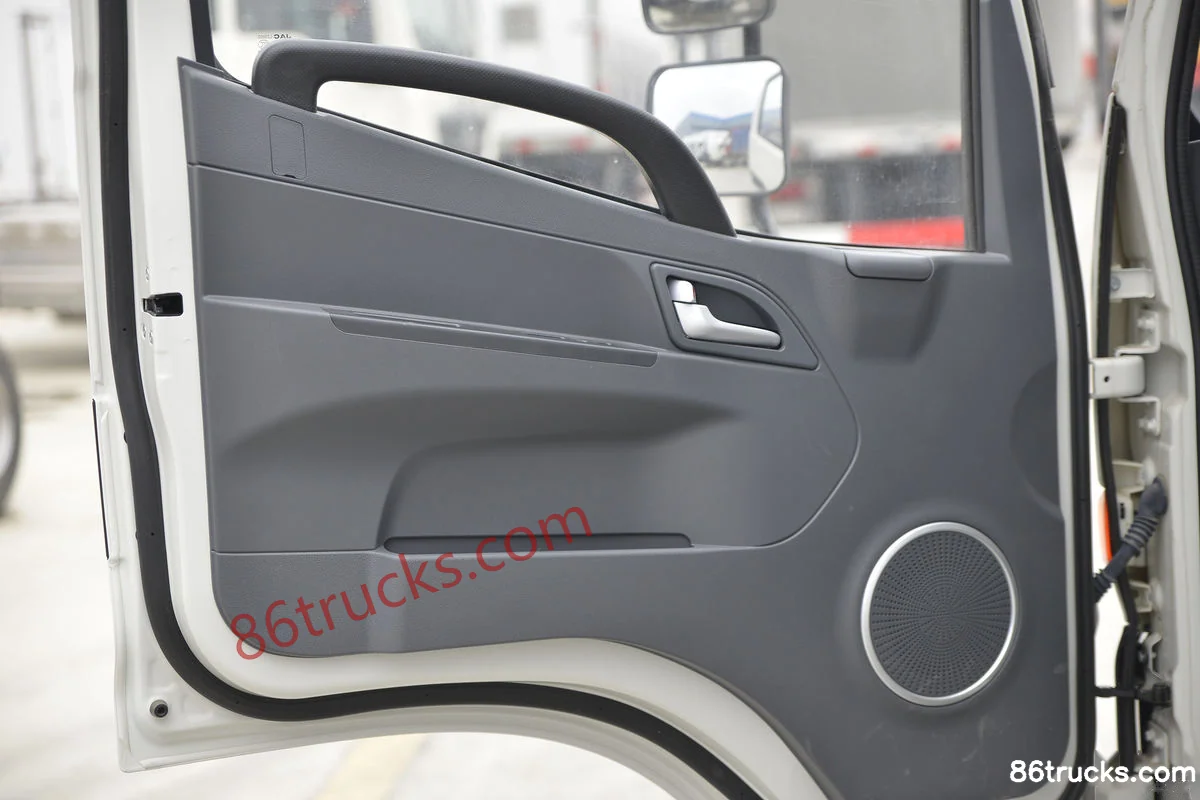

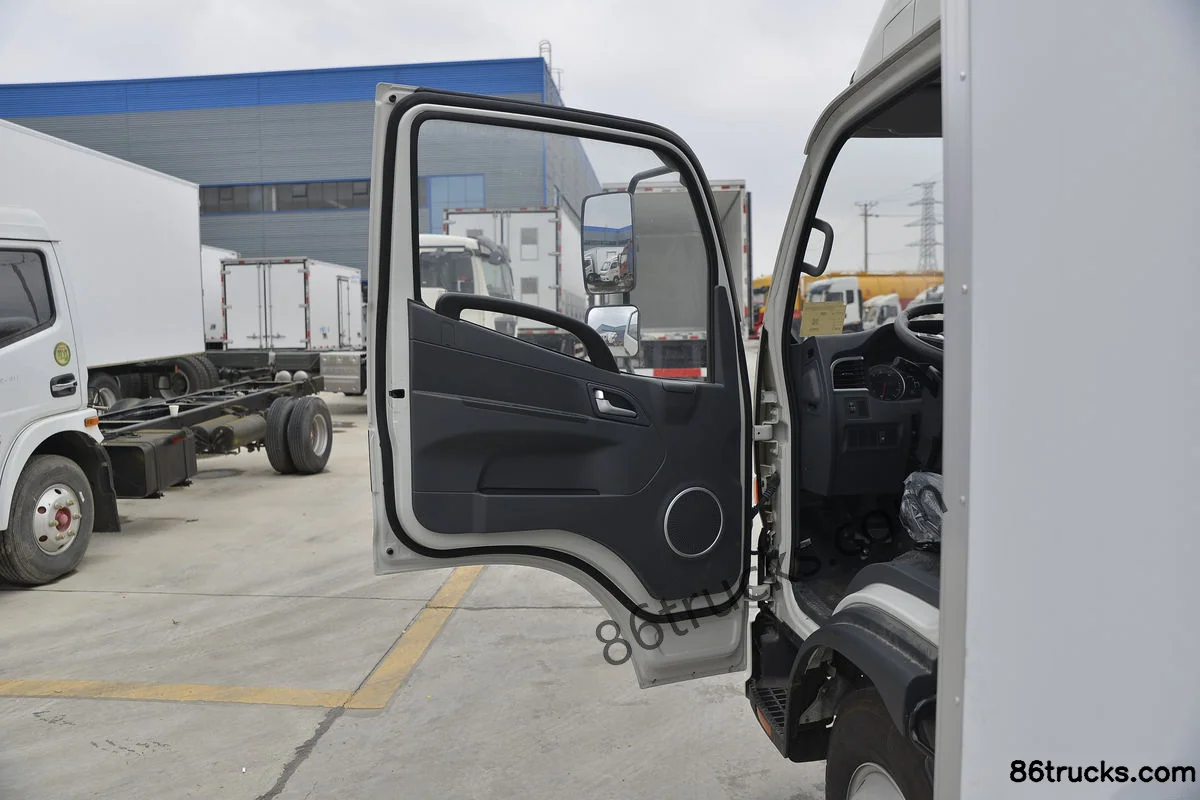

Cab3

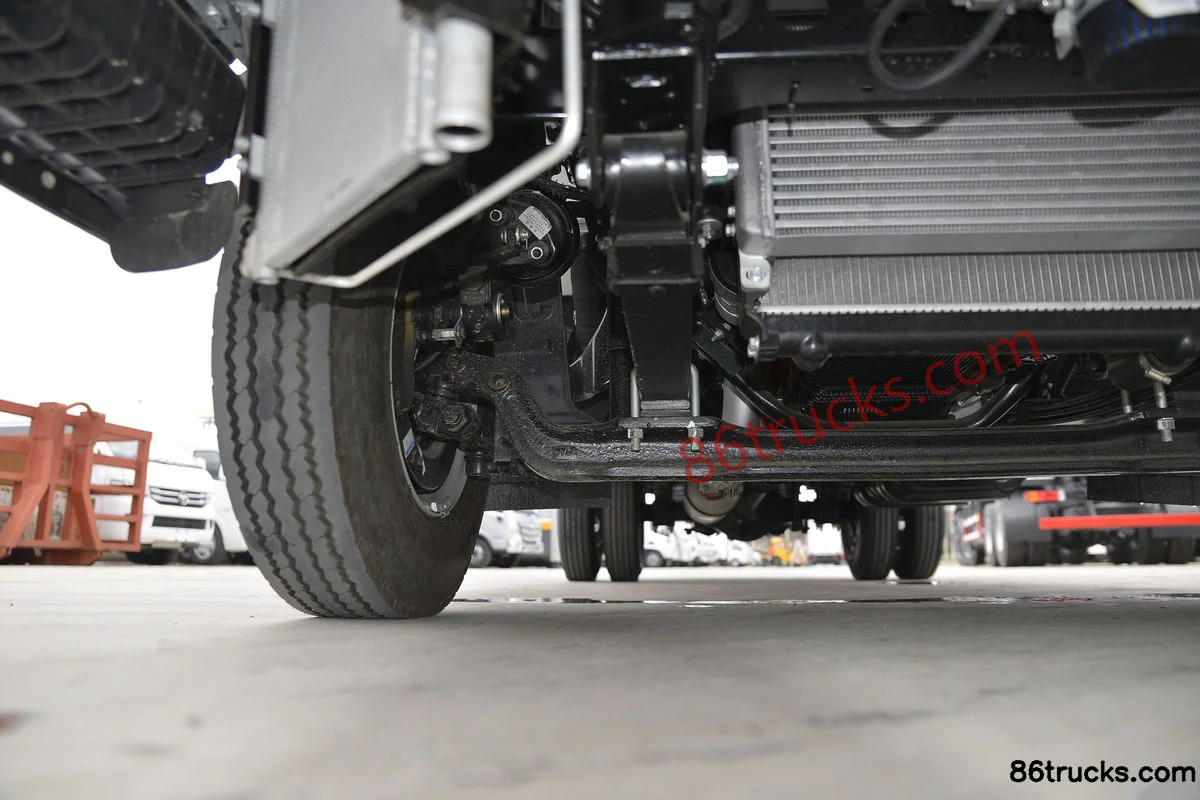

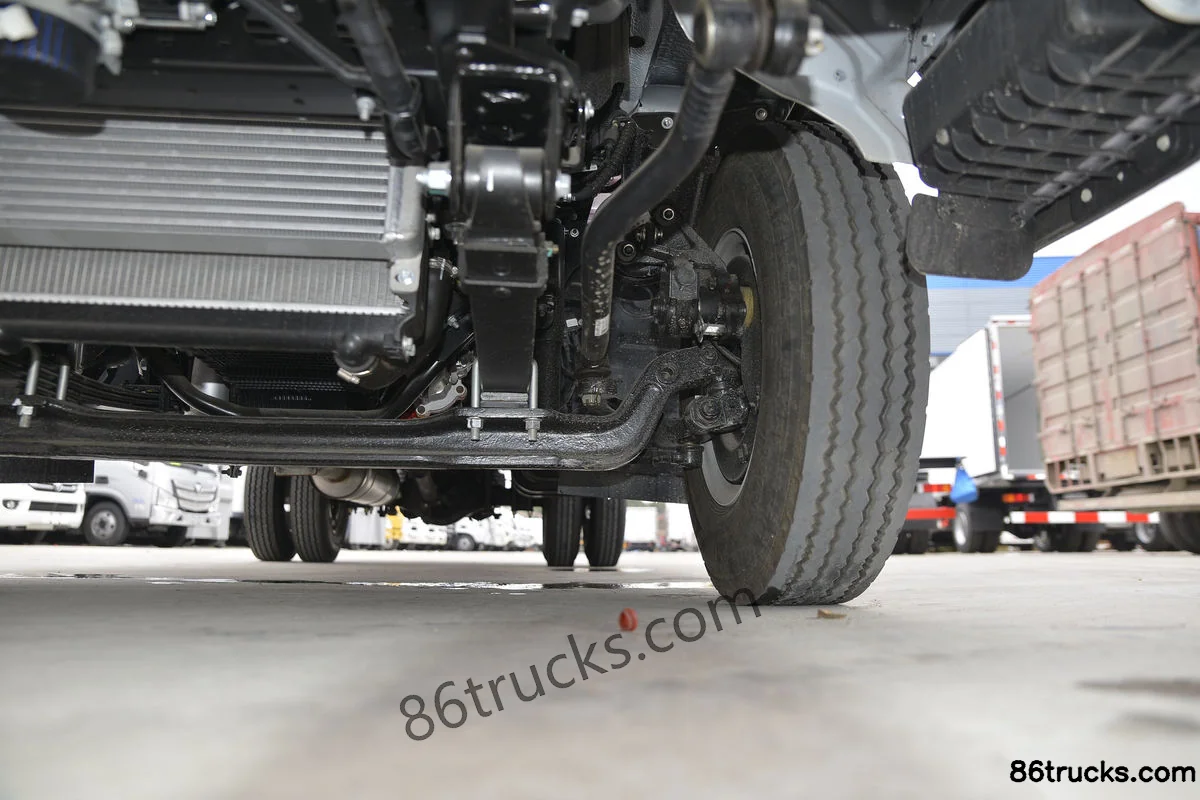

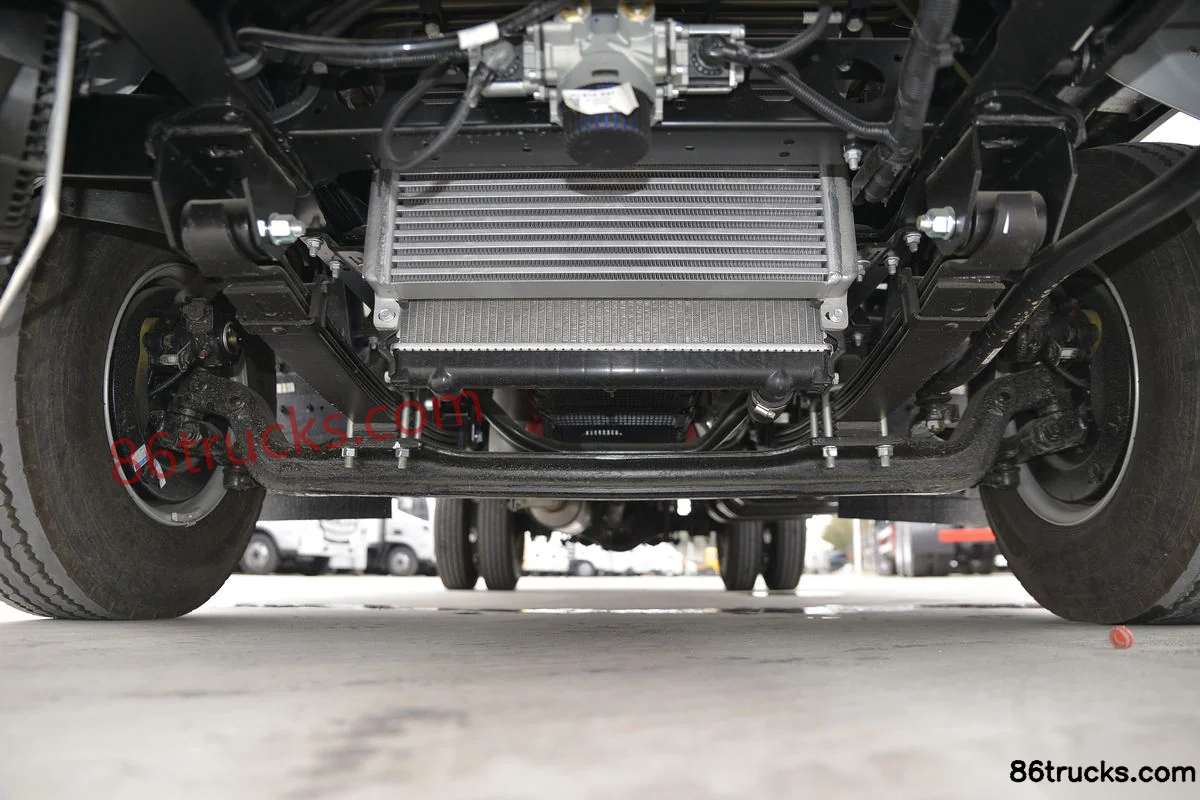

Chassis3

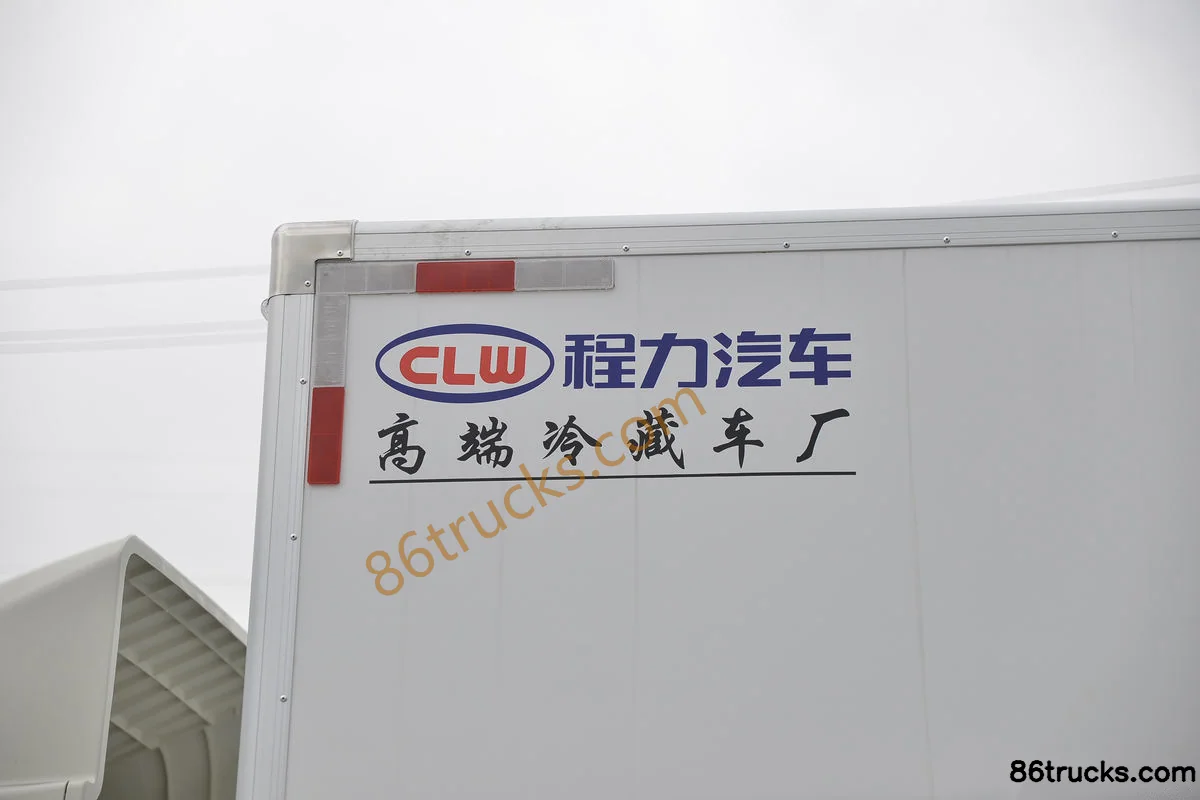

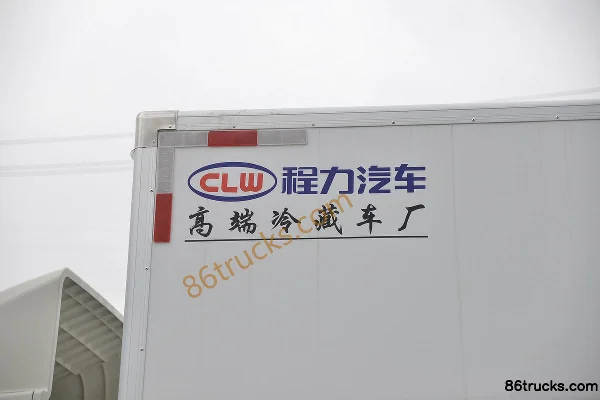

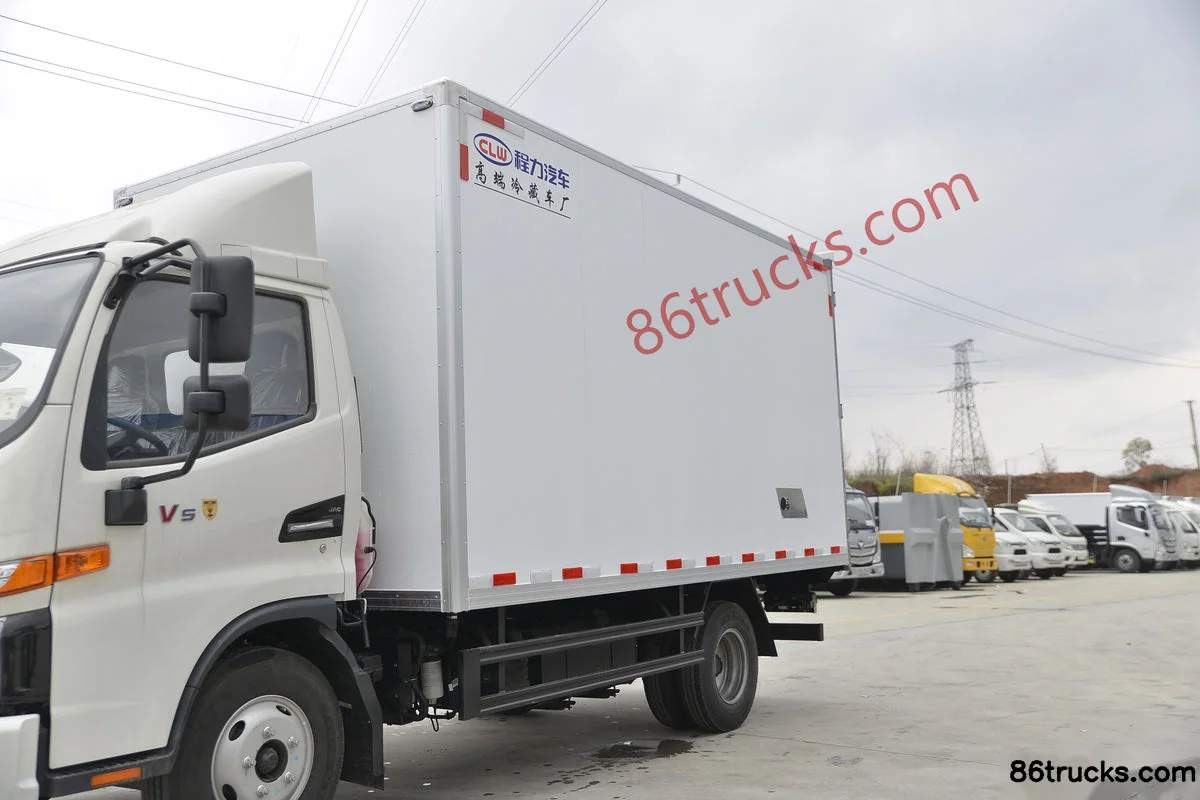

Body3

12 photos

FAQ

What emission standard does JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand)?

Key specs of JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand): Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) suited for?

JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) differ from other variants in the same series?

JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand) belongs to Chengliwei JAC Chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 130hp 4X2(6 wheels) 4.015m refrigerated truck (Chengliwei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
