SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels)

Export reference
From $34,861
MSRP ¥25.1M CNY
Front axle allowable load:: 1950kg
Wheelbase:: 3360mm
Cargo box volume:: 18.522m³
Model code (announced):: SX5047XXYBEV341N
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 350km
Motor 1 Brand: Hande
Curb Weight: 3.3ton

Overview

The SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) is a Light Truck featuring 350km battery/range, Hande motor, 4X2 (6 wheels) drive and 1t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5047XXYBEV341N
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.25m
CLTC range: 350km
Curb Weight: 3.3ton
Rated payload:
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Baoji, Shaanxi
tonnage class: Light Truck
Remarks: 2C rate rechargeable battery.
Version: Tianxing Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Hande
Motor 1 Model: TZ220XS-HD002
Max torque: 360N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 120kW
total rated torque: 160N·m
Electronic Control
ECU Brand: Inovance
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery rated voltage: 540.96V
Battery capacity: 100.07kWh
Energy Density: 145.3
fast charge range: 20%-100%

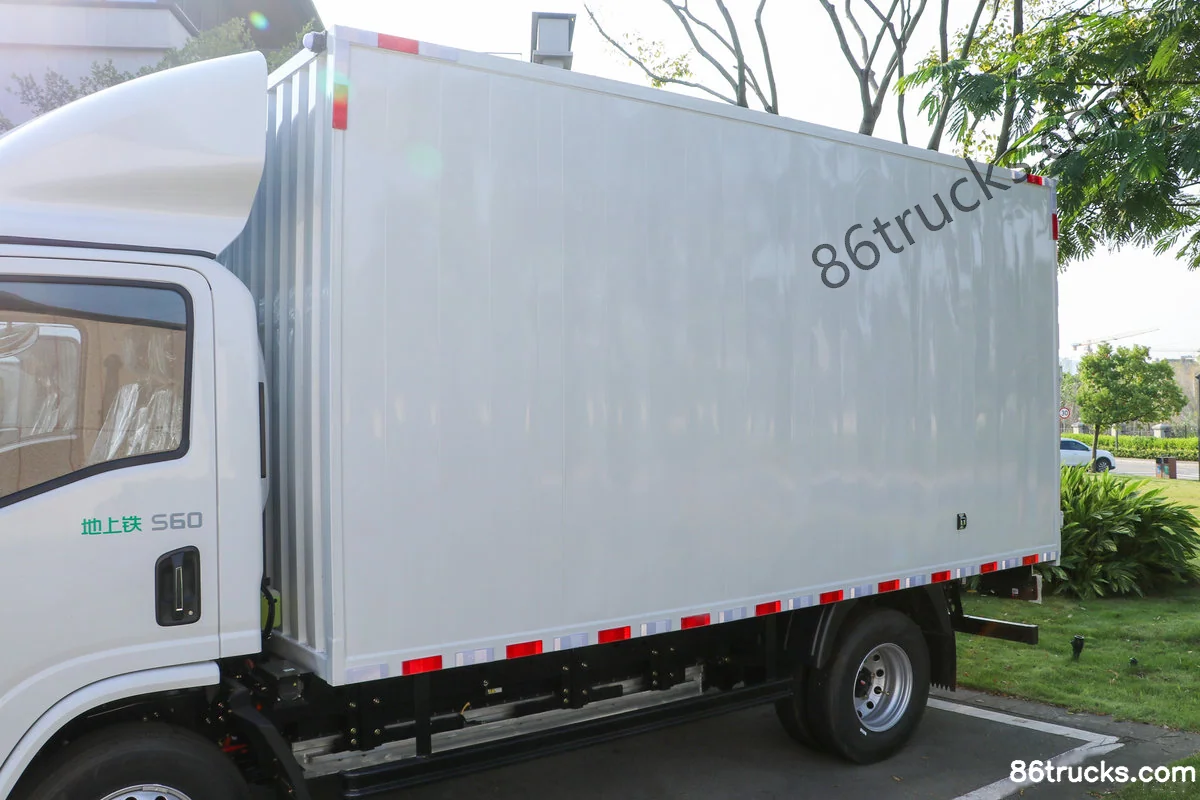

Cargo box parameters
Cargo box volume: 18.522m³
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2020mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: Hande electric drive axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual

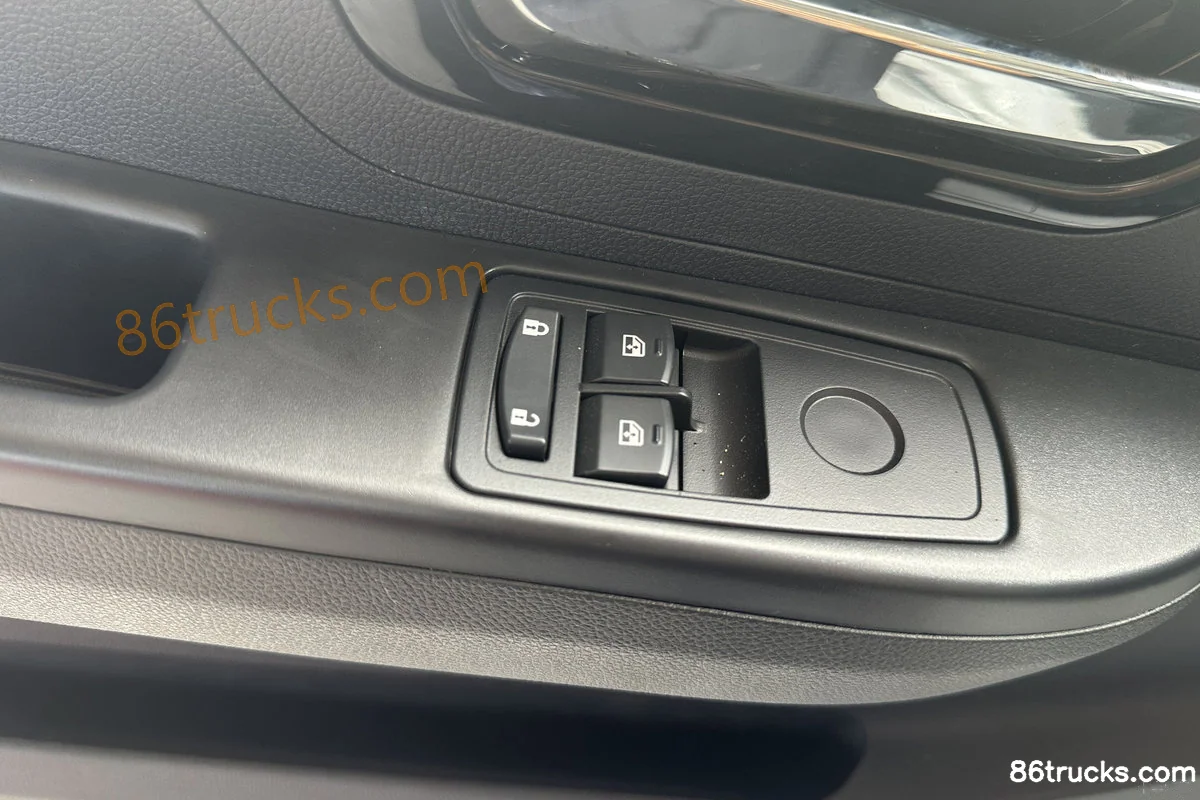

Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

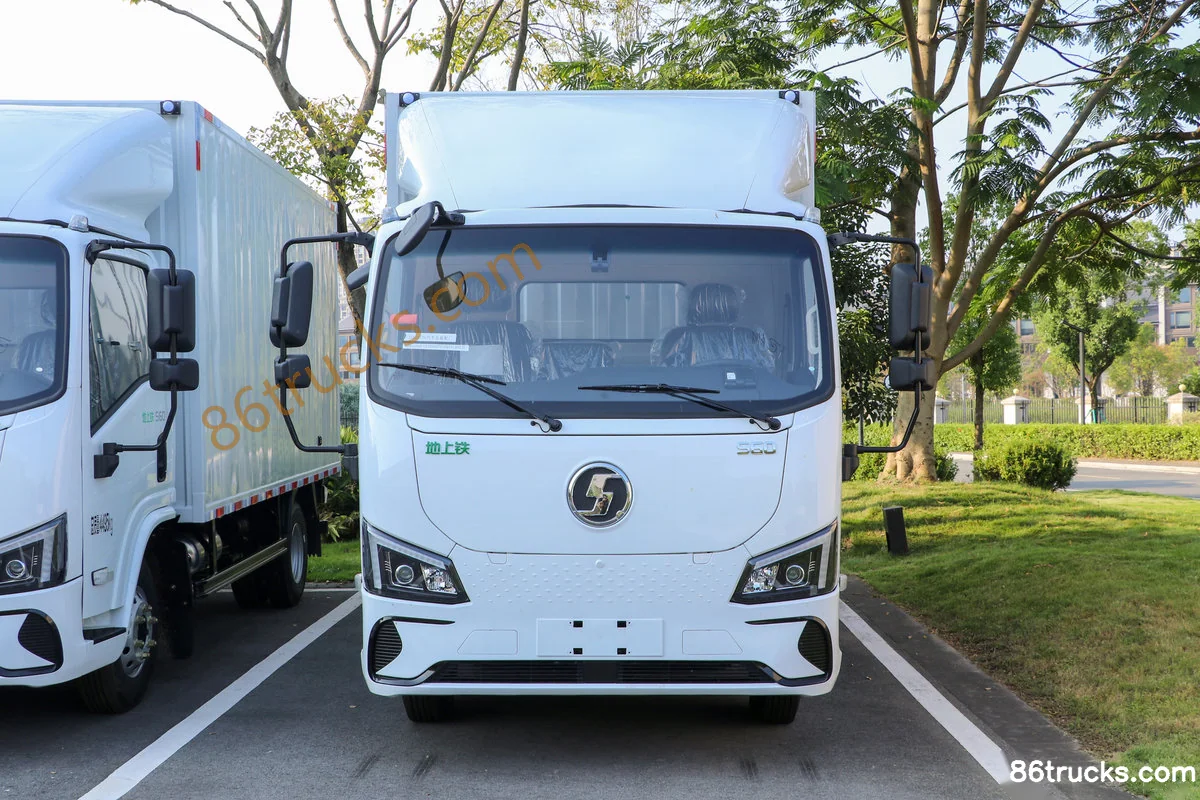

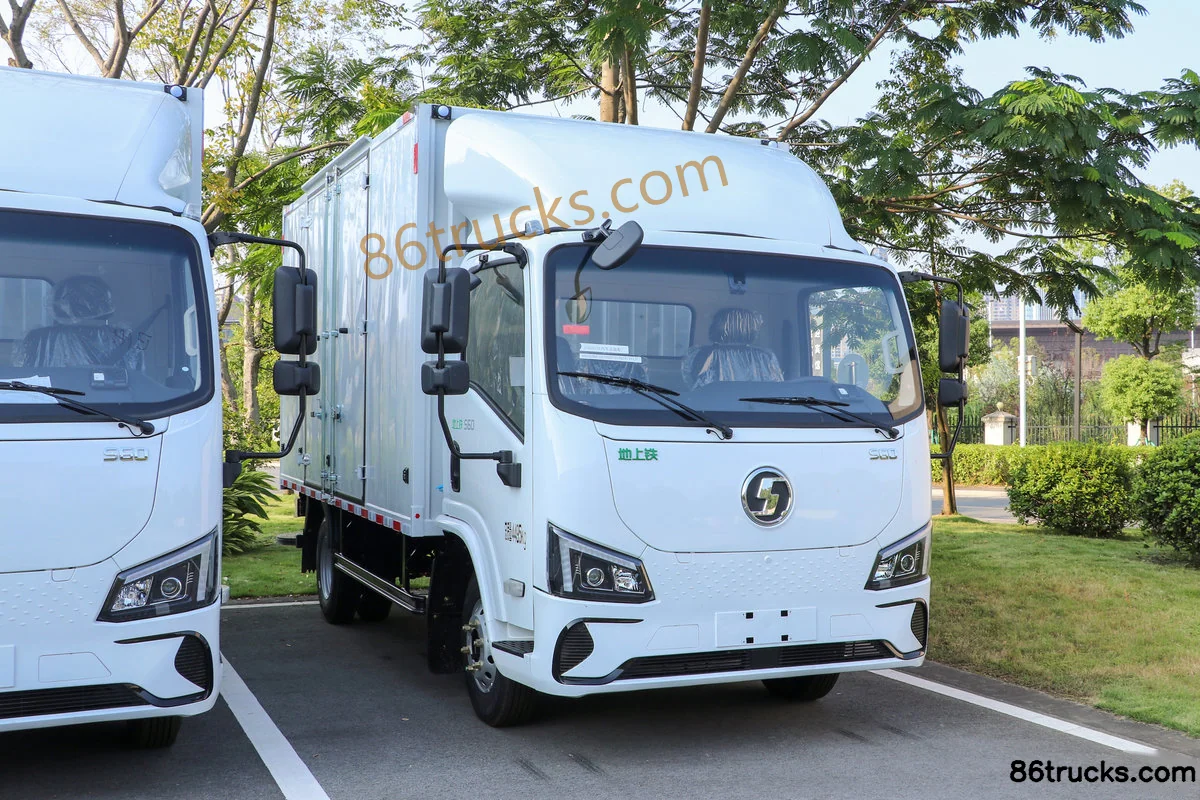

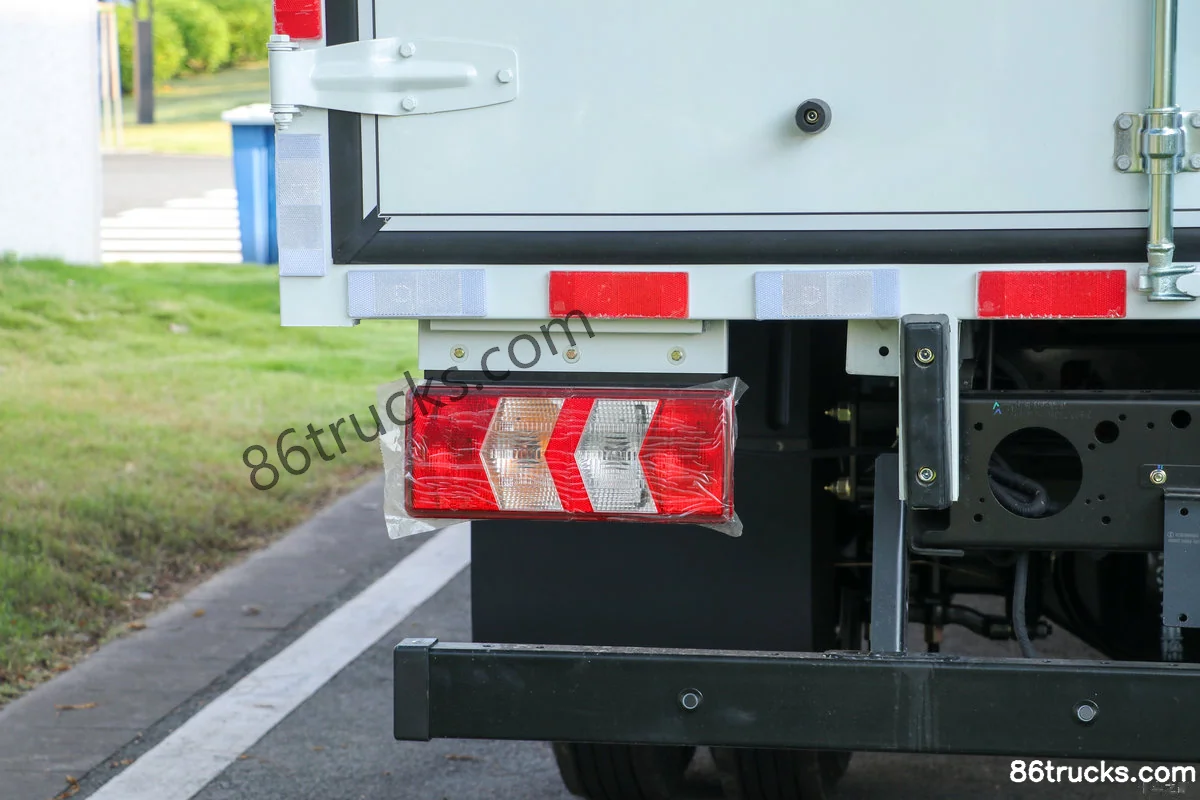

Exterior3

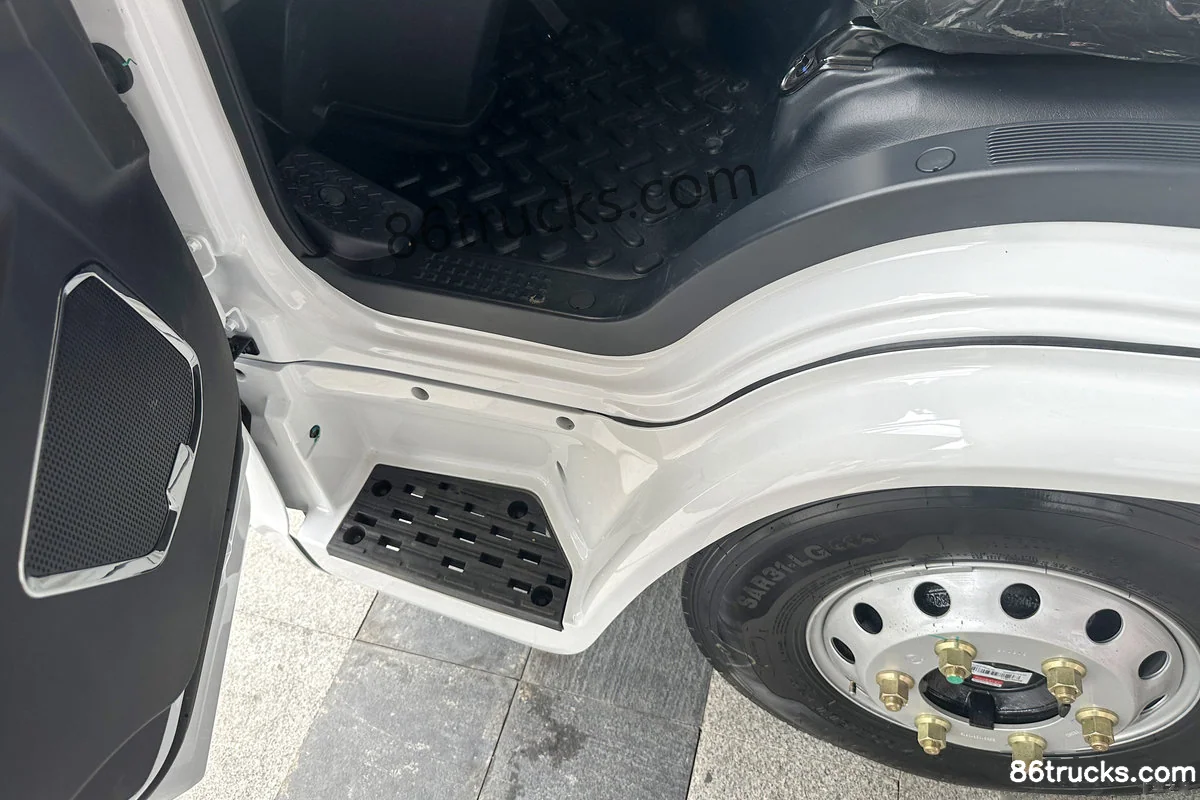

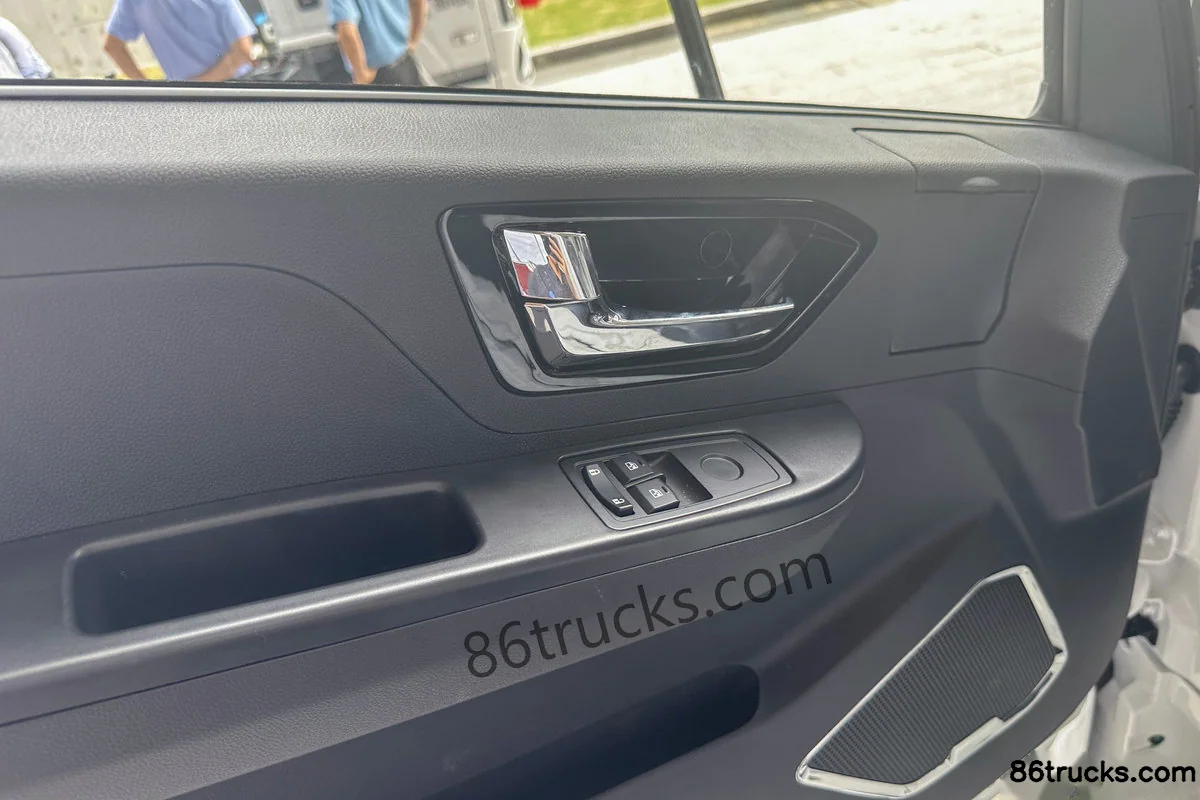

Interior3

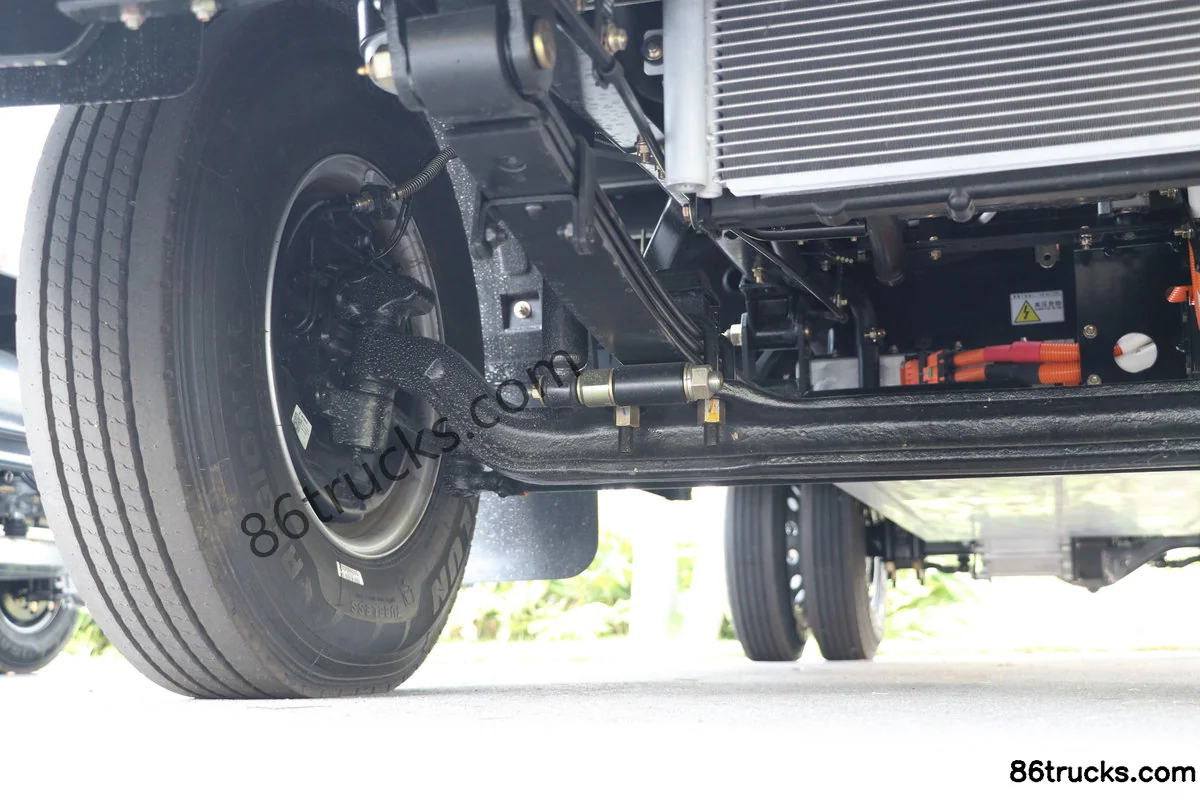

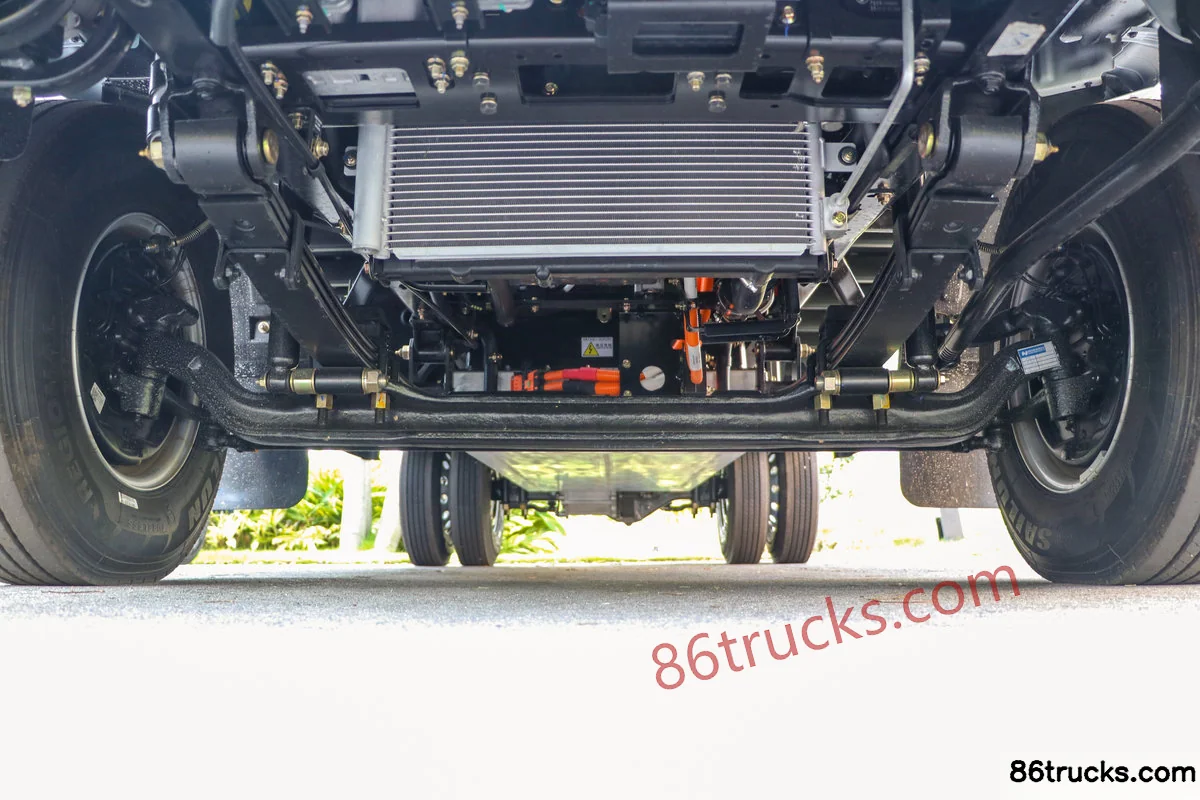

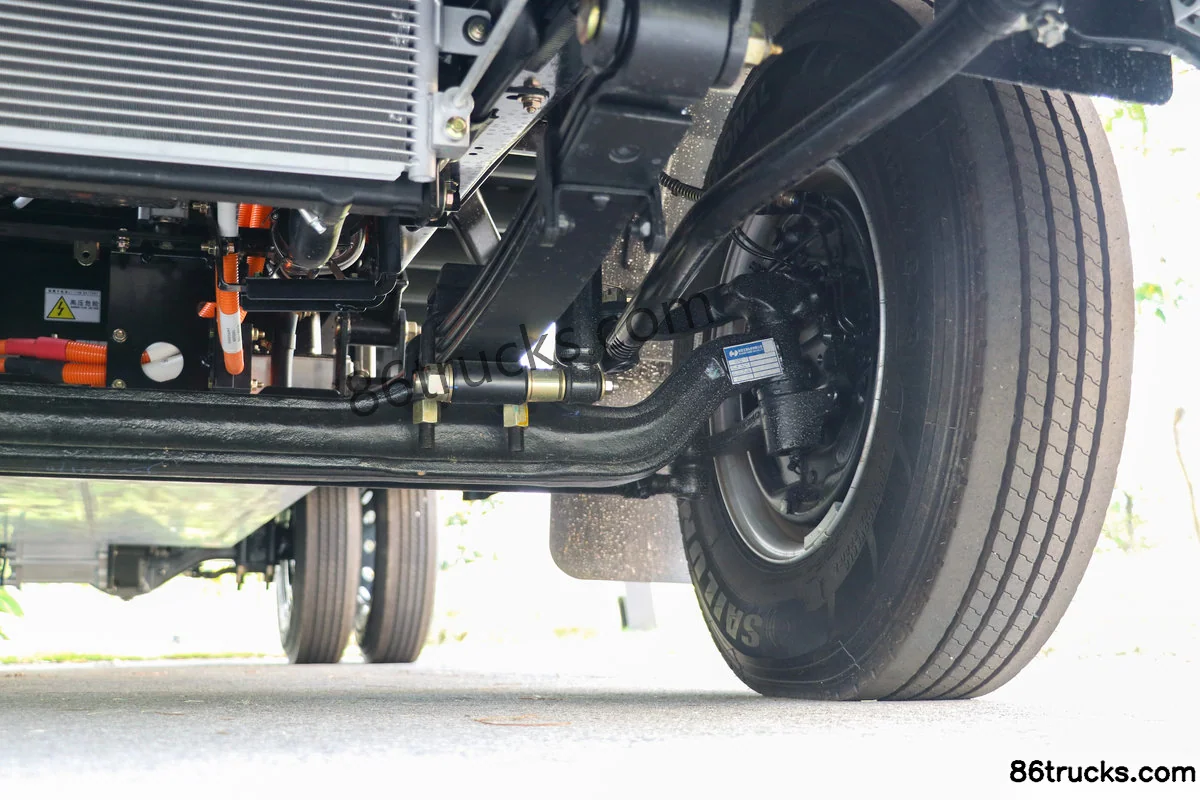

Chassis3

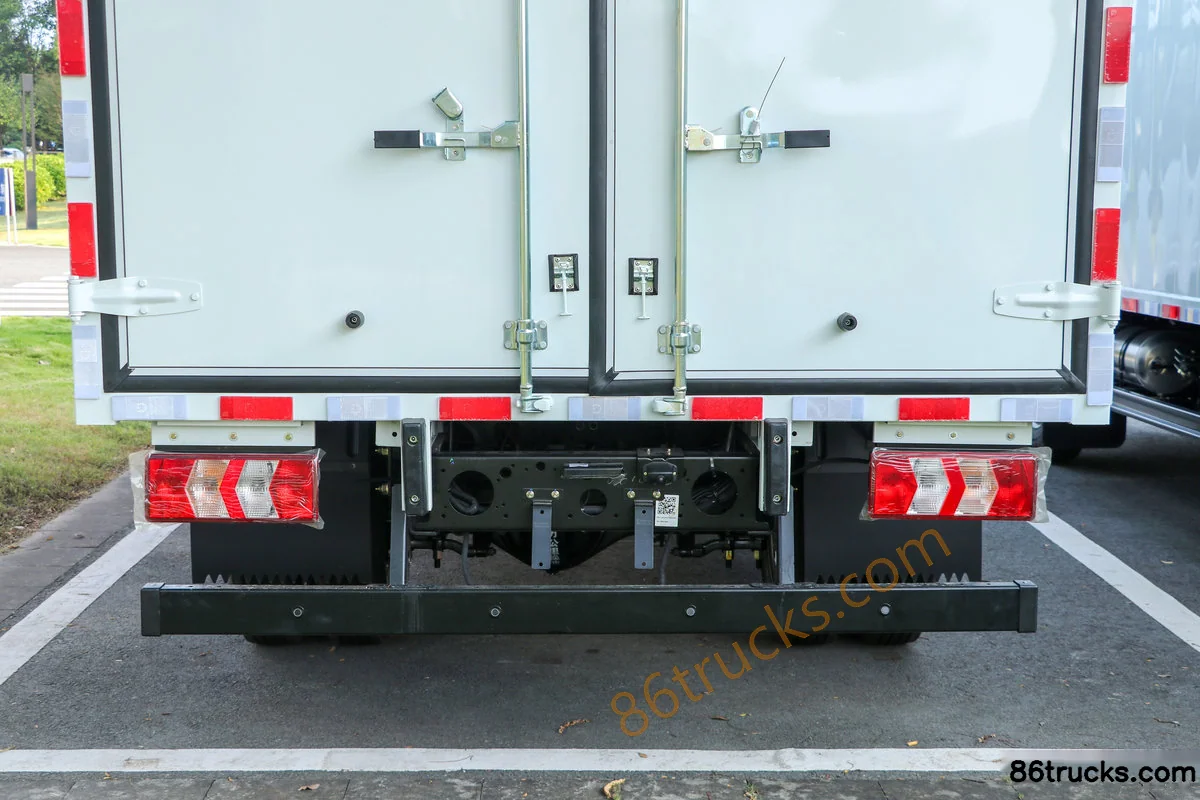

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels), and what does it include?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) export reference is about From $34,861; MSRP is ¥25.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels)?

Key specs of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) suited for?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) differ from other variants in the same series?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels) belongs to SHACMAN Commercial Vehicle Zhiyun S300 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.2m Single Row Cab Pure Electric Van Light Truck (Air Brake) 100.07kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
