Changtai 13m side-dump semi-trailer

Export reference
From $9,444
MSRP ¥6.8M CNY
Axle Brand:: Fuhua
Brake chamber:: Yes
Outrigger:: 28T
Toolbox:: Yespcs
Frame material:: T700 High-strength
Web Plate:: 6mm
Design load capacity: 50ton
Curb Weight: 6.8ton
Tire brand: Chaoyang
Cab length: 13m

Overview

The Changtai 13m side-dump semi-trailer is a dump semi-trailer featuring 50ton payload, 6.8ton GVW and 13m cab.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 50ton
Cab length: 13m
Cab width: 2.55m
Cab height: 0.6m
Curb Weight: 6.8ton
Chassis Specs
Axle Brand: Fuhua
Number of Axles: 3
Axle Load Rating: 70T
suspension: Fuhua
Parts & accessories
Brake chamber: Yes
Outrigger: 28T
Toolbox: Yespcs
ABS: Yes
Body Parameters
Frame material: T700 High-strength
Web Plate: 6mm
frame rail height: 480mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Side beam: 14
Other notes
Lead time for customization: 15 days
warranty period: 1 year
Tire
Tire brand: Chaoyang
Tire Size: 12R-22.5
Number of tires: 12pcs

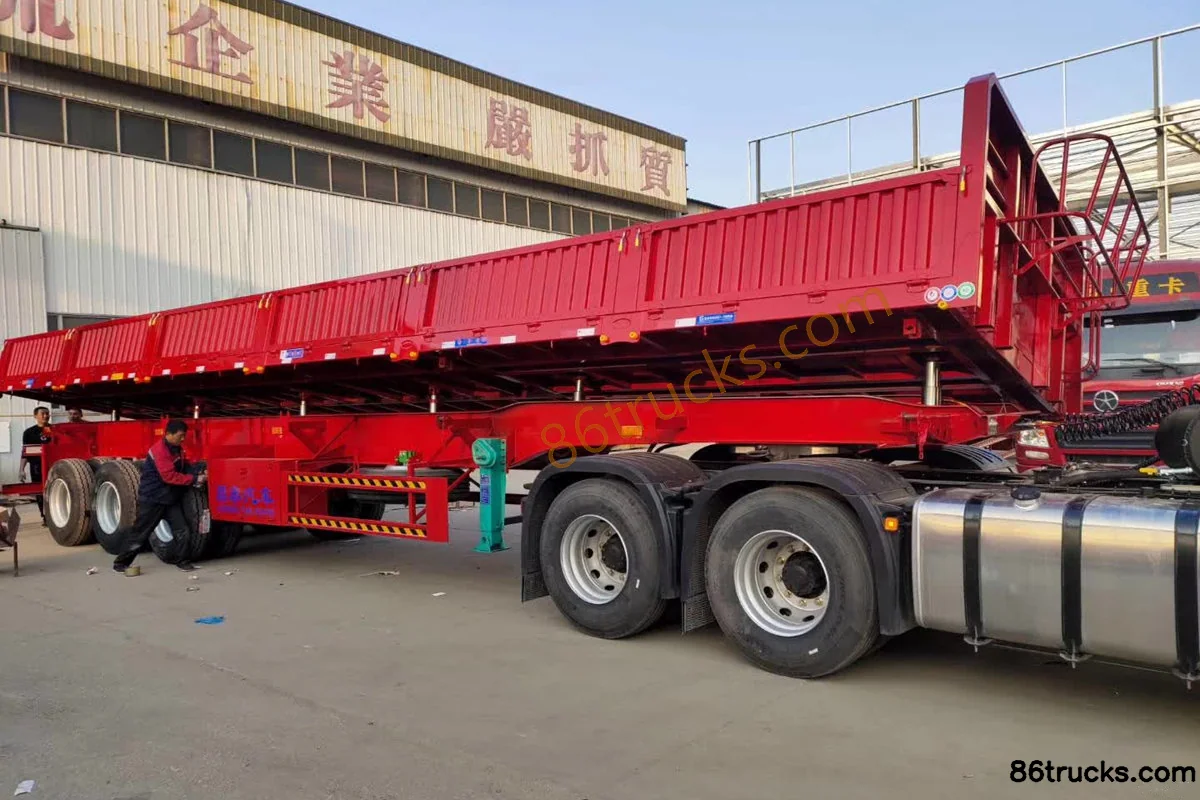

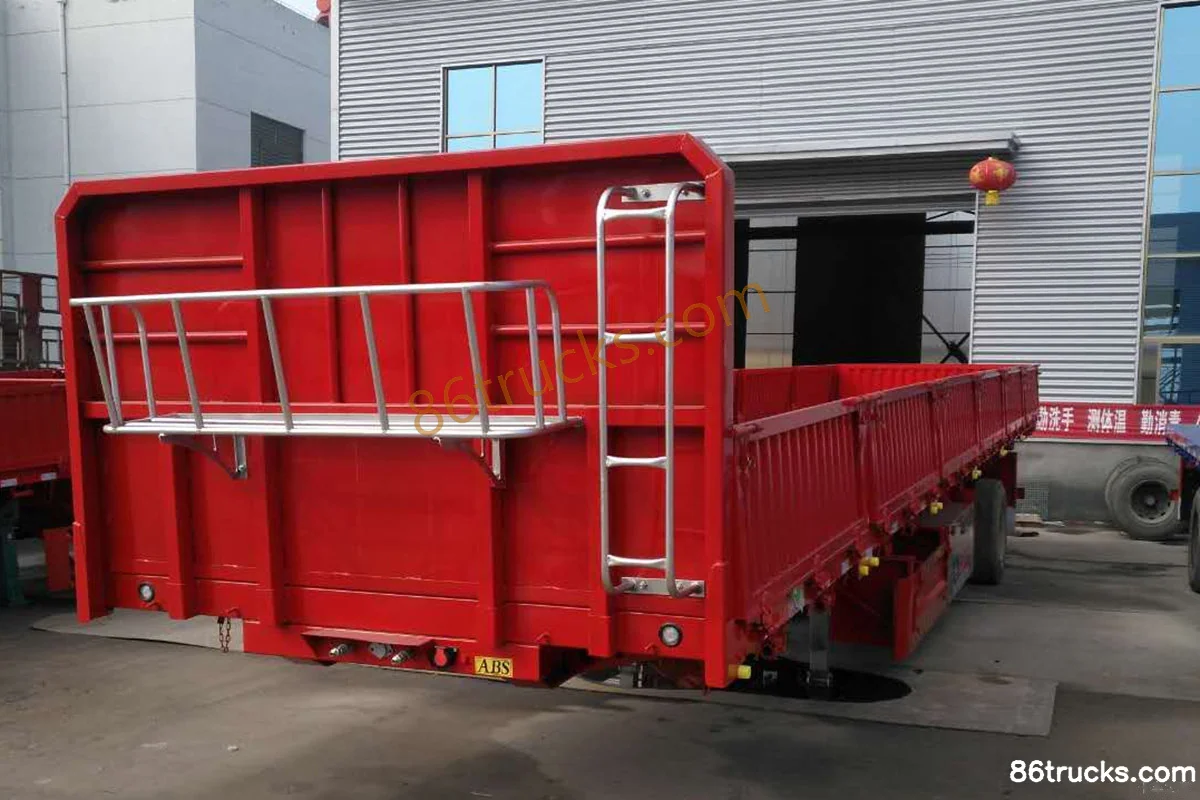

Photos

Exterior2

2 photos

FAQ

What is the export price of Changtai 13m side-dump semi-trailer, and what does it include?

Changtai 13m side-dump semi-trailer export reference is about From $9,444; MSRP is ¥6.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Changtai 13m side-dump semi-trailer suited for?

Changtai 13m side-dump semi-trailer is a dump semi-trailer model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Changtai 13m side-dump semi-trailer differ from other variants in the same series?

Changtai 13m side-dump semi-trailer belongs to Changtai 13m Series (dump semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Changtai 13m side-dump semi-trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Changtai 13m side-dump semi-trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
